1. About This Document
This document explains installation and operation of the SpectraLink Link 3000
MCU and Base Stations. The installation process connects the Link Wireless
Telephone System (Link WTS) to the facility’s telephone system, and activates the
Link Wireless Telephones.
1.1 SpectraLink Corporation Model Numbers
This document covers the following registered model numbers:
JPI300, MCS300, RCC400, RCO400, RCU100, RCU200, RCU201
1.2 Related Documents
Link 3000 MCU: Operator’s Console (72-0059-02)
Link 3000 MCU: Maintenance and Diagnostics (72-0059-04)
Link 3000 MCU: Facility Preparation (72-0059-05)
Link 3000 MCU: T1 Remote Module Installation (72-0059-06)
Link 3000 MCU: OAI Installation and Setup (72-0059-07)
Installing the Outdoor Base Station (72-0050-01)
Available at http://www.spectralink.com/consumer/resources/manuals.jsp.
LinkPlus Interface Guide (72-0171-xx where xx indicates a number corresponding to
the type of PBX)
Available at http://www.spectralink.com/consumer/resources/interface_guides.jsp.
1.3 Contacting SpectraLink
SpectraLink wants every customer to have a successful installation. Please refer
questions to the Customer Support Hotline at [phone]. The hotline is open
Monday through Friday, 6 a.m. to 6 p.m. Mountain time.
1.4 Icons Used in this Document
This manual uses the following icons and conventions.
Caution! Follow these instructions carefully to avoid danger.
Note these instructions carefully.
NORM This typeface indicates a key, label, or button on the MCU, Operator’s
Console screen, or Link Wireless Telephone (handset).

SpectraLink Corporation Installation
Link WTS – Link 3000 MCU
Part Number: 72-0059-01-J.doc Page 7
2. Installation Overview
Installation has three phases. In most cases, a separate person is responsible for each
phase.
1. Site preparation and wire installation: Usually done by a wire technician or
contractor, with the assistance of a customer representative such as a project
manager. Please refer to the Link 3000 MCU: Facility Preparation manual for
more information.
2. Installing the SpectraLink system: Done by SpectraLink or one of our certified
distributors.
3. Programming the customer’s telephone system to work with the SpectraLink
system: Usually done by the customer’s system administrator or technician.
Please refer to the LinkPlus Interface Guide for instructions on programming the
telephone system at the local site.
Because these major steps require some parallel activities, it is important to
coordinate the activities among the persons involved.The following table lists the
installation steps and the person typically responsible for each step.

SpectraLink Corporation Installation
Link WTS – Link 3000 MCU
Part Number: 72-0059-01-J.doc Page 8
2.1 Installation Steps and Responsibilities
9Task
Description
Wire
Contractor or
Electrician
Field Service
Engineer
Customer
Project Mgr/
Sys Admin
Site Preparation
Required materials provided by customer 9
Prepare location and arrangement of shelves 9
Prepare –48V power for shelves 9
Run cables to Base Stations 9
Terminate cables at Base Stations 9
Prepare and install demarc blocks 9
Program Telephone System ports 9
Connect cables from Base Stations and phone
lines to demarc blocks 9
Wire demarc blocks for Interface Modules 9
Install Shelves and Interface Modules
Survey site and check components 9
Install shelves 9
Install junction panel 9
Connect power to shelves 9
Install cards in shelves 9
Connect junction panel 9
Connect demarc blocks to Interface Modules 9
Install Base Stations
Install Base Stations in ceilings 9
Install Outdoor Base Stations 9
Check system diagnostics 9
Initialize System 9
Program handset features 9
Test System and Certify Site 9

SpectraLink Corporation Installation
Link WTS – Link 3000 MCU
Part Number: 72-0059-01-J.doc Page 9
2. Link Wireless Telephone System Description
This section generally explains the installation and site requirements of the Link
WTS. The Link WTS is a wireless communication system that allows hand-held Link
Wireless Telephones to communicate using the existing telephone system.
The Link WTS’s advanced micro-cellular architecture utilizes Base Stations, or cells,
located throughout the facility to accommodate on-premise roaming. As a handset
user moves within the coverage area, the call is seamlessly passed between cells. The
Link 3000 MCU supports up to 3,200 users and millions of square feet of coverage,
resulting in a scalable enterprise-wide wireless voice solution.
For simplicity, this manual refers to the existing wired phone system,
whether an on-premises PBX or Telco-provided Centrex system, as the
“telephone system.”
The Link WTS uses a micro-cellular design consisting of three primary components:
the Master Control Unit (MCU), Base Stations, and Wireless Telephones (handsets).

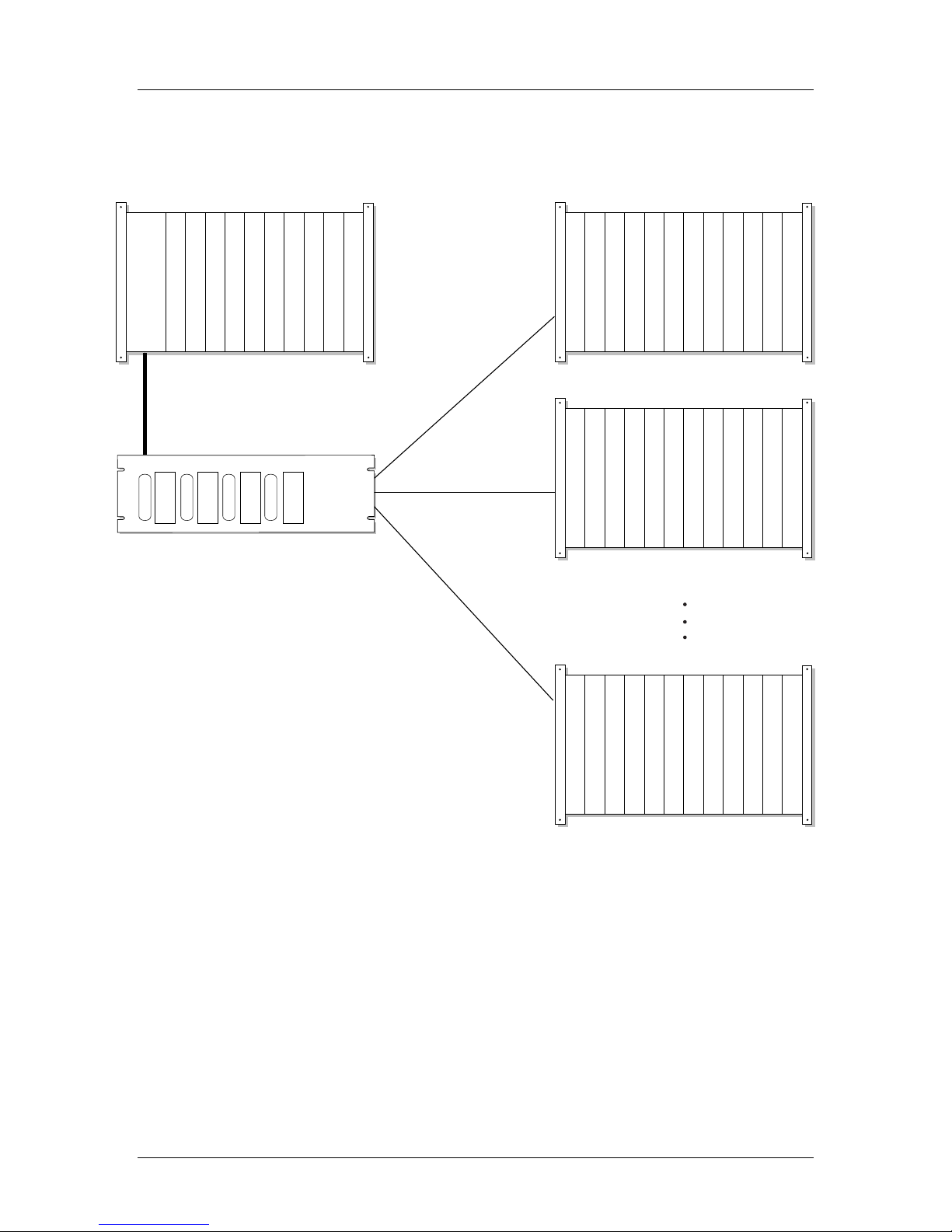

The following diagram shows an overview of the system.
Link Wireless Telephone System

SpectraLink Corporation Installation
Link WTS – Link 3000 MCU
Part Number: 72-0059-01-J.doc Page 10
3. Link Wireless Telephone System Components
3.1 The Master Control Unit
The Master Control Unit is the processing center for calls to and from the Link
Wireless Telephone System. It consists of at least one primary shelf (MCS300) and
may have up to 19 expansion shelves. Residing adjacent to the telephone switching
equipment, the MCU operates as a standalone, external system while maintaining full
PBX functionality for handset users.
The MCU connects to the telephone system in two ways. The MCU can either
interface with analog ports of the host telephone system or, in many cases, connect
directly to the telephone system (PBX or key/hybrid system) via a digital interface. A
digital interface provides the advantage that all switch features, such as call party
name display and multiple line appearances, are preserved for the end user.
The MCU provides connectivity from the telephone switch to the wireless system
components. Telephony ports for each handset are commissioned from the
telephone switch. Base Stations, which provide the wireless link to the handsets, are
wired directly to the MCU.
The Link WTS Topology
Components in the Link WTS are designed in a star topology. At the center is the
Link 3000 MCU. The primary shelf contains the system controller, which manages
the call processing for the wireless network. Additional expansion shelf controllers
manage intra-shelf calling and work with the system controller to pass calls within
the wireless network and to the telephony switch. All shelves provide universal slots
for up to ten Interface Modules. Interface Modules connect Base Stations and
handsets to the system. Up to 20 shelves can be connected together to maximize the
system capacity.
The following diagram illustrates a sample star topology for the Link WTS.

SpectraLink Corporation Installation
Link WTS – Link 3000 MCU
Part Number: 72-0059-01-J.doc Page 11
Link 3000 MCU - Star Topology
1 2 3 4 5 6 7 8 9 10 11 12
Empty - (Future Use)
Shelf Controller Card
1 2 3 4 5 6 7 8 9 10 11 12
Empty - (Future Use)
Shelf Controller Card
Interface Module Interface Module Interface Module Interface Module Interface Module
Interface Module
Interface Module Interface Module Interface Module Interface Module Interface Module
Interface Module Interface Module Interface Module Interface Module Interface Module Interface Module Interface Module Interface Module Interface Module
1 2 3 4 5 6 7 8 9 10 11 12
Empty - (Future Use)
Shelf Controller Card
Interface Module Interface Module Interface Module Interface Module Interface Module Interface Module Interface Module Interface Module Interface Module Interface Module
1 2 3 4 5 6 7 8 9 10 11 12
System Controller Card
Interface Module Interface Module Interface Module Interface Module Interface Module Interface Module Interface Module Interface Module Interface Module Interface Module
Shelf 1 - Primary Shelf Shelf 2 - Expansion Shelf
Shelf 3 - Expansion Shelf
Shelf 20 - Expansion Shelf
Intershelf Junction Panel

SpectraLink Corporation Installation
Link WTS – Link 3000 MCU
Part Number: 72-0059-01-J.doc Page 12
Shelf
Shelves are designed for 19” rack or wall mounting. Each shelf has 12 universal card
slots. The first two slots are reserved for controller cards, the remaining ten slots are
for Interface Modules. Wiring to each card is on the front panel. Power is -48V DC
through the back or side panel.
System Controller (CSC or CSO301, 306, and 320)
Each system requires one system controller card, which occupies two slots (slots 1
and 2) in the main shelf. The system controller supports call routing within the entire
system and to external ports. Each model number of System Controller (301, 306,
and 320) supports a different number of expansion shelves. The CSO model System
Controller supports Open Application Interface (OAI) enabled expansion shelves.
Two RS-232 serial ports are provided on the system controller. Serial ports can be
used for multiple purposes, including local administration, remote administration and
diagnostics (via modem), OAI applications and call detail recording. One standard
10-base T Ethernet port is also provided (for future use).
Expansion Shelf (CSC300, CSO300)
An Expansion Shelf Controller (CSC300) resides in slot 2 of each expansion shelf.
The Expansion Shelf Controller manages intra-shelf traffic and communicates with
the system controller. The CSO300 Expansion Shelf Controller supports an OAI
enabled expansion shelf.
Part Numbers with a CSO prefix have the same functionality and
capacity as the corresponding CSC Part Numbers and also support the
Open Application Interface(OAI)
Interface Modules (CPA, CPU, CPM, CPP, CPF316)
Telephone line and Base Station connections are made to the Interface Module.
Each card provides 16 line (handset) interfaces and 6 Base Station interfaces.
Interface Modules are installed in slots 3 through 12 on a shelf. Interface Modules
include: Analog (CPA316), Universal (CPU316), Mitel interface (CPM316), four-wire
digital (CPF316), and Panasonic (CPP316). The Interface Module type is defined via
the Operator’s Console and software when the card is installed. Interface Modules of
different interface types can be mixed within a shelf.
Interface Modules are “hot swappable”; they can be removed and replaced without
affecting service on the rest of the system.
Intershelf Junction Panel (JPI300)
The Intershelf Junction Panel (JPI300) connects Expansion Shelf Controllers on
expansion shelves to the system controller, creating a completed communication
channel between network elements. The Intershelf Junction Panel physically
connects the network, converting RJ-21 connections from the System Controller to
the RJ-45 connection on the Shelf Controller.

SpectraLink Corporation Installation
Link WTS – Link 3000 MCU
Part Number: 72-0059-01-J.doc Page 13
3.2 Base Stations
Radio Base Stations,or cells, provide the communication channel between the MCU
and the handsets. The Base Station and handset use digital spread spectrum radio
transmission in the 902-928 MHz frequency band.
Each Base Station supports multiple users and covers a transmission area in excess
of 50,000 square feet. The signal propagation is dependent on transmission
obstructions within the building. A call is passed from one Base Station to another as
the user walks throughout the coverage area. The Link WTS is designed to provide
seamless coverage, enabling real-time hand-off of active calls.

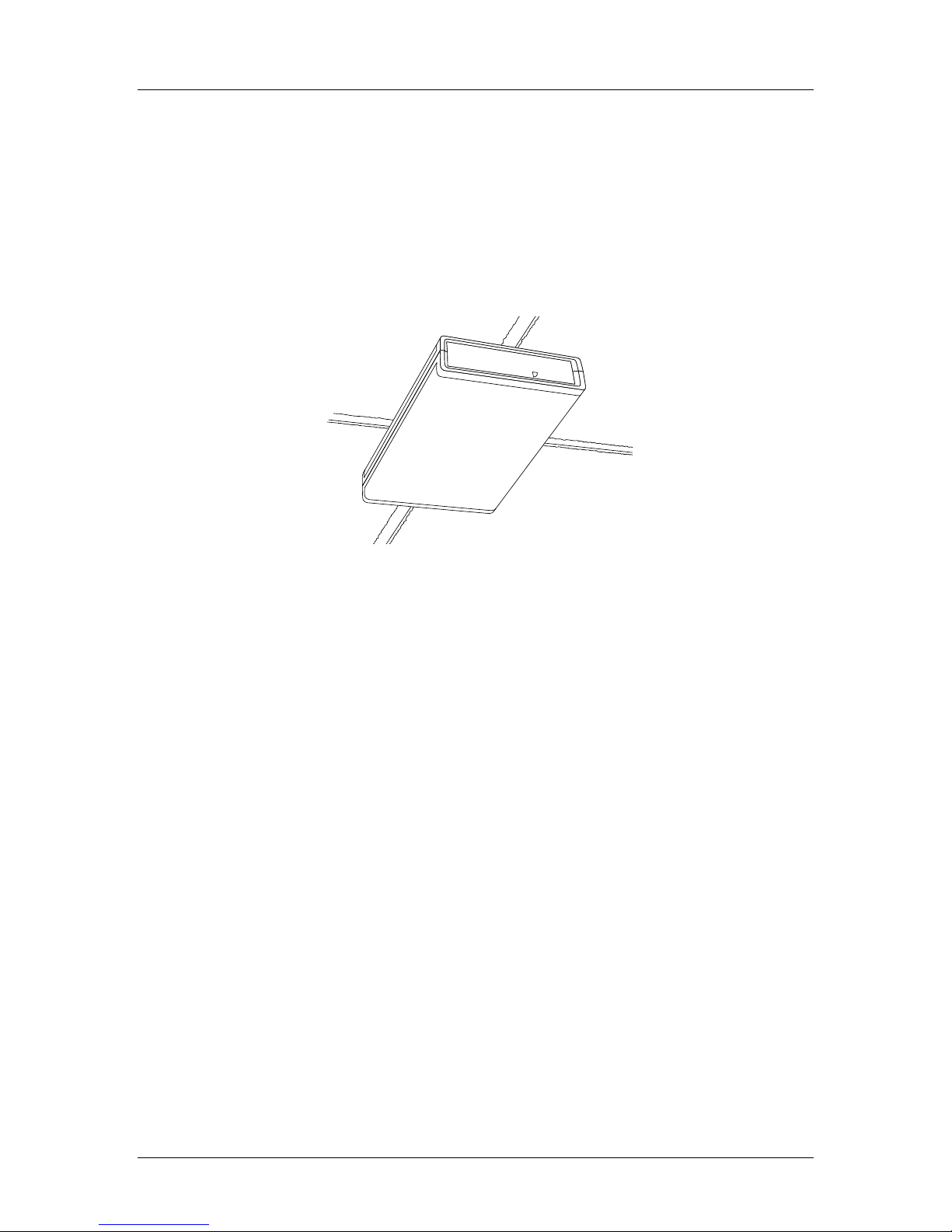

SpectraLink
Base Station
ccLink Wireless Telephone System
The ccLink Wireless Telephone System (WTS) is designed to meet the high
simultaneous call capacity and advanced level of telephone feature integration of the
call center environment. The ccLink WTS uses a special High Density Base Station
which can be installed with minimal spacing (as little as 20 feet between Base
Stations.)

SpectraLink Corporation Installation
Link WTS – Link 3000 MCU
Part Number: 72-0059-01-J.doc Page 14
3.3 Link Wireless Telephones
The Link Wireless Telephone is a durable wireless telephone that operates with all
the functionality of a wired desk phone. Weighing only six ounces and ergonomically
designed, the handset is comfortable and easy to use. The monolithic design of the
handset, with no moving parts, will withstand a physically demanding work
environment. The handset’s alphanumeric display supports messaging from either
the telephone switching equipment or an external data application. The handset
provides up to four hours of talk time and 80 hours of standby between battery
recharges.
When the Link WTS is connected to the telephone system using analog ports, the
handset will provide many of the calling features of a desk phone, including transfer,
conference calling, and hold. When the system is digitally interfaced to the phone
system, the handset will also support the advanced features of the host telephone
system such as calling party name display and multiple line appearances.

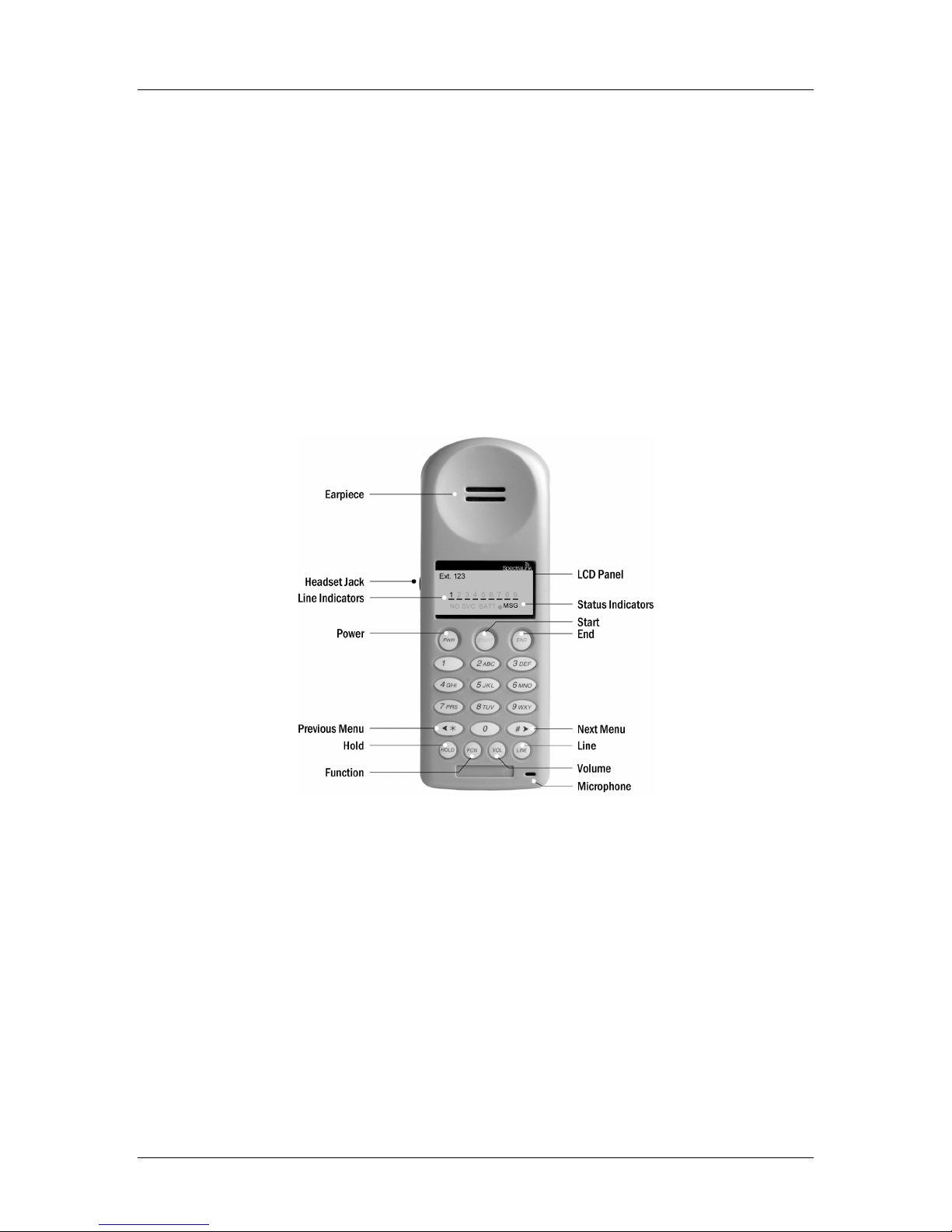

The Link PTB 4xx Wireless Telephone
Each handset requires a line appearance (port) from the telephone system. Typically
the handset extension number corresponds with the user’s internal telephone
extension number. On most switching systems the user’s desk phone and the
handset port can be bridged so that incoming calls ring both phones simultaneously.
3.4 Operator’s Console
The system uses a proprietary software program for administration and maintenance.
The software is loaded to the Operator’s Console, an IBM-compatible personal
computer, located close to the Link 3000 MCU. The PC is used to register each
handset and Base Station, enter user information, monitor system operations, and
initiate remote diagnostics.

SpectraLink Corporation Installation
Link WTS – Link 3000 MCU
Part Number: 72-0059-01-J.doc Page 15
4. Site Preparation
The following steps must be completed before installing the system hardware. If the
steps are not already completed refer to each individual section for details.
MCU location prepared. Typically the MCU is installed in the telephone
equipment room. This location must have sufficient backboard space or rack
space, and -48 volt power available.
The correct number of cross-connect blocks (or equivalent) are installed and
connected to a 25-pair Telco wire terminated with an RJ-21 male connector at
the MCU location. The number of blocks required depends on the number and
type of Interface Modules installed. Refer to section 4.6 Prepare Demarc Blocks
for more information.
A two pair cable to each Base Station as designated on the building floor plans.
The Base Station wiring is terminated with RJ-45 crimp-on plugs at the
designated Base Station locations. Refer to section 4.5 Terminate Cables at Base
Station Locations for more information.
The Base Station wire is terminated at the appropriate cross-connect demarc
blocks. Refer to section 4.9 Connect Cables from Base Stations and Phone Lines to
Demarc Blocks .
The analog or digital phone extensions from the phone system are terminated at
the appropriate cross-connect demarc block and the block is labeled. Refer to
section 4.9 Connect Cables from Base Stations and Phone Lines to Demarc Blocks .
A dedicated dial line is available with an RJ-11 jack for the diagnostic modem.
An IBM-compatible PC is available to serve as the Operator’s Console for
system administration.
A system administrator is designated for the SpectraLink system. This person
should be present for the installation. The SpectraLink field service engineer will
provide system training to the system administrator on the day following the
installation.
4.1 Required Materials Provided by Customer
Required Hardware
Rack The shelves are designed to fit into a 19” mounting rack. Each shelf
measures 15” high x 19” wide x 9” deep, and weighs approximately 35 pounds
fully loaded.

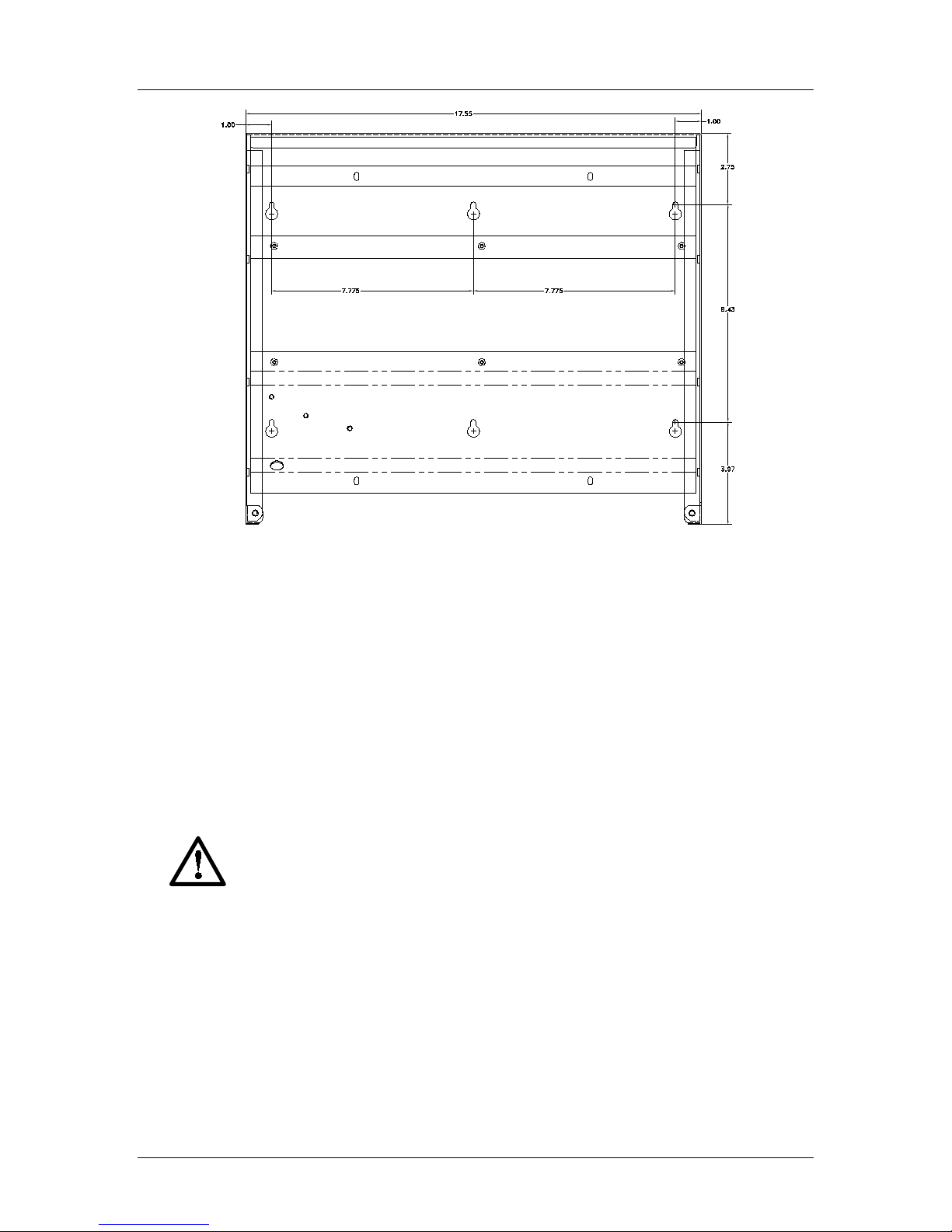

Backboard Space As an alternative to rack mounting, the shelves can be wall
mounted to 3/4” plywood securely screwed to a wall.
Screws Required to mount the shelves to the wall, or to secure it in the rack.
For wall mount, six #10 5/8” panhead wood screws (or similar device) are
required. For rack mount, screws required are determined by the rack
requirements; typically 10-32 or 1/4-20. For multi-shelf systems, four 1.75” #8
panhead wood screws are required to secure the Intershelf Junction Panel to the

SpectraLink Corporation Installation
Link WTS – Link 3000 MCU
Part Number: 72-0059-01-J.doc Page 16
backboard, along with standoffs at least 1.5” long with 1/4” inside diameter.
Power and Conduit -48V Power Source and conduit for connection, either
1/2” BX metallic or NMX conduit. Three #8 insulated rings for use with #14
AWG wire are required for each MCS300 to be installed.
25-Pair Cables RJ-21 male at MCU end, required to connect the shelves to the
cross-connect blocks.
Cross-Connect Blocks Required to connect the PBX ports and the Base
Stations to the MCU.
Quick Clip Fuse Required with an RCO400 Outdoor Base Station or when a
Base Station is located in a separate building from the Link 3000 MCU.
Recommended Quick Clip Fuse is available from Reliable Electric, Model #
RSCP-2.
Ladder SpectraLink installation crew will require a ladder to reach the Base
Station locations. Ensure that a ladder of adequate height is available for the
crew’s exclusive use upon arrival.
Operator’s Console PC
A PC must be available to perform system administration and diagnostics The PC
must conform to the following specifications:
•An IBM-compatible personal computer, 486 or above (with a 16 MHz clock or
faster)
•A hard disk with at least 2 Mbytes free space
•At least 640k bytes of RAM
•MS-DOS 3.2 (or later), or MS-Windows 95 (or above) or NT
•A 3 1/2” floppy-disk drive (high density, 1.44 Mbytes)
•One RS-232 serial port for connection to the system controller
If remote access is required, the customer must supply an external modem, 9600
baud or faster.
System Administrator
One person (or more, depending on the size of the system) must be designated as
the system administrator for the Link WTS. This person is often also the company’s
telephone system administrator. This person should know the location of the
company’s current telephone equipment, have access to the telephone room, know
the telephone system’s feature codes, and should be present for the installation. If
there is not currently a person carrying out such duties, someone must be designated
as system administrator.
The system administrator’s tasks are minimal but may take up to two hours per week
for a large system. The system administrator should have access to the location of
the SpectraLink system and be competent to perform the following functions:
•Swap system components (handsets, Base Stations)

SpectraLink Corporation Installation
Link WTS – Link 3000 MCU
Part Number: 72-0059-01-J.doc Page 17
•Swap an Interface Module
•Perform or direct basic moves, adds and changes to a telephone system
•Perform or direct the receiving and shipping of components
•Train users with video and handouts
The system administrator should be available for training at the time of the
SpectraLink installation. The system administrator is given unlimited access to the
Customer Support Hotline for additional assistance.
Union Labor
In some areas strict labor union rules will preclude the SpectraLink representative’s
ability to install the equipment without union assistance. If such rules are in force in
the local area, the customer must ensure that sufficient union help is available at the
scheduled installation time to carry out the following functions:
•Install Base Stations
•Move and reinstall Base Stations
•Make cabling changes at cross-connect blocks
•Run cables
•Make and modify electrical connections
4.2 Prepare Location for Shelves
The MCU, composed of up to 20 shelves and one Intershelf Junction Panel, is
usually installed in or near the telephone equipment room. If this is not possible, the
MCU can be located anywhere that the telephone system lines are accessible.
The number and arrangement of the system shelves depends on the size and
configuration of the system.
System Controller Part
Number
Shelves
Supported
Base Stations
Supported
Users
Supported
CSC301/ CSO301 1 60 160
CSC306/ CSO306 6 360 960
CSC320/ CSO320 20 1,000 3,200
Consideration should be given to:
•Environmental conditions. The system outputs 28 BTUs per hour, per interface
module.
•Space for the backboard or rack.
•Space for the shelves, which are designed for 19” rack or wall mounting.
Each shelf measures 15” high x 19” wide x 9” deep, and weighs approximately
35 pounds fully loaded.

SpectraLink Corporation Installation
Link WTS – Link 3000 MCU
Part Number: 72-0059-01-J.doc Page 18
Expansion shelves cannot be located more than 17 cable feet from the Primary
Shelf.
•All digital interface modules must be within 250 feet of the telephone system.
See your telephone system specifications for distance limitations for analog
modules.
•Location of the Intershelf Junction Panel (JPI300) adjacent to the shelves on a
multi-shelf system.
The Primary Shelf containing the System Controller (CSC or CSO306 or 320)
must be mounted to allow connection to the JPI300 with a five-foot cable.
Expansion Shelves (CSC300 or CSO300) must be mounted to allow connection
of the shelf to the JPI300 using 12 feet or less of cabling.
•Space for the -48V power supply connections. Power supply conduit requires
clearance of 1.5” on the rear or side of the shelves.
•Maximum loop length specifications of the telephone system
•Maximum wire distance from the MCU to a Base Station (6,000 feet)
•Cabling for the Interface Modules and Controller cards. All cables (except
power) are connected to the front face of the cards. Space is provided to route
wiring to the back of the shelf.
Prepare Rack or Wall
The Link 3000 MCU can be mounted in a rack or on the wall. Rack or wall support
must be adequate to support the number of shelves to be installed. Each fully loaded
Link 3000 MCU shelf weighs approximately 35 pounds.
Rack Mounting
Before installing shelves in a rack, be sure the rack is mechanically fastened to the
floor or wall such that it properly supports the number of shelves to be mounted.
Follow the manufacturer’s instructions to prepare the rack.
Be sure to leave 1.5” clearance at the rear of the racks for power conduit.
Wall Mounting
Before wall mounting, cover the wall with 3/4” plywood. Secure the plywood to the
wall studs every 16” with an adequate number of screws to support the number of
shelves to be mounted. Each fully loaded shelf weighs approximately 35 pounds. Be
sure to leave 1.5” clearance on the left side for power conduit.
Using the following drawing as a guide, drill six pilot holes using a 1/8” drill bit.
Insert the six screws (#10 panhead wood screws, 5/8” long) into the pilot holes and
tighten them, leaving approximately 1/8 to 1/4” gap from the wall.

SpectraLink Corporation Installation
Link WTS – Link 3000 MCU
Part Number: 72-0059-01-J.doc Page 19
Wall Mounting Dimensions
4.3 Prepare Power for Shelves
The Link 3000 MCU requires a -48V DC power source. The -48V connection is
comprised of three wires: -48, +48 (neutral), and ground.
SpectraLink recommends that a licensed electrician install the -48V power source. It
must be installed according to current National Electrical Code (NEC) or National
Fire Protection Code standards, in accordance with all local and municipal electrical
code recommendations.
Use of 14 AWG wire is recommended.
See section 5.5 Connect Power to Shelves for more information on power connections.
When connecting the -48 V DC system to power, note the
following precautions:
A 30 amp circuit breaker must be present on the non-grounded DC
circuit conductor, and the installer must ensure that means are provided
for connection of the equipment to the DC source by permanent wiring
methods, and no disconnecting device is located in the grounded DC
circuit conductor between the point of connection to the supply and the
point of connection to the grounding electrode and equipment
grounding conductors.
4.4 Run Cables to Base Station Locations
The Base Station locations should be designated on the building floor plans provided
to the field service engineer. Base Stations can be mounted easily on raised or

SpectraLink Corporation Installation
Link WTS – Link 3000 MCU
Part Number: 72-0059-01-J.doc Page 20
acoustical ceiling tiles, or on the wall. Avoid locating Base Stations in high or hard-
to-reach places, as this will hinder maintenance, testing, or repositioning.
Wire Specifications
The customer’s wire contractor is responsible for adhering to all local
codes for wiring.
SpectraLink recommends UL-listed wire that conforms to the following
specifications for AWG, distance, and number of power pairs required for this
installation.
Power
Pairs
Max Cable Feet
22 AWG
Max Cable Feet
24 AWG
Max Cable Feet
26 AWG
1 6,000 3,800 2,400
2 N/A 6,000 4,800
3 N/A N/A 6,000
One additional pair is also required for Data.
For wire runs of less than 3,500 feet, attenuation must not exceed 6.8
dB/1,000 feet at 772KHz.
For wire runs between 3,500 and 6,000 feet, attenuation must not exceed
4.5 dB/1,000 feet at 772KHz.
Wire that is already installed (spare house cable) can be used when it is available.
House cable will usually run from the MDF in the telephone equipment room to
intermediate distribution frames (IDFs) spread throughout the facility. Install new
wire from the closest IDF to the Base Station. Be sure no bridge taps, multiples, or
“Y” connections are created or present.
Determine the amount of wire needed to connect the Base Station to the MCU by
scaling from a floor plan or a sketch, pacing, measuring, or estimating. Remember to
include enough wire to reach the ceiling.
The wire length between the MCU and each Base Station may not exceed
6,000 cable feet.
Install an extra 25 feet of wire at the Base Station to allow for possible
relocation.
Pull Cable
Pull the cable from the MCU location (usually in the telephone equipment room) to
the Base Station locations designated on the floor plans.
If the cabling exits the building, refer to section 6.3
Install Outdoor Base
Stations .
Run all cable before attaching the RJ-45 connectors to the Base Stations. Label both
the demarcation block end and the Base Station end of each wire with the Base
Station number using a wire tie marker or other form of marker.
