Spectrum industries Freedom xrs elite lectern User manual

Important

Before using this product:

• Read this manual

• Comply with all safety and operating instructions

• Ensure all parts and correct quantities are included

Important

Avant d’utiliser ce produit:

• Veillez à lire ce guide

• Respectez les consignes de sécurité et d’utilisation

• Vériez que vous disposez de toutes les pièces

nécessaires à l’installation

Importante

Antes de utilizar este producto:

• Lea este manual

• Cumpla con todas las instrucciones de prevención de

accidentes y operativas

• Revise que todas las partes y las cantidades correctas

estén incluidas

Any parts damaged during shipment must be reported within 5

days of receipt. To report information regarding missing parts or

damage, to purchase parts or accessories, or if you have any

questions, please contact us.

Thank you for purchasing Spectrum products!

Les pièces endommagées pendant le transport doivent faire

l’objet d’un rapport dans les 5 jours de leur réception. Veuillez

prendre contact avec nous si des pièces manquent ou sont

abîmées, si vous avez des questions, ou encore pour acheter

des pièces ou des accessoires.

Merci pour votre achat d’un produit Spectrum!

Si alguna parte se dañó durante el embarque, deberá reportarla

en un lapso de 5 días a partir de la recepción. Para reportar

cualquier información sobre partes faltantes o dañadas, para

adquirirlas o comprar accesorios, o bien, si tiene alguna duda,

póngase en contacto con nosotros.

¡Gracias por adquirir productos Spectrum!

Owner’s Manual

Le manuel du propriétaire

El manual del propietario

Video

Vidéo

Vídeo

Specs

Spécications

Especicaciones

800-235-1262

www.spectrumfurniture.com

Owner’s Manual

0118857R12 Page 1 of 20

Freedom XRS Elite Lectern™

55289

XRS Elite with surround, keyboard tray,

and rack cabinet installed on left

(shown retracted)

XRS Elite with overbridge, keyboard tray,

and rack cabinet installed on right

(shown extended)

Pallet

Figure 1

Ramp

Assembly / Setup

0118857R12 Page 2 of 20

Utility knife

1. Unloading lectern

1. Cut and remove banding using a utility knife, scissor, or other cutting tool.

2. Remove steel corners by removing screws using Phillips screwdriver.

3. Open top of box by unfolding aps.

4. Remove plywood ramp from package. Place on oor next to the pallet. Figure 1.

This will be used to unload the lectern off the pallet.

5. Remove cardboard sleeve by lifting it up and over the lectern.

6. Remove protective shrink-wrap from lectern using a utility knife, scissor, or other

tool. Be careful not to damage the lectern when cutting shrink-wrap

7. Remove Styrofoam corner blocks.

8. Using ramp, carefully lower the lectern off the pallet onto the oor.

Note: Upon receiving lectern, inspect packaging for damage. To report

information regarding damages, please call 1-800-235-1262 within 5

days of receipt.

0118857R12 Page 3 of 20

2. Lectern lift mechanism initial setup,

operation, and reset procedure

Figure 2.1

CAUTION

Keep clear of pinch points during worksur-

face movement. Note: The lift actuators

provide 540 lb of lift.

Figure 2.2

CAUTION

Always unplug the lectern before working under the worksurface. Do not place

anything under the worksurface when operating lift. Although this lectern utilizes an

anti-collision feature that briey stops and reverses the worksurface motion in the event

of an obstruction, use caution when raising or lowering. Do not sit at, under, or on the

worksurface when operating the lift mechanism and be sure lectern movement does not

interfere with objects or people. Use caution when raising or lowering the worksurface!

Preparation:

• Read all instructions before operation.

• Make sure lectern is plugged-in using the 15-foot, 15-amp power cord.

• Locate the “Up” and “Down” control buttons. Control pad is located on the instructor-

side under the worksurface front edge on opposite side from rack cabinet.

• Keep clear of pinch points during worksurface movement.

Normal Operation:

To raise or lower the lectern, press and hold the “up” or “down” arrow keys on the control

pad until the worksurface reaches the desired height. The worksurface can be adjusted

from 32.5”H (minimum) to 40”H (maximum).

Control buttons

DownUp

Note: The lectern has a load-sensing, anti-collision feature

programmed into the controller that actively locks out the

lift mechanisms when unbalanced loads are encountered;

i.e. an obstruction under the worksurface, or weight from a

person sitting on one side of the lectern.

0118857R12 Page 4 of 20

From the audience-side of the lectern, position the audience-side

skirt as shown and hook the (2) pre-installed screws into the (2)

keyhole slots in the lectern base. Figure 3.1, 3.2.

Figure 3.1

Note: The skirt has been designed to be installed tool-free with the lectern

upright. Do not tip the lectern to install.

The skirt should be removed when the lectern will be moved over long

distances or thresholds to prevent damage to the skirt panels.

3. Install 3-piece skirt

Figure 3.2

Audience-side skirt

Lectern Base

Keyhole

Slot

Pull the audience-side skirt back (toward audience) to lock the

screws into the keyhole slots. Figure 3.2.

Lectern Base

Audience-side skirt

Figure 3.4

Figure 3.3

Pull side skirt here to

lock into the rotated

keyhole slot

Access from

Instructor-side

Magnet

Position each side skirt as shown and hook the (2) pre-installed

screws into the (2) keyhole slots and move toward the audience-

side to lock in place. The short at skirt edge should contact the

audience-side skirt, and it should be level with the oor. Figure 3.3.

Audience-side Instructor-side

Pull the instructor-side of the skirt back at an angle to lock the

screw into the rotated keyhole slot. The side skirt should now be

parallel with the lectern base. Figure 3.3. Install the magnet as

shown to secure side skirt. Figure 3.4. The magnet needs to be

fully-seated and contacting the lectern base.

Pre-installed screw and

rotated keyhole slot

Lectern Base

Side skirt

Pre-installed screw

and keyhole slot

Pre-installed center screw not used

Audience-side view

Side view

Pre-installed screw

and keyhole slot

Pre-installed screw

and keyhole slot

Nylon washer

on bottom

0118857R12 Page 5 of 20

The symmetrical door can easily be removed or switched to be hinged from

left or right using the quick-release hinge lever located on the door. Figure 4.3.

The nylon washer needs to be located on the bottom of the door.

Figure 4.3

Quick-

release

lever

Quick-

release

lever

Rack Cabinet - optional

The removable rack cabinet (14RU front, 10RU rear) simplies

installation and provides the ability to integrate equipment

remotely, and docked into the lectern at a later date. Figure 4.1.

Detaching Cabinet

1. To detach the rack cabinet from the lectern, unlock the

cabinet lock pawl near the oor. Figure 4.2.

2. Slide the cabinet toward the center of the lectern to release

the cabinet from the keyhole slots.

Rack cabinet

(shown on right-

side of lectern)

Docking Cabinet

1. To secure the rack cabinet to the lectern, position the

cabinet on the left, or right-side of the lectern.

2. Engage the keyhole slots and slide the cabinet toward the

outside leg of the lectern to secure.

3. Lock the cabinet lock pawl near the oor.

Bottom of

Rack cabinet

Lock pawl secures

cabinet to lectern Keyhole slots

Keyed lock

(one on

each side)

Figure 4.2

Figure 4.1

Keyed lock

(one on each side)

Rack

cabinet door

Quick-Release Door

0118857R12 Page 6 of 20

Flip-up shelf installation & operation - optional

8-32 x 1/2” PH

thread-cutting screws

(Install lower 4 rst)

Figure 5.1

XRS Elite

Lectern

Flip-up shelf

assembly

1. Extend the lectern fully to its highest position and determine which

side you prefer to mount the shelf.

2. Extend each shelf bracket to by depressing the release lever and

lifting until it locks into the 90° position. Figure 5.1.

3. Install the (4) lower 8-32 x 3/8” PHM screws into the side panel

leaving about 1/4” of threads exposed.

4. Set the shelf assembly onto the (4) lower screws using the

notched brackets.

5. Secure the shelf assembly by installing the (4) upper 8-32 x 3/8”

PHM screws.

6. Tighten all screws securely.

CAUTION

Keep clear of pinch points during shelf movement.

Do not exceed 35 lbs [15.9 kg] of weight on shelf.

Figure 5.2

Folding shelf

bracket

Release lever

(press here)

Operation

The shelf will automatically lock into place when lifted into the horizontal

position with the levers released. Figure 5.2. To lower or ip-up the shelf,

press and hold the shelf bracket levers while slowly lowering or raising the

shelf. Do not move the lectern while the shelf is in the horizontal position.

Installation video available

See www.spectrumfurniture.com

Figure 6.1

4mm hex

wrench

Tools Required

Jigsaw

Router

Drill

Measuring

device

Pencil

Masking

tape

Drill bit

0118857R12 Page 7 of 20

1/4-20 x 35mm

JC bolt

Overbridge

panel

1/4-20 x 35mm

JC bolt

1. To remove the overbridge insert panel, remove the (2) 1/4-20 x 35mm JC bolts with a

4mm hex wrench and lift out the panel. Figure 6.1.

2. To make cutouts in the insert panel [optional]:

A. Identify all location(s) and sizes for controller(s) or electronics while making sure

all devices t within the maximum cutout space available in the overbridge panel.

See Figure 6.2, 6.3. See specications for cutout clearances.

B. Locate and mark the exact cutout area(s) on the panel.

Note: Using masking tape on cut lines will minimize laminate chipping while cutting.

C. Carefully make the cutout(s) in the overbridge panel using a jigsaw or router.

3. Install controller(s) / electronics into panel.

4. Re-install the overbridge panel and secure with (2) 1/4-20 x 35mm JC bolts.

Note: Blank overbridge panels require the cus-

tomer to make necessary cutouts with a jigsaw

or router. This has a moderate difculty rating,

so experience and skill with tools is required.

Overbridge insert panel - optional

0118857R12 Page 8 of 20

Figure 6.2

Figure 6.3

Note: The Overbridge Control Console™has been designed

for many of the currently available controllers on the market,

however, modied cutouts should be reviewed by Spectrum

to ensure clearance of brackets, keyboard slides, or other

objects under the worksurface.

Contact Spectrum to specify cutout size(s) and location(s).

Cutouts can be made in the blank insert panel by the

customer after the lectern has been purchased, but are

only recommended within the cutout area shown.

Max cutout area

Overbridge panel

Wiring Channel

Overbridge

Section view B-B

Worksurface opening below

Worksurface

Freedom XRS Elite Lectern overbridge insert panel blank

(at view)

2” Grommet2” Grommet

Wiring Diagram

Figure 7.1

0118857R12 Page 9 of 20

Control box

Figure 7.2

Note: Extending the worksurface

will provide access to the cord

channel and control box.

Note: A separate power strip is recommend-

ed (not included) to plug the control box and

other power plugs into. The power strip can

be located in the cord channel or lower side

of the lectern, and plugged into a wall outlet.

Note: Power cord can be

plugged into a power strip

(not included) inside lectern.

Up / Down

buttons

Control box

To wall

outlet

Actuator Actuator

Power

plug

Figure 7.4

Figure 7.3

Note: Leave enough slack

in the cords and wires

from the rack cabinet to

pull the rack cabinet out

from the lectern.

Cords and wires

from Rack Cabinet

Rack Cabinet

0118857R12 Page 10 of 20

Bottom view

2” Grommets for

oor power access

Rack cabinet

0118857R12 Page 11 of 20

Moving and parking the lectern

• Before moving, unplug and secure all power cords.

• Close and lock doors.

• Remove any items from the top of the worksurface.

• Unlock the casters.

• Push slowly and carefully. Do not move over uneven or irregular surfaces.

• Do not allow children to move.

• Lock the casters after moving.

• Do not park unit in areas of heavy trafc.

• Do not run power cords across hallways, classrooms, or other areas

where they will be walked on.

• Do not leave unit unattended in areas where children have access.

• Keep doors closed and locked whenever unit is unattended or parked.

• Keep casters locked whenever the lectern is unattended.

Caster operation

Figure 8

1. Lock the brake levers to lock movement of the casters.

(Two instructor-side casters only). Figure 8.

2. To resume operation, lift up on brake levers.

Brake lever

Note: The skirt should be removed when the lectern

will be moved over long distances or thresholds to

prevent damage to the skirt panels.

Accessories (Available separately after initial congured purchased)

0118857R12 Page 12 of 20

24.625”D

[62.5 cm]

15.25”W

[38.7 cm]

Customized Logo Panel - 55389

• Attaches to audience-side of lectern

• To get panel customized-contact Spectrum for details

• New logos require a rst-time logo charge

Dimensions: 35.25”W [89.53 cm] x 9”H [22.86 cm]

Available logo area: 35”W [88.91 cm] x 9”H [22.86 cm]

YOUR LOGO HERE

Rack Cabinet - 55297

• One rack cabinet attaches to the left or right side of the XRS Elite Lectern

(opposite keyboard tray and wiring panel)

• Locking door can be ipped to be hinged left or right

• Locking side hatches

• Open back

• Acrylic panel in door

• Roller glides under the cabinet provide easy repositioning for quick and

easy access (not intended for long-range transport).

• Customer-installed

Front rack rail: 14RU

Rear rack rail: 10RU

Dimensions: 20.6”W [52.3 cm] x 27.3”D [69.3 cm] x 28.8”H [73.2 cm]

Shipping weight: 65 lb [29.5 kg]

Logo area available

Flip-up Shelf - 55333

• Shelf hinges lock into place in the upright position

• Shelf installs level with worksurface

• Mounts on left or right

• Available in matching, or White Chalk Dry Erase laminate

Dimensions: 15.25”W [38.7 cm] x 24.625”D

[62.5 cm] x 1”H [2.54 cm]

Weight capacity: 35 lb [15.9 kg]

Shipping weight: 20 lb [9.1 kg]

0118857R12 Page 13 of 20

Overbridge Insert Panel-Medium - 96504

• Panel for overbridge version only (overbridge not available separately)

• Contact Spectrum to specify cutout size(s) and position(s)

• Includes two 2” [5.08 cm] grommets with covers

• Customer-installed

Dimensions: 27.25”W [69.2 cm] x 9”D [22.9 cm] x .79”H [2 cm]

Unit weight: N/A

Shipping weight: 8.5 lb [3.9 kg]

Insert panels are available to customers needing a replace-

ment panel or different cutouts for technology upgrades.

Two-piece Overbridge Insert Panel-Medium - 96512

• Split panel for overbridge version only

• Contact Spectrum to specify cutout size(s) and position(s)

• Includes 2” [5.08 cm] grommets with covers

• Customer-installed

Dimensions: 13.625”W [34.6 cm] x 9”D [22.86 cm] x .79”H [2 cm]

Unit weight: N/A

Shipping weight: 4.25 lb [1.9 kg]

Note: The keyboard tray protrudes 3.9” [10 cm] below the worksurface.

If the lectern is used for ADA use, a higher adjusted worksurface is

necessary to provide ADA leg clearance.

Keyboard Tray - 55334

• Installed in left or right position (opposite rack cabinet) using pre-drilled holes

• Tray can be installed and used as a keyboard tray or ipped and used as

a storage drawer using pre-drilled mounting holes under the worksurface.

• Wire management slots in tray

• Max 1 tray per Freedom XRS Elite

• Customer-installed

Slides: Pull out 8” [20.3 cm]

Height-adjustability: 1” [2.54 cm] - 2.375” [6 cm]

Weight capacity: 25 lb [11.4 kg]

Dimensions: 20”W [50.8 cm] x 12.5”D [31.8 cm] x 4”H [10.2 cm]

Shipping weight: 8.33 lb [3.8 kg]

Cutout required: 5.65”W [14.35 cm] x 1.65”D [4.19 cm]

Power cord: 10’ [305 cm] 14AWG *3C power cord

Power receptacles: 125V, 60hz, 15A tamper-resistant

USB charging ports: 2.1A (10.5W) (not data-compatible)

Dimensions: 6.38”W [16.2 cm] x 2.36”D [6 cm] x 3.54”H [9 cm]

Unit weight: 2 lb [.9 kg]

Shipping weight: 2.35 lb [1 kg]

Power Module - 99058

• (2) AC power receptacles

• (2) USB charge ports

• Aluminum housing and ange

• Thumbscrew clamps

• Requires worksurface cutout

• ETL-certied

• Available in black, silver, or white

• Customer-installed

0118857R12 Page 14 of 20

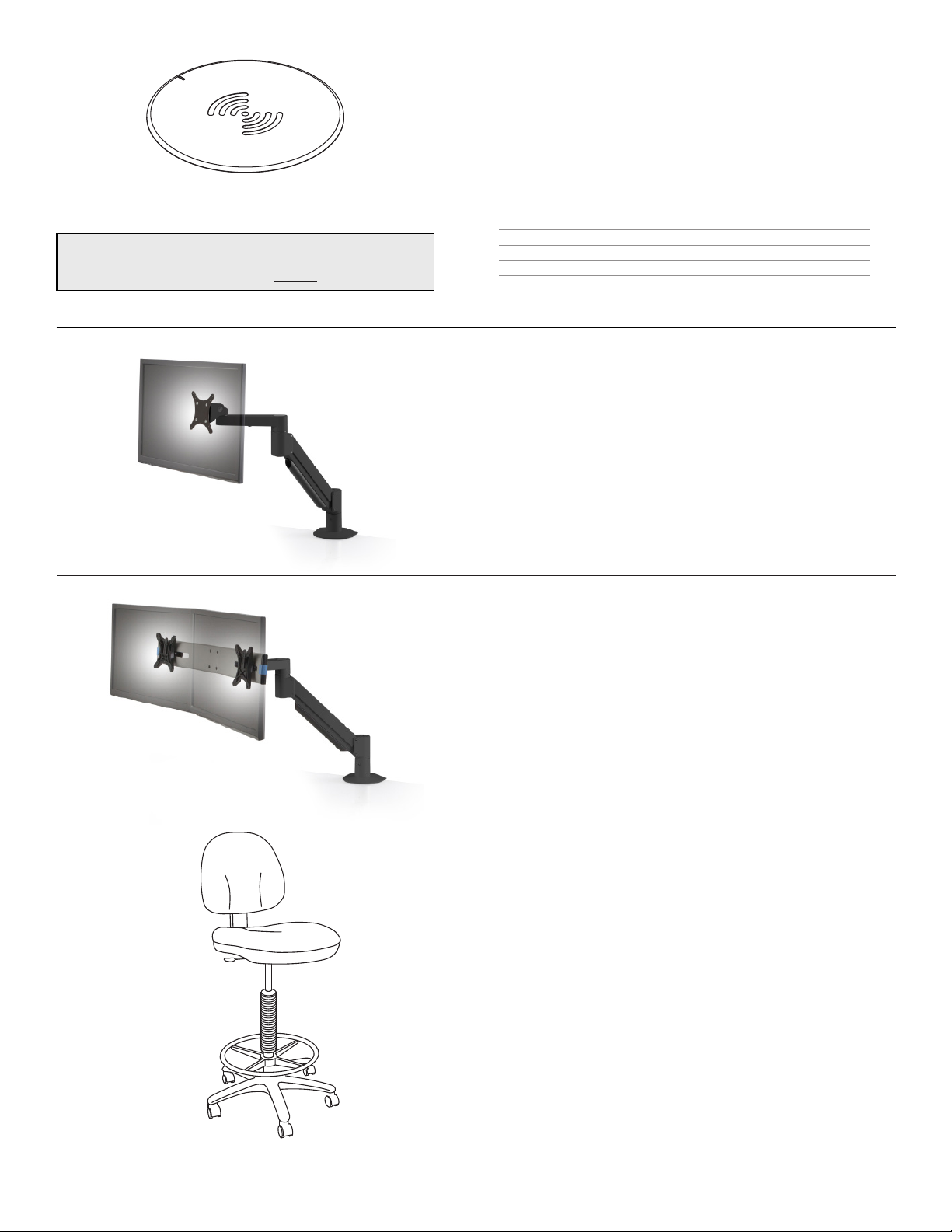

Dual Flat Panel Monitor Arm - 95533

• Weight range: 3.5-13 lb [1.6-5.9 kg] per monitor

• Six mounting options (clamp, thru-desk, wall,

grommet hole, side bolt, reverse wall)

• Compatible with all VESA®monitors – includes

75mm and 100mm VESA®adapters

• Cable management concealed in arm

Flat Panel Monitor Arm

95512 - “Light-Duty” for monitors weighing 2-13 lb [.9-5.9 kg]

95522 - “Medium-Duty” for monitors weighing 7.5-25 lb [2.5-11.4 kg]

95509 - “Heavy-Duty” for monitors weighing 12-31 lb [5.4-14 kg]

• Six mounting options (clamp, thru-desk, wall, grommet hole, side

bolt, reverse wall)

• Compatible with all VESA®monitors – includes 75mm and

100mm VESA®adapters

• Cable management concealed in arm

Adjustable Drafting Stool - 38202

• 40-52” height-adjustment via pneumatic cylinder

• 360° swivel

• Tilting backrest

• 18” diameter xed foot ring

• 5-star base

Note: The unit requires a 7” diameter of clearance to work with

Qi-enabled phones placed in any orientation. The 3” dia cutout

should be located on the worksurface at least 3.5” from any edge.

Cutout required: 3" dia (by customer)

Input: DC 5V (with included DC5V.2A power adapter)

Output: 5W max (with included DC5V.2A power adapter)

Power cord: 8’ [244 cm] with DC jack

Dimensions: 3.5” dia [8.9 cm] x 1.125”H [2.9 cm]

Shipping weight: 1 lb [.45 kg]

EM Wireless Charging Pad - 99057

• Uses electromagnetic technology to charge Qi V1.2 compliant IC devices

("Qi" enabled)

• LED to conrm pairing / charging

• Security tab prevents theft

• Requires 3” round cutout to be made by customer

• UL-certied

0118857R12 Page 15 of 20

Rack-mount Accessories

Rack-Mount Blanks

Cantilever Shelf - 2RU - 97504 Cantilever Shelf - 3RU - 97502

Pull-Out Shelf - 2RU - 97505

Locking Drawer - 2RU - 97523 Locking Drawer - 3RU - 97522

Single Fan - 3RU - 97507

Wire Lace Kit - 95517

9-Outlet Power Strip - 1RU - 99021

• Provides wire management

• Mounts to standard rack rails

• Includes (3) lace straps and

mounting screws

• Includes (12) 5.5” zip ties

• Shipping weight: 1.25 lb [.57 kg]

1RU - 97510

2RU - 97511

3RU - 97512

4RU - 97513

• Fills rack spaces where

components are not needed

• 16 ga steel

• Shipping weight: <1 lb [.45 kg]

• 50 cfm

• 120V~50/60 Hz, 15/13W

• RoHS

• 19”W [48.27 cm] x 1.56”D [3.97 cm]

x 5.25”H [13.33 cm]

• Shipping weight: 3.78 lb [1.7 kg]

• 8 outlets rear

(breaker-protected)

• 1 convenience outlet front

• 115VAC, 60 Hz, 15 amps max

• 9’ power cord

• Front LED power switch

• Enhanced surge protection

• ETL-listed, UL-listed

• 19”W [48.27 cm] x 9.25”D [23.5

cm] x 1.74”H [4.41 cm]

• Shipping weight: 8.7 lb [3.9 kg]

• 16ga steel

• Drawer: 15.97”W [40.56 cm] x

14.56”D [36.98 cm] x 3”H [7.63 cm]

• Weight capacity: 50 lb [22.7 kg]

• Shipping weight: 15.85 lb [7.2 kg]

• 16ga steel

• Drawer: 15.97”W [40.56 cm] x

14.56”D [36.98 cm] x 5.25”H

[13.33 cm]

• Weight capacity: 50 lb [22.7 kg]

• Shipping weight: 18.5 lb [8.4 kg]

• 16ga steel

• 17.09”W [43.42 cm] x 18.12”D

[46.03 cm] x 3.5”H [8.89 cm]

• Weight capacity: 50 lb [22.7 kg]

• Shipping weight: 15.6 lb [7.1 kg]

• 16ga steel

• Shelf: 17.5”W [44.45 cm] x 18”D

[45.7 cm] x 3.5”H [8.89 cm]

• Weight capacity: 50 lb [22.7 kg]

• Shipping weight: 8.1 lb [3.7 kg]

• 16ga steel

• Shelf: 17.5”W [44.45 cm] x 18”D

[45.7 cm] x 5.25”H [13.33 cm]

• Weight capacity: 80 lb [36.3 kg]

• Shipping weight: 9.2 lb [4.2 kg]

Double Fan - 3RU - 97506

• 100 cfm

• 120V~50/60 Hz, 15/13W

• RoHS

• 19”W [48.27 cm] x 1.56”D [3.97 cm]

x 5.25”H [13.33 cm]

• Shipping weight: 5.47 lb [2.5 kg]

See spectrumfurniture.com for the latest

accessories and detailed warranty information.

0118857R12 Page 16 of 20

Warning!

Failure to comply with these instructions may result in accidents involving serious person-

al injury. Failing to follow these instructions can result in the product being damaged or

being destroyed.

Safety Information

General

Safe use of the system is possible only when the operating instructions are read

completely and the instructions contained are strictly observed. Failure to comply with

instructions marked with the ”NOTE” symbol may result in serious damage to the system

or one of its components.

• It is important for everyone who is to connect, install, or use the systems to have the

necessary information and access to this User Manual. Follow the instructions for

mounting – risk of injury if these instructions are not followed.

• The appliance is not intended for use by young children or in rm persons without supervision.

• If there is visible damage on the product it must not be installed.

• Note that during construction of applications, in which the actuator is to be  tted, there

must be no possibility of personal injury, for example the squeezing of  ngers or arms.

Assure free space for movement of application in both directions

to avoid blockade.

Only for EU markets

• This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if

they have given supervision or instruction concerning use of the appliance in a safe way

and understand the hazards involved.

• Children shall not play with the appliance. Cleaning and user maintenance shall not be

made by children without supervision.

Only for Non-EU markets

• Persons who do not have the necessary experience or knowledge of the product/

products must not use the product/products. Besides, persons with reduced physical,

sensory or mental abilities must not use the product/products, unless they are under

surveillance or they have been thoroughly instructed in the use of the apparatus by a

person who is responsible for the safety of these persons.

• Moreover, children must be under surveillance to ensure that they do not play with the

product.

Misuse

• Do not overload the actuators – this can cause danger of personal injury and damage

to the system.

• Do not use the actuator system for lifting persons. Do not sit or stand on a table while

operating – risk of personal injury.

• Do not use the system in environments other than the intended indoor use.

Electric actuator information

Before installation, re-installation, or troubleshooting:

• Stop the DL5/DL6

• Pull out the mains plug.

• Relieve the DL5/DL6 of any loads, which may be released during the work.

Before start-up:

• Make sure that the system has been installed as instructed in this User Manual.

• Make sure that the voltage of the control box is correct before the system is connected

to the mains.

• System connection. The individual parts must be connected before the control box is

connected to the mains. See the User Manual for LINAK actuators, if necessary.

During operation

• If the control box makes unusual noise or smells, switch off the mains voltage

immediately.

• Take care that the cables are not damaged.

• Unplug the mains cable on mobile equipment before it is moved.

• The products must only be used in an environment, that corresponds to their IP

protection.

Misc.

The actuator system has a sound level below 55dB(A) in typical applications.

Updated manuals and declarations can always be found here:

www.linak.com/deskline

Repairs

In order to avoid the risk of malfunction, all DESKLINE® repairs must only be carried out

by authorised LINAK workshops or repairers, as special tools must be used and special

gaskets must be  tted. Lifting units under warranty must also be returned to authorised

LINAK workshops.

Warning! If any of the DESKLINE® products are opened, there will be a risk of

subsequent malfunction.

Warning! The DESKLINE® systems do not withstand cutting oil.

Label for CBD6S 200W (SMPS)

Label for DL6

C/N 120690

C/N 9901916

C/N 4008003

C/N 4008004

C/N 4008005

C/N 4008671

C/N 4009507

Note: Use the included control box only-do not

connect other control boxes to this product.

0118857R12 Page 17 of 20

Description of the DESKLINE® DL5/DL6 system

Each DESKLINE® DL5/DL6 lifting units is equipped with a motor and parallel / memory

drive is ensured by means of software in the CBD6S (SMPS) that also takes account of

oblique load on the desk. Soft start and stop are also part of this software, which ensures

a soft start and stop when adjusting the desk.

Application of the DESKLINE® DL5/DL6 system:

Irrespective of the load the duty cycle 10% ~ 6 min./ hour or max. 2 min. at

continuous use stated in the data sheets, must NOT be exceeded as this will result

in a superheating of the motor, the brake and the spindle nut. Exceeding the duty cycle

will result in a dramatic reduction of the life of the system.

The DESKLINE® DL5/DL6 system range contains the following products:

• 1 control box CBD6S 200W or CBD6S 300W (SMPS - Switch Mode Power Supply)

• 1 single DL5/DL6 or 2 in parallel

• 1 exchangeable mains cable

• 1 or 2 motor cables

• 1 DP1U/DPF1M (if memory function is required) DP1C/DPT/DPF1C (if memory

function and display is required) or DPF1D (if display is required).

Anti-Collision™

The function (anti-collision) is an option for the standard CBD6S (SMPS) control box. A

system with anti-collision can limit material damages on a desk if a collision with a solid

object should occur.

Enabling the anti-collision

To enable the anti-collision function a little plug called a dongle must be mounted in one

of the 2 control ports. The function is only active when the dongle is mounted. - If you

remove the dongle again you disable the function.

Method of operation

When the DL/DB’s are running, the CBD6S (SMPS) monitors the current consumption

on each channel using a special algorithm. If the current consumption on one channel

is increased more than a prede ned slope, a collision is assumed and all channels are

stopped immediately and all DL/DB’s will start to run in the opposite direction (approx. 50

mm). This return drive is done automatically and continues with or without any control key

pressed (for max. 2.5 sec.).

The anti-collision sensitivity is different in upward and downward direction. Upwards the

force is approx. 20 kg. Downwards the load will be approx. 40 kg + the load on the DL/DB

(the desk + what is on top of the desk). The 40 kg are needed to activate the anti-collision

function.

Situations where the anti-collision does not work

There are situations where the anti-collision will not be activated. These situations are:

• If the collision happens during the initialisation phase

• If the collision happens within the  rst 1000 msec or after the control button has been

released

• If the collision happens between the ﬂ oor and the table and the load on the desk + the

weight of the legs are lower than 40 kg

• If the collision happens over too long time, e.g. if the collision is with a soft object.

Misc. on the DESKLINE® DL5/DL6 system

This system is a DESKLINE system developed for desks and for indoor use in of ces. Do

not use it in industrial kitchens or in other enviroments that have to be cleaned with ag-

gressive detergents. Do not bolt the legs to the ﬂ oor so that free movement is prevented.

This could cause serious damage to the legs in fault situations.

Warranty - 60 months on DESKLINE® (NEW)

This will be valid for all DESKLINE products produced after the 1st of May 2015.

Products produced before 1st of May 2015 will still be covered by 36 months.

Products used in DESKLINE application: If these products are used in another applica-

tion, they will be covered by 18 months warranty.

If there is any doubt that returned products are within the warranty period it is to be

treated as if they are covered by the warranty. We recommend that you use the date of

the control box or actuator as reference if possible. We will have our purchase number

printed on the label.

Maintenance

Clean dust and dirt on the outside of the system at appropriate intervals and inspect them

for damage and breaks. Inspect the connections, cables, and plugs and check for correct

functioning as well as  xing points.

Service of double-insulated products:

Class II

A Class II or double insulated electrical appliance is one which has been designed in

such a way that it does not require a safety connection to electrical earth (US: ground).

The basic requirement is that no single failure can result in dangerous voltage becoming

exposed so that it might cause an electric shock and that this is achieved without relying

on an earthed metal casing. This is usually achieved at least in part by having two layers

of insulating material surrounding live parts or by using reinforced insulation.

There is no earthing / grounding means provided on the product, and no earthing/ground-

ing means is to be added to the product.

In Europe, a double insulated appliance must be labelled “Class II”, “double insulated” or

bear the double insulation symbol (a square inside another square).

Servicing a double-insulated product requires extreme care and knowledge of the system,

and is to be done only by quali ed service personnel. Replacement parts for a double-in-

sulated product must be identical to the parts they replace.

The cleaners and disinfectants must not be highly alkaline or

acidic (pH value 6-8).

Electrical connection of the DL5/DL6 system

The DESKLINE® DL5/DL6 system is to be connected as shown in Figure 4. Each DL5/

DL6 is to be connected to the sockets on the control box by means of the motor cables,

which have a 6-pin plug on each end. Finally, the main power cable is to be mounted and

power switched on.

Please note that the control box must only be connected to the voltage stated on

the label.

Hook for

cable relief

Main power cable

DL5/DL6

Figure 4

Figure 5

0118857R12 Page 18 of 20

Freedom XRS Elite Troubleshooting Guide

WARNING

Be sure the lectern movement does not interfere with objects or

people. Do not place any items under the lectern worksurface.

Symptom Problem Solution

Worksurface will

not operate

Loss of power Be sure control box is plugged into a live circuit.

Loose electrical connections Make sure all electrical connections are securely plugged into the control box.

See wiring diagram on p.9 for reference.

Object encountered under

the lectern worksurface

1. Raise the worksurface by pressing the “up” button.

2. Remove any items under the lectern worksurface.

3. Reset the lift mechanism (see below for procedure.)

Misaligned actuators due to

unbalanced loads

Reset Procedure

1. Unplug, then re-plug the power cord into a wall outlet.

2. Make sure all lift mechanism wire connections are in place and secure.

3. Remove anything located under the worksurface.

4. Press and hold the “Down” button to lower the worksurface to the lowest “work”

position until it stops moving.

5. Release the “Down” button.

6. Press and hold the “Down” button for 30 seconds. The worksurface will lower,

bottom-out, slightly rises, then stop moving. The worksurface must be completely

lowered before resuming operation.

Note: If the worksurface does not lower when doing this step, release the

“Down” button, and retry step 6.

7. Release the “Down” button. The lift mechanism has now been reset and the

worksurface can be adjusted normally.

• Lea este manual del propietario antes de la instalación u operación.

• No permita que los niños muevan el atril.

• Proceda lenta y cuidadosamente al mover el atril.

• Solo para uso en interiores. No instale o guarde el atril donde quede

expuesto a la humedad.

• No obstruya las rendijas de ventilación.

• Evite cargar el equipo de forma desigual dentro del atril. La distribución

asimétrica del peso podría provocar que el atril se vuelque al momento

de moverlo.

• No permita que nadie se siente, pare o suba al atril.

• Para limpiar las super cies sucias, utilice un paño, trapo suave o

esponja con jabón neutro o una solución de detergente. No utilice

solventes o abrasivos ásperos.

• El uso convencional de este atril es institucional. No contiene

ninguna parte que pueda ser reparada por el usuario ni requiere

de mantenimiento por parte de éste. Si fuera necesario darle

mantenimiento, póngase en contacto con Spectrum Industries para

obtener asistencia.

Prevención de accidentes eléctricos:

• No enchufe el cable de alimentación a un cable de extensión.

• Revise que los cables de alimentación no tengan ningún daño antes

de cada uso. No utilice cables de alimentación que estén dañados.

• Desenchufe el cable de alimentación del tomacorriente eléctrico

sosteniendo el cable  rmemente. No desenchufe el cable de

alimentación jalando únicamente del cable.

• No se pare, circule, jale o coloque ningún objeto sobre el cable de

alimentación.

• Para mayor seguridad, enchufe el atril a una conexión a tierra

controlada por un interruptor de circuito GFI (interruptor de fallas de

conexión a tierra).

• Los dispositivos eléctricos no son juguetes. Los niños generalmente

no están conscientes de los riesgos asociados con los dispositivos

eléctricos. Este atril lo deberán utilizar siempre personas adultas o

bajo su supervisión.

Advertencia: reubicar equipo de audio y/o video a un mueble que no haya

sido diseñado especí camente para tal uso, puede provocar la muerte o

lesiones graves debido a que puede colapsarse o volcarse sobre un niño.

Advertencia: existe peligro de muerte o lesiones graves si los niños

se suben a un mueble de equipo de audio y/o video. Un control

remoto o juguete colocado sobre el mueble puede alentar a un niño a

subirse y provocar que el mueble se vuelque sobre el chico.

Instrucciones importantes de prevención de accidentes y cuidado

• Lire ce guide d’utilisation avant l’assemblage ou l’utilisation.

• Interdire aux enfants de déplacer le lutrin.

• Déplacer le lutrin lentement et prudemment.

• Utilisation à l’intérieur uniquement. Ne pas assembler et ne pas ranger

le lutrin dans un endroit humide.

• Ne pas boucher les prises d’air de ventilation.

• Éviter le chargement mal réparti de l’équipement sur le lutrin. Un

chargement mal réparti risque de faire basculer le lutrin en déplacement.

• Interdire à quiconque de s’asseoir, de se tenir debout ou de grimper

sur le lutrin.

• Passer un chiffon doux ou une éponge, imbibés de solution nettoyante

ou de savon liquide doux, sur les surfaces sales. Ne pas utiliser des

solvants rudes ou des abrasifs.

• Ce lutrin est destiné à un usage institutionnel. Il ne contient aucune

pièce susceptible d’être réparée par l’utilisateur et ne nécessite aucun

entretien de la part de celui-ci. Si une maintenance est requise,

communiquer avec Spectrum Industries pour obtenir de l’aide.

Consignes de sécurité en électricité

• Ne pas brancher le cordon d’alimentation sur une rallonge.

• Véri er que les cordons d’alimentation sont intacts avant chaque

utilisation. Ne pas les utiliser s’il sont abîmés.

• Pour débrancher le cordon de la prise murale, saisir son bouton

isolant et tirer; ne pas tirer le cordon.

• Ne pas marcher, ne pas rouler et ne pas placer des objets sur le

cordon d’alimentation; ne pas le traîner.

• Pour plus de sécurité, brancher le lutrin sur une prise mise à la terre

protégée par un disjoncteur de fuite de terre.

• Les appareils électriques ne sont pas des jouets. Les enfants

n’ont souvent pas conscience des dangers associés aux appareils

électriques. Ce le lutrin doit donc être toujours utilisé par un adulte, ou

sous la surveillance d’un adulte.

Avertissement - Reloger un équipement audio ou vidéo sur un meuble non

conçu pour supporter cet équipement pourrait entraîner de graves blessures,

voire la mort, à la suite de l’effondrement du meuble ou de sa chute sur un enfant.

Avertissement - Un enfant qui grimpe sur un meuble d’équipement

audio ou vidéo pourrait subir des blessures graves ou mortelles. Une

télécommande ou des jouets placés sur le meuble risquent d’inciter un

enfant à y grimper : le meuble pourrait alors basculer et écraser l’enfant.

Consignes importantes de sécurité et d’entretien

Important Safety and Care Instructions

• Read these instructions before assembly or operation.

• Do not allow children to move the lectern.

• Proceed slowly and carefully when moving the lectern.

• For indoor use only. Do not install or store the lectern where it will be

exposed to moisture.

• Do not block the ventilation openings.

• Avoid uneven loading of the equipment into the lectern. Uneven weight

distribution could cause the lectern to tip when the lectern is moving.

• Do not allow anyone to sit, stand, or climb on the lectern.

• Use a damp, soft-cloth, or sponge, with mild soap or detergent solution

to clean dirty surfaces. Do not use harsh solvents or abrasives.

• This lectern is intended for institutional use. It does not have any user-

serviceable parts or user-maintenance requirements. If servicing is

necessary, please contact Spectrum Industries for assistance.

Electrical Safety:

• Do not plug the power cord into an extension cord.

• Inspect power cords for damage before each use. Do not use power cords

that are damaged.

• Unplug power cord from electrical outlet by gripping the cord. Do not unplug

the power cord by pulling only on the cord.

• Do not step on, drive over, drag, or place objects on the power cord.

• For added safety, plug the lectern into a grounded outlet controlled by a GFI

(Ground Fault Interrupter) circuit breaker.

• Electrical devices are not toys. Children are often unaware of the hazards

associated with electrical devices. This lectern must always be used by

adults or with adult supervision.

Warning - Relocating audio and/or video equipment to furniture not speci cally

designed to support audio and/or video equipment may result in death or

serious injury due to the furnishing collapsing or over turning onto a child.

Warning - Death or serious injury may occur when children climb

on audio and/or video equipment furniture. A remote control or

toys placed on the furnishing may encourage a child to climb on the

furnishing and as a result the furnishing may tip over on to the child.

0118857R12 Page 19 of 20
