Spirit Commercial CSC900 User manual

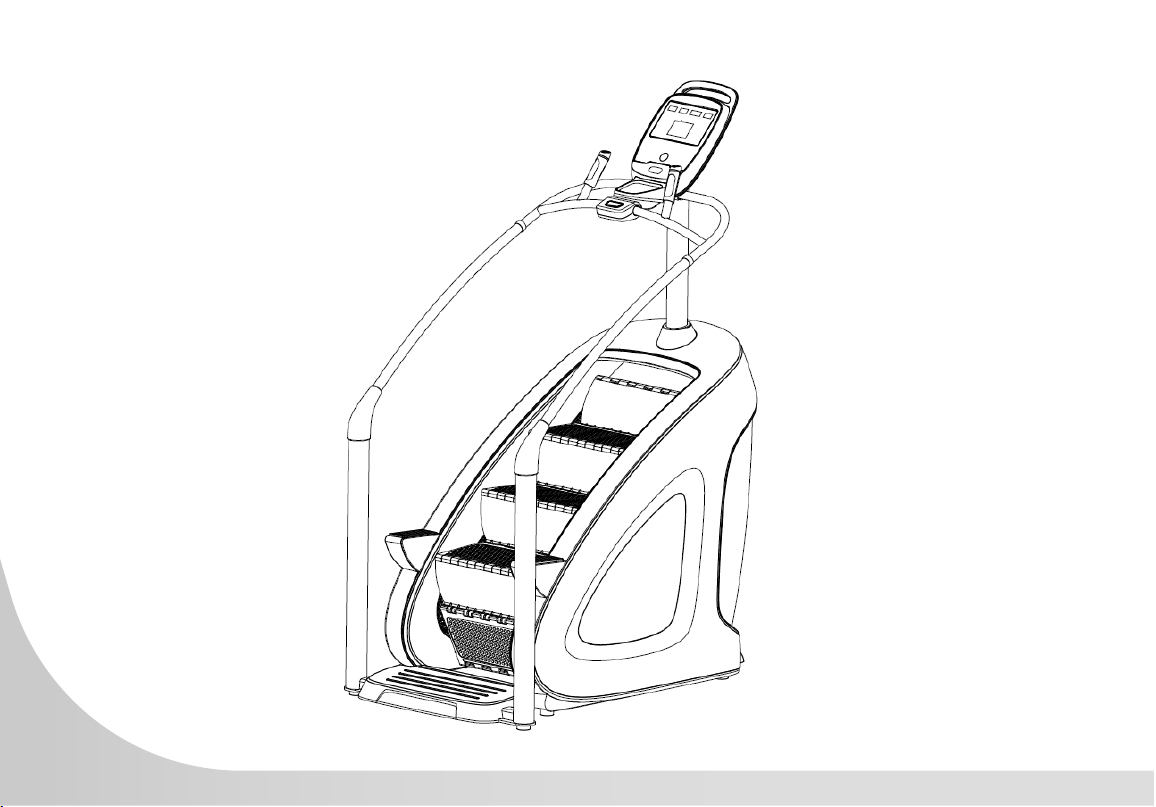

CSC900 StairClimber
OWNER’S MANUAL

TABLE OF CONTENTS
3 IMPORTANT SAFETY INSTRUCTIONS
3 IMPORTANT ELECTRICAL INSTRUCTIONS
5 IMPORTANT OPERATION INSTRUCTIONS
6 PRODUCT REGISTRATION
7 CSC900 ASSEMBLY INSTRUCTIONS
13 CONSOLE OPERATION
19 PROGRAMMABLE FEATURES
29 GENERAL MAINTENANCE
30 MANUFACTURER’S LIMITED WARRANTY
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.

2
Congratulations on your new StairClimber and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality StairClimber from Spirit Fitness. Your new StairClimber
was manufactured by one of the leading tness manufacturers in the world and is backed by one
of the most comprehensive warranties available. Through your dealer, Spirit Fitness will do all we
can to make your ownership experience as pleasant as possible for many years to come. If not
purchased direct from Spirit Fitness, the local dealership where you purchased this StairClimber is your
administrator for all Spirit Fitness warranty and service needs. Their responsibility is to provide you
with the technical knowledge and service personnel to make your experience more informed and any
difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the
date of purchase below to make any future, needed contact easy. We appreciate your support and we
will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________

3
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
• Always unplug the machine from the electrical outlet
before cleaning or servicing.
• This machine is not intended to be serviced by the
end user, refer servicing to qualied personnel only.
• This product will be wired for either 120 VAC
nominal power input OR 230 VAC nominal input.
It is factory-equipped with a specic electric cord
and plug to permit connection to the proper electric
circuit. Make sure that the product is connected to a
dedicated power line having an outlet with the same
conguration as that of the plug.
• Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check
with a qualied electrician or serviceman if you are in
doubt as to whether the product is properly grounded.
Do not modify the plug provided with the product.
NO adapter should be used with this product.
• If the product must be reconnected for use on a
different type of electric circuit, the reconnection
should be ma made by qualied service personnel in
order to avoid a hazard.
• Maximum User Weight: 400 lbs / 180 kg.
• This appliance is not intended for use by persons with
reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have
been given supervision or instruction concerning use
of the appliance by a person responsible for their
safety.
• Keep children under the age of 13 away from
this machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
• This equipment is designed for use in a commercial
gymnasium or health club. To ensure the proper
use of the equipment in a safe manner, all users
of the equipment should read this manual before
using the machine. This machine should be made
a part of your club training program in order that
the equipment is used by your members in a safe

4
buttons on the console. If you experience difculties
during the workout, pushing the STOP button will
bring the machine to a stop.
• Do not exceed the maximum allowable weight limit
of 400 lbs. / 180 kg.
• Use care when getting on or off the machine.
Always use the handrails. Do not step off of the
machine while it is moving. Press the STOP button
and wait for the machine to come to a complete
stop before dismounting.
• Do not overexert yourself during exercise. Stop
exercising if you feel pain or tightness in your chest,
become short of breath or feel faint. If you feel
pain or experience any abnormal symptoms, stop
exercising and consult your health care provider.
• Wear proper exercise clothing and athletic shoes
during a workout. Avoid wearing loose clothing.
Tie back long hair and keep towels away from the
moving parts. Face forward at all times and never
attempt to turn around while the machine is moving.
• Do not operate the machine if the motor shroud is
removed or if the power cord is damaged in any
manner.
• Keep all air openings free from dirt or any material
that would block the ow of air to the motor.
• The safety and integrity of this machine can only
be maintained when the equipment is regularly
examined for damage and wear and repaired. It is
manner as intended. In addition to instructing the
club members in the proper use of the equipment,
the club member should obtain a complete physical
examination form their health care provider before
beginning any exercise program.
• This machine is not intended to be used by children.
It is not intended to be used by persons with reduced
physical, sensory, or mental capabilities or lack of
experience and knowledge, unless given instruction
and under the personal supervision concerning use
of the machine by a person responsible for their
safety. Do not leave children unsupervised around
the machine.
• Assemble and operate the machine on a solid level
surface. Position the machine with a minimum of 20
inches (0.5 meters) of clearance on each side to
allow for ease of mounting and dismounting. Allow
for 48 inches (1.25 meters) of clearance behind the
machine. These dimensions are the recommended
minimum distances. The actual area for access and
passage is the responsibility of the facility and should
take into account this training envelope and any
other national or local codes or regulations.
• Keep power cord away from heated surfaces.
Unplug power cord when the machine is unattended
and before performing any preventative maintenance
such as cleaning or replacing a worn part.
• Familiarize yourself with the location of the STOP

5
the sole responsibility of the owner of this equipment
to ensure that regular maintenance is performed.
Worn or damaged parts must be replaced
immediately, or the equipment removed from service
until the repair is made.
• Be aware that the generator is producing AC
power while the StairClimber is being used. Do
not service the StairClimber while the generator
is spinning; serious electric shock could occur.
• NEVER expose this StairClimber to rain or
moisture. This product is NOT designed
for use outdoors, near a pool or spa, or in
any other high humidity environment. The
operating temperature specication is 40 to
120 degrees Fahrenheit, and humidity is 95%
non-condensing (no water drops forming on
surfaces).
IMPORTANT
OPERATION
INSTRUCTIONS
• NEVER operate this StairClimber without reading
and completely understanding the results of any
operational change you request from the computer
console.
• Understand that changes in resistance do not occur
immediately. Set your desired resistance level on the
computer console and release the adjustment button.
The computer will obey the command gradually.
• Use caution while participating in other activities
while stepping on the rotating staircase; such as
watching television, reading, etc. These distractions
may cause you to lose balance which
may result in serious injury.
• Do not use excessive pressure on console control
buttons. They are precision set to function properly
with little nger pressure.
WARNING
This product can expose you to chemicals including
Toluene and Acrylamide which are known to the
State of California to cause Cancer and birth
defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov

6
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space provided below. The serial number is
located on the front of the StairClimber.
SERIAL NUMBER:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You can
also go to www.spirittness.com/commercialwarrantyregistration.html under the Support tab to register online.

7
CSC900 PRE-ASSEMBLY
TOOLS INCLUDED:
5mm Allen Wrench
6mm Allen Wrench
PARTS INCLUDED:
1 Main Frame
1 Console
1 Console Mast
1 Column Group
1 Decorative Ring
1 Handlebar Group
2 Side Handlebars
2 Decorative Rings
1 Handlebar
Reinforcement
1 Hardware Kit
2 Handlebar Covers
UNPACKING
1. Read all instructions before assembling.
2. Assemble and operate the StairClimber on a hard, level surface in the area
intended for use.
3. Attach all fasteners and partially tighten them. Do not fully tighten fasteners until
assemble of all components is complete.
4. Do not attempt to move the unit by yourself. Have at least one other person help
and use safe lifting techniques.
5. Do not grasp on any plastic parts of the unit while lifting and moving. The plastic
components are non-structural covers and not capable of supporting the weight of
the unit.
6. Locate the hardware package. The hardware is labeled with its specication
as a description. Each of the assembly steps reference the descriptions to avoid
confusion during assembly.

8

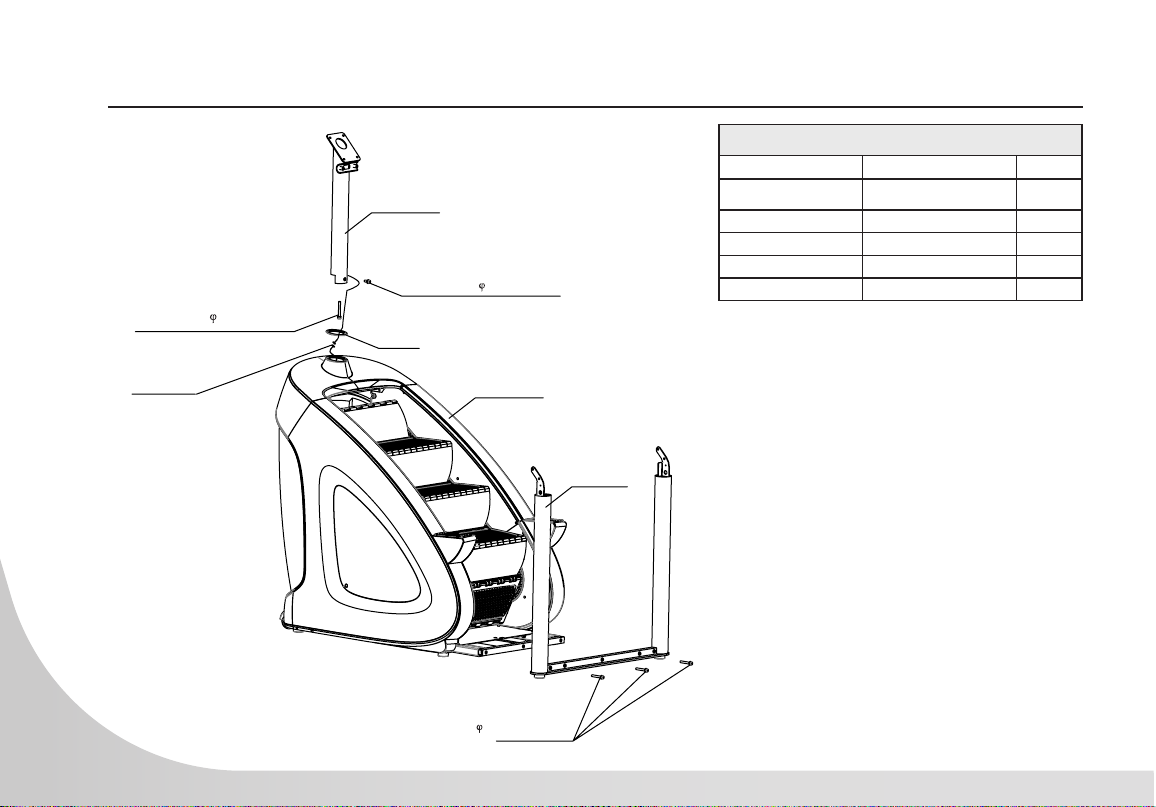

CSC900 STEP ONE
Hardware for Step 1
TYPE DESCRIPTION QTY
CONSOLE MAST 1
BOLT M8 X 20L 1
BOLT M6 X 65L 1
BOLT M8 X 55L 3
WASHER Ø8 5
1. Insert Console Mast wire through
Decorative Ring then around to insert
through rear of tube. Connect the
Communication Wires between the
Main Frame and Console Mast.
2. Attach the Decorative Ring to Console
Mast using the Bolt M8*20 (1pc),
M8*65 (1pc) and ø8 at washer
(2pc).
3. Attach the Column Group to the lower
Main Frame, using the M8*55 Bolts
(3pcs) and the ø8 at washer (3pcs).
M8*65 Bolt 8 Flat Washer
M8*20 Bolt 8 Flat Washer
Console Mast
Decorative Ring
Main Frame
Communication
Wires
Column
Group
M8*55 Bolts
8 Flat Washer

9
CSC900 STEP TWO
Hardware for Step 2
TYPE DESCRIPTION QTY
STEP BASE 1
BOLT M8 X 20L 2
BOLT M8 X 30L 1
WASHER ø8 2

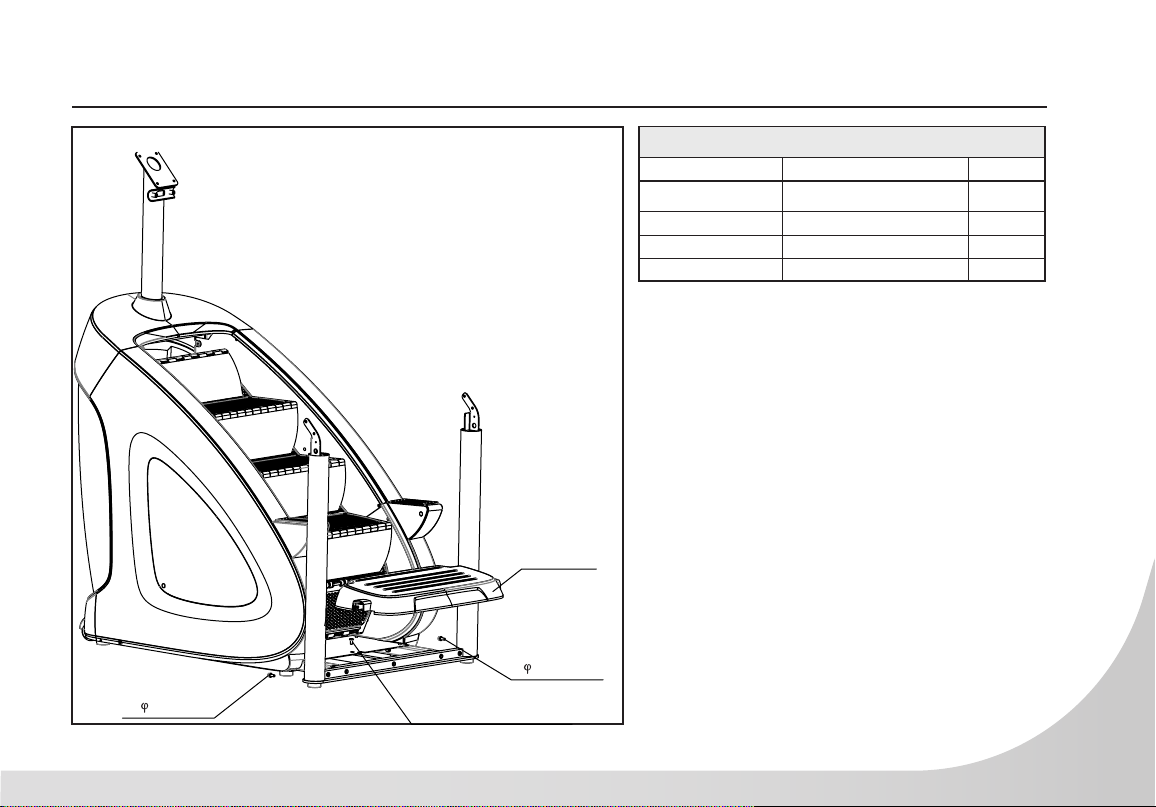

1. Attach the Step Base to the lower Main
Frame using the M8*20 Bolts (2pcs), ø8 Flat
Washers (2pcs) and M8*30 Bolt (1pc).
M8*20 Bolt
8 Flat Washer
M8*20 Bolt
8 Flat Washer
M8*30 Bolt
Step Base

10

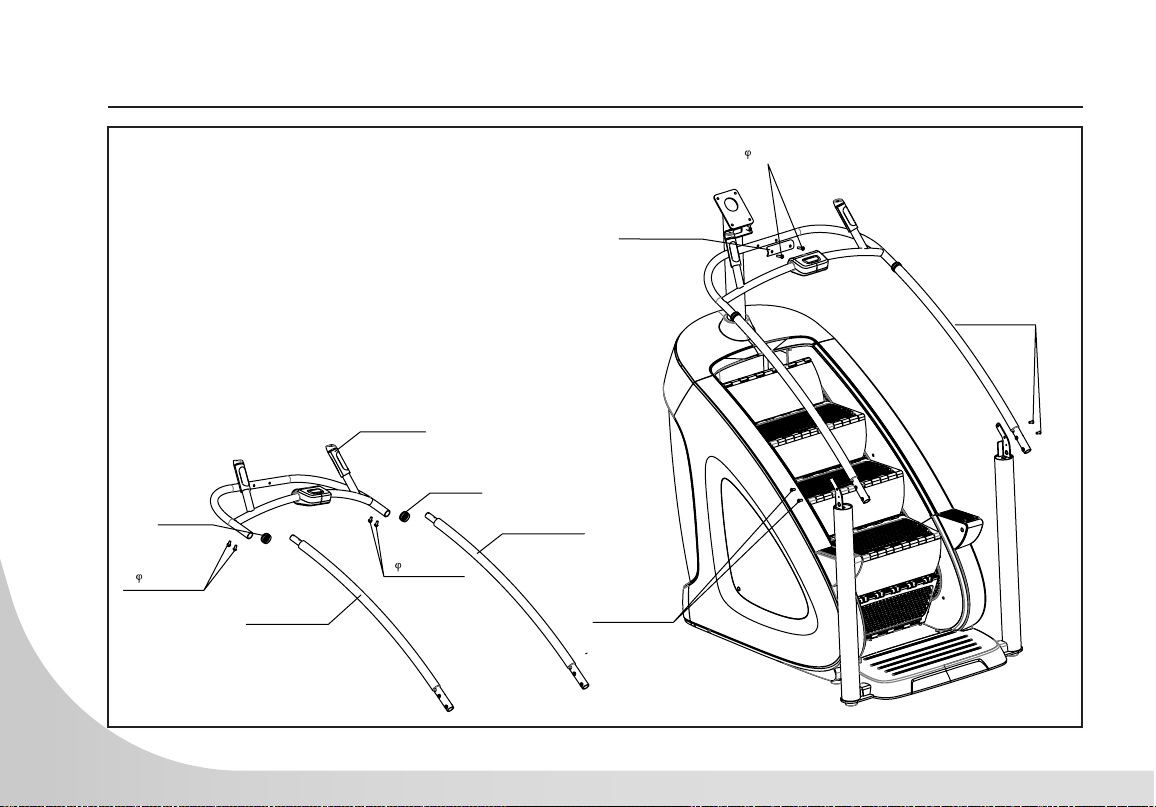

CSC900 STEP THREE
Handlebar Group
Decorative Ring
Decorative Ring Side Handlebar
Side Handlebar
M8*20 Bolt
8 Flat Washer
M8*20 Bolt
8 Flat Washer
M8*30 Bolt
8 Flat Washer
M8*20 Bolts
M8*20 Bolts
Handlebar
Reinforcement
M8 * 40 Bolt

11
CSC900 STEP THREE - CONTINUED
Hardware for Step 3
TYPE DESCRIPTION QTY
SIDE HANDLEBARS 2
HANDLEBAR GROUP 1
DECORATIVE RINGS 2
REINFORCEMENT PLATE 1
BOLT M8 X 20L 6
BOLT M8 X 40L 2
WASHER ø8 6
1. Connect wires with same terminal.
2. Attach Side Handlebars to the Handlebar Group and
with the Decorative Rings using M8*20 Blots (4pcs),
ø8 Flat Washers (4pcs).
3. Attach Handlebar Group to Console Mast with the
Reinforcement Plate using M8*40 Bolts (2pcs), ø8
Flat Washers (2pcs).
4. Attach Handlebars to the Column Groups using
M8*20 Bolts (2pcs).

12
CSC900 STEP FOUR
Hardware For Step 4
TYPE DESCRIPTION QTY
CONSOLE 1
HANDRAIL COVERS SETS 2
BOLT M8 X 20L 4
SCREW M4 X 25L 4
SCREW ST4.2 X 15L 2
1. Connect Console using M8*20L
Bolts (4pcs).
2. Secure Handlebars on each side
using ST4.2*15L Screws (2pcs).
3. Attach the Handrail Covers on
each side using M4*25L Screws
(4pcs).
Console
M8*20 Bolts
M4*25 Screws
Handrail
Covers
Handrail
Covers
Handrail
Covers
Handrail
Covers
ST4.2*16 Screw
ST4.2*16 Screw
M4*25 Screw
ST4.2*15 Screw
ST4.2*15 Screw

13
CSC900 CONSOLE OPERATION

14

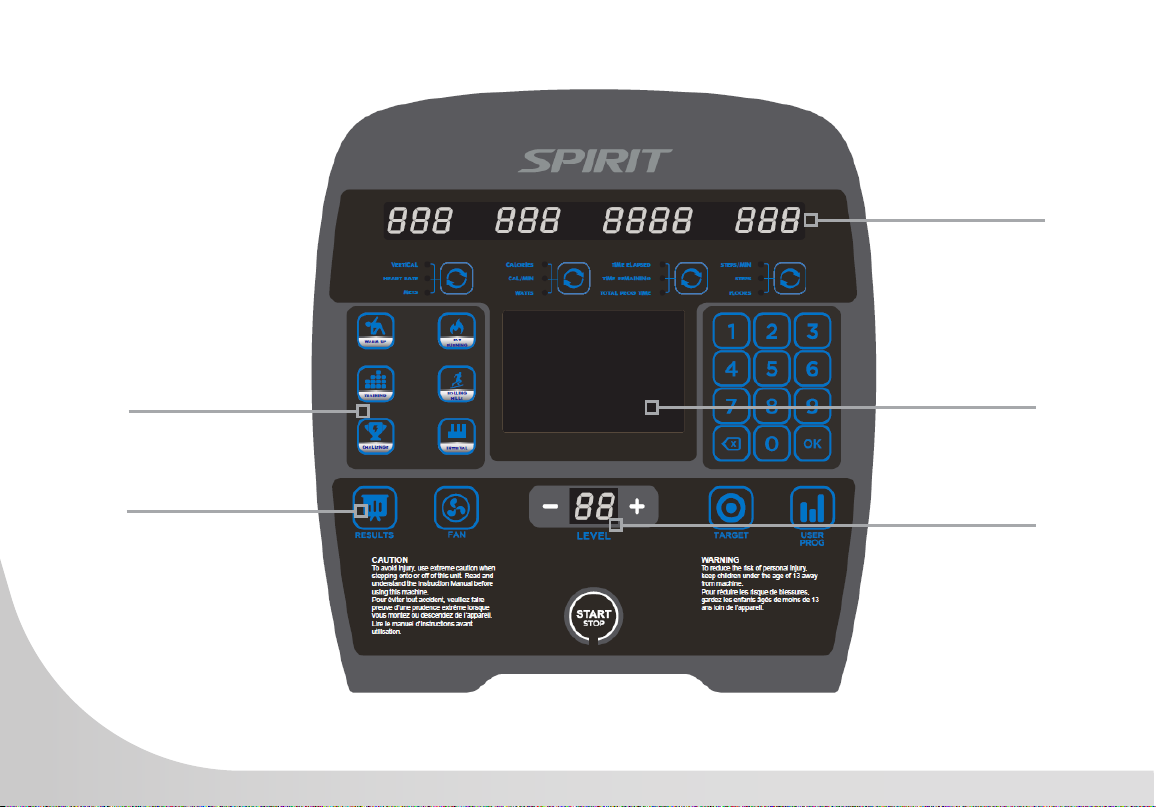

Premium, ultra-bright
Blue LED display
Large LED Matrix
window to track
workout progress
Program Direct Keys
Resistance level
display window
Workout Results Key

15
BASIC INFORMATION
The Dot Matrix, or Prole Window, will display the workout Prole. The Message window displays
pertinent exercise data. There are four windows to display a large variety of pertinent data during
the workout. A Vertical window measures vertical height climbed along with Heart Rate and METS.
Calories window measuring overall calories burned along with Calories/minute and WATTS. A Time
Elapsed window along with Time Remaining and Total Program Time. Also, a Steps/minute window
along with total Steps and Floors climbed.
Heart Rate number display. The StairClimber has a built-in heart rate monitoring system. Simply
grasping the hand pulse sensors, will calculate and display Heart Rate in the upper left side window
(this may take a few seconds). Press on the scroll button until Hear Rate is displayed. The Heart Rate
window will display your heart rate, or Pulse, in beats per minute.
Pressing the Stop button once during a program will lock the rotating staircase and pause the
program. If you need to get a drink, answer the phone, or any of the many things that could interrupt
your workout, this is a great feature. The staircase will remain locked until the program is continued.
To resume your workout during Pause just press the Start button to unlock the stairs and continue
stepping. If the Stop button is pressed twice during a workout, the program will end, and the console
will return to the start-up screen.

16
ENTERING A PROGRAM & CHANGING SETTINGS
A safety tether cord is provided with this unit. It is a simple switch design that should always be used.
It is for your safety should you fall from the StairClimber when the Steps Per Minute (SPM) exceeds
your capability. Pulling this safety tether cord and activating the switch will stop the stairs movement.
To Use:
• Fasten the plastic clip onto your clothing securely to assure good holding power. NOTE: the
switch has a strong enough power to minimize accidental, unexpected stopping. The clip should
be attached securely to make certain it does not come off. Be familiar with its function and
limitations. The StairClimber will stop, depending on the level within one to two steps anytime the
switch is activated.
• If for any reason you feel unstable on the rotating staircase, immediately press the START/STOP
button or pull on the safety switch to stop the staircase and step off onto the side support steps

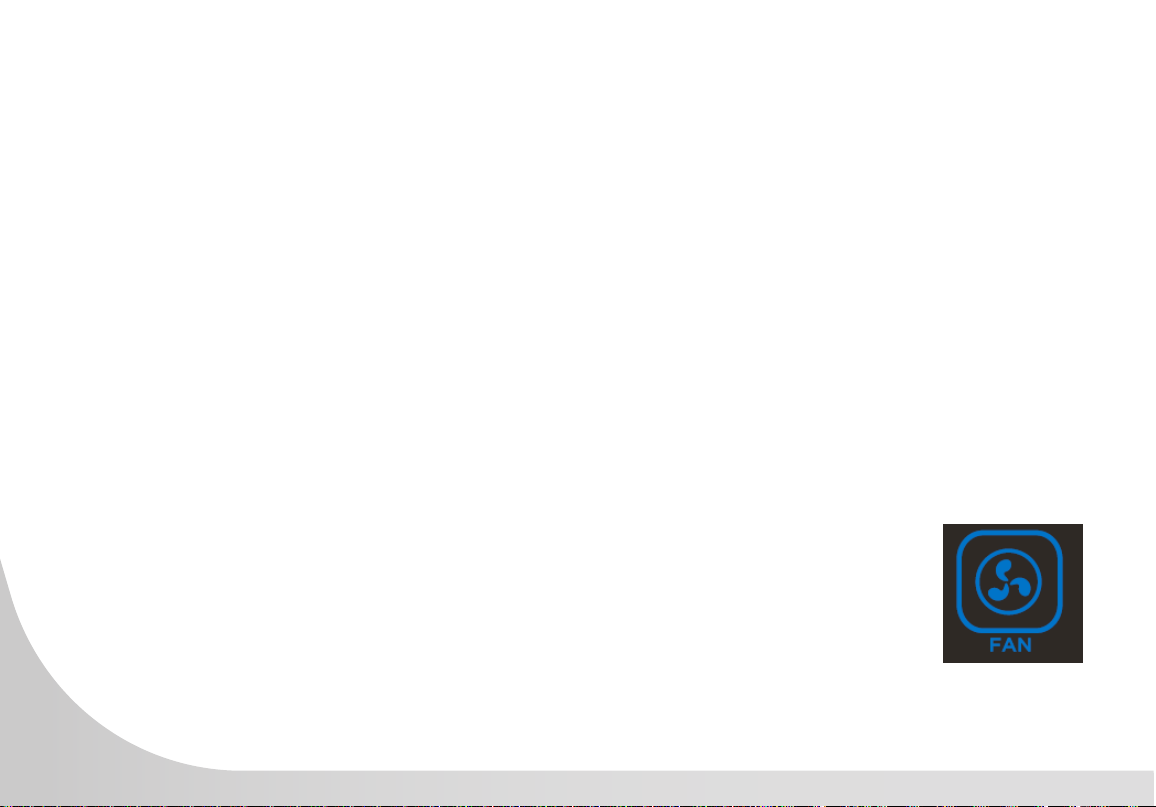

FAN
An adjustable vent, two-speed fan is integrated into the console to help keep you
cool during the workout. The fan is Off by default.
Press the fan button once to turn the fan on, on High. Press the fan button a second
time to switch to Low. Pressing the fan button a third time will shut the fan off.

17

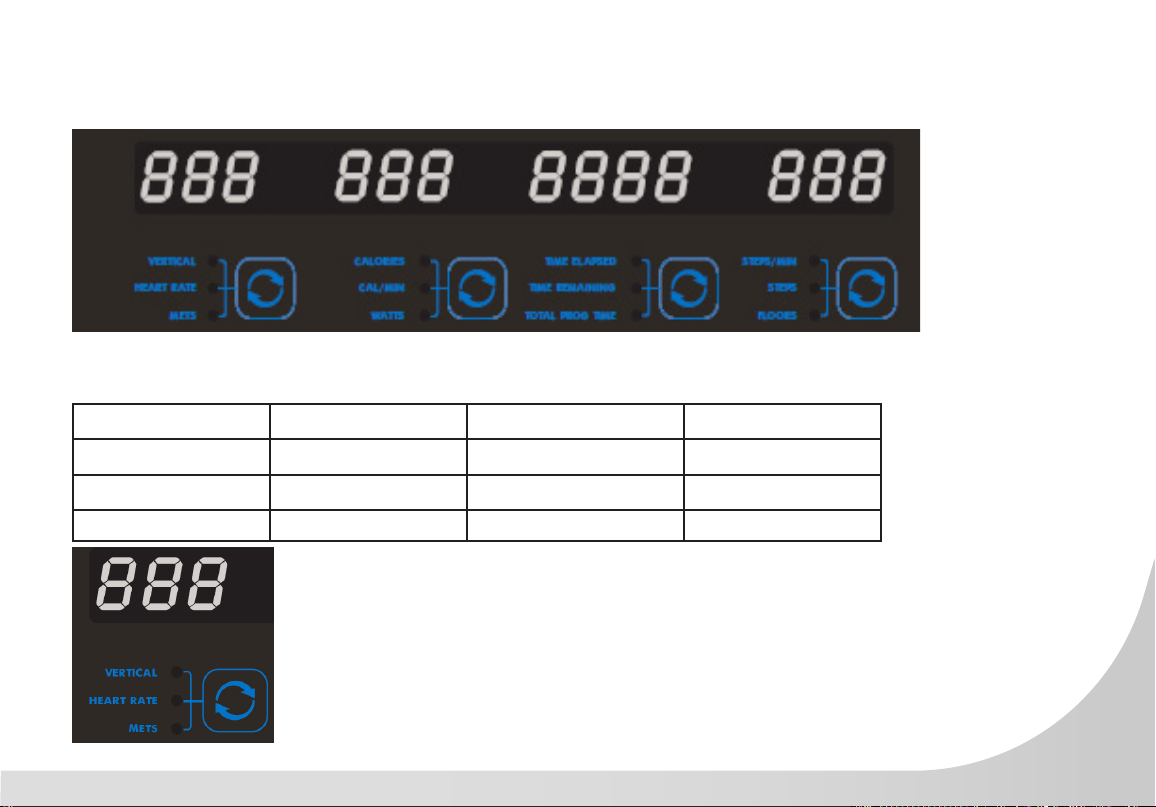

DISPLAY
The console display is separated into 4 separate display windows with thirteen total data points.
Using the button below each window changes the display data point as shown.
WINDOW ONE WINDOW TWO WINDOW THREE WINDOW FOUR
VERTICAL DISTANCE CALORIES TIME ELAPSED STEPS PER MINUTES
HEART RATE CALORIES / MINUTE TIME REMAINING STEPS
METS WATTS TOTAL PROGRAM TIME FLOORS
Vertical distance counts up from 0 to 999 feet or meters then rolls over
to 1 to represent 1,000. A light in the decimal space for each increment
of 1,000 will also illuminate and changes position with each distance of
1,000 reached.
Changing from imperial to meters is accomplished by pressing 1,2,3,OK.

18

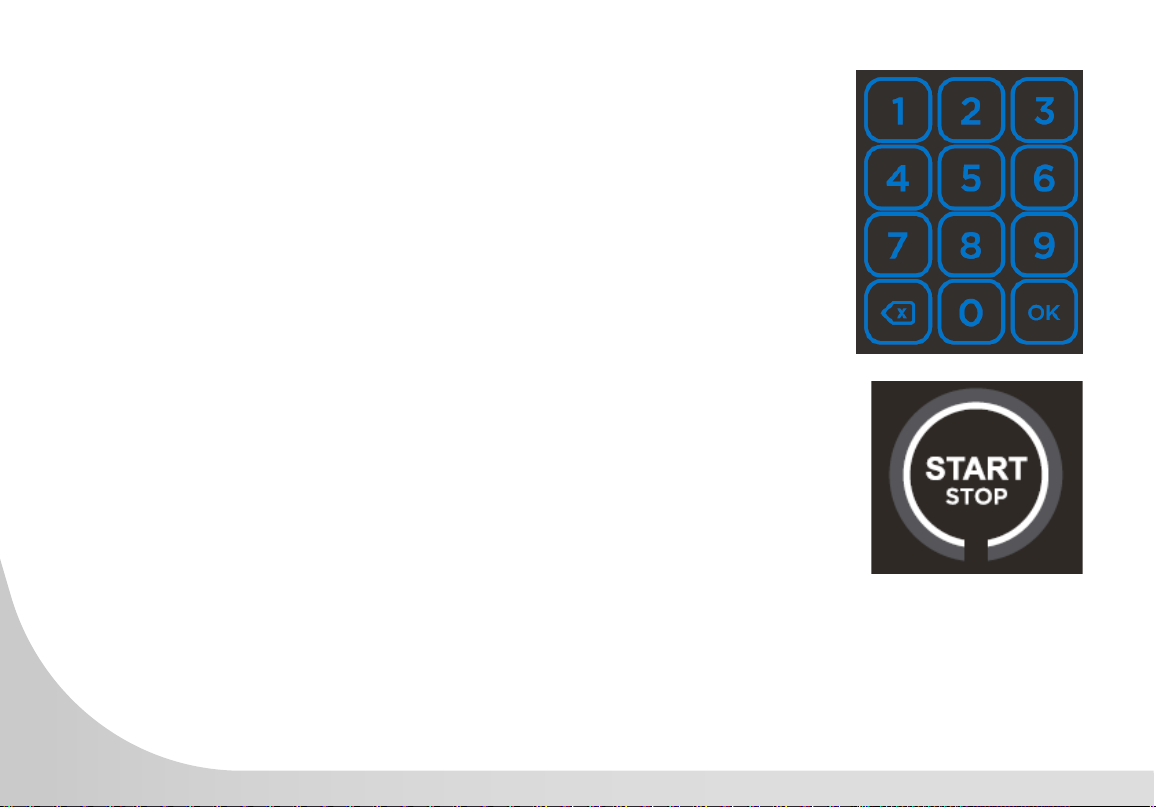

NUMBER KEYPAD
When you are in the data set-up mode setting new data such as age,
weight etc., you can use these buttons to enter the numbers quickly
QUICK START
This is the quickest way to start a workout. Press the Start button to begin.
This will initiate the Quick Start mode. In Quick Start the Time will count
up from zero, all workout data will start to accrue, and the workload may
be adjusted manually by pressing the level Up + and Down - buttons. The
dot matrix display will show just the bottom row lit. As you increase the
workload more rows will light indicating a harder workout. The StairClimber
will get harder as the stairs begin to rotate more easily as the rows increase,
thus increasing your steps per minute. The dot matrix has 24 columns of
lights and each column represents 1 minute. At the end of the 24th column
(or 24 minutes of work) the display will wrap around and start at the rst
column again.
There are 20 levels of resistance available for plenty of variety. The rst
levels are very easy workloads, and the changes between levels are set
to a good progression for de-conditioned users. As the levels increase, the
braking of the rotating stairs decreases, causing the user to step a faster
rate, steps per minute (spm). The highest levels, levels 15-20 are extremely challenging. These levels
should not be used by deconditioned users as there is greater risk of falling off machine when the user
cannot keep up with the rate of rotation of the stairs. These levels are extremely hard and are good for
short interval peaks and elite athletic training.
