Spirit CE800 ENT User manual

&( (17ġ
ġġ
ġ ( O O L S W L F D O 
2:1(5§60$18$/
Please carefully read this entire manual before operating your ġ new elliptical įġ


Elliptical
1
Important Safety Instructions………………………………………………………….….……2
Important Operation Instructions……………………………………………………….….…..3
Assembly Instructions………………………………………………………………….….……6
Features…………………………………………………………………………………………10
Operation of Your Elliptical…………………………………………………………………….11
Exploded View Diagram and Parts List………………………………………………..……..31
Thank you for purchasing our product, please save these instructions.
Please do not perform or attempt any customizing, adjustments, repair
or maintenance that is not described in this manual.
Table of Content
s

Elliptical
2
Thank you for purchasing our product, please save these instructions. Please do not
perform or attempt any customizing, adjustments, repair or maintenance that is not
described in this manual, if you experience any difficulty, please contact our website.
NOTE:
Article number: CE800 ENT
Use: Studio use
Max. user’s weight.:150 kg
WARNING : The equipment shell be installed on a stable
base and properly leveled.
Dyaco International Inc.
Head Office:12F, No.111,Songjiang Road, Taipei 104,Taiwan
Tel:[phone] Fax:[phone]
Factory: No 1, Gong 1
ST
Road, Cyuan Sing Industrial Park
Hemei Town, Changhua County 508, Taiwan
Tel:[phone] Fax:[phone]

Elliptical
3
WARNING - Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock disconnect your elliptical from the electrical
outlet prior to cleaning and/or service work.
WARNING -To reduce the risk of burns, fire, electric shock, or injury to persons, install the
elliptical on a flat level surface with access to a 120-volt,15-amp grounded outlet with only the
elliptical plugged into the circuit.
DO NOT USE AN EXTENSION CORD UNLESS IT IS A 14AWG OR BETTER. WITH ONLY ONE OUTLET
ON THE END.
Do not operate elliptical on deeply padded, plush or shag carpet. Damage to both carpet
and elliptical may result.
Keep children away from the elliptical. There are obvious pinch points and other caution
areas that can cause harm.
Keep hands away from all moving parts.
Never operate the elliptical if it has a damaged cord or plug. If the elliptical is not working
properly, call your dealer.
Keep the cord away from heated surfaces.
Do not operate where aerosol spray products are being used or where oxygen is being
administered. Sparks from the motor may ignite a highly gaseous environment.
Never drop or insert any object into any openings.
Do not use outdoors.
To disconnect, turn all controls to the off position and then remove the plug from the outlet.
Do not attempt to use your elliptical for any purpose other than for the purpose it is
intended.
The hand pulse sensors are not medical devices. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The pulse sensors are intended
only as exercise aids in determining heart rate trends in general.
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use
on your elliptical. Quality athletic shoes are recommended to avoid leg fatigue.
CAUTION:
To assure continued FCC compliance:
1. Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
2. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20 cm
between the radiator and your body.
3. Keep children under the age of 13 away from this machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Important Safety Instructions

Elliptical
4
MODEL: WB001
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator and your body.
Cet appareil radio est conforme au CNR d’Industrie Canada. L’utilisation de ce dispositif
est autorisée seulement aux deux conditions suivantes :
(1) il ne doit pas produire de brouillage, et (2) l’utilisateur du dispositif doit être prêt à
accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de
compromettre le fonctionnement du dispositif.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour
un environnement non contrôlé.
Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la
source de rayonnement et votre corps.

Elliptical
5
WARNING !
NEVER remove any cover without first disconnecting AC power.
If voltage varies by ten percent (10%) or more, the performance of your elliptical may be
affected. Such conditions are not covered under your warranty. If you suspect the voltage
is low, contact your local power company or a licensed electrician for proper testing.
NEVER expose this elliptical to rain or moisture. This product is NOT designed for use
out-doors, near a pool or spa, or in any other high humidity environment. The operating
temperature specification is 40 to 120 degrees Fahrenheit, and humidity is 95%
non-condensing (no water drops forming on surfaces).
Ɣ
NEVER operate this elliptical without reading and completely understanding the results of anyġ
operational change you request from the computer.
• Understand that changes in resistance do not occur immediately. Set your desired resistance
level on the computerġconsole and release the adjustment key. The computer will obey the
command gradually.
• NEVER use your elliptical during an electrical storm. Surges may occur in your household power
supply that could damage elliptical components. Unplug the elliptical during an electrical storm as
a precaution.
• Use caution while participating in other activities while pedaling on your elliptical; such as
watchingġtelevision, reading, etc. These distractions may cause you to lose balance which may
result in serious injury.
• Do not use excessive pressure on console control keys. They are precision set to function
properly with littleġfinger pressure.
• Always hold on to a handle bar while making control changes.
• Do not use excessive pressure on console control keys. They are precision set to function
properly with little finger pressure. If you feel the buttons are not functioning properly with normal
pressure contact your dealer.
Important Operation Instructions
IMPORTANT ELECTRICAL INSTRUCTIONS

Elliptical
6
This product must be grounded. If the elliptical’s electrical system should malfunction or
breakdown grounding provides a path of least resistance for electric current, reducing the risk of
electric shock. This product is equipped with a cord having an equipment-grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in
a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided with the
product if it will not fit the outlet; have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the
plug illustrated below. A temporary adapter that looks like the adapter illustrated below may be
used to connect this plug to a 2-pole receptacle as shown below if a properly grounded outlet is
not available. The temporary adapter should be used only until a properly grounded outlet, (shown
below) can be installed by a qualified electrician. The green colored rigid ear-lug, or the like,
extending from the adapter, must be connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal
screw.
Grounding Instructions

Elliptical
7
Assembly Pack Check List
#127 - 3/8” x 2-1/4”
Button Head Socket Bolt (4 pcs)
#130- 3/8” X19
Flat Washer (4 pcs)
#129 - 3/8” X23
Curved Washer (6 pcs)
#128 - 3/8” x 3-3/4”
Button Head Socket Bolt (6 pcs)
#106 - 5/16”
Flat Washer (2 pcs)
#126 - 5/16" × UNC18 × 15L
Socket Head Cap Bolt (2 pcs)
#119 – M6 x 15mm
Phillips Head Screw (2 pcs)
Step1
#131 - M5 x 10mm
Phillips Head Screw (8 pcs)
#97 - M5 x 12mm
Phillips Head Screw (4 pcs)
Step2
#97 - M5 x 12mm
Phillips Head Screw (4 pcs)

Elliptical
8
#132 - M8 x 25mm
Socket Cap Bolt (4 pcs)
#135 - 3/8” x 3/4”
Hex Head Bolt
W / Loctite (2 pcs)
#136 - M10
Nylon Nut (2 pcs
)
#137 - M10 x 12mm
Shoulder Bolt (2 pcs)
#138 - 3/8”
Flat Washer (2 pcs)
#134 - 3.5 x 12mm
Sheet Metal Screw (14 pcs)
#97- M5 x 12mm
Phillips Head Screw (16 pcs)
Step4
#134 - 3.5mm x 12mm
Sheet Metal Screw (4 pcs)
Ste
p
3
#133 - 25mm
Wave Washer (2 pcs)
#107 - 5/16"
Flat Washer (1 pcs)

Elliptical
9
STEP 1 : RAIL ASSEMBLY
1. Gather HARDWARE FOR STEP 1.
2. Slide the RAIL ASSEMBLY (2) under the rear oval stabilizer tube of the main frame. Secure
together with 2 BOLTS (127) and 2 WASHERS (130) from the top of the tube and 4 BOLTS
(128) and 4 CURVED WASHERS (129) from the front of the tube. Make sure all 6 BOLTS are
tightened securely.
3. Install the CENTER ALUMINUM RAIL (89) with 2 BOLTS (127) and 2 CURVED
WASHERS (128) at the rear and 2 BOLTS (130) and 2WASHERS
(129) at the front.
4. Install the 2 TUBE STABILIZER COVERS (84 LEFT & 83 RIGHT) with 2 SCREWS (97)
to the middle STABILIZER TUBE and the 2 STABILIZER COVERS (83 left & 84 right) with
2 SCREWS (97) to the rear stabilizer tube.
Assembly Instructions

Elliptical
10
STEP2 : PEDAL ARM ASSEMBLY
1. Gather HARDWARE FOR STEP 2.
2. Attach FOOTPLATES (L 49)to the pedal mounting plate with 4 SCREWS (131).
3. Slide the PEDAL ARM assembly (5) onto the crank axle of the main body. Be careful not to
force it because damage to the bearings can occur. Secure with a BOLT (126) and WASHER
(106).
4. Install the COVER (46) over the pedal arm connection at the rotation axle with a SCREW (119).
5. Install the ROLLER WHEEL COVER (50) with 2 SCREWS (97).
6. Repeat all steps with the oppostie PEDAL ARM assembly (6).

Elliptical
11
STEP 3: CONSOLE MAST AND SWING ARMS
1. Gather HARDWARE FOR STEP 3.
2. Unravel the COMPUTER CABLE (35), CSAFE CABLE(32),TV CABLE(33),NET CABLE (34),
CONSOLE POWER CABLE(36) ,HDMI (46)and snake it through the bottom of the CONSOLE
MAST (12) and out the top. To install mast tube (12), first insert three M8x25mm screws (132)
onto the mainframe then locate the mast tube (12) on its position and tighten three screws. Now
the last M8x25mm screw (132) must be with 5/16” flat washer (107) to tighten to the screw hole.
3. Mount the CONSOLE MAST COVERS (L 80) (R81) with 4 SCREWS (134).
4. Install 2 WAVE WASHERS (133) onto the CONSOLE MAST AXLE then install the
SWING ARMS (L11)(R10) onto the axles. Do not force them or use a hammer as damage to
the bearings can occur. Secure with a BOLT (135) and WASHER (138) on each arm.
5. Attach the bottom of the swing arms to the rod ends of the pedal arms using 2 SHOULDER
BOLTS (137) and 2 NYLON NUTS (136).

Elliptical
12

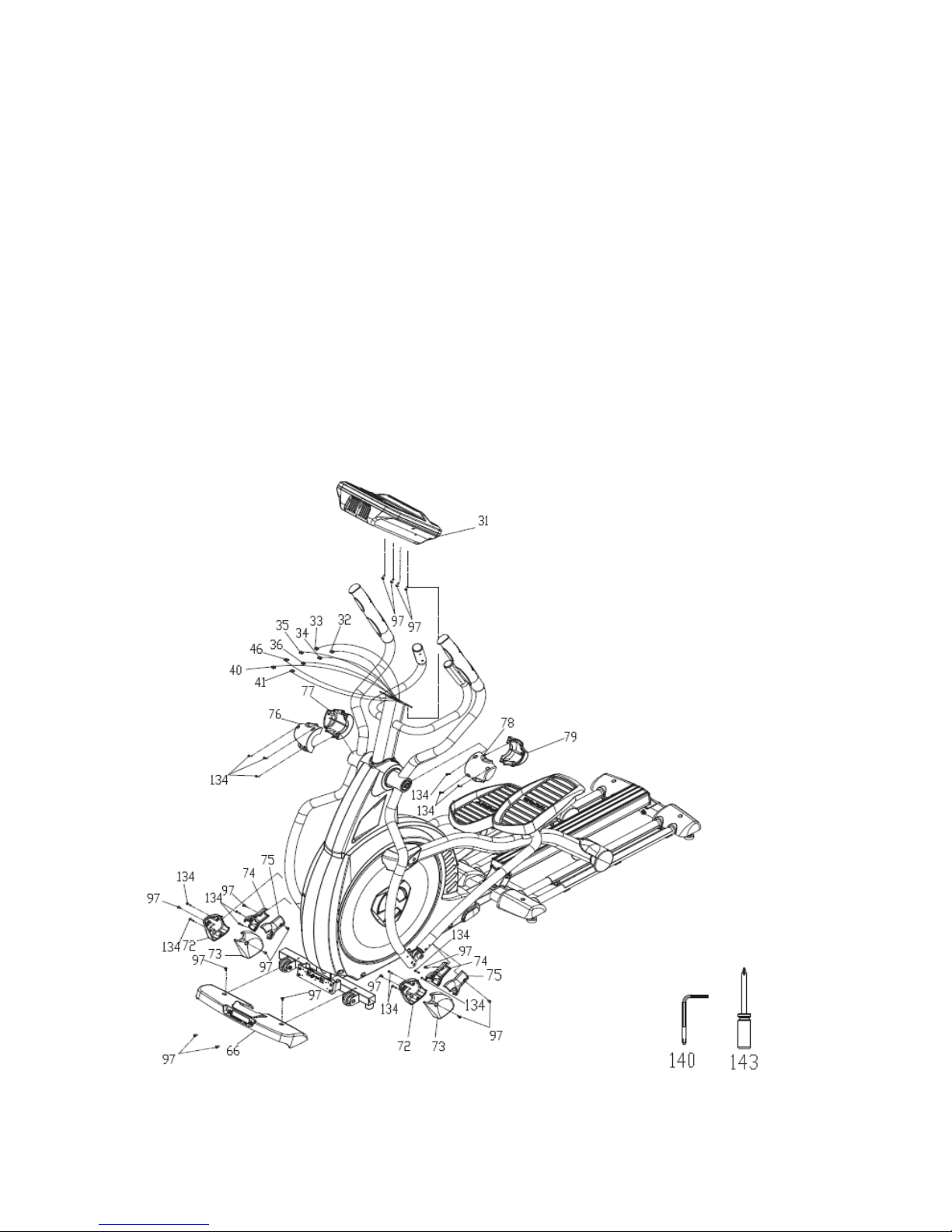

STEP 4: CONSOLE AND BEAUTY COVERS
1. Gather HARDWARE FOR STEP 4.
2. Plug the COMPUTER CABLE (35), CSAFE CABLE(32),TV CABLE(33),NET CABLE (34),
CONSOLE POWER CABLE(36) ,HDMI (46) and HEART RATE CABLES (40/41) into the
corresponding
connectors on the back of the console (31). Mount the CONSOLE (31) to the MAST with 4
SCREWS (97).
3. Install 4 SWING ARM COVERS (77/76 left & 78/79 right) with 6 SCREWS (134).
4. Install 4 COVERS (74X2 & 75X2) to the ends of the PEDAL ARMS with 4 SCREWS (97)and
4 SCREWS (134). Be careful not to install these covers upside down! There is an arrow on the
inside of each cover to indicate the correct installation direction.
5. Install the 4 COVERS (72 X 2 & 73 X 2) to the connection point at the bottom of the SWING
ARMS using 4 SCREWS (134) and 4 SCREWS (97).
5. Install the FRONT STABILIZER COVER (66) with 4 SCREWS (97).

Elliptical
13
Footpads
Through research performed with a leading sports scientist and physical rehabilitation expert, the
engineering has developed a breakthrough in pedal design. The history of elliptical use over the
past few years tells us that many users suffer from ankle, Achilles tendon, knee and/or hip pain.
While researching a solution to these common problems the engineers consulted Richard DeKok,
P.T., M.T.C., of St. Bernards Industrial Rehabilitation Center in Jonesboro Arkansas. Together we/
identified the inherent problem in elliptical designs and developed a solution to solve the problem.
What we found is that when you use an elliptical you tend to push outward during the power stroke
and not just straight back. This causes stress on the outer part of the foot and throws off the natural
alignment of the body’s joints. The solution we discovered was to add a 2-degree inward angle to
the footpads. This might sound simple but it was all that was needed to put the user’s joints back
into a neutral alignment. This eases the over stressing of the ankles, knees and hips and allows the
user to exercise longer without discomfort.
Transportation
The elliptical is equipped with two transport wheels, which are engaged when rear of XE Series
Elliptical is lifted.
Features

Elliptical
14
Getting on / off your elliptical
IMPORTANT
The elliptical comes with two Dual Action Handles and a Stationary Handlebar.
Always hold the Stationary Handlebar when getting on and off the elliptical.
First time users should familiarize themselves with using the elliptical by using the Stationary
Handlebar first and then progressing to the Dual Action Handles.
Once you have familiarized yourself with using the elliptical, you can progress to
using the Dual Action Handles to provide a total body workout. Hands can be
positioned on the Dual Action Handles at the most appropriate position for your
height and arm length.
Caution should always be taken when getting on and off any exercise machine.
Please follow the safety steps below.
Ensure the left Foot Pedal is in the lowest position and grasp the Stationary
Handlebar with both hands.
Place your left foot on the left Foot Pedal and get secure.
Lift your right foot over machine and place on right Foot Pedal. Get balanced
and begin your workout.
Important
To get off, come to a complete stop and reverse the procedure.
Always wear rubber-soled shoes, such as tennis shoes.
It is recommended that you keep at least one hand on the Stationary Handlebar at all times,
especially when getting on or off. If you are performing a walking action with your arms, or
doing upper body strength training exercises, ensure you are well balanced.
All equipment should be set-up and operated on solid, level surfaces.

Elliptical
15
Correct Position
Your body should be in an upright position so that your back is straight.
Keep your head up to minimize neck and upper back strain.
Always try and use the elliptical in a rhythmical and smooth motion. If you
find yourself feeling uncomfortable, or experience a surging type feeling,
there is probably too much tension.
The elliptical can be used in forward or reverse notion.
When going in reverse, bend your knees slightly more. More emphasis is
on the buttocks and hamstrings in the reverse motion.
MOVING YOUR ELLIPTICAL
The elliptical can be easily moved from room to room.
1.Move to the front of the machine and ensure swing arms are even
(one foot pedal at top of Elliptical Disk and other at bottom).
2.Grasp both Dual Action Handles together and pulling back on
handles, tip machine towards you.

Elliptical
16
Console ( WB001 )
Starting the operation
• Plug in the power cord and switch on the main power switch located at the front, below the
console.
• When the power is turned on, the screen will show the initial image and then enter the ready mode
which is the beginning of the elliptical operation.
First page image for you to operate by touching the
icons.
Quick operating functional buttons are installed.
Operation of Your Elliptical

Elliptical
17
Quick-start operation:
• Press “START” button and the console start performing the program. Press “LEVEL” up/down
buttons further to change the resistance level you desire.
• Press first page “HOME” button or “STOP” button to stop the belt.
Featuring functions of this elliptical:
Touch-control screen is installed for the operation. You can directly touch any functional button on
the screen or through quick buttons on the bottom to control. On the bottom, there are “Resistance”
up/down buttons to control the resistance level, “START” button to begin the workout, “STOP”
button to pause/stop running and “FAN” button to the fan on or off.
Pause/Stop:
• Press “STOP” button once or “HOME” button on the screen, the elliptical will stop and keep values
of time, distance and calorie on the screen. The screen will count down for 5 minutes then reset and
return to the initial status.
• Press “START” button to continue the workout during pause.
• Press “STOP” button twice will terminate the setting and display the workout summary. If “STOP”
button is pressed the third time, the console will return to the initial status (the beginning).
Heart rate testing feature:
Pulse (heart rate) on the screen shows the current value of the heart beats per minute. You must
hold both left and right stainless steel sensors to test the pulse. The pulse value will be shown on
the screen continuously. You can also use hand pulse sensors for heart rate control. The console
can also detect the pulse from heart rate stripe which is bipolar including signal transmitting.
To turn off the elliptical:
The screen will turn it off (sleep status) when there is no command within 30 minutes. This is called
sleeping mode and the elliptical will stop most of its activity except the minimum circuit detecting
system for press buttons so that when there is any button activation, the elliptical restarts. There is
only very little electric current (like a TV turned off) in the sleeping mode. It is fine to leave the main
power switch on during sleeping mode.

Elliptical
18
Below is the instruction for touch screen operation:
• First page HOME
There are four selections. Usually the “Language” is the first selection.
•When you press “Language” button on the first page HOME, it enters the menu with all
languages selection.
There are 12 languages to choose.
Touch the desired language button to set and the system will return to the first page for the program
operation. If you don’t want to change the language, press HOME button at the upper left corner to
return to the first page or touch the return button at right upper right corner to return to the previous
page to continue the operation.

Elliptical
19
• When TV button on the first page HOME is pressed, it enters TV interface.
Now you can enjoy TV programs. If you want to workout and enjoy TV program simultaneously,
press “START” button to start the elliptical.
You can change the TV channel by using up/down buttons on the TV channel or channel remote
control at bottom right to change the channel. Use up/down buttons on the volume to change the
sound volume. Press “Mute” button to switch to silence. Touch Max Screen icon to switch to full
screen. When you want to resume the original screen display, just touch the image and the screen
resumes. Use level up/down buttons to control the resistance level. When you want to pause, just
press “HOME” button at left top of the screen or press “STOP” button once and the pause window
will show up. If you want to stop, you can choose to end the program or press “STOP” button again
to end the program and display the workout summary. Pressing the “STOP” button third time and
the console returns to the initial status (the beginning).
