XE395 ELLIPTICAL TRAINER
OWNER’S MANUAL

3
TABLE OF CONTENTS
5 IMPORTANT SAFETY INSTRUCTIONS
6 IMPORTANT ELECTRICAL INSTRUCTIONS
8 IMPORTANT OPERATION INSTRUCTIONS
8 PRODUCT REGISTRATION
9 XE395 ASSEMBLY INSTRUCTIONS
17 CONSOLE OPERATION
22 PROGRAMMABLE FEATURES
30 USING HEART RATE TRANSMITTER
31 USING THE SPIRIT FIT APP
34 GENERAL MAINTENANCE
36 MANUFACTURER’S LIMITED WARRANTY
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.

4
Congratulations on your new elliptical trainer and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality elliptical trainer from Spirit Fitness.Your new elliptical trainer was manufactured by
one of the leading tness manufacturers in the world and is backed by one of the most comprehensive warranties available.
Through your dealer, Spirit Fitness will do all we can to make your ownership experience as pleasant as possible for many
years to come. If not purchased direct from Spirit Fitness, the local dealership where you purchased this elliptical trainer is
your administrator for all Spirit Fitness warranty and service needs. Their responsibility is to provide you with the technical
knowledge and service personnel to make your experience more informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the date of purchase below
to make any future, needed contact easy.We appreciate your support and we will always remember that you are the reason
that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________

5
Important Safety Instructions
WARNING
When using an electrical appliance, basic precautions should
always be followed, including the following:
Read all instructions before using this appliance.
DANGER -To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet
immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re, electric
shock, or injury to persons, install the elliptical on a at level
surface with access to a 115-volt, 15-amp grounded outlet
with only the elliptical plugged into the circuit.
DO NOT USE AN EXTENSION CORD UNLESS IT IS A 18AWG OR
BETTER,WITH ONLY ONE OUTLET ON THE END:
• To reduce the risk of burns, re electric shock, or injury
to persons:
• An appliance should never be left unattended when
plugged in. Unplug from outlet when not in use, and
before putting on or taking off parts.
• Do not operate under blanket or pillow. Excessive
heating can occur and cause re, electric shock, or
injury to persons.
• Close supervision is necessary when this appliance
is used by, on, or near children, invalids, or disabled
persons.
• Use this appliance only for its intended use as
described in this manual. Do not use attachments not
recommended by the manufacturer.
• Never operate this appliance if it has a damaged cord
or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water. Return
the appliance to a service center for examination and
repair.
• Do not carry this appliance by supply cord or use cord
as a handle.
• Keep the cord away from heated surfaces.
• Never operate the appliance with the air openings
blocked. Keep the air openings free of lint, hair, and the
like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are
being use or where oxygen is being administered.
• Connect this appliance to a properly grounded outlet
only.
• The appliance is intended for household use.
• This appliance is not intended for use by persons with
reduced physical, sensory or metal capabilities, or lack
of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Keep children under the age of 13 away from this
machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!

6
Fitness Equipment Safety Instructions
To disconnect turn all controls to the off position, then remove the plug from the outlet.
• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and equipment may result.
• Before beginning this or any exercise program, consult a physician. This is especially important for persons over the age
of 35 or persons with pre-existing health conditions.
• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
• Keep hands away from all moving parts.
• The pulse sensors are not medical devices. Their purpose is to provide you with an approximate measurement in
relation to your target heart rate. Use of a chest transmitter strap (sold separately) is a much more accurate method
of heart rate analysis .Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The
pulse sensors are intended only as exercise aids in determining heart rate trends in general.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your equipment. Quality
athletic shoes are recommended to avoid leg fatigue.
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly
others) to injury, and reduce the longevity of the equipment.
Important Electrical Instructions
WARNING
NEVER remove any cover without rst disconnecting AC power. If voltage varies by ten percent (10%) or more, the
performance of your Elliptical may be affected. Such conditions are not covered under your warranty. If you suspect the
voltage is low, contact your local power company or a licensed electrician for proper testing.
NEVER expose this elliptical to rain or moisture.This product is NOT designed for use outdoors, near a pool or spa, or in
any other high humidity environment. The operating temperature specication is 40 to 120 degrees Fahrenheit, and humidity
is 95% non-condensing (no water drops forming on surfaces).

7
Circuit Breakers: Some circuit breakers used in homes are not rated for high inrush currents that can occur when a
elliptical is rst turned on or even during use. If your elliptical is tripping the house circuit breaker (even though it is the
proper current rating) but the circuit breaker on the elliptical itself does not trip, you will need to replace the home breaker
with a high inrush type. This is not a warranty defect. This is a condition we as a manufacture have no ability to control. This
part is available through most electrical supply stores. Examples: Grainger part # 1D237, or available online at www.squared.
com part #QO120HM.The electrical outlet used should have a dedicated 15 amp circuit breaker.
Grounding Instructions
This product must be grounded. If the your equipment should malfunction or breakdown, grounding provides a path
of least resistance for electric current, reducing the risk of electric shock. This product is equipped with a cord having an
equipment-grounding plug.The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a
qualied electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug
provided with the product if it will not t the outlet; have a proper outlet installed by a qualied electrician.
This product is for use on a nominal 110-volt/15 amp dedicated circuit, and has a grounding plug that looks like the plug
illustrated below. A temporary adapter that looks like the adapter illustrated below may be used to connect this plug to a
2-pole receptacle as shown below if a properly grounded outlet is not available. The temporary adapter should be used
only until a properly grounded outlet, (shown below) can
be installed by a qualied electrician. The green colored
rigid ear-lug, or the like, extending from the adapter, must
be connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adapter is used, it
must be held in place by a metal screw.

8
Important Operation Instructions
• NEVER operate this elliptical trainer without reading and completely understanding the results of any operational
change you request from the computer.
• Understand that changes in resistance do not occur immediately. Set your desired resistance level on the computer
console and release the adjustment key.The computer will obey the command gradually.
• NEVER use your elliptical during an electrical storm. Surges may occur in your household power supply that could
damage elliptical components. Unplug the elliptical during an electrical storm as a precaution.
• Use caution while participating in other activities while pedaling on your elliptical trainer; such as watching television,
reading, etc.These distractions may cause you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control keys. They are precision set to function properly with little nger
pressure.
Record Your Serial Number
Please record the serial number of this tness product in the space provided
below.
Serial Number:
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to Spirit Fitness.
You can also go to https://www.spirittness.com/residentialwarrantyregistration.html under the Support
tab to register online.

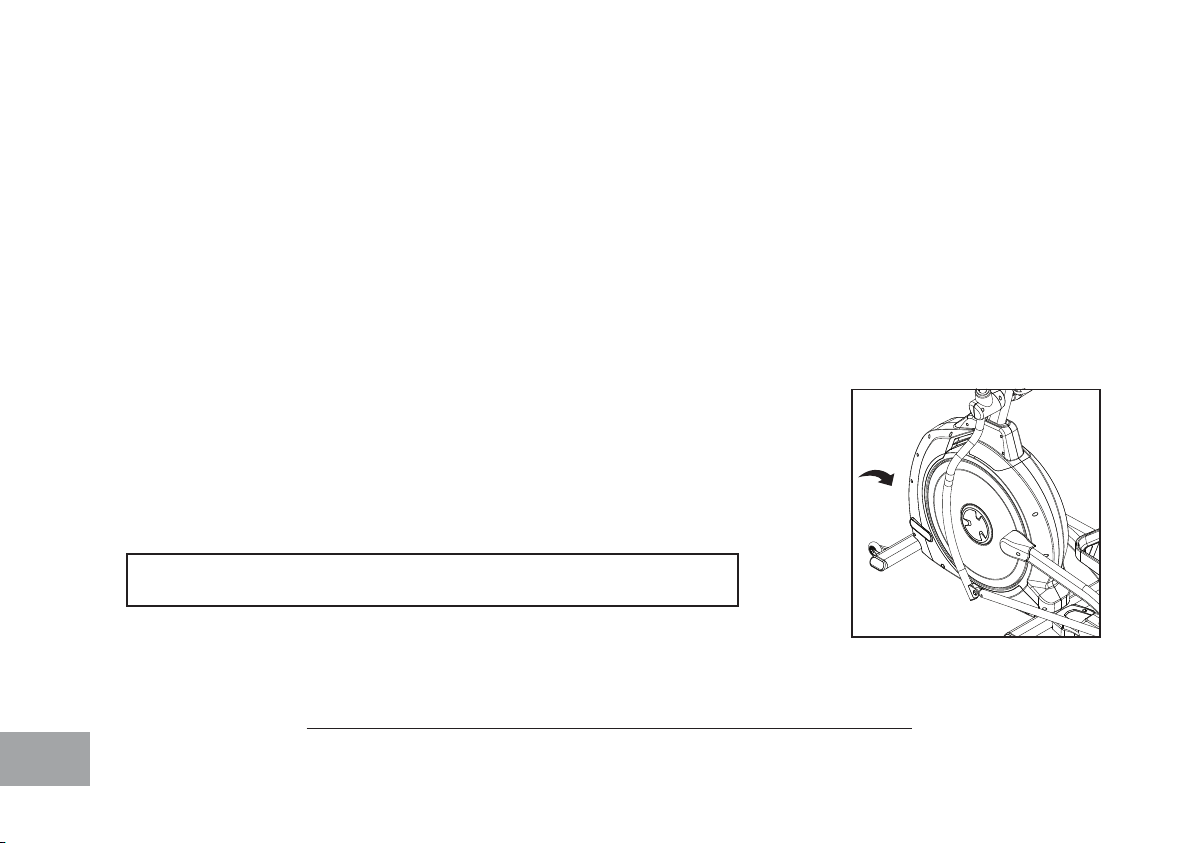

Serial Number Location

9
XE395 PRE ASSEMBLY
UNPACKING
1. Cut the straps, then lift the box over the unit and unpack.
2. Carefully remove all parts from the carton and inspect for any damage
or missing parts. If parts are damaged or missing, contact your dealer
immediately.
3. Locate the hardware package. Remove the tools rst. Remove the
hardware for each step as needed to avoid confusion. The numbers in
the instructions that are in parenthesis (#) are the item number from the
assembly drawing for reference.
TOOLS INCLUDED:
13/14mm Wrench
Phillips Head Screwdriver
12/14mm Wrench
Combination M5 Allen Wrench
& Phillips Head Screw Driver
PARTS INCLUDED:
1 Main Frame
1 Console Mast
1 Console Mast Cover
2 Swing Arms
2 Connecting Arms
6 Levelers
1 Console
2 Foot Pedals
1 Power Cord
1 Audio Cable
2 Transport Wheels
1 Hardware Kit

10

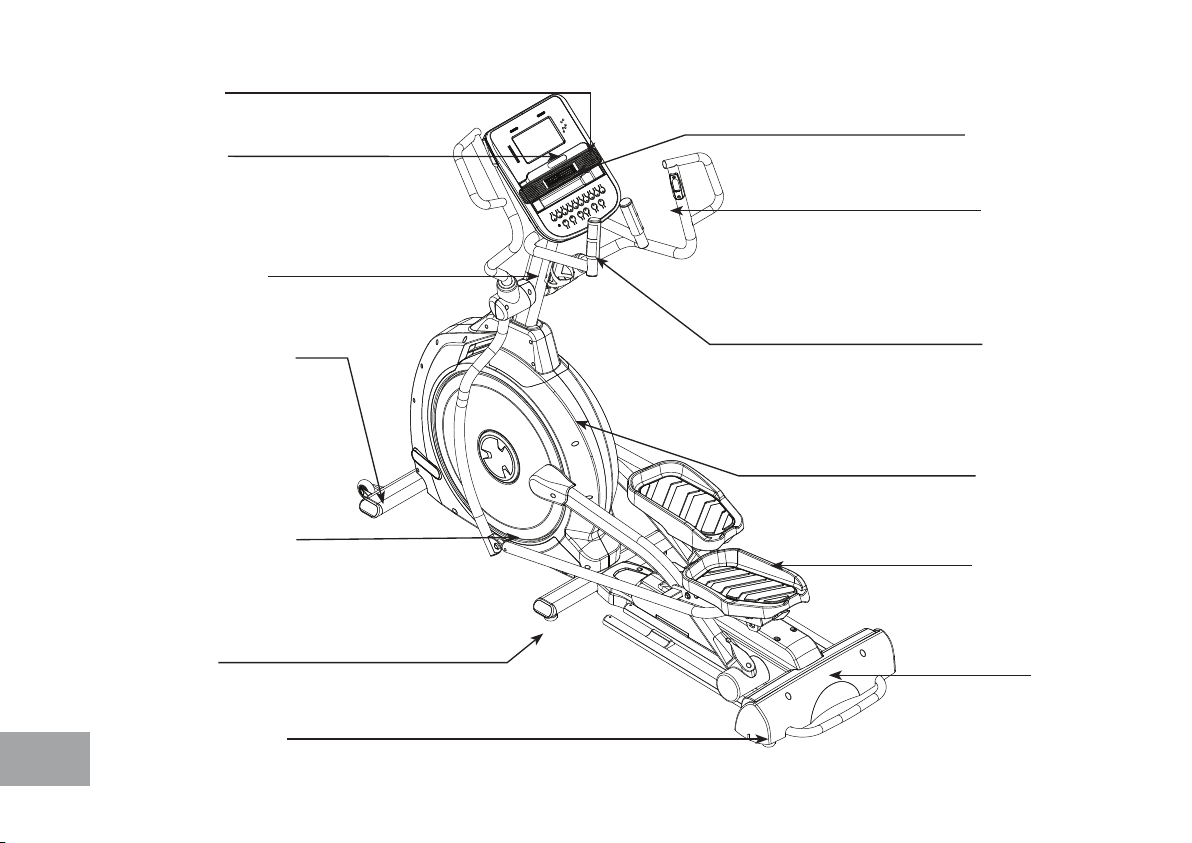

SPEAKERS
CONSOLE
CONSOLE MAST
CONNECTING ARM
LEVELERS
FRONT STABILIZER
REAR STABILIZER
FOOT PEDALS
MAIN FRAME
RAILS
PULSE GRIPS
SWING ARM
CONSOLE FAN

11

12

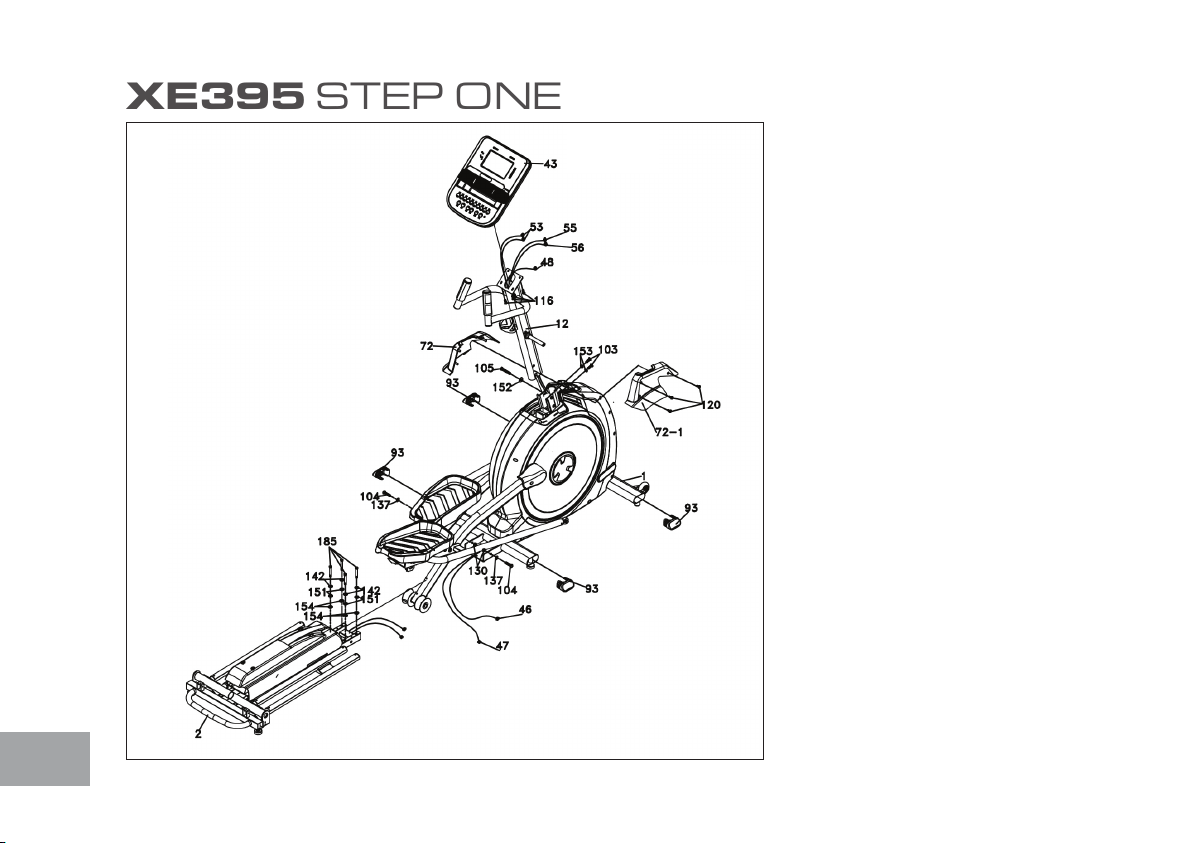

XE395 STEP ONE

13
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
103 BOLT 3/8”X3/4” 2
104 BOLT 3/8” X UNC16 X 1-1/2” 2
105 BOLT 3/8” X 2-1/4” 1
116 PHILLIPS HEAD SCREW M5 X 10mm 4
120 SHEET METAL SCREW 3.5 X16mm 3
130 NYLOC NUT 3/8” X 7T 2
137 FLAT WASHER 3/8” × Ø19 × 1.5T 2
142 FLAT WASHER 5/16” X 20 X 1.5T 4
151 SPLIT WASHER 8 X 1.5T (5/16” X 1.5T) 4
152 SPLIT WASHER Ø10 × 2T 1
153 CURVED WASHER Ø3/8” × 23 × 2T 2
154 STAR WASHER 5/16” 4
185 BOLT 5/16” X 2 - 1/4” 4
1. Gather HARDWARE FOR STEP 1.
2. Slide the INCLINE RAIL ASSEMBLY (2) into the U channel of the
MAIN FRAME (1).Be very careful not to damage the wires that exit
each part.
3. Connect the INCLINE RAIL ASSEMBLY (2) horizontally to the U
channel of the MAIN FRAME (1) with 2 HEX HEAD BOLTS (104),
2 FLAT WASHERS (137), and 2 NYLOC NUTS (130). Secure it
vertically with 4 HEX HEAD BOLTS (185), 4 SPLIT WASHERS
(142), 4 FLAT WASHERS (151), and 4 STAR WASHERS (154).
Tighten using the WRENCHES provided (155 & 158).
4. Connect the INCLINE MOTOR WIRES (46 & 47) to the wiring
harness & black wire that exits the INCLINE RAIL ASSEMBLY (2).
Push the excess cable inside the U channel.
5. Locate the CONSOLE MAST (12) and CONSOLE MAST COVER
(72); slide the Cover onto the mast as far as it will go. Make sure the
CONSOLE MAST COVER (72) is facing the correct way.
6. At the top opening of the MAIN FRAME (1), there is a COMPUTER
CABLE (53) tied to a twist tie wire. Feed the twist tie wire and
COMPUTER CABLE (53) into the bottom of the CONSOLE
MAST (12) and out of the opening at the top.
7. Install the CONSOLE MAST (12) into the receiving bracket on the
top of the MAIN FRAME (1). Be extremely careful not to pinch the
cables between the tubing. If the cable gets pinched, this may affect the
electrical functions of the console.
NOTE: There is one bolt already installed in the receiving bracket that
will engage with the slot at the bottom of the Console Mast.This needs
to be tightened last, after the three other Console Mast bolts.
8. Place a SPLIT WASHER (152) onto the HEX HEAD BOLT (105)
and hand tighten through the left side of the Console Mast. Place a
CURVED WASHER (153) onto each HEX HEAD BOLT (103)
and thread both into the front of the Console Mast tube. Fasten these
front bolts as tight as possible with the WRENCH (155). Next rmly
tighten the two left side bolts with the same wrench.
9. Connect the 2 HAND PULSE CABLES (47), RESISTANCE
CABLE (49), and COMPUTER CABLE (53) to the back of the
CONSOLE (43). Do not force the connectors; they will only t one
way and are different sizes to prevent confusion. Store the excessive
cable in the CONSOLE MAST TUBE (12).
10. Attach the CONSOLE (43) to the bracket of the Console Mast tube
with 4 PHILLIPS HEAD SCREWS (116).Tighten the screws with the
PHILLIPS HEAD SCREW DRIVER (157).

14
XE395 STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
141 FLAT WASHER 5/16” X 23 X 1.5T 2
142 FLAT WASHER 5/16” X 20 X 1.5T 2
150 WAVE WASHER Ø17 4
184 BOLT 5/16” X 15L 2
186 BOLT 5/16” X 1 - 1/4” 2
192 NYLOC NUT 5/16” X 9T 2
1. Gather HARDWARE FOR STEP 2.
2. Slide 2 WAVE WASHERS (150) onto each side
of the Swing Arm Axle. Slide the LOWER SWING
ARMS (10 LEFT,11 RIGHT) onto the axles
and secure with the 2 BOLTS (99) and FLAT
WASHERS (141). Do not force the Swing Arms
onto the axle.They should slide on, but you may
need to jiggle them to get them lined up properly.
The Swing Arms have been previously installed at the
factory so they do t properly.
3. Remove the tie that holds the spacer in the rod end
located at the end of the RIGHT CONNECTING
ARM (9) and line up the rod end with the bracket
at the bottom of the LOWER RIGHT SWING
ARM (11). Slide the BOLT (101) through the
bracket of the Lower Swing Arm and then through
the rod end and spacer. Install the FLAT WASHER
(142) and NYLOC NUT (127) on the bolt and
tighten as much as possible. Repeat this step for the
left side.Tighten using the WRENCHES (155 &
158).

15
XE395 STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
127 NYLOC NUT 5/16” X 7T 6
159 BOLT 5/16” X 1-3/4” 6
160 CURVED WASHER 8 X 23 X1.5T 4
161 SWITCH WIRE CAP 1
1. Gather HARDWARE FOR STEP 3.
2. Slide the RUBBER SLEEVE (162) onto the LEFT
(16) and RIGHT (17) Upper Swing Arms. Make
sure the wide part is at the bottom.
3. Attach the WIRE (50) from the RIGHT UPPER
SWING ARM (17) to the WIRE (49) that exits the
CONSOLE MAST TUBE (12). Slide the SWITCH
WIRE CAP (161) onto the wire with the wide side
facing the Swing Arm.
4. Insert the UPPER SWING ARM (17) into the
Lower Swing Arm. Fasten together with 3 HEX
HEAD BOLTS (159), 2 CURVED WASHERS
(160), and 3 NYLOC NUTS (127).
5. Repeat steps from above on the left side.

16
XE395 STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
115 PHILLIPS HEAD SCREW M5 X12MM 12
119 SHEET METAL SCREW 3.5 X 12MM 8
122 PHILLIPS HEAD SCREW M6 X 10MM 4
1. Gather HARDWARE FOR STEP 4.
2. Fasten the 2 WHEEL COVERS (79 & 80) above
the rollers with 4 PHILLIPS HEAD SCREWS
(115).Tighten with the PHILLIPS HEAD SCREW
DRIVER (157).
3. Plug the power cord into the machine and a
grounded wall outlet.Turn the power switch on.
Press the start button and elevate the incline to level
8. Attach the COVER (85) to the mid-stabilizer tube
with 2 PHILLIPS HEAD SCREWS (115). Tighten
the screws with the PHILLIPS HEAD SCREW
DRIVER (157).
4. Install the LEFT HANDLE BAR COVERS (81
& 82) and RIGHT HANDLE BAR COVERS
(83 & 84) over the Handle Bars axle connections
with 4 SHEET METAL SCREWS (119) on each
side.Tighten with the PHILLIPS HEAD SCREW
DRIVER (157).
Continued on next page...

17
5. Attach a STEEL BRACKET (180) to the Rear Stabilizer Tube on the
left and right sides (with the single hole facing the rear), and secure
them with 4 PHILLIPS HEAD SCREWS (122).Tighten using the
PHILLIPS HEAD SCREW DRIVER (157).
6. Attach the front REAR STABILIZER COVER (87) to the REAR
STABILIZER TUBE (2) with 2 PHILLIPS HEAD SCREWS (115).
Secure with the PHILLIPS HEAD SCREW DRIVER (157). Attach
the back REAR STABILIZER COVER (88) onto the Rear Stabilizer
Tube with 4 PHILLIPS HEAD SCREWS (115). Secure using the
PHILLIPS HEAD SCREW DRIVER (157).
7. Look closely at the four oor levelers underneath the middle and
rear of the elliptical. If any of these aren’t in contact with the oor, use
the WRENCH (109) to loosen the top nut. Once the nut has been
loosened, turn the rubber caster clockwise until it makes solid contact
with the oor. Retighten the top nut to prevent it from moving.
8. Return the elevation to the at position using the Incline down key.

18
XE395 CONSOLE OPERATION
Ten innovative
programs offer a
variety of work-outs
Heart Rate % Profile
Easy-Touch
Control Keys
Muscle
Activation Profile
Swivel Fan to
keep you cool
Integrated Speakers
for MP3 Player
Convenient cargo
compartment for keys,
phone, or MP3 player
Large LCD with
scrolling feedback and
scrolling message center

19
MUSCLE ACTIVATION FIGURE
There is an anatomical gure located at the top of the console. This gure will light all areas that are activated when using
the elliptical. These will light up during any of the programs. You can control which muscles are activated by changing the
incline and swinging your arms. The pre-set programs will determine which lower body muscles will be activated by automat-
ically adjusting the incline. Generally the following guidelines hold true:
• The upper body LED’s will light any time your hands aren’t in contact with the pulse grip sensors.
• The lower body lights will activate in three degrees of engagement: Green represents minimal muscle involvement, Am-
ber represents medium involvement, and Red represents full or heavy activation.
Forward pedal rotation
• Levels 0-7.5 Incline: Amber - Gluteals and Quadriceps light up; Green - Hamstrings and Calves light up.
• Levels 8-20 Incline: Red – Gluteals light up, Amber – Quadriceps light up, Green – Hamstrings and Calves Light up.
Reverse Pedal rotation
• Levels 0-7.5 Incline : Amber – Calves, Hamstrings, and Quadriceps light up; Green – Gluteals lights up.
• Levels 8-20 Incline: Red – Calves, Hamstrings, and Quadriceps light up; Green- Gluteals lights up.
Heart Rate % Profile
The console LCD screen will display your current heart rate anytime a
pulse is detected. The Bar Graph, located to the right of the LCD screen, will show your current heart rate % in relation to
your projected maximum heart rate, which is determined by your age that you entered during the programming phase of
any of the 10 programs. The signicance of the bar graph colors are as follows:
• 50-60% of maximum is Amber
• 65-80% of maximum is Amber and Green
• 85-90% or more is Amber, Green, and Red

20
POWER
When the power cord is connected to the elliptical, the console will automatically power up. When
initially powered on the console will perform an internal self-test. During this time all the lights will turn on.
When the lights go off, the Message Center will show the software version (i.e.: VER 1.0).The distance window
shows the distance total and the time window shows the total hours of use.
The odometer will remain displayed for only a few seconds then the console will go to the start up display.The
dot matrix display will be scrolling through the different proles of the programs and the Message Center will be
scrolling the start up message.You may now begin to use the console.
Quick Start
This is the quickest way to start a workout. After the console powers up you just press the Start key
to begin, this will initiate the Quick Start mode. In Quick Start the Time will count up from zero and
the workload may be adjusted manually by pressing the Level Up/Down keys.The dot matrix display
will have only the bottom row lit at rst. As you increase the work load more rows will light indicating a
harder workout.The elliptical trainer will get harder to pedal as the rows increase.
There are 20 levels of resistance available for plenty of variety. The rst 5 levels are very easy workloads
and the changes between levels are set to a good progression for de-conditioned users. Levels 6-10 are
more challenging, but the increases in resistance from one level to the next remain small. Levels 11-15
start getting tough as the levels jump more dramatically. Levels 16-20 are extremely hard and are good
for short interval peaks and elite athletic training.
