Spirit Esprit EL255 User manual

ESP0021
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE
OPERATING YOUR NEW ELLIPTICAL!
Z100 / Z300 Z500 Z700
OWNER’S MANUAL

EL255 Elliptical
1
Product Registration…………………………………………………………………………..2
Important Safety Instructions…………………………………………………………………3
Important Electrical Information………………………………………………………………4
Important Operation Instructions……………………………………………………………..4
Assembly Instructions………………………………………………………………………….5
Features………………………………………………………………………………………..12
Operation of Your New Elliptical……………………………………………………………..13
Maintenance……………………...……………………………………………………………18
Parts list and Explode Drawing …………………………………………………………….. 21
Manufacturer’s Limited Warranty……………………………………………………………. 23
Table of Contents

EL255 Elliptical
2
Thank you for your purchase of this quality elliptical trainer. Your new elliptical was
manufactured by one of the leading fitness manufacturers in the world and is backed by
one of the most comprehensive warranties available.
Please take a moment at this time to record the name of the dealer and the date of
purchase below to make any future, needed contact easy. We appreciate your support and
we will always remember that you are the reason that we are in business.
Yours in Health,
BOYLES FITNESS Equipment Pty Ltd.
Name of Dealer______________________________________
Purchase Date_______________________________________
EL255/ESP0021_Ver.C
CONGRATULATIONS ON YOUR
NEW ELLIPTICAL AND WELCOME
TO THE SPIRIT FAMILY!

EL255 Elliptical
3
WARNING - Read all instructions before using this appliance.
■ Do not operate elliptical on deeply padded, plush or shag carpet. Damage to both carpet and
elliptical may result.
■ Keep children away from the elliptical. There are obvious pinch points and other caution areas
that can cause harm.
■ Keep hands away from all moving parts.
■ Never operate the elliptical if it has a damaged cord or plug. If the elliptical is not working
properly, call your dealer.
■ Keep the cord away from heated surfaces.
■ Do not operate where aerosol spray products are being used or where oxygen is being
administered. Sparks from the motor may ignite a highly gaseous environment.
■ Never drop or insert any object into any openings.
■ Do not use outdoors.
■ To disconnect, turn all controls to the off position, then remove the plug from the outlet.
■ Do not attempt to use your elliptical for any purpose other than for the purpose it is intended.
■ The hand pulse sensors are not medical devices. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The pulse sensors are intended
only as exercise aids in determining heart rate trends in general.
■ Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on
your elliptical. Quality athletic shoes are recommended to avoid leg fatigue.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Important Safety Instructions

EL255 Elliptical
4
WARNING!
●NEVER remove any cover without first disconnecting AC power supply.
●If A.C. voltage varies by ten percent (10%) or more, the performance of your elliptical may be
affected. Such conditions are not covered under your warranty. If you suspect the voltage is
low, contact your local power company or a licensed electrician for proper testing.
●NEVER expose this elliptical to rain or moisture. This product is NOT designed for Use
outdoors, near a pool or spa, or in any other high humidity environment. Maximum
environmental ratings are 40-120 degrees Fahrenheit, 95% humidity non-condensing (no water
droplets forming on surfaces).
●NEVER operate this elliptical without reading and completely understanding the results of any
operational change you request from the computer.
●Understand that changes in resistance do not occur immediately. Set your desired level on the
computer console and release the adjustment key. The computer will obey the command
gradually.
●NEVER use your elliptical during an electrical storm. Surges may occur in your household
power supply that could damage elliptical components.
●Use caution while participating in other activities while using your elliptical such as watching
television, reading, etc. These distractions may cause you to lose balance, resulting in serious
injury.
●Always hold on to a handrail or hand bar while making control changes.
Do not use excessive pressure on console control keys. They are precision set to properly
function with little finger pressure. Pushing harder is not going to make the unit go faster or
slower. If you feel the buttons are not functioning properly with normal pressure, contact your
dealer.
Important Electrical Information
Important Operation Instructions

EL255 Elliptical
5
■UNPACKING THE UNIT
1. Carefully remove all parts from carton and inspect for any damage or missing parts. If damaged
parts are found, or parts are missing, contact your dealer immediately.
2. Locate the hardware package. The hardware is separated into steps. Remove the tools first.
Remove the hardware for each step as needed to avoid confusion.
ASSEMBLY PACK CHECK LIST
Step 1
Assembly Instructions ( EL255 )
#119 - 3/8" x 3"
Hex Head Bolt (3pcs)
#94 - 3/8"x 19mm
Flat Washer (2pcs)
#114 - 3/8"x 23mm
Curved Washer (2pcs)
#78 - M5 x 10mm
Phillips Head Screw (4pcs)
#120 - 3/8"
Split Washer (4pcs)
#121 - 3/8" x 3/4"
Hex Head Bolt (1pc)

EL255 Elliptical
6
Step 2
Step 3
#97 - 5/16" x 23mm
Flat Washer (2pcs)
#70 - 5/16" x 15mm
Hex Head Bolt (2pcs)
#101 – 17mm
Wave Washer (2pcs)
#75 - 5/16" x 15mm
Button Head Socket Bolt (6pcs)
#71 - 5/16” x 32mm
Hex Head Bolt (2 pcs)
#98 - 5/16" x 20mm
Flat Washer
(2pcs)
#105 - 5/16"
Nylon Nut (2 pcs)
#89 - 3/8"
Nylon Nut (2 pcs)
#94 - 3/8" x 19mm
Flat Washer (2pcs)
#76 - 3/8 x 2-1/4"
Button Head Socket Bolt (6pcs)
#114 - 3/8" x 23mm
Curved Washer (4pcs)

EL255 Elliptical
7
Step 4
Tools
#84 - 3.5mm x 12mm
Sheet Metal Screw (8pcs)
#79 - M5 x 15mm
Phillips Head Screw (12pcs)
#108 - Combination M5 Allen Wrench
& Phillips Head Screw Driver (1 pc)
#110 - 12mm Wrench (1pc)
#111 - 13/14mm Wrench (2pcs)

EL255 Elliptical
8
STEP 1: CONSOLE MAST ASSEMBLY
•Locate the Console Mast (10) and Console Mast Cover (41) and slide the Cover onto the Mast as
far as it will go. Make sure the Console Mast Cover is facing the correct way.
•At the top opening of the Main Frame (1) there is a Computer Cable (32) attached to a guiding
wire. Unravel the wire and feed the Computer Cable into the bottom of the Console Mast tube
and out of the top opening.
•Install the Console Mast (10) into the receiving bracket on the top of the Main Frame. Pull slightly
on the computer cable at the top of the mast while installing, this will ensure the cable does not
get pinched and shorted during mast assembly.
•Install two 3/8" Split Washers(120) and two 3/8” Curved Washers(114) onto one of the 3/8" x 3"
Hex Head Bolt (119) and one of the 3/8" x 3/4" Hex Head Bolt (121) install through the front of the
Console Mast; just hand tighten for now. Install two 3/8” Flat Washers (94) and two 3/8" Split
Washers (120) onto two 3/8" x 3" Hex Head Bolts (119). Install them through the left side of the
receiving bracket into the Console Mast. Now tighten all 3 bolts as tight as possible and snap the
console mast cover into place.
•There are three connectors at the top opening of the Console Mast; two Hand pulse wires (37)
and one Computer Cable (32). Connect these to the mating connectors on the back of the
Console Assembly (31). Store the excess wiring back into the Console Mast (10) as you carefully
install the Console Assembly (31) onto the mounting plate of Console Mast. Secure the console
with four M5 Phillips Head Screws (78).
•

EL255 Elliptical
9

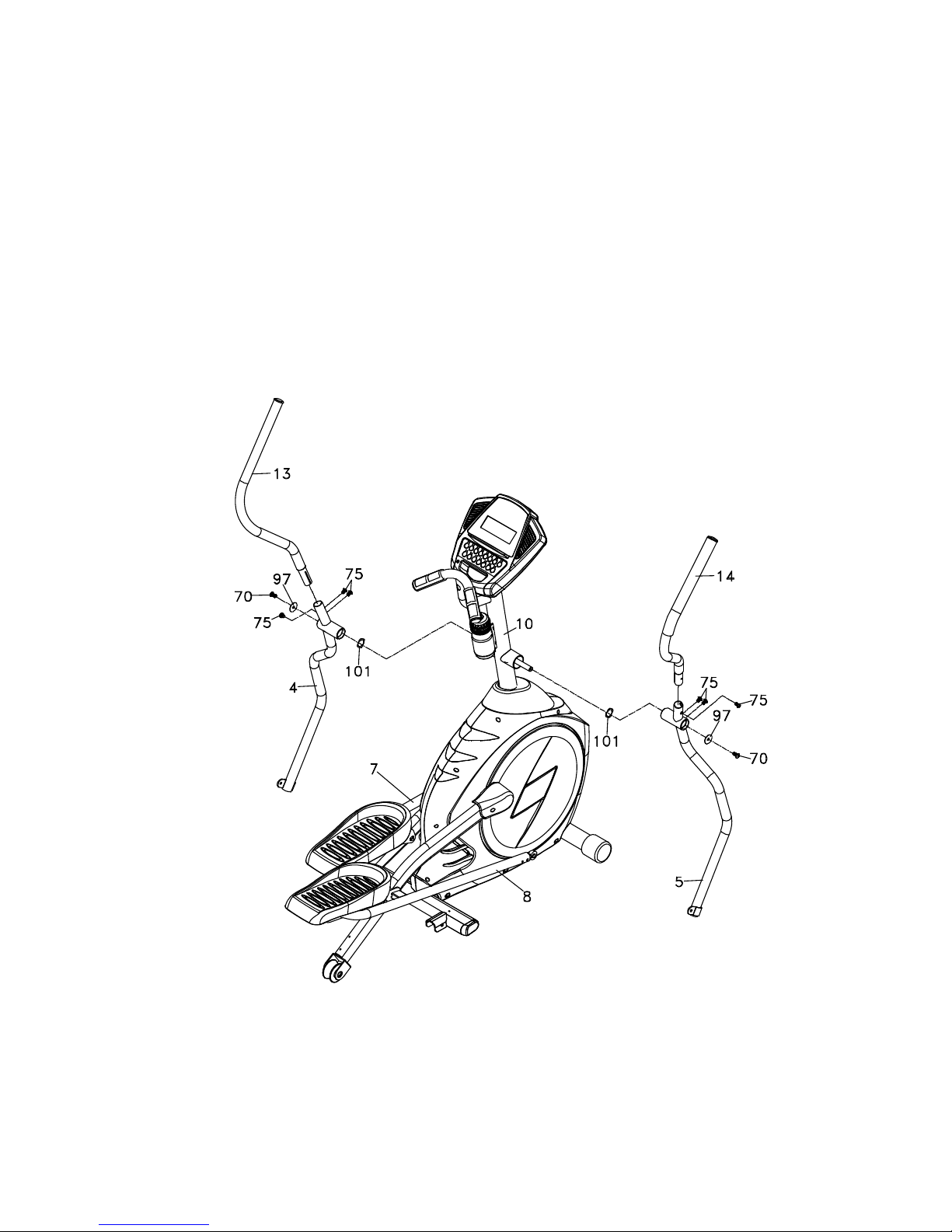

STEP 2: SWING ARM ASSEMBLY
•Install the two Wave Washers (101) onto the Left and Right sides of the Swing Arm axle.
•Slide the Left and Right Swing Arms (4&5) onto the appropriate side of the axle. There is a small
sticker on each swing arm that shows L (Left) or R (Right). Do not force the swing arms onto the
axles, they should slip on but may need to be jiggled a little to align them properly. The swing
arms have been installed at the factory during testing so they should fit properly.
•Install two 5/16" Flat Washers (97) onto the two 5/16" Hex Head bolts (70) and install and tighten
in the threaded holes in the ends of the axle.
•Install the left and right upper arms (13&14) to the lower arms with six 5/16” x 15mm bolts (75).
