Spirit XC8500 Instruction Manual

XC8500
EXERCISE BIKE
NOTE
Thank you for purchasing
the SPIRIT XC8500
Exercise Bike. Please
read carefully through
all the precautions
and instructions in this
manual before using this
equipment and keep this
manual for your future
reference.
SERVICE CENTRE
NUMBER
For immediate help with
assembly or for additional
product information,
please call our service
center.
(DBN)
031 702 5784
(JHB)
011 907 1660
(CT)
021 934 0862
(PE)
041 487 0573
please have your model
name ready when you
call us.
MAXIMUM USER
WEIGHT
150kg 10172
INSTRUCTION AND USER’S MANUAL

CONTENTS
SAFETY PRECAUTIONS page 1
PRE-ASSEMBLY CHECK LIST page 2
PARTS LIST page 3-4
HARDWARE PARTS LIST page 5
EXPLODED DIAGRAM page 6
ASSEMBLY INSTRUCTION page 7-11

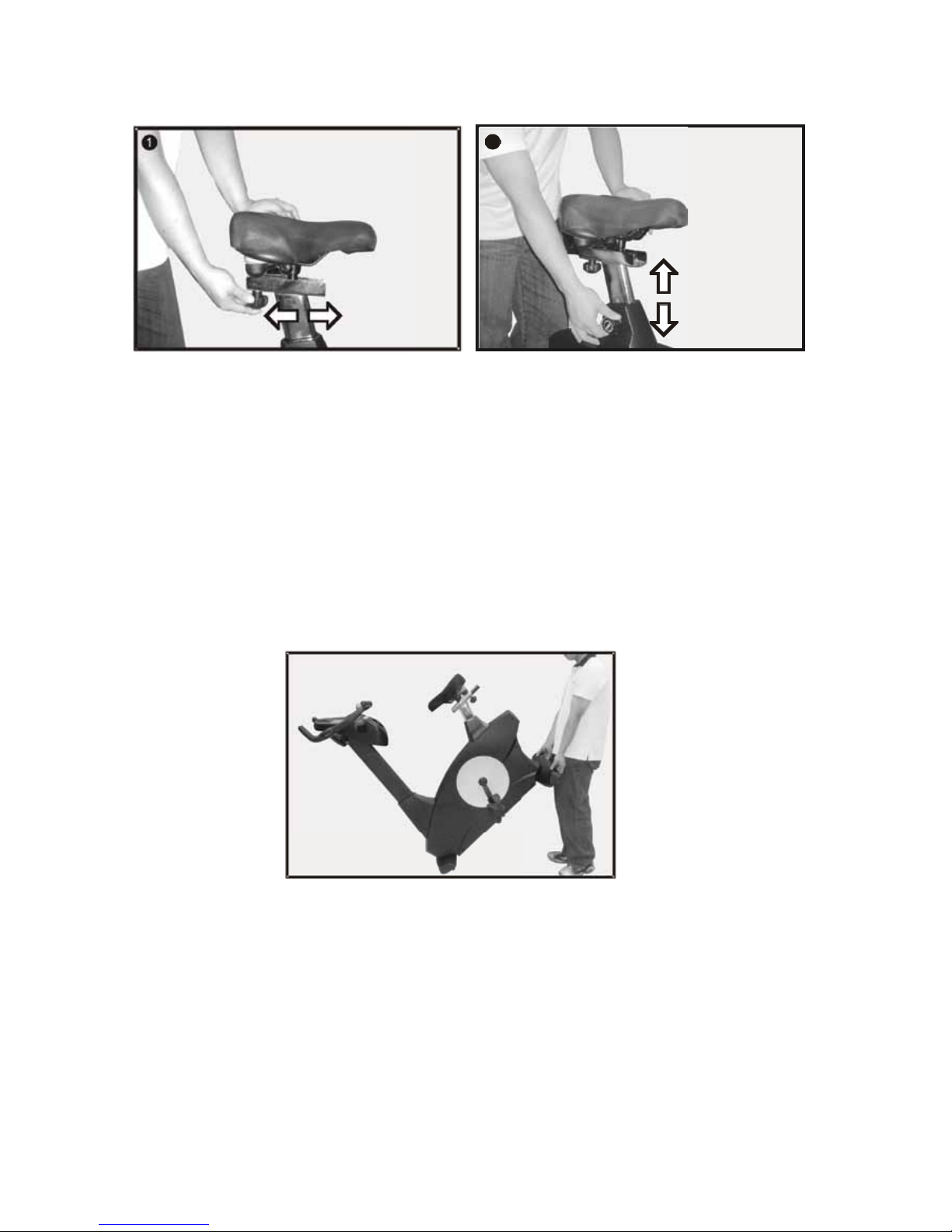

ADJUSTMANT AND TRANSPORT page 12
COMPUTER OPERATION INSTRUCTIONS page 13-23
EXERCISE INSTRUCTIONS page 24-25
WARRANTY INFORMATION page 26-28

page-1
10172
SAFETY PRECAUTIONS
IMPORTANT: THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY
WARNING - Read all instructions before using this appliance.
1. Do not operate exercise bike on deeply padded, plush or shag carpet. Damage to both
carpet and exercise bike may result.
2. Keep children away from the exercise bike. There are obvious pinch points and other caution
areas that can cause harm.
3. Keep hands away from all moving parts.
4. Never operate the exercise bike if it has a damaged cord or plug.
5. Keep the cord away from heated surfaces.
6. Do not operate where aerosol spray products are being used or where oxygen is being
administered. Sparks from the motor may ignite a highly gaseous environment.
7. Never drop or insert any object into any openings.
8. Do not use outdoors.
9. To disconnect, turn all controls to the off position, then remove the plug from the outlet.
10. Do not attempt to use your exercise bike for any purpose other than for the purpose it is
intended.
11. The pulse sensors are not medical devices. Various factors, including the user’s movement,
may affect the accuracy of heart rate readings. The pulse sensors are intended only as
exercise aids in determining heart rate trends in general.
12. Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on
your exercise bike. Quality athletic shoes are recommended to avoid leg fatigue.
SAVE THESE INSTRUCTIONS - THINK SAFETY!

page-2
10172
PRE ASSEMBLY CHECK LIST
Handpulse (26)
Handle Bar (3)
Console Mast (2)
Console Mast Cover (38)
Front Stabilizer Cover (40)
Chain Cover (Right Side 37)
Console (34)
Pedal (Right Side 46)
Rear Stabilizer Cover (41)
Seat Bottom Cushion (19)
Horizontal Adjustment Knob(86)
Vertical Adjustment Knob(106)
Leveling Foot (35)
Thank you for choosing the Spirit XC-8500 Exercise Bike. We took great pride in producing this
quality product and hope it will provide you with many hours of quality exercise to make you feel
better, look better and enjoy life to its fullest.
Yes, it’s a proven fact that a regular exercise program can improve your physical and mental
health. Too often, our busy lifestyles limit our time and opportunity to exercise. The Spirit XC-8500
Exercise Bike provides a convenient and simple method to begin your assault on getting your
body in shape and achieving a healthier lifestyle.
Please read this manual carefully and familiarize yourself with the parts of the Spirit XC-8500
Exercise Bike before using it for the first time.

page-3
10172
PARTS LIST
No. Description Q’ty No. Description Q’ty
10172-01 Main Frame 1 10172-30
Wire Brake Coil Harness (300mm) 1
10172-02 Console Mast 1 10172-31 AC Wire Assembly 1
10172-03 Handle Bar, Seat 1 10172-34 Console Assembly 1
10172-05 Rear Stabilizer 1 10172-34-01 Top Console Cover 1
10172-06 Inner Slide 1 10172-34-02 Bottom Console Cover 1
10172-07 Seat Slide Bracket 1 10172-34-03 Deflector Fan Grill 1
10172-08 Fix Plate 1 10172-34-04 Fan Grill Anchor 2
10172-09 Idler Wheel Assembly 1 10172-34-05 Fan Assembly 1
10172-11 Crank Axle 1 10172-34-06 Fan Power Switch 1
10172-14 Belt 1 10172-34-08 Badge, Console 1
10172-15 Drive Pulley 1 10172-34-10 Interface Daughter Board 1
10172-16L Crank (L) 1 10172-34-11 Receiver, HR 1
10172-16R Crank (R) 1 10172-34-12 Drink Bottle 1
10172-17 Bearing, Crank Axle 2 10172-34-13 Self Tapping Screw (ø3.5 x 30mm) 4
10172-18 Bearing For Idler Wheel 2 10172-35 Leveling Foot 2
10172-19 Seat Bottom Cushion 1 10172-36 Chain Cover (L) 1
10172-20 Induction Brake 1 10172-37 Chain Cover (R) 1
10172-21 Controller 1 10172-38 Console Mast Cover 1
10172-22 Magnet 1 10172-39 Step Cover 1
10172-23 Sensor w/Cable 1 10172-40 Front Stabilizer Cover 1
10172-24 Handgrip Foam (1”x 250L x T5) 2 10172-41 Rear Stabilizer Cover 1
10172-25 Handgrip Foam (1” x 200L x T5) 2 10172-42 Handgrip Side Cap (Top) 2
10172-26 Handpulse w/Cable Assembly 2 10172-43 Handgrip Side Cap (Bottom) 2
10172-26-01 Handpulse Assembly Top 2 10172-45 Pedal (L) 1
10172-26-02 Handpulse Assembly Bottom 2 10172-46 Pedal (R) 1
10172-29 Computer Cable 1 10172-47 Transportation Wheel 2

page-4
10172
PARTS LIST
No. Description Q’ty No. Description Q’ty
10172-48 Foot Pad (ø25 x 15L) 2 10172-80 Nylon Nut (5/16” x T6) 2
10172-49 Button Head End Cap (1”) 4 10172-82 Nut (3/8” x T7) 4
10172-50 Hex Head Screw (3/8” x 2-1/4”) 4 10172-83 Nut (M10 x 1.0) 2
10172-51 Hex Head Screw (5/16” x 5/8”) 9 10172-85 Round Disk Cover, Crank 2
10172-52 Tapping Screw (5 x 19mm) 5 10172-86 Fore Aft Adjustment Knob 1
10172-53
Button Head Socket Screw (5/16” x 1-3/4”) 2 10172-87 Wire Tie Mount 5
10172-54 Hex Head Screw (1/4” x 3/4”) 8 10172-88 Tapping Screw (3.5 x 16mm) 5
10172-55 J Bolt (M8 x 170mm) 1 10172-90 Pedal Strap (L) 1
10172-56
Phillips Head Screw (M6 x 15mm) 3 10172-91 Pedal Strap (R) 1
10172-57 Flat Washer (ø5 x ø15 x T1.5) 1 10172-92 Wrench (13/15mm) 1
10172-58
Phillips Head Screw (M5 x 12mm) 8 10172-93 Phillips Head Screw Driver 1
10172-59
Thumb Head Socket Screw (3/8” x 2”) 2 10172-96 Crank Arm End Cap 2
10172-61 Tapping Screw (5 x 16mm) 6 10172-97 Pedal Foam (L) 1
10172-62 Tapping Screw (ø3 x 20mm) 4 10172-98 Pedal Foam (R) 1
10172-63
Self Tapping Screw (ø3.5 x 12mm) 14 10172-99 Curved Washer (5/16” x 20) 1
10172-64
Self Tapping Screw (ø3.5 x 19mm) 1 10172-100 Wrench (12/14mm) 1
10172-65 Tapping Screw (ø3 x 10mm) 4 10172-102 Flat Washer (ø8 x 16 x T1) 1
10172-66 C Clip (ø17) 1 10172-103 Split Washer (ø8) 2
10172-70 Flat Washer (3/8” x 19mm x T1.5) 2 10172-104 AC Transformer 1
10172-71 Flat Washer (3/8” x 25mm x T1.5) 5 10172-34 Console Assembly 1
10172-72
Flat Washer (5/16” x 19mm x T1.5) 9 10172-105 Handgrip Cap 1
10172-73 Flat Washer (ø17 x 23.5mm x T1) 1 10172-106 Locking Knob 1
10172-76 Split Washer (ø1/4”) 7 10172-107 Center spatial wrap 1
10172-77 Nylon Nut (M8 x T7) 1 10172-108 Phillips Head Screw (M3 x 10mm) 2
10172-79 Nylon Nut (1/4”) 8 10172-109 Sensor Rack 1

page-5
10172
HARDWARE PARTS LIST
No. Description Q’ty No. Description Q’ty
10172-71
Flat Washer (3/8” x 25 x T2)
4pcs 10172-50
Hex Head Screw (3/8” x 2-1/4” )
4pcs
10172-72
Flat Washer
(5/16” x 19 x T1.5)
8pcs 10172-51
Hex Head Screw (5/16” x 5/8”)
9pcs
10172-99
Curved Washer
(5/16” x 20 )
1pc 10172-58 Phillips Head Screw
(M5 x 12m/m )
8pcs
10172-103
Split Washer (8m/m)
2pcs TOOL
10172-92
Wrench (13/15mm )
1pc
TOOL
10172-93
Phillips Head Screw Driver
1pc TOOL
10172-100
Wrench (12/14mm )
1pc
Above described parts are all the parts you need to assemble this machine. Before you start to
assemble, please check the hardware packing to make sure they are included.

page-6
10172
EXPLODED DIAGRAM

page-7
10172
ASSEMBLY INSTRUCTION
STEP 1: REAR STABILIZER ASSEMBLY
Install the Rear Stabilizer (5) onto the Main Frame (1) with the 4pcs of 3/8” x 2-1/4” Hex Head Screws
(50) and 4pcs of 3/8” x 25 x 2T Flat Washers (71) by using the 12/14mm Wrench (100).

page-8
10172

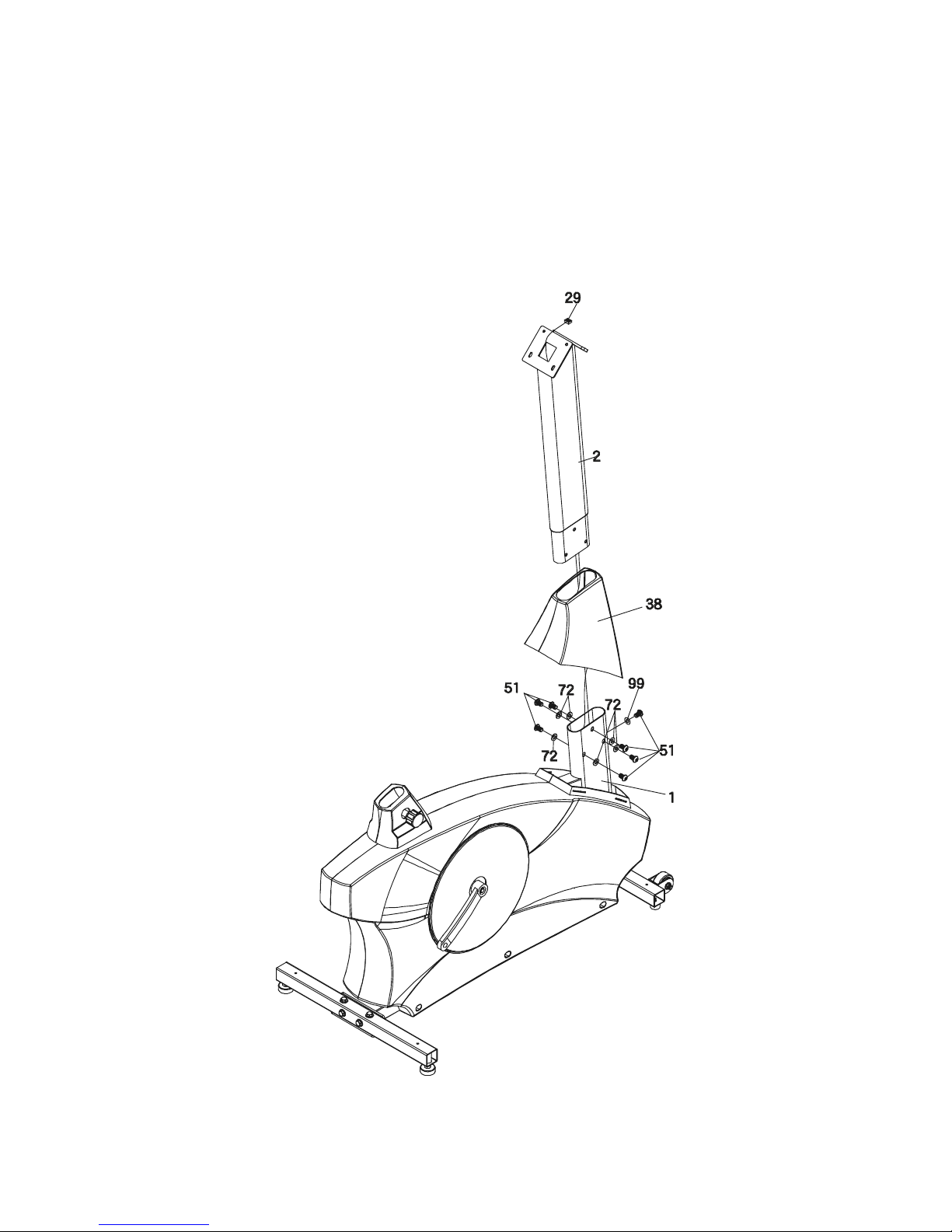

STEP 2: FRONT CONSOLE MAST ASSEMBLY
• Let the Computer Cable (29) through the Console Mast Cover (38) and the Console Mast (2).
• Secure the Console Mast (2) onto the Main Frame (1) with the 7pcs of 5/16” x 5/8” Hex Head
Screws (51), 6pcs of 5/16” x 19 x 1.5T Flat Washers (72) and 1pc of 5/16” x 20 Curved Washer
(99) by using the 12/14mm Wrench (100).
ASSEMBLY INSTRUCTION
