SPX PE8 Series User manual

Operating Instructions for:
PE8LXX3L
PE8PXX3L
Electric-Powered
PE8 Series
Hydraulic Pump
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
Original Instructions
SPX Bolting Systems
Unit 4, Wansbeck Business Park
Rotary Parkway
Ashington
Northumberland NE63 8QW
spxboltingsystems.com
Tel: [phone]
Fax: [phone]

© SPX
Form No. 1000591
Rev. 0 February 8, 2012

3
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
Table of Contents
Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PE8SeriesElectric/HydraulicPumps.......................................4
Safety Symbols and Denitions............................................5
SafetyPrecautions .....................................................5
InitialSetup...........................................................9
OperatingInstructions..................................................15
Performance Specications..............................................20
GeneralMaintenance ..................................................21
TroubleshootingGuide .................................................27
Repair Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
PartsList............................................................31
SPXBoltingSystemsFacilities...........................................33
ECDeclarationofConformity............................................34

4
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
PE8 Series Electric/Hydraulic Pumps
Description
Universal Motor

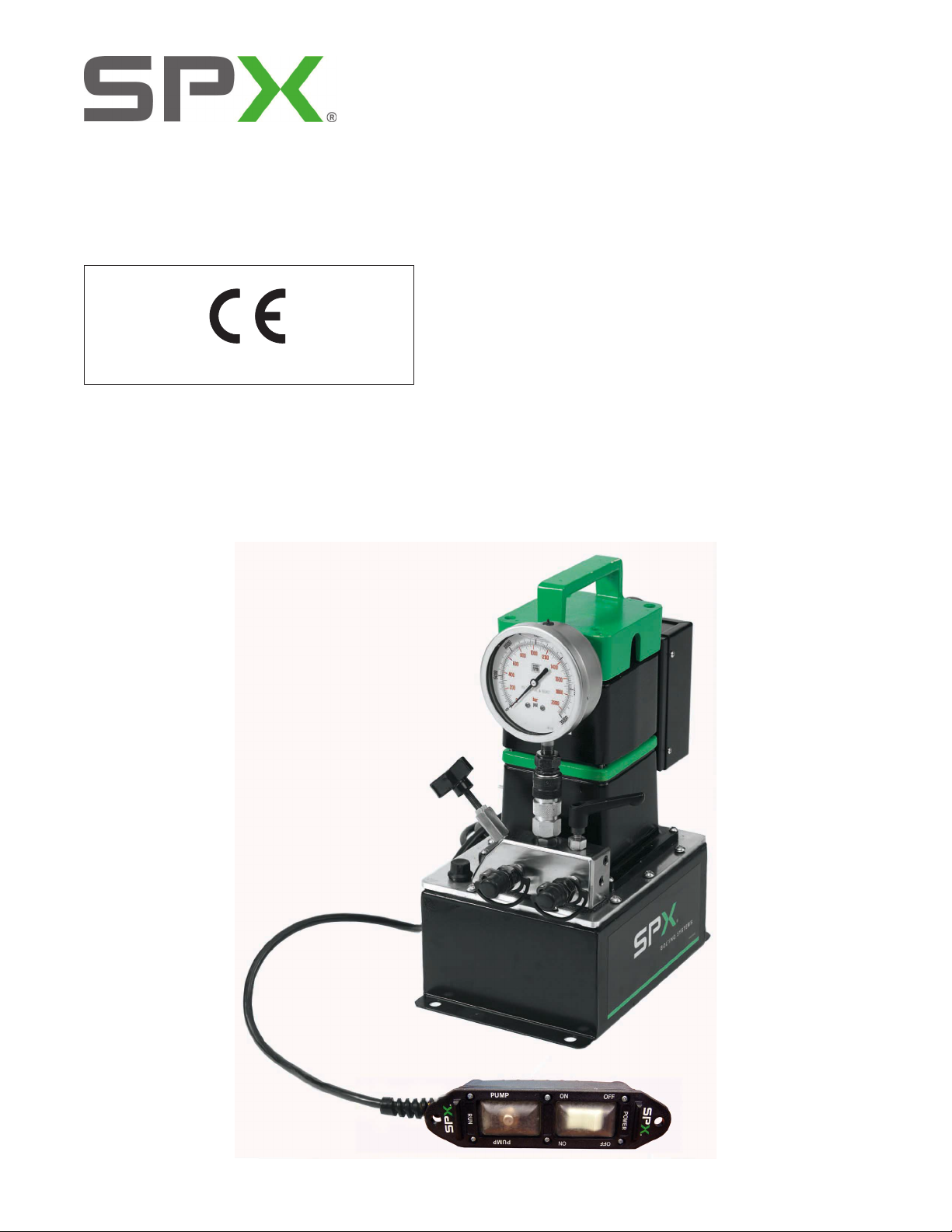

The universal motor pump shown in Figure 1, is
available in a 0.4 kW (1/2 hp). The motor is in
single-phase conguration.
The universal motor offers the ability to operate
at low voltage. This motor has elevated acoustic
output as noted on the product labels. This motor is
ideal for long service, xed applications.
The 0.4 kW (1/2 hp), 110/115 or 220/230 VAC,
50/60 Hz single phase motor starts under load,
even at reduced voltage. Current draw can be up
to 11 Amps at 115V (15 Amp fuse) and 5.5 Amps at
230V (10 Amp fuse) and the sound level is rated at
82-86 dB. Operating temperatures range is -25°C
to +50°C (-13°F to 122°F).
If temperatures are at extremes of the operating
range, it is recommended to use hydraulic uids
that are rated for those temperatures. The weight
can be up to 50lbs (23kg). Figure 1. PE8 Series
Description
The PE8 series hydraulic pumps are designed to have a maximum of 1500 bar (21,750 psi) at a
ow rate of 131 cc/min (8 cu. in/min). All pumps come fully assembled, less uid, and ready for
work.

5
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
The safety signal word designates the degree or level of hazard seriousness.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death
or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation which, if not
avoided, may result in property damage.
IMPORTANT: Important is used when action or lack of action can cause equipment failure, either
immediate or over a long period of time.
Safety Symbols and Denitions
WARNING:
• The following procedures must be performed by qualied, trained personnel who
are familiar with this equipment. Operators must read and understand all safety
precautions and operating instructions included with the pump. If the operator cannot
read these instructions, operating instructions and safety precautions must be read
and discussed in the operator's native language.
• These products are designed for general use in normal environments. These products
are not designed for lifting and moving people, agri-food machinery, certain types of
mobile machinery, or in special work environments such as: explosive, ammable, or
corrosive. Only the user can decide the suitability of this product in these conditions or
extreme environments. SPX Hydraulic Technologies will supply information necessary
to help make these decisions. Consult your nearest SPX Hydraulic Technologies
facility, refer to SPX Hydraulic Technologies Facilities in this document.
• Safety glasses must be worn at all time by the operator and anyone within sight of
the unit. Additional personal protection equipment may include: face shield, goggles,
gloves, apron, hard hat, safety shoes, and hearing protection.
• The owner of this tool must ensure that safety-related decals are installed, maintained,
and replaced if they become hard to read.
• Shut OFF the motor before opening any connections in the system.
• The guide cannot cover every hazard or situation so always do the job with SAFETY
FIRST.
Pump
WARNING:
• Do not exceed the hydraulic pressure rating noted on the pump nameplate or tamper
with the internal high pressure relief valve. Creating pressure beyond rated capacities
can result in personal injury.
• Retract the system before adding uid to prevent overlling the pump reservoir. An
overll can cause personal injury due to excess reservoir pressure created when
cylinders are retracted.
Safety Precautions

6
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
• The load must be under operator control at all times.
• Do not connect pump to hydraulic system powered by another pump.
Electric Motor
WARNING:
• Electrical work must be performed and tested by a qualied electrician per local
directives and standards.
• Disconnect the pump from the power supply and relieve pressure before removing the
motor case cover or performing maintenance or repair.
• Check the total amperage draw for the electrical circuit you will be using. For example:
Do not connect a pump that may draw 25 amps to a 20 amp fused electrical circuit.
• Never use an ungrounded power supply with this unit.
• Changing the voltage is an involved and, if incorrectly performed, hazardous procedure.
Consult the manufacturer for specic information before attempting rewiring.
• Wire pump motors for clockwise rotation when viewed from the shaft end of the
motor.
• Do not attempt to increase the power line capacity by replacing a fuse with another
fuse of higher value. Overheating the power line may result in re.
• Exposing electric pumps to rain or water could result in an electrical hazard.
• Avoid conditions that can cause damage to the power cord, such as abrasion, crushing,
sharp cutting edges, or corrosive environment. Damage to the power cord can cause
an electrical hazard.
Hoses
WARNING:
• Before operating the pump, tighten all hose connections using the correct tools. Do
not overtighten. Connections should be only secure and leak-free. Overtightening can
cause premature thread failure or high pressure ttings to split at pressures lower
than their rated capacities.
• Should a hydraulic hose rupture, burst, or need to be disconnected, immediately shut
off the pump and shift the system pressure manual release valve twice to release
pressure. Never attempt to grasp a leaking hose under pressure with your hands. The
force of escaping hydraulic uid could cause serious injury.
• Do not subject the hose to potential hazard, such as re, sharp surfaces, heavy impact,
or extreme heat or cold. Do not allow the hose to kink, twist, curl, or bend so tightly
that the uid ow within the hose is blocked or reduced. Periodically inspect the hose
for wear, because any of these conditions can damage the hose and possibly result in
personal injury.
• Do not use the hose to move attached equipment. Stress can damage the hose and
possibly cause personal injury.
• Hose material and coupler seals must be compatible with the hydraulic uid used.
Hoses also must not come in contact with corrosive material such as creosote-
impregnated objects and some paints. Consult the manufacturer before painting a
hose. Never paint the couplers. Hose deterioration due to corrosive materials may
result in personal injury.
Safety Precautions continued

7
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
• Avoid straight line tubing connections in short runs. Straight line runs do not provide
for expansion and contraction due to pressure and/or temperature changes. See
diagrams in Initial Setup section of this form.
• Eliminate stress in the tube lines. Long tubing runs should be supported by brackets or
clips. Tubes through bulkheads must have bulkhead ttings. This makes easy removal
possible and helps support the tubing.
• Carefully inspect all hoses and ttings prior to use. Before each use, check entire hose
for cuts, leaks, abrasion or bulging of cover, or damage or movement of couplings. If
any of these conditions exist, replace the hose immediately. NEVER attempt to repair
the hose.
Cylinder
DANGER:
• Do not exceed rated capacities of the cylinders. Excess pressure may result in personal
injury.
• Avoid off-center loads that could damage the cylinder and/or cause loss of the load.
• Read and understand all safety and warning decals and instructions for devices
attached.
• Inspect each cylinder and coupler before each shift or usage to prevent unsafe
conditions from developing.
• Do not use cylinders if they are damaged, altered or in poor condition.
• Do not use cylinders with bent or damaged couplers or damaged port threads.
• Under certain conditions, the use of an extension with a hydraulic cylinder may not be
advisable and could present a dangerous condition.
• Avoid pinch points or crush points that can be created by the load or parts of the
cylinder.
• To help prevent material fatigue if the cylinder is to be used in a continuous application,
the load should not exceed 85% of the rated capacity or stroke.
• Cylinder must be on a stable base which is able to support the load while pushing or
lifting.
• To help prevent personal injury, use shims, friction material or constraints to prevent
slippage of the base or load.
• Do not set poorly-balanced or off-center loads on a cylinder.
• The load can tip or the cylinder can “kick out” and cause personal injury.
• Do not use the locking collar on a threaded piston as a stop. The threads may shear
resulting in loss of the load.
• If this component is used to lift or lower loads, be certain that the load is under operator
control at all times and that others are clear of the load.
• Do not drop the load.
• As the load is lifted, use blocking and cribbing to guard against a falling load.
• To help prevent personal injury, do not allow personnel to go under or work on a load
before it is properly cribbed or blocked. All personnel must be clear of the load before
lowering.
Safety Precautions continued

8
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
• Never use extreme heat to disassemble a hydraulic cylinder or ram. Metal fatigue and/
or seal damage will result and can lead to unsafe operating conditions.
IMPORTANT
• Keep the cylinder clean at all times.
• While at a job site, when the cylinder is not in use, keep the piston rod fully retracted
and upside down.
• Always use protective covers on disconnected quick couplers.
• When mounting cylinders or rams using the internal piston rod threads, collar threads,
threaded tie rods or base mounting holes, the threads must be fully engaged. Always
use SAE grade 8 or better fasteners when attaching components to cylinders or rams
and tighten securely.
• Limiting the stroke and pressure on all cylinders will prolong their life.
Safety Precautions continued

9
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
Initial Setup
1. Remove all packing materials from the assembled unit.
2. Inspect the unit upon arrival. The carrier, not the manufacturer, is responsible for any damage
resulting from shipment.
Filling the Pump Reservoir
Most pumps are shipped without hydraulic uid in the reservoir. Hydraulic uid may have been shipped
in a separate container, but if hydraulic uid is needed, use only approved Power Team hydraulic uid
rated at AW 46 47 cSt @ 38°C (237 SUS @ 100°F). If low temperature requirements are needed, use
hydraulic uid 5.1 cSt @ 100°C (451 cSt @ -40°C).
1. Clean the area around the filler cap to remove debris. Debris in the hydraulic fluid can damage the
polished surfaces and precision-fit components of this pump.
2. Remove the filler cap and insert a clean funnel with a filter.
3. Fill the reservoir with hydraulic fluid to 2.6 cm (1 in.) from the cover plate.
4. Replace the filler cap. Verify the breather-hole is open, if applicable.
Hydraulic Connections
1. Clean the areas around the fluid ports of the pump and cylinders.
2. Inspect all threads and fittings for signs of wear or damage, replace as needed.
3. Clean all hose ends, couplers or union ends.
4. Remove the dust cap from the hydraulic fluid outlets.
5. Connect the hose assembly to the hydraulic fluid outlet, and couple the hose to the cylinder.
CAUTION: To prevent personal injury from leaking hydraulic uid, seal all hydraulic
connections with a high-quality, non-hardening, pipe thread sealant.
IMPORTANT: Sealant tape or non hardening sealer tape can be used to seal hydraulic
connections if only one layer of tape is used. Apply tape carefully, two threads back, to
prevent it from being pinched by the coupler and broken off inside the system. Loose
pieces of sealant could travel through the system and obstruct the ow of uid or cause
jamming of precision-t parts.
Electric Motor Operation
Warning: Electrical work must be performed and tested by a qualied electrician per lo-
cal directives and standards.
The electric motor is wired for nominal 115 or nominal 230 volts, 50/60 Hz. Nominal 230 volt electric
motors are shipped without a plug attached. Please obtain and install the applicable plug for your area.

10
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
Initial Setup continued
1. See Figure 2. Verify the system pressure
manual release valve is in the hold (lever
towards the motor) position.
Figure 2. Hold Position
2. See Figure 3. Connect the power cord to an
appropriate power source.
Figure 3. Connected to a Power Source
Caution:
• The correct voltage is required for the pump to operate. Verify the voltage rating on the pump
motor name plate matches the outlet or power source you are using. Low voltage may cause:
an overheated motor; a motor that fails to start under load; motor surging when trying to
start; or a stalled motor before maximum pressure is reached.
• Check the voltage at the motor with the pump running at full pressure.
• Never run the motor on long, light gauge extension cords. Refer to Table 2. Minimum
Recommended Gauge Table.
HOLD
RELEASE
AMPS
at Maximum
Hyd. Pressure
Electrical Cord Size AWG (mm2) 3.2 Volt Drop
Length of Electrical Cord
mm2AWG
0-8 m 8-15 m 15-30 m 30-46 m 0-25 ft 25-50 ft 50-100 ft 100-150 ft
6 0.75 11.5 2.5 18 16 14 12
10 0.75 1.5 2.5 4 18 14 12 10
14 12.5 4 6 16 12 10 8
18 1.5 2.5 6 6 14 12 8 8
22 1.5 4 6 10 14 10 8 6
26 2.5 4 6 10 12 10 8 6
30 2.5 4 10 16 12 10 6 4
Table 2. Minimum Recommended Gauge Table

11
© SPX
Form No. 1000591
Rev. 0 February 8, 2012

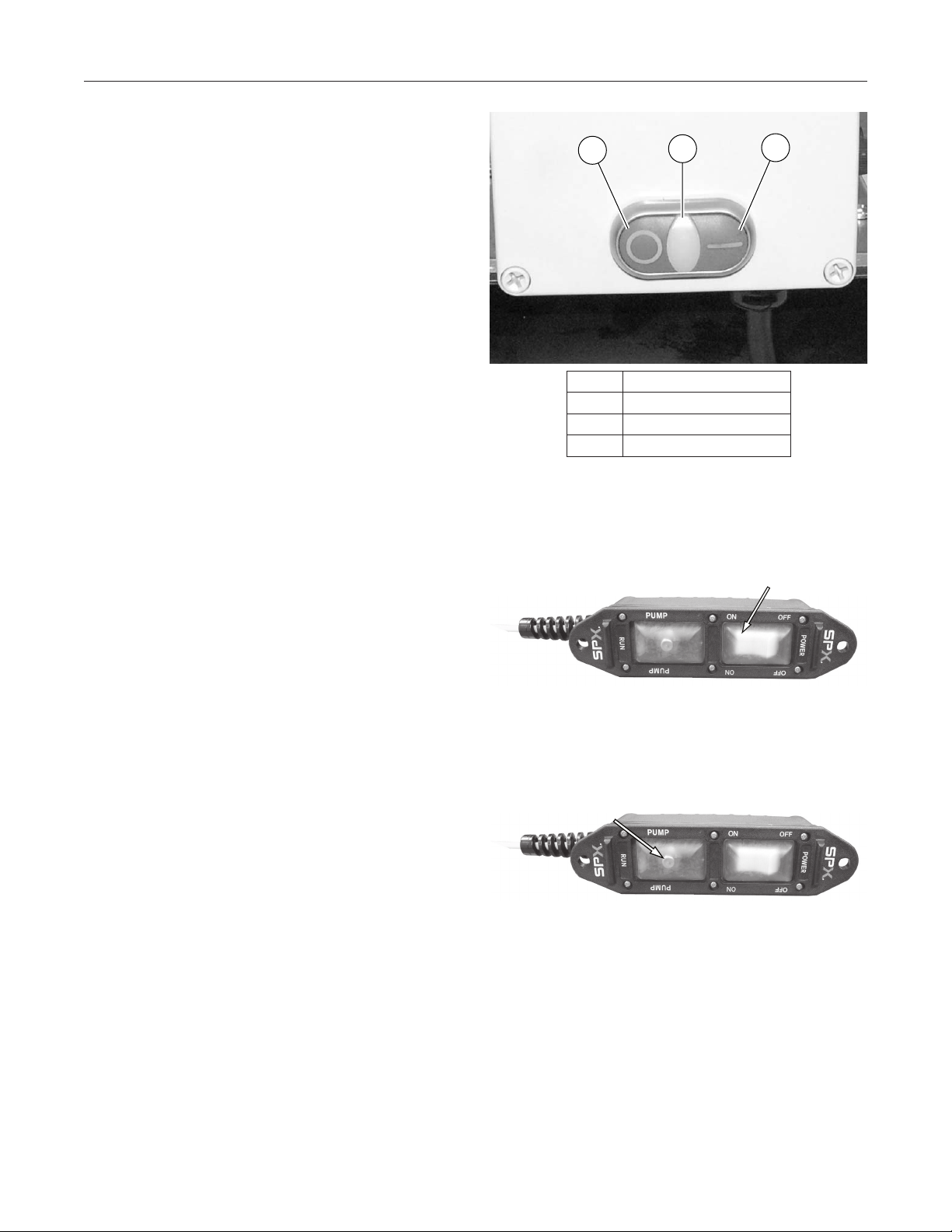

3. See Figure 4. Press the START (green) switch.
Lamp (white) will illuminate and power is
supplied to the pendant.
Item Description
1 Stop (Red)
2 Lamp (White)
3 Start (Green)
Figure 4. Power Switch
Initial Setup continued
123
4. See Figure 5. Using the pendant, press the
POWER rocker switch to ON.
Figure 5. Power ON
Figure 6. Pump RUN
5. See Figure 6. Press and hold the PUMP RUN
switch. The pendant will start and run the pump
motor as long as the pump run switch is pressed.
Switch will automatically return to OFF position
when switch is released and pump motor will
turn off.
6. See Figure 4. Press the STOP (red) switch to
remove power from the pendant.

12
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
Figure 8. Disconnected from
Power Source
Figure 7. Release Position
HOLD
RELEASE
NOTE: Pressure is retained until it is released
with the system pressure release valve lever.
7. See Figure 7. To release the pressure, rotate
the system pressure manual release valve to the
release (lever away from the motor) position.
8. See Figure 8. Disconnect the power cord.
Bleeding Air from the System
1. Cycle the hydraulic system until operation is smooth and consistent.
2. Check the pump reservoir level. Add Power Team hydraulic fluid or equivalent as needed.
Figure 9. Filler Cap
Air can accumulate in the hydraulic system during
the initial set-up or after prolonged use causing the
tool to respond slowly or in an unstable manner. To
remove the air:
3. See Figure 9. Open the filler cap two full turns.
Initial Setup continued

13
© SPX
Form No. 1000591
Rev. 0 February 8, 2012

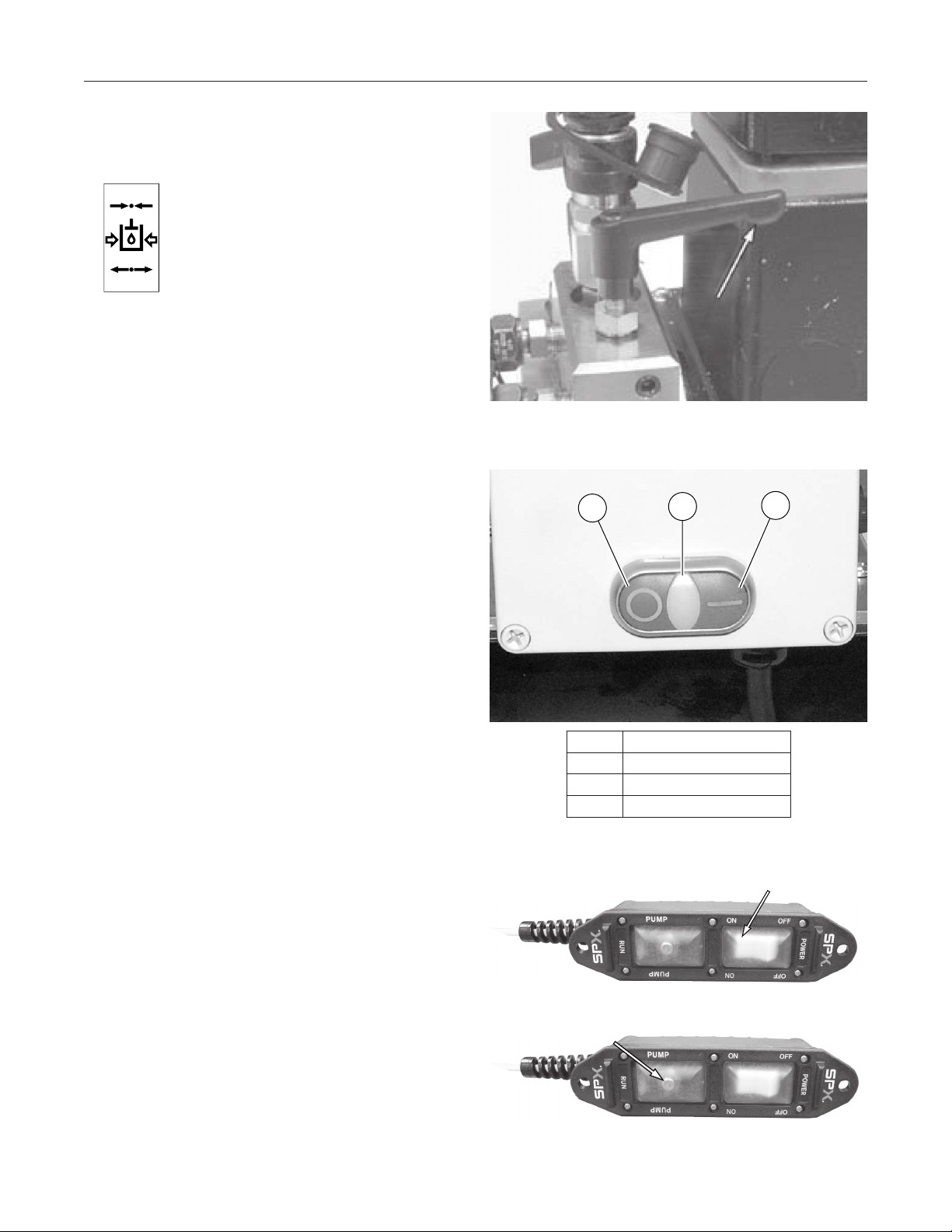

Figure 10. Hold Position
4. See Figure 10. Place the system pressure
manual release valve in the hold (lever towards
the motor) position.
HOLD
RELEASE
5. Make the necessary hydraulic system
connections.
Figure 13. Power ON
Figure 11. Connected to Power Source
123
Figure 12. Power Switch
Item Description
1 Stop (Red)
2 Lamp (White)
3 Start (Green)
6. See Figure 11. Connect the power cord to an
appropriate power source.
7. Refer to Figure 12. Press the START (green)
rocker switch. Lamp (white) will illuminate and
power is supplied to the pendant.
8. See Figure 13. Using the pendant, press the
POWER rocker switch to ON.
Initial Setup continued

14
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
Initial Setup continued
Figure 14. Pump RUN
9. See Figure 14. Using the pendant, press
and quickly release the pump run switch to
run the motor for about 0.5 second at a time
approximately 5-6 times or until the gauge
pressure builds pressure consistently.
10. See Figure 15. To release the pressure, rotate
the system pressure manual release valve
to the release (lever away from the motor)
position.
11. See Figure 16. Press the STOP (red) switch to
remove power from the pendant.
Figure 15. Release Position
HOLD
RELEASE
123
Figure 16. Power Switch
Item Description
1 Stop (Red)
2 Lamp (White)
3 Start (Green)

15
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
Operating Instructions
Figure 18. Hold Position
1. See Figure 17. Open the filler cap two full turns
to vent the reservoir.
4. See Figure 19. Connect the power cord to an
appropriate power source.
WARNING: To help prevent personal injury,
check the voltage rating on the motor
nameplate to be sure the outlet has the
appropriate voltage.
Figure 19. Connected to Power Source
Figure 17. Filler Cap
2. See Figure 18. Place the system pressure
manual release valve in the hold (lever towards
the motor) position.
HOLD
RELEASE
3. Make the necessary hydraulic system
connections.

16
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
Item Description
1 Stop (Red)
2 Lamp (White)
3 Start (Green)
Figure 20. Power Switch
123
5. Refer to Figure 20. Press the START (green)
switch. Lamp (white) will illuminate and power is
supplied to the pendant.
6. See Figure 21. Using the pendant, press the
POWER rocker switch to ON.

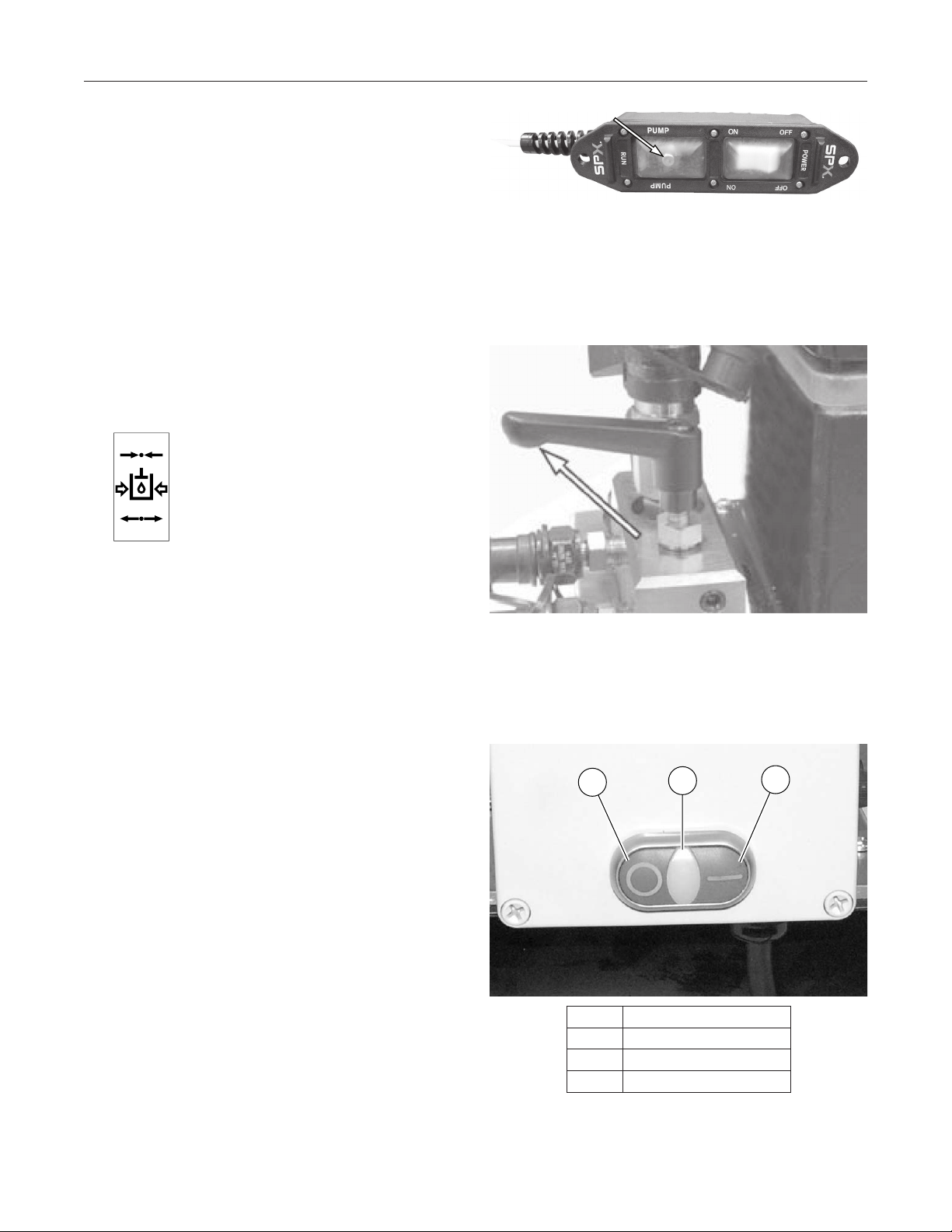

7. See Figure 22. Press and hold the PUMP RUN
switch. The pendant will start and run the pump
motor as long as the pump run switch is pressed.
Switch will automatically return to OFF position
when released and pump motor will turn off.
Pressure will hold until the system pressure
manual release lever is moved to the release
(handle away from the motor position).
Figure 23. Release Position
8. See Figure 23. To release the pressure, rotate
the system pressure manual release valve to the
release (lever away from the motor) position.
Figure 21. Power ON
Figure 22. Pump RUN
HOLD
RELEASE
Operating Instructions continued

17
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
Operating Instructions continued
9. See Figure 24. Press the STOP (red) switch to
remove power from the pendant.
Item Description
1 Stop (Red)
2 Lamp (White)
3 Start (Green)
Figure 24. Power Switch
123
Adjusting The Pressure Regulating Valve
Note: For easy adjustment of the pressure regulating valve, always adjust the pressure by increasing to the
desired pressure setting.

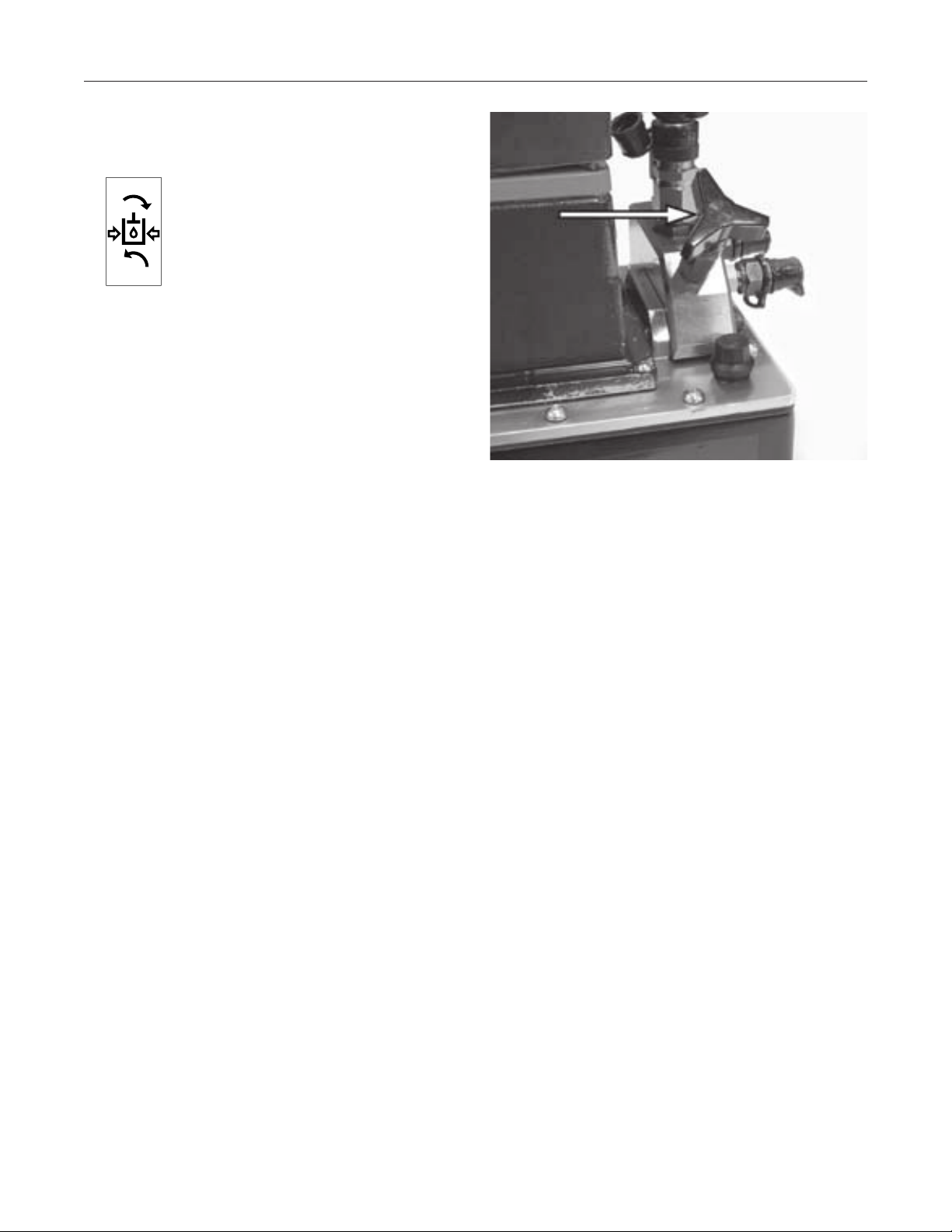

Figure 25. Pressure Regulating Valve
1. See Figure 25. Turn the pressure regulating
knob a few turns in the counterclockwise
direction. This decreases the pressure.
+INCR
-DECR

18
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
Operating Instructions continued
2. See Figure 26. Place the system pressure
manual release valve in the hold (lever towards
the motor) position.
Figure 26. Hold Position
HOLD
RELEASE
4. See Figure 27. Press the START (green)
switch. Lamp (white) will illuminate and power is
supplied to the pendant.
5. See Figure 28. Using the pendant, press the
POWER switch to ON.
6. See Figure 29. Press and hold the PUMP RUN
switch.
Figure 28. Power ON
Figure 29. Pump RUN
3. Verify the pump is completely connected.
Item Description
1 Stop (Red)
2 Lamp (White)
3 Start (Green)
Figure 27. Power Switch
123

19
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
Operating Instructions continued
7. See Figure 30. Slowly turn the adjusting
knob in a clockwise direction until the desired
pressure is reached.
Figure 30. Pressure Regulating Valve
+INCR
-DECR
Note:
The pressure range is from 0–1500 bar (0–21,750
psi).
8. Cycle the system several times to verify the
pressure is set correctly.
NOTE: Pressure is retained until it is released
with system pressure manual release lever.

20
© SPX
Form No. 1000591
Rev. 0 February 8, 2012
Performance Specications
The information in the following charts can be used as a basis to determine if the system is performing
as expected during operation.
Pump RPM
Amp Draw at
1500 bar (21,750
psi) (115V)
Amp Draw at
1500 bar (21,750
psi) (230V)
dB_A at Idle
and 1500 bar
(21,750 psi)
Air Supply
Req'd bar (psi)
PE8 Series 14,000 11 5.5 82-86 N/A
Pump Max. Pressure
Output bar (psi) Fluid Delivery* (cu. in./min. @)
0 bar (0 psi) 17.2 bar
(250 psi)
50 bar
(700 psi)
70 bar
(1,000 psi)
345 bar
(5,000 psi)
1500 bar
(21,750 psi)
PE8 Series 1500 bar
(21,750 psi)
- 168 15-13 15-13 13-11 8-6
* Typical delivery. Actual ow varies with eld conditions.
Table 3. Drive Unit Requirements
Table 4. Fluid Pressure Chart
