ST SPC58NHADPT386S User manual

Introduction
The SPC58NHADPT386S Rev.B evaluation board supports STMicroelectronics SPC58NH92 microcontroller in FPBGA
19x19x1.8 386.

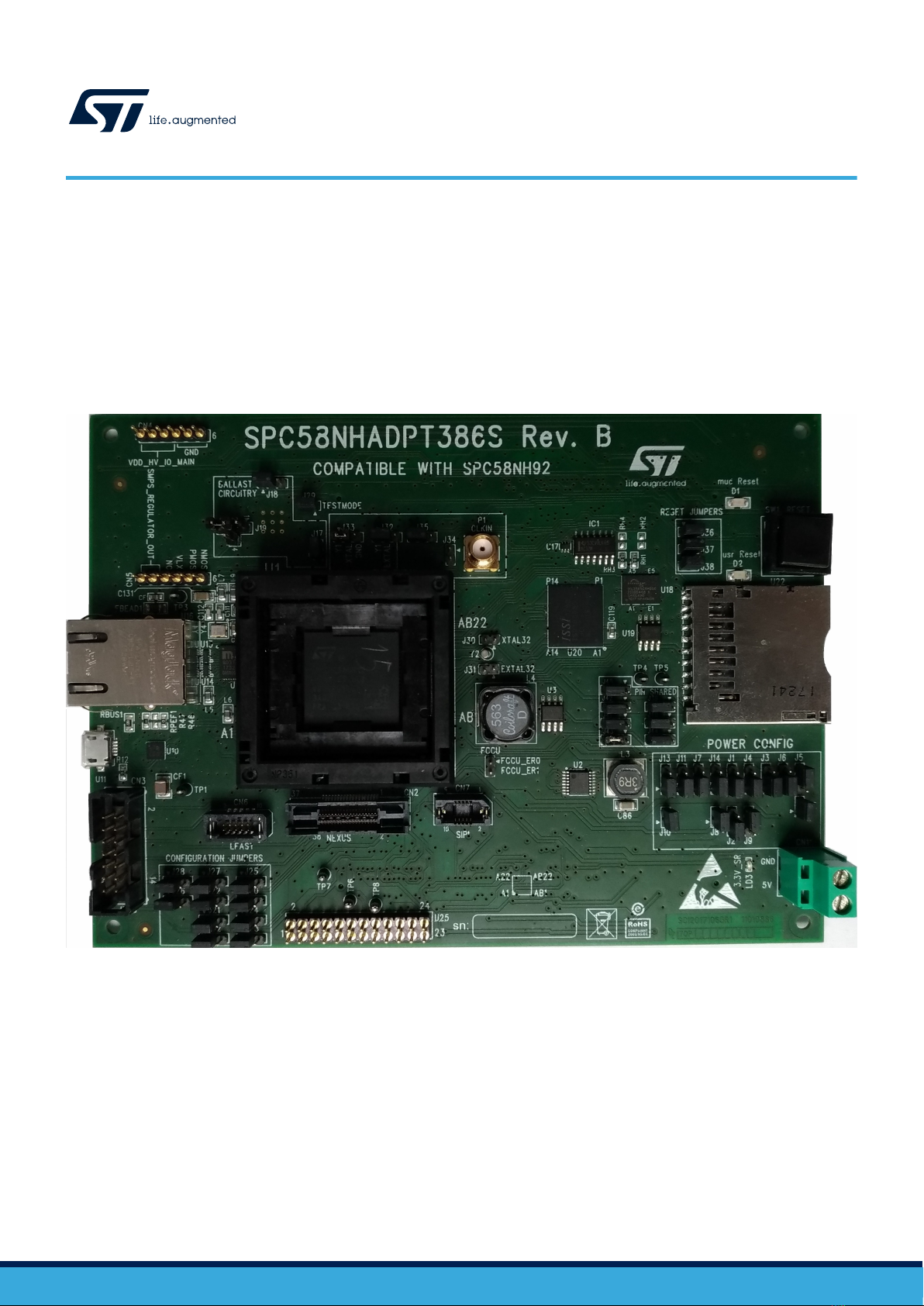

Figure 1. SR6-EVB000 Rev. B
Note: picture is not contractual.
SPC58NHADPT386S Rev.B evaluation board
UM2640
User manual
UM2640 - Rev 1 - July 2020
For further information contact your local STMicroelectronics sales office.
www.st.com

1Overview
The SPC58NHADPT386S mini module is an evaluation board supporting STMicroelectronics SPC58NH92
microcontroller in FPBGA 19x19x1.8 386 package (FPBGA 19x19x1.8 386 3R22+10+2R14+52 PITCH 0.8 BALL
0.55). This mini module is designed to be connected onto the SPC58xxMB motherboard, offering a mechanism
for easy customer evaluation of the supported devices, and to facilitate hardware and software development. The
mini module may be used as a stand-alone unit allowing access to the CPU, limited access to the I/O pins as well
as any motherboard peripherals.
1.1 Package contents
An SPC58NHADPT386S Rev. B adapter package includes the following items:
• SPC58NHADPT386S Rev. B mini module
The MCU is not included, it must be purchased separately. Please contact your sales representative for more
details.
1.2 Supported devices
The SPC58NHADPT386S Rev. B mini module supports the following STMicroelectronics family of
microcontrollers in FBGA 19x19x1.8 386:
• SPC58NH92C5xx
UM2640
Overview
UM2640 - Rev 1 page 2/37

2License agreement
The packaging of this evaluation board was sealed with a seal stating, “by breaking this seal, you agree to the
terms and conditions of the evaluation board license agreement, the terms and conditions of which are available
at http://www.st.com/ebla”. Upon breaking the seal, you and STMicroelectronics entered into the evaluation board
license agreement, a copy of which is also enclosed with the evaluation board for convenience.
Attention: This evaluation board only offers limited features for evaluating ST products. It has not been tested for use with
other products and is not suitable for any safety or other commercial or consumer application. This evaluation
board is otherwise provided “AS IS” and STMicroelectronics disclaims all warranties, express or implied,
including the implied warranties of merchantability and fitness for a particular purpose.
UM2640
License agreement
UM2640 - Rev 1 page 3/37

3Handling precautions
Please take care to handle the package contents in a manner such as to prevent electrostatic discharge.
Before the EVB is used or power is applied, please fully read the following sections on how to correctly configure
the board. Failure to correctly configure the board may cause irreparable component, MCU or EVB damage.
UM2640
Handling precautions
UM2640 - Rev 1 page 4/37

4Hardware description
4.1 Hardware features
The SPC58NHADPT386S Rev. B mini module board has the following features:
• Connector for external power supplies input (5 V) used in stand-alone mode
• Reset button with driver and led indicator
• Socket for device in FPBGA302 package
• Debug interfaces:
– 14-pin header connector for JTAG interface
– 10-pin header connector for JTAG/LFAST LVDS interface
– 10-pin header connector for SIPI interface
– 38-pin Nexus parallel debug connector
• 40 MHz crystal main oscillator with jumpers to optionally disconnect it
• 8 MHz oscillator with jumpers to optionally disconnect it
• Clock input through SMA connector with jumper to optionally disconnect it
• 2 X Samtec QSH series, 240-way connector to connect mini module to Motherboard
• 1 Gb/s Ethernet port
• HyperRAM and HyperFlash connected to HyperBUS interface
• Embedded eMMC device
• SD/MMC Card Reader
• 3 x Header connectors 5x2 with 0.1” (CIS, ISU and AI connectors)
UM2640
Hardware description
UM2640 - Rev 1 page 5/37

4.2 Hardware dimension
The mini module has the following dimension:
• PCB area: 157 mm x 114.3 mm
• Top components height: 19 mm max
• Bottom components height: 3.5 mm max
Figure 2. SPC58NHADPT386S Rev. B top component view
UM2640
Hardware dimension
UM2640 - Rev 1 page 6/37

5Power and system configuration
5.1 Power supplies
The mini module can be powered by providing voltages or supplied externally by the 2-Way PCB Screw
Connector (CN1) or supplied by the motherboard.
When the mini-module is connected to the mother board (MB), 3V3 and 5V0 are supplied by MB connector
selecting the associated jumpers. In this setup, the external power supply input available on the mini module
should NOT be used.
When the SPC58NHADPT386S Rev. B mini module is used as a stand-alone board, 5V0 voltages must be
supplied externally, 3V3 and 1V2 voltages will be generated internally by specific circuit on the mini-module.
The following jumpers are used to configure the power supply (common for all supported devices):
Table 1. Power configuration jumpers
Jumper Description Default Position
J1
3.3 V source for J3 pin3 (VDD_HV_ADR_S
and VDD_HV_ADV) voltage configuration:
• 1-2 3.3V_ADC
• 2-3 3.3V_SR
1-2
(3.3V_ADC)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - D3
J2
3.3V_SR Switching voltage configuration:
• 1-2 3.3V (3V3 generated by mini-
module)
• 2-3 MB_3.3V_SR (3V3 by Mother
board)
1-2
(3.3V By mini module)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - D4
J3
VDD_HV_ADR_S / VDD_HV_ADV voltage
configuration:
• 1-2 5.0V source from J4 pin2
• 2-3 3.3V source from J1 pin2
1-2
(5.0V from J4 pin2)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - D3
J4
5V source for J3 pin1 (VDD_HV_ADR_S and
VDD_HV_ADV) voltage configuration:
• 1-2 5.0V_ADV
• 2-3 5.0V_SR
1-2
(5.0V_ADV)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - D3
J5
5.0V_SR Switching voltage configuration:
• 1-2 5.0V_EXT (5V0 externally voltage)
• 2-3 MB_5.0V_SR (5V0 by Mother
board)
2-3
(5.0V_SR by MB)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - D3
J6
5.0V_ADV configuration:
• 1-2 MB_5.0V_LR (5.0V Linear from
MB)
• 2-3 5.0V_ADC (5.0V filtered)
2-3
(5.0V_ADC)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - D3
J7
VDD_HV_FLA voltage configuration:
• 1-2 5.0V_SR
• 2-3 3.3V_SR
1-2
(5.0V_SR)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - D3
J8
VDD_HV_IO_EMMC voltage enable:
• Closed: Connect 3.3V_SR to
VDD_HV_IO_EMMC pins
Closed
(Connect 3.3V_SR to
VDD_HV_IO_EMMC pins)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - D4
J9
1.2V_SR Switching configuration:
• 1-2 MB_1.25V_SR (1.25V from MB)
• 2-3 1.2V (1.2V from Mini module)
2-3
(1.2V from Mini module)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - D4
UM2640
Power and system configuration
UM2640 - Rev 1 page 7/37

Jumper Description Default Position
J10
VDD_HV_IO_ETH1 voltage enable:
• Closed: connect 3.3V_SR to
VDD_HV_IO_ETH1 pins
Closed
(Connect 3.3V_SR to
VDD_HV_IO_ETH1 pins)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - D4
J11
VDD_HV_IO_ETH0 voltage configuration:
• 1-2 5.0V_SR
• 2-3 3.3V_SR
1-2
(5.0V_SR)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - D3
J12
5.0V_ADC filtered voltage enable:
• Closed: connect the 5.0V_EXT to
5.0V_ADC trough the filter circuit.
Closed
(5.0V_ADC)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - D3
J13
VDD_HV_IO_MAIN voltage configuration:
• 1-2 5.0V_SR
• 2-3 3.3V_SR
1-2
(5.0V_SR)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - D3
J14
VDD_HV_OSC voltage configuration:
• 1-2 5.0V_SR
• 2-3 3.3V_SR
1-2
(5.0V_SR)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - D3
J17
BALLAST CIRCUIT ENABLE
• Closed: enabled
• Open: disable
Closed
(enable)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - B1
J18
Supply for BALLAST circuit configuration
• 1-2 VDD_HV_IO_MAIN
• 2-3 5.0V_SR
1-2
(VDD_HV_IO_MAIN)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - B1
J19
VDD_LV voltage configuration:
• 2-1 (BALLAST circuit)
• 2-3 (1.2V_SR)
• 2-4 (SMPS regulator module)
2-3
(1.2V_SR)
Figure 10. Overview of
SPC58NHADPT386S Rev. B mini
module - top - A1
UM2640
Power supplies
UM2640 - Rev 1 page 8/37

5.2 JTAG/LFAST LVDS/ SIPI interface configuration
The following jumpers need to configure the JTAG/LFAST LVDS/SIPI:
Table 2. JTAG/LFAST/SIPI configuration jumpers
Jumper Description Default Position
J20
JTAG/LFAST LVDS pin 7 configuration
• 1-2: EVTI
• 2-3: PK10
1-2
(EVTI)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini
module - top - A4
J21
SIPI pin 3 configuration
• 1-2: RDY
• 2-3: PA14
1-2
(RDY)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini
module - top - A4
J22
JTAG pin 1/ LFAST LVDS pin 6
configuration
• 1-2: TDI
• 2-3: PA8
1-2
(TDI)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini
module - top - A4
J23
JTAG pin 3/ LFAST LVDS pin 4
configuration
• 1-2: TDO
• 2-3: PA9
1-2
(TDO)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini
module - top - A4
J24
JTAG pin 13 configuration
• 1-2: EVTO
• 2-3: PJ3
1-2
(EVTO)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini
module - top - A4
J25
PC1 / ESR0
• 1-2 ESR0
• 2-3 PC1
1-2
(ESR0)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini
module - top - A4
J26
EVTO/ESR0
• 1-2 ESR0
• 2-3 EVTO
1-2
(ESR0)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini
module - top - A4
J52
PE3 / CLKOUT
• 1-2 CLKOUT
• 2-3 PE3
1-2
(CLKOUT)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini
module - top - A4
UM2640
JTAG/LFAST LVDS/ SIPI interface configuration
UM2640 - Rev 1 page 9/37

5.3 System clock configuration
The mini module supports the usage of crystal clock sources as well as external clock source:
Table 3. Clock configuration jumpers
Jumper Description Default Position
J30
XTAL32 configuration
• Close: connect pin 2 of 32.768KHz crystal
(Y2) to XTAL32
Open Figure 10. Overview of SPC58NHADPT386S
Rev. B mini module - top - C2
J31
EXTAL32 configuration
• Close: connect pin 1 of 32.768KHz crystal
(Y2) to EXTAL32
Open Figure 10. Overview of SPC58NHADPT386S
Rev. B mini module - top - C2
J32
EXTAL configuration
• 1-2 connect pin 2 of 40MHz crystal (Y1)
to EXTAL
• 2-3 EVB-EXTAL
1-2
(XT1 pin2)
Figure 10. Overview of SPC58NHADPT386S
Rev. B mini module - top - B1
J33
XTAL configuration
• 1-2 connect pin 1 of 40MHz crystal (Y1)
to XTAL
• 2-3 GND
1-2
(XT1 pin1)
Figure 10. Overview of SPC58NHADPT386S
Rev. B mini module - top - B1
J34
Enable 8MHz oscillator power supply
• Open - power off
• Closed - power on
Open
(Power off)
Figure 10. Overview of SPC58NHADPT386S
Rev. B mini module - top - B2
J35
External 8 MHz clock source
• 1-2 OSC-MOD (from oscillator)
• 2-3 EXTAL-SMA (from SMA connector)
1-2
(8 MHz from
oscillator)
Figure 10. Overview of SPC58NHADPT386S
Rev. B mini module - top - B1
UM2640
System clock configuration
UM2640 - Rev 1 page 10/37

5.4 Reset circuit
The mini module supports different ways to reset the microcontroller. To use and perform the reset driving there
are different jumpers and switches:
Table 4. Reset configuration jumpers
Jumper Description Default Position
SW1 Reset push button Open Figure 10. Overview of SPC58NHADPT386S Rev. B mini
module - top - D1
J36 Connect the external reset to the reset
driver for ESR0 and PORST pins Close Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - D1
J37 Connect the external reset to
ESR0 pin Close Figure 10. Overview of SPC58NHADPT386S Rev. B mini
module - top - D2
J38 Connect the external reset to
PORST pin Close Figure 10. Overview of SPC58NHADPT386S Rev. B mini
module - top - D2
5.5 Configuration for pin shared between eMMC & SD card reader (default
configuration)
The following jumpers need to configure the pin shared between eMMC & SD-CARD READER set the jumpers
described in the table below.
Table 5. Pin shared between eMMC & SD card reader Jumper
Jumper Description Default Position
J39
PQ4 configuration
• 1-2 PQ4_S (SD-CARD)
• 2-3 PQ4_E (eMMC)
1-2
(SD-CARD)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top
- D3
J40
PQ5 configuration
• 1-2 PQ5_S (SD-CARD)
• 2-3 PQ5_E (eMMC)
1-2
(SD-CARD)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top
- D3
J41
PQ6 configuration
• 1-2 PQ6_S (SD-CARD)
• 2-3 PQ6_E (eMMC)
1-2
(SD-CARD)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top
- C3
J42
PQ7 configuration
• 1-2 PQ7_S (SD-CARD)
• 2-3 PQ7_E (eMMC)
1-2
(SD-CARD)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top
- C3
J43
PS6 configuration
• 1-2 PS6_S (SD-CARD)
• 2-3 PS6_E (eMMC)
1-2
(SD-CARD)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top
- C3
J44
PP15 configuration
• 1-2 PP15_S (SD-CARD)
• 2-3 PP15_E (eMMC)
1-2
(SD-CARD)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top
- D3
J45
PQ0 configuration
• 1-2 PQ0_S (SD-CARD)
• 2-3 PQ0_E (eMMC)
1-2
(SD-CARD)
Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top
- C3
UM2640
Reset circuit
UM2640 - Rev 1 page 11/37

6Hardware description
6.1 1 Gb/s Ethernet interface
This paragraph describes the 1Gb/s Ethernet interface present on the mini-module.
The Ethernet connector is RJ-45 with integrated magnetics.

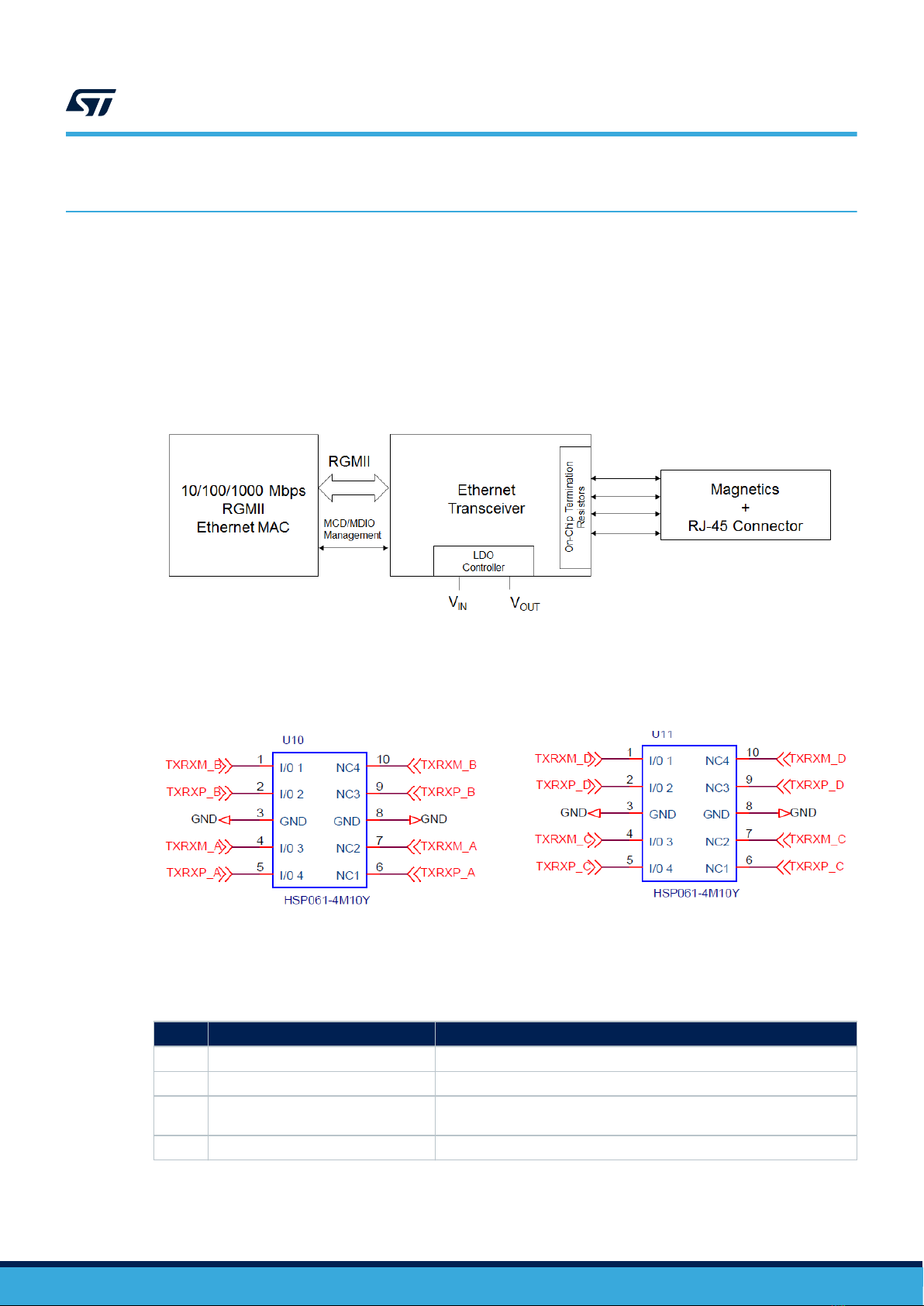

It shows the functional diagram of the Ethernet interface.
Figure 3. 1 Gb/s Ethernet functional diagram
Here below the Ethernet ESD protection schema.
Figure 4. 1 Gb/s Ethernet ESD protection schema
The following table describes all hardware the 1Gb/s Ethernet interface of the mini module, their position on pcb.
Table 6. 1 Gb/s Ethernet interface
Symbol Description Position
U13 ESD Protection Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - A2
U14 ESD Protection Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - A2
U15 Ethernet 1-Port GigabitEthrnt Ethernet
PHY Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - A2
U16 Ethernet connector Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - A2
UM2640
Hardware description
UM2640 - Rev 1 page 12/37

6.2 Hyperbus interface
This paragraph describes the Hyperbus interface present on the mini module.
The SPC58NHADPT386S contains only one CS (CNS), instead the memory device contains two CSs lines, one
for RAM and one for FLASH.
The second CS is emulated using one GPIO signal (GPIO84 – PF[4]).
The table below shows the logic between CS/GPIO from SPC58NHADPT386S and CS0/CS1 from HyperRAM/
HyperFlash device.
Table 7. Hyperbus CS Truth table
CSN GPIO CS0 CS1
0 0 1 0
0 1 0 1
1 0 1 1
1 1 0 1

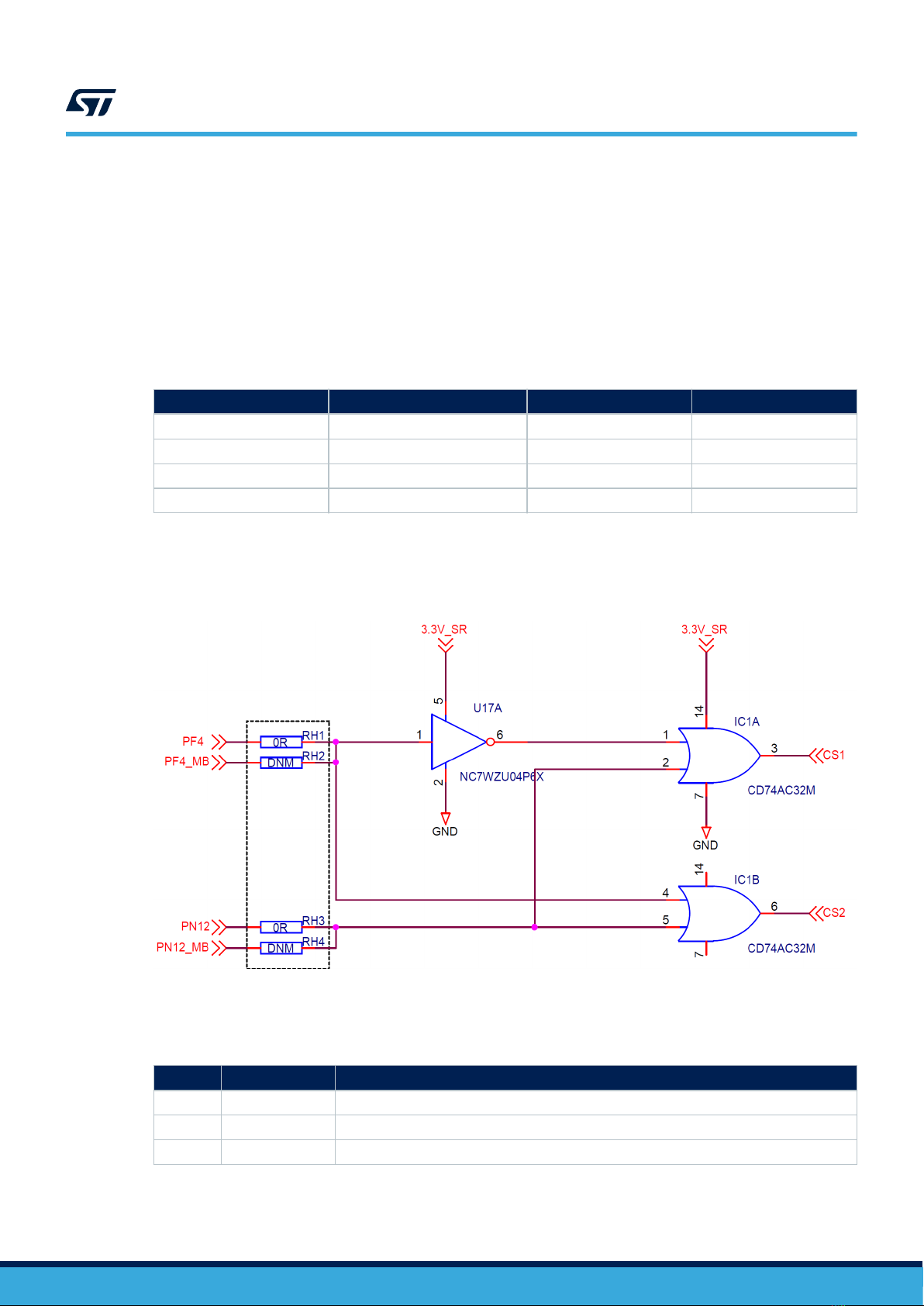

The logic can be done using the scheme of the figure below.
Figure 5. Hyperbus CS scheme
The following table describes all hardware the 1Gb/s Ethernet interface of the mini module, their position on pcb.
Table 8. Hyperbus interface
Symbol Description Position
U17 CMOS Inverter Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top- C1
IC1 TTL OR Gate Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - C2
U18 RAM 256Mbit Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - D2
UM2640
Hyperbus interface
UM2640 - Rev 1 page 13/37

6.3 USB Port
This paragraph describes the USB interface present on the mini-module.
The USB transceiver used is the STULPI01 high-speed USB 2.0 transceiver.
The USB connector is mini-USB.
Figure 6. USB functional diagram shows the functional diagram of the USB interface.
Figure 6. USB functional diagram
The figure below shows the USB ESD protection schema.
Figure 7. USB ESD protection schema
The following table describes all hardware the USB Port of the mini module, their position on pcb.
UM2640
USB Port
UM2640 - Rev 1 page 14/37

Table 9. USB Port
Symbol Description Position
U10 Transceiver Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - A3
U11 Connector Micro USB 5 Pin Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - A3
U23 Oscillator Figure 11. Overview of SPC58NHADPT386S Rev. B mini module - bottom - D3
U24 ESD Protection Figure 11. Overview of SPC58NHADPT386S Rev. B mini module - bottom - D3
6.4 eMMC interface
This paragraph describes the embedded eMMC device present on the mini module.

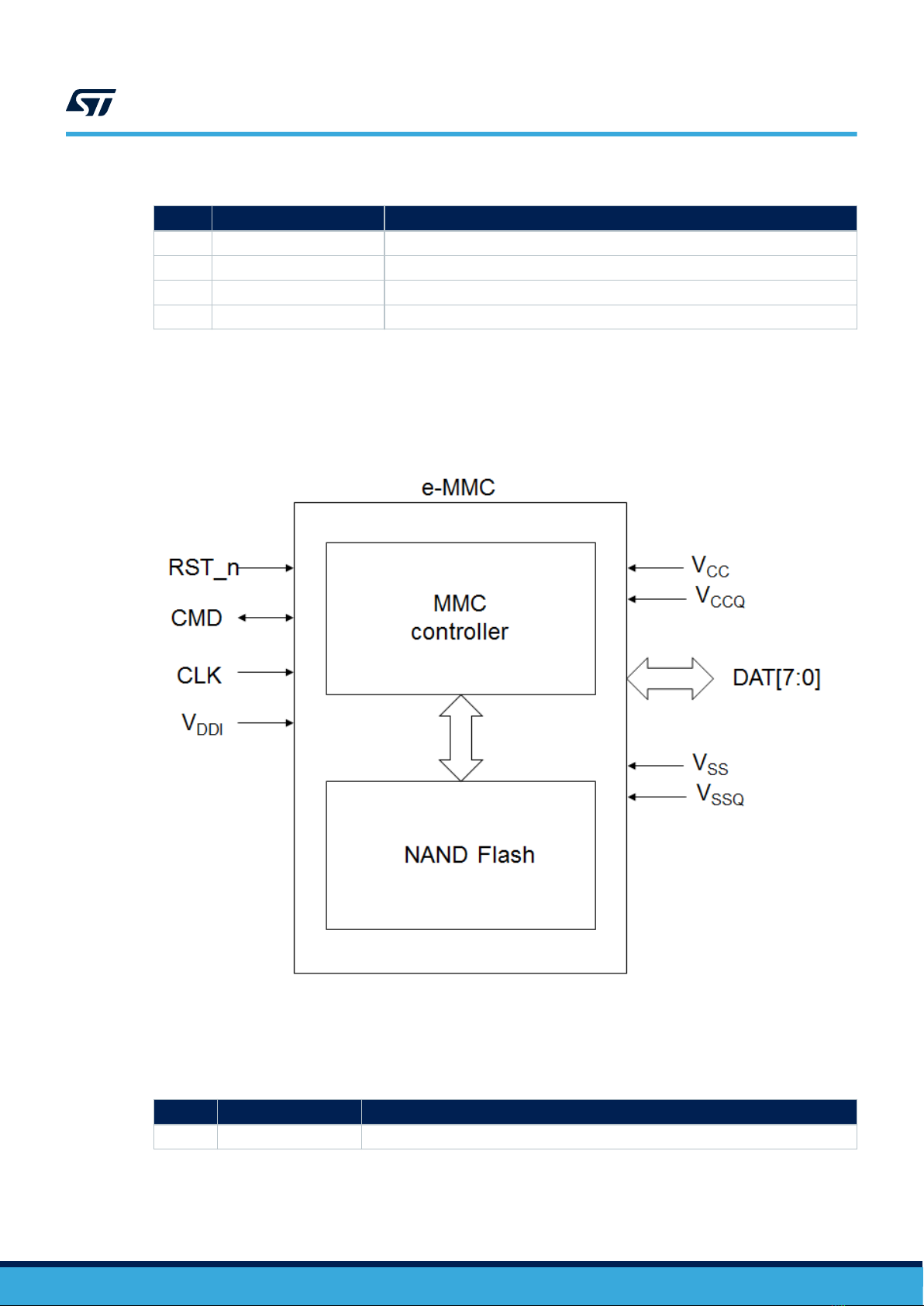

The figure below shows the functional diagram of the eMMC interface.
Figure 8. eMMC functional diagram
The following table describes all hardware the eMMC interface of the mini module, their position on pcb.
Table 10. eMMC interface
Symbol Description Position
U20 eMMC Memory 8GB Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - C2
UM2640
eMMC interface
UM2640 - Rev 1 page 15/37

6.5 SD/MMC interface
This paragraph describes the card reader JEDED/MMC standard version 5.0 compliant.
The filter used is EMIF06-MSD02N16 by ST.
The SD/MMC Card reader need to use a power switch to limits the output current to a safe level in case the
output load exceeds the current limits threshold or a short is present.
Use an STMPS2151MTR by ST.

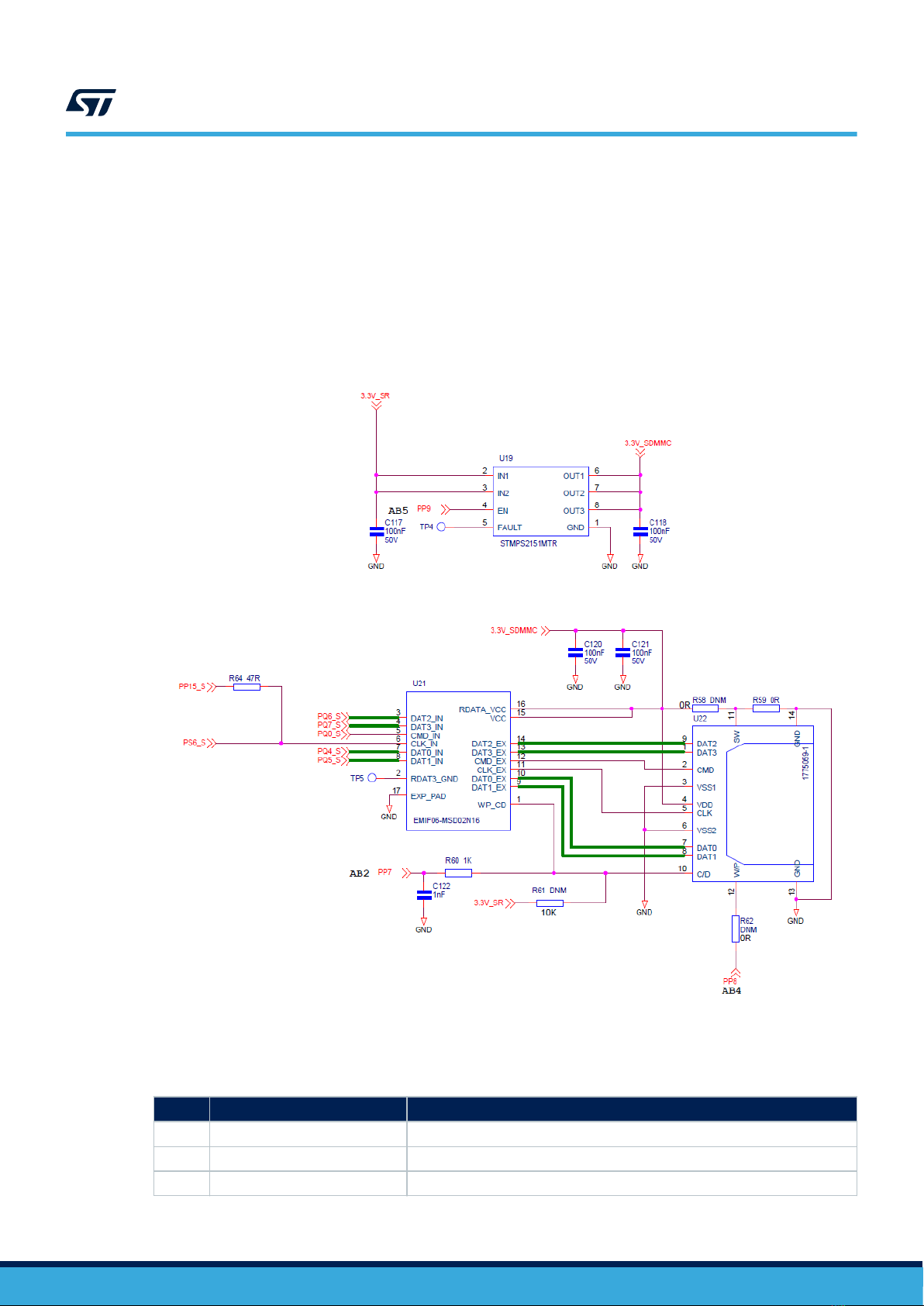

The figure below shows SD/MMC Card reader diagram.
Figure 9. SD/MMC Card reader diagram
The following table describes all hardware the SD/MMC interface of the mini module, their position on PCB.
Table 11. SD/MMC interface
Symbol Description Position
U19 CMOS Switch Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - D2
U21 Filter EMI 6-line Micro Figure 11. Overview of SPC58NHADPT386S Rev. B mini module - bottom - A2
U22 Connector SD reverse push-push Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - D2
UM2640
SD/MMC interface
UM2640 - Rev 1 page 16/37

6.6 Test points
The mini module has several test points, described in the table below.
Table 12. Test points
Test Point Description Position
TP1 PSWN (on U10) Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - A3
TP2 INT_N (on U15) Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - A2
TP3 LDO_O (on U15) Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - A2
TP4 FAULT (on U19) Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - C3
TP5 RDAT3_GND (on U21) Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - D3
TP6 JCOMP_RxDATA_N/PA[5] Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - B4
TP7 TCK/PA[6] Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - B4
TP8 TMS_TxDATA_P/PA[7] Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top - B4
6.7 Connectors
The mini module has the following connectors:
Table 13. Connectors
Connectors Description
CN3 14-pin header connector for JTAG interface
CN6 10-pin header connector for JTAG/LFAST LVDS interface
CN7 10-pin header connector for SIPI interface
CN4, CN5 SMPS regulator module
CN8, CN9 2 X SAMTEC QSH series, 240 way connector to connect mini module to Motherboard
CN1 External power supplies input (5V)
P1 SMA Connector for External Clock Input
U11 Connector mini-USB 2.0
U22 SD Revers Connector
FCCU FCCU TEST CONNECTOR
UM2640
Test points
UM2640 - Rev 1 page 17/37

Figure 10. Overview of SPC58NHADPT386S Rev. B mini module - top
UM2640
Connectors
UM2640 - Rev 1 page 18/37

Figure 11. Overview of SPC58NHADPT386S Rev. B mini module - bottom
UM2640
Connectors
UM2640 - Rev 1 page 19/37

7BOM
Table 14. BOM
Itm Qty Ref.
designator Value Description Manufacturer Manufcode
1 43
C1, C2, C6, C8,
C18, C19, C20,
C25, C28,
C34 ,C37, C39,
C42, C45, C48,
C98, C99,
C105, C113,
C114, C115,
C116, C117,
C118, C119,
C120, C121,
C124, C118,
C119, C120,
C121, C124,
C125, C126,
C128, C129,
C130, C132,
C133, C135,
C138, C139,
C140, C141,
C142, C143,
CF
100 nF Mult.cer. cap. Murata GCM188R71H104KA57D
2 6 CT1, CF1, C71,
C72, C73, C74 4.7 uF Mult. cer. cap. Murata GRM32ER71H475KA88L
3 6 CF2, CF3, CF4,
CF5, C10, C12 1 uF Mult. cer. cap. Murata GRM21BR71H105KA12L
4 1 CN1 2V1P Screw terminal block, 1
row
5 1 CN2 5767054-1 Connfemale 38 pin,
180°, MICTOR - GND Tyco Electronics 5767054-1
6 1 CN3 N2514-6002RB Conn flat male 14 pin,
180° 3M N2514-6002RB
7 2 CN4, CN5 STRIP36PMD Strip male 36 pin, 180°
(N1)
8 1 CN6
SAMTEC
TFM-105-02-L-D-
WT
Conn TFM 10 pin, with
weld tabs Samtec TFM-105-02-L-D-WT
9 1 CN7 ERF8-005-05.0-L-
DV-L-TR
Conn rugged female 10
pin, high speed Samtec ERF8-005-05.0-L-DV-L-TR
10 2 CN8, CN9 Samtec
QSH-120-01-L-D-A
Conn socket, 240 pin,
high speed Samtec QSH-120-01-L-D-A
11 27
C3, C4, C7, C9,
C11, C13, C16,
C21, C26, C29,
C30, C32, C35,
C38, C40, C43,
C46, C49, C52,
C55, C58, C61,
C64, C67, C70,
C83, C136
10 nF Mult. cer. cap. Murata GCM188R71H103KA37D
UM2640
BOM
UM2640 - Rev 1 page 20/37
