1. Overview
The SPC58XXADPT144S Rev. B mini module is an evaluation board supporting
STMicroelectronics SPC58xGxxE5, SPC58xCxxE5 and SPC58xBxxE5 microcontrollers in
eTQFP144 package with exposed pad down.
The mini module is designed to be connected onto the SPC57xxMB motherboard, offering a
mechanism for easy customer evaluation of the supported devices, and to facilitate hardware
and software development.
The mini module may be used as a stand-alone unit allows access to the MCU, but no access
to the I/O pins as any motherboard peripherals.
The mini module is default configured for Chorus 1M, 2M and 4M easily supports also
Chorus 6M simply changing the following 3 TH jumper: JR14, JR18 & JR19, with the only
drawback that some ports are not mapped/aligned properly.
To configure the full mini module for Chorus 6M and correctly map the port must change the
jumpers as shown in chapter 3.5 (Chorus 6M Configuration).

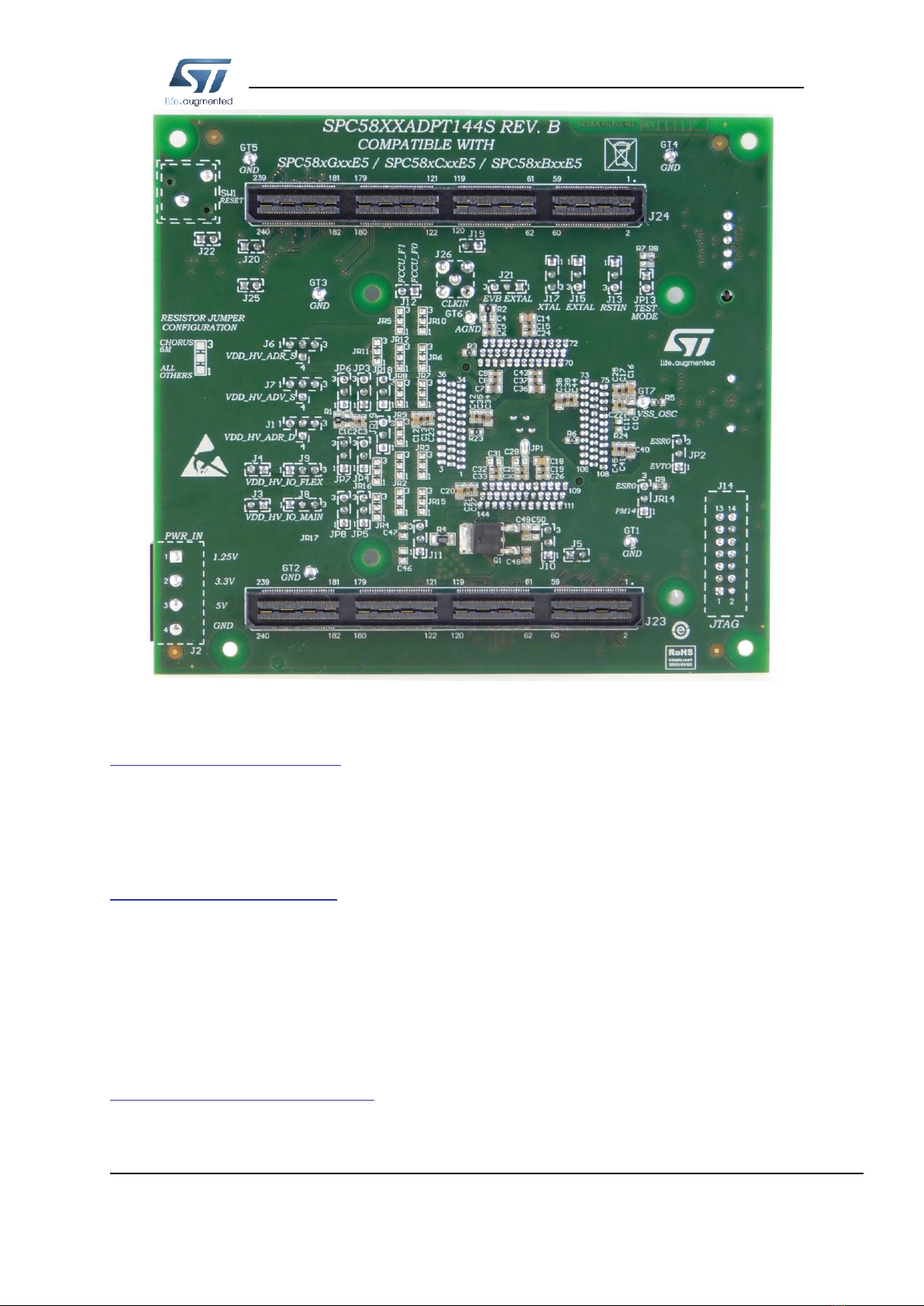

Figure 1: Overview of SPC58XXADPT144S Rev. B Mini module - Top

SPC58XXADPT144S REV.B Minimodule 5/19 rev1.0 October 27
Figure 2: Overview of SPC58XXADPT144S Rev. B Mini module - Bottom
1.1 Package Contents
An SPC58XXADPT144S Rev. B adapter package includes the following items:
•SPC58XXADPT144S Rev. B mini module
•Mini CD with User Manual
1.2 Supported Device
The SPC58XXADPT144S Rev .B mini module support the following STMicroelectronics
family of microcontrollers in eTQFP144 package with exposed pad down:
•Chorus 6M : SPC58xGxxE5
•Chorus 4M : SPC58xCxxE5
•Chorus 2M /Chorus 1M : SPC58xBxxE5
1.3 Handling precautions
Please take care to handle the package contents in a manner such as to prevent electrostatic
discharge.

SPC58XXADPT144S REV.B Minimodule 6/19 rev1.0 October 27
2. HARDWARE FEATURE
2.1 SPC58XXADPT144S Rev. B Mini module board features
The SPC58XXADPT144S Rev. B mini module board has the following features:
•Connector for external power supplies input (5V, 3.3V, 1.25V) used in stand-alone
mode.
•Reset button with driver and led indicator.
•Socket for device in eTQFP144 package with exposed pad down.
•Debug ports: 38-pin Mictor connector for Nexus level 3+, 14-pin header connector for
JTAG port and 10-pin header connector for JTAG/DigRF port (LFAST).
•40 Mhz crystal main oscillator with jumpers to optionally disconnect it
•8 Mhz oscillator with jumpers to optionally disconnect it
•Clock input through SMA connector to optionally disconnect it
•Jumpers for boot configuration
•2 X SAMTEC QSH series, 240 way connector to connect minimodule to Motherboard
2.2 HARWARE dimension and PCB component view
The minimodule has the following dimension:
•127mm X 114.3mm (PCB dimension)
•Max Top components height 16,5mm
•PCB thickness 1.6mm
•Max Bottom components height 3.5mm
Figure 3: SPC58XXADPT144S REV.B top component view

SPC58XXADPT144S REV.B Minimodule 7/19 rev1.0 October 27
Figure 4: SPC58XXADPT144S REV.B bottom component view

SPC58XXADPT144S REV.B Minimodule 8/19 rev1.0 October 27
3HARDWARE & JUMPER SETTINGS
3.1 Power supplies
When the mini module is plugged onto the motherboard, power is supplied directly by the
motherboard. In this setup, the external power supply input available on the minimodule
should NOT be used.
When the mini module is used as a stand-alone board, external power supplies must be used
(5V, 3.3V, 1.25V).
The following jumpers are used to configure the power supply (common for all supported
devices):
Jumper
Description
Default
J3
Jumper to enable the use of Supply 3.3V_SR
Closed
J4
Jumper to enable the use of Supply 5.0V_SR
Closed
J5
Jumper to enable the use of Supply 1.25V_SR
Closed
J1
Used only for Chorus 6M - VDD_HV_ADR_D voltage
configuration, select from 5.0V_LR (linear), 3.3V_SR (switching)
or 5.0V_SR (switching).
1-2 (5.0V_LR)
J6
VDD_HV_ADR_S voltage configuration, select from 5.0V_LR
(linear), 3.3V_SR (switching) or 5.0V_SR (switching)
1-2 (5.0V_LR)
J7
VDD_HV_ADV_S voltage configuration, select from 5.0V_LR
(linear), 3.3V_SR (switching) or 5.0V_SR (switching)
1-2 (5.0V_LR)
J8
VDD_HV_IO_MAIN voltage configuration, select from
5.0V_SR or 3.3V_SR
1-2 (5.0V_SR)
J9
VDD_HV_IO_FLEX voltage configuration, select from
5.0V_SR or 3.3V_SR
1-2 (5.0V_SR)
J10
VDD_LV voltage configuration, select from
1.25V_SR or BALLAST circuit
1-2 (1.25V_SR)
J11
Supply for BALLAST circuit configuration, select from
VDD_HV_IO_MAIN or 5.0V_SR
1-2
(VDD_HV_IO_MAIN)
JP1
VDD_HV_FLA voltage configuration, connect or
disconnect VDD_HV_FLA from VDD_HV_IO_MAIN
Closed
(Connect VDD_HV_FLA
to VDD_HV_IO_MAIN)
Table 1: POWER SUPPLY CONFIGURATION JUMPERS
3.2 System clock configuration
The mini module supports the usage of crystal clock sources as well as external clock source:
Jumper
Description
Default
J15
40 MHz crystal clock source Enable for pin EXTAL
1-2 (XT1 pin2)
J17
40 MHz crystal clock source Enable for pin XTAL
1-2 (XT1 pin1)
J19
Enable 8MHz oscillator power supply
Open
J21
External clock source from 8MHz oscillator or SMA connector
1-2 (8MHz oscillator)
Table 2: CLOCK CONFIGURATION JUMPERS

SPC58XXADPT144S REV.B Minimodule 9/19 rev1.0 October 27
3.3 Reset Circuit
The minimodule supports different way to reset the microcontroller.
To use and perform the reset driving there are different jumper and switch:
Jumper
Description
Default
SW1
Reset push button
Open
J22
Connect the external reset to the reset driver
for ESR0 and PORST pins
Close
J20
Connect the external reset to ESR0 pin
Close
J25
Connect the external reset to PORST pin
Close
Table 3: RESET CONFIGURATION JUMPERS
3.4 Port Configuration
The following jumpers need to configure the ports:
Jumper
Description
Default
JP13
TESTMODE settings
Close
(10KΩ pull-down)
J13
RSTIN configuration
•1-2: ESR0
•2-3: PORST
2-3
(PORST)
JP2
JTAG/DigRF pin 9 configuration
•1-2: EVTO
•2-3: ESR0
1-2
(EVTO)
JP3
PIN26 configuration
•1-2: PG1
•2-3: EVTI(CHORUS 1M)
Closed 1-2
JP4
EVTI SWITCH configuration
•1-2: to JP3(CHORUS 1M)
•2-3: to JP5(CHORUS 6M)
Closed 1-2
JP5
PM5/EVTI configuration
•1-2: PM5
•2-3: EVTI(CHORUS 6M)
Closed 1-2
JP6
PIN27 configuration
•1-2: PG2
•2-3: EVTO(CHORUS 1M)
Closed 1-2
JP7
EVTO SWITCH configuration
•1-2: to JP6(CHORUS 1M)
•2-3: to JP8(CHORUS 6M)
Closed 1-2
JP8
PIN130 configuration
•1-2: PM6
•2-3: EVTO(CHORUS 6M)
Closed 1-2
Table 4: PORT CONFIGURATION JUMPERS

SPC58XXADPT144S REV.B Minimodule 10/19 rev1.0 October 27
3.5 Chorus 6M configuration
The following jumpers need to configure the board for support the Chorus 6M:
Jumper
Description
Default
JR2
Device pin 134 port configuration
1-2
(Closed with PCB trace for connect pin 134 to PC[13] )
JR3
Device pin 133 port configuration
1-2
(Closed with PCB trace for connect pin 133 to PC[14] )
JR4
Device pin 132 port configuration
1-2
(Closed with PCB trace for connect pin 132 to PC[15] )
JR5
Device pin 40 port configuration
1-2
(Closed with PCB trace for connect pin 40 to PI[7] )
JR6
Device pin 34 port configuration
1-2
(Closed with PCB trace for connect pin 34 to PI[5] )
JR7
Device pin 32 port configuration
1-2
(Closed with PCB trace for connect pin 32 to PI[3] )
JR8
Device pin 30 port configuration
1-2
(Closed with PCB trace for connect pin 30 to PI[1] )
JR9
Device pin 20 port configuration
1-2
(Closed with PCB trace for connect pin 20 to PI[8] )
JR10
Device pin 39 port configuration
1-2
(Closed with PCB trace for connect pin 39 to PI[6] )
JR11
Device pin 33 port configuration
1-2
(Closed with PCB trace for connect pin 33 to PI[4] )
JR12
Device pin 31 port configuration
1-2
(Closed with PCB trace for connect pin 31 to PI[2] )
JR15
Device pin 141 port configuration
1-2
(Closed with PCB trace for connect pin 141 to PM[2] )
JR16
Device pin 140 port configuration
1-2
(Closed with PCB trace for connect pin 140 to PM[0] )
JR17
Device pin 135 port configuration
1-2
(Closed with PCB trace for connect pin 135 to PK[14] )
JR14
Device pin 98 port configuration /
function configuration
1-2
(connect pin 98 to ESR0 )
JR18
Device pin 25 port configuration /
function configuration
1-2
(connect pin 25 to AGND )
JR19
Device pin 24 port configuration /
function configuration
1-2
(connect pin 24 to VDD_HV_ADR_D )
Table 5: CHORUS 6M CONFIGURATION JUMPERS
