UM2227
User manual
Getting started with the STEVAL-BTDP1 USB dongle
Introduction
The STEVAL-BTDP1 evaluation board (dongle) has an embedded Bluetooth®class SPBT3.0DP1
module and includes a USB connector. The USB connector allows PC access to the Bluetooth module
and supplies power to the dongle.
The STEVAL-BTDP1 allows testing and working with the SPBT3.0DP1 module, so users can familiarize
themselves with the firmware and create Bluetooth links with simple AT commands.a

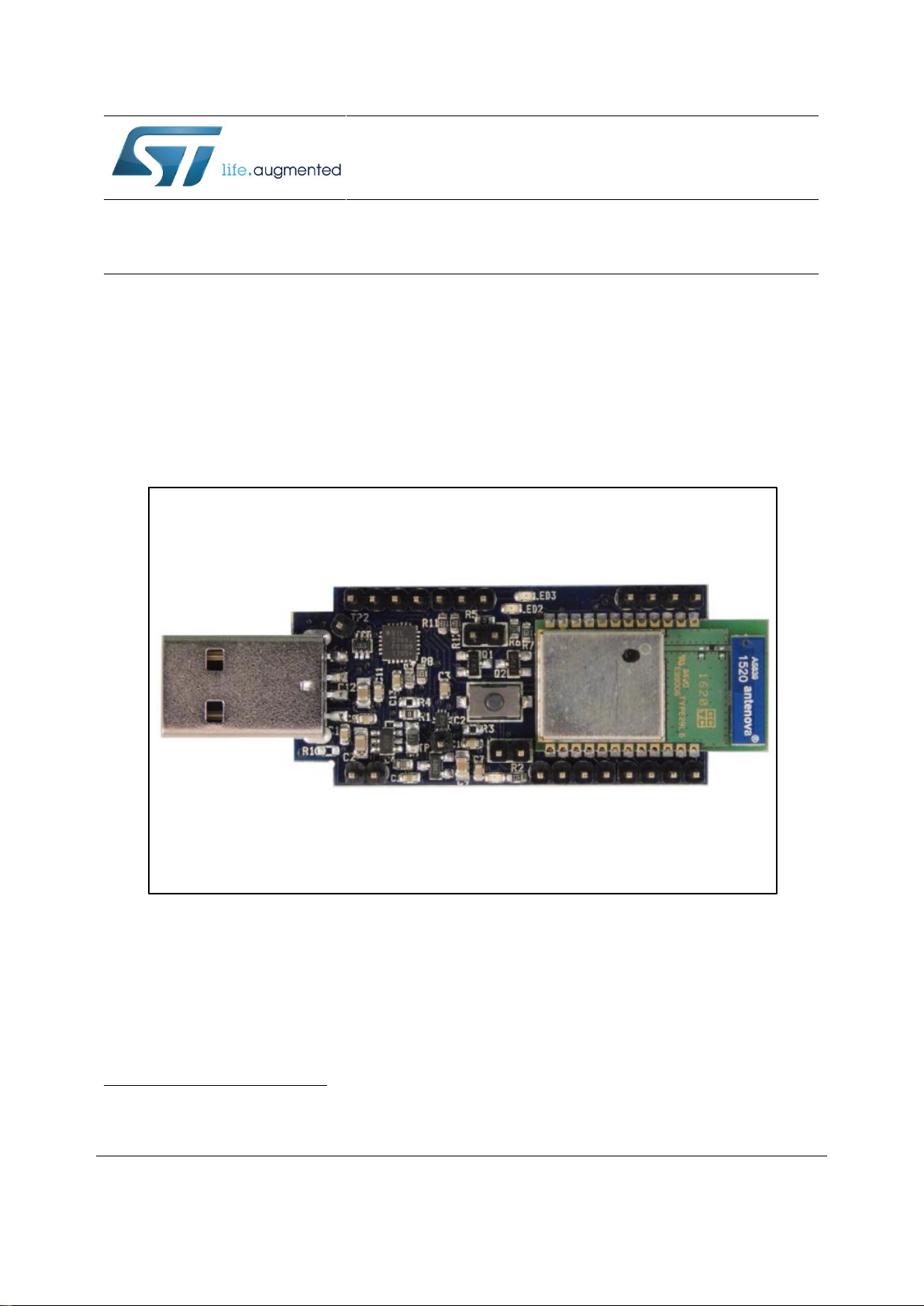

Figure 1: STEVAL-BTDP1 evaluation board
a
The AT command list is detailed in user manual UM2077 on www.st.com

Contents
UM2227
2/15
DocID030639 Rev 1
Contents
1Overview ..........................................................................................4
2Getting started.................................................................................5
2.1 Installing the drivers on host PC........................................................5
2.2 Two dongle communication ..............................................................7
2.2.1 Connection procedure ........................................................................ 8
3Revision history ............................................................................11
Appendix A USB driver installation..............................................12

UM2227
List of figures
DocID030639 Rev 1
3/15
List of figures
Figure 1: STEVAL-BTDP1 evaluation board ..............................................................................................1
Figure 2: USB drive installation first and second step................................................................................5
Figure 3: Wizard installation - first step.......................................................................................................5
Figure 4: Wizard installation - second step.................................................................................................6
Figure 5: Wizard installation third step........................................................................................................6
Figure 6: Wizard installation completed......................................................................................................6
Figure 7: Windows device manager ...........................................................................................................7
Figure 8: Two dongle communication setup...............................................................................................7
Figure 9: Connection setup.........................................................................................................................8
Figure 10: Port selection.............................................................................................................................8
Figure 11: Port parameters.........................................................................................................................9
Figure 12: Connection properties setup......................................................................................................9
Figure 13: AT command prompt...............................................................................................................10
Figure 14: BDAddress dongle1, dongle2..................................................................................................10
Figure 15: USB driver installation launch..................................................................................................12
Figure 16: License agreement..................................................................................................................12
Figure 17: Wizard installation - 1 ..............................................................................................................13
Figure 18: Wizard installation - 2..............................................................................................................13
Figure 19: Wizard installation - 3 ..............................................................................................................13
Figure 20: Wizard installation terminated .................................................................................................14
Figure 21: Installation completed..............................................................................................................14

Overview
UM2227
4/15
DocID030639 Rev 1
1 Overview
The STEVAL-BTDP1 features:
SPBT3.0DP1 V3.0 Bluetooth class 1 module
with embedded antenna
USB interface and power supply
Reprogramming support via USB interface
Reset button
RoHS compliant
The default settings are:
UART: 115200 baud rate, no parity, 1 stop bit, 8 data bits
Local name: "ST BTC3.0 Module"
Profile: SPP (serial port profile)
Deep sleep: disabled
Page and inquiry scan: 1.28 s interval, 11 ms duration
Security: disabled
Bonding PIN: "1234"
Bonding allowed: always enabled

UM2227
Getting started
DocID030639 Rev 1
5/15
2 Getting started
2.1 Installing the drivers on host PC
To install the drivers on your PC, follow the procedure shown below.
No drivers need to be installed on the Bluetooth SPBT3.0DP1 module or the
evaluation board.
Step 1
Plug the STEVAL-BTDP1 into any available USB port: the computer will automatically
find the devices shown below.
Figure 2: USB drive installation first and second step
Step 2
A Found New Hardware Wizard installation window opens:
- select Yes, this time only to locate the drivers from the Microsoft®website
- click Next to confirm the installation of the identified STEVAL-BTDP1 USB to UART
controller and virtual COM port driver
Figure 3: Wizard installation - first step

Getting started
UM2227
6/15
DocID030639 Rev 1
Figure 4: Wizard installation - second step
Step 3
The Found New Hardware Wizard opens again to install the USB device driver:
- select Yes, this time only to locate the drivers from the Microsoft website
Figure 5: Wizard installation third step
Figure 6: Wizard installation completed
Step 4:
Open the Windows®device manager application to verify correct installation and
check which COM port is assigned to the STEVAL-BTDP1 Bluetooth serial
device
2
.The STEVAL-BTDP1 is usually assigned the same virtual COM port each
time it is inserted (unless there are other virtual COM devices altering port
assignments).
2
If the USB driver wizard installation fails, find the alternative installation procedure in the Appendix.

UM2227
Getting started
DocID030639 Rev 1
7/15
- check that two device drivers for the STEVAL-BTDP1 Bluetooth are shown
here.

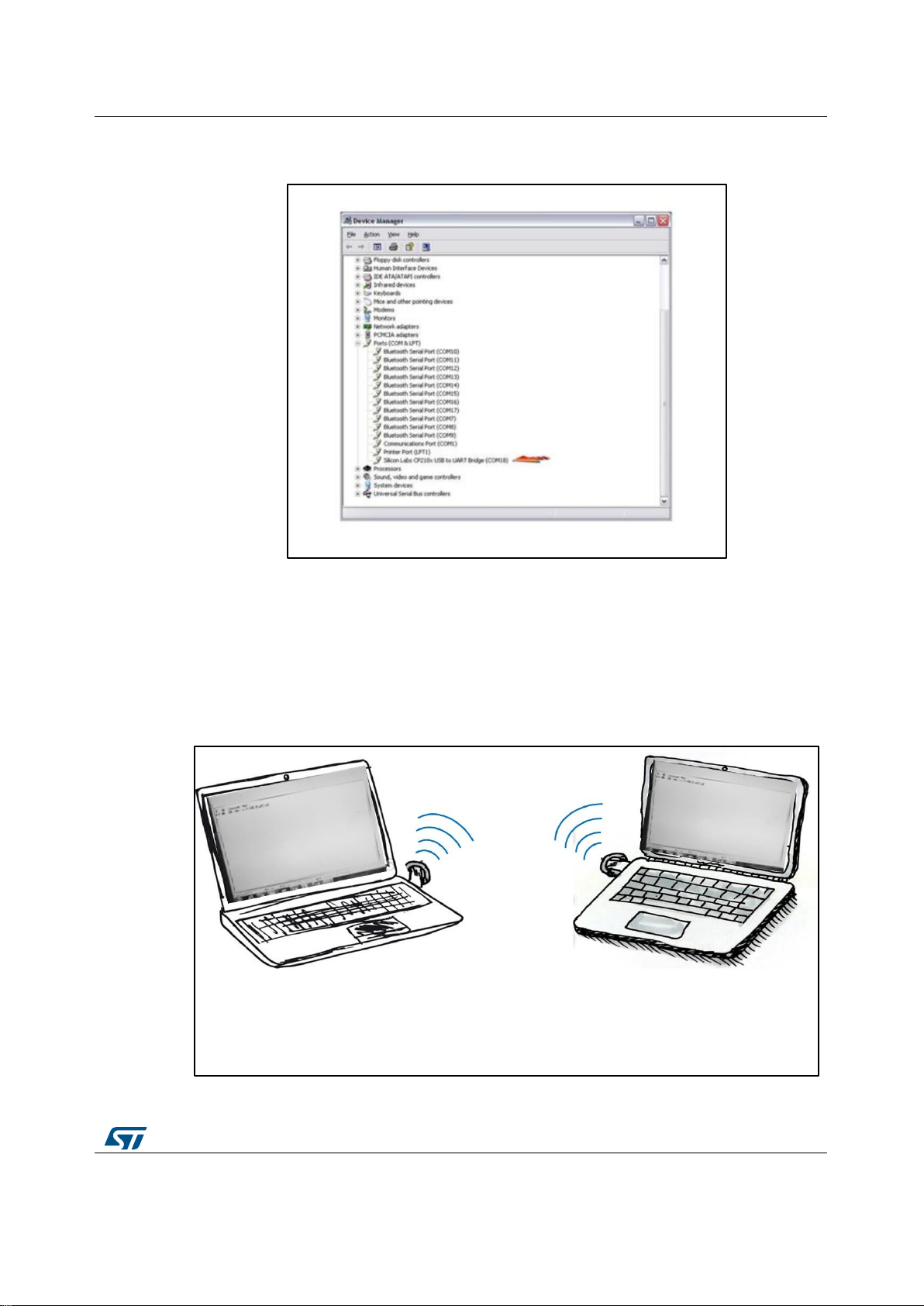

Figure 7: Windows device manager
The CP2102 chip ensures standard UART serial communication from the computer via the
universal serial bus and interfaces directly with the Bluetooth module in the Bluetooth
serial adapter.
2.2 Two dongle communication
Two Bluetooth STEVAL-BTDP1 dongles on separate PCs can be implemented for the
development of applications involving cable-free communication.
Figure 8: Two dongle communication setup

Getting started
UM2227
8/15
DocID030639 Rev 1
2.2.1 Connection procedure
The dongles used in the connection have separate BD addresses. In our example they are
0080e1f00001 (dongle2) and 0080e1f00002 (dongle2).
Two dongle connection procedure
Step 1
Plug each dongle into a PC using the USB connector
Step 2
Open the HyperTerminal program on both PCs and create a new connection and
configure it as shown below.
Figure 9: Connection setup
Figure 10: Port selection

UM2227
Getting started
DocID030639 Rev 1
9/15
Figure 11: Port parameters
Step 3
From the menu file set the AT command connection properties.
Figure 12: Connection properties setup
The dongle is ready to use.

Getting started
UM2227
10/15
DocID030639 Rev 1
Step 4
Press the reset switch on the dongle: on the screen, the prompt followed by the
module Bluetooth address should appear:

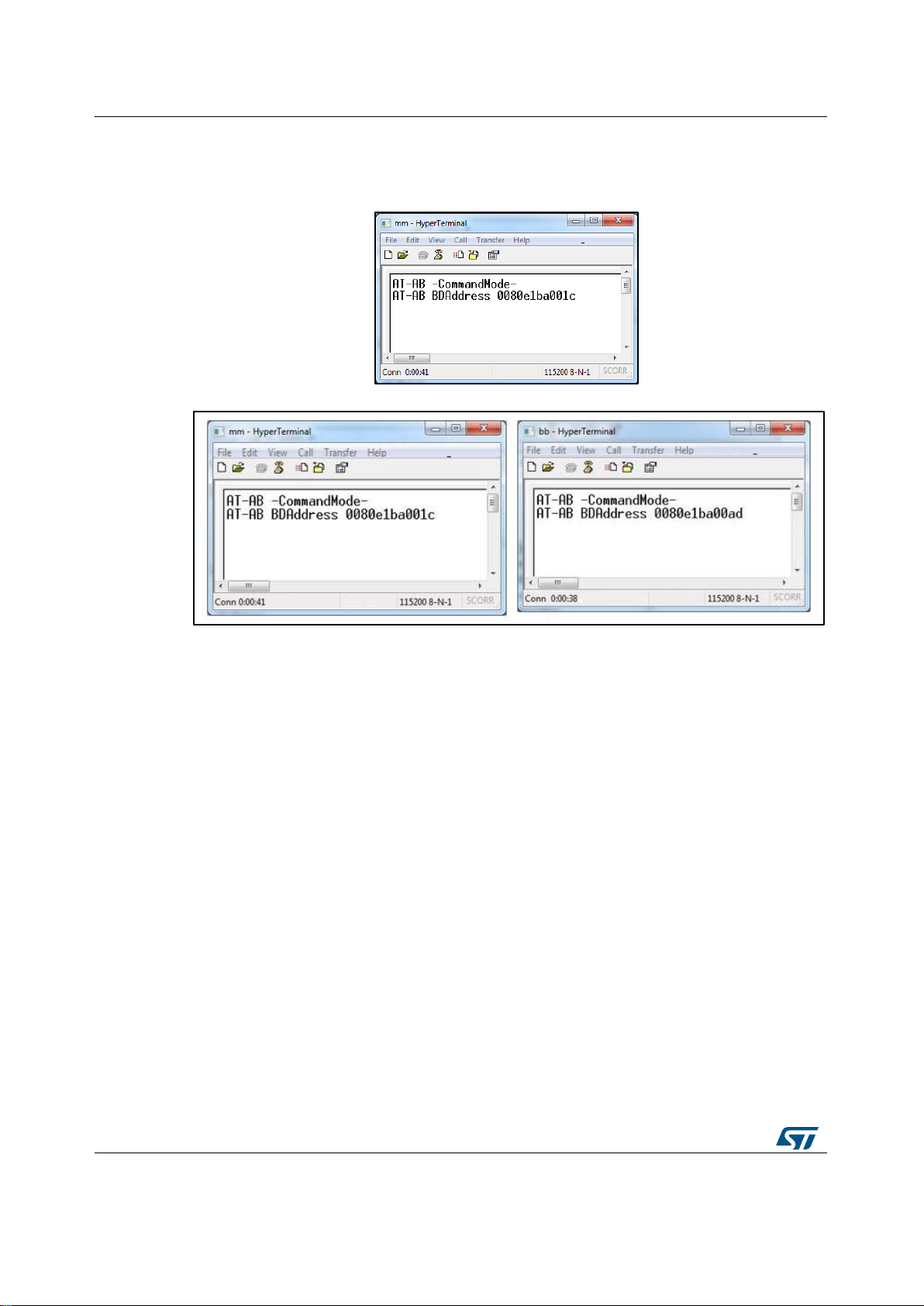

Figure 13: AT command prompt
Figure 14: BDAddress dongle1, dongle2
The user can now operate the dongle through the AT commands.

UM2227
Revision history
DocID030639 Rev 1
11/15
3 Revision history
Table 1: Document revision history
Date
Version
Changes
05-Jun-2017
1
Initial release.

UM2227
12/15
DocID030639 Rev 1
Appendix A USB driver installation
If USB driver wizard installation fails, the dongle can be installed using the driver available
on the silicon lab website at
https://www.silabs.com/products/mcu/Pages/USBtoUARTBridgeVCPDrivers.aspx
Insert the dongle into a USB port on the PC and follow the sequence shown in the images
below.
Figure 15: USB driver installation launch
Figure 16: License agreement

UM2227
DocID030639 Rev 1
13/15

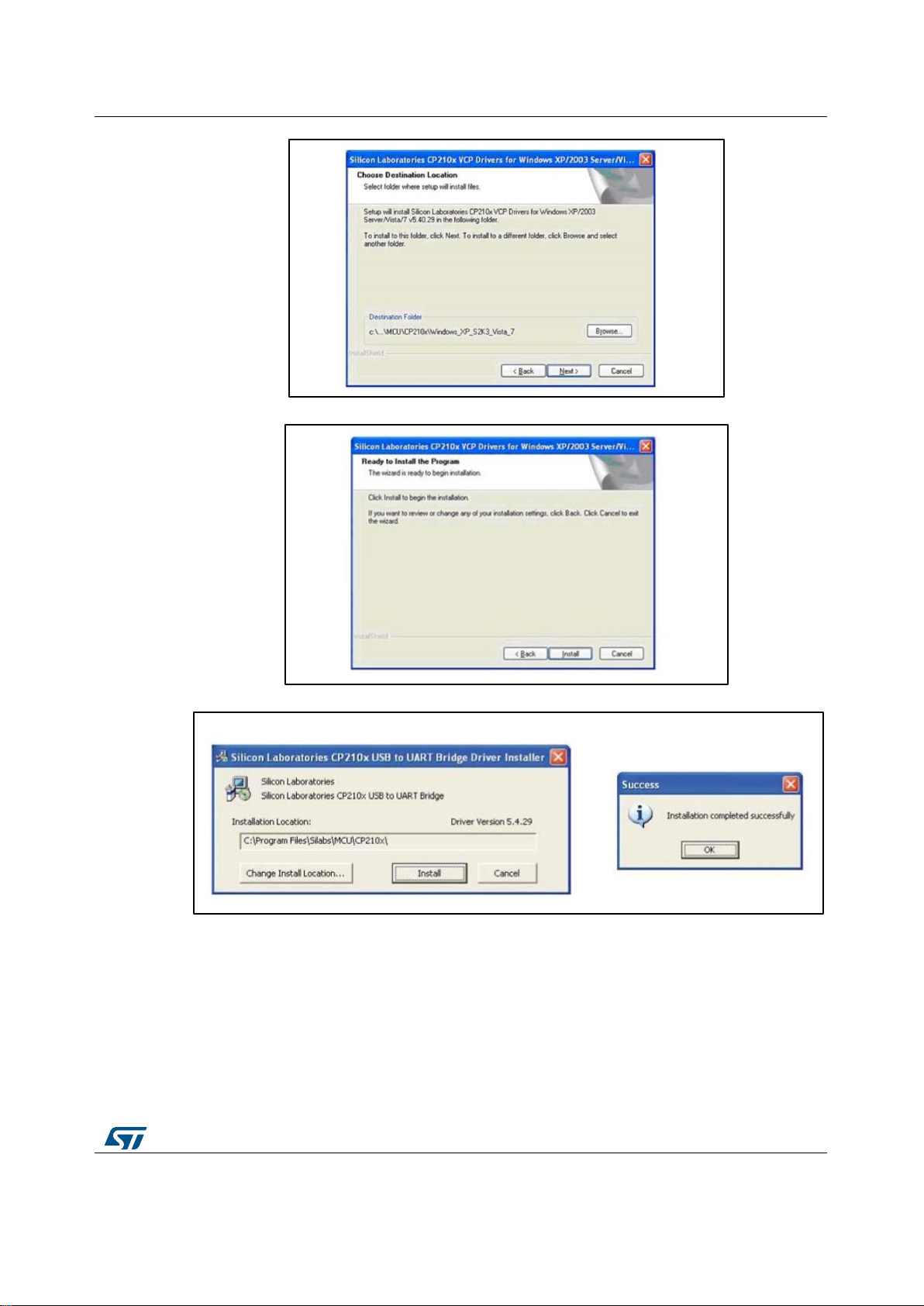

Figure 17: Wizard installation - 1
Figure 18: Wizard installation - 2
Figure 19: Wizard installation - 3

UM2227
14/15
DocID030639 Rev 1

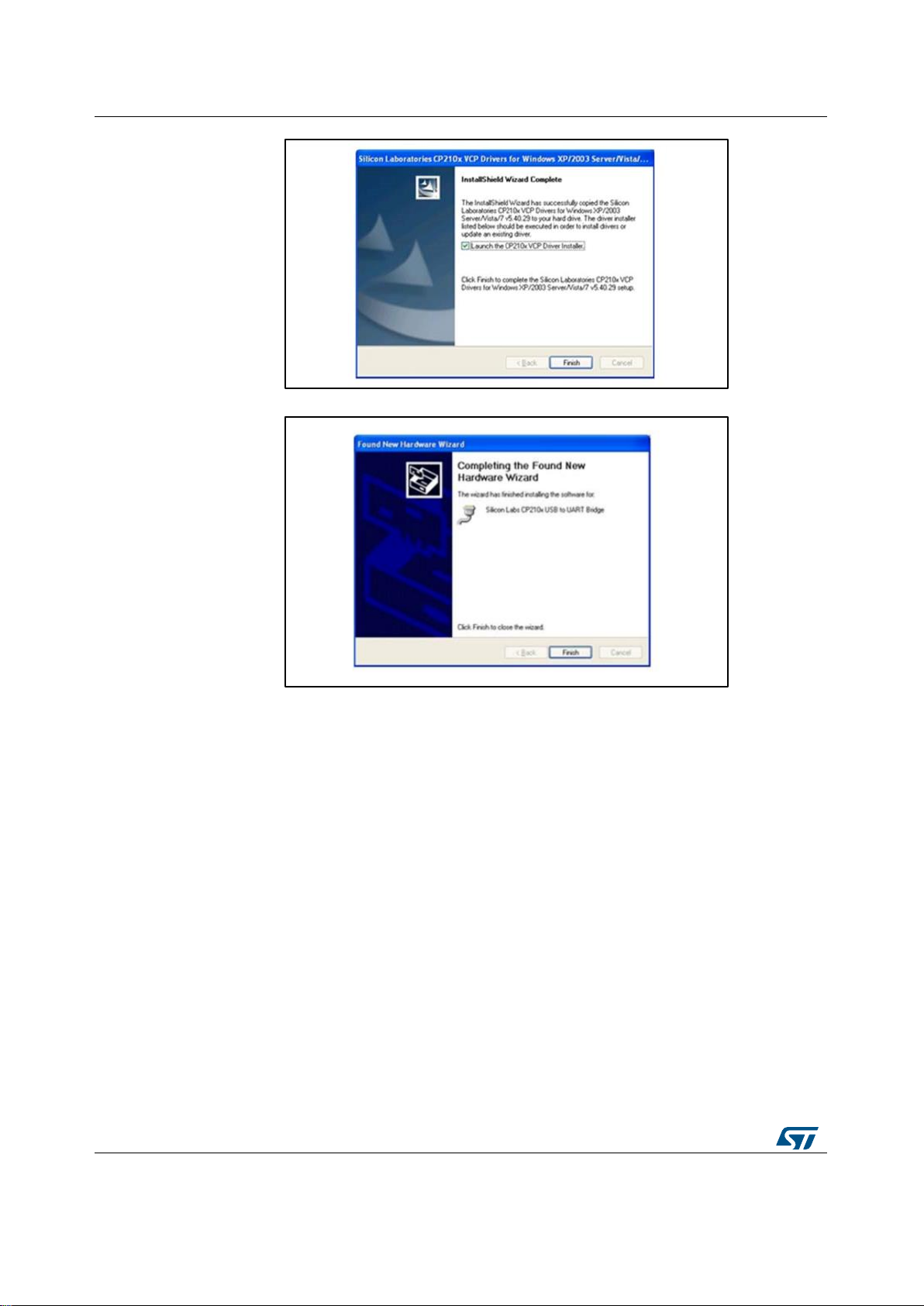

Figure 20: Wizard installation terminated
Figure 21: Installation completed
The USB driver installation is now complete
