STA-RITE JWPD-075 User manual

SWIMMING POOL PUMP
O W N E R’ S M A N U A L
INSTALLATION, OPERATION & PARTS
MODELS
3/4 HP 1 HP 1-1/2 HP
JWPD-075 JWPE-100 JWPF-150
Sta-Rite Pool/Spa Group
600 S. Jefferson Street, Waterford, WI 53185
North America: 800-752-0183, FAX [phone]
International: 414-728-5551, FAX: [phone], TELEX: ITT 4970245
Oxnard, CA • Orlando, FL • Union City, TN • Delavan, WI • Mississauga, Ont
© 1995, Sta-Rite Industries, Inc. Printed in U.S.A. S331 (Rev. 4/18/95)
This manual should be furnished to
the end user of this pump; its use will
reduce service calls and chance of
injury and will lengthen pump life.

2
SWIMMING POOL PUMP
To avoid unneeded service calls, prevent possible injuries, and get the most
out of your pump, READ THIS MANUAL CAREFULLY!
The Sta-Rite ‘JWP’ Series Above Ground Pool Pump:
• Is designed to circulate water in swimming pools.
• Is an excellent performer; durable, reliable.
Table of Contents
Warranty.......................................................................................................2
Safety Instructions ........................................................................................3
Specifications/Dimensions............................................................................4
Installation.................................................................................................5-6
Electrical.......................................................................................................7
Operation.....................................................................................................8
Pump Service................................................................................................9
Storage/Winterizing ....................................................................................10
Troubleshooting Guide...............................................................................11
Repair Parts List ..........................................................................................12
LIMITED WARRANTY
Pumps, filters, spa systems, skimmers, underwater lights (except bulbs), accessories and fittings manufactured by Sta-
Rite are warranted to be free of defects in material and workmanship for one (1) year from date of installation.
HRPB, DEPB and System 3 are warranted against defects in material and workmanship for a period of ten (10) years
from date of installation. Internal filter components and valves are warranted for a period of one (1) year from date
of installation.
The foregoing warranties relate to the original consumer purchaser (“Purchaser”) only. Sta-Rite shall have the op-
tion to repair or replace the defective product, at its sole discretion. Purchasers must pay all labor and shipping
charges necessary to replace the product covered by this warranty. Requests for warranty service must be made
through the installing dealer. This warranty shall not apply to any product that has been subject to negligence, mis-
application, improper installation or maintenance, or other circumstances which are not in Sta-Rite’s direct control.
This warranty sets forth Sta-Rite’s sole obligation and Purchaser’s exclusive remedy for defective products.
STA-RITE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL OR CONTINGENT DAMAGES
WHATSOEVER.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, SHALL NOT EXTEND BEYOND THE DURATION OF THE APPLICABLE
EXPRESS WARRANTIES PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how
long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which vary from state to state.
Supersedes all previous publications.
Sta-Rite Industries, Inc., 600 S. Jefferson St., Waterford, WI 53185

3
READ AND FOLLOW SAFETY
INSTRUCTIONS!
This is the safety alert symbol. When you see this symbol on your system
or in this manual, look for one of the following signal words and be alert
to the potential for personal injury.
warns about hazards that will cause death, serious personal
injury, or major property damage if ignored.
warns about hazards that can cause death, serious personal
injury, or major property damage if ignored.
warns about hazards that will or can cause minor personal injury
or property damage if ignored.
NOTICE indicates special instructions not related to hazards.
Carefully read and follow all safety instructions in this manual and on equip-
ment. Keep safety labels in good condition; replace if missing or damaged.
Incorrectly installed or tested equipment may fail, causing
severe injury or property damage.
Read and follow instructions in owner's manual when installing
and operating equipment. Have a trained pool professional per-
form all pressure tests.
1. Do not connect system to a high pressure or city water system.
2. Use equipment only in a pool or spa installation.
3. Trapped air in system can cause explosion. BE SURE all air is out of system
before operating or testing equipment.
Before pressure testing, make the following safety checks:
• Check all clamps, bolts, lids, and system accessories before testing.
• Release all air in system before testing.
• Tighten Sta-Rite trap lids to 30 ft. lbs. (4.1 kg-m) torque for testing.
•Water pressure for test must be less than 25 PSI (7.5 kg/cm2).
• Water Temperature for test must be less than 100oF. (38oC).
• Limit test to 24 hours. After test, visually check system to be sure it is ready
for operation. Remove trap lid and retighten hand tight only.
NOTICE: These parameters apply to Sta-Rite equipment only. For
non-Sta-Rite equipment, consult manufacturer.
IMPORTANT
SAFETY
INSTRUCTIONS
Always follow basic safety pre-
cautions with this equipment, in-
cluding the following.
To reduce the risk of
injury, do not permit children to
use this product unless they are
closely supervised at all times.
This pump is for use
with permanently installed pools
and may also be used with hot
tubs and spas if so marked. Do
not use with storable pools. A
permanently installed pool is con-
structed in or on the ground or in
a building such that it cannot be
readily disassembled for storage.
A storable pool is constructed so
that it may be readily disassem-
bled for storage and reassembled
to its original integrity.
SAVE THESE
INSTRUCTIONS

4

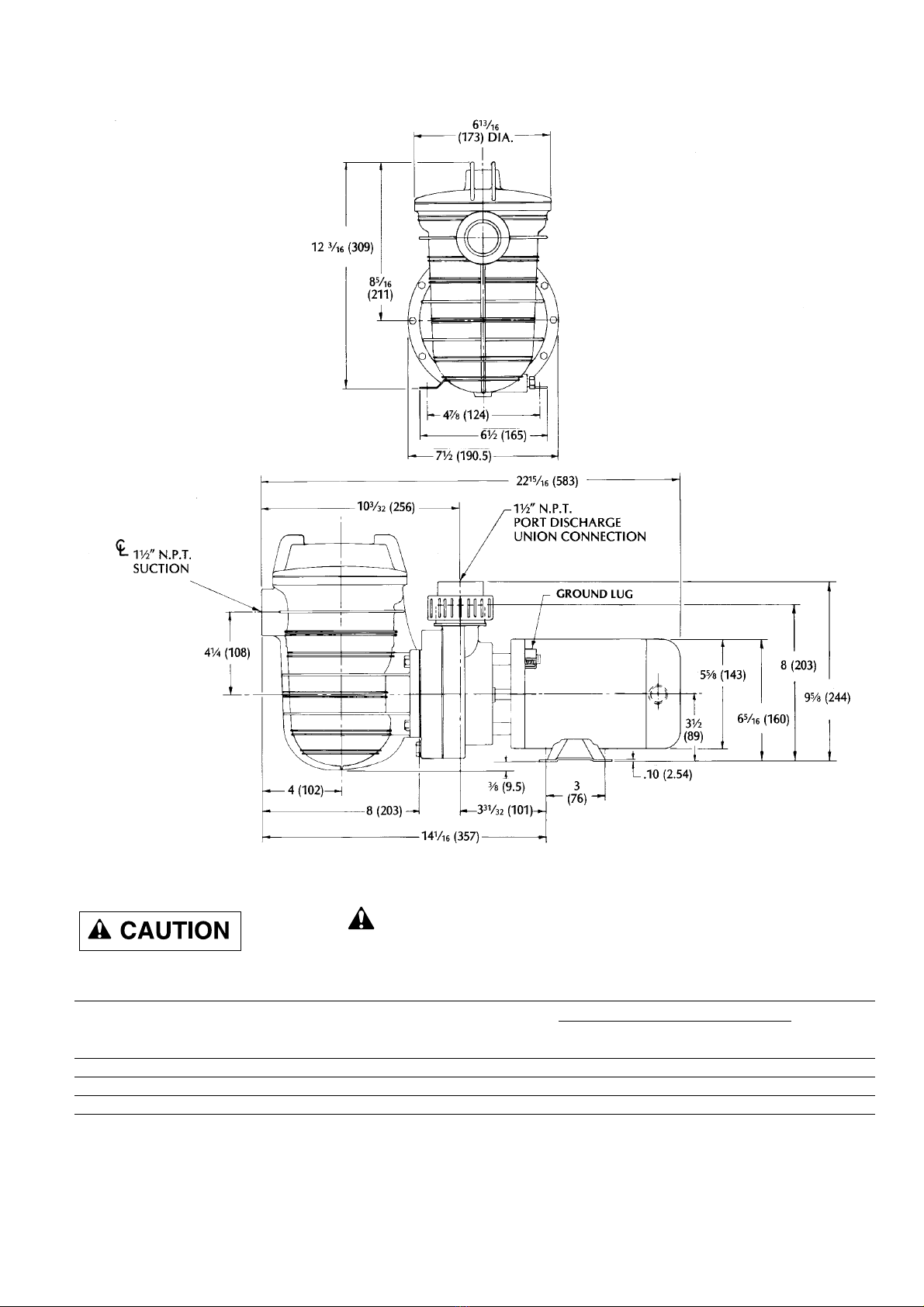

Figure 1: Dimensions In Inches (mm)
Values given in tables below are for PUMP MOTOR ONLY. If additional
accessories are installed on pump motor circuit (heater, blower, etc.), in-
clude their amperage draw when figuring wire and circuit breaker sizes.
TABLE I - RECOMMENDED CIRCUIT BREAKER SIZE AND WIRING DATA FOR 60 HZ MOTORS
Branch Wire Gauge Size
Model Motor Voltage/ Full Load Circuit Breaker Dist. in Ft. (M)-Service Motor Temp.
No. H.P. Hz/Phase Amps Rating (amps) 0-100’ (0-30) 101-200’ (31-60) 201-300’ (61-90) Rating-°C
JWPD-075 3/4 115/60/1 9.2 15 14 12 10 75
JWPE-100 1 115/230/60/1 12.0/6.0 15 14/14 10/14 8/14 75
JWPF-150 1-1/2 115/230/60/1 16.0/8.0 20/15 12/14 8/14 6/12 75

5
INSTALLATION
Installation and wiring of pump should only be done by qualified, li-
censed personnel.
For self-priming pumps, locate the pump as close as possible to the
pool and not more than 3 feet above pool water level.
For ease of pump/motor removal, install pipe unions on the suction and
discharge pipes close to the pump.
Pump mount must:
• Be solid - level - rigid - vibration free. (To reduce vibration and pipe
stress, bolt pump to mount).
• Allow pump suction inlet height at or below water level in pool.
• Allow use of short, direction suction pipe (to reduce friction losses).
• Allow for gate valves in suction and discharge piping.
• Have adequate floor drainage to prevent flooding.
• Be protected from excess moisture.
• Allow adequate access for servicing pump and piping. Include gate
valves in suction and discharge piping.
NOTICE: Use Teflon tape or Plasto-Joint Stik1for making all threaded
connections to the pump. Do not use pipe dope; pipe dope will cause
stress cracking in the pump. See Figure 4.
NOTICE: Pump suction and discharge connections have molded in
thread stops. DO NOT try to screw pipe in beyond these stops.
Tighten the pump/trap fittings only as much as it is required to insure a
tight connection (1-1/2 turns past hand tight is sufficient).
Overtightening may damage the pump or trap. Use care when using
teflon tape as friction is reduced considerably; do not overtighten con-
nections or damage may occur. See Figure 5.
1Lake Chemical Co., Chicago, Illinois
11 /
2"
NPT
Suction Port
11
/
2"
NPT
Discharge Port
Strainer Basket
Cover
Drain Plug 764 0294
748 0993
Don’t Hit
Thread Stops Don’t
Overtighten
From
Well Pump
Body
Hand Tight Plus 1-1/2 Turns With Wrench.
Figure 3: Typical Pump/Filter
Installation
Figure 4: Use Teflon Tape or Plasto-
Joint Stik on pipe joints and
connections to pump
Figure 5: Be Careful When Tightening
Figure 2
11
0
No Air Leaks
in Suction Pipe.
Pipe Joint
Compound Will
Damage Plastic.
If Air Flows
Water Won’t
Use Teflon Tape.
Return Line To Pool
To Separation Tank
or Waste
Skimmer
Pool
Water
Pool Drain Line

6
Teflon Taping Instructions
•Use only new or clean PVC pipe fittings.
• Wrap male pipe thread with one or two layers of teflon tape, winding
tape clockwise as you face the start of thread. Cover entire thread por-
tion of pipe. See Figure 6.
• If leaks occur, remove pipe, clean off old tape, rewrap with one to two
additional layers of tape and remake the connection.
•NOTICE: Support all piping connected with pump! See Figure 7.
Piping:
•Use at least 1-1/2” PVC pipe. Increase size if a long run is needed.
• If large than 1-1/2” pipe is used, then use a pipe reducing fitting at the
pump/trap ports to match the pipe size.
• To avoid strains on the pump, support both suction and discharge pipes
independently. Place these supports near the pump. See Figure 7.
• To avoid a strain left by a gap at the last connection, start all piping at
the pump and run pipe away from the pump.
• Never use a suction pipe smaller than pump suction connections.
• To avoid airlocking, slope suction pipe slightly upward toward the
pump. See Figure 8.
•NOTICE: To prevent flooding when removing pump for service, all
flooded suction systems must have gate valves in suction and discharge
pipes.
• Plastic pipe will expand and contract as the temperature changes. To
allow for this, use an expansion joint or flexible piping.
• Unions are provided. Use as follows for leak-free connection to pump:
1. “O” Ring and sealing surfaces must be clean.
2. Assemble handtight only! (NO WRENCHES!)
3. NO pipe compound or Teflon tape on unions.
4. Bond pipe to unions with PVC cement.
Use PVC cement only in a well ventilated area away from flame;
FOLLOW MANUFACTURER‘S INSTRUCTIONS!
Fittings:
•Fittings restrict flow; for best efficiency use fewest possible fittings.
• Avoid fittings which could cause an air trap.
• Pool and spa fittings must conform to International Association of
Plumbing and Mechanical Officials (IAPMO) standards.
• Use only non-entrapping suction fitting in pool or double suction (skim-
mer & main drain).
Figure 6
Figure 7
Support
Pipe Rigid
Mount
765 0294
Figure 8: No Air Pockets In Suction
Pipe
Keep Pipe Straight and Angled up to Pump.
742 0993

Hazardous voltage.
Can shock, burn,
or cause death.
Ground pump before
connecting to
power supply.
115
VOLT
LINESWHITE
W/BLACK TRACER
BLACK
7
ELECTRICAL
Ground motor before connecting to electrical power supply! Failure to
ground pump motor can cause serious or fatal electrical shock hazard!
Do not ground to a gas supply line!
To avoid dangerous or fatal electrical shock, turn OFF power to motor
before working on electrical connections.
GFCI tripping indicates an electrical problem. If GFCI trips and will not
reset, have a qualified electrician inspect and repair electrical system.
Exactly match supply voltage to nameplate voltage (115 or 230 Volt
single phase only)! Incorrect voltage can cause fire or seriously damage
motor and voids warranty! See Figure 10.
Grounding:
•Install, ground, and wire motor according to local or National Electrical
Code requirements.
• Permanently ground motor; use size and type wire required by code.
• Ground connection must be made to green grounding terminal under
motor canopy or access plate (see Figure 9).
• Connect motor ground terminal to electrical service ground.
• Install and bond pump according to local codes and ordinances; use
bonding lug on motor (see Figure 9). Use solid copper conductor No. 8
AWG (8.4 sq. mm) or larger.
• Connect a No. 8 AWG (8.4 sq. mm) solid copper bonding wire to the
pressure wire connector provided on the motor housing and to all metal
parts of the swimming pool, spa, or hot tub and to all electrical equip-
ment, metal piping or conduit within 5 feet (1.5 m) of the inside walls of
swimming pool, spa, or hot tub.
Wiring:
•Use Ground Fault Circuit Interrupter (GFCI) as master on-off switch; it
will sense a short circuit to ground and disconnect power before it be-
comes dangerous to pool users. Test GFCI according to manufacturer’s
instructions.
• In case of power outage, check GFCI for tripping (which will prevent
normal water circulation); reset if necessary.
• Permanently connect pump to circuit; do not connect any other lights
or appliances to the same circuit.
• Match wire size and circuit breaker size to Table I, Page 4.
• Use wire rated at 75°C.
Voltage:
•Voltage at motor must be not more than 10% above or below motor
nameplate rated voltage or motor may overheat, causing overload trip-
ping and reduced component life. If voltage is less than 90% or more
than 110% of rated voltage when motor is running at full load, consult
power company.
Figure 10: Motor Connection Diagram
Figure 9: Typical ground screw and
bonding lug locations
Bonding
Lug
Motor Nameplate
Green
Ground
Screw
Motor
Canopy
Through
Bolts 349 0893
230
VOLT
LINES
BLACK
WHITE
W/BLACK TRACER
115 Volt Hookup
230 Volt Hookup

8
OPERATION
NEVER run pump dry! Running pump dry may damage seals, causing
leakage and flooding! Fill pump with water before starting motor.
Do not add chemicals to pool/spa system directly in front of pump suc-
tion. Adding undiluted chemicals may damage pump and voids
warranty.
Before removing trap cover:
1. STOP PUMP before proceeding.
2. CLOSE GATE VALVES in suction and discharge pipes.
3. RELEASE ALL PRESSURE from pump and piping system.
If pump is being pressure tested, be sure pressure has been released be-
fore removing trap cover!
Do not block pump suction! To do so with body may cause severe or
fatal injury. Small children using pool must ALWAYS have close adult
supervision!
NOTICE: Do not block pool return or spa jets! To do so may flood area
causing damage to equipment and water damage to surrounding area.
Priming Pump:
•Open gate valves before starting system.
• Release all air from filter and piping system: see filter owner’s manual.
• In a flooded suction system (water source higher than pump), pump will
prime itself when suction and discharge valves are opened.
• If pump is not in a flooded suction system, unscrew and remove trap
cover; fill trap and pump with water. See Figure 11.
• Lubricate trap cover O-Ring with petroleum jelly each time it is re-
moved.
• Clean and inspect O-Ring; reinstall on trap cover.
• Replace trap cover on trap; turn clockwise to tighten cover.
NOTICE: Tighten trap cover by hand only (no wrenches)! Use a
wrench only if necessary to remove lid!
Pump should prime now. Priming time will depend on vertical length of
suction lift and horizontal length of suction piping.
• If pump does not prime within ten minutes, stop motor and find cause.
Be sure all suction and discharge valves are open when pump is run-
ning. See Troubleshooting Guide, Page 11.
Pool, Spa or Tub Water:
•Keep water level at least two inches above bottom of skimmer opening
when system is not in use. Failure to do so can allow air to enter sys-
tem, causing pump to lose its prime.
• Keep water temperature at 104°F or below for spa/tubs and 80°F for
pools.
• If in doubt, start a a lower temperature and gradually increase it accord-
ing to your experience.
• Keep an accurate thermometer in pool/spa; check it before getting in.
• Keep pool water “balanced”. Maintain the water pH between 7.2 and
7.6.
Do not use or allow the use of the spa/pool by anyone using alcohol or
drugs. The effects of hot water, alcohol and/or drugs can cause dizzi-
ness and falling, loss of consciousness, or heart attack.
Hazardous suction.
Can trap hair or
body parts, causing
severe injury
or death.
Do not block
suction.
Too much heat
can cause nausea,
dizziness,
fainting, or death.
Check temperature.
before using tub.
Figure 11

9
PUMP SERVICE
Pump should only be serviced by qualified personnel.
Be sure to prime pump (Page 8) before starting.
Before removing trap cover or front plate bolts:
1. STOP PUMP before proceeding.
2. CLOSE GATE VALVES in suction and discharge pipes.
3. RELEASE ALL PRESSURE from pump and piping system.
To avoid dangerous or fatal electrical shock hazard, turn
OFF power to motor before working on pump or motor!
•Aside from lubricating trap cover O-Ring, no lubrication or regular
maintenance is needed beyond reasonable care and periodic cleaning
of the trap basket.
• If shaft seal is worn or damaged, repair as follows:
Removing Old Seal:
1. Disconnect power supply to motor.
2. Close suction/discharge valves and drain pump. Remove pump, hold
down bolts, disconnect unions or hose clamps, and remove pump from
system.
3. Remove 6 bolts holding front plate to seal plate; remove front plate.
4. Remove shaft cover or motor canopy; using screwdriver in slot on motor
end of shaft or wrench on flats of shaft extension, hold pump shaft and
unscrew impeller from shaft (turn counter-clockwise). Rotating half of
seal will come off with impeller.
5. Carefully remove rotating part of seal from impeller sleeve by pulling
and turning on sealing washer and spring (Figure 12). Do not damage
impeller surface where drive ring seats and seals.
6. Carefully remove four motor throughbolts from seal plate (Figure 13); re-
move seal plate and use a screwdriver to tap ceramic seat out from the
rear (Figure 14). Do not damage seal cavity in seal plate.
7. Clean cavity from which seal was removed and clean motor shaft.
Pump Reassembly/Installing New Seal:
1. Ceramic seat must be clean and free of dirt, grease, dust, etc. Wet rub-
ber cup gasket of ceramic seat with small amount of water; press into
cavity firmly and squarely with finger pressure (Figure 15).
2. If ceramic seat will not locate properly, remove it, place face up on
bench, and reclean cavity. Ceramic seat should now locate.
3. Seal must be free of dirt, grease, grit, scratches or chips; be sure im-
peller sleeve is clean. Slide seal assembly, rubber drive ring first, onto
impeller sleeve until drive ring bottoms on impeller back shroud.
4. Slip slinger over shaft; remount seal plate. Torque throughbolts to 25
inch-lbs. (29 cm-kg).
5. Screw impeller onto shaft until it seats against shaft shoulder. Work
slinger over end of impeller sleeve so it rides on sleeve (Figure 16).
6. Remount front plate; using pattern shown in Figure 17, torque bolts to
30 inch-lbs. (35 cm-kg). BE SURE to start with bolt in 3 o’clock position
as shown.
7. Reconnect unions; tighten hand tight only.
Figure 12
Figure 13
Figure 14
#1
#6
#2
#5 #3
#4
Start
Here
Figure 15
Figure 16
Figure 17: Torque Sequence

10
STORAGE/WINTERIZING
To prevent damage to components from fumes, store pool and spa
chemicals away from pump and spa. If possible, store chemicals in
an other well-ventilated area.
Allowing pump to freeze will damage pump and void warranty!
• Drain all water from pump and piping when expecting freezing temper-
atures or when storing pump for a long time (see instructions below).
• Keep motor dry and covered during storage.
• To avoid condensation/corrosion problems, do not cover or wrap pump
with plastic.
• For outdoor/unprotected pump installations:
1.Enclose entire system in a weatherproof enclosure.
2.To avoid corrosion damage, allow ventilation; do not wrap system in
plastic.
• Pump down water level below all inlets to the pool.
• Follow pool manufacturer’s directions for storage of pool.
NOTICE: Do not use anti-freeze solutions (except propylene glycol) in
your pool or spa system. Most anti-freezes are highly toxic and may
damage plastic components in the system. Propylene glycol is non-toxic
and will not damage pump components.
Draining Pump
To avoid dangerous or fatal electrical shock hazard, turn
OFF power to motor before draining pump.
1. Close all valves on suction and return piping.
2. Remove drain plug in bottom of volute.
3. Drain all piping exposed to freezing temperatures.
4. Be sure no airlocks are holding water in the system.
5. To prevent pump from freezing, remove trap cover and drain the pump
body through the drain plug, Key 17, Page 12. Use a lid wrench to re-
move trap covers that have been overtightened or have taken a set and
cannot be removed by hand. Clean pump thoroughly. Replace trap
cover.
6. Before restarting, replace all plugs and make sure all pipe connections
are tightly sealed.
Startup For Winterized Equipment
1. Remove any temporary weather protection placed around system for
shutdown.
2. Follow filter manufacturer’s instructions for reactivation of the filter.
3. Inspect all electrical wiring for damage or deterioration over the shut-
down period. Have a qualified serviceman repair/replace wiring as
needed. Inspect and tighten all watertight connections.
4. Open all valves in suction and return piping.
5. Remove all winterizing plugs in system.
6. Remove all anti-freeze solutions from system.
7. Close all drain valves and replace all drain plugs in system.
8. Prime pump according to instructions on Page 8.
9. Refill pool to proper water level.
Hazardous voltage.
Can shock, burn,
or cause death.
Disconnect power
before working
on pump or motor.

11
Read and understand safety and operating in-
structions in this manual before doing any work
on pump!
Only qualified personnel should electrically test
pump motor!
FAILURE TO PUMP, REDUCED CAPACITY OR DIS-
CHARGE PRESSURE
A. SUCTION LEAKS/LOST PRIME:
1. Pump must be primed; make sure that pump volute
and trap are full of water. See priming instructions,
Page 8.
2. Make sure there are no leaks in suction piping.
3. Make sure suction pipe inlet to pump is well below
the water level to prevent pump from sucking air.
4. If suction trap gasket is defective, replace it.
5. Suction lift of 3 to 4 feet (.9-1.2M) will reduce per-
formance. Suction lift of more than 4 feet (1.2M)
will prevent pumping and cause pump to lose
prime. In either case, move pump closer (vertically)
to water source. Make sure suction pipe is large
enough.
B. CLOGGED PIPE/TRAP/IMPELLER,
WORN IMPELLER:
1. Make sure suction trap is not clogged; if it is, clean
trap and strainer.
2. Make sure impeller is not clogged (follow instruc-
tions under “Removing Old Seal,” Page 9; check im-
peller for clogging; follow instructions under “Pump
Reassembly/Installing New Seal,” Page 9 for re-
assembly).
3. Impeller and diffuser may be worn. If so, order re-
placement parts from Repair Parts List, Page 12.
C. INADEQUATE CIRCULATION OR JET ACTION
1. Check for blocked fittings. Blocked fittings will
cause poor flow and poor jet action.
2. Check trap basket; if plugged, turn pump off and
clean basket. Check and clean skimmer basket.
3. Check that gate valves are fully open.
4. Suction/discharge piping is too small.
5. Check and clean pool filter.
6. Consult dealer/installer or service representative.
D. CIRCUIT BREAKER IN HOME PANEL
TRIPS REPEATEDLY
1. Breaker must be of adequate capacity.
2. For GFCI breaker; test according to GFCI manufac-
turer’s instructions.
3. Be sure no other lights and appliances are on cir-
cuit.
4. Consult dealer/installer or service representative.
E. MECHANICAL TROUBLES AND NOISE
1. If pump suction and discharge are not adequately
supported, pump assembly will be strained. See
“Installation,” Pages 5 and 6.
2. Do not mount pump on a wooden platform!
Securely mount on a concrete platform for quietest
performance.
3. Air leak in suction line (bubbles in water returning
to pool). Repair leak. Tighten trap lid.
4. Foreign matter (gravel, metal, etc.) in pump im-
peller. Disassemble pump, clean impeller, follow
pump service instructions on page 9 for reassembly.
5. Cavitation.
Improve suction conditions.
Increase pipe size.
Decrease number of fittings.
Increase discharge pressure.
Reduce flow by throttling discharge gate valve.
F. ELECTRICAL:
1. Pump may be running too slowly; check voltage at
motor terminals and at meter while pump is run-
ning. If low, see wiring instructions or consult power
company. Check for loose connections.
2. Pump may be too hot.
A Check line voltage; if less than 90% or more
than 110% of rated voltage consult a licensed
electrician.
B. Increase ventilation.
C. Reduce ambient temperature.
D. Tighten any loose connections.
3. Motor internal thermal overload protector is open.
Motor runs too hot. Turn power to motor off. Check
for proper voltage. Check for proper impeller or im-
peller rubbing on inside of pump body.
4. Consult dealer/installer or service representative.
TROUBLESHOOTING GUIDE

12
1
2
3
4
5
6
78
9
10
21
18
22
19
23
20
1112 13
14
17
15
16
17
1787 0595
•Not illustrated.
REPAIR PARTS LIST
Key Part Part
No. Description Qty. No.
1 Motor 60Hz/1Ph (-A) 1 Chart at Right
2 Slinger 1 C69-2
3 Collar, Union 1 U11-182P1
4 Adapter, Union 1 U11-183P1
5 “O” Ring 1 U9-226
6 Seal Plate 1 17301-0150
7 Seal 1 U9-358SS
8 Impeller 1 Chart at Right
9 “O” Ring 1 U9-357
10 Front Plate 1 C101-272P
11 Washer, 1/4 Flat 6 U43-117SS
12 Washer, 1/4 Lock 6 U43-10SS
13 Screw, 1/4-20x1-3/4 6 U30-873SS
14 Trap Cover 1 C3-139P1
15 Trap Cover “O” Ring 1 U9-229
16 Trap Basket 1 C108-33P
17 Drain Plug 1/4” NPT 2 U178-920P
18 Capscrew, 5/16”-18x1-1/4” 4 U30-64SS
19 Lock Washer, 5/16” 4 U43-11SS
20 Flat Washer, 5/16” 4 U43-41SS
21 Trap Body 1 C153-53P1
22 Gasket 1 C20-123
23 Pipe Plug 2 WC78-40T
• Nameplate 1 U33-155
• Decal-”Use Copper
Conductors Only. . .” 1 90000-1388
• Warning Tag 1 C63-12
• Warranty Tag 1 C63-13
Model Motor No. Impeller No.
No. HP (Key No. 1) (Key No. 8)
115Volt
JWPD-075 3/4 AS900DLL C105-228PHS
115/230 Volt
JWPE-100 1 62003-2002 C105-228PGS
JWPF-150 1-1/2 62003-2003 17301-0101S
For complete suction trap, order Pkg. 115.
Parts are common to all models listed except as noted:
Key Nos. 1, Motor; and 8, Impeller are listed below.
