STA-RITE WATERFORD SYSTEMS JWPS5EL User manual

WATERFORD SYSTEMS
SWIMMING POOL PUMP
O W N E R’ S M A N U A L
INSTALLATION, OPERATION & PARTS
MODELS
1/2 HP 3/4 HP 1 HP 1-1/2 HP
JWPA5C JWPA5D JWPA5E JWPA5F
JWPA5DL JWPA5EL JWPA5FL
JWPA5DL JWPA5E7 JWPA5F7L
JWPA5D7L JWPA5E7L JWPS5EL
JWPS5EL
3/4 HP/2 SPEED 1 HP/2 SPEED 1-1/2 HP/2 SPEED
JWPXYD JWPAXYE JWPA5YFL
JWPXYDL JWPAXYEL JWPA5YF7L
JWPA5YEL
JWPA5YE7L
JWPA5Y7EL
Sta-Rite Pool/Spa Group
293 Wright Street, Delavan, WI 53115
International: 262-728-5551, FAX: [phone]
www.starite.com
Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA
© 2005, Sta-Rite Industries S302 (Rev. 6/16/06)
1922 0895A
This manual should be furnished to
the end user of this pump; its use
will reduce service calls and chance
of injury and will lengthen pump life.

2
IMPORTANT
SAFETY
INSTRUCTIONS
Always follow basic safety pre-
cautions with this equipment,
including the following.
To reduce the risk
of injury, do not permit children
to use this product unless they
are closely supervised at all
times.
SAVE THESE
INSTRUCTIONS
WATERFORD SYSTEMS
SWIMMING POOL PUMP
To avoid unneeded service calls, prevent possible injuries, and get the most
out of your pump, READ THIS MANUAL CAREFULLY!
The Sta-Rite ‘JWP’ Series Above Ground Pool Pump:
• Is designed to circulate water in swimming pools.
• Is an excellent performer; durable, reliable.
Table of Contents
Safety Instructions ..................................................................................2-3
Installation...............................................................................................3-5
Electrical .................................................................................................5-6
Operation ...................................................................................................7
Storage/Winterizing ....................................................................................8

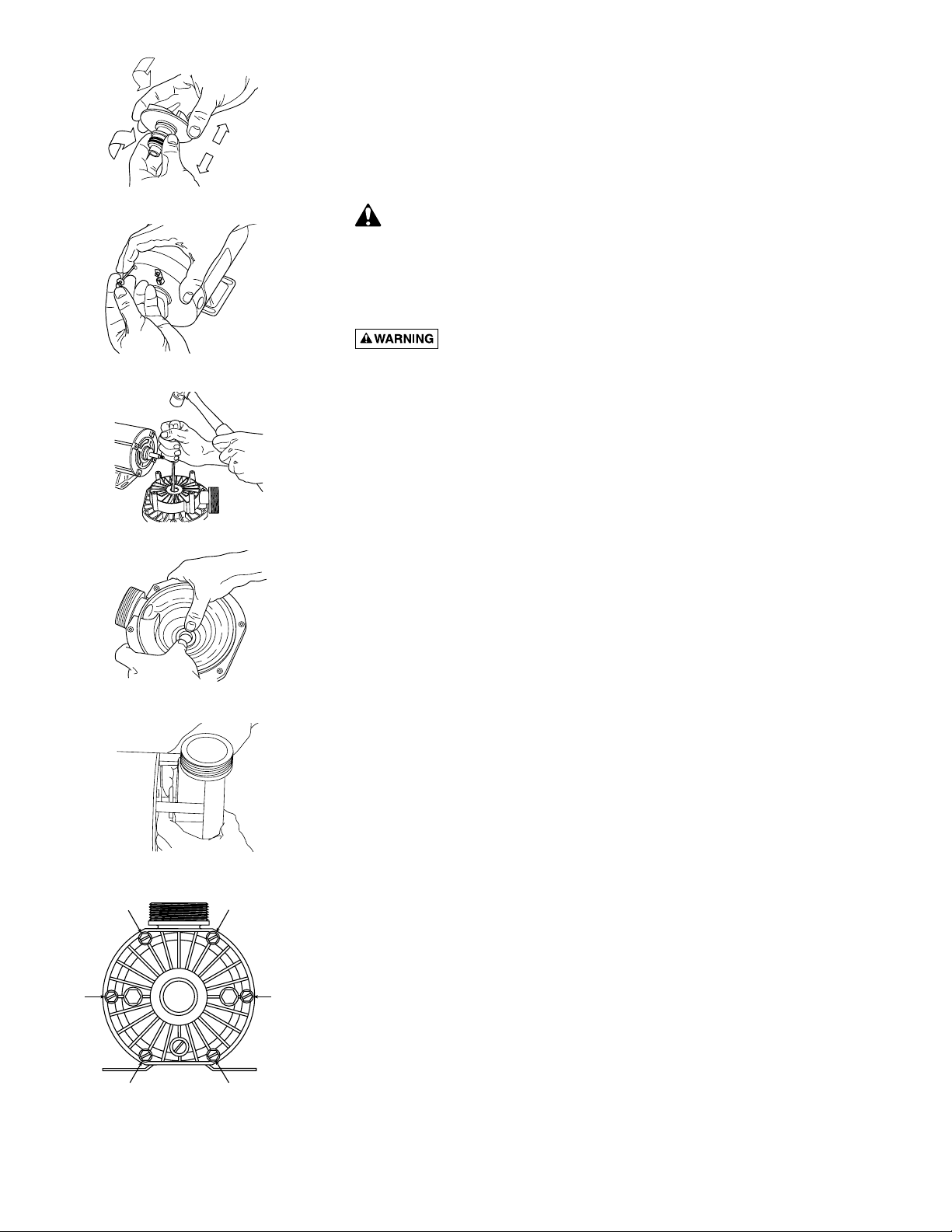

Pump Service..............................................................................................9
Troubleshooting Guide .............................................................................10

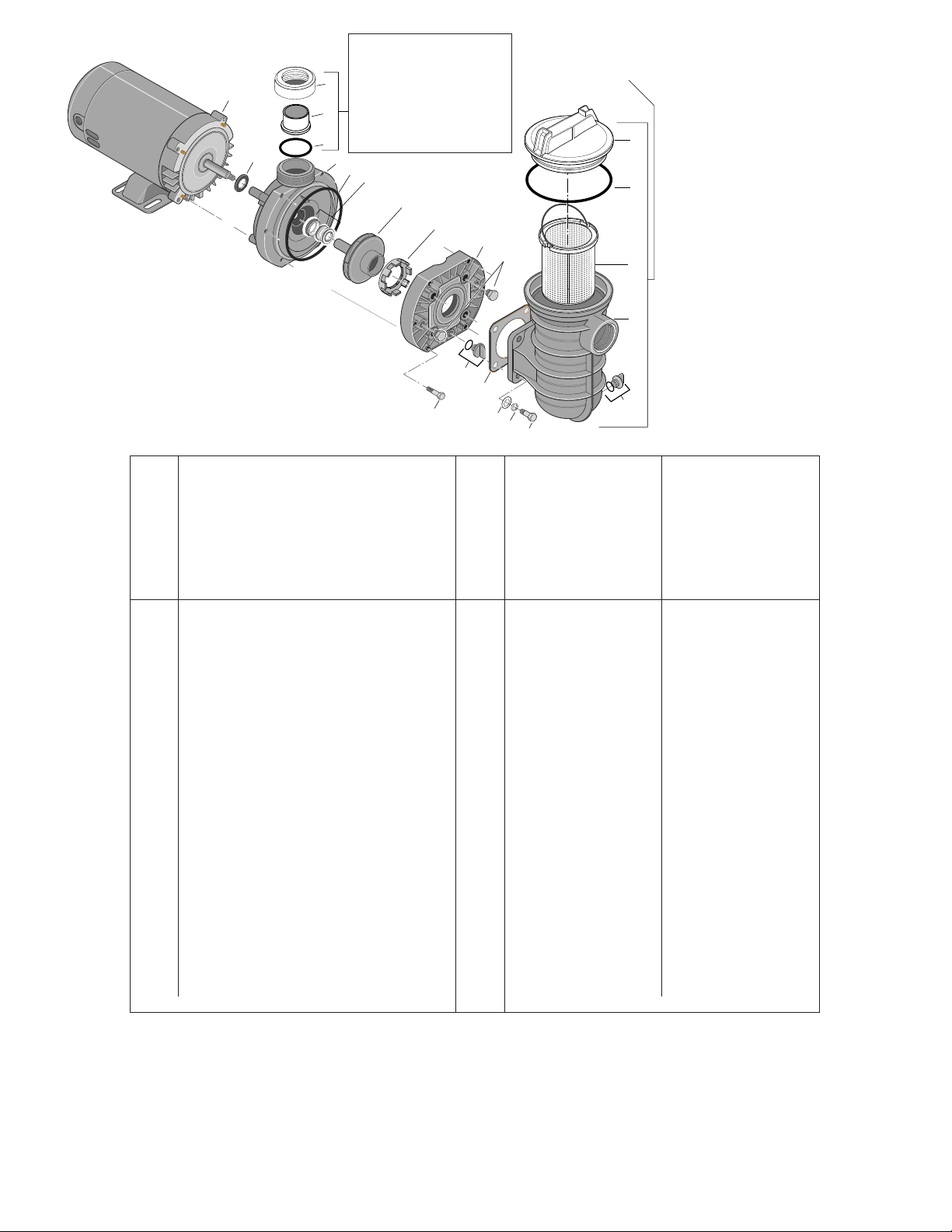

Repair Parts List...................................................................................11-12
Warranty...................................................................................................16
READ AND FOLLOW
SAFETY INSTRUCTIONS!
This is the safety alert symbol. When you see this symbol on your sys-
tem or in this manual, look for one of the following signal words and
be alert to the potential for personal injury.
warns about hazards that will cause death, serious personal
injury, or major property damage if ignored.
warns about hazards that can cause death, serious personal
injury, or major property damage if ignored.
warns about hazards that will or can cause minor personal
injury or property damage if ignored.
NOTICE indicates special instructions not related to hazards.
Carefully read and follow all safety instructions in this manual and on equip-
ment. Keep safety labels in good condition; replace if missing or damaged.

3
Incorrectly installed or tested equipment may fail, causing
severe injury or property damage.
Read and follow instructions in owner's manual when installing
and operating equipment. Have a trained pool professional per-
form all pressure tests.
1. Do not connect system to a high pressure or city water system.
2. Use equipment only in a pool or spa installation.
3. Trapped air in system can cause explosion. BE SURE all air is out of system
before operating or testing equipment.
Before pressure testing, make the following safety checks:
Check all clamps, bolts, lids, and system accessories before testing.
Release all air in system before testing.
Tighten Sta-Rite trap lids to 30 ft. lbs. (4.1 kg-m) torque for testing.
Water pressure for test must be less than 25 PSI (7.5 kg/cm2).
Water Temperature for test must be less than 100oF. (38oC).
Limit test to 24 hours. After test, visually check system to be sure it is ready
for operation. Remove trap lid and retighten hand tight only.
NOTICE: These parameters apply to Sta-Rite equipment only. For
non-Sta-Rite equipment, consult manufacturer.
Motor normally operates at high temperature and will be too
hot to touch. It is protected from heat damage during operation by an auto-
matic internal cutoff switch. Before handling pump or motor, stop motor and
allow it to cool for 20 minutes.
INSTALLATION
Installation and wiring of pump should only be done by qualified, licensed
personnel.
For self-priming pumps, locate the pump as close as possible to the pool and
not more than 3 feet above pool water level.
For ease of pump/motor removal, install pipe unions on the suction and dis-
charge pipes close to pump.
Pump mount must:
Be solid - Level - Rigid - Vibration free. (To reduce vibration and pipe stress,
bolt pump to mount.)
Allow pump suction inlet height to be at or below water level in pool.
Allow use of short, direct suction pipe (To reduce friction losses).
Allow for gate valves in suction and discharge piping.
Have adequate floor drainage to prevent flooding.
Be protected from excess moisture.
Allow adequate access for servicing pump and piping.
NOTICE: Use Teflon tape or Plasto-Joint Stik1for making all threaded con-
nections to the pump. Do not use pipe dope; pipe dope will cause stress
cracking in the pump.
1Lake Chemical Co., Chicago, Illinois

NOTICE: Pump suction and discharge connections have molded in thread
stops. DO NOT try to screw pipe in beyond these stops. Tighten the
pump/trap fittings only as much as it is required to insure a tight connection
(1-1/2 turns past hand tight is sufficient). Overtightening may damage the
pump trap. Use care when using teflon tape as friction is reduced consider-
ably; do not overtighten connections or damage may occur.
Teflon Taping Instructions:
Use only new or clean PVC pipe fittings.
Wrap male pipe threads with one to two layers of Teflon tape. Cover entire
threaded portion of pipe.
Do not overtighten or tighten past thread stop in pump port!
If leaks occur, remove pipe, clean off old tape, rewrap with one to two addi-
tional layers of tape and remake the connection.
NOTICE: Support all piping connected with pump!
Piping:
Use at least 1-1/2" (38mm) IPS PVC pipe with 5” (127mm) trap. Increase size
if a long run is needed.
To avoid strains on the pump, support both suction and discharge pipes
independently. Place these supports near the pump.
To avoid a strain left by a gap at the last connection, start all piping at the
pump and run pipe away from the pump.
Never use a suction pipe smaller than pump suction connection.
To avoid airlocking, slope suction pipe slightly upward toward the pump.
NOTICE: To prevent flooding when removing pump for service, all flooded
suction systems must have gate valves in suction and discharge pipes.
Plastic pipe will expand and contract as the temperature changes. To allow
for this, use an expansion joint or flexible piping.
Union provided for pump discharge port. Use as follows for leak-free con-
nection to pump:
1. O-Ring and sealing surfaces must be clean.
2. Assemble handtight only! (NO WRENCHES!)
3. NO pipe compound or teflon tape on union.
4. Bond pipe to union with PVC cement.
Use PVC cement only in a well ventilated area away from flame;
FOLLOW MANUFACTURER’S INSTRUCTIONS!
4

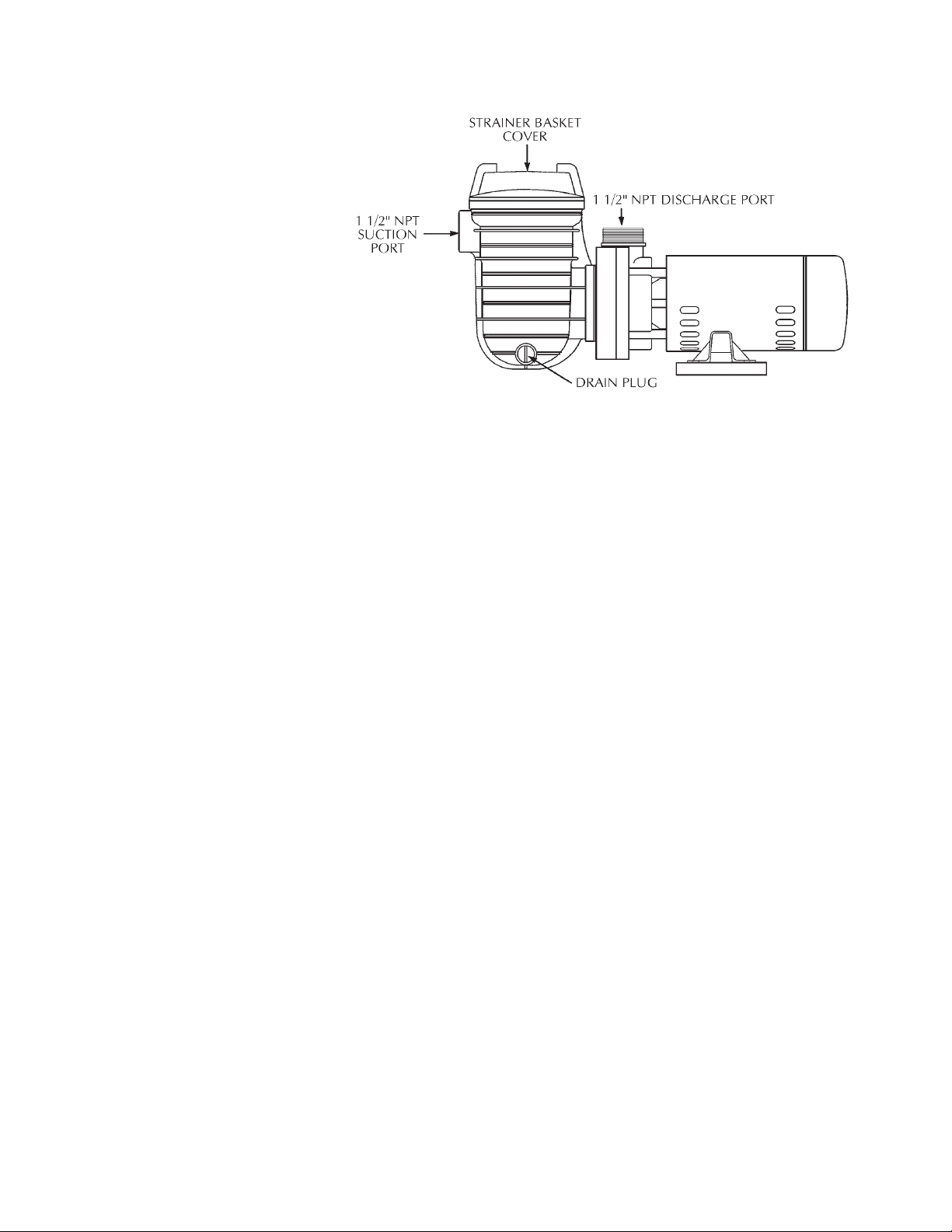

FIGURE 1

Fittings:
Fittings restrict flow; for best efficiency use fewest possible fittings.
Avoid fittings which could cause an air trap.
Pool fittings must conform to International Association of Plumbing and
Mechanical Officials (IAPMO) standards.
Use only non-entrapping suction fitting or double suction (skimmer and
main drain).
ELECTRICAL

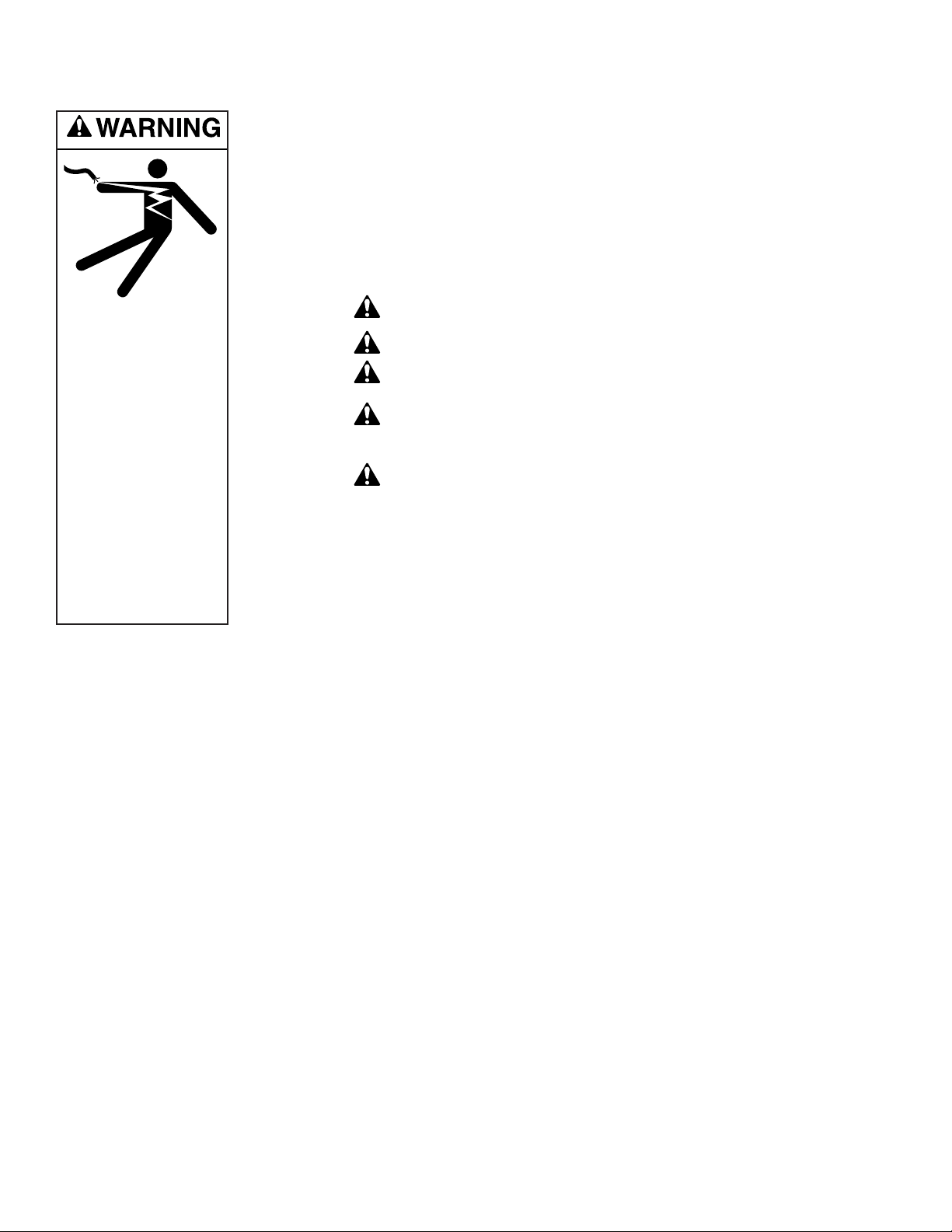

Ground motor before connecting to electrical power supply. Failure
to ground motor can cause severe or fatal electrical shock hazard.
Do not ground to a gas supply line.
To avoid dangerous or fatal electrical shock, turn OFF power to
motor before working on electrical connections.
Ground Fault Circuit Interrupter (GFCI) tripping indicates an electri-
cal problem. If GFCI trips and will not reset, have a qualified
electrician inspect and repair electrical system.
Exactly match supply voltage to nameplate voltage! Incorrect voltage
can cause fire or seriously damage motor and voids warranty.
If in doubt consult a licensed electrician.
Voltage:
Voltage at motor must be not more than 10% above or below motor name-
plate rated voltage or motor may overheat, causing overload tripping and
reduced component life. If voltage is less than 90% or more than 110% of
rated voltage when motor is running at full load, consult power company.
Grounding/Bonding:
Install, ground, bond and wire motor according to local or National
Electrical Code requirements.
Permanently ground motor; use size and type wire required by code.
Ground connection must be made to green grounding terminal under motor
canopy or access plate (see Figure 2A).
Connect motor ground terminal to electrical service ground.
Install and bond pump according to local codes and ordinances; use bond-
ing lug on motor (see Figure 2A). Use solid copper conductor No. 8 AWG
(8.4 sq. mm) or larger.
Connect a No. 8 AWG (8.4 sq. mm) solid copper bonding wire to the wire
connector provided on the motor housing and to all metal parts of the swim-
ming pool, spa, or hot tub and to all electrical equipment, metal piping or
conduit within 5 feet (1.5m) of the inside walls of the swimming pool, spa or
hot tub.
5

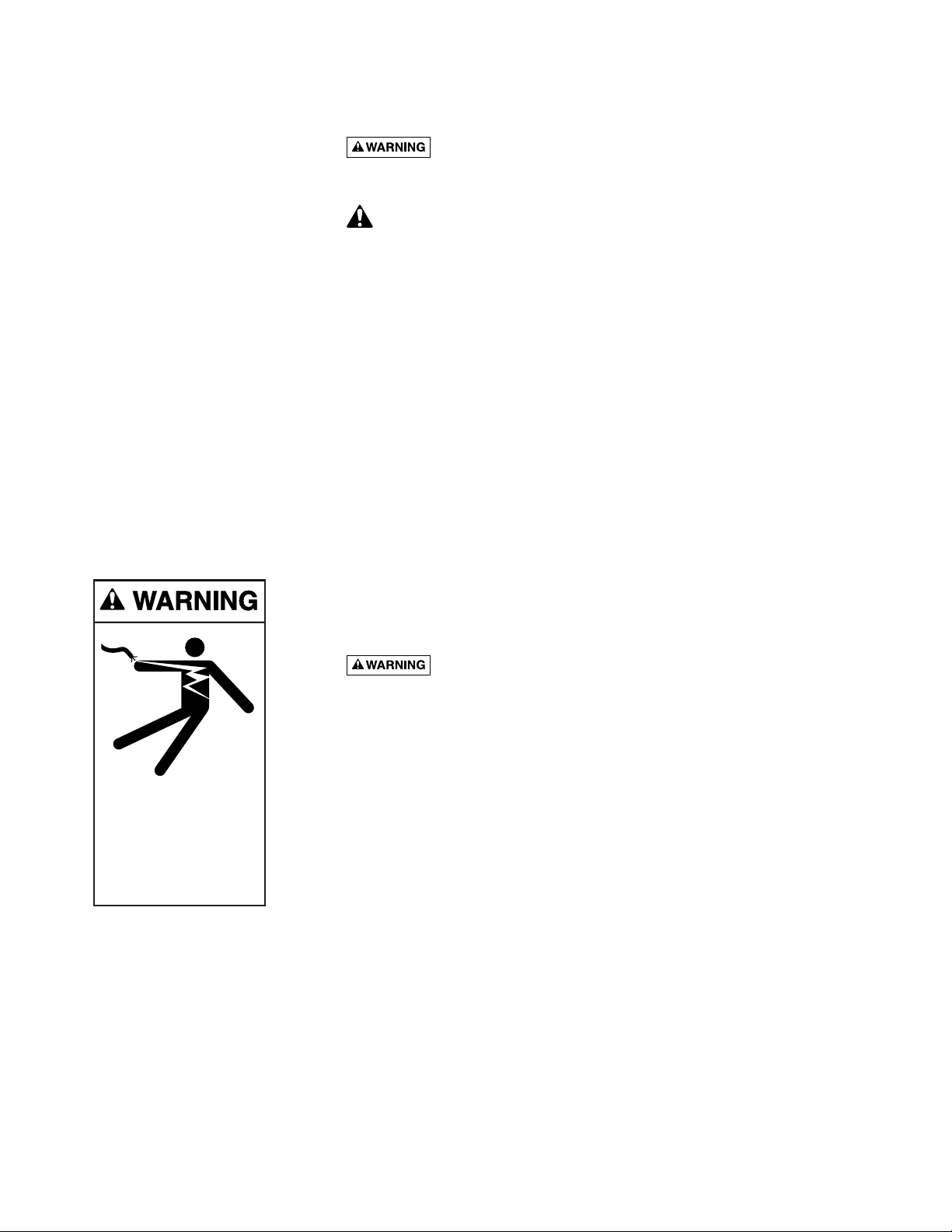

Hazardous voltage.
Can shock, burn, or
kill.
• Disconnect power
to pump before work-
ing on pump
or motor.
• Do not alter cord
or plug on cord-
connected models.
• Connect plug-in
models only to a
grounded, GFCI
protected outlet, that
meets code for pool
installations.
• Ground hard-wired
models before
connecting to
power supply.

Wiring:
Do not alter cord or plug on cord-connected units. Plug in to a GFCI pro-
tected, grounded outlet only. If plug and outlet do not match, consult a
licensed electrician.
Pump must be permanently connected to circuit. Table I, Page 7, gives cor-
rect wire and circuit breaker sizes for the pump alone. If other lights or
appliances are also on the same circuit, be sure to add their amp loads to
pump amp load before figuring wire and circuit breaker sizes. (If unsure how
to do this or if this is confusing, consult a licensed electrician.) Use the load
circuit breaker as the master on-off switch.
Install a Ground Fault Circuit Interrupter (GFCI) in circuit; it will sense a
short-circuit to ground and disconnect power before it becomes dangerous
to pool users. For size of GFCI required and test procedures for GFCI, see
manufacturer’s instruction.
In case of power outage, check GFCI for tripping (which will prevent normal
pump operation). Reset if necessary.
NOTICE: If you do not use conduit when wiring motor, be sure to seal wire
opening on end of motor to prevent dirt, bugs, etc., from entering.
6
BONDING
LUG
MOTOR NAMEPLATE
GREEN
GROUND
SCREW
MOTOR
CANOPY
THROUGH
BOLTS
White
230
Volt
Lines
A
B
L2
L1
Blue
SINGLE
VOLTAGE
MOTORS
DUAL
VOLTAGE
MOTORS
A
B
L2
L1
White
w/Black
Tracer
Black
115
Volt
Lines
A
B
L2
L1
White
w/Black
Tracer
Black
230
Volt
Lines
Motor Terminal Board Connections
A: Typical ground screw and bond-
ing lug locations.
Figure 2 – Electrical connections for
single speed models; motor terminal
block and bonding.
B. Motor terminal block connections.
L2
B
A
L1
Lo
Hi
Timer Motor
Supply
Lo
Hi
Circuit
Protector
Remote
SPDT
Switch
Ground
(Green)
Common
Remote Switching For 2-Speed Pumps
Timer (optional)
Low Speed Only
Minimum switch and timer amp rating must equal Branch Fuse Rating
given in "Recommended Circuit Breaker Size and Wiring Data" table.
3170 0398

7
TABLE I - RECOMMENDED FUSING AND WIRING DATA
Model Motor Branch Fuse Max Load Voltage/ Dist. in Ft. (m) (Serv. to Motor) Temp.
Number H.P. Rating Amps* Amps Hz/Phase 0-100’ (0-30) 101-200’ (31-60) 201-300’ (61-90) Rating-°C
1-Speed
JWPA5C-2A8 1/2 15 9.0 115/60/1 14 (2) 12 (3) 10 (5.5) 75
JWPA5DL-2A 3/4 15 9.0 115/60/1 14 (2) 12 (3) 10 (5.5) 75
JWPA5DL-2A1 3/4 15 9.0 115/60/1 14 (2) 12 (3) 10 (5.5) 75
JWPA5DL-2A2 3/4 15 9.0 115/60/1 14 (2) 12 (3) 10 (5.5) 75
JWPA5D-2A 3/4 15 9.0 115/60/1 14 (2) 12 (3) 10 (5.5) 75
JWPA5D-2A4 3/4 15 9.0 115/60/1 14 (2) 12 (3) 10 (5.5) 75
JWPA5D-2A8 3/4 15 9.0 115/60/1 14 (2) 12 (3) 10 (5.5) 75
JWPA5D7L-2A 3/4 15 9.0 115/60/1 14 (2) 12 (3) 10 (5.5) 75
JWPA5D7L-2A1 3/4 15 9.0 115/60/1 14 (2) 12 (3) 10 (5.5) 75
JWPA5D7L-2A2 3/4 15 9.0 115/60/1 14 (2) 12 (3) 10 (5.5) 75
JWPA5EL-2A 1 15 12.0 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPA5EL-2A1 1 15 12.0 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPA5EL-2A2 1 15 12.0 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPA5E7-2A4 1 15 12.0 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPA5E7L-2A 1 15 12.0 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPA5E7L-2A1 1 15 12.0 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPA5E7L-2A2 1 15 12.0 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPA5F-2A 11⁄220 16 115/60/1 10 (5.5) 8 (8.4) 6 (14) 75
JWPA5FL-2A 11⁄220 16 115/60/1 10 (5.5) 8 (8.4) 6 (14) 75
JWPA5FL-2A1 11⁄220 16 115/60/1 10 (5.5) 8 (8.4) 6 (14) 75
JWPA5FL-2A2 11⁄220 16 115/60/1 10 (5.5) 8 (8.4) 6 (14) 75
JWPA5FL-A 11⁄225/15 16.4/8.2 115/230/60/1 10/14 (5.5/2) 8/14 (8.4/2) 6/12 (14/3) 75
JWPA5F7L-2A4 11⁄220 16 115/60/1 10 (5.5) 8 (8.4) 6 (14) 75
JWPS5FL-A2 11⁄215 12.0 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPA5D-230A 3/4 15 4.8 230/60/1 14 (2) 14 (2) 14 (2) 75
JWPA5E-230A 1 15 6.1 230/60/1 14 (2) 14 (2) 14 (2) 75
JWPA5E-230A2 1 15 6.1 230/60/1 14 (2) 14 (2) 14 (2) 75
JWPS5EL-A2 1 15 9.0 115/60/1 14 (2) 12 (3) 10 (5.5) 75
2-Speed
JWPXYD-A2 3/4 – 1/8 15 11.7/3.39 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPXYDL-A2 3/4 – 1/8 15 11.7/3.39 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPAXYE-A2 1 – 1/8 15 11.7/3.39 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPA5YEL-A1 1 – 1/8 15 11.7/3.39 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPA5YEL-A2 1 – 1/8 15 11.7/3.39 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPA5YE7L-A1 1 – 1/8 15 11.7/3.39 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPA5YE7L-A2 1 – 1/8 15 11.7/3.39 115/60/1 14 (2) 10 (5.5) 8 (8.4) 75
JWPA5YFL-A 11⁄2– 1/6 20 16.0/3.6 115/60/1 12 (3) 8 (8.4) 6 (14) 75
JWPA5YFL-A2 11⁄2– 1/6 20 16.0/3.6 115/60/1 12 (3) 8 (8.4) 6 (14) 75
JWPA5YF7L-A1 11⁄2– 1/6 20 16.0/3.6 115/60/1 12 (3) 8 (8.4) 6 (14) 75
JWPA5YF7L-A2 11⁄2– 1/6 20 16.0/3.6 115/60/1 12 (3) 8 (8.4) 6 (14) 75
*Time delay fuses are recommended instead of standard fuses in any motor circuit.
Wire Size AWG (mm)
}
Values given in table below are for PUMP MOTOR ONLY. If additional accessories are
installed on pump motor circuit (heater, blower, etc.), include their amperage draw
when figuring wire and circuit breaker sizes.

OPERATION
NEVER run pump dry! Running pump dry may damage seals, causing
leakage and flooding! Fill pump with water before starting motor.
Before removing trap cover:
1. STOP PUMP before proceeding.
2. CLOSE GATE VALVES in suction and discharge pipes.
3. RELEASE ALL PRESSURE from pump and piping system.
4. NEVER tighten or loosen clamp while pump is operating!
If pump is being pressure tested, be sure pressure has been released
before removing trap cover!
Do not block pump suction! To do so with body may cause severe or
fatal injury. Small children using pool must ALWAYS have close adult
supervision!
NOTICE: Do not block pool return or spa jets. To do so may flood area
causing damage to equipment and water damage to surrounding area.
Priming Pump:
Open gate valves before starting system.
Release all air from filter and piping system: see filter owner’s manual.
In a flooded suction system (water source higher than pump), pump will
prime itself when suction and discharge valves are opened.
If pump is not in a flooded suction system, unscrew and remove trap cover;
fill trap and pump with water.
Do not lubricate the trap cover O-Ring. The original equipment O-Ring con-
tains a permanent internal lubricant.
NOTICE: If you replace the O-Ring with a non-internally lubricated O-Ring,
you may need to apply a silicone based lubricant.
Clean and inspect O-Ring; reinstall on trap cover.
Replace trap cover on trap; turn clockwise to tighten cover.
NOTICE: Tighten trap cover by hand only (no wrenches)! Use a wrench
only if necessary to remove lid.
Pump should prime now. Priming time will depend on vertical length of suc-
tion lift and horizontal length of suction piping.
If pump does not prime within 10 minutes, stop motor and find cause. Make
sure that all valves are open, suction pipe end is under water, and that there
are no leaks in suction pipe.
See Troubleshooting Guide, Page 11.
Pool, Spa or Tub Water:
Keep water level at least two inches above bottom of skimmer opening
when system is not in use. Failure to do so can allow air to enter system,
causing pump to lose its prime.
Keep water temperature at 104°F or below for spas/tubs and 80°F for pools.
If in doubt, start at a lower temperature and gradually increase it according
to your experience.
Keep an accurate thermometer in pool/spa; check it before getting in.
Keep pool water “balanced”. Maintain the water pH between 7.2 and 7.6.
Do not use or allow the use of the spa/pool by anyone using alcohol or
drugs. The effects of hot water, alcohol and/or drugs can cause dizzi-
ness and falling, loss of consciousness, or heart attack.
8

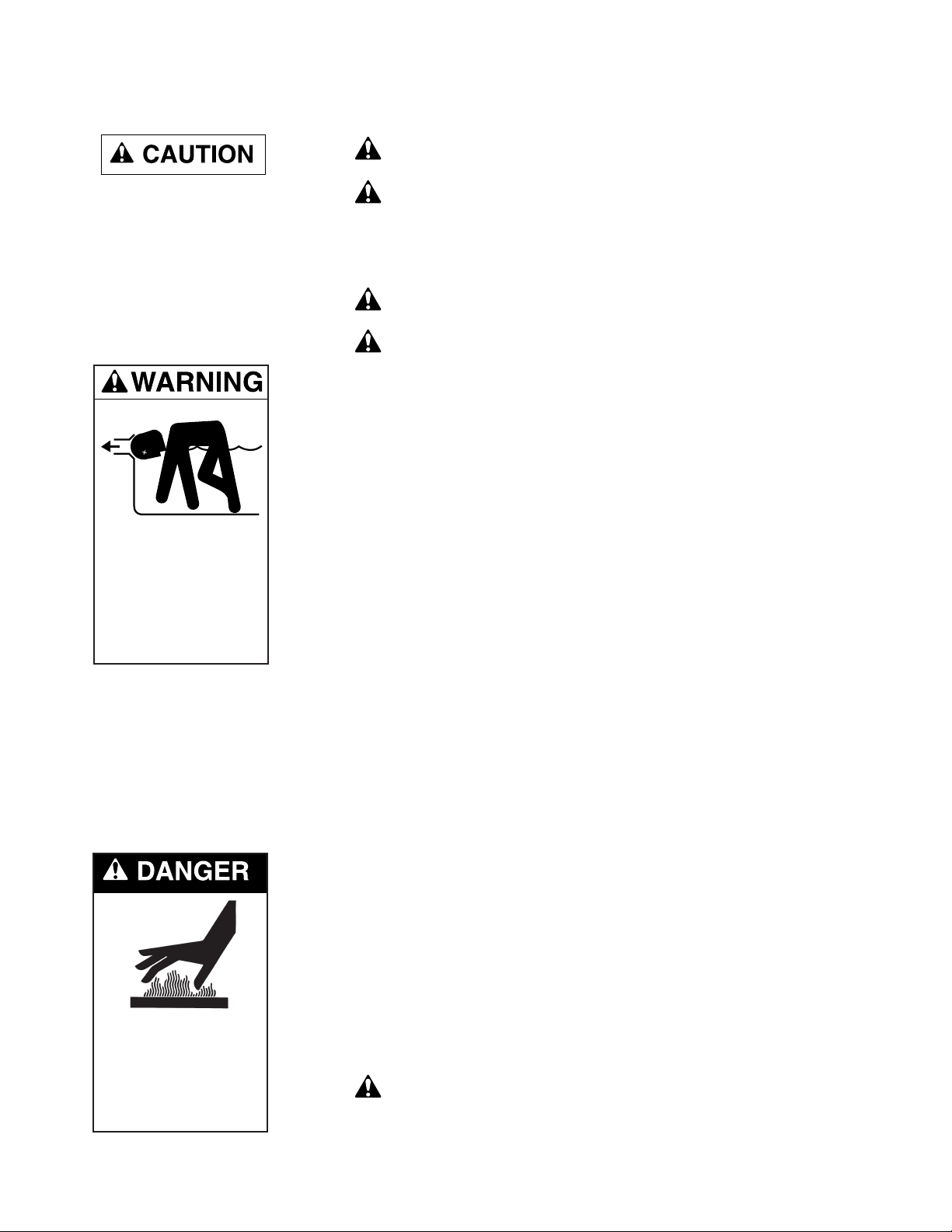

Hazardous suction.
Can trap hair or
body parts, causing
severe injury
or death.
Do not block
suction.
Too much heat can
cause nausea,
dizziness, fainting
or death.
Check temperature
before using spa.

9
Storage/Winterizing:
Explosion hazard. Purging the system with compressed air can
cause components to explode, with risk of severe injury or
death to anyone nearby. Use only a low pressure (below 5 PSI), high volume
blower when air purging the pump, filter, or piping.
To prevent damage to components from fumes, store spa chemicals
away from pump and spa. If possible, store chemicals in another room.
NOTICE: Allowing pump to freeze will damage pump and void warranty!
NOTICE: Do not use anti-freeze solutions (except propylene glycol) in your
pool/spa system. Propylene glycol is non-toxic and will not damage plastic
system components; other anti-freezes are highly toxic and may damage plas-
tic components in the system. Propylene glycol is widely used as antifreeze in
recreational vehicles.
Drain all water from pump and piping when expecting freezing temperatures
or when storing pump for a long time (see instructions below).
Keep motor dry and covered during storage.
To avoid condensation/corrosion problems, do not cover or wrap pump with
plastic.
For outdoor/unprotected installations:
1. Pump down water level below all inlets to pool.
2. Enclose entire system in a weatherproof enclosure.
3. To avoid condensation/corrosion damage, allow ventilation; do not
wrap system in plastic.
4. Use a 40% propylene glycol/60% water solution to protect pump to -
50°F.
5. Follow pool manufacturer’s directions for storage of pool.
Draining Pump:
To avoid dangerous or fatal electrical shock hazard, turn OFF
power to motor before draining pump.
1. Close all valves on suction and return piping.
2. Remove drain plug in bottom of volute.
3. Drain all piping and storage tanks exposed to freezing temperatures.
4. Be sure no airlocks are holding water in the system.
5. To prevent pump from freezing, remove trap cover and drain the tank
body through the drain plug (Key No. 14, Page 12). Use a lid wrench to
remove trap covers that have been overtightened or have taken a set and
cannot be removed by hand. Clean pump thoroughly. Replace trap cover.
6. Before restarting, replace all plugs and make sure all pipe connections are
tightly sealed.
Startup For Winterized Equipment:
1. Remove any temporary weather protection placed around system for shut-
down.
2. Follow filter manufacturer’s instructions for reactivation of the filter.
3. Inspect all electrical wiring for damage or deterioration over the shutdown
period. Have a qualified serviceman repair wiring as needed.
4. Inspect and tighten all watertight connections.
5. Open all valves in suction and return piping.
6. Remove any winterizing plugs in piping system.
7. Drain all antifreeze from system.
8. Close all drain valves and replace all drain plugs in piping system.
9. Prime pump according to instructions on Page 8.
10. Refill pool to proper water level.
Hazardous voltage.
Can shock, burn,
or cause death.
Disconnect power
before working
on pump or motor.

PUMP SERVICE
Pump should only be serviced by qualified personnel.
For best results, use only genuine Sta-Rite factory parts.
Be sure to prime pump (Page 8) before restarting.
Before removing trap cover:
1. STOP PUMP before proceeding.
2. CLOSE GATE VALVES in suction and discharge pipes.
3. RELEASE ALL PRESSURE from pump and piping system.
4. NEVER tighten or loosen clamp while pump is operating!
To avoid dangerous or fatal electrical shock hazard, turn OFF
power to motor before working on pump or motor.
Aside from lubricating trap cover O-Ring, no lubrication or regular mainte-
nance is needed beyond reasonable care and periodic cleaning.
If shaft seal is worn or damaged, repair as follows:
Removing Old Seal:
1. Disconnect power to pump motor.
2. Drain tub and pump; disconnect unions to allow access to pump.
3. Remove six bolts holding front plate to seal plate; remove front plate.
4. Remove shaft cover or motor canopy; using screwdriver in slot on motor
end of shaft or wrench on flats of shaft extension, hold pump shaft and
unscrew impeller from shaft (turn counterclockwise). Rotating half of seal
will come off with impeller.
5. Carefully remove rotating part of seal from impeller sleeve by pulling and
turning on sealing washer and spring (Figure 3). Do not damage impeller
surface where drive ring seats and seals.
6. Carefully remove four motor throughbolts from seal plate (Figure 4);
remove seal plate and use a screwdriver to tap ceramic seat out from the
rear (Figure 5). Do not damage seal cavity in seal plate.
7. Clean cavity from which seal was removed and clean motor shaft.
Installing New Seal:
1. Ceramic seat must be clean and free of dirt, grease, dust, etc. Wet rubber
cup gasket of ceramic seat with small amount of water; press into cavity
firmly and squarely with finger pressure (Figure 6).
2. If ceramic seat will not locate properly, remove it, place face up on
bench, and reclean cavity. Ceramic seat should now locate.
3. Seal must be free of dirt, grease, grit, scratches or chips; be sure impeller
sleeve is clean. Slide seal assembly, rubber drive ring first, onto impeller
sleeve until drive ring bottoms on impeller back shroud.
4. Slip slinger over shaft; remount seal plate. Torque throughbolts to 25
inch-lbs. (29 cm-kg).
5. Screw impeller onto shaft until it seats against shaft shoulder. Work
slinger over end of impeller sleeve so it rides on sleeve (Figure 7).
6. Install Wear Ring on back of Front Plate. NOTICE: Teeth on Wear Ring
interlock with ribs in Front Plate.
7. Remount front plate; using pattern, shown in Figure 8, torque bolts to 30
inch-lbs. (34.5 cm-kg). BE SURE to start with bolt in 3 o’clock position as
shown.
8. Reconnect unions; tighten hand tight only.
10
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8 – Torque Sequence
#1
#6
#2
#5 #3
#4
Start
Here

Read and understand safety and operating
instructions in this manual before doing any work
on pump!
Only qualified personnel should electrically test
pump motor!
FAILURE TO PUMP; REDUCED CAPACITY OR DIS-
CHARGE PRESSURE
Suction leaks/lost prime:
1. Pump must be primed; make sure that pump volute
and trap are full of water. See priming instructions,
Page 8.
2. Make sure there are no leaks in suction piping.
3. Make sure suction pipe inlet is well below the
water level to prevent pump from sucking air.
4. If suction trap gasket is defective, replace it.
5. Suction lift of 3 to 4 feet (.9-1.2M) will reduce per-
formance. Suction lift of more than 4 feet (1.2M)
will prevent pumping and cause pump to lose
prime. In either case, move pump closer (vertically)
to water source. Make sure suction pipe is large
enough.
Clogged pipe/trap/impeller, worn impeller:
1. Make sure suction trap is not clogged; if it is, clean
trap and strainer.
2. Make sure impeller is not clogged (follow instruc-
tions under “Removing Old Seal”, Page 10; check
impeller for clogging; follow instructions under
“Installing New Seal”, above, for reassembly).
3. Impeller and diffuser may be worn. If so, order
replacement parts from Repair Parts List, Page 12
and 13.
Inadequate Circulation or Jet Action:
1. Check for blocked fittings. Blocked fittings will
cause poor flow and poor jet action.
2. Check trap basket; if plugged, turn pump off and
clean basket. Check and clean skimmer basket.
3. Check that gate valves are fully open.
4. Suction/discharge piping is too small.
5. Check and clean pool filter.
6. Check for clogged pipe/trap/impeller.
7. Consult dealer/installer or service representative.
Circuit Breaker In Home Panel Trips Repeatedly:
1. Breaker must be of adequate capacity.
2. For GFCI breaker, test according to GFCI manufac-
turer’s instructions.
3. Be sure no other lights and appliances are on cir-
cuit.
4. Consult dealer/installer or service representative.
5. Voltage too high or too low. See “Voltage”, Page 5.
Electrical:
1. Pump may be running too slowly; check voltage at
motor terminals and at meter while pump is run-
ning. If low, see wiring instructions or consult
power company. Check for loose connections.
2. Pump may be too hot.
A. Check line voltage; if less than 90% or more
than 110% of rated voltage consult a licensed
electrician.
B. Increase ventilation.
C. Reduce ambient temperature.
D. Tighten any loose wiring connections.
3. Motor internal thermal overload protector is open.
Motor runs too hot. Turn power to motor off. Check
for proper voltage. Check for proper impeller or
impeller rubbing.
4. Consult dealer/installer or service representative.
Mechanical Troubles and Noise:
1. If suction and discharge piping are not adequately
supported, pump assembly will be strained. See
“Installation”, Page 4.
2. Do not mount pump on a wooden platform!
Securely mount on concrete platform for quietest
performance.
3. Air leak in suction line (bubbles in water returning
to pool). Repair leak. Tighten trap lid.
4. Foreign matter (gravel, metal, etc.) in pump
impeller. Disassemble pump, clean impeller, follow
pump service instructions on Page 10 for reassem-
bly.
5. Cavitation.
Improve suction conditions.
Increase pipe size.
Decrease number of fittings.
Increase discharge pressure.
Reduce flow by throttling discharge gate valve.
11
TROUBLESHOOTING GUIDE

12
JWPA5D-2A, -230A
JWPA5D-2A4, -2A8
JWPA5DL-2A
JWPA5DL-2A1, -2A2
JWPA5D7L-2A
JWPA5D7L- 2A1, -2A2
JWPS5EL-A2
JWPXYD-A2 (2-Speed)*
Key JWPA5C-2A8 JWPXYDL-A2 (2-Speed)*
No. Description Qty. 1/2 HP 3/4 HP
1 Motor 115V/60H/1 Ph. 1 AS920CLL AS920DLL
1 Motor, 115V, 2-Speed – 62003-2021
1 Motor, 230V – AS923DL
2 Water Slinger 1 C69-2 C69-2
3 Collar, Union (†) 2 – U11-182P1
4 Adapter, Union (†) 2 – U11-201P1
5 O-Ring (†) 2 – U9-226
6 Seal Plate 1 17301-0150 17301-0150
7 O-Ring 1 U9-357 U9-357
8 Shaft Seal 1 U109-358SS U109-358SS
9 Impeller 1 C105-228PJ C105-228PH
10 Front Plate Assembly (Includes Key No. 10A) 1 C101-272PS C101-272PS
10A Wear Ring** 1
11 Drain Plug, 1/4”, taped 2 WC78-40T WC78-40T
12 Trap Cover, W/ O-Ring 1 C103-139P1 C103-139P1
12 Trap Cover (Biguanide Resistant) 1 C103-139P3 C103-139P3
13 O-Ring, Trap Cover 1 U9-229 U9-229
14 Strainer Basket 1 C108-33P C108-33P
15 Trap Body 1 C53-23P1 C53-23P1
16 Pipe Plug, 1/4” NPT (with O-Ring) 2 U178-920P U178-920P
17 Bolt, Hx Head, 1/4-20 x 1-3/4” 6 30387-0005 30387-0005
18 Gasket, Suction 1 C20-123 C20-123
19 Capscrew, 5/16-18x1-1/4” 4 U30-64SS U30-64SS
20 Lockwasher, 5/16” 4 U43-11SS U43-11SS
21 Washer, 5/16” Flat 4 U43-41SS U43-41SS
• Cord Assembly, Straight Plug (-A2, -2A2) 1 – U117-1117
• Cord Assembly, Twist-Lok Plug (-2A1) 1 – 31953-0101
• Cord Assembly, 6’ Non-UL (-2A4) 1 – 31953-0116
• Cord Assembly, (-2A8) 1 31953-0019 31953-0019
• Not Illustrated.
* Models JWPXYD-A2 and JWPXYDL-A2 do not include Suction Trap Assembly.
** Not available separately.
(†) Union Half Package is included with Models: JWPAXYE-A2, JWPAXYEL-A2, JWPA5D-230A, JWPA5DL-2A, JWPXYD-A2.
JWPXYDL-A2, JWPA5E-230A, JWPA5E-230A, JWPA5EL-2A, AND JWPA5FL-2A ONLY.
Model Numbers that have a number “7” in them, for example JWP5YE7L-A2 come with the seal plate discharge port in a hori-
zontal positon. Part Numbers without the number “7” in them, for example JWP5YEL-A2 come with the seal plate discharge
port in a vertical position.
Model Numbers ending in “-230A” and “-2A” do not come with a cord. Model Numbers including the letter “Y” are 2-speed.
Order PKG 115 for a complete suction trap assembly.
2133 1195
10
10A
11
12
1
2
5
8
9
7
3
4
6
13
14
15
16
16
17
18
19
20
21
Union Half Package
(C198-17M)
Trap Basket Assembly
(Pkg 115)
REPAIR PARTS LIST
1/2 and 3/4 HP
Purchase optional
union packages:
WC198-105 – 1-1/2" NPT
C198-3 – 1-1/2" Slip
Each package includes
1 each: Collar, adapter,
and O-Ring.

13
JWPA5E-2A, -2A4
JWPA5E-230A, 230A2
JWPA5EL-2A
JWPA5EL-2A1, -2A2
JWPA5E7-2A4 JWPA5F-2A
JWPA5E7L-2A JWPA5FL-A, -2A
JWPA5E7L-2A1, -2A2 JWPA5FL-2A1, -2A2
JWPS5FL-A2 JWPA5F7L-2A4, -2A1
JWPAXYE-A2* JWPA5YEL-A, -A1, -A2 JWPA5YFL-A, -A2
Key JWPAXYEL-A2* JWPA5YE7L-A1, -A2 JWPA5YF7L-A1, -A2
No. Description Qty. 1 HP/ 2 Speed 1 HP 1-1/2
1 Motor 115V/60H/1 Ph. 1 – AS920ELL AS920FLL
1 Motor, 115V, 2-Speed 62003-2021 62003-2021 62003-2032
1 Motor, 230V – AS923EL –
2 Water Slinger 1 C69-2 C69-2 C69-2
3 Collar, Union (†) 2 U11-182P1 U11-182P1 U11-182P1
4 Adapter, Union (†) 2 U11-201P1 U11-201P1 U11-201P1
5 O-Ring (†) 2 U9-226 U9-226 U9-226
6 Seal Plate 1 17301-0150 17301-0150 17301-0150
7 O-Ring 1 U9-357 U9-357 U9-357
8 Shaft Seal 1 U109-358SS U109-358SS U109-358SS
9 Impeller 1 C105-228PG C105-228PG C105-228PG
10 Front Plate Assembly (Includes Key No. 10A) 1 C101-272PS C101-272PS C101-272PS
10A Wear Ring** 1
11 Drain Plug, 1/4”, taped 2 WC78-40T WC78-40T WC78-40T
12 Trap Cover, W/ O-Ring 1 – C103-139P1 C103-139P1
12 Trap Cover (Biguanide Resistant) 1 – C103-139P3 C103-139P3
13 O-Ring, Trap Cover 1 – U9-229 U9-229
14 Strainer Basket 1 – C108-33P C108-33P
15 Trap Body 1 – C53-23P1 C53-23P1
16 Pipe Plug, 1/4” NPT (with O-Ring) 2 – U178-920P U178-920P
17 Bolt, Hx Head, 1/4-20 x 1-3/4” 6 30387-0005 30387-0005 30387-0005
18 Gasket, Suction 1 – C20-123 C20-123
19 Capscrew, 5/16-18x1-1/4” 4 – U30-64SS U30-64SS
20 Lockwasher, 5/16” 4 – U43-11SS U43-11SS
21 Washer, 5/16” Flat 4 – U43-41SS U43-41SS
• Cord Assembly, Straight Plug
(-A2,-230A2, -2A2) 1 U117-1117 U117-1117 U117-1117
• Cord Assembly, Twist-Lok Plug (-A1, -2A1) 1 – 31953-0101 31953-0101
• Cord Assembly, 6’ Non-UL (-2A4) 1 – 31953-0116 31953-0116
• Not Illustrated.
* Models JWPAXYE-A2 and JWPAXYEL-A2 do not include Suction Trap Assembly.
** Not available separately.
(†) Union Half Package is included with Models: JWPAXYE-A2, JWPAXYEL-A2, JWPA5D-230A, JWPA5DL-2A, JWPXYD-A2. JWPXYDL-A2, JWPA5E-
230A, JWPA5E-230A, JWPA5EL-2A, AND JWPA5FL-2A ONLY.
Model Numbers that have a number “7” in them, for example JWP5YE7L-A2 come with the seal plate discharge port in a horizontal positon. Part Numbers
without the number “7” in them, for example JWP5YEL-A2 come with the seal plate discharge port in a vertical position.
Model Numbers ending in “-230A”, “-2A”, or “-A” do not come with a cord. Model Numbers including the letter “Y” are 2-speed.
Order PKG 115 for a complete suction trap assembly.
2133 1195
10
10A
11
12
1
2
5
8
9
7
3
4
6
13
14
15
16
16
17
18
19
20
21
Union Half Package
(C198-17M)
Trap Basket Assembly
(Pkg 115)
REPAIR PARTS LIST
1 and 1-1/2 HP
Purchase optional
union packages:
WC198-105 – 1-1/2" NPT
C198-3 – 1-1/2" Slip
Each package includes
1 each: Collar, adapter,
and O-Ring.

14

15

CREATE A RECORD OF YOUR WARRANTY AT STA-RITE:
• Complete a warranty registration at www.staritepool.com by clicking on “Register Products” and selecting Sta-Rite Pool OR
• Complete bottom portion completely and mail within 10 days of installation to Sta-Rite, Attn.: Pool Warranty Dept., 293 Wright St., Delavan , WI 53115
Warranty Registration Card
Name
Address
City State Zip
Installation (or Purchase) Date
Product Purchased
Model Number
■■New installation ■■Replacement
Years pool has been in service ■■less than 1 ■■1-3 ■■3-5 ■■5-10
This product was purchased from:
Company name
Address
City State Zip
STA-RITE LIMITED WARRANTY
For technical information about this product, contact the installer or call Sta-Rite at 262-728-9181.
Visit www.staritepool.com
• for more information about Sta-Rite products listed above
• to locate a Sta-Rite dealer near you
Product Specific Warranties (from date of installation)
Product Limited
Family Warranty Exceptions
Filters 1 Year System 3 Tank Bodies - 10 Yrs
Filter Valves 1 Year
Pumps 1 Year
Heaters 2 Years *Commercial Application - 1 Yr
Controls 1 Year
Above Ground Systems 1 Year
Lights and Niches 1 Year Lamps and Bulbs - 90 Days
White Goods 1 Year
Maintenance Equipment 90 Days
Drainer/Utility Pumps 90 Days
Replacement Parts 90 Days
Cleaners: Lil Shark 1 Year
Cleaners: Calypso 1 Year
Cleaners: Pool Shark 2 Years Footpad and Seal Flaps - 1 Yr
Cleaners: Great White 2 Years
* Commercial and multi-family application.
Retain this warranty certificate in a
safe and convenient location for your records.
Pumps, filters, skimmers, underwater lights (excluding bulbs),
accessories and fittings manufactured by Sta-Rite are warranted
to be free of defects in material and/or workmanship for one (1)
year from the original date of installation.
The foregoing warranties relate to the original consumer purchas-
er (“Purchaser”) only. Sta-Rite Industries shall have the option to
repair or replace the defective product, at its sole discretion.
Purchasers must pay all labor and shipping charges necessary to
replace the product covered by this warranty. Requests for war-
ranty service must be made through the installing dealer. This
warranty shall not apply to any product that has been subject to
negligence, misapplication, improper installation or maintenance,
or other circumstances which are not in Sta-Rite’s direct control.
Failure to have product installed by a professional in compliance
with local codes will void any and all manufacturers warranty.
This warranty sets forth Sta-Rite’s obligation and Purchaser’s
exclusive remedy for defective products.
STA-RITE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL,
INCIDENTAL OR CONTINGENT DAMAGES WHATSOEVER.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, SHALL NOT EXTEND
BEYOND THE DURATION OF THE APPLICABLE EXPRESS
WARRANTIES PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental
or consequential damages or limitations on how long an implied
warranty lasts, so the above limitations or exclusion may not
apply to you. This warranty gives you specific legal rights and you
may also have other rights which vary from state to state.
Supersedes all previous publications.
S4877PS (Rev. 7/21/04)
