Stairville DCL Flat Par 18x4W CW/WW User manual

DCL Flat Par 18x4W CW/WW
LED PAR
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
15.07.2022, ID: 347497 (V4)

Table of contents
1 General information................................................................................................................................. 6
1.1 Further information........................................................................................................................... 7
1.2 Notational conventions.................................................................................................................... 7
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 10
3 Features....................................................................................................................................................... 14
4 Installation.................................................................................................................................................. 15
5 Starting up.................................................................................................................................................. 19
6 Connections and operating elements........................................................................................... 21
7 Operating.................................................................................................................................................... 27
7.1 Operating on the unit..................................................................................................................... 27
7.2 Remote control functions............................................................................................................. 32
7.3 Functions in 2-channel DMX mode........................................................................................... 34
7.4 Functions in 6-channel DMX mode........................................................................................... 34
8 Technical specications....................................................................................................................... 36
9 Plug and connection assignments.................................................................................................. 38
10 Troubleshooting...................................................................................................................................... 39
11 Cleaning....................................................................................................................................................... 41
Table of contents
DCL Flat Par 18x4W CW/WW 3
LED PAR

12 Protecting the environment.............................................................................................................. 42
Table of contents
4DCL Flat Par 18x4W CW/WW
LED PAR

DCL Flat Par 18x4W CW/WW 5
LED PAR

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
6DCL Flat Par 18x4W CW/WW
LED PAR

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
General information
DCL Flat Par 18x4W CW/WW 7
LED PAR

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Letterings
Displays
General information
8DCL Flat Par 18x4W CW/WW
LED PAR

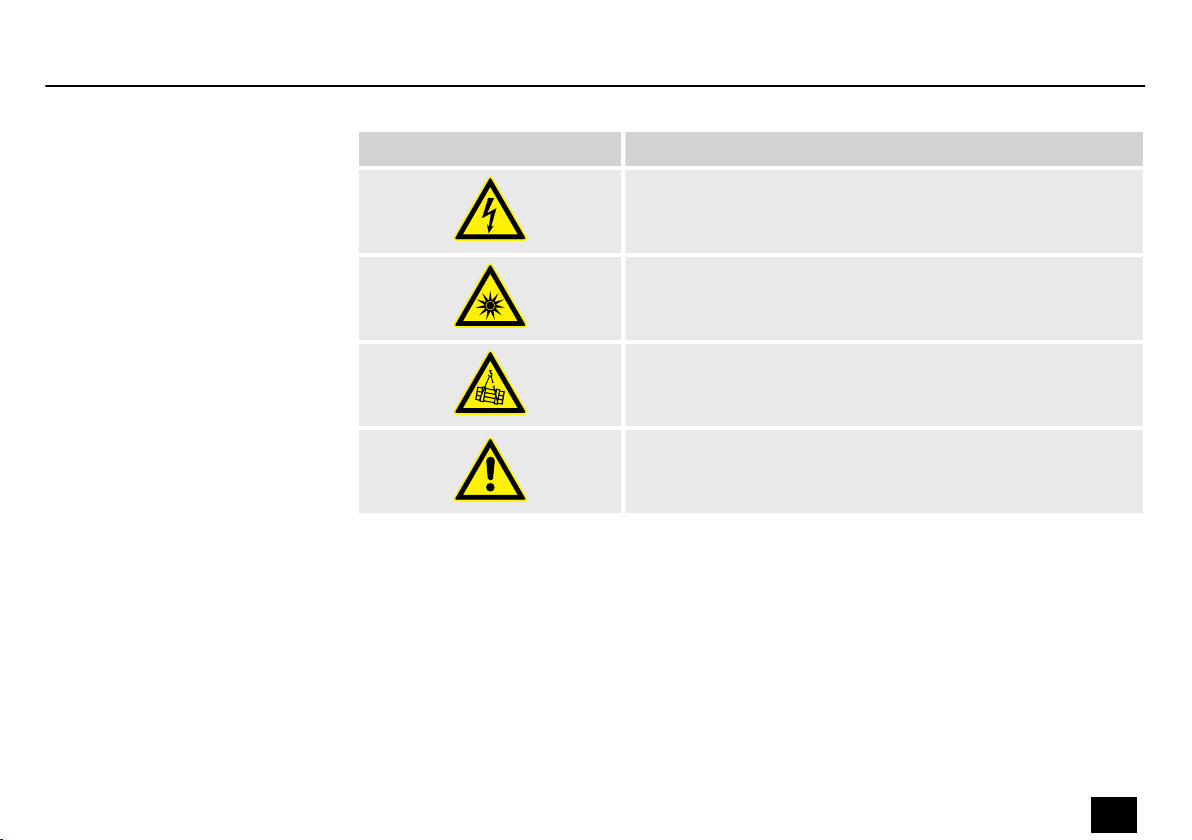

Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
Warning – suspended load.
Warning – danger zone.
General information
DCL Flat Par 18x4W CW/WW 9
LED PAR

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use only and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
Intended use
Safety instructions
10 DCL Flat Par 18x4W CW/WW
LED PAR

Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable
or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a registered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights.
Safety instructions
DCL Flat Par 18x4W CW/WW 11
LED PAR

NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Fire hazard due to exceedance of the maximum current
The device can power other devices of identical construction. The current consumption of all other devices connected in series must
not exceed the values indicated in the technical specications. Otherwise you risk injuries and irreparable damages to the device.
Only connect so many identical devices that the maximum current consumption is not exceeded. Ensure the sucient dimensioning
(wire cross section) of the power cables used for all devices connected in series.
Safety instructions
12 DCL Flat Par 18x4W CW/WW
LED PAR

NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting bat‐
teries.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a
longer period.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt pads or similar.
Safety instructions
DCL Flat Par 18x4W CW/WW 13
LED PAR

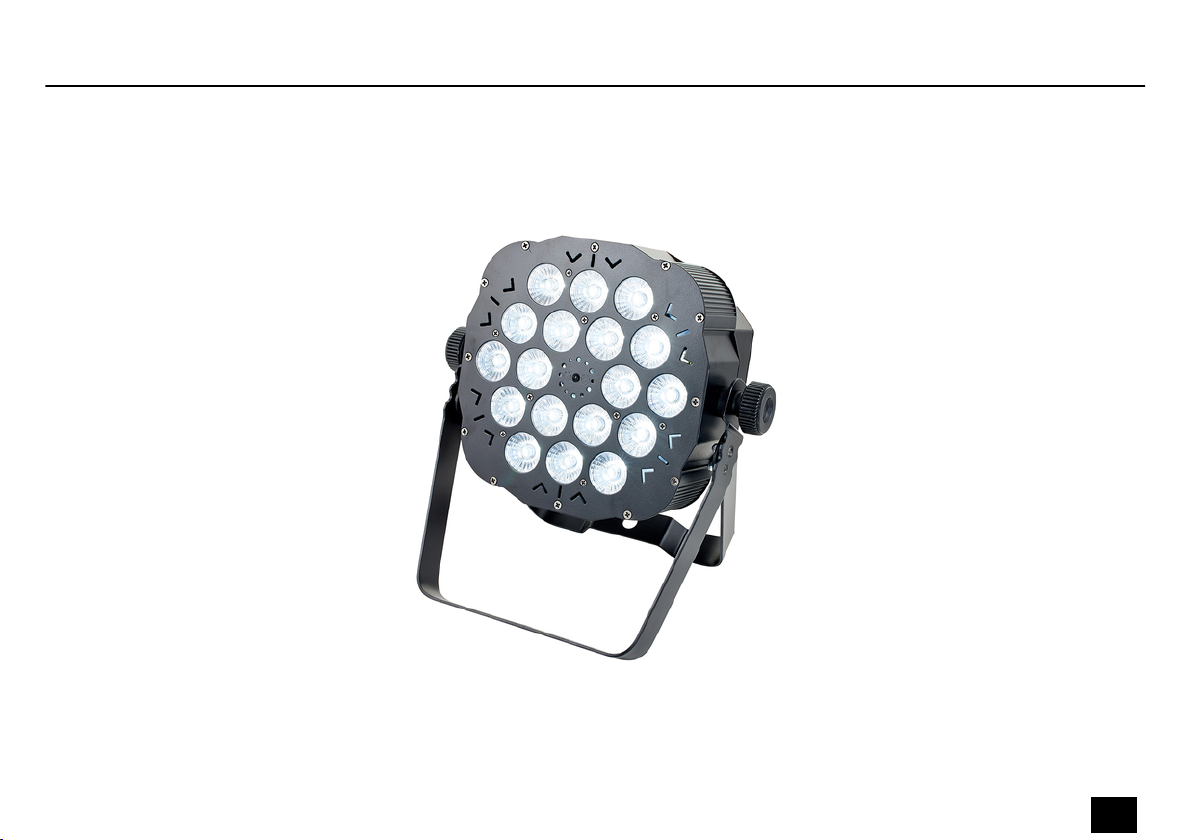

3 Features
The LED PAR is particularly suitable for professional lighting tasks, for example at events, on
rock stages, in theatres and musicals. It's characterized by low power consumption and long
service life.
Special features of the device:
n18 × 2-in-1 dual-colour LEDs for almost any desired colour temperature in the white light
spectrum (4 W each)
nExtraordinary high light output
nControl via DMX (two or six channels), via buttons and display on the device and supplied
IR remote control (item no. 398052)
n5 preprogrammed automatic shows
nSound control
nMaster / slave mode
nCompact and robust metal housing
For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
14 DCL Flat Par 18x4W CW/WW
LED PAR

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
NOTICE!
Risk of overheating
The distance between light output and the illuminated surface must be more
than 1.5 m (19.7in).
Provide sucient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
Installation
DCL Flat Par 18x4W CW/WW 15
LED PAR

NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
ers.
You can install the unit in hanging or standing position. When in use, the device must always
be attached to a solid surface or an approved truss. Use the openings provided on the two-
piece bracket for attaching.
Always work from a stable platform whenever installing, moving or servicing the unit. In doing
so, the area underneath the unit must be cordoned o.
The safety cable must be attached to the bracket.
Mounting options
Installation
16 DCL Flat Par 18x4W CW/WW
LED PAR

The infrared sensor for the remote control signals is located on the front panel near the central
LED. Make sure it's not obstructed.

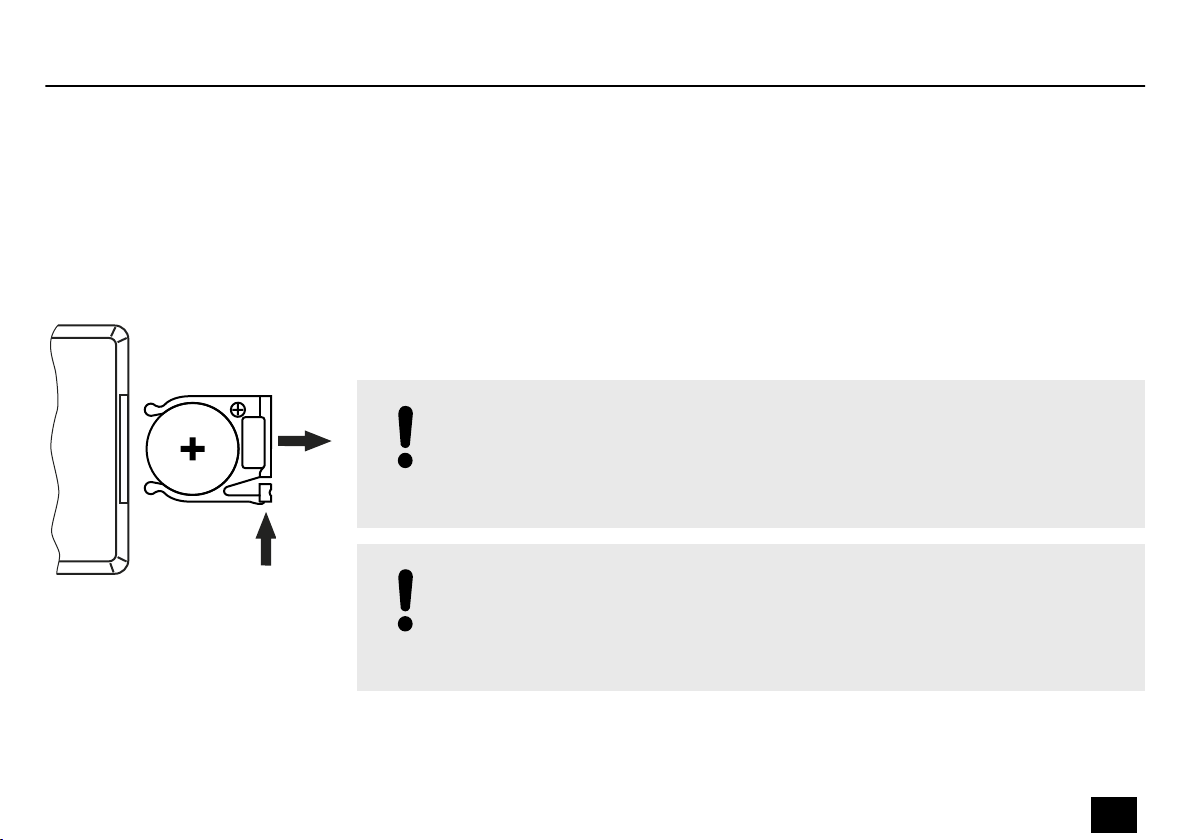

Press the lock of the battery holder to the centre of the housing and pull out the battery holder
like a drawer. Insert the battery. The battery is correct if the positive pole points to the housing
base of the remote control. Slide the battery holder back into the remote until it clicks into
place.
When shipping, the battery is already installed in the remote and protected against discharge
by a transparent plastic foil. Remove the plastic foil prior to rst use.
NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries.
Ensure that proper polarity is observed when inserting batteries.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device.
Take batteries out of the device if it is not going to be used for a longer period.
Infrared sensor for the remote
control
Inserting the battery into the
remote control
Installation
DCL Flat Par 18x4W CW/WW 17
LED PAR

Please note that this device must not be connected to a dimmer.
Installation
18 DCL Flat Par 18x4W CW/WW
LED PAR

5 Starting up
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the rst DMX device to the input of the second one and so on,
to form a series connection.
Such a chain may consist of up to 30 DMX devices. Make sure that the output of the last device
in the chain is terminated by a resistor (110 Ω, ¼W).
Connections in ‘DMX’ mode
Starting up
DCL Flat Par 18x4W CW/WW 19
LED PAR

If the unit is in DMX mode and a DMX controller is connected and turned on, the ‘d’ is ashing
in the rst digit of the display.
When you congure a group of devices in ‘Master / Slave’ mode, the rst device controls the
others and allows an automatic, music-controlled and synchronized show. This feature is espe‐
cially useful to start a show without much programming. Connect the DMX output of the
master unit to the DMX input of the rst slave unit. Then connect the DMX output of the rst
slave unit to the DMX input of the second slave unit and so on (maximum 30 slaves).
DMX indicator
Connections in ‘Master /
Slave‘ mode
Starting up
20 DCL Flat Par 18x4W CW/WW
LED PAR
