ACME Theatre Spot 150m User manual

CONTENTS
1. Safety Instructions..................................................................................2
2. Technical Specifications ..........................................................................4
3. The Plate for Color Filter & Barn Door Installation .................................5
4. How To Set The Unit ...............................................................................6
4.1 Control panel ....................................................................................6
4.2 Main Functions .................................................................................7
5. Control By Universal DMX Controller....................................................12
5.1 Connection .....................................................................................12
5.2 Address Setting...............................................................................13
5.3 DMX512 Configuration ...................................................................13
6. Troubleshooting....................................................................................14
7. Fixture Cleaning....................................................................................15
1C

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The
dealer will not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
The unit is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head
only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Maximum ambient temperature TA: 40℃，maximum ambient temperature TA: 0℃.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire
hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Please read the instruction carefully which includes important information
about the installation, usage and maintenance.
2C

Unit’s surface temperature may reach up to 85℃. DO NOT touch the housing bare-handed
during its operation, and allow about 15 minutes for cooling the unit down before replacing
bulb or maintenance as it could be very hot.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut
off the mains power immediately.
DO NOT operate in dirty or dusty environment, do clean fixtures regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together twist other cables.
The minimum distance between light output and the illuminated surface must be more than
12 meters.
Disconnect mains power before fuse replacement or servicing.
Replace fuse only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center if
needed.
Disconnect the mains power if the fixture is has not been used for a long time.
DO use the original packing materials before transporting it again.
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
DO NOT look directly at the light while the LED is on.
3C

2. Technical Specifications
Power Voltage:
AC 100~240V, 50/60Hz
Power Consumption:
320W
Light Source:
TS-300M CW: C117C1916-300-006
TS-300M WW: C117W1916-300-006
Color Temperature:
3200±200K, 5500±200K(optional)
Optical:
CRI: WW≥95，CW≥95
CQS: WW≥94，CW≥93
TLC: WW≥95，CW≥95
Control:
DMX Channel: 1/2 Channels Mode
Control Mode: DMX, Master/Slave, Manual, Art-Net
Firmware Upgrade: Update via DMX link
Construction:
Display: LCD display
Data In/Out: 5-pin XLR
Power In/Out: Power Connector in/out
Protection Rating: IP20
Features:
Manual focus, zoom range: 15°~53°
Manual linear dimming
4 dimming curves, 2 optional dimming speed
0~100% smooth dimming
Low noise under 35dB within 1m
Rotating barn door and hanger
4C

Dimensions/Weight:
531x340x284mm, 10.5kgs
21"x13"x11"in, 23.2lbs
531 340
284

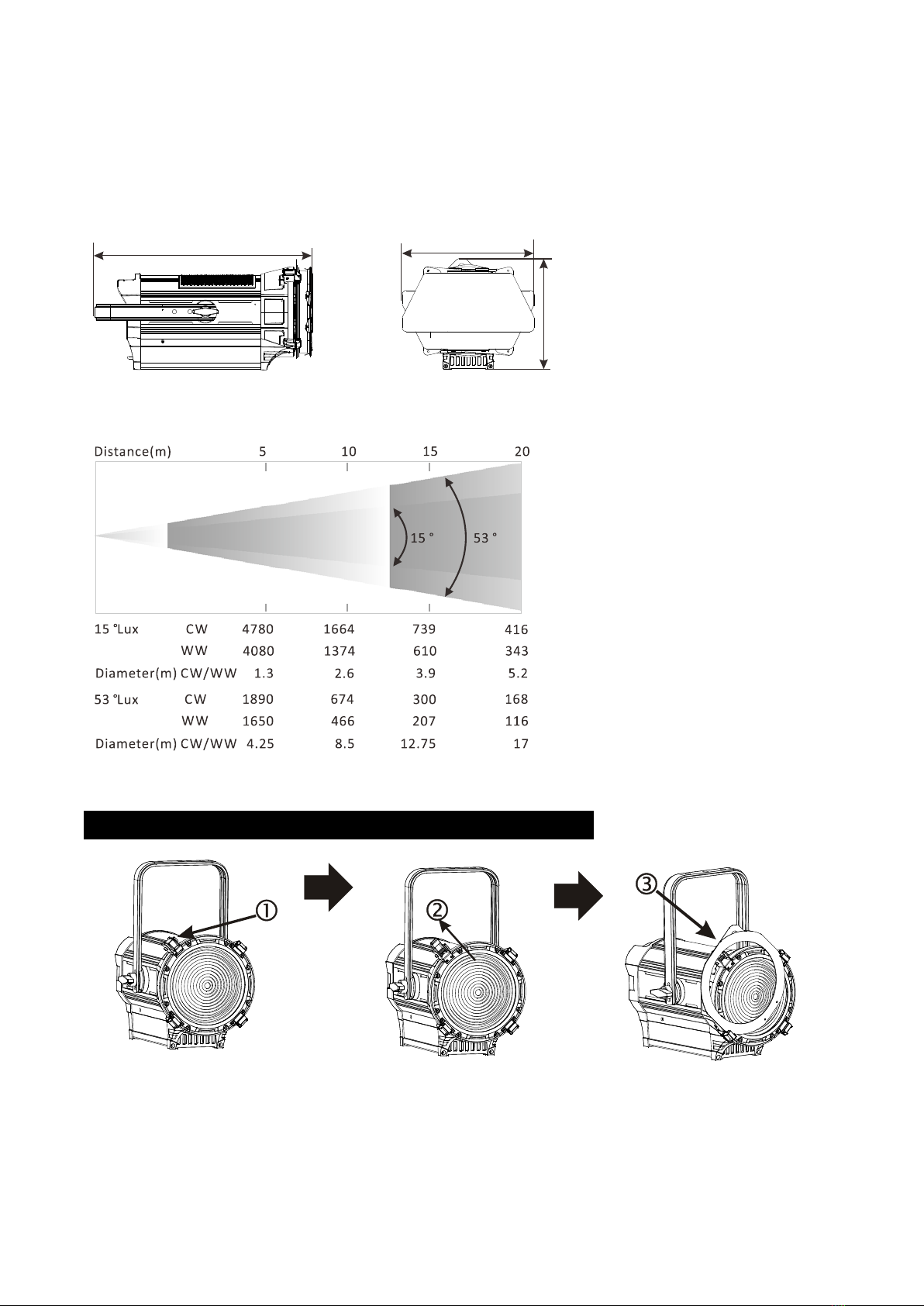

Photometric Diagram:
3. The Plate for Color Filter & Barn Door Installation
Fig. 1
At first, please push the Lock Cap button by hand as the arrow ①, and move away the Lock as the
arrow ②; Then insert the Plate for Color Filter into the inside slot from topside ③;
5C

Fig. 2
Secondly, please insert the Barn Door into the outside slot from topside as arrow ④, and fasten
the lock (Note: the Barn Door must be fastened into the inside of the lock’s hook ); then flip down
the lock cap again as arrow⑤.
4. How To Set The Unit
4.1 Control panel
1. Display: Shows the various menus and the selected functions
2. LED:
MASTER On Master Mode
SLAVE On Slave Mode
DMX On DMX input present
6C

3. Button:
MENU To select the programming functions
DOWN To go forward in the selected functions
UP To go backward in the selected functions
ENTER To confirm the selected functions
4. Dimmer:
Manual adjust the dimmer value
5. Zoom:
Manual adjust the zoom value
6. DMX IN:
For DMX512 link, use 5-pin XLR cable to link the units together
7. POWER IN:
Connects to supply power
8. POWER OUT:
Connects to the next unit
9. DMX OUT:
For DMX512 link, use 5-pin XLR cable to link the unit together
10. Fuse (T 10A):
Used to protect the unit from damage of the over-current
11. ETHERNET:
Connect with the multimedia and use software to control the units via ArtNet
4.2 Main Functions
To select any functions, press the MENU button until the required one is shown on the display.
Select the function by ENTER button and the display will blink. Use the DOWN and UP button to
change the mode. Once the required mode has been selected, press the ENTER button to setup or
it will automatically return to the main functions without any change after idling one minute. Back
to the functions without any change press the MENU button.
The main functions are shown below:
7C

8C

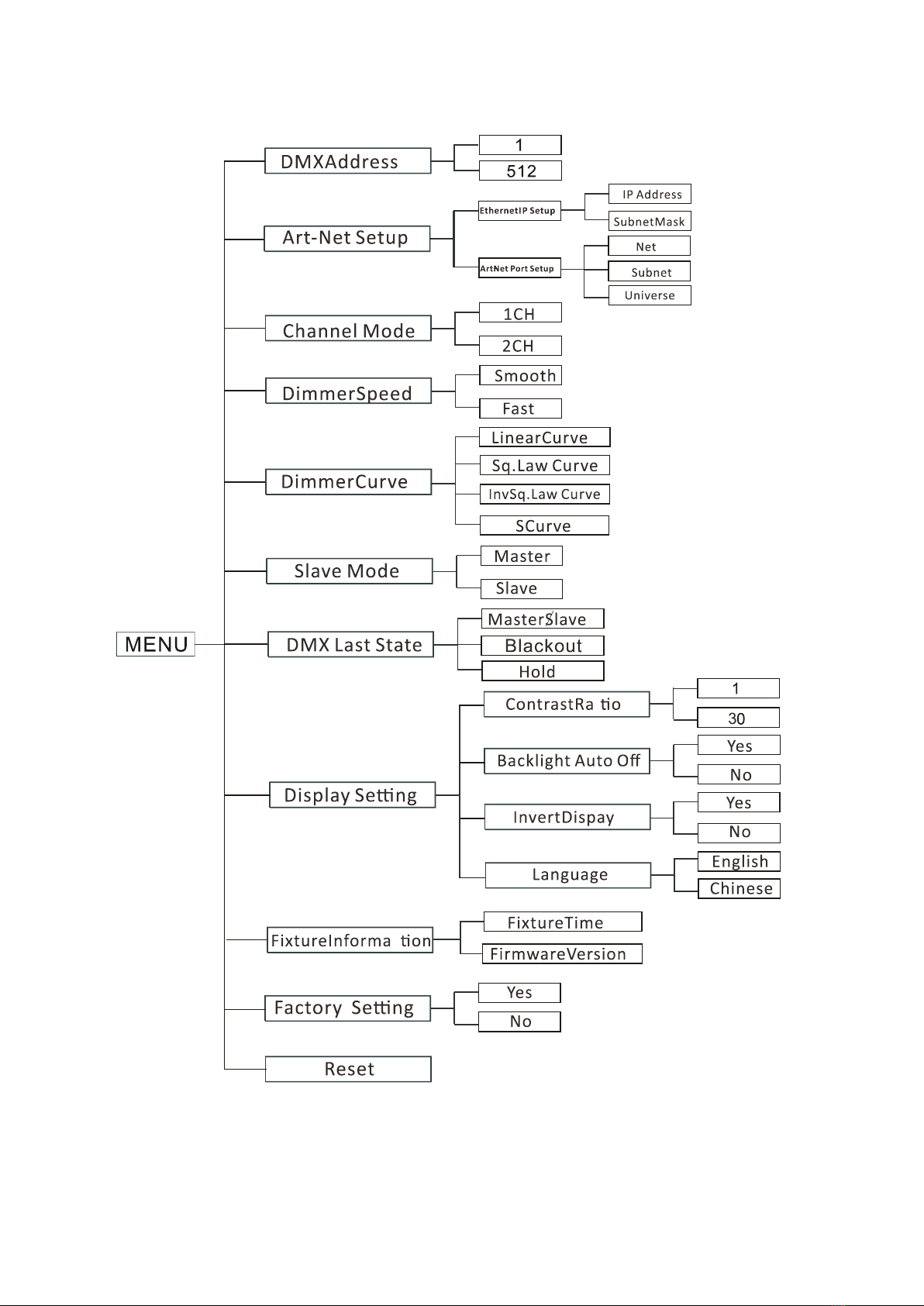

DMX Address
Select DMX Address, press the ENTER button to confirm, the present address will blink on the
display. Use the UP/DOWN button to adjust the DMX address from 1to 512. Once the address has
been selected, press the ENTER button to save. Hold and press the MENU button about one
second or wait for one minute to exit the menu mode.
Art-Net Setup
Select Art-Net Setup, press the ENTER button to confirm. Use the UP/DOWN button to select
Ethernet IP Setup or Art-Net Port Setup. Once selected, press the ENTER button to save. Hold and
press the MENU button about one second or wait for one minute to exit the menu mode.
Channel Mode
Select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to select the
1 CH or 2 CH. Once selected, press the ENTER button to save. Hold and press the MENU button
about one second or wait for one minute to exit the menu mode.
Dimmer Speed
Select Dimmer Speed, press the ENTER button to confirm. Use the UP/DOWN button to select
Smooth(dimmer speed smooth) or Fast(dimmer speed fast). Once selected, press the ENTER
button to save. Hold and press the MENU button about one second or wait for one minute to exit
the menu mode.
Dimmer Curve
Select Dimmer Curve, press the ENTER button to confirm. Use the UP/DOWN button to select
Linear Curve, Sq.Law Curve, Invert Sq. Law Curve or S Curve. Once selected, press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
9C

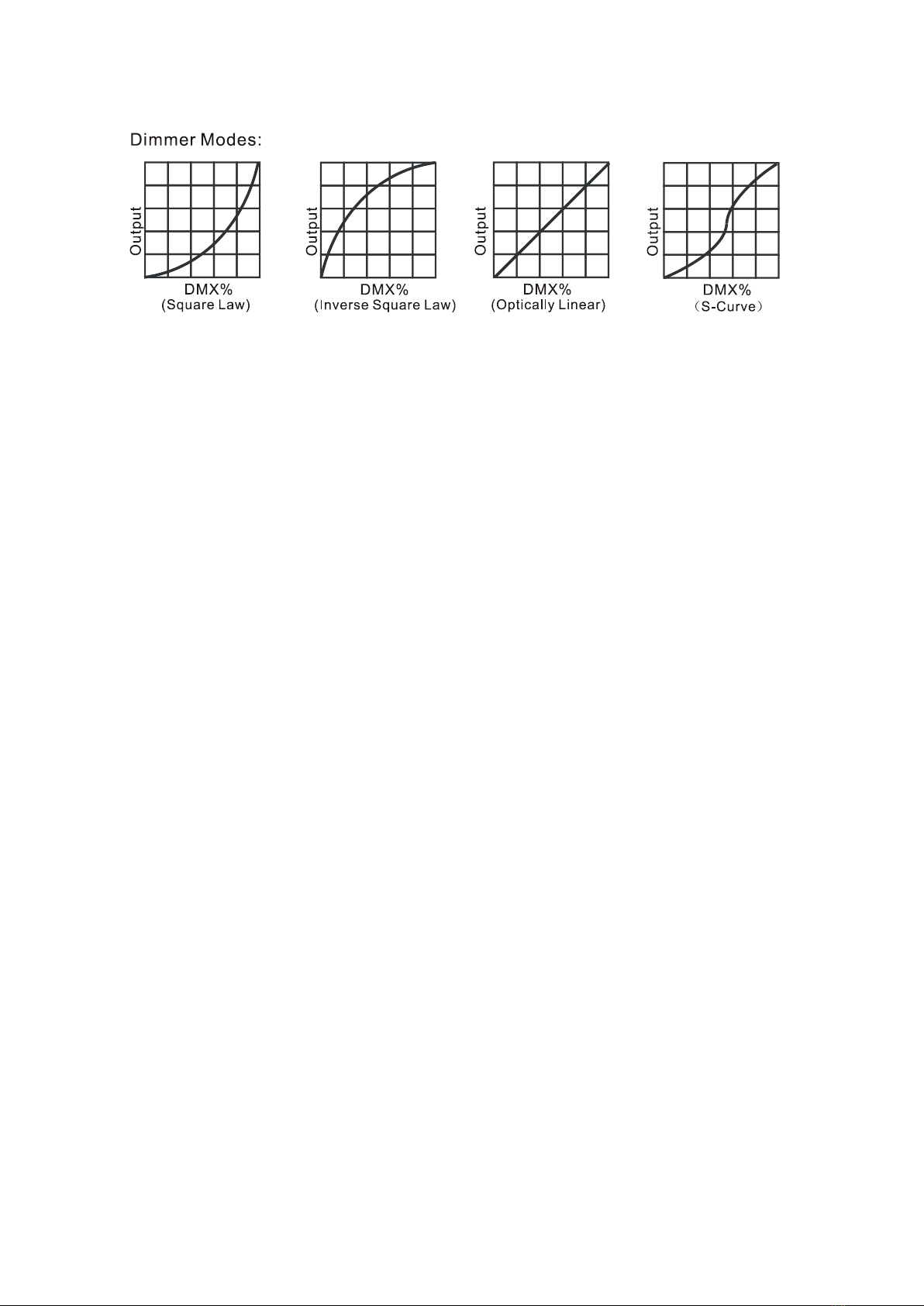

Square Law: Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.
Linear: The increase in light intensity appears to be linear as DMX value is increased.
S-cure: Light intensity control is finger at low levels and high levels and coarser at medium levels.
Slave Mode
Select Slave Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
Master or Slave. Once selected, press the ENTER button to save. Hold and press the MENU button
about one second or wait for one minute to exit the menu mode.
DMX Last State
Select DMX Last State, press the ENTER button to confirm. Use the UP/DOWN button to select
Master/Slave, Blackout or Hold. Once selected, press the ENTER button to save. Hold and press
the MENU button about one second or wait for one minute to exit the menu mode.
Display Setting
Enter menu mode, select Display Setting, press ENTER button to confirm. Use the UP/DOWN
button to select Contrast Ratio, Backlight Auto Off, InvertDisplay or Language.
Contrast Ratio
Select Contrast Ratio, press the ENTER button to confirm. Use the UP/DOWN button to adjust
value from 1to 30, press the ENTER button to save. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
10C

Backlight Auto Off
Select Backlight Auto Off, press the ENTER button to confirm. Use the UP/DOWN button to
select Yes(display goes off one minute after exiting menu mode) or No(display always on), press
the ENTER button to save. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Invert Display
Select Invert Display, press the ENTER button to confirm. Use the UP/DOWN button to select
the No(normal display) or Yes(invert display), press the ENTER button to save. Press the MENU
button back to the last menu or let the unit idle one minute to exit menu mode.
Language
Select Language, press the ENTER button to confirm. Use the UP/DOWN button to select the
English or Chinese, press the ENTER button to store. Press the MENU button back to the last
menu or let the unit idle one minute to exit menu mode.
Fixture Information
Enter menu mode, select Fixture Information, press the ENTER button to confirm, use the
UP/DOWN button to select Fixture Time or Firmware Version.
Fixture Time
Select Fixture Time, press the ENTER button to confirm, and the running time of the fixture will
show on the display. Press the MENU button back to exit.
Firmware Version
Select Firmware Version, press the ENTER button to confirm, the software version will show on
the display. Press the MENU button back to exit.
Factory Setting
Select Factory Setting,press the ENTER button to confirm. Use the UP/DOWN button to select No
or Yes(Switch back to default settings). Hold and press the MENU button about one second or wait
for one minute to exit the menu mode.
11C

Reset
Select Reset, press the ENTER button and the fixture will now reset.
5. Control By Universal DMX Controller
5.1 Connection
1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-o h m 1/4 W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to
the input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a
very high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors
can easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when
one of the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal errors.
12C

6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
5.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to
512 so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Address, press the ENTER button to
confirm, the present address will blinking the display, use the UP/DOWN button to adjust the
address from 001 to 512, press the ENTER button to store. Press the MENU button back to the last
menu or idling let the unit idle one minute to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Channel mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
1 channels 1 2 3 4
2 channels 1 3 5 7
5.3 DMX512 Configuration
Please refer to below configurations to control the fixtures
Attentions:
1. The unit will maintain the last condition until reset if you cut-off the DMX signal.
2. For the channel Function, keep the value for about 5 seconds, then the corresponding
function will take into effect.
1 Channels (Mode 1):
CHANNEL VALUE FUNCTION
1
0-255
DIMMER
0

100%
13C

2 Channels (Mode 2):
CHANNEL VALUE FUNCTION
1
0-255
DIMMER
0

100%
2
0-255
DIMMER FINE
0

100%
6. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on Lamp.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the
unit or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause
damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition
14C

7. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically
to optimize light output. Cleaning frequency depends on the environment in which the fixture
operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on
the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60
days.
15C

16C

17C

18C

Innovation, Quality, Performance
