Stairville Z120M Par 64 LED RGBW 120W User manual

Z120M Par 64 LED RGBW 120W
LED PAR
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
19.10.2023, ID: 451128 (V2)

Table of contents
1 General information................................................................................................................................. 6
1.1 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 13
4 Installation.................................................................................................................................................. 14
5 Starting up.................................................................................................................................................. 17
6 Connections and controls................................................................................................................... 19
7 Operating.................................................................................................................................................... 21
7.1 Starting the device........................................................................................................................... 21
7.2 Operating on the unit..................................................................................................................... 21
7.3 Menu overview................................................................................................................................. 32
7.4 Functions in 2-channel DMX mode........................................................................................... 33
7.5 Functions in 3-channel DMX mode........................................................................................... 36
7.6 Functions in 4-channel DMX mode........................................................................................... 36
7.7 Functions in 5-channel DMX mode........................................................................................... 37
7.8 Functions in 6-channel DMX mode........................................................................................... 37
7.9 Functions in 10-channel DMX mode........................................................................................ 38
8 Technical specications....................................................................................................................... 42
Table of contents
Z120M Par 64 LED RGBW 120W 3
LED PAR

9 Plug and connection assignments.................................................................................................. 44
10 Troubleshooting...................................................................................................................................... 45
11 Cleaning....................................................................................................................................................... 48
12 Protecting the environment.............................................................................................................. 49
Table of contents
4Z120M Par 64 LED RGBW 120W
LED PAR

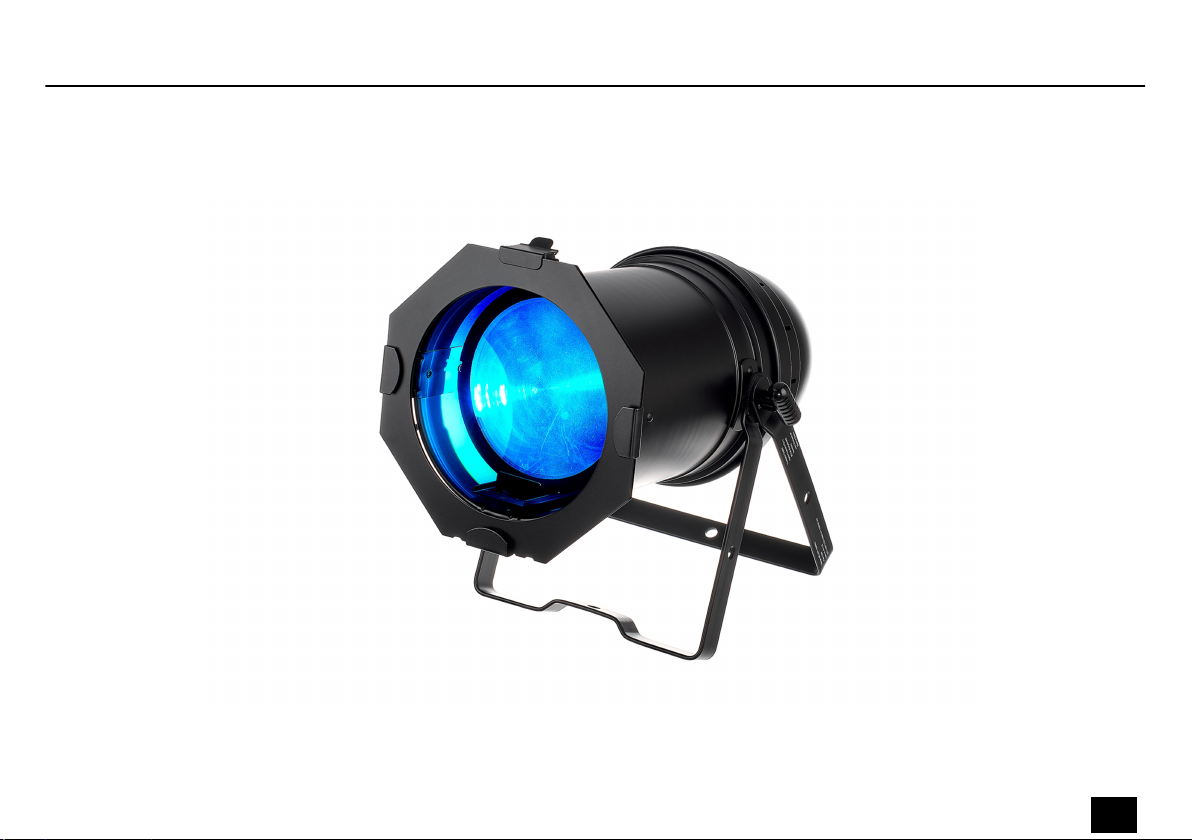

Z120M Par 64 LED RGBW 120W 5
LED PAR

1 General information
This document contains important instructions for the safe operation of the product. Read and
follow the safety instructions and all other instructions. Keep the document for future refer‐
ence. Make sure that it is available to all those using the product. If you sell the product to
another user, be sure that they also receive this document.
Our products and documentation are subject to a process of continuous development. They
are therefore subject to change. Please refer to the latest version of the documentation, which
is ready for download under www.thomann.de.
1.1 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this document.
General information
6Z120M Par 64 LED RGBW 120W
LED PAR

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.

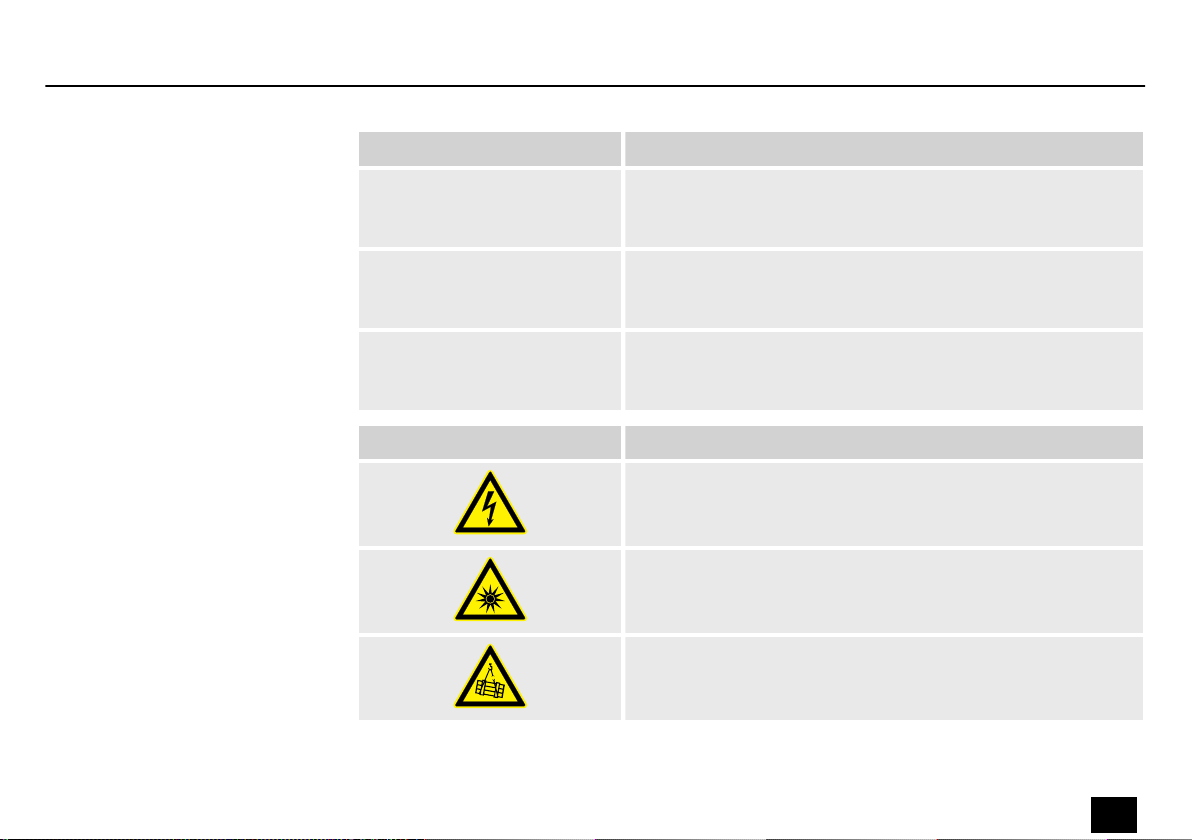

Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
Warning – suspended load.
General information
Z120M Par 64 LED RGBW 120W 7
LED PAR

Warning signs Type of danger
Warning – danger zone.
General information
8Z120M Par 64 LED RGBW 120W
LED PAR

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use only and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
Safety
DANGER!
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow
children to play with the packaging material and the device. Always store packaging material out of the reach of babies and small
children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐
sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children
could play with.
Intended use
Safety instructions
Z120M Par 64 LED RGBW 120W 9
LED PAR

DANGER!
Danger to life due to electric current!
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device when covers, safety equipment or optical components are missing or damaged.
DANGER!
Risk of death from electrical current!
A short circuit can cause res and loss of life. Always use properly insulated, tripe-core mains cable. Do not modify the mains cable. If
the insulation is damaged, immediately switch o the power supply and have it repaired. If in doubt, contact a qualied electrician.
WARNING!
Risk of injury from falling devices that were inadequately secured!
If devices are not properly secured during assembly, they can cause severe injury and considerable damage by falling. When instal‐
ling and operating, make sure to follow the standards and regulations that apply in your country. Always secure the device with a
secondary safety attachment, such as a safety cable or a safety chain.
WARNING!
Risk of eye damage caused by high light intensity!
The device generates highly intense light radiation. Looking directly into the light source can damage the eyes. Never look directly
into the light source.
WARNING!
Risk of epileptic t due to ashing lights!
The device emits ashing lights (strobe eects). Flashing lights can trigger epileptic ts in specic people. If you are at risk of epi‐
lepsy, avoid spending longer periods of time subjected to ashing lights and looking into strobing light.
Safety instructions
10 Z120M Par 64 LED RGBW 120W
LED PAR

NOTICE!
Risk of re due to covered vents and neighbouring heat sources!
If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can over‐
heat and burst into ames. Never cover the device or the vents. Do not install the device in the immediate vicinity of other heat
sources. Never operate the device in the immediate vicinity of naked ames.
NOTICE!
Damage to the device if operated in unsuitable ambient conditions!
The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient
conditions specied in the “Technical specications” chapter of this user manual. Avoid operating it in environments with direct sun‐
light, heavy dirt and strong vibrations. Avoid operating it in environments with strong temperature uctuations. If temperature uc‐
tuations cannot be avoided (for example after transport in low outside temperatures), do not switch on the device immediately.
Never subject the device to liquids or moisture. Never move the device to another location while it is in operation. In environments
with increased dirt levels (for example due to dust, smoke, nicotine or mist): Have the device cleaned by qualied specialists at reg‐
ular intervals to prevent damage due to overheating and other malfunctions.
NOTICE!
Damage to the device due to high voltages!
The device can be damaged if it is operated with the incorrect voltage or if high voltage peaks occur. In the worst case, excess vol‐
tages can also cause a risk of injury and res. Make sure that the voltage specication on the device matches the local power grid
before plugging in the device. Only operate the device from professionally installed mains sockets that are protected by a residual
current circuit breaker (FI). As a precaution, disconnect the device from the power grid when storms are approaching or it the device
will not be used for a longer period.
Safety instructions
Z120M Par 64 LED RGBW 120W 11
LED PAR

NOTICE!
Risk of re by exceeding the maximum current
The device can supply power to other devices of identical design and connected in series. If too many devices are connected, the
power consumption can exceed the maximum permitted power consumption, which can cause the device to overheat and burst
into ames. Only connect devices of identical design to the device. When deciding how many devices you can connect in series,
make sure that the maximum permitted power consumption as stated on the device is not exceeded. Also refer to the specications
in the technical specications for the device. Only use power cords with a cable cross-section designed for the required current
intensity when connecting the devices in series.
NOTICE!
Risk of re due to installation of a wrong fuse!
Using fuses of a dierent type than compatible with the device may cause a re and seriously damage the device. Only use fuses of
the same type. Observe the labelling on the device casing and the information in the "Technical data” chapter.
Safety instructions
12 Z120M Par 64 LED RGBW 120W
LED PAR

3 Features
Special features of the device:
n1 × 4in1 COB LED (120 W)
nHigh light output (14000 Lux @ 2 m with 9,5º zoom)
nStepless manual zoom from 9.5 to 43º
nTemperature-controlled fan speed
nStand-alone, master-slave or DMX mode operation
nControl via DMX or via buttons and display on the unit
nRobust aluminium housing with bracket and colour lter frame holder
For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
Z120M Par 64 LED RGBW 120W 13
LED PAR

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury from falling devices that were inadequately secured!
If devices are not properly secured during assembly, they can cause severe injury
and considerable damage by falling.
When installing and operating, make sure to follow the standards and regulations
that apply in your country.
Always secure the device with a secondary safety attachment, such as a safety
cable or a safety chain.
Installation
14 Z120M Par 64 LED RGBW 120W
LED PAR

NOTICE!
Risk of overheating and re due to inadequate distance and bad ventilation!
If the distance between the light source and the illuminated surface is too short or
the device is badly ventilated, the device can overheat and cause res.
Make sure that illuminated surfaces are more than 2 m away.
Do not operate the device in ambient temperatures above 40 °C.
Always ensure sucient ventilation at the operating location.
NOTICE!
Potential property damage due to unsuitable stands!
If the device is mounted on an unsuitable stand, there is a risk that the stand will
fall over and cause damage.
Only use stands whose maximum bearing capacity is at least as high as the
weight of the device. Always ensure that the stand is stable.
Installation
Z120M Par 64 LED RGBW 120W 15
LED PAR

NOTICE!
Data transfer errors due to improper wiring!
If the DMX connections are wired incorrectly, this can cause errors during the data
transfer.
Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐
ers.
Use special DMX cables for the wiring instead of normal microphone cables.
You can install the device hanging or on a stand. When in use, the device must always be
attached to a solid surface or an approved mount. Use the opening of the bracket provided for
mounting.
Always work from a stable platform whenever installing, moving or servicing the unit. While
you do this, the area underneath the device must be cordoned o.
The safety cable must be attached to the safety eyelet.
Please note that this device must not be connected to a dimmer.
Mounting options
Installation
16 Z120M Par 64 LED RGBW 120W
LED PAR

5 Starting up
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.

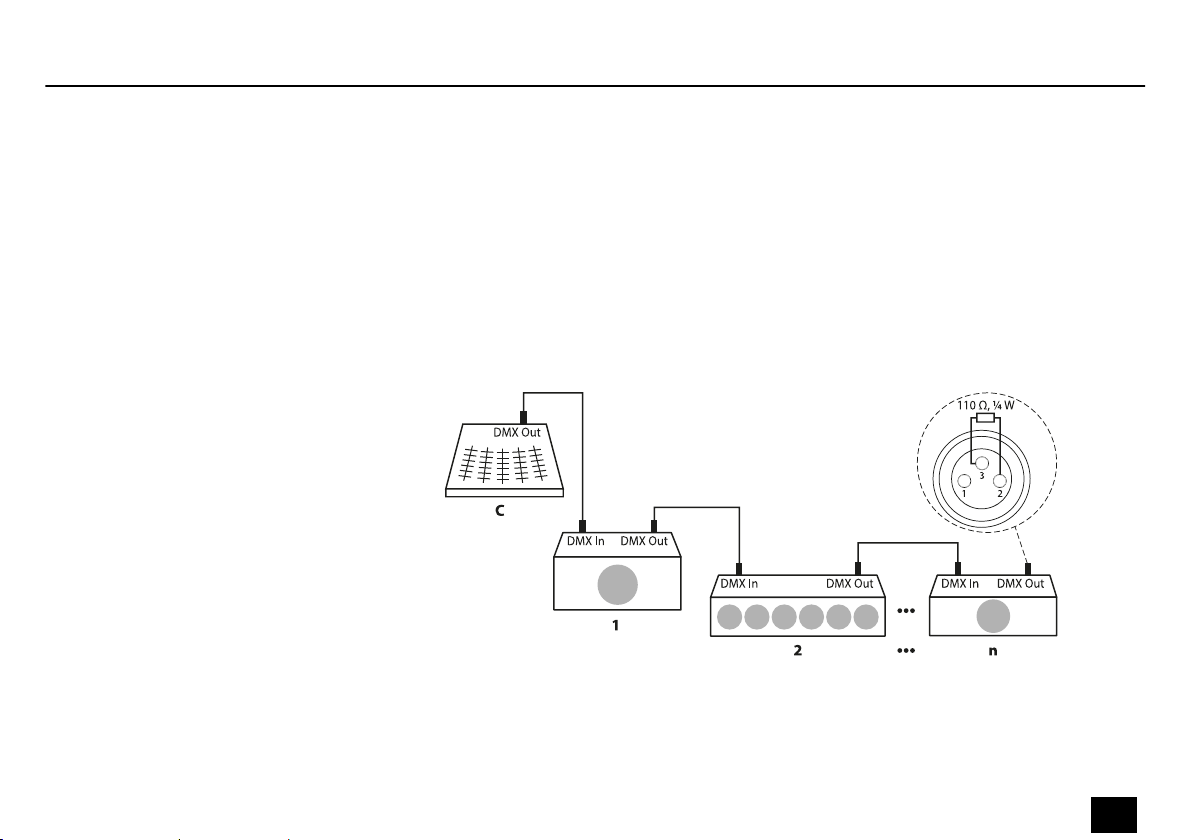

Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the rst DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼W).
When the device and the DMX controller are operational, the DMX indicator in the display
shows that a DMX signal is being received on the input.
Connections in DMX mode
DMX indicator
Starting up
Z120M Par 64 LED RGBW 120W 17
LED PAR

When you congure a group of devices in ‘Master / Slave’ mode, the rst unit will control the
others. This feature is especially useful to start a show without much programming. Connect
the DMX output of the master unit to the DMX input of the rst slave unit. Then connect the
DMX output of the rst slave unit to the DMX input of the second slave unit and so on.
Connections in ‘Master /
Slave‘ mode
Starting up
18 Z120M Par 64 LED RGBW 120W
LED PAR

6 Connections and controls
PUSH
ö
#
$
+
$
(
&%
#)
*
'
Connections and controls
Z120M Par 64 LED RGBW 120W 19
LED PAR

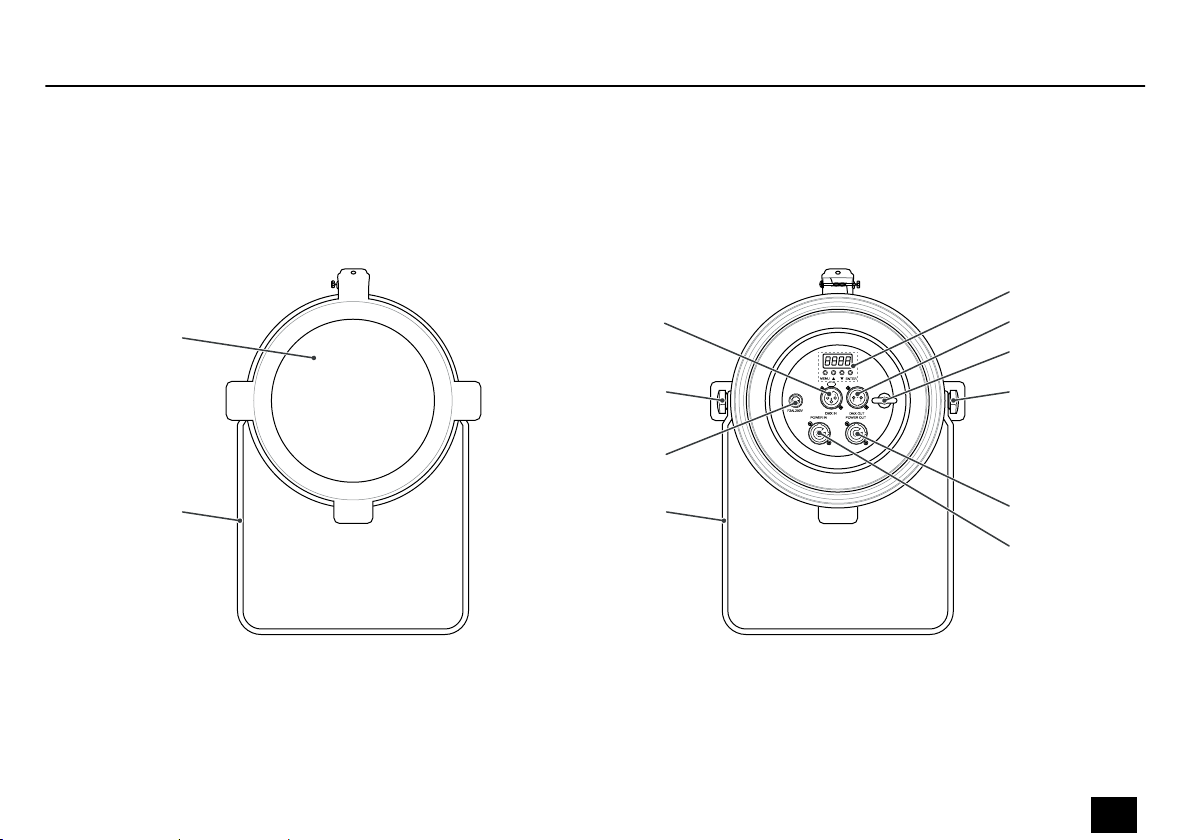

1 4in1-COB LED (120 W)
2 Bracket for oor placement or hanging
3 Locking screws for the bracket
4[DMX IN] | DMX input
5[DMX OUT] | DMX output
6 Display
[MENU] | Activates the main menu or a submenu.
| Navigates upwards in a menu list. Increases the displayed value by one.
| Navigates downwards in a menu list. Decreases the displayed value by one.
[ENTER] | Conrms a selected value.
7 Safety cable eyelet
8[POWER OUT] | Lockable output socket (Power Twist IP65) for the power supply of further units
9[POWER IN] | Lockable input socket (Power Twist) for power supply
10 Fuse holder
Connections and controls
20 Z120M Par 64 LED RGBW 120W
LED PAR
