ErgoOne®User Manual 3
English
Table of Contents
Contents
ErgoOne®User Manual 3
1. Introduction ................................................... 4
2. Operation...................................................... 5
2.1 Description ..................................................... 5
2.2 Setting the Volume ............................................ 6
2.3 Pipetting.......................................................7-8
2.4 Pipette Identification.......................................... 9
2.5 Safety Notes ................................................... 9
3. Troubleshooting .............................................10
4. Cleaning and Decontamination..............................11
5. Technical Data .. ......... ... ..... ........ . .. ...... ........ 12
6. Calibration................................................13-14
7. Maintenance................................................. 15
7.1 Maintaining Single-Channel Pipettes ....................... 15
7.2 Maintaining Multi-Channel Pipettes ........................ 18
8. Ordering Information ....................................... 20
9. Pipette Tip Compatibility ................................... 22
10. Guarantee ................................................... 24
11. Intended use ................................................ 24
ErgoOne – Adjustable Volume Pipette
English ..................................................... 1
Deutsch ...................................................23
Français ..................................................45
Italiano ...................................................67
Español ...................................................89
This is your
ErgoOne®
User Manual.
STARLAB International GmbH
Neuer Höltigbaum 38
22143 Hamburg
Germany
T: [phone]
F: [phone]
[email protected]
www.starlabgroup.com
STARLAB (UK), Ltd
5 Tanners Drive
Milton Keynes MK14 5BU
United Kingdom
T: [phone]
F: [phone]
[email protected]
www.starlab.co.uk
STARLAB GmbH
Neuer Höltigbaum 38
22143 Hamburg
Germany
T: [phone]
F: [phone]
[email protected]
www.starlab.de
STARLAB FRANCE SARL
30 Rue Jean Rostand
91400 Orsay
France
T: [phone]
F: [phone]
[email protected]
www.starlab.fr
STARLAB S.r.l.
Via Pinturicchio 1
20133 Milano
Italy
T: [phone]
F: [phone]
[email protected]
www.starlab.it
Passionate for science.
IMEO-INT-INT-07-2020

ErgoOne®User Manual4
1. Introduction
ErgoOne® variable volume pipettes are designed in accordance with
the latest ergonomic principles. The pipette is extremely easy to use
and has minimal operating forces to help prevent hand fatigue.
ErgoOne® provides accurate and precise pipetting in a variety of
volume ranges and is available in single-channel, eight-channel and
twelve-channel models.
At a glance:
•Good handling with ergonomic design
•Easy to use volume adjustment
mechanism
•Volume lock
•Minimal operating forces
•Extremely accurate and precise
•Lightweight
•Low-maintenance high-quality product
•Fully autoclavable

5
Introduction / Operation English
ErgoOne®User Manual
1
2
3
4
5
7
6
TipOne®
2. Operation
2.1 Description
Along with your pipette, you should
also have:
•Declaration of conformity with test
record
•Stickers for personalisation/
identication
•Auxiliary tool
(single-channels up to 1ml only)
•Pipette lters (5ml only)
Colour-coded volume control button with
volume adjustment mechanism
Tip ejector button
Alignment unit
Volume display
Ejector
xing
Tip ejector
Tip holder
To obtain the best results,
we recommend using original
TipOne® pipette tips.

2.2 Setting the Volume
Open the volume adjustment catch by
pulling up the volume control button 1
(Fig. 1), until you hear a click. Turn the
volume control button 1 clockwise to
reduce the aspirated volume, or counter
clockwise to increase it. The set volume is
shown in the four-step volume display 4
from top to bottom, with a white line indi-
cating the decimal point. When increasing
the volume setting, pass the required
value by 1/3 of a turn and then slowly de-
crease to reach the volume, making sure
not to go beyond the required volume.
After you have nished setting the volume,
push the volume control button 1 back to
its lock position until you hear a click. The
pipette is now ready to use.
Volume range ErgoOne®
ErgoOne® model Volume range (min./ max.) Colour code
2.5µl 0.1–2.5µl Red
10µl 0.5–10µl Red
20µl (micro cone) 2–20µl Red
20µl (standard cone) 2–20µl Yellow
100µl 10–100µl Yellow
200µl 20–200µl Yellow
300µl 30–300µl Green
1000µl 100–1000µl Blue
5000µl 500–5000µl Violet
Table 1
10.00µl 0.50µl 20.0µl 100µl200.0µl 1000µl
10µl Pipette 200µl Pipette 1000µl Pipette
Please note the minimum
and maximum volume
range of your pipette
(Table 1). You have
reached the end point of
the volume adjustment
when it becomes more
difcult to turn the button
and you can hear
a clicking sound.
Do not use excessive
force!
Fig.1
1
2
4
ErgoOne®User Manual6
Examples of typical volume displays:

ErgoOne®User Manual 7
English
Operation
2.3 Pipetting
Use the pipette only with tip attached!
Liquid aspiration
Set the required volume (see 2.2 Setting the volume) and attach the
appropriate size pipette tip(s) to the tip holder(s) 7:
•Press the volume control button 1 until the rst stop position.
•Hold the pipette upright and immerse approx. 3mm of the pipette
tip into the liquid.
•Allow the volume control button 1 to return slowly back to the
starting position.
•Hold the pipette tip in the liquid for a further 2 seconds to avoid
sucking in air.
•Remove the pipette tip from the liquid.
Dispensing fluids
•Place the pipette tip against the inner wall of the tube or vessel, at
an angle of 30 – 45°.
•Press the volume control button 1 slowly and evenly until it
reaches the rst stop position.
•Wait one second and press the volume control button 1 down to
the second stop position to empty the pipette tip fully (blow out).
•Keeping the volume control button 1 pressed down, lightly drag
the pipette tip up the inner wall of the tube to remove any residual
liquid.
•Allow the volume control button 1 to return slowly back to the
starting position.
•Press the tip ejector button 2 to eject the pipette tip.
ErgoOne®User Manual 7

ErgoOne®User Manual8
When pipetting critical viscous media, the precision and accuracy
can be increased through ‘reverse pipetting’. In reverse pipetting, a
larger volume is aspirated than that indicated on the volume display.
As a result, a small amount of residual liquid remains in the pipette
tip after the pipetting process. How to reverse pipette:
•Secure the pipette tip.
•Press the volume control button 1 until it reaches the second stop
position.
•Hold the pipette upright and immerse the pipette tip approx. 3mm
into the liquid.
•Allow the volume control button 1 to return slowly back to the
starting position.
•Hold the pipette tip in the liquid for a further 2 seconds to avoid
sucking in air.
•Remove the pipette tip from the liquid.
•Place the pipette tip against the inner wall of the tube or vessel,
at an angle of 30 – 45°.
•Press the volume control button 1 slowly and evenly until it
reaches the rst stop position (do not use the blow-out function).
•Keeping the volume control button 1
pressed, remove the pipette tip from the tube or vessel before
blowing out the residual liquid into a separate container.
•Allow the volume control button 1 to return slowly back to the
starting position.
•Press the tip ejector button 2 to eject the pipette tip.
Note: Pre-wetting
Some liquids (eg.solutions containing protein, organic solvents,
or viscous liquids) leave a lm on the inside of the pipette tip. To
ensure maximum precision and accuracy, STARLAB recommends
pre-wetting each new tip rst by aspirating and dispensing the
liquid two or three times. Alternatively, TipOne® RPT pipette tips are
special, surface-treated tips that ensure improved flow behaviour
for ‘tricky’ liquids.
Ask your STARLAB representative for more information.
Reverse pipetting

ErgoOne®User Manual 9
English
Operation

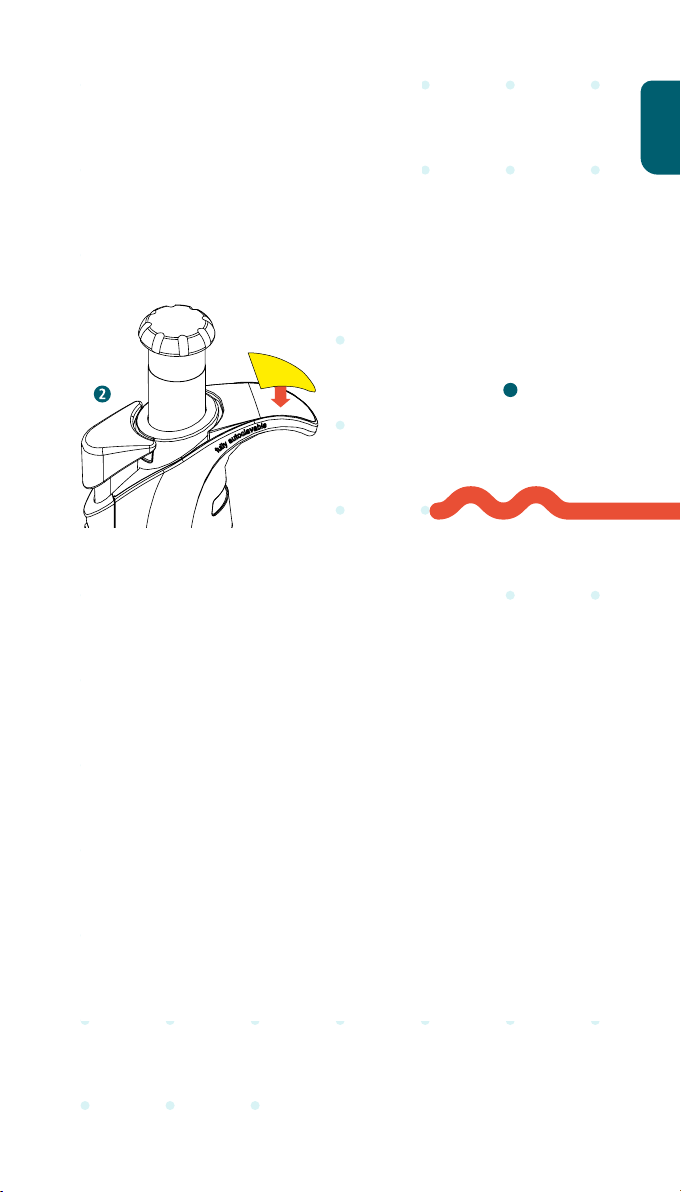

Your pipette is supplied with autoclave-resistant stickers in four
diffe rent colours. These can be attached to the surface above the
nger rest to personalise/help identify your pipette (Fig. 2).
Each ErgoOne® pipette has its
own serial number. This serial
number can be found behind the
tip ejector button 2 when it is
pressed down.
•Use the pipette only with tip(s) attached.
•Make sure that no liquid enters the pipette.
•Do not lay the pipette down when a pipette tip is xed and
contains liquid.
•Do not set the volume outside the specied range.
•Do not use any aggressive solvents or acetone to clean the pipette.
•Do not use cleaning agents in combination with autoclaving or
UV-Treatment.
•Only use original parts and accessories.
•Before pipetting aggressive chemicals or organic solvents, check
their compatibility with the pipette and pipette tips.
•Avoid temperature differences between the pipette and pipette tip
as this could lead to incorrect volume dispensing.
•Check the dispensing volume of liquids that strongly differ from
the physical properties of water, eg. with different density (see
also section 6 Calibration).
Fig.2
2.4 Pipetting
Identication
2.5 Safety Notes

The following table provides information about the possible causes
of problems with suggestions as to how these can be xed. If you are
not able to x the problem, your local STARLAB ofce will be happy
to help.
3. Troubleshooting
ErgoOne®User Manual10
Troubleshooting
Problem Possible cause Action
Pipette tip drips
Wrong pipette tip Use TipOne®
Tip is loose Attach the tip securely
Tip holder loose Tighten the tip holder
Debris between the tip
and tip holder
Clean the tip holder
and use new tip
Seals/O ring damaged Replace the affected seals/O rings
Debris between the
piston and seal
Clean the seal and piston and
re-lubricate
Piston insufciently lubricated Clean and re-lubricate the piston
Piston contaminated Clean and re-lubricate the piston
Piston damaged Replace piston and seal
Volume control button
sticks/not smooth
Piston contaminated Clean and re-lubricate the piston
Seals contaminated Unscrew lower housing, clean all seals
and replace if necessary
Leaked solvent vapours Unscrew the lower housing and allow to
air. Clean and lightly
lubricate the piston
Pipette blocked, not
enough intake of liquid
Liquid has penetrated
the tip holder and dried
Unscrew lower housing and rinse with
warm water. Then rinse with dist. water
and allow to dry
Replace tip holder
Drop formation on inner
wall of pipette tip
Uneven wetting of pipette tip Attach new pipette tip
Using pipette tips with poor
wetting properties
Use original STARLAB
TipOne®pipette tips
Pipetting volume incorrect
Tip taken from liquid too quickly Extract tip from liquid slowly
Liquid with high vapour
pressure used
Use positive displacement
system, eg. STARLAB
Dispenser RepeatOne®

English
Troubleshooting / Cleaning and Decontamination
External cleaning
• Check the pipette each day for external contamination.
• In particular, make sure the tip holder 7is clean and undamaged.
• ErgoOne® pipettes should be cleaned regularly and can also be
placed under UV light if necessary.
Internal cleaning
• We recommend that you regularly check pistons, springs, seals
and the tip holder. We also recommend cleaning internally with
a mild detergent, 60% isopropanol or a commercially available
sterilising agent.
• After cleaning, lightly lubricate the piston (for piston lubrication,
see section 8 Ordering Information).
• For information about disassembling the pipette, see section 7
Maintenance.
Autoclaving
ErgoOne® can be fully autoclaved (121°C, 1 bar, 20 minutes). To
increase effectiveness, we recommend removing the tip ejector 5.
Also loosen the tip holder 7 by rotating it once (single-channel only).
After autoclaving, dry the pipette at room temperatures and only
reassemble it once it is completely dry.
4. Cleaning and
Decontamination
11
ErgoOne®User Manual
Note: The ErgoOne® piston material is an innovative, wear-re-
sistant plastic (piston material for red colour coded models is
made of stainless steel), treated with a special
lubricant during manufacture. During normal use, it is therefore
not necessary to re-lubricate. In the event of frequent autoclav-
ing, however, we recommend more frequent
re-lubrication (see Internal cleaning).

5. Technical Data
ErgoOne®User Manual12
Technical Data ErgoOne® Pipettes
ErgoOne®
Single-Channel
Pipette
volume [µl]
Systematic measurement
deviation
(inaccuracy) ± [%]
Coincidental measure-
ment deviation
(imprecision; CV) ± [%]
EN ISO
8655-2 ErgoOne®EN ISO
8655-2 ErgoOne®
0.1–2.5 µl
0.1
0.25
1.25
2.5
±125
±50
±10
±5.0
±24
±12
±2.5
±1.4
±75
±30
±6.0
±3.0
±12
±6.0
±1.5
±0.7
0.5–10 µl
1.0
5
10
±12
±2.4
±1.2
±2.5
±1.5
±1.0
±8.0
±1.6
±0.8
±1.8
±0.8
±0.4
2 – 20 µl (micro cone)
2
10
20
±10
±2.0
±1.0
±5.0
±1.2
±1.0
±5,0
±1,0
±0,5
±1.5
±0.6
±0.3
2 – 20 µl (standard cone)
2
10
20
±10
±2.0
±1.0
±5.0
±1.2
±1.0
±5,0
±1,0
±0,5
±1.5
±0.6
±0.3
10–100 µl
10
50
100
±8.0
±1.6
±0.8
±3.0
±1.0
±0.8
±3.0
±0.6
±0.3
±1.0
±0.3
±0.2
20–200 µl
20
100
200
±8.0
±1.6
±0.8
±2.5
±1.0
±0.6
±3.0
±0.6
±0.3
±0.7
±0.3
±0.2
100–1,000 µl
100
500
1,000
±8.0
±1.6
±0.8
±3.0
±1.0
±0.6
±3.0
±0.6
±0.3
±0.6
±0.2
±0.2
500–5,000 µl
500
2,500
5,000
±8.0
±1.6
±0.8
±2.4
±1.2
±0.6
±3.0
±0.6
±0.3
±0.6
±0.25
±0.15
ErgoOne®
Multi-Channel
Pipette
volume [µl]
Systematic measurement
deviation
(inaccuracy) ± [%]
Coincidental measure-
ment deviation
(imprecision; CV) ± [%]
EN ISO
8655-2 ErgoOne®EN ISO
8655-2 ErgoOne®
0.5–10 µl
1.0
5
10
±24
±4.8
±2.4
±8.0
±4.0
±2.0
±16
±3.2
±1.6
±5.0
±2.0
±1.0
10–100 µl
10
50
100
±16
±3.2
±1.6
±3.0
±1.0
±0.8
±6.0
±1.2
±0.6
±2.0
±0.8
±0.3
30–300 µl
30
150
300
±26.7
±5.3
±2.7
±3.0
±1.0
±0.6
±10
±2.0
±1.0
±1.0
±0.5
±0.3
Measurement data determined in compliance with the test conditions for piston-stroke pipettes
according to EN ISO 8655
Measurement carried out with original TipOne®pipette tips

English
Technical Data / Calibration
During manufacture, ErgoOne® pipettes are aligned for transferring
aqueous solutions and calibrated according to EN ISO 8655. We there-
fore also recommend that you regularly check your pipettes at dened
intervals of, for example, 3 or 12 months.
Generally, realignment is not necessary with normal use. However,
if your pipettes still do not achieve the specied limiting values
(see section 5 Technical Data), check the following points:
• Is the pipette seal broken?
Is it dripping? (see section 3 Troubleshooting)
• Is the density of the liquid you are using different from that of water?
• Are there any temperature differences between the pipette, liquid
and air?
• Was the liquid pipetted slowly and evenly?
If the check is unsuccessful, calibrate and realign your pipette. This
can be carried out according to the following instructions. Alternatively,
STARLAB offers a professional Pipette Calibration Service with a
fast turnaround.
Calibration & alignment
Calibration is a gravimetric analysis for which you require an analytical
balance adjusted to the pipetting volume, a weighing vessel and
distilled water (room temperature).
General information
• Only use TipOne® pipette tips and attach these securely.
• Same temperature for pipette, tip and water
• Each tip must be pre-wetted with distilled water at least three times.
• Always pipette evenly and slowly and hold the pipette upright.
• Immerse no more than 3 mm of
the pipette tip into the liquid when taking a sample.
• Position the pipette at an angle of 30 – 45° to the inner wall of the
tube when dispensing liquid.
• For multi-channel pipettes, all channels must be checked separately.
6. Calibration
13
ErgoOne®User Manual
Note that each alignment means a zero point shifting. The amount
by which the pipette setting is changed is constant across the entire
measurement range. If for example 1000µl is realigned by 10µl
(1%) for a 100 –1000µl pipette, then for 100µl, the pipette must
also be corrected by 10µl = 10%.

ErgoOne®User Manual14
a) Adjust the pipette to the required nominal volume.
b) Carry out ten pipettings with subsequent weighing and record the
individual measurements.
c) Calculate the mean value:
d) Calculate the corresponding volume:
The calculated volume corresponds to the actual setting of your
pipette (the density of water at 20°C = 0.9982 g/ml).
e) If realignment is necessary, open the volume adjustment catch
by pulling up the volume control button 1 until you hear a click.
Remove the cover of the alignment unit 3. Slide the button down,
using a pointed object or pen (with the nib retracted), and (whilst
holding the button down) turn the volume control button 1to
change the piston stroke of the pipette (the volume display re-
mains unchanged). Turn the volume control button 1 clockwise to
increase the volume, counter clockwise to reduce the volume (see
table 2 for details). Once alignment is complete, push the volume
control button 1 down again until you hear a click. Replace the
alignment unit 3 cover, and the pipette is ready for use again.
A full rotation of the volume control button 1corresponds to the
following volume change:
Note:
Multi-channel pipettes are
only aligned on one channel.
Attach a single tip to any
channel and proceed as
described above.
Implementation
Mean value x =
xi = weighing results
n = number of individual weighings
∑ xi
n
Volume (µl) =
x = calculated mean value
x (mg)
Density of liquid
Volume change
ErgoOne® Single-Channel Volume change approx.
0.1–2.5µl 0.13µl
0.5–10µl 0.7µl
2 – 20µl (micro cone) 1.4µl
2 – 20µl (standard cone) 1.4µl
10–100µl 7µl
20–200µl 14µl
100–1000µl 70µl
500–5000µl 340µl
ErgoOne® Multi-Channel Volume change approx.
0.5–10µl 0.7µl
10–100µl 7µl
30–300µl 14µl
Table 2

ErgoOne®User Manual 15
English
Maintenance
ErgoOne® is a low maintenance pipette. However, individual working
methods, length of application and internal quality control guidelines
mean that regular monitoring and maintenance of your pipette is
necessary.
Note: If you make any changes to the pipette or replace individual
parts, a check with recalibration is required. If the pipette cannot be
calibrated successfully or if a fault continues, contact STARLAB.
A For removing and replacing the seals
on the 100µl and 1000µl models
B For removing and replacing the seals
on the 200µl model
C For loosening the lower housing of
pipettes up to the 1000µl model
Disassembly and cleaning up
to the 1000µl model
• Fully depress the tip ejector
button 2and pull the tip ejector
5down (Fig. 4).
•Carefully unscrew the tip holder
7by turning the auxiliary tool 12
clockwise (ErgoOne® 5ml tip
holder can be removed without
the auxiliary tool).
7. Maintenance
The gures shown below refer to the 200µl model. They may differ
slightly for other pipette models.The maintenance work is carried out
with the aid of the auxiliary tool supplied (tool not required for 5ml
pipette) (Fig. 3)
A C B
Fig.4
Fig.3
7.1 Maintaining
Single-Channel Pipettes

16 ErgoOne®User Manual
Replacing seals for
models up to 1000µl
• Remove the spacer ring 11 (only
100µl, 200µl and 1000µl models)
(Fig. 5).
• Remove the sealing ring 10 from the
tip holder using the auxiliary tool
(Fig. 6) and replace it (see section 8
Ordering Information for replace-
ment sealing ring).
• Reassemble the pipette in the
reverse order.
• Remove the O-ring 7a , spring 8and piston
9(Fig. 5).
Note:
The piston is subject to spring tension.
• Degrease the piston 9using an alcoholic
disin fectant and re-lubricate the piston
with original STARLAB piston grease (see
section 8 Ordering Information).
A damaged piston must be replaced.
• Reassemble the pipette in the reverse
order.
Fig.5
Fig.6

17
ErgoOne®User Manual
English
Maintenance
Cleaning pistons and seals
for 5ml model
Fig.7
• Fully depress the tip ejector button 2 and pull
the tip ejector 5 down (Fig. 7).
• Carefully unscrew the pipette cone 7 and the
piston unit 13 in a clockwise direction.
Pull the support ring 11 off the piston 9.
Remove the O-ring 14 . Now you can clean the
spring 8 and the piston (Fig. 8).
Note: The piston is subject to spring tension. If
the spring or piston should become damaged,
the piston unit must be replaced (see section 8
Ordering Information for a replacement
piston unit).
• Degrease the O-ring 14 of the piston unit 13
using an alcoholic disinfectant and re-lubri-
cate it with original STARLAB piston grease
(see section 8 Ordering Information).
• The pipette lter 15 is easy to remove by
pulling it out of the tip holder 7. The pipette is
supplied with three replacement lters.
Further replacement lters are available
(see section 8 Ordering Information).
• Reassemble the pipette in the reverse order.
Fig.8

ErgoOne®User Manual
7.2 Maintaining
Multi-Channel Pipettes
O-rings for the pipette cone are removed and replaced using the
optional auxiliary tool (see section 8 Ordering Information).
Disassembling the lower
housing of the pipette
Fig.9Fig.10
• Fully unscrew the lower housing 16 by
turning clockwise (Fig. 9).
• To remove the tip ejector 5squeeze with
nger and thumb on either side of the tip
ejector, just below the ejector xing 6. This
will allow you to slightly lift the ejector xing
6which will release the tip ejector 5.
• Pull both clips 17 down and rotate the lower
housing through 180° (Fig. 10).
The gures shown below refer to the 100µl model. They may differ
slightly for other pipette models.
Changing the O rings
(100µl and 300µl models only)
18

ErgoOne®User Manual 19
English
Maintenance
7.2 Maintaining
Multi-Channel Pipettes
• The piston unit 18 is released
from the piston frame by turning
it with the Allen key (Fig. 11).
• The piston cylinder 19 is pushed
up (Fig. 12) and the entire piston
unit 20 can now easily be
removed from the front (Fig. 13)
and cleaned externally using an
alcoholic disinfectant. Re-
lubricate the piston with original
STARLAB piston grease (see
section 8 Ordering Information).
• The piston unit should not be
disassembled. In the event of
damage, it should be fully
replaced (see section 8 Ordering
Information for a replacement
piston unit).
• Reassemble the pipette in the
reverse order.
Fig.11
Fig.12
Fig.13
Cleaning/ changing the piston unit

ErgoOne®User Manual20
8. Ordering Information
ErgoOne® Pipettes
Volume Range Cat.No. Pack Size Colour Code
ErgoOne® Single-Channel
0.1–2.5µl S7100-0125 1 Red
0.5–10µl S7100-0510 1 Red
2 – 20µl (micro cone) S7100-0221 1 Red
2 – 20µl (standard cone) S7100-0220 1 Yellow
10–100µl S7100-1100 1 Yellow
20–200µl S7100-2200 1 Yellow
100–1000µl S7110-1000 1 Blue
500 - 5000µl S7150-5000 1 Violet
ErgoOne® 8-Channel
0.5–10µl S7108-0510 1 Red
10–100µl S7108-1100 1 Yellow
30–300µl S7108-3300 1 Green
ErgoOne® 12-Channel
0.5–10µl S7112-0510 1 Red
10–100µl S7112-1100 1 Yellow
30–300µl S7112-3300 1 Green
ErgoOne® Accessories
Description Cat.No. Pack Size
Universal Pipette Carousel Stand for max. 8 Pipettes S7200-0000 1
Silicone Grease for Pipette Piston S7200-0100 1
Tool for Single-Channel Pipettes S7200-0101 1
Tool for Multi-Channel Pipettes S7200-0102 1
