StarTech.com USB3SDOCKHDV User manual

Manual Revision: 07/21/2014
For the most up-to-date information, please visit: www.startech.com
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
USB3SDOCKHDV
HDMI® DVI VGA Dual Video Universal
USB 3.0 Laptop Docking Station
*actual product may vary from photos

Instruction Manual
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.

Instruction Manual
i
Table of Contents
Introduction............................................................................................1
Packaging Contents ................................................................................................................................. 1
System Requirements.............................................................................................................................. 1
Rear View...................................................................................................................................................... 2
Side Views .................................................................................................................................................... 2
Installation ..............................................................................................3
Verifying Installation................................................................................................................................ 4
Installing the Drivers................................................................................................................................ 4
How to Use ..............................................................................................5
Display Modes............................................................................................................................................ 6
Supported Video Resolutions ..............................................................9
Inferred Modes........................................................................................................................................... 9
Troubleshooting........................................................................................................................................ 10
Specications..........................................................................................11
Technical Support ..................................................................................12
Warranty Information............................................................................12

Instruction Manual
1
Introduction
Packaging Contents
• 1 x Docking Station
• 1 x 0.9m USB 3.0 Cable
• 1 x Universal Power Adapter (NA/UK/EU)
• 1 x Installation CD
• 1 x Instruction Manual
System Requirements
• USB 3.0 enabled computer system with available USB 3.0 port
• Available AC electrical outlet
• HDMI® (and either DVI-D or VGA if dual display is desired) enabled display device(s)
e.g. monitor, projector, HTDV, etc. with cables

Instruction Manual
2
6. Microphone Port
7. USB 3.0 Downstream Port
8. Security Lock Hole
9. USB 3.0 Upstream Port
10.DC IN Port
1 2 3 4 56 7
1. DVI-D Port
2. HDMI Port
3. VGA Port
4. 10/100/1000Mbps LAN (RJ-45) Port
5. Headphone Port
Rear View
Side Views
8 9 7
10

Instruction Manual
3
Installation
1. Connect the included power adapter from an AC electrical outlet to the USB
Docking Station.
2. Insert the provided Driver CD into the computer’s CD/ DVD drive.
3. Autorun should give you the option to run the Setup.exe application.
If Autorun does not start, Go into“My Computer” and double-click the CD/DVD drive
that the CD is in and run the Setup.exe application.
4. Run the “setup.exe” le on the CD to launch the driver installation program. Follow
the on screen instructions to complete the driver installation.
5. Please wait while the installation program copies the necessary les.
6. Connect the Docking Station to the computer using the included USB 3.0 cable.
Windows will automatically detect and install the drivers.
7. Connect the monitor(s) to the USB Docking Station using HDMI, DVI-D or VGA
cables and power on the monitors. Please choose the dual output connection
combination as either:
a.) HDMI + DVI
b.) VGA + HDMI
NOTE: Please do not connect monitors to the VGA, DVI-D, and HDMI ports
simultaneously. It can cause unexpected errors in your monitor conguration.
8. Windows will start to automatically load the drivers and software for the USB display
adapter. Once complete, you should see this icon in your System Tray:

Instruction Manual
4
Verifying Installation
1. Open the Device Manager by right-clicking on Computer, and then select Manage.
In the new Computer Management window, select Device Manager from the left
window panel (For Windows 8, open the Control Panel and select
Device Manager).
Expand the “Network adapters”, “Sound, video and game controllers” and “Universal
Serial Bus controllers” sections. On a successful install, you should see the following
devices installed with no exclamation points or question marks.
Installing the Drivers
1. Please insert the Driver CD into your computer’s CD-ROM or DVD drive.
2. Click Setup.exe.
3. Select your language and click“I Accept”.
4. Wait until the drivers are installed successfully in your computer.
NOTE: Please ensure that you install the drivers before connecting the docking
station to your computer.

Instruction Manual
5
How to Use
Conguring the image being displayed by the monitor that is connected to the USB
3.0 Docking Station, can be done in one of two ways:

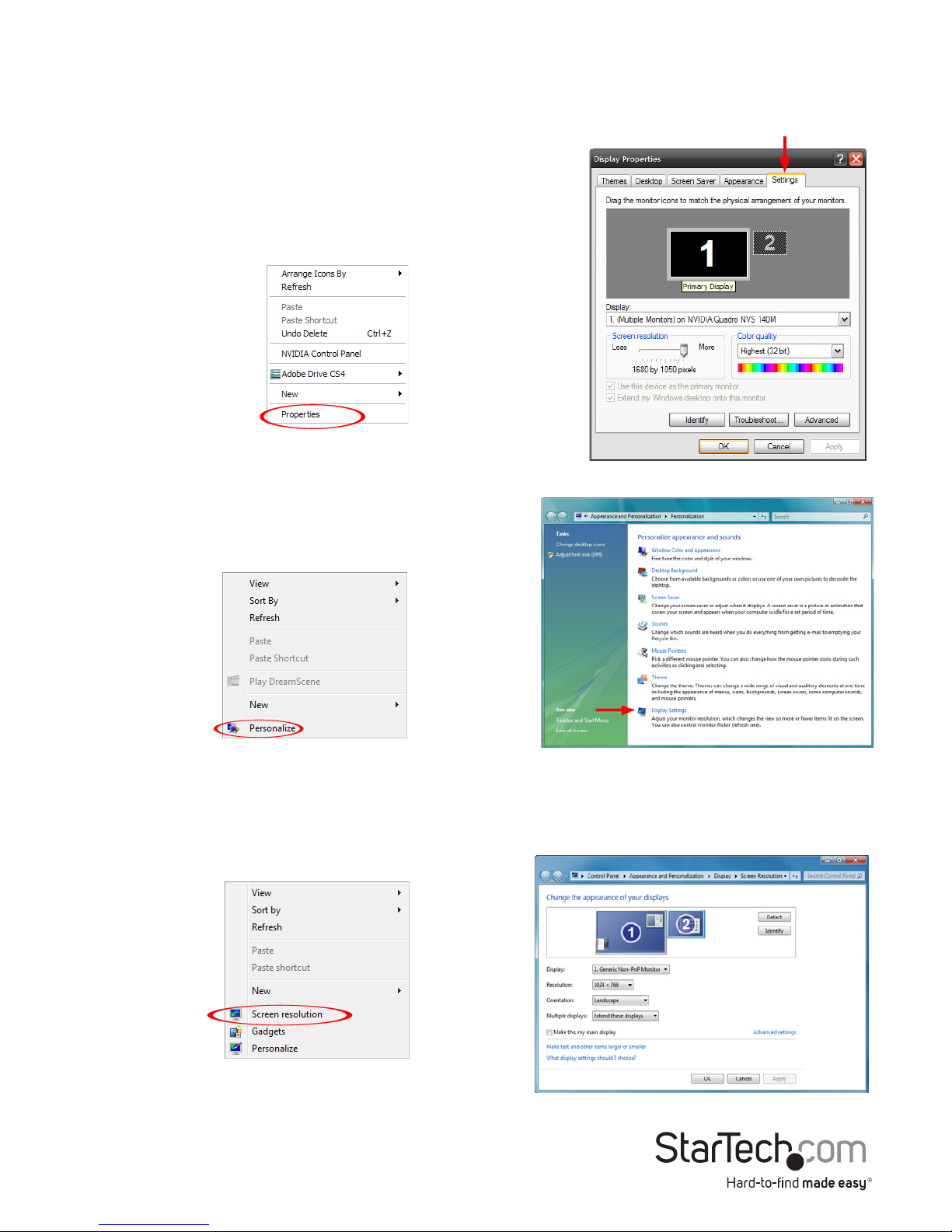

1. Accessing the Windows Display Settings
• Windows XP/Server 2003: right-click on a blank
area of the desktop, select Properties, then click
on the Settings tab:
• Windows Vista: right-click on a blank area
of the desktop, select Personalize, then
select the Display Settings option.
• Windows 8/7/Server 2008 R2: right-click on a blank area of the desktop, select
Screen Resolution.

Instruction Manual
6
1. Right-clicking the DisplayLink tray icon ( ) in the system notication area.
Display Modes
“Extend” Display Mode (DEFAULT)
The default display mode; this mode allows the output on the USB 3.0 Docking Station
to work as an“Extended” display to the on-board display (i.e. internal graphics card).
This extended working space improves work eciency.
You may change the relative position of this extended display through the Windows
Display Settings or the “Extend To” option in the DisplayLink icon menu.
“Extend To” Options
When using the “Extend” display mode, 4 options are available for placement of the
extended display, relative to the primary display: Left, Right, Above, Below. More
ne adjustments to the placement of the extended display can be made through the
Windows Display Settings.

Instruction Manual
7
“Mirror” Display Mode
This mode allows the same content from the on-board display to be duplicated
(mirroring) to the output on the USB 3.0 Docking Station.
The screen resolution setting on the USB 3.0 Docking Station video output will match
the on-board display’s resolution. For example, if the on-board display’s resolution is
1024 x 768*32-bit, then the USB 3.0 Docking Station will use the same resolution.
“Set as Main Monitor” Display Mode
A unique feature to allow the USB 3.0 Docking Station to act as the main working
display. The USB 3.0 Docking Station will work as the main graphics adapter on the
system, while the on-board display will work as the extended display.
Please be advised that some display utilities and drivers that shipped with certain AGP
and built-in display adapters may prevent this option from working on some systems.
You may be able to disable the other utility program (usually found in the same tool
bar located on the bottom right hand corner) to make this function work properly.
“O” Display Mode
This option disables the video output from the USB 3.0 Docking Station.
Screen Resolution
Select the desired video display resolution for the connected monitor in Extend Mode.
The default resolution setting is: 1024 x 768 * 32-bit.

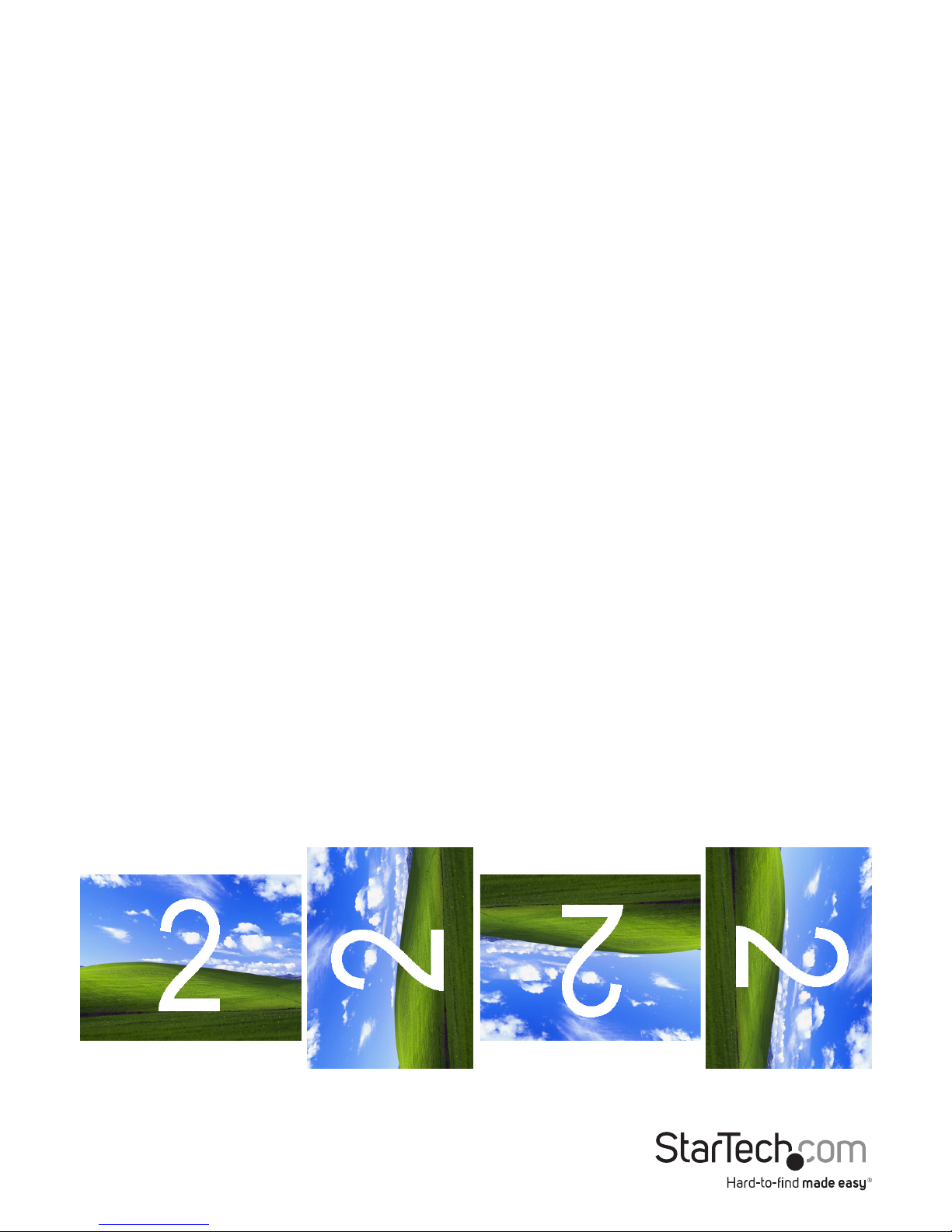

Screen Rotation
4 options are available: 0°(Normal), 90° (Left), 180° (Upside-Down), 270° (Right) when
used with the Extended or Primary display modes. It is a useful function for some
rotatable display devices.
Normal
Rotated Right
Rotated left
Upside-Down
