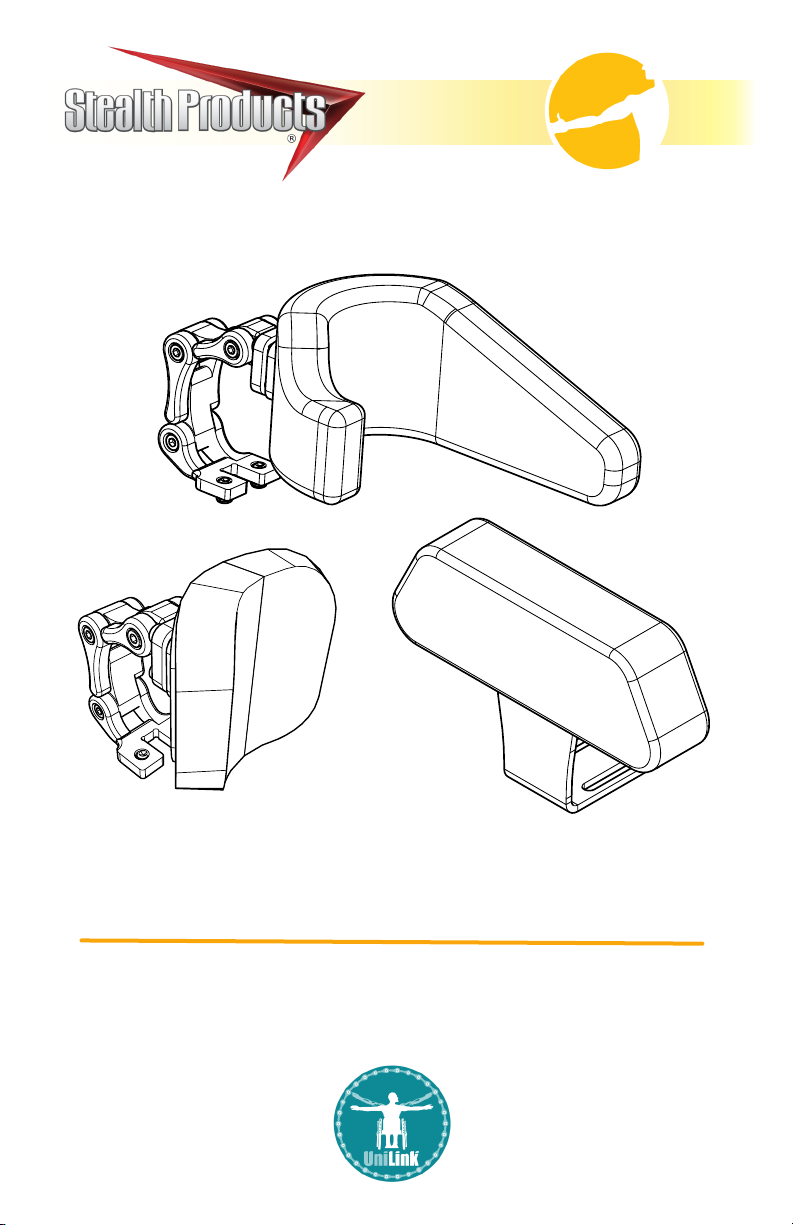

Stealth Products UniLink Elbow Block User manual

UniLink Elbow Support Hardware
Owner’s Manual
Upper Extremity
Support
tooltip
tooltip

Stealth Products is committed to 100% customer satisfaction. Your complete
satisfaction is important to us. Please contact us with feedback or suggestions to
help us improve the quality and usability of our products.
You may reach us at:
Stealth Products, LLC
104 John Kelly Drive
Burnet, TX 78611
Phone: [phone] Toll Free: [phone]
Fax: [phone] Toll Free: [phone]
[email protected]
www.stealthproducts.com
MDSS GmbH
Schigraben 41
30175 Hannover, Germany
General
Read and understand all instructions prior to the use of the product. Failure to
adhere to instructions and warnings in this document may result in property
damage, injury, or death. Product misuse or failure to follow instructions will void
the warranty.
Immediately discontinue use if any function is compromised, if parts are missing
or loose, or if any component shows signs of excessive wear. Consult with your
supplier for repair, adjustment, or replacement.
All persons responsible for tting, adjustment, and daily use of the devices
discussed in the these instructions must be familiar with and understand all safety
aspects of the devices mentioned. In order for our products to be used
successfully, you must read and understand all instructions and warnings, and
maintain our products according to our instructions on care and maintenance.
The installation instructions will guide you through this product’s options and
possibilities.
Instructions are written with the expressed intent of use with standard
congurations. They also contain important safety and maintenance information,
as well as describe possible problems that can arise during use. For further
assistance, or more advanced applications, please contact Stealth Products at
[phone] or toll free at [phone], or your supplier.
Always keep the operating instructions in a safe place so they may be referenced
as necessary.
All information, pictures, illustrations, and specications are based on the product
information that was available at the time of printing. Pictures and illustrations
shown in these instructions are representative examples and are not intended to
be exact depictions of the various parts of the product.
General Information
1

These products are designed to be tted, applied, and installed exclusively by
a healthcare professional trained for these purposes. The tting, application,
and installation by a non-qualied individual could result in serious injury.
CAUTION
General Information
2
Warranty
Our products are designed, manufactured, and produced to the highest of
standards. If any defect in material or workmanship is found, Stealth Products will
repair or replace the product at our discretion. Any implied warranty, including the
implied warranties of merchantability and tness for a particular purpose, shall not
extend beyond the duration of this warranty. Stealth Products does not warrant
damage due to, but not limited to: Misuse, abuse, or misapplication of product,
and/or modication of product without written approval from Stealth Products,
LLC. Any alteration or lack of serial number, where applicable, will automatically
void all warranty.
Stealth Products, LLC Is liable for replacement parts only. Stealth Products, LLC is
not liable for any incurred labor costs.
Stealth Products warrants against failure due to defective materials or
workmanship:
Covers: 2 years
Hardware: 5 years
Electronics: 3 years
In the event of a product failure covered by our warranty, please follow the
procedures outlined below:
1. Call Stealth Products at [phone] or toll free at [phone].
2. Request a Return Authorization (RA) form from the Returns Department and
follow the documentation instructions.
You can download additional copies of this manual by accessing the Stealth
website (https://stlpro.site/stealth-docs) and searching “UniLink Headrest
Hardware” in the search bar at the top of the page.
Supplier Reference
Supplier:
Telephone:
Address:
Purchase Date:
Model:

3
Warning Labels
Warnings are included for the safety of the user, client, operator, and property.
Please read and understand what the signal words DANGER,WARNING,
CAUTION,NOTICE, and SAFETY mean, and how they could aect the user, those
around the user, and property.
Limited Liability
Stealth Products, LLC accepts no liability for personal injury or damage to property
that may arise from the failure of the user or other persons to follow the
recommendations, warnings, and instructions in this manual.
Stealth Products does not hold responsibility for nal integration of nal assembly
of product to end user. Stealth Products is not liable for user death or injury.
Testing
Initial setup and driving should be done in an open area free of obstacles until the
user is fully capable of driving safely.
CAUTION
Identies a potential situation which, if not avoided, may result in minor to
moderate injury and property damage.
WARNING
Identies a potential situation which, if not avoided, may result in severe
injury,death, and property damage.
DANGER
Identies an imminent situation which, if not avoided, may result in severe
injury,death, and property damage.
Identies important information not related to injury, but possible property
damage.
NOTICE
SAFETY
Indicates steps or instructions for safe practices, reminders of safe
procedures, or important safety equipment that may be necessary.
CAUTION
Identies a potential situation which, if not avoided, may result in minor to
moderate injury and property damage.
WARNING
Identies a potential situation which, if not avoided, may result in severe
injury,death, and property damage.
Identies important information not related to injury, but possible property
damage.
NOTICE
SAFETY
Indicates steps or instructions for safe practices, reminders of safe
procedures, or important safety equipment that may be necessary.
General Information

4
Table of Contents
TABLE OF CONTENTS
Customer Satisfaction....................................................................................... 1
General Information ......................................................................................1-3
Warranty ...................................................................................................... 2
Supplier Reference Table....................................................................... 2
Warning Labels.......................................................................................... 3
Limited Liability......................................................................................... 3
Testing .......................................................................................................... 3
Table of Contents................................................................................................. 4
Design & Function ..........................................................................................5-6
Intended Use.............................................................................................. 5
Features........................................................................................................ 5
Mounting..................................................................................................... 6
Preparations ............................................................................................... 6
Parts and Accessories Breakdown ..................................................... 6
Installation ........................................................................................................6-11
Tools .............................................................................................................. 6
Required Tools........................................................................................... 6
Included Fasteners................................................................................... 7
Installation Plan ........................................................................................ 7
Optional Swing-Away Hardware........................................................ 7
Assembling and Adjusting the Elbow Block Pad ......................... 8
Installing the UniLink Elbow Block Hardware................................ 9
Adjusting the UniLink Elbow Block .................................................10
Installing the Optional Arm Stop .....................................................11
First Time Use......................................................................................................12
Cleaning & Maintenance ...............................................................................13
Notes........................................................................................................................14

The UniLink Elbow Blocks feature:
• Links that provide easy adjustment for height and depth;
• A ball-mount for the pad that facilitates angle adjustment;
• Height adjustment providing correct point-of-contact independent of seat
cushion height variances;
• The ability to be used as a reference point allowing caregivers and users alike to
know where the upper extremities should be positioned on the armrest.
The UniLink Elbow Blocks are designed to be removable and have additional
angle and depth adjustment if needed. The supports are side-specic, so
adjustment bolts face away from the user for ease of adjustment. The Elbow Block
slides into the track of the TB4 arm from Quantum. The hardware has a ball mount
which can work with a foam or gel pad.
5
Intended Use
Design & Function
Mounting
Elbow Blocks are designed to utilize direct contact support to provide posterior
and lateral stability for the user’s upper extremities (UEs). Angle and depth
adjustment allow full surface contact with the user while accommodating upper
extremity postural anomalies. The hardware allows for multiple points of
adjustment for a natural t for the user. By encouraging the user’s arms into a mid-
line position, Elbow Blocks will prevent injury to the user’s shoulder from hyper-
extension due to gravity pulling a accid UE to the rear of the power chair. It also
prevents the user’s arms from sliding o the armrest. Elbow Blocks keep the user’s
arms properly positioned through bumpy or rough terrain. Elbow Blocks prevent
the user from being unable to reach their drive control and/or seat control
functions during tilt and they will help keep the user’s arms properly positioned
while tilted, reclining, or repositioning. They provide posterior support of the
user’s UEs to assist in maintaining UE positioning for stabilized driving and/or
hand-controlled operation.
Features
WARNING
An incorrect installation of UniLink Elbow Block may cause damage to the
hardware and/or injury to the user.
Preparations
Only a qualied service technician should install the UniLink Elbow Block and its
accessories.

6
Design & Function
Parts and Accessories Breakdown
A typical UniLink Elbow Block package will contain:
1. Mounting Hardware
▪ The mounting hardware is designed to slide into the track of the armrest.
2. UniLink Elbow Block Hardware
▪ The hardware for the Elbow Blocks are black anodized aluminum with multiple
adjustment points to achieve direct contact support. Available in xed or drop-
down style.
3. Pad Support
▪ The pads provide positioning and support with foam or gel material.
Tools
Use the proper tools to install and adjust the Elbow Blocks to the desired position
for the user. Ensure all fasteners are adequately tightened.
CAUTION
The use of improper tools may cause damage to the device.
Insucient tightening of fasteners may lead to discomfort
for the user or component failure.

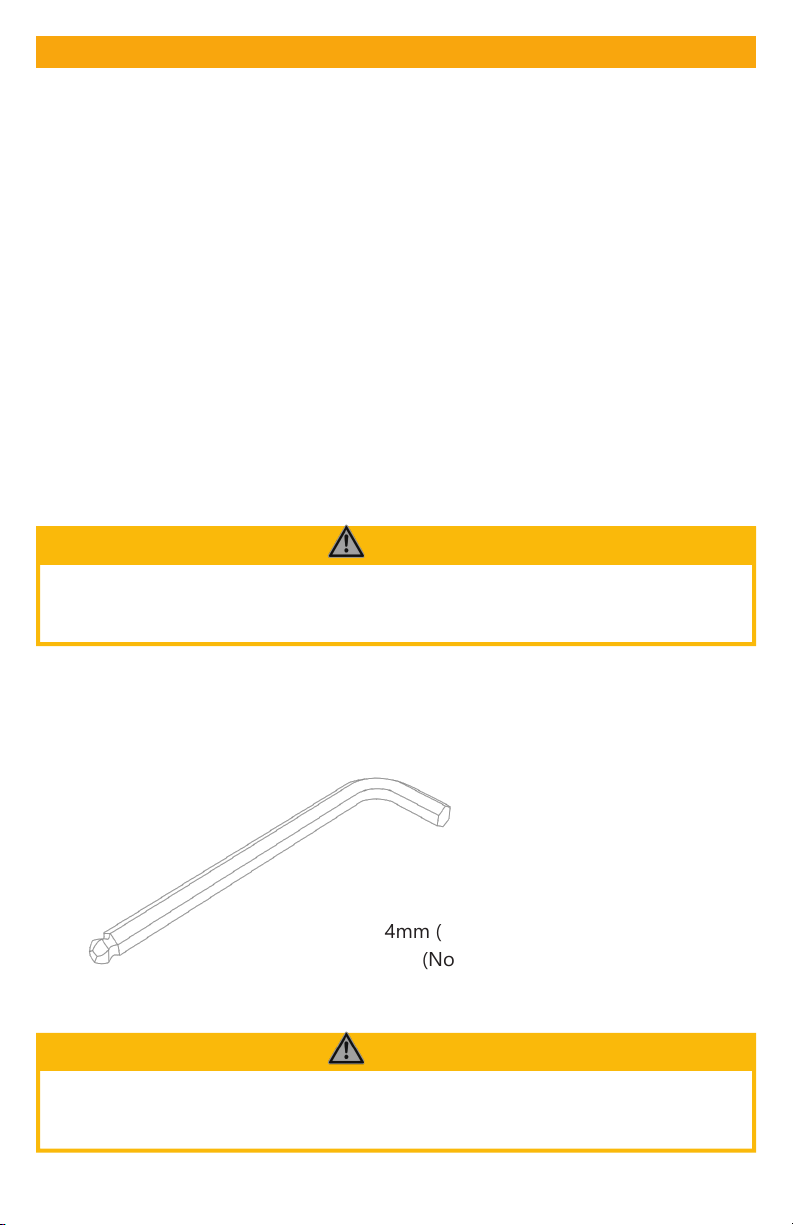

Required Tools
The tools needed to complete the installation of the Elbow Blocks are as follows:
4mm (M4) Hex Wrench
(Not provided)
CAUTION
Any connection must be secured with all delivered screws.
Use only the screws provided in the package.

tooltip
Press the button (B) to release the lock
and allow the hardware and pad to
swing away. Move the pad and
hardware back to the original position
to lock it in place.

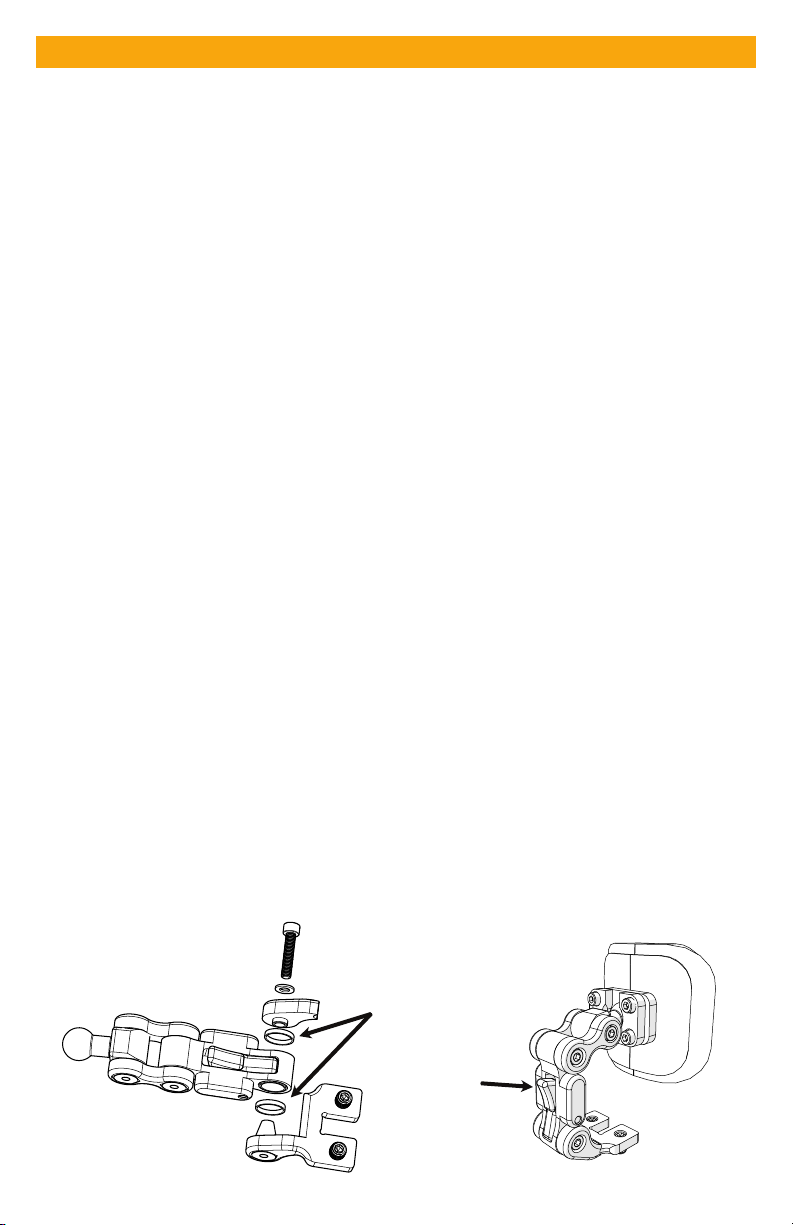

Assemble the mounting hardware
(mount for TB4 shown). Be sure to
install the included bushings (A)
(packaged separately).
7
Installation
Included Fasteners
The UniLink Elbow Block will be packaged with the following fasteners:
• M5x0.8x20mm Socket Head Screws (SHS); and,
• M8x1.25x12mm Socket Cup Point Set Screws (SCPSS).
This selection of screws should accommodate your installation needs. If you have
trouble with the installation of the seat back mount, or have a question outside the
scope of this manual, please contact your supplier, or call us at the numbers listed
on the inside cover.
Set up an installation plan before beginning the installation.
This plan should take into account:
• Where the UniLink Elbow Blocks will be placed, as well as applicable laterals and
support cushions;
• How the UniLink Elbow Blocks will be operated;
• How they will provide support; and,
• Sucient clearance of other hardware and accessories.
Optional Swing-Away Hardware
The UniLink Elbow Block is available with Swing-Away hardware, allowing the
Elbow Block pad to be rotated up and out of the way of the arm rest when
necessary. It can be returned to the adjusted position when desired, and will lock
in place.
OPERATIONINSTALLATION
B
Installation Plan
tooltip
A

tooltip
Slide the split
ring down
over the ball.
Be sure to tighten these
screws evenly in a
criss-cross pattern to
ensure the pad is secure.
Total of four
(4) fasteners.
tooltip
Position the
Elbow Block prior
to tightening the
fasteners.
8
Installation

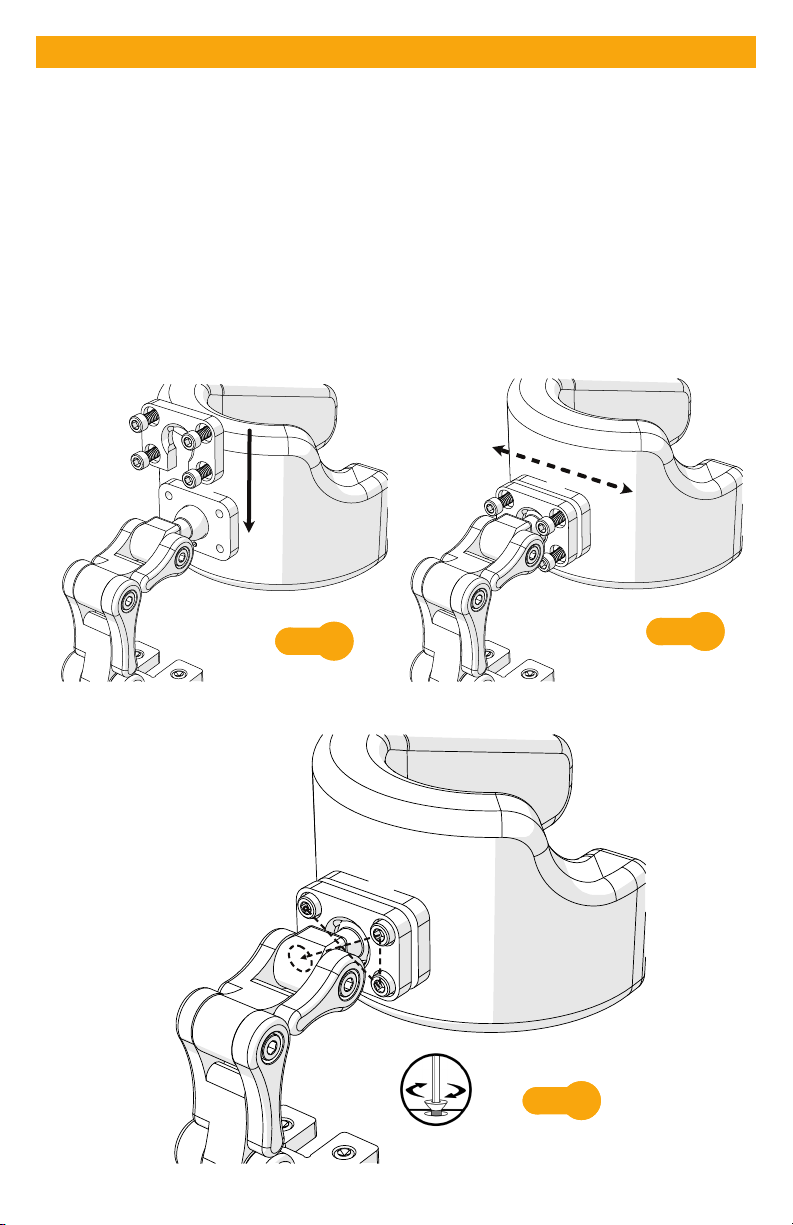

Assembling and Adjusting the Elbow Block Pad
Step One: Slide the split ring over the 17mm ball, ensuring that the ring is facing
the correct direction so that the screw cap heads rest in the recesses.
Step Two: Place the Elbow Block pad mount plate over the 17mm ball and
loosely install the screws. Adjust the Elbow Block pad to the desired
angle.
Step Three: Evenly tighten the screws in a criss-cross pattern. Use the gap to keep
the split ring even side to side and top to bottom. Ensure the screws
are adequately tight and verify the elbow block does not move.
1
STEP
3
STEP
2
STEP
1
2
4
3

tooltip
tooltip
Installing the UniLink Elbow Block Hardware
9
Installation
2
STEP
Step One: Ensure that the rail has a minimum of 3/4” of exposed track to allow
the Elbow Block mount to insert fully. Mount the Elbow Block with
the link adjustment screws facing out for accessibility.
Step Two: Insert the Elbow Block mount into the seat rail and tighten the two
4mm (M8 thread) set screws.
1
STEP

tooltip
10
Headrests
1
STEP
4
STEP
3
STEP
2
STEP
Step One: Loosen the M5x0.8x20mm socket head screws until each joint is
movable.
Step Two: Adjust to the desired position (Each link rotates up to approximately
258°).
Step Three: Tighten the M5x0.8x20mm Socket Head Screws.
Step Four: Repeat on additional UniLinks as necessary, until the hardware is in
the desired position. Add or remove 1.5” or 2” links as necessary.
Adjusting the UniLink Elbow Block
tooltip

tooltip
tooltip
tooltip
11
Headrests

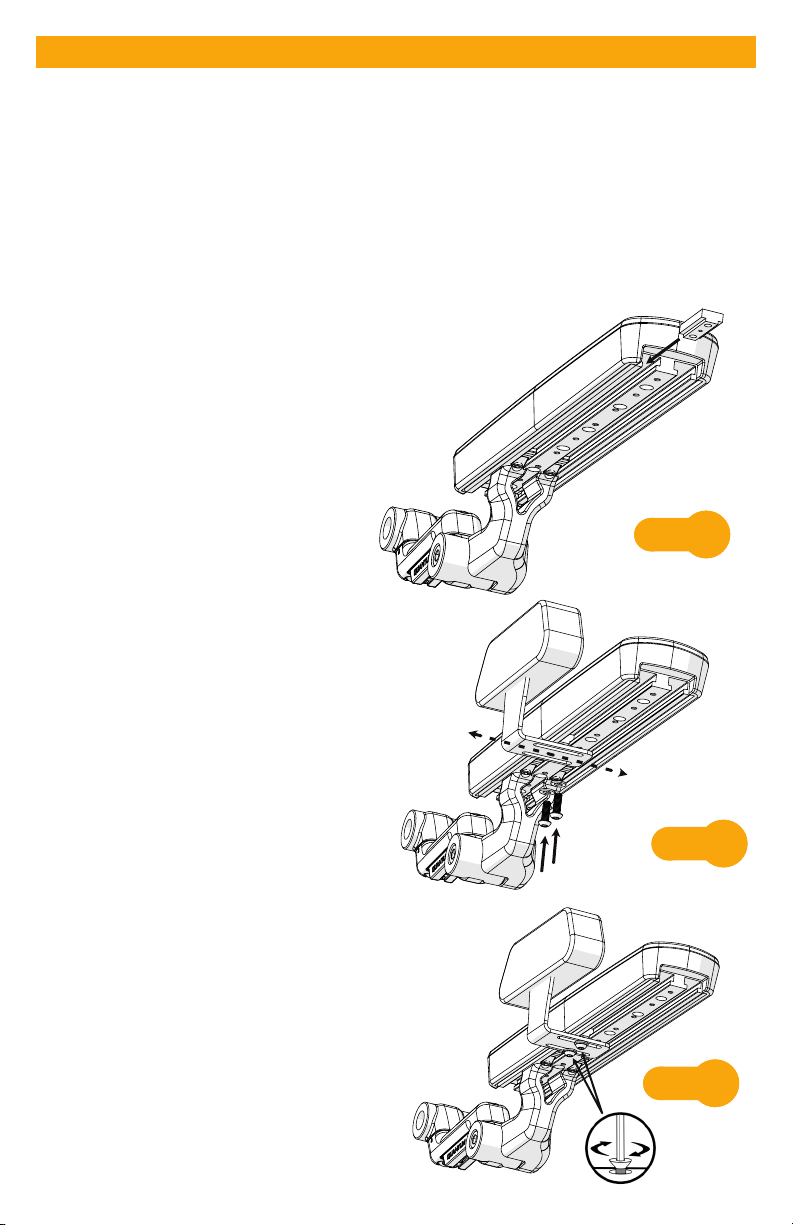

Installing the Optional Arm Stop
The Arm Pad Stops are adjustable supports that help prevent a user’s arms from
sliding o the side of the armrest, particularly during tilt and recline and while
repositioning. By preventing the arms from sliding o the armrest, the Arm Pad
Stops allow those with reduced arm function to reposition themselves
independently, drive on bumpy terrain, and maintain control of their wheelchair.
These Arm Pad Stops are best used in combination with an Elbow Stop to prevent
the arm from sliding o the armrest.
3
STEP
2
STEP
1
STEP
Step One: Remove any hardware
from the arm rest rail
that would hinder the
insertion of the Arm
Pad Stop T-Nut. Slide
the T-Nut into position
and reinstall the other
hardware.
Step Two: Position the Arm Pad
Stop bracket on the
correct side of the arm
rest and in alignment
with the T-Nut. Thread
the two screws through
the bracket and into
the T-Nut in the arm
rest rail.
Step Three: Adjust the Arm Pad
Stop to the correct
position on the arm
rest and tighten the
two screws to secure it
in position.

12
First Time Use
Dealer Assistance
During rst-time use by the user, it is advised that the dealer or service
technician not only assembles the product, but also explains the
conguration of user positioning to the user (i.e., the user and or the
attendant). If needed, the dealer can make nal adjustments. We
recommend the dealer assist the client in lling out the Supplier Reference
block in the front of this manual to make sure they have correct contact
information in the event usage conditions change or for repairs or part
replacements.
User Testing
It is important that the customer is fully aware of the installation of the
UniLink Elbow Block and/or the Arm Stops, how to use them, and how
they can be adjusted to t the client comfortably.
As a dealer, explain and show the customer how you have executed the
installation and explain the function.
Have the user test the position of the UniLink Elbow Block and/or the Arm
Stops.
• Is the hardware in the proper position for the client?
• Can all controls be operated safely and with minimal eort?
If needed, make any adjustments to the positioning. Explain possible
problems to the customer and how to address them.
Conditions of Use
The UniLink Elbow Block and any accessories are intended for use as
installed by the dealer, in accordance to the installation instructions in this
manual.
Ensure the foreseen conditions of use are communicated by the dealer or
service technician to the user and/or attendant during the rst-time use.
If usage conditions change signicantly, please contact your dealer or a
qualied service technician to avoid unintended damage.

13
Maintenance
CAUTION
Do not place any item between the chair user and the support surface of the
seating system. Doing so may reduce product eectiveness and increase
risk of injury.
Cleaning
• Use a soft cloth to clean the hardware.
• Ensure all cleaners are approved for use on nished steel, aluminum, plastic, and
upholstered surfaces.
• Hand or machine wash foam pad cover on delicate cycle with mild detergent, cool
water and let dry.
• Foam pad should not get wet.
Maintenance
Periodically check the hardware for loose screws or worn areas.
Check the pad/cover for any breakdown. If metal is protruding through the
cover or foam, discontinue use immediately and replace the headrest.
Gently remove dust and dirt with a damp cloth.
WARNING
Do not bleach.
Do not iron.
Do not hand wash in water temperatures above 160°F (70°C).
Do not machine dry.

14

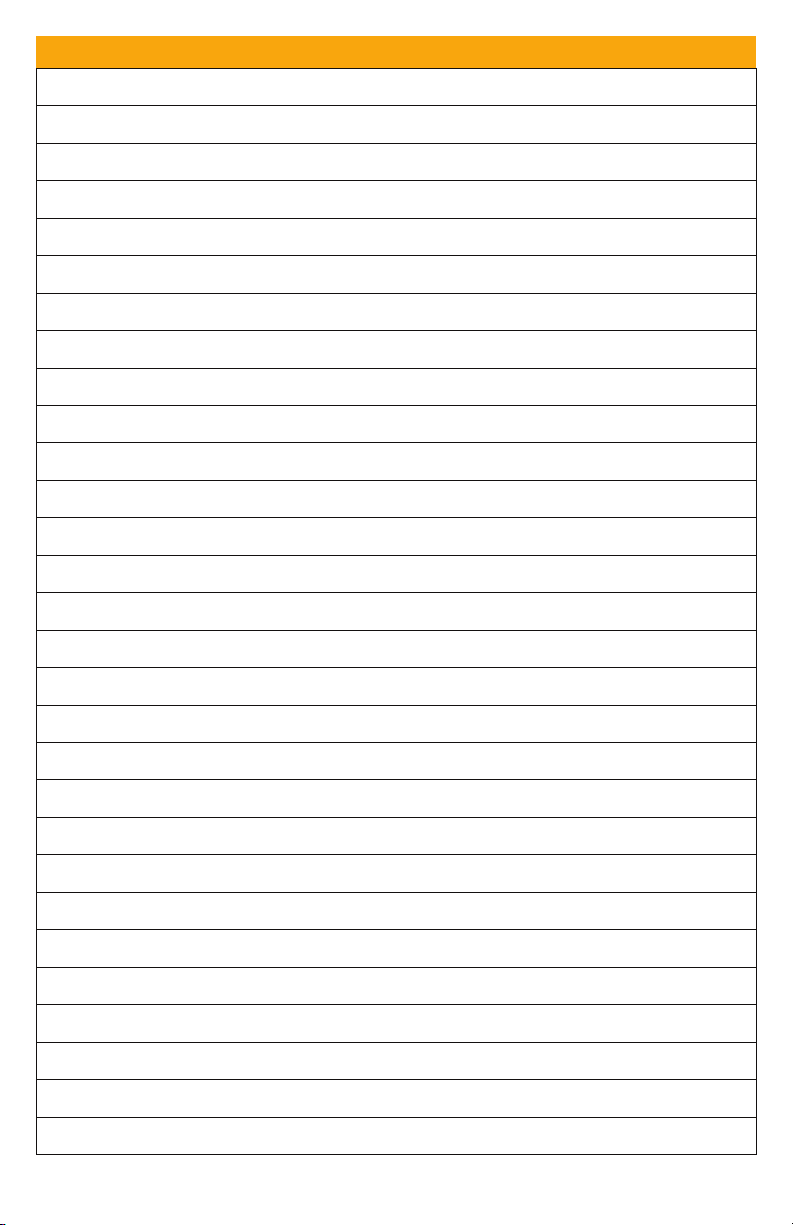

Notes

Stealth Products, LLC · [email protected] · www.stealthproducts.com
[phone] | [phone] | 104 John Kelly Drive, Burnet, TX 78611
P143D573 -- UL Elbow Block Owner's Manual.pdf Revision Date - Jul 9, 2020
© 2020, Stealth Products, LLC
