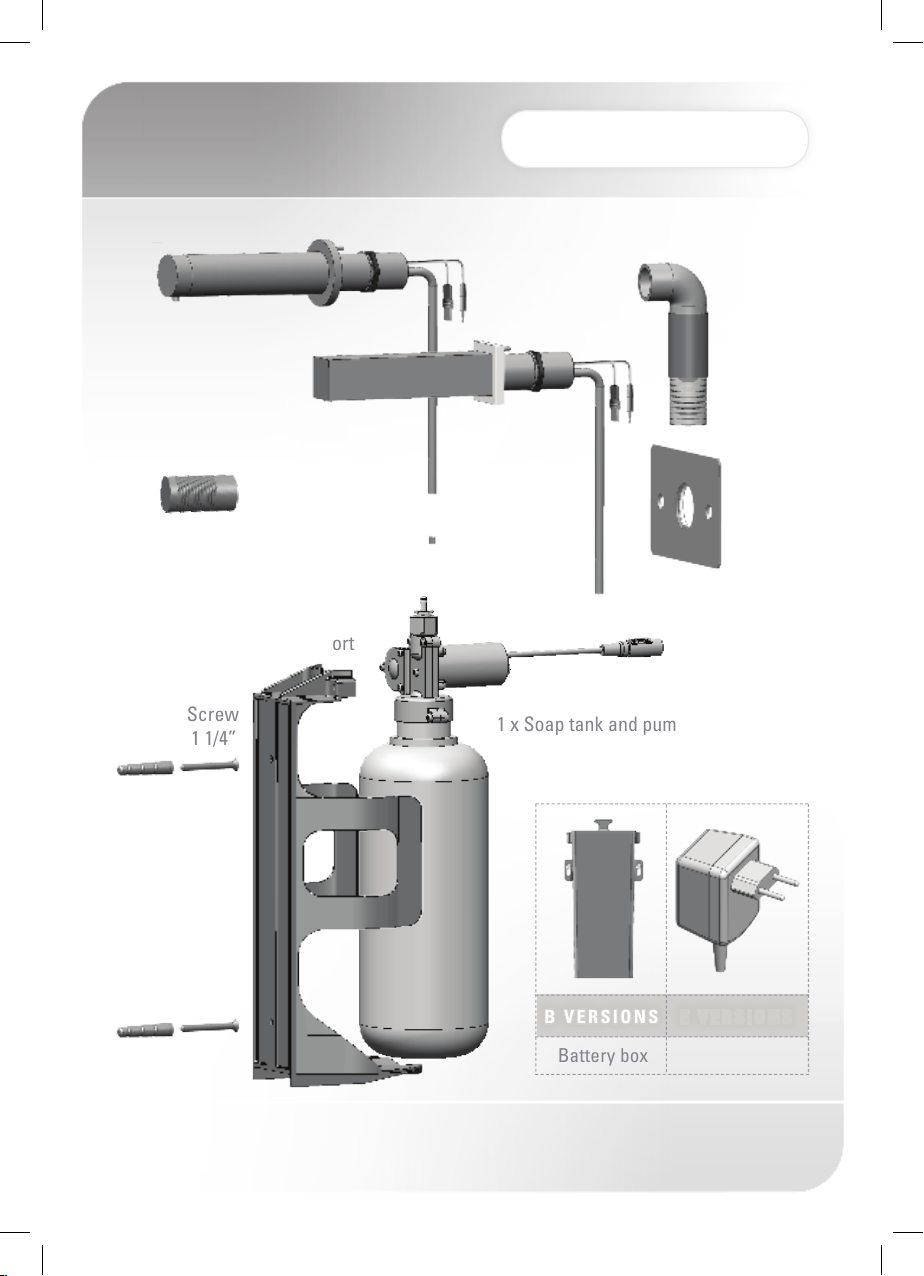

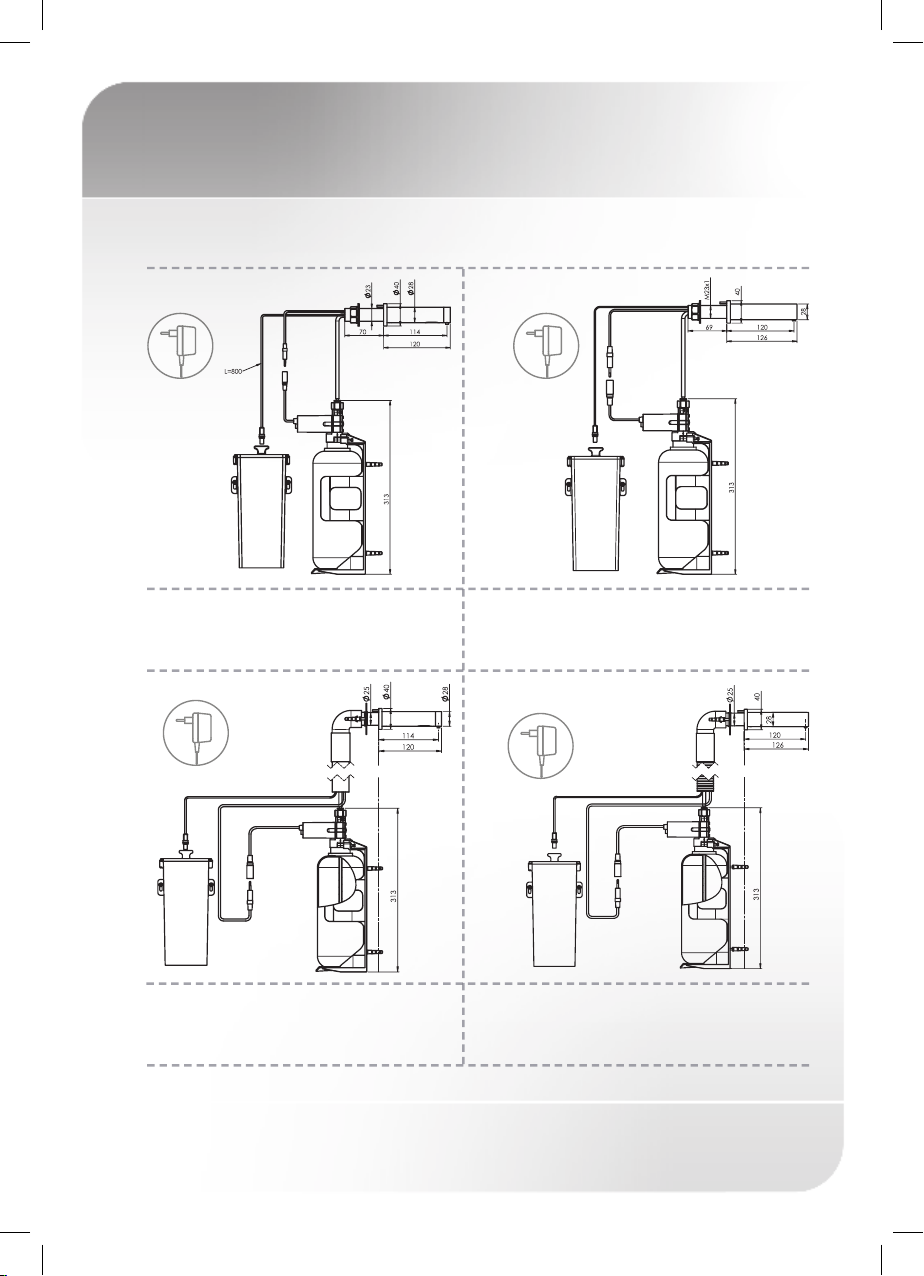

INSTALLATION Tubular Soap Dispenser B / E
Quadrat Soap Dispenser B / E

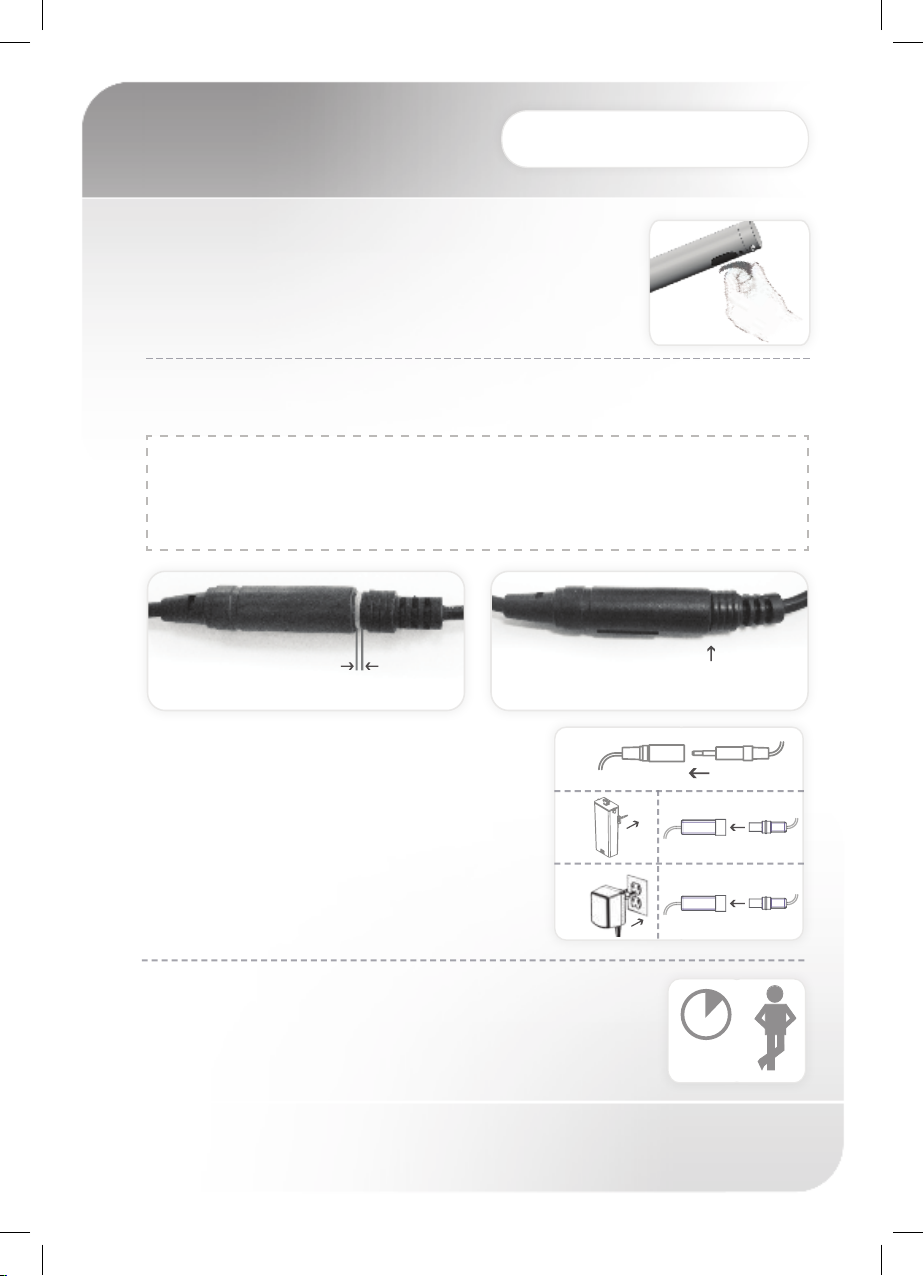

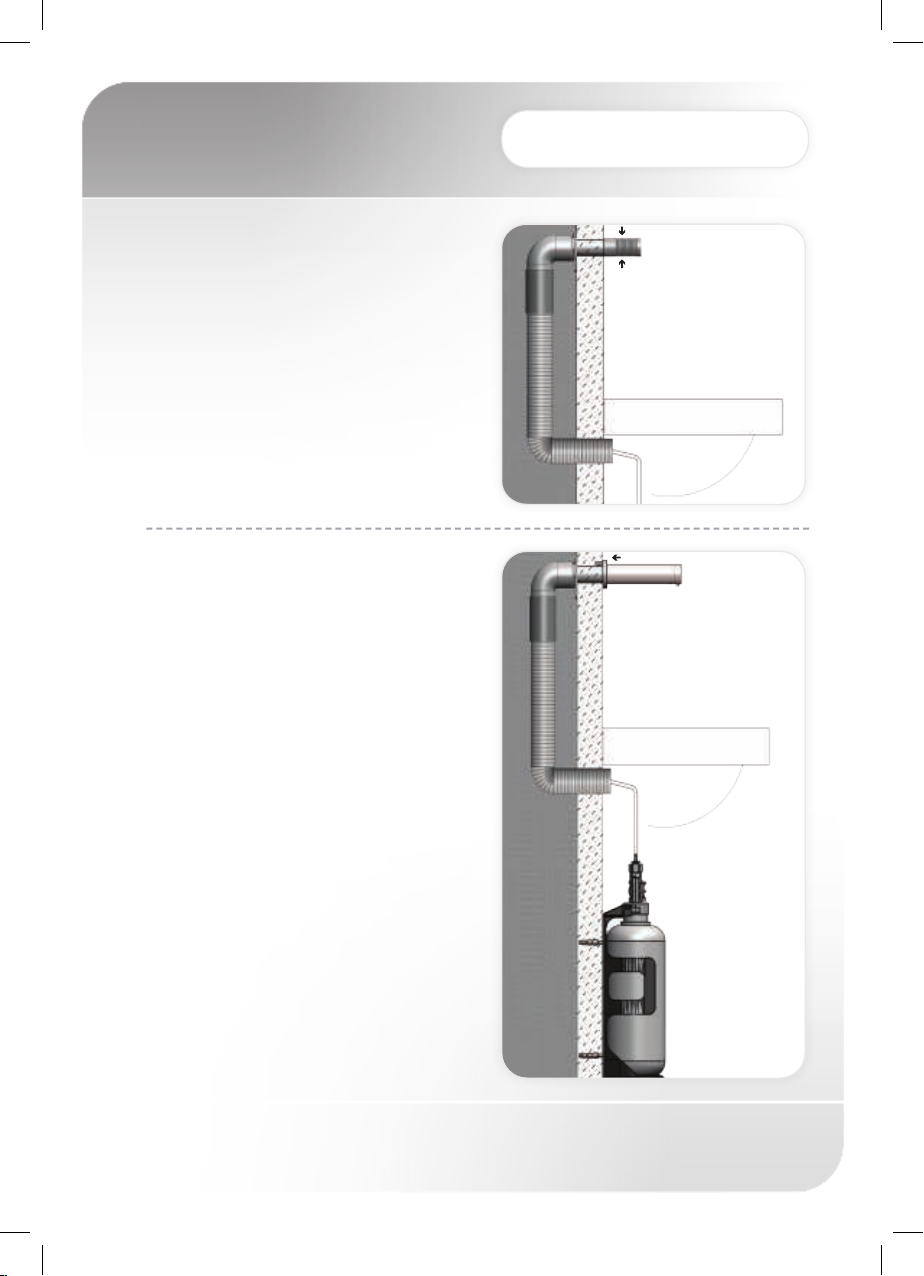

Step 3 - Connecting the power source

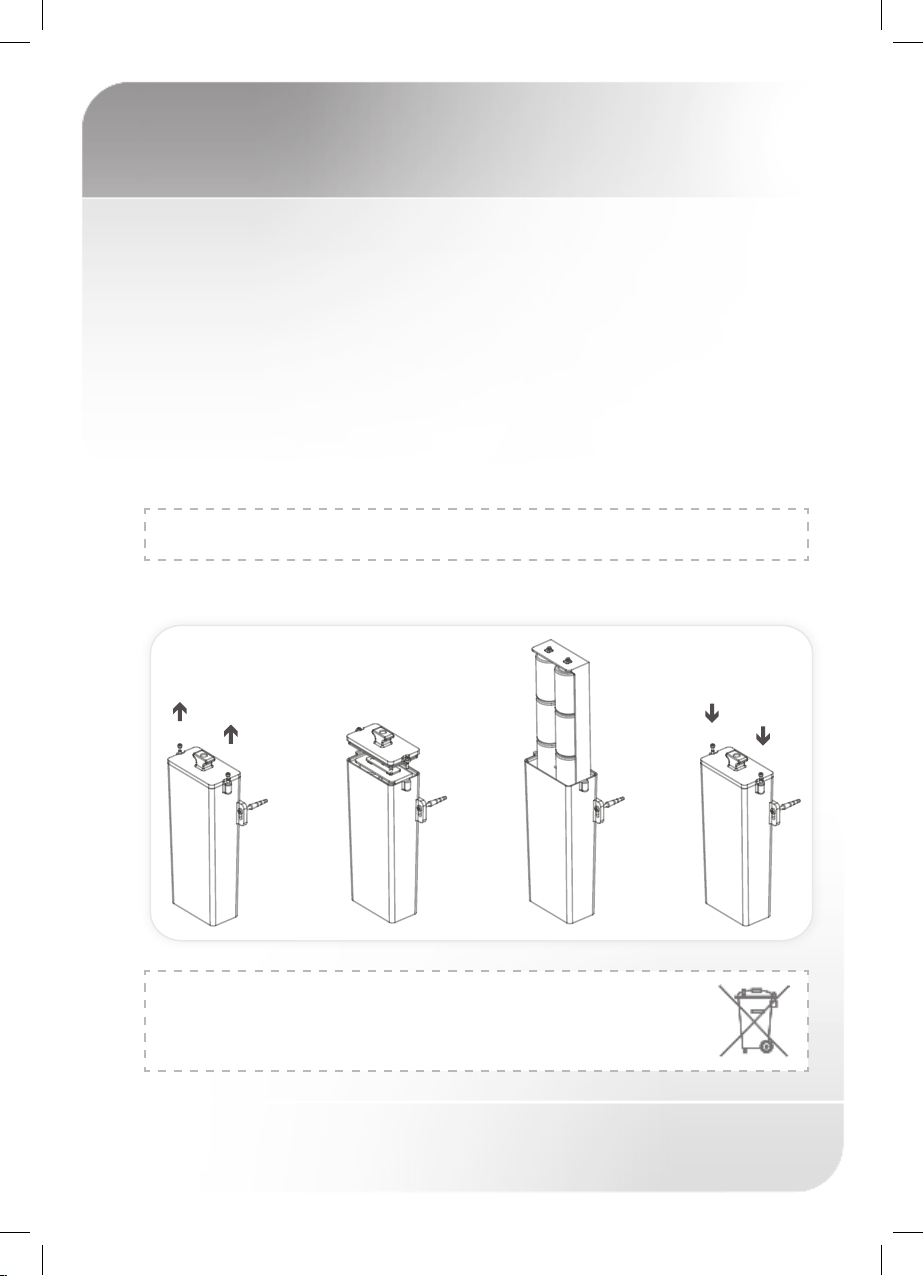

b. For battery versions: install the
battery box at the wall underneath
the sink and connect the battery
connector
c. For transformer versions: plug
the transformer into the electricity
socket and connect the transformer
connector
3. Wait about 10 seconds before you put your hands
within the sensor range. 10
seconds
a.
b.
c.
1. Remove the protective sticker covering the sensor.
Keep away from the sensor range and check that no
objects are in front of the sensor.
2. a. Connect the motor connector to the power source connector. Please
note that since the connector is water proof, some friction might apply.
Important: the 4 contacts connector should be connected properly so that the
white o-ring is not visible and a clicking sound is heard.
Pay attention: If the 4 contacts connectors will not be connected properly, the
motor will work continuously.
O-ring visible – not connected properly
Connected properly
so that only the groves are visible
