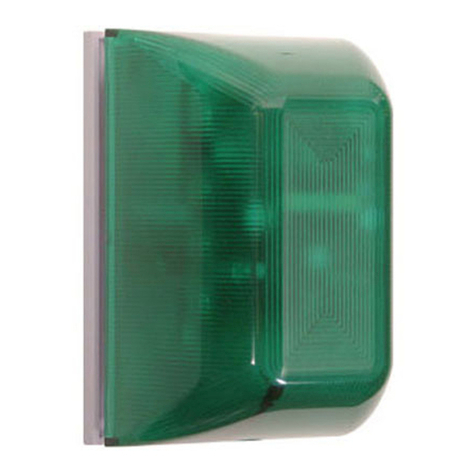

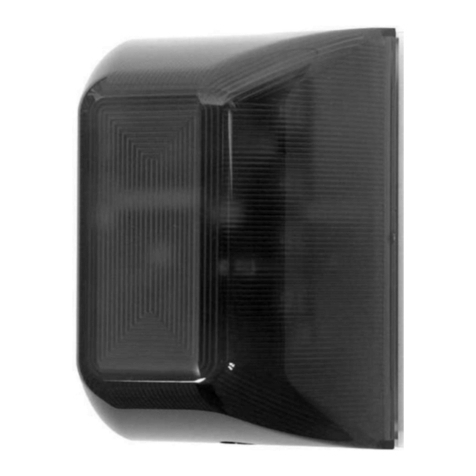

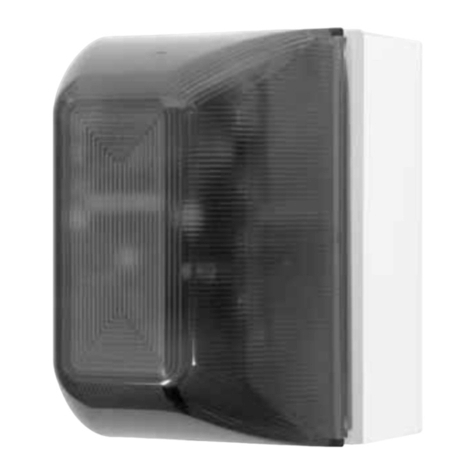

STI SA5000 Series User manual

Select-Alert Alarm
Mini Controller
We protect the things that protect you.®
Features
· Use as a cabinet alarm, door alarm,
link with push button/switch or as a
burglar alarm.
· Independent strobe and siren timing
of 15 seconds, 30 seconds, 60
seconds or continuous.
· Durable, polycarbonate construction.
· Includes ten high intensity LED’s.
· Siren offers 32 user selectable tones.
· Choose piercing 100 or 85 dB alarm.
· For indoor use only.
· Available with amber, green, blue,
red or white lens.
· Includes a tamper switch which
triggers the alarm when unit is
being removed from a wall.
· Low battery indicator.
· Powered by a 9 VDC battery
(not included) or external 12 – 24
volts.
· One Form “C” dry relay contact
output.
STI-SA5000 SERIES

- 2 -
CONTENTS
Warnings and Cautions .......................................................................................................page 3
Warranty Information...........................................................................................................page 3
Dimensions ........................................................................................................................page 3
Specifications .....................................................................................................................page 4
Electronic Setup.................................................................................................................. page 4
Alarm Tones .......................................................................................................................page 5
Alarm Timing and Volume....................................................................................................page 5
Terminal Strip Connections ..................................................................................................page 6
Mounting Options................................................................................................................page 6
Electronics.......................................................................................................................... page 8
SELECT-ALERT ASSEMBLY PARTS LIST
1 - 05000 Electronics Assembly
1 - 05050 Color Lens
4 Screw #6 x 5/8 in.
4 Screw #8-32 x 3/8 in.
2 Screw #6 x 1 1/4 in.
2 Anchor #8-10
2 Screw #6-32 x 1 1/2 in.
1 #8-32 x 1/2 in. tamper screw
1 - 19016 Tamper wrench
ACCESSORIES
KIT-71100A-W Backbox kit
KIT-E18151 N.C. reed switch and magnet
KIT-SA505 Key switch mounting bracket (includes key switch & 2 keys)
EBAT-9VDC 9 volt battery
KIT-H18075 Additional replacement key

- 3 -
WARNINGS
All units are recommended for indoor use. Unit must be tested periodically to verify the life of
battery. STI recommends you change the 9 Volt battery twice a year. When purchasing a Select-
Alert, you will need to periodically test the connections to make sure audibles function at a sound
level to alert staff. Installer may need to purchase a simple audio-meter, typically available at your
local electronics store, to measure the sound in areas where the alarm is expected to be heard
during normal noise environment. Results from this test may prove it beneficial to purchase
additional Select-Alert units.
All specifications and information shown are current as of publication and subject to change
without notice.
DIMENSIONS
S1
ALARM TONE
S2
ALARM TIMING
STROBE TIMING
VOLUME
NO
COM
NC
ALARM SWITCH
KEY SWITCH
DC IN -
DC IN +
Install 4/05
FRONT SIDE
S1
ALARM TONE
S2
ALARM TIMING
STROBE TIMING
VOLUME
S1
ALARM TONES
S2
ALARM TIMING
STROBE TIMING
VOLUME
LED QTY 10
LOW BATTERY
INDICATOR LED
TERMINAL STRIP
TAMPER SWITCH
(REAR VIEW)
WIRE ENTRY
BATTERY
BATTERY CABLE
SIREN
S1
ALARM TONE
S2
ALARM TIMING
STROBE TIMING
VOLUME
LED QTY 10
LOW BATTERY
INDICATOR LED
TERMINAL STRIP
TAMPER SWITCH WIRE ENTRY
BATTERY
BATTERY CABLE
SIREN
REMOTE POWER IN
12-24 VDC, 125mA
+
-
OFF ON
**MAIN POWER
CONTROL
ACTIVE STAND BY
ALARM
SWITCH
FORM "C"
DRY CONTACTS
NORMALLY
OPEN
NORMALLY
CLOSED
COM
DRILL
3/16 DIA HOLES
19018 ANCHOR
#8-10
(2) PROVIDED
19039 SCREW
#6 x 1 1/4 in.
(2) PROVIDED
TO KEY MOUNT PLATE OR INTO WALL
BASE PLATE
H18074 SWITCH LOCK
KIT-SA505 KEY SWITCH
MOUNTING BRACKET
SINGLE GANG
ELECTRICAL BOX
#6-32 x 1 1/2 in. SCREW
(2) PROVIDED
TO SINGLE GANG ELECTRICAL BOX
BASE PLATE
05050- LENS COLORS
A - AMBER
B - BLUE
G - GREEN
R - RED
W - WHITE
#8-32 x 3/8 in. SCREW
(4) PROVIDED
05000 ELECTRONICS
ELECTRONICS ASSEMBLY FINAL
INSTALLED
BASE PLATE
2 13/32 in.
19018 ANCHOR
#8-10
(4) PROVIDED
DRILL (4)
3/16 in. DIA HOLES
KIT-SA504 BACKBOX
19039 SCREW
#6 x 1 1/4 in.
(4) PROVIDED
19068 SCREW
#6 x 5/8 in.
(4) PROVIDED
BASE PLATE
TO STI BACKBOX 71100A
71100B-W
BRIDGE INSERT
1 31/32 in.
3 9/32 in.
WIRE ACCESS HOLE
TAMPER-PROOF
TOOL (1) PROVIDED
TAMPER-PROOF SCREW
2 13/32 in.
19018 ANCHOR
#8-10
(4) PROVIDED
DRILL (4)
3/16 in. DIA HOLES
KIT-71100A-W BACKBOX
19039 SCREW
#6 x 1 1/4 in.
(4) PROVIDED
19068 SCREW
#6 x 5/8 in.
(4) PROVIDED
BASE PLATE
71100B-W
BRIDGE INSERT
1 31/32 in.
DRILL
3/16 DIA HOLES
ANCHOR
#8-10
(2) PROVIDED
#6 x 1 1/4 in. SCREW
(2) PROVIDED
BASE PLATE
H18074 SWITCH LOCK
KIT-SA505 KEY SWITCH
MOUNTING BRACKET
3 9/32 in.
+ -
DC IN
KEY
SWITCH
ALARM
SWITCH
NC
COM
NO
REMOTE POWER IN
12-24 VDC, 125mA
+
-
OFF ON
**MAIN POWER
CONTROL
STAND
BY
ALARM
SWITCH
FORM "C"
DRY CONTACTS
NORMALLY OPEN
COM
+ -
DC IN
KEY
SWITCH
ALARM
SWITCH
NC
COM
NO
NORMALLY CLOSED
ACTIVE
1.58 in.
2.725 in.
4.75 in.
4.83 in.
3.05 in.
3.22 in.
3.25 in.
4.83 in.
1.58 in.
2.725 in.
4.75 in.
4.83 in.
3.05 in.
3.22 in.
3.25 in.
4.83 in.
3.25 in.
(83mm)
4.83 in.
(123mm)
FRONT SIDE
3.25 in.
(83mm)
4.83 in.
(123mm)
1.58 in.
(40mm)
2.73 in.
(69mm)
2.73 in.
(69mm)
LENS COVER
BACKPLATE
MOUNTING PLATE
ELECTRONICS
19011 TAMPERPROOF SCREW
KEY SWITCH
LENS COVER
BACKPLATE
KEY SWITCH
MOUNTING PLATE
19011 TAMPERPROOF SCREW
ELECTRONICS
#801 KEY
#801 KEY
REMOTE POWER IN
12-24 VDC, 125mA
(OPTIONAL)
+
-
OFF ON
**MAIN POWER
CONTROL TO
KEY SWITCH
STAND
BY
REED
SWITCH FROM CABINET
FORM "C"
DRY CONTACTS
NORMALLY OPEN
COM
+ -
DC IN
KEY
SWITCH
ALARM
SWITCH
NC
COM
NO
NORMALLY CLOSED
ACTIVE
DRILL (4) 3/16 in. DIA. HOLES IF USING #8-10 ANCHORS.
DRILL (4) 3/32 in. DIA. HOLES WHEN USING #6 SCREWS ONLY.
19018 ANCHOR
#8-10
(4) PROVIDED
SUB-71100A-W
19039 SCREW
#6 x 1 1/4 in.
(4) PROVIDED
19060 SCREW
#6-32 x 1 in.
(2) PROVIDED
BASE PLATE
1-24-11
NOTE TO BECK:
This sketch replaces
(Step 5 - Mounting Options VIEW A)
in STI-SA5000 install sheet.
1. Using 5/32 Drill, Drill through the (4) exsisting holes in backbox (one in each corner).
2. Place backbox on wall and mark the mounting hole positions.
3. If using #8-10 anchors, drill 3/16 dia. holes 1 in. deep into wall and press anchor into hole.
If using #6 screws only, drill 3/32 dia. holes 1-1/4 in. deep.
4. Mount backbox to wall using #6 x 1 1/4 screws.
5. Mount base plate as shown using (2) #6-32 x 1 in. screws.
NOTE: If not using STI backbox, make sure surface will depress tamper switch.
ENCLOSURE
ROUTE THE TWO KEY
SWITCH WIRES THROUGH
THE HOLE AS SHOWN
WIRE ACCESS HOLE
ROUTE THE TWO REED
SWITCH WIRES FROM
CABINET THROUGH THE
HOLE AS SHOWN
WARRANTY
WARNING: This product can expose you to chemicals including Dichloromethane, which is known to
the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California
to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.
Three year warranty or a one year limited warranty (from date of purchase) on most products. See website
for details. Electronic warranty form at www.sti-usa.com/wc14.
