STIHL KB-MM, KW-MM Instruction Manual
Notice d’emploi

GInstruction Manual
1 - 15
FNotice d’emploi
16 - 31

Original Instruction ManualPrinted on chlorine-free paper
Printing inks contain vegetable oils, paper can be recycled.
© ANDREAS STIHL AG & Co. KG, 2020 0458-486-8221. VA2.L20. 0000000646_008_GB
KB-MM, KW-MM
English
1
This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process
with electronic systems.
Contents
Dear Customer,
Thank you for choosing a quality
engineered STIHL product.
It has been built using modern
production techniques and
comprehensive quality assurance.
Every effort has been made to ensure
your satisfaction and trouble-free use of
the product.
Please contact your dealer or our sales
company if you have any queries
concerning this product.
Your
Dr. Nikolas Stihl
MultiSystem 2
Guide to Using this Manual 2
Safety Precautions and Working
Techniques 2
Using the Unit 6
Approved MultiEngines 8
Mounting the MultiTool 9
Starting / Stopping the Engine 11
Storing the Machine 12
Maintenance and Care 12
Main Parts 13
Specifications 14
Maintenance and Repairs 14
Disposal 15

KB-MM, KW-MM
English
2
In the STIHL MultiSystem, various
MultiEngines and MultiTools are
combined to form a machine. In this
Instruction Manual, the functional unit of
MultiEngine and MultiTool is referred to
as a machine.
Accordingly, the instruction manuals for
the MultiEngine and the MultiTool
constitute the entire Instruction Manual
for the machine.
Always read both manuals carefully
before using your machine for the first
time and keep them safe for future
reference.
Pictograms
All the pictograms attached to the
machine are shown and explained in this
manual.
Symbols in text
WARNING
Warning where there is a risk of an
accident or personal injury or serious
damage to property.
NOTICE
Caution where there is a risk of
damaging the machine or its individual
components.
Engineering improvements
STIHL's philosophy is to continually
improve all of its products. For this
reason we may modify the design,
engineering and appearance of our
products periodically.
Therefore, some changes, modifications
and improvements may not be covered
in this manual.
Lend or rent your power tool only to
persons who are familiar with this model
and its operation – do not lend of rent
your power tool without the MultiEngine
and MultiTool user manuals.

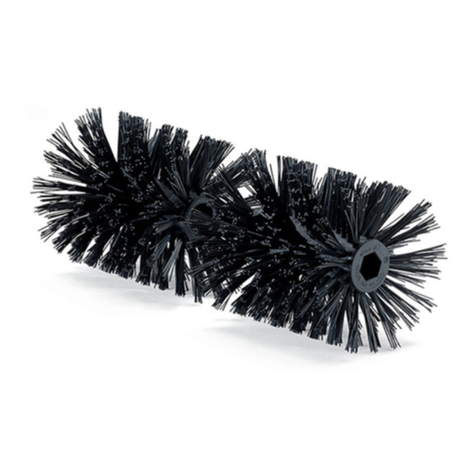

Use the bristle brush only for sweeping
areas and paths, including uneven and
jointed surfaces, and natural stone
paving.
Use the sweeper drum assembly only
for sweeping areas and paths, moving
wet materials, such a leaves or dirt to a
central point, clearing snow and
removing standing water from solid
surfaces.
The machine must not be used for any
other purposes – risk of accidents!
Only use attachments and accessories
that are explicitly approved for this
power tool model by STIHL or are
MultiSystem
469BA028 KN
+
+
Guide to Using this Manual Safety Precautions and
Working Techniques
Special safety precau-
tions must be observed
when working with the
sweeper drum assembly
and bristle brush.
Always read and and
make sure you under-
stand both user manuals
(MultiEngine and
MultiTool) before using
your power tool for the
first time and keep them
in a safe place for future
reference. Non-compli-
ance with the user
manuals may cause seri-
ous or even fatal injury.

KB-MM, KW-MM
English
3
technically identical. If you have any
questions in this respect, consult your
dealer.
Use only high quality parts and
accessories. in order to avoid the risk of
accidents and damage to the machine.
STIHL recommends the use of original
STIHL tools and accessories. They are
specifically designed to match the
product and meet your performance
requirements.
The deflector on this power tool cannot
protect the operator from all objects
thrown by the attachment (stones, glass,
wire, etc.). Ejected objects may also
ricochet and strike the operator.
Never attempt to modify your power tool
in any way since this may increase the
risk of personal injury. STIHL excludes
all liability for personal injury and
damage to property caused while using
unauthorized attachments.
Do not use a high-pressure washer to
clean the power tool. The solid jet of
water may damage parts of the unit.
Clothing and equipment
Wear proper protective clothing and
equipment.
Do not wear clothing which could
become trapped in wood, brush or
moving parts of the machine. Do not
wear a scarf, necktie or jewelry. Tie up
and confine long hair above your
shoulders.
WARNING
Wear "personal" sound protection, e.g.
ear defenders.
STIHL can supply a comprehensive
range of personal protective equipment.
Transporting the machine
Always stop the engine.
Carry your power tool by the handle,
attachment in front of you.
Do not touch hot parts of the machine -
risk of burn injury!
By vehicle: When transporting in a
vehicle, properly secure your machine to
prevent turnover, damage and fuel
spillage.
Before starting
Check that your power tool is properly
assembled and in good condition – refer
to appropriate chapters in the
MultiEngine and MultiTool user
manuals.
–Sweeping attachments: correctly
fitted, secure and in perfect
condition
–Both sweeping attachments must
be mounted.
–Both deflector extensions fitted for
bristle brush.
–Inspect the deflectors for damage
and wear. Do not operate the
machine with a damaged deflector –
replace damaged parts.
–Never attempt to modify the controls
or safety devices
–Keep the handles dry and clean –
free from oil and dirt – this is
important for safe control of the
machine
–Swing the bike handle to the normal
operating position and tighten it
down firmly with the rotary knob.
See chapter on "Adjusting the
Handlebar" in the MultiEngine user
manual.
Clothing must be sturdy
but allow complete free-
dom of movement. Wear
close-fitting clothes such
as a boiler suit, not a
loose jacket.
Wear sturdy shoes with
non-slip soles.
To reduce the risk of eye
injuries, wear close-fit-
ting safety glasses in
accordance with Euro-
pean Standard EN 166.
Make sure the safety
glasses are a snug fit.
Wear sturdy protective
gloves made of a resist-
ant material (e. g.
leather).
469BA001 KN

KB-MM, KW-MM
English
4
To reduce the risk of personal injury, do
not operate your power tool if it is
damaged or not properly assembled!
Check the gearbox for correct position,
adjust if necessary. This helps reduce
the risk of injury from the MultiTool
rotating in the wrong direction.
MultiEngine user manual.
If you use sweeping attachments,
position the gearbox so that the axle is
above the drive shaft.
Use this position for:
–KB-MM bristle brush
–KW-MM Sweeper Drum Assembly
Holding and guiding the machine
Make sure you always have good
balance and secure footing.
Always hold the unit firmly with both
hands on the handles.
Right hand on control handle, left hand
on grip on handlebar.
While working
In the event of impending danger or in
an emergency, switch off the engine
immediately by moving the slide control
/ stop switch/button to 0or STOP.
To reduce the risk of injury from contact
with the tool and ejected objects, do not
allow any other persons within a radius
of 5 meters of your own position.This
distance must also be maintained in
relation to objects (vehicles, window
panes) – risk of property damage!
The correct engine idle speed is
important to ensure that the attachment
stops moving when you let go of the
throttle trigger. Check and correct the
idle speed setting at regular intervals. If
the attachment still rotates when the
engine is idling, have your dealer check
your machine and make proper
adjustments or repairs – see
MultiEngine user manual.
To reduce the risk of injury from thrown
objects or contact with the attachment,
never operate the unit without a properly
mounted deflector designed specifically
for the unit and the attachment.
Always stand behind the deflector or to
one side of the machine during
operation – never in front of the
attachment.
Electrostatic charges may build up when
working on synthetic surfaces – risk of
electric shock and accidents!
Take special care in slippery, wet
conditions, in snow and on slopes,
uneven ground, etc. – Risk of slipping!
To reduce the risk of accidents or injury,
remove all obstacles and objects from
the work area.
Operate your power tool at normal
walking pace only.
469BA045 KN
5m (16ft)
Dust, fumes and smoke
produced while working
may be hazardous to
health! If dust levels are
high, wear a suitable
respirator.
To reduce the risk of a
dust explosion, spray
very dusty surfaces with
water before sweeping.
Check the work site –
rocks, metal objects etc.
may be caught up and
ejected – risk of injury!

KB-MM, KW-MM
English
5
Be extremely cautious when pulling the
power tool towards you because of the
risk of injury from contact with the
rotating attachment.
Make sure you always have good
balance and secure footing.
Be extremely cautious when changing
direction with the power tool – especially
on slopes.
On slopes, always work parallel to the
gradient to reduce the risk of injury from
slipping or contact with the attachment.
Never work on steep slopes because of
the risk of injury through loss of control
of the power tool.
Special care must be taken when
working in overgrown terrain.
When clearing leaves, take care not to
harm small animals.
Be particularly alert and cautious when
wearing hearing protection because
your ability to hear warnings (shouts,
alarms, etc.) is restricted.
Take breaks when you start getting tired
or feeling fatigue – risk of accidents!
Work calmly and carefully – in daylight
conditions and only when visibility is
good. Proceed with caution, do not put
others in danger.
If your power tool is subjected to
unusually high loads for which it was not
designed (e.g. heavy impact or a fall),
always check that it is in good condition
before continuing work – see also
"Before Starting". Make sure the safety
devices are working properly. Never use
a power tool that is no longer safe to
operate. In case of doubt, contact a
dealer.
Opening the throttle while the
attachment is blocked increases the
load and reduces engine speed. The
clutch then slips continuously and this
causes overheating and damage to
important components (e.g. clutch,
polymer housing components) – and this
can increase the risk of injury from the
attachment moving while the engine is
idling.
Check the sweeping attachments at
regular short intervals during operation
or immediately if there is a sudden
change in behavior:
–Shut off the engine, hold the
machine securely.
–Check condition and proper
mounting.
–Replace damaged sweeping
attachments immediately.
Clean the attachment and deflector at
regular intervals during operation.
–Shut off the engine
–Use gloves
–Remove debris from between the
sweeping attachments and from the
area around the gearbox and
deflector.
To reduce the risk of injury, shut off the
engine before changing attachments.
After finishing work
After finishing work or before leaving the
power tool unattended: Shut off the
engine.
Maintenance and Repairs
Service the machine regularly. Do not
attempt any maintenance or repair work
not described in the MultiTool and
MultiEngine instruction manuals. Have
all other work performed by a servicing
dealer.
STIHL recommends that you have
servicing and repair work carried out
exclusively by an authorized STIHL
servicing dealer. STIHL dealers are
regularly given the opportunity to attend
training courses and are supplied with
the necessary technical information.
Only use high-quality replacement parts
in order to avoid the risk of accidents
and damage to the power tool. If you
have any questions in this respect,
consult a servicing dealer.
STIHL recommends the use of original
STIHL replacement parts. They are
specifically designed to match your
model and meet your performance
requirements.
To reduce the risk of injury, always shut
off the engine before carrying out any
maintenance or repairs or cleaning the
machine.
Do not touch the attach-
ment while the engine is
running. If the attachment
becomes jammed by an
obstruction, switch off the
engine immediately
before attempting to
remove the obstruction –
otherwise, risk of injury!

KB-MM, KW-MM
English
6
Sweeping Attachments
MultiTools for sweeping and cleaning
are available in 2 versions:
KB-MM bristle brush
KW-MM PowerSweep
Preparations
If the surface to be cleaned is dry, spray
it with water to reduce the amount of
dust created.
WARNING
Clear away all obstacles and solid
objects from the work area.
The MultiEngine with sweeping
attachment is operated in the forward
direction only.
NCheck correct position of gearbox –
see "Mounting the MultiTool".
Bristle Brush
The KB-MM bristle brush MultiTool is
used for cleaning areas and paths,
including uneven and jointed surfaces,
and natural stone paving.
WARNING
Never work without the properly
mounted deflector and two extensions.
These devices divert material away from
the machine and the operator.
NSecure the handlebar in the normal
operating position.
NStarting the Engine
NPush the bristle brush steadily at a
normal walking pace.
Using the Unit
483BA002 KN
486BA002 KN
486BA006 KN

KB-MM, KW-MM
English
7
NAlways hold and guide the tool at a
shallow angle.
WARNING
The steeper the angle shown above, the
more difficult it is to control the tool.
NGuide the bristle brush at right
angles to the direction of travel (1).
Sweepings are thrown forwards,
ahead of the operator.
WARNING
The bristle brush pushes back towards
the operator.
PowerSweep
The KW-MM PowerSweep MultiTool is
used for sweeping areas and paths,
moving wet materials, such a leaves or
dirt to a central point, clearing snow and
removing standing water from solid
surfaces.
NSecure the handlebar in the normal
operating position.
NStarting the Engine
NPush the PowerSweep steadily at a
normal walking pace.
NAlways hold and guide the tool at a
shallow angle.
WARNING
The steeper the angle shown above, the
more difficult it is to control the tool.
NGuide the PowerSweep at right
angles to the direction of travel (1).
Sweepings are thrown forwards,
ahead of the operator.
WARNING
The bristle brush pushes back towards
the operator.
486BA004 KN
486BA005 KN
1
487BA001 KN
487BA002 KN
487BA003 KN
1

KB-MM, KW-MM
English
8
Set of Wheels (Special Accessory)
The set of wheels simplifies handling of
the sweeping attachment – see notes on
"Wheels" in MultiEngine instruction
manual.
Cleaning the Sweeping Attachment
Clean away any dirt and debris that has
accumulated between the sweeping
attachments, around the gearbox or
between the sweeping attachments and
the deflector:
–Shut off the engine.
–Pull the hitch pins out of the axle.
–Remove the sweeping attachments
from the axle and clean them.
–Clean away dirt and debris from the
machine.
Refer to "Mounting the MultiTool" for
mounting instructions.
Only use MultiEngines supplied by
STIHL or expressly approved by STIHL
for use with the MultiTool.
This MultiTool may only be used in
combination with the STIHL MM 56
MultiEngine.
486BA006 KN
Approved MultiEngines

KB-MM, KW-MM
English
9
Removing Existing MultiTools
WARNING
Wear gloves to reduce the risk of injury
from contact with sharp MultiTools
and/or hot surface of gearbox.
NRemove the hitch pins and pull the
MultiTools (if fitted) off the axle –
see also "Mounting the MultiTool" in
the instruction manual of the other
MultiTool.
NClean the gearbox if necessary.
Checking Deflector
WARNING
To reduce the risk of injury from thrown
objects, operate the KB-MM bristle
brush only with the deflector shown and
with properly mounted deflector
extensions.
Changing the Deflector
Removing the Gearbox
NLoosen the clamp screws (1) and
pull the gearbox (2) off the drive
tube.
Removing the Deflector
NLoosen the screw (3) and pull the
deflector (4) off the drive tube.
Mounting the MultiTool
481BA008 KN
486BA011 KN
1
486BA012 KN
21
3
486BA013 KN
4

KB-MM, KW-MM
English
10
Fitting New Deflector
NLine up the deflector (5) on the
flange (6) and push it onto the drive
tube as far as stop.
NTighten down the clamp screws (7)
firmly.
Mounting the Gearbox
NPush the gearbox (2) onto the drive
tube as far as stop while turning it
back and forth.
NLine up the gearbox.
NGo to "Checking Position of
Gearbox".
Checking Position of Gearbox
WARNING
To reduce risk of injury from the
MultiTool rotating in the wrong direction,
check that position of gearbox is correct
and adjust if necessary.
The axle (1) must be above the shaft (2).
Direction of rotation (3) of MultiTool.
Adjusting Position of Gearbox
NLoosen clamp screws on gearbox.
NTurn the gearbox through 180°.
NLine up the gearbox in the correct
position.
NTighten down the two clamp screws
on the gearbox in the following
sequence:
–Tighten the first screw moderately.
–Tighten the second screw
moderately.
–Tighten down first screw firmly.
–Tighten down second screw firmly.
NOTICE
It must not be possible to rotate the
gearbox on the drive tube.
Mounting the MultiTool
NPush the grass shield (1) onto the
axle (2) as far as stop.
NPush the axle (2) onto the drive
shaft (3) as far as stop.
NInsert and engage the pin (4) in the
axle and through the drive shaft.
7
7
5
486BA014 KN
6
1
12
486BA015 KN
469BA044 KN
12
486BA007 KN
4
2
3
486BA008 KN

KB-MM, KW-MM
English
11
Installing the Bristle Brushes
NPush the bristle brush (5) onto the
axle (2) .
NInsert the hitch pin (6) in the hole at
the end of the axle and fold it flat.
NUse the same procedure to mount
the other bristle brush.
WARNING
Always mount both bristle brushes.
Installing the PowerSweep
NPush the sweeper drum (5) onto the
axle (2) – as shown .
NInsert the hitch pin (6) in the hole at
the end of the axle and fold it flat.
NUse the same procedure to mount
the other sweeper drum.
WARNING
Always mount both sweeper drums.
Deflector Extensions
Deflector extensions come standard
with the bristle brush and are available
as special accessories for the
PowerSweep.
Deflector extensions can only be
mounted to the large deflector – see
"Main Parts".
The left and right deflector extensions
are different.
Mounting the Deflector Extensions
NSlide the right-hand extension onto
the deflector, push it fully home at
the top and bottom and engage the
tab (1).
NSlide the left-hand extension onto
the deflector, push it fully home at
the top and bottom and engage the
tab (1).
Removing the Deflector Extensions
NUse the combination wrench to
disengage the tabs (1) and then pull
off the extensions.
Starting the Engine
Always follow the starting procedure
described in the MultiEngine instruction
manual.
NSecure the handlebar in the normal
operating position.
NRetract the wheels, if fitted – see
chapter on "Wheels" in MultiEngine
instruction manual.
NRetract the spur, if fitted.
6
2
486BA009 KN
5
6
2
487BA004 KN
5
11
487BA005 KN
Starting / Stopping the
Engine
469BA061 AS
469BA062 AS

KB-MM, KW-MM
English
12
NCheck that the MultiTool is not
touching the ground or any other
obstacles. The unit must rest on the
engine flange and the support on
the frame.
NMake sure you have good balance
and secure footing – as shown in the
illustration.
WARNING
To reduce the risk of injury from contact
with the rotating attachment, always
stand to the side of the power tool, never
in front of the attachment.
NWith your left hand on the loop
handle, press the unit firmly against
the ground – do not touch the
throttle trigger or lockout lever.
NOTICE
Do not stand or kneel on the handlebar
or frame.
WARNING
The attachment may begin to move as
soon as the engine starts. For this
reason, blip the throttle after starting –
the engine returns to idling speed.
Now follow the starting procedure
described in the MultiEngine instruction
manual.
Stopping the Engine
NSee MultiEngine instruction manual.
For periods of 3 months or longer
NRemove, clean and inspect the
sweeping attachments and
deflector extensions (if fitted).
NStore the machine in a dry, high or
locked location – out of the reach of
children and other unauthorized
persons.
The following intervals apply to normal
operating conditions only. If your daily
working time is longer or operating
conditions are difficult (very dusty work
area, etc.), shorten the specified
intervals accordingly.
All accessible screws and nuts
NRetighten if necessary
Sweeping attachments and deflectors
NVisual inspection, check tightness
before starting work and after every
refueling stop
NReplace if damaged
Safety labels
NReplace illegible safety labels
Storing the Machine Maintenance and Care

KB-MM, KW-MM
English
13
Bristle Brush, PowerSweepTM
1Grass Shield
2Axle
3Hitch Pin
4Deflector Extension, Left 1)
5Deflector Extension, Right 1)
6Deflector 1)
Bristle Brush
7Roller Brush
PowerSweepTM
8Sweeper Drum
9Deflector
Main Parts
7
1
72
3
45
96
486BA021 KN
1
3
8 8
12
1) Comes standard with Bristle Brush,
optional for PowerSweepTM

KB-MM, KW-MM
English
14
Definitions
1 Grass Shield
Protects axle and gearbox from dust
and dirt.
2 Axle
Connects the sweeping attachment
to the output shaft.
3Hitch Pin
Secures the attachments and
simplifies removal and installation of
the attachments.
4 Deflector Extension, Left
Helps divert removed material and
debris away from the machine and
operator.
5 Deflector Extension, Right
Helps divert removed material and
debris away from the machine and
operator.
6 Deflector
Large deflector for attaching
deflector extensions.
7 Roller Brush
Tool for sweeping and cleaning.
8 Sweeper Drum
Tool for sweeping and cleaning.
9 Deflector
Small deflector for use with metal
MultiTools or PowerSweepTM.
Attachment
KB-MM
KW-MM
Weight
Users of this machine may only carry out
the maintenance and service work
described in this user manual. All other
repairs must be carried out by a
servicing dealer.
STIHL recommends that you have
servicing and repair work carried out
exclusively by an authorized STIHL
servicing dealer. STIHL dealers are
regularly given the opportunity to attend
training courses and are supplied with
the necessary technical information.
When repairing the machine, only use
replacement parts which have been
approved by STIHL for this power tool or
are technically identical. Only use high-
quality replacement parts in order to
avoid the risk of accidents and damage
to the machine.
STIHL recommends the use of original
STIHL replacement parts.
Original STIHL parts can be identified by
the STIHL part number, the {
logo and the STIHL parts symbol K
(the symbol may appear alone on small
parts).
Specifications
Two roller brushes
Diameter: 250 mm
Working width: 600 mm
Two sweeping drums
Diameter: 270 mm
Working width: 600 mm
MultiTool complete with
axle and grass shield
KB-MM with deflector
extensions: 4.2 kg
KW-MM: 3.9 kg
Maintenance and Repairs

KB-MM, KW-MM
English
15
Observe all country-specific waste
disposal rules and regulations.
STIHL products must not be thrown in
the garbage can. Take the product,
accessories and packaging to an
approved disposal site for environment-
friendly recycling.
Contact your STIHL servicing dealer for
the latest information on waste disposal.
Disposal
000BA073 KN

Notice d'emploi d'origine Imprimé sur papier blanchi sans chlore
L'encre d'imprimerie contient des huiles végétales, le papier est recyclable.
© ANDREAS STIHL AG & Co. KG, 2020 0458-486-8221. VA2.L20. 0000000646_008_F
KB-MM, KW-MM
français
16
La présente Notice d'emploi est protégée par des droits d'auteur. Tous droits réservés, en particulier tout droit de copie, de tra-
duction et de traitement avec des systèmes électroniques quelconques.
Table des matières
Chère cliente, cher client,
nous vous félicitons d'avoir choisi un
produit de qualité de la société STIHL.
Ce produit a été fabriqué avec les
procédés les plus modernes et les
méthodes de surveillance de qualité les
plus évoluées. Nous mettons tout en
œuvre pour que cette machine vous
assure les meilleurs services, de telle
sorte que vous puissiez en être
parfaitement satisfait.
Pour toute question concernant cette
machine, veuillez vous adresser à votre
revendeur ou directement à
l'importateur de votre pays.
Dr. Nikolas Stihl
MultiSystème 17
Indications concernant la présente
Notice d'emploi 17
Prescriptions de sécurité et
techniques de travail 17
Utilisation 21
Moteurs MultiSystème autorisés 24
Montage de l'outil MultiSystème 24
Mise en route / arrêt du moteur 27
Rangement 28
Instructions pour la maintenance et
l'entretien 28
Principales pièces 29
Caractéristiques techniques 30
Instructions pour les réparations 31
Mise au rebut 31

KB-MM, KW-MM
français
17
Le MultiSystème STIHL offre la
possibilité de combiner différents
moteurs MultiSystème et outils
MultiSystème pour composer une
machine. Dans la présente Notice
d'emploi, l'ensemble – en ordre de
marche – d'un moteur MultiSystème et
d'un outil MultiSystème est dénommé
machine ou dispositif à moteur.
Par conséquent, les Notices d'emploi du
moteur MultiSystème et de l'outil
MultiSystème constituent, ensemble, la
Notice d'emploi intégrale de la machine
ou du dispositif à moteur.
Il faut donc toujours lire attentivement
les deux Notices d'emploi avant la
première mise en service de la machine
et les conserver précieusement pour
pouvoir les relire lors d'une utilisation
ultérieure.
Pictogrammes
Tous les pictogrammes appliqués sur le
dispositif sont expliqués dans la
présente Notice d'emploi.
Repérage des différents types de textes
AVERTISSEMENT
Avertissement contre un risque
d'accident et de blessure ainsi que de
graves dégâts matériels.
AVIS
Avertissement contre un risque de
détérioration du dispositif ou de certains
composants.
Développement technique
La philosophie de STIHL consiste à
poursuivre le développement continu de
toutes ses machines et de tous ses
dispositifs ; c'est pourquoi nous devons
nous réserver tout droit de modification
de nos produits, en ce qui concerne la
forme, la technique et les équipements.
On ne pourra donc en aucun cas se
prévaloir des indications et illustrations
de la présente Notice d'emploi à l'appui
de revendications quelconques.
Ne confier la machine qu'à des
personnes familiarisées avec ce modèle
et sa manipulation – et toujours y joindre
les Notices d'emploi du moteur
MultiSystème et de l'outil MultiSystème.
Utiliser le balai brosse uniquement pour
nettoyer les surfaces et les chemins,
également les surfaces inégales ou
entrecoupées de joints, ainsi que les
sols en pierre naturelle.
Utiliser le balai racleur uniquement pour
nettoyer les surfaces et les chemins,
pour balayer les saletés humides telles
que les feuilles mortes mouillées, ou la
neige, de même que pour enlever les
flaques d'eau.
MultiSystème
469BA028 KN
+
+
Indications concernant la
présente Notice d'emploi Prescriptions de sécurité et techniques de travail
Pour travailler avec le
balai brosse ou le balai
racleur, il faut respecter
des règles de sécurité
particulières.
Avant la première mise
en service, lire attentive-
ment et intégralement les
deux Notices d'emploi
(celle du moteur
MultiSystème et celle de
l'outil MultiSystème). Les
conserver précieuse-
ment pour pouvoir les
relire lors d'une utilisa-
tion ultérieure. Le fait de
ne pas respecter les ins-
tructions des Notices
d'emploi peut entraîner
un danger de mort.

KB-MM, KW-MM
français
18
Il est interdit d'utiliser cette machine
pour d'autres travaux – risque
d'accident !
Monter exclusivement des outils de
travail ou accessoires autorisés par
STIHL pour cette machine, ou des
pièces similaires du point de vue
technique. Pour toute question à ce
sujet, s'adresser à un revendeur
spécialisé.
Utiliser exclusivement des outils ou
accessoires de haute qualité. Sinon, des
accidents pourraient survenir ou la
machine risquerait d'être endommagée.
STIHL recommande d'utiliser des outils
et accessoires d'origine STIHL. Les
propriétés de ceux-ci sont adaptées de
manière optimale au produit et aux
exigences de l’utilisateur.
Le capot protecteur de l'outil de travail
ne peut pas protéger l'utilisateur contre
tous les objets (pierres, morceaux de
verre ou de fil de fer etc.) projetés par
l'outil de travail. Ces objets peuvent
ricocher et toucher l'utilisateur.
N'apporter aucune modification à cette
machine – cela risquerait d'en
compromettre la sécurité. STIHL décline
toute responsabilité pour des blessures
ou des dégâts matériels occasionnés en
cas d'utilisation d'outils de travail non
autorisés.
Pour le nettoyage de cette machine, ne
pas utiliser un nettoyeur haute pression.
Le puissant jet d'eau risquerait
d'endommager certaines pièces de la
machine.
Vêtements et équipements
Porter des vêtements et équipements de
protection réglementaires.
Ne pas porter des vêtements qui
risqueraient de se prendre dans le bois,
les broussailles ou les pièces en
mouvement de la machine. Ne pas non
plus porter d’écharpe, de cravate ou de
bijoux. Les personnes aux cheveux
longs doivent les nouer et les assurer de
telle sorte qu'ils soient maintenus au-
dessus des épaules.
AVERTISSEMENT
Porter un dispositif antibruit
« personnel » – par ex. des capsules
protège-oreilles.
STIHL propose une gamme complète
d'équipements pour la protection
individuelle.
Transport de la machine
Toujours arrêter le moteur.
Porter la machine par la poignée de
portage, avec l'outil de travail en avant.
Ne pas toucher aux pièces très chaudes
de la machine – risque de brûlure !
Pour le transport dans un véhicule :
assurer la machine de telle sorte qu'elle
ne risque pas de se renverser, d'être
endommagée ou de perdre du
carburant.
Les vêtements doivent
être appropriés et ne
doivent pas être gênants.
Porter des vêtements
bien ajustés – une combi-
naison, mais pas une
blouse de travail.
Porter des chaussures
robustes, à semelle cran-
tée antidérapante.
Pour réduire le risque de
blessure oculaire, porter
des lunettes de protec-
tion couvrant étroitement
les yeux et conformes à
la norme EN 166. Veiller
à ce que les lunettes de
protection soient bien
ajustées.
Porter des gants de tra-
vail robustes en matériau
résistant (par ex. en cuir).
469BA001 KN
