Strongway 52858 User manual

SAVE THESE INSTRUCTIONS
Portable Strapping Cart
Owner’s Manual
WARNING: Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item #52858

Page 2 of 15
Thank you very much for choosing a Strongway™product!
For future reference, please complete the owner’s record below:
Serial Number/Lot Date Code: ________________________________
Purchase Date: ____________________________________________
Save the receipt, warranty, and this manual. It is important that you read
the entire manual to become familiar with this product before you begin
using it.
This Portable Strapping Cart is designed for certain applications only.
Northern Tool and Equipment is not responsible for issues arising from
modification or improper use of this product such as an application for
which it was not designed. We strongly recommend that this product not
be modified and/or used for any application other than that for which it
was designed.
For technical questions, please call 1-800-222-5381.

Page 3 of 15
Table of Contents
Intended Use..........................................................................................................................................4
Technical Specifications......................................................................................................................4
Important Safety Information...............................................................................................................4
Assembly Instructions..........................................................................................................................5
Operating Instructions..........................................................................................................................9
Maintenance ........................................................................................................................................12
Parts Diagram......................................................................................................................................12
Parts List..............................................................................................................................................13
Replacement Parts..............................................................................................................................13
Limited Warranty.................................................................................................................................14

Page 4 of 15
Intended Use
The Strongway Portable Strapping Cart is a mobile cart that can handle steel or poly strapping
applications to tighten and secure goods. The cart has a built-in tray for holding tensioners, cutters,
sealers, and other supplies.
Technical Specifications
Property
Specification
Max. Core Size (in.)
16 x 6, 16 x 3
Caster Size (in.)
10
Dimensions L x W x H (in.)
24 13/16 x 19 11/16 x 43 5/16
Ship Weight (lbs.)
55
Important Safety Information
⚠WARNING
Read and understand all instructions. Failure to follow all instructions may result in serious injury
or property damage.
The warnings, cautions, and instructions in this manual cannot cover all possible conditions or
situations that could occur. Exercise common sense and caution when using this cart. Always be
aware of the environment and ensure that the tool is used in a safe and responsible manner.
Do not allow persons to operate or assemble the cart until they have read this manual and have
developed a thorough understanding of how it works.
Do not modify this cart in any way. Unauthorized modification may impair the function and/or
safety and could affect the life of the product. There are specific applications for which the product
was designed.
Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this equipment was designed. It will
be safer and do a better job at the capacity for which it was intended. DO NOT use this equipment
for a purpose for which it was not intended.
Industrial or commercial applications must follow OSHA requirements.
⚠WARNING
This cart may contain chemicals known to the State of California to cause cancer, birth defects or
other reproductive harm.
⚠WARNING
WORK AREA SAFETY
Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit.
Cluttered, wet, or dark work areas can result in injury. Using the strapping cart in confined work
areas may put you dangerously close to other cutting tools and rotating parts.
Keep children and bystanders away from the work area while operating the tool. Do not allow
children to handle the strapping cart.

Page 5 of 15
⚠WARNING
PERSONAL SAFETY
Stay alert, watch what you are doing, and use common sense when operating the cart. Do not
use the cart while you are tired or under the influence of drugs, alcohol, or medication. A moment
of inattention while operating the tool may result in serious personal injury.
Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving
parts. Air vents on the tool often cover moving parts and should be avoided.
Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant
safety goggles (not safety glasses) with side shields, or when needed, a face shield. Use a dust
mask in dusty work conditions. Also use non-skid safety shoes, hardhat, gloves, dust collection
systems, and hearing protection when appropriate. This applies to all persons in the work area.
Do not overreach. Keep proper footing and balance at all times.
⚠CAUTION
CART USE AND CARE
Do not force the cart. Products are safer and do a better job when used in the manner for which
they are designed. Plan your work, and use the correct product for the job.
Check for damaged parts before each use. Carefully check that the cart will operate properly and
perform its intended function. Replace damaged or worn parts immediately. Never operate the
product with a damaged part.
Do not use a product with a malfunctioning switch. Any power tool that cannot be controlled with
the power switch is dangerous and must be repaired by an authorized service representative
before using.
Assembly Instructions

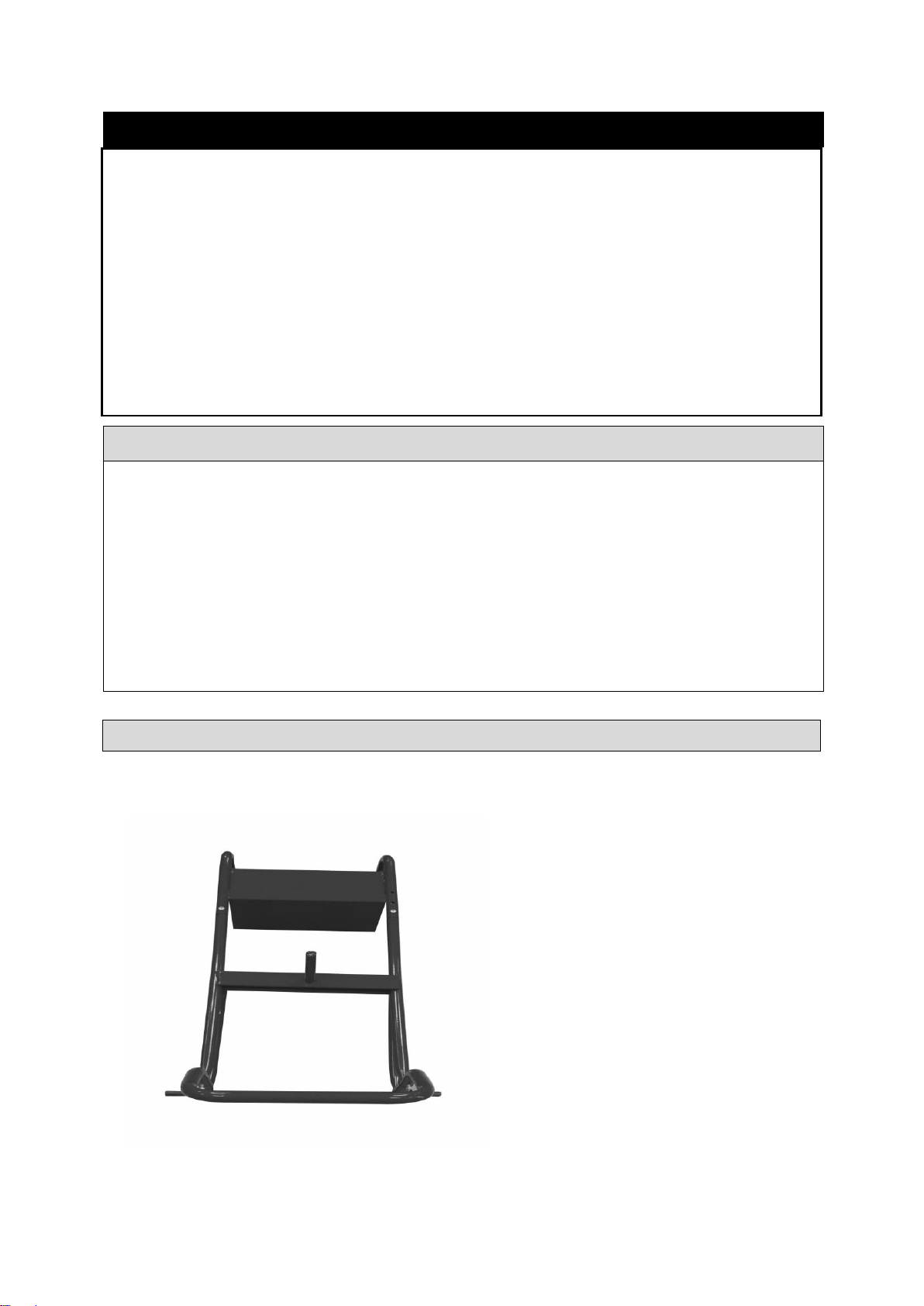

1. Attach brace frame (#24) and handle (#25) into the body frame (#1) with bolt (#26), nut (#27) and
washer (#28). See Fig.1.
Fig.1

Page 6 of 15
2. Attach the wheels (#3) into the body frame (#1) with washer (#21) and split pin (17). See Fig.2.
Fig.2
3. Attach the brake axostyle (#29) into the handle (#25) with bolt (#30), nut (#19), and washer (#28).
See Fig.3.
Fig.3

Page 7 of 15
4. Attach the bolt (#20) and the big spring (#8) into the brake axostyle (#29). Make sure one head of
the spring hooks the bolt. See Fig.4.
Fig.4
5. Attach the brake assembly into brake axostyle (#29). See Fig.5.
Note: Brake assembly includes brake holder (#7), big spring (#8), bolt (#9), fixed tube (#10), nut (#11),
brake shaft (#12), block (#13, #14, and #15), washer (#16), split pin (#17), small spring (#18), and
rubber block (#22).
Fig.5

Page 8 of 15
6. Attach plate (#2) into the body frame (#1). Make sure the side of the wheel touches the rubber
block (#22). See Fig.6.
Fig.6
7. Place the washer (#16) and the pin (17) into the post of the plate (#2). See Fig.7.
Fig.7

Page 9 of 15
8. Attach the plate (#4) into plate (#2) with the nut (#6). Be sure the side of the wheel attaches to the
rubber block (#22). See Fig.8.
Fig.8
Operating Instructions
If mounting 16’’x6’’ or 8’’x8’’ strapping, please follow these instructions:
1. Attach the long thread shaft (#5) into the plate (#2) with bolt (#23) Adjust the long thread shaft
to the flat location. See Fig.9.
Fig.9

Page 10 of 15
2. Adjust the brake system position. See Fig.10.
Fig.10
3. Place the strapping into the middle of the plate and take out the strapping from the brake
holder (#7). Fig.11.
Fig.11

Page 11 of 15
4. Attach the plate (#4) into the long thread shaft (#5) with nut (#6). See Fig.12.
Fig.12
5. Pack the parcels and product with the strapping. See Fig.13.
Fig.13

Page 12 of 15
Maintenance
Maintain the strapping cart by adopting a program of conscientious repair and maintenance in
accordance with the following recommended procedures. It is recommended that the general
condition of any tool be examined before it is used. Keep your tool in good repair and clean.
Inspect
•Hardware should be checked for any looseness. Tighten as required.
•Frames should be inspected for wear or damage.

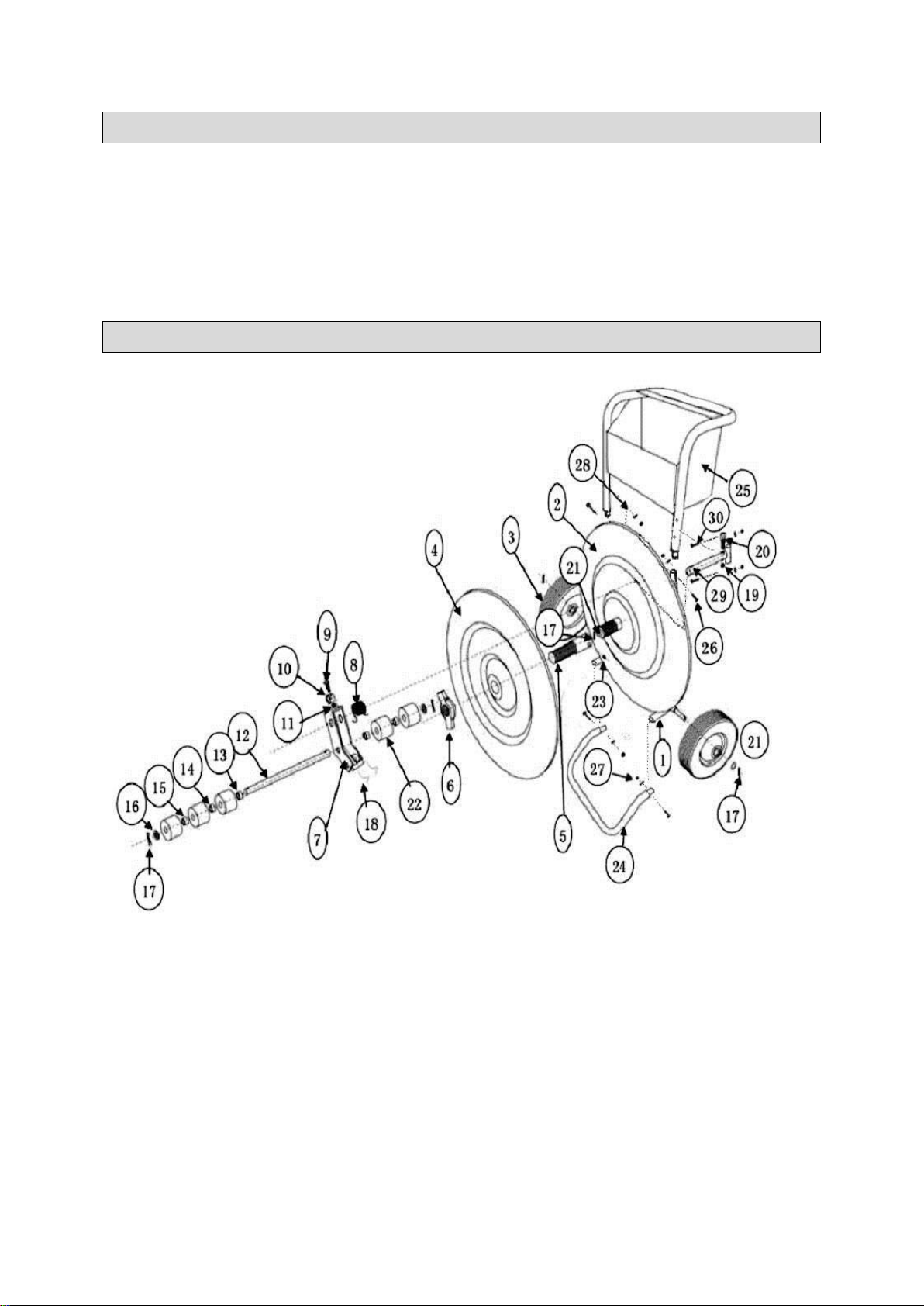

Parts Diagram

Page 13 of 15
Parts List
Part#
Description
Qty.
Part#
Description
Qty.
1
Body Frame
1
16
12 Washer
2
2
Plate
1
17
3 Split Pin
4
3
Wheel
2
18
Small Spring
2
4
Plate
1
19
M6 Locknut
1
5
Long Thread Shaft
1
20
M6x40 Bolt
1
6
Nut
1
21
16 Washer
3
7
Brake Holder
1
22
Rubber Block
5
8
Big Spring
1
23
M10x15 Bolt
1
9
M8x40 Bolt
2
24
Brace Frame
1
10
Fixed tube
2
25
Handle
1
11
M8 Nut
1
26
M6x40Bolt
4
12
Brake shaft
1
27
M6 Locknut
6
13
16x1.2 Block
2
28
6 Washer
6
14
16x1.2 Block
2
29
Brake Axostyle
1
15
16x1.2 Block
2
30
M6x40 Bolt
2
Replacement Parts
For replacement parts and technical questions, please call Customer Service at 1-800-222-5381.
Not all product components are available for replacement. The illustrations provided are a
convenient reference to the location and position of parts in the assembly sequence.
When ordering parts, the following information will be required: item description, item model
number, item serial number/item lot date code, and the replacement part number.
The distributor reserves the rights to make design changes and or improvements to product lines
and manuals without notice.

Page 14 of 15
Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or '"Us'') warrants to the original purchaser only
("You'' or “Your”) that the Strongway product purchased will be free from material defects in both
materials and workmanship, normal wear and tear excepted, for a period of one year from date of
purchase. The foregoing warranty is valid only if the installation and use of the product is strictly in
accordance with product instructions. There are no other warranties, express or implied, including the
warranty of merchantability or fitness for a particular purpose. If the product does not comply with this
limited warranty, Your sole and exclusive remedy is that We will, at our sole option and within a
commercially reasonable time, either replace the product or product component without charge to You
or refund the purchase price (less shipping). This limited warranty is not transferable.
Limitations on the Warranty
This limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect,
misuse, or as a result of any accident or in any other manner; (c) damage from misapplication,
overloading, or improper installation; (d) improper maintenance and repair; and (e) product alteration
in any manner by anyone other than Us, with the sole exception of alterations made pursuant to
product instructions and in a workmanlike manner.
Obligations of Purchaser
You must retain Your product purchase receipt to verify date of purchase and that You are the original
purchaser. To make a warranty claim, contact Us at 1-800-222-5381, identify the product by make
and model number, and follow the claim instructions that will be provided. The product and the
purchase receipt must be provided to Us in order to process Your warranty claim. Any returned
product that is replaced or refunded by Us becomes our property. You will be responsible for return
shipping costs or costs related to Your return visit to a retail store.
Remedy Limits
Product replacement or a refund of the purchase price is Your sole remedy under this limited warranty
or any other warranty related to the product. We shall not be liable for: service or labor charges or
damage to Your property incurred in removing or replacing the product; any damages, including,
without limitation, damages to tangible personal property or personal injury, related to Your improper
use, installation, or maintenance of the product or product component; or any indirect, incidental or
consequential damages of any kind for any reason.
Assumption of Risk
You acknowledge and agree that any use of the product for any purpose other than the specified
use(s) stated in the product instructions is at Your own risk.
Governing Law
This limited warranty gives You specific legal rights, and You also may have other rights which vary
from state to state. Some states do not allow limitations or exclusions on implied warranties or
incidental or consequential damages, so the above limitations may not apply to You. This limited
warranty is governed by the laws of the State of Minnesota, without regard to rules pertaining to
conflicts of law. The state courts located in Dakota County, Minnesota shall have exclusive jurisdiction
for any disputes relating to this warranty.

Page 15 of 15
Distributed by:
Northern Tool & Equipment Company, Inc.
Burnsville, Minnesota 55306
www.northerntool.com
Made in China
