Structural Concepts SB5735 Series Installation instructions

READ AND SAVE THESE INSTRUCTIONS
P/N 54100
SELF-CONTAINED REFRIGERATED
SERVICE / SELF-SERVE UNITS
INSTALLATION &
OPERATING MANUAL
Rev IDate: 3.5.2013
Model SB5735………...34 1/2”L* x 33”D** x 58 7/8”H~
Model SB5754.3924……....54”L* x 33”D** x 58 7/8”H~
Model SB5766.3923..….…66”L* x 33”D** x 58 7/8”H~
Model SB5766.3923A….…66”L* x 33”D** x 58 7/8”H~
Model SB5766.4999…...…66”L* x 33”D** x 58 7/8”H~
Model SB5766.5106..….…66”L* x 33”D** x 58 7/8”H~
* With End Panels
** 47 1/8” With Rear Ledge upright
~ With Adjustable Levelers Extended 1 5/8” Below Base Frame
Certification: NSF-7, CRMA, UL/CSA
I:\Oper Manuals - PUB\Starbucks\SB5735_SB5766-3923A_SB5754-3924_54100.pub
SB5754.3924
SB5766.3923A
888 E. Porter Road · Muskegon, MI 49441 Phone: [phone] Fax: [phone] www.structuralconcepts.com
SB5735

2
TABLE OF CONTENTS
OVERVIEW / NSF® TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS .…..
REFRIGERATION ASS’Y REMOVAL, CASE REMOVAL AND LEVELER ADJUSTMENT …………..
START-UP AND OPERATION …………...…...…..……………………………………………….…………
SECURITY ………….……………...….…………...…...…..…………………………………………………...
MAINTENANCE AND OPERATION ..…………...…...…..……………………………………………..……
ELECTRICAL FUNDAMENTALS ………...…...…..…………………………………….……………...…….
REFRIGERATION FUNDAMENTALS ..………………...…..……………………………………..…………
HOT GAS CONDENSATE EVAPORATIVE SYSTEM OPERATION………...…..………………...……..
LOAD LEVEL GUIDELINES [APPLICABLE TO ALL MODELS] ………………………………………...
SERIAL LABEL LOCATION & INFORMATION LISTED / TECH INFO & SERVICE …………….…….

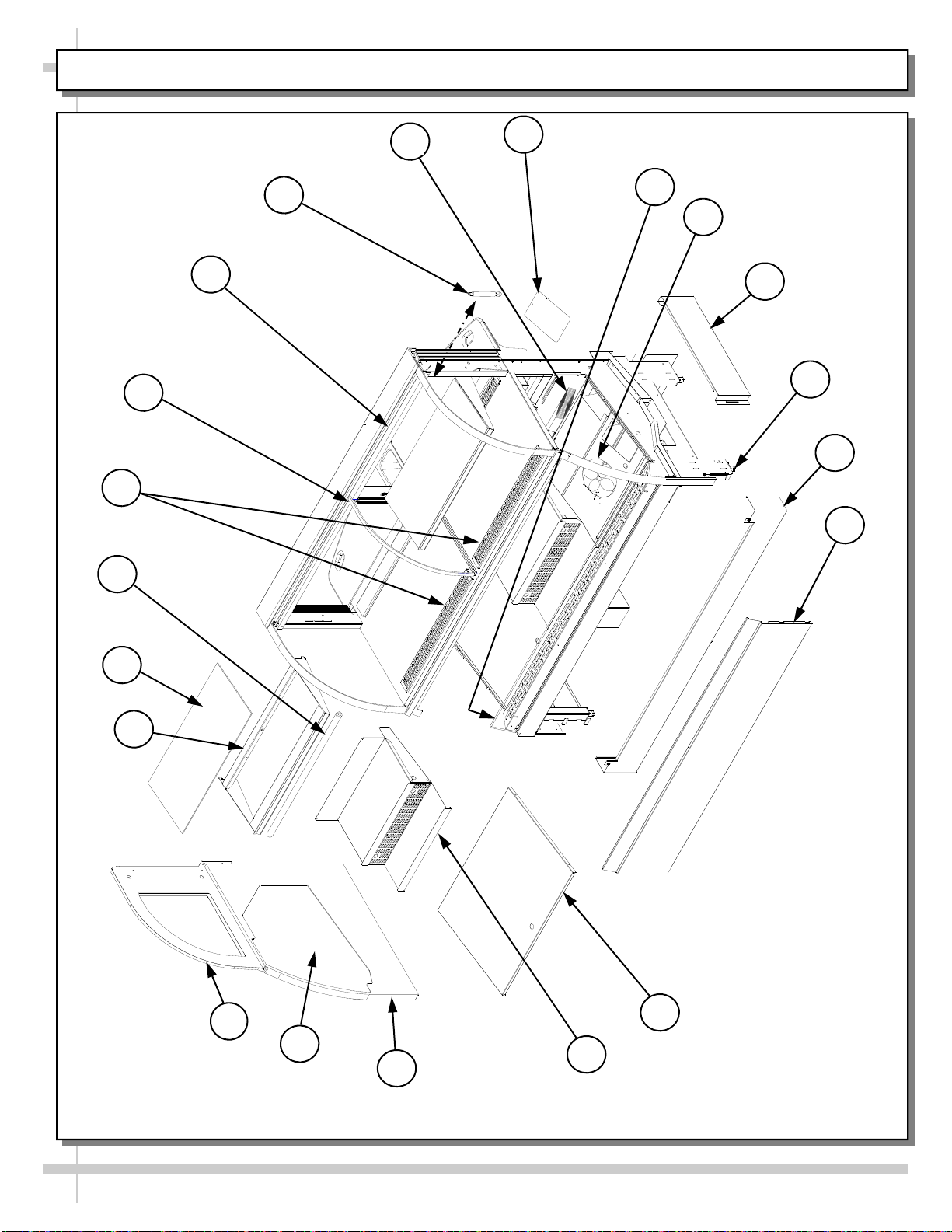

ILLUSTRATED PARTS BREAKDOWN FOR MODEL SB5766.3923/3923A (SIMILAR TO OTHER
MODELS) ………………………………...……………………………..……………………………….....……
PARTS LIST FOR MODEL SB5766.3923/3923A (SIMILAR TO OTHER MODELS) ....…………...……
ILLUSTRATED PARTS BREAKDOWN / PARTS LIST FOR MODEL SB5735 CONDENSER PKG ...
CLEANING SCHEDULE [TO BE PERFORMED BY STORE PERSONNEL] ……………...….….....….
CLEANING SCHEDULE [TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY] ……..
TROUBLESHOOTING [TO BE PERFORMED BY STORE PERSONNEL ……………………………...
TROUBLESHOOTING [TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY] ……….
TROUBLESHOOTING [BY TRAINED SERVICE PROVIDERS ONLY] - CONDENSING SYSTEM
TROUBLESHOOTING [BY TRAINED SERVICE PROVIDERS ONLY] - EVAPORATOR SYSTEM
PREVENTIVE MAINTENANCE - HONEYCOMB AIR DIFFUSERS [TRAINED SERVICE
PROVIDERS ONLY] …………………………………………………………………………………...
CAREL® CONTROLLER - PROGRAMMING THE INSTRUMENT ……………………......……………..
CAREL® CONTROLLER - USER INTERFACE DISPLAY & SUMMARY TABLE OF ALARM AND
SIGNALS: DISPLAY, BUZZER AND RELAY ……………………….………………..…...……….
CAREL® CONTROLLER - SUMMARY TABLE OF OPERATING PARAMETERS (AFTER
PROGRAMMING KEY) ………………..…………………………………………………….....….…..
QUARTERLY PREVENTIVE MAINTENANCE FORM …..…………………...……………………….....…
SCC TECHNICAL SERVICE CONTACT INFORMATION & STARBUCKS LIMITED WARRANTY ....
3-4
5
6-7
8
9-11
12
13-14
15
16
17
18-20
21
22
23
24
25-26
27-29
30
31
32
33
34
35
36
37

3
OVERVIEW
 These Structural Concepts merchandisers are
designed to merchandise pre-chilled packaged
products at 41 °F [5 °C] or less product temperatures.
 This self-contained refrigerated unit is a barista serve
unpackaged food and customer self serve packaged
food and drink case.
 Cases should be installed and operated according to
this operating manual’s instructions to ensure proper
performance.
 Improper use will void warranty.
NSF® TYPE
This unit is designed for the display of products in ambient
store conditions where temperatures and humidity are
maintained within a specific range.
 For NSF® Type 1 Conditions (most cases): ambient
conditions are to be at 55% maximum humidity and
maximum temperatures of 75 °F [24 °C].
 For NSF® Type 2 Conditions: ambient conditions are
to be at 60% maximum humidity and maximum
temperatures of 80 °F [27 °C].
 If unsure if unit is NSF® Type 1 or 2, see tag next to
serial label. See SERIAL LABEL LOCATION &
INFORMATION LISTED / TECH INFO & SERVICE
section in this manual for sample serial labels.
COMPLIANCE
 Performance issues when in violation of applicable
NEC, federal, state and local electrical and plumbing
codes are not covered by warranty.
 See below compliance guideline.
WARNINGS
 This sheet contains important warnings to prevent
injury or death.
 Please read carefully!
PRECAUTIONS, CORD/PLUG MAINTENANCE &
WIRING DIAGRAM INFORMATION
 See next page for PRECAUTIONS, CORD/PLUG
MAINTENANCE and WIRING DIAGRAM
information.
WARNING
Hazardous moving parts. Do not operate unit with covers removed.
Fan blades may be exposed when deck panel is removed.
Disconnect power before removing deck panel.
WARNING
Risk of electric shock. Disconnect power before servicing unit.
CAUTION! More than one source of electrical supply is
employed with units that have separate circuits.
Disconnect ALL ELECTRICAL SOURCES before servicing.
WARNING
Condensate Pan is Hot!
Disconnect and allow to cool
before cleaning or removing from case.
WARNING
ELECTRICAL
HAZARD
WARNING
KEEP
HANDS
CLEAR
WARNING
HOT
SURFACE
COMPLIANCE
This equipment MUST be installed in compliance with
all applicable NEC, federal, state and local
electrical and plumbing codes.
OVERVIEW / NSF® TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS - PG 1 of 2

4
OVERVIEW / NSF® TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS - PG 2 of 2
CAUTION! GFCI BREAKER USE REQUIREMENT
If N.E.C. (National Electric Code) or your local code
requires GFCI (Ground Fault Circuit Interrupter) protection,
you MUST use a GFCI breaker in lieu of a GFCI receptacle.
CAUTION! ADVERSE CONDITIONS / SPACING ISSUES
 Performance issues caused by adverse conditions are NOT warranted.
 End panels must be tightly joined or kept at least 6-inches away from
any structure to prevent condensation.
 Unit must be kept at least 15-feet from exterior doors, overhead HVAC
vents or any air curtain disruption to maintain proper temperatures.
 Unit must not be exposed to direct sunlight or any heat source
(ovens, fryers, etc.).
 Tile floors, low ceilings or small rooms increase noise level. Whisper
Cool compressor blankets or remote units resolve noise level issues.
 Keep at least 8-inch clearance above unit for air discharge
(self-contained units only).
CAUTION
CAUTION! LAMP REPLACEMENT GUIDELINES
Fluorescent lamps have been treated to resist breakage and
must be replaced with similarly treated lamps.
CAUTION
PRECAUTIONS
 This sheet contains important precautions to prevent
damage to unit or merchandise.
 Please read carefully!
 See previous page for specifics on OVERVIEW, NSF
TYPE, COMPLIANCE and WARNINGS.
WIRING DIAGRAM
 Each case has its own wiring diagram folded and in
its own packet.
 Wiring diagram placement may vary; it may be
placed near ballast box, field wiring box, raceway
cover, or other related location.
CAUTION! POWER CORD AND PLUG MAINTENANCE
Risk of electric shock. If cord or plug becomes damaged,
replace only with cord and plug of same type.
CAUTION! CHECK CONDENSATE PAN POSITION & PLUG
Water on flooring can cause extensive damage!
Before powering up unit, check and confirm that:
 Condensate pan is DIRECTLY UNDER condensate drain.
 Condensate pan plug is securely plugged into receptacle.
 Overflow pan has plug connected to its box. Units with optional
Clean Sweep™ MUST HAVE 2 plugs connected.

5

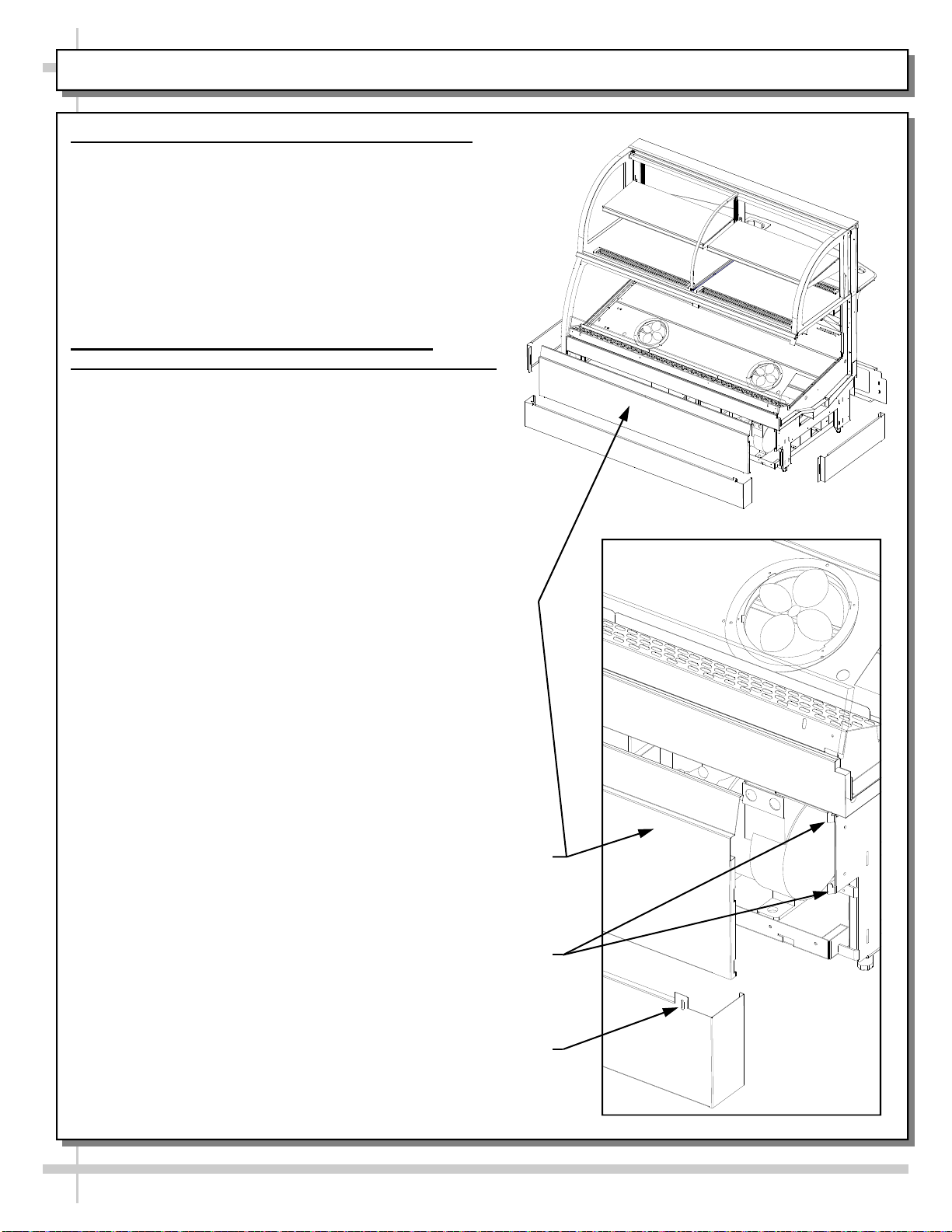

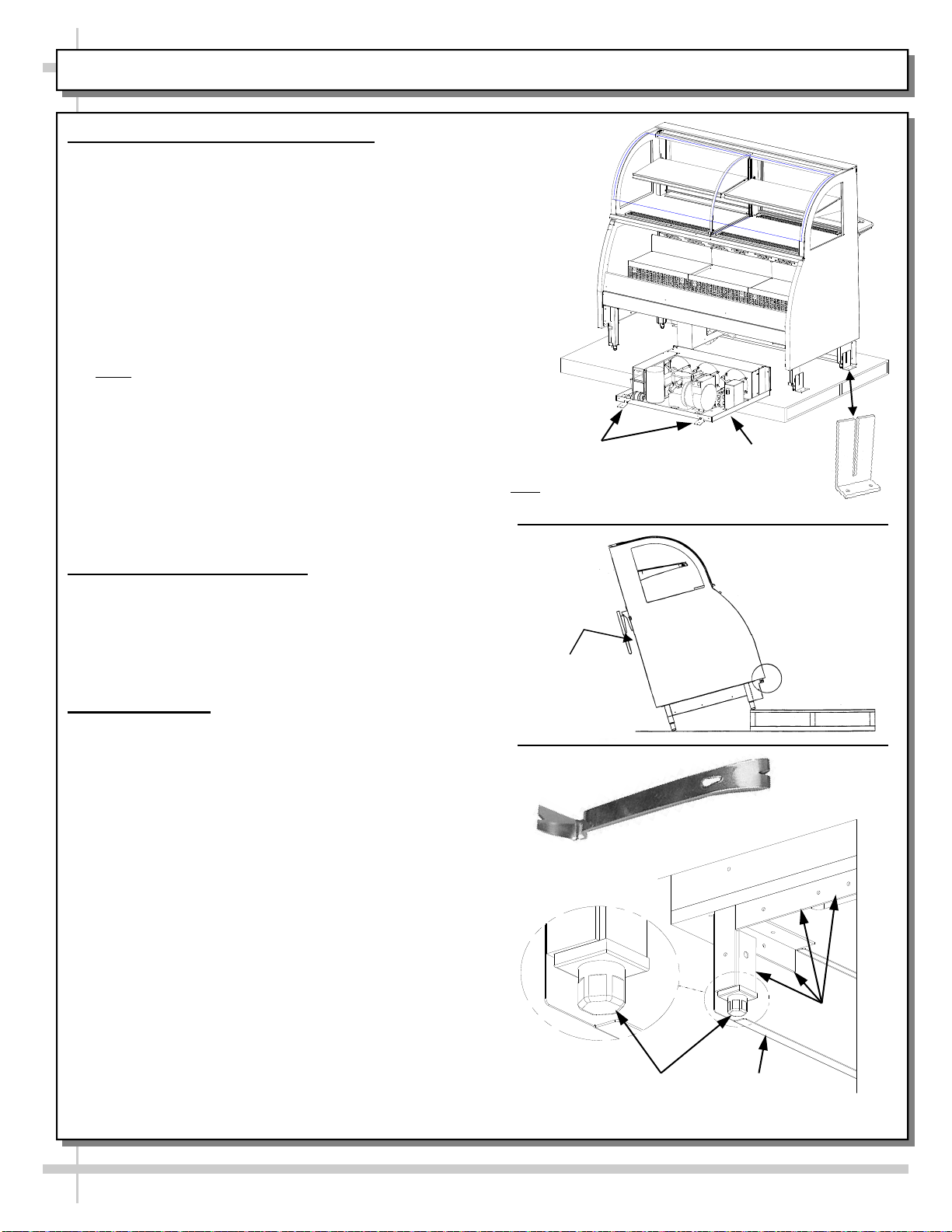

REFRIGERATION ASSEMBLY REMOVAL, CASE REMOVAL AND LEVELER ADJUSTMENT
1. Removing Refrigeration Assembly
 Note: Retain screws that are removed from the
CASE shipping brackets (Screws will be used as
Toe-Kick fasteners).
 Remove front panel.
 Lift front panel upward from the lower edge,
approximately one half inch to detach from the
retainer hooks.
 Remove all shipping brackets from units base and
compressor.
 Reuse shipping bracket screws for Toe-Kick
mounting.
 Note: Make sure all hoses and power cords are
disconnected before completely removing
compressor from unit.
 The compressor base is on casters. Roll the
assembly out half way straight out from the front
of the case.
 Carefully lower assembly to floor.
 After compressor unit is removed, roll out of the
way while locating and setting case.
2. Removing Case from Skid
 Slide case halfway off back of skid.
 Lower case onto back rear levelers.
 Tilt case back enough to free skid.
 Slide skid out from front of case, lower case to
floor.
3. Leveling Case
 Levelers may need to be adjusted for proper height
clearance to fully insert unit.
 Tools needed: level, pry bar, and adjustable
wrench.
 Using a level, find the highest point on the case.
 Level the case to that highest point by turning the
levelers up or down to the desired level position.
Refrigeration
Assembly
Refrigeration Assembly
Shipping Brackets.
Note: Illustration shown may
differ slightly from your case.
Pry Bar
Toe-Kick
Base
Frame
Leveler
Do NOT grab
rear ledge
to move case!

6

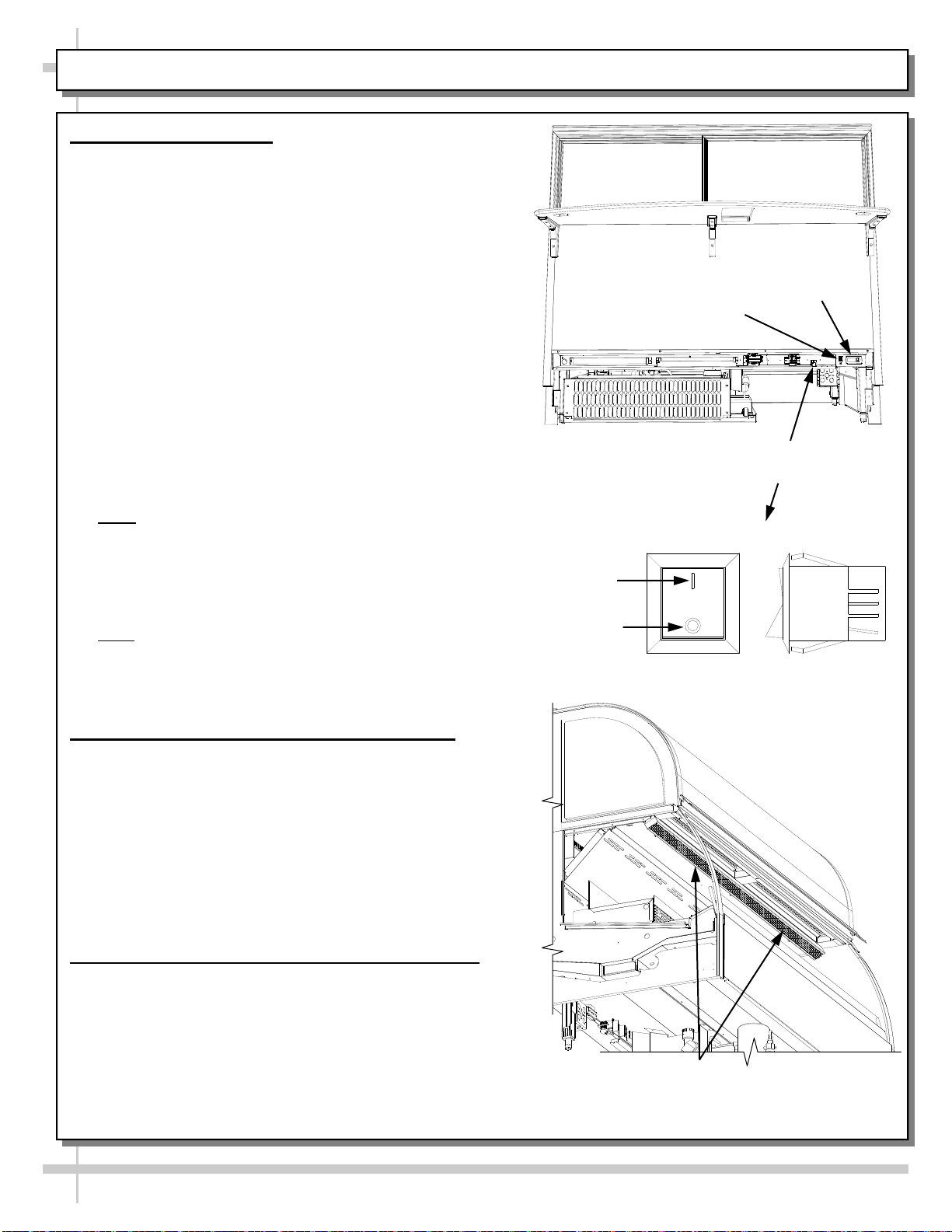

START-UP AND OPERATION
1. Merchandiser Start-Up
 Remove rear toe-kick (by removing four screws,
two at each end).
 Turn main power on. Switch (220V) is up and
under rear raceway on right side of case.
 The Controller display will illuminate.
 Coil fans should turn on. From inside case, check
for discharge air from front baffle to confirm that
fans are functioning properly.
 When the case is in a start up mode or has been
idle for a long period of time, the unit will require
75 minutes in order to pull-down temperature.
 Self-Contained refrigerated cases must maintain
front airflow clearance of approximately twelve
inches and rear airflow clearance of approximately
six inches.
 Obstruction / restriction of air voids warranty.
 The interior case temperature is to reach 2 °C /
35 °F to 5 °C / 41 °F.
 Note: Case temperature is set at the factory, as
determined by the case size. Temperature is
controlled by a thermostat.
 If a temperature setting change is required, refer
to the Temperature Controller section of this
operating manual.
 Note: According to product displayed, Set point
should be -6 °C / 22 °F to -3 °C / 26° F. This will
maintain the product temperature range. Settings
lower than this can cause product to freeze.
2. Set Point & Differential Adjustment Guideline
 Caution! The Differential MUST be adjusted
either up or down in tandem with the Set point.
 For example, if the Set point is raised from 22 °F
to 26 °F (a 4 °F increase), the Differential must
also be raised by 4 °F from (11 °F to 15 °F).
 Keeping the Set point and Differential
temperatures ‘in tandem’ will maintain product
temperature and prevent excessive compressor
cycles.
3. See Next Page For Fluorescent Light Guidelines

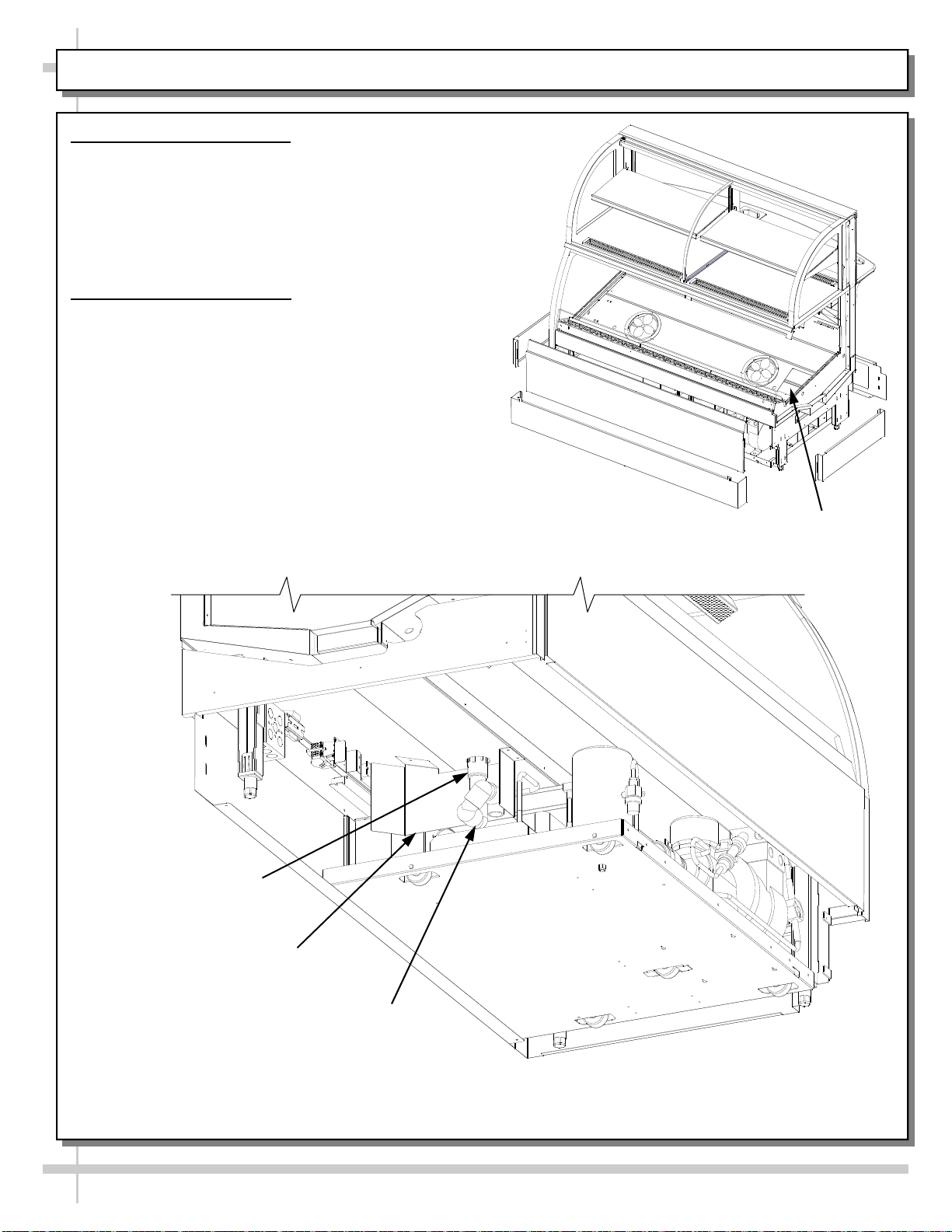

OFF
ON
Rocker Switch
Controller
Display
Main Power Switch
(access at underside)
Light Switch
Honeycomb Air Diffuser. See PREVENTIVE MAINTENANCE -
HONEYCOMB AIR DIFFUSERS [SERVICE TECHNICIANS
ONLY] section in this manual for cleaning instructions.

7
START-UP AND OPERATION, CONTINUED

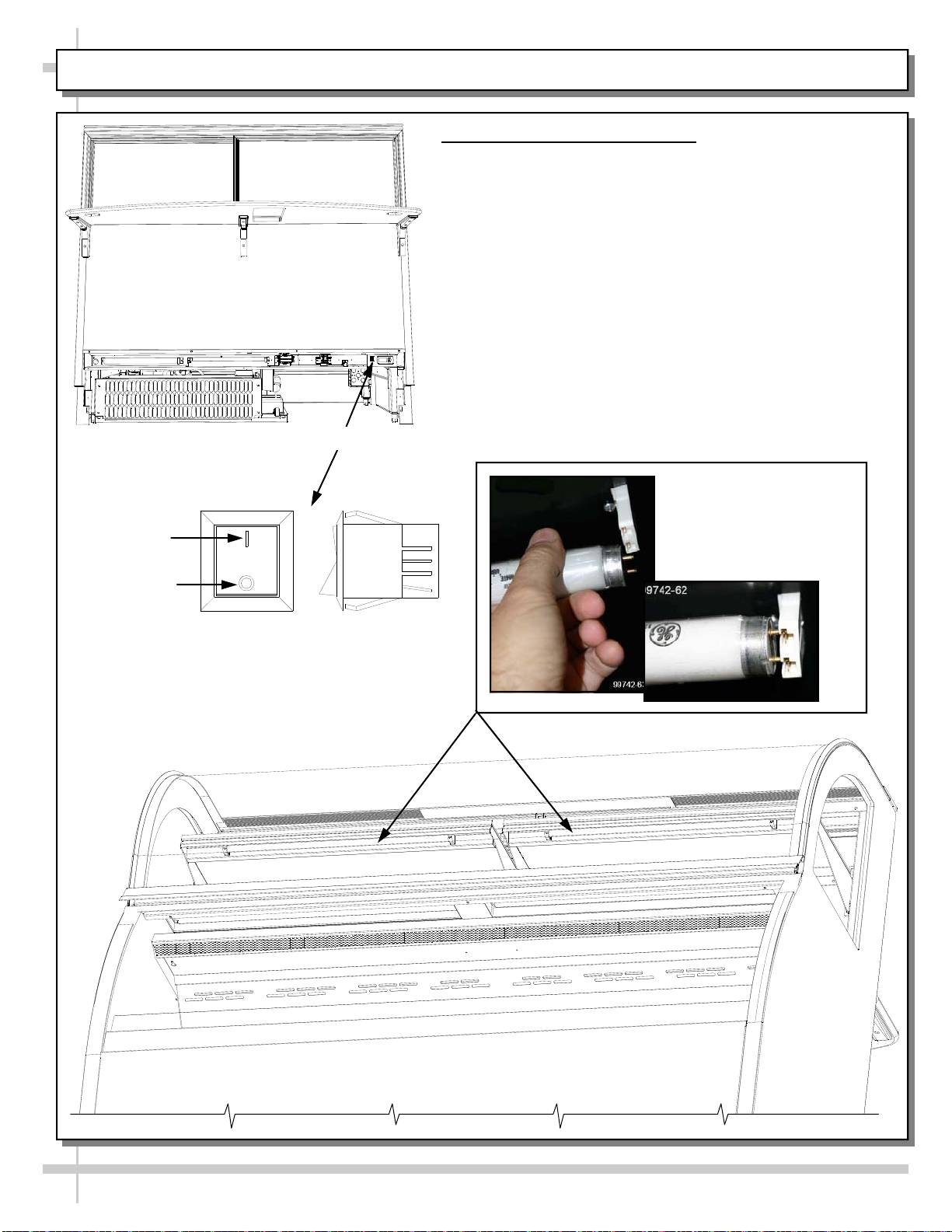

3. Fluorescent Light Guidelines
 Turn lights on. All of the lights should come on at the
same time. First time lighting may require a short warm
up period for the bulbs. Slightly dim or a flickering of
new bulbs is normal. If lights do not turn on, check that
all of the light plugs are in.
Removal of lamps:
 Grasp lamp firmly and carefully pull downward and out
from socket.
 See photos at mid-right.
Installation of lamp:
 Align pins with slot.
 Insert pins into socket and push upward into place.
 See photos below.
OFF
ON
Rocker Switch
Light Switch
Standard
Fluorescent
Light Fixtures

8
SECURITY
Anti-Theft Grid Installation (Optional Item only on Model SB5766)
 Position Anti-Theft Grid so that the locking rods extend down pointing towards the floor.
 Insert grid extensions into the forward air return louver.
 With “U” shackle released from the padlock base, insert the locking “U” of the padlocks through the sta-
tionary locking bracket.
 Rotate “U” shackle 90 degrees and pull up through grid; secure “U” shackle into padlock base.
Note: Due to possible design modification, actual Anti-Theft Grid construction and positioning may differ
than depicted below.
Return
Air Grille
Anti-Theft
Grid Extensions
Anti-Theft
Grid

9
MAINTENANCE AND OPERATION
1. Crumb Tray
 Located in back of case under ledge.
 Pull out to empty and clean. Replace
promptly.
 Note: Make sure drawer is pushed in tight to
maintain refrigeration efficiency.
2. Removing the Rear Doors
 Move the rear doors toward the center of the
case.
 Individually lift each door up into the upper
door frame track at the top of the case.
 Pivot the bottom of the door out.
 Slip out of the upper door frame track.
3. Installing Rear Doors
 Doors are not interchangeable, and must be
installed as labeled.
 Note: Doors are labeled in the lower
corners to identify their proximity to the
interior of the case (inner or outer door).
 Inner door must be installed first in the inner
door track.
 Insure that the door pull handle is to the
outside and to the left of the case.
 Insert the door into the upper inside track and
lower door onto the inside lower track.
 Move inner door to the left.
 Install the outer door with the door pull handle
to the right and the chrome door stop to the
inside lower right.
 Insert the door into the upper and outer track
and lower door onto the outer lower track.
4. Removing Interior Shelving
 Remove any product from the display area.
 Remove the ABS shelving.
 Turn off light switch prior to unplugging shelf
light.
 Unplug shelf light.
 Remove the complete shelf assembly
 Use even upward pressure to disengage
the shelf assembly support brackets from
the adjustment slots.
Crumb
Tray
Right Hand or Outer Door must
come out first and go back in last.
ABS Shelf
Shelf Light Assembly

10
MAINTENANCE AND OPERATION, CONTINUED
5. Removing and Replacing Toe-Kicks Panels
 Front and rear kicks be removed first and
installed last when performing maintenance.
6. Removing Front Toe-Kick
Remove the two screws located on the upper
front of the toe-kick at both ends.
7. Removing rear Toe-Kick
Remove four screws at both ends of the grille.
8. Removing Side Toe-Kicks
Note: Side toe kicks are captive by the rear kick
panel in the back of the unit.
 Remove screws to the rear toe-kick.
 Remove front kick panel.
 Remove screws at front of side toe-kicks.
Front Kick Panel
Rear Kick Panel
Support Screws
Front Kick Panel
Front Kick Support
Screw Location
Side Kick Panel
Screw Location
Side Kick Panel
Side Kick
Panels

11
MAINTENANCE AND OPERATION, CONTINUED
9. Service Area, Ambient / Refrigerated
 Note: Illustrations at right may not depict an
exact representation of every particular unit.
 Access is through rear doors.
 Lift air baffle straight up then rotate 90 degrees
so the arrows on the tag point down and tag is
Air Baffle
(slots down)
Air Baffle
(Suspended)
Air Baffle
(slots up)
to the rear of the case. Lower the baffle, with slots
facing up, back down into the air channel.
 To close, reverse the procedure.
 Note: Removing the baffle facilitates cleaning
interior by providing easy removal of refuse to the
crumb tray.

12
ELECTRICAL FUNDAMENTALS
1. Electrical: Access and Connections
Connections must be performed by a certified
electrician.
Warning! Disconnect power before providing
maintenance and service to unit.
2. Electrical Leads
 Remove rear Toe-Kick panel.
 The electrical leads are located inside the 4 x
4 electrical box at the rear lower right hand
base of the case.
3. Light Ballast Access
 Remove 6 screws from rear wireway cover to
access electrical connections and ballasts.
4. Evaporator Fans Access
 Remove lower decking.
 A finger hole is provided to lift up and pull
out decking.
5. Removing Fan Assembly
 Unplug the fans.
 Remove screws from the fan supports.
 Remove fan assembly from the shroud
assembly.
6. Temperature & Defrost Control
 The case temperature Set Point is set at the
factory, as determined by the case size and
sensor probe location.
 The temperature is controlled by a
thermostat.
 If a temperature setting change is required,
follow the Programming Steps in the
Temperature Controller section of this
operating manual.
 If service is required to the temperature
control unit, call Structural Concepts. This
maintenance should be performed by a
certified technician.
Electrical
Leads
Temperature
Controller
Rear
Wireway
Main Power Switch
Ballasts
Light Switch
Electrical
Leads

13
REFRIGERATION FUNDAMENTALS
1. Refrigeration: Access, Connections & Removal
Note: Rollers are mounted to the units base to facilitate
in moving the condenser.
 Remove front panel. Lift panel from lower edge
upward approximately a half inch.
 Remove front toe-kick.
 Remove two screws located on the upper front of
the toe-kick at both ends.
 See Illustrated Parts Breakdown in this manual.
2. Assembly / Disassembly / Servicing To Be
Accomplished By Licensed Refrigeration Contractor
 Refrigerant lines are equipped with screw on/off
fittings to facilitate maintenance.
 The control module has quick disconnect electrical
fittings to the controller face.
 See Illustrated Parts Breakdown in this manual.
Lift straight
up; then
pull forward
Front Panel
Retainer Hooks
Front Toe-kick Screw

14
REFRIGERATION FUNDAMENTALS, CONTINUED
Expansion Valve
Access Cover
Condensate Drain
Tub Connection
Hose / Drain Guard
“P” Trap /
Drain Hose
3. Expansion Valve Access
 The expansion valve is accessible from the
front of the case.
 Remove lower decking using finger hole to
lift up and pull out.
 The expansion valve (TXV) is located
directly below the access panel.
4. Refrigeration Installation
 Warning! Avoid damage to condensate
drain while inserting compressor package.
 Keep refrigeration unit to the right against
the frame of case. Levelers may need to
be adjusted for proper height clearance to
fully insert unit.
 When pulling or pushing unit in or out under
the case, use caution to avoid damage to
copper refrigeration lines and hoses.
FrontPanel
Roll-Out Pan
Refrigeration Ass’y
(At Customer Right)

15
HOT GAS CONDENSATE EVAPORATION SYSTEM
15
Hot Gas Condensate: Unit is provided with Hot
Gas Condensate Removal System
Warning! Disconnect power before providing
maintenance and service to unit.
1. System Operation
 This system utilizes a hot gas serpentine coil
that is routed through a condensate reservoir
allowing water to be heated, in conjunction with
a Wicking material that is partially submersed
with warm condenser air passing through it for
evaporation.
 The system also incorporates an overflow
reservoir with heating element to ensure
complete condensate removal.
2. Indicator Light
 Hot gas condensate removal system is also
equipped with an Indicator Light (red) for
Wicking Material replacement, accessible at
rear of case. See picture below.
3. Wicking Material Replacement
 Pull condensing system out from under unit.
 Remove wicking material cover from top of
condensing system by removing attaching
screws. (see Illustration above top-right)
 To obtain replacement Wicking Material go to
www.filters-now.com at [phone] and
order filter ‘UFK01’ or call Structural Concepts
Corporation Technical Service at
1-(800)-433-9489 and order part # 83328.
Indicator Light
Attaching screws
Wicking Material
Wicking Material Cover

16
LOAD LEVEL GUIDELINES [APPLICABLE TO ALL MODELS]
Load Level Guidelines
Caution! Do Not Block Airflow! If airflow is blocked by product, product temperatures will vary and
possibly reach unsafe levels.
> Illustration below displays product placement allowing proper air flow.
> Note: Illustration below may not reflect every feature or option of your case.
 Case Front: The dashed line in illustration below, reflects an “invisible curtain” of airflow from the
“Honeycomb” Air Diffuser to the Return Air Grille. This area must not be blocked.
 Case Top: Product must be kept at least 1” below “Honeycomb” Air Diffuser.
 Case Rear: Do not allow the product to press up against the Rear Plenum. Keep at least 1” distance
between product and Rear Plenum.
AIRFLOW AREA.
DO NOT BLOCK.
HATCH PATTERN
REPRESENTS
AIR FLOW.
DO NOT BLOCK.
PRODUCT MUST
BE STACKED
AT LEAST 1"
BELOW
HONEYCOMB PRODUCT MUST
BE AT LEAST
1" FROM
REAR PLENUM
PRODUCT STOP
PRODUCT
RETURN
AIR GRILLE
HONEYCOMB
AIR DIFFUSER

17
SERIAL LABEL LOCATION & INFORMATION LISTED / TECHNICAL INFO & SERVICE
Serial Label Location & Information Listed / Technical Information & Service
 Serial labels are located near the electrical access on your case.
 Serial labels contain electrical, temperature & refrigeration information, as well as regulatory
standards to which the case conforms.
 For additional technical information and service, see the TECHNICAL SERVICE page in this
manual for instructions on contacting Structural Concepts’ Technical Service Department.
 See images below for samples of both refrigerated and non-refrigerated serial labels.
----- Sample Serial Label For Refrigerated Case -----
----- Sample Serial Label For Non-Refrigerated Case -----
SAMPLE ONLY
SAMPLEONLY
SAMPLE ONLY
SAMPLE ONLY
SAMPLEONLY
SAMPLE ONLY

18
5
19
20
17
16
11
8
7
4
12
9
15 14
10
6
3
2
1
18
13
ILLUSTRATED PARTS BREAKDOWN FOR MODEL SB5766.3923/3923A (SIMILAR TO OTHER MODELS)

19
ILLUSTRATED PARTS BREAKDOWN FOR MODEL SB5766.3923/3923A (SIMILAR TO OTHER MODELS)
35
34
23
24
29
30
33
31
27
21
22
26 25
32
28

20
36
52
50
51
48
47
49
46
44
45
43
42
41
39
40
37
38
NOTE: MODEL SB5754.3924
CONDENSER PACKAGE
IS SIMILAR TO
ILLUSTRATION SHOWN
ILLUSTRATED PARTS BREAKDOWN FOR MODEL SB5766.3923/3923A (SIMILAR TO OTHER MODELS)
