Structural Concepts grocerant DP8HP60WD.5718B Installation instructions

Rev A Date: 11.25.2020
Operating Manuals\Grocerant_Vollrath_Hatco Hot Sides Merchandiser Manual_21-20699.pub
888 E. Porter Road ∙ Muskegon, MI 49441 Phone: [phone] Fax: [phone] www.structuralconcepts.com
READ AND SAVE THESE INSTRUCTIONS
SCC P/N
21-20699
INSTALLATION &
OPERATING
MANUAL

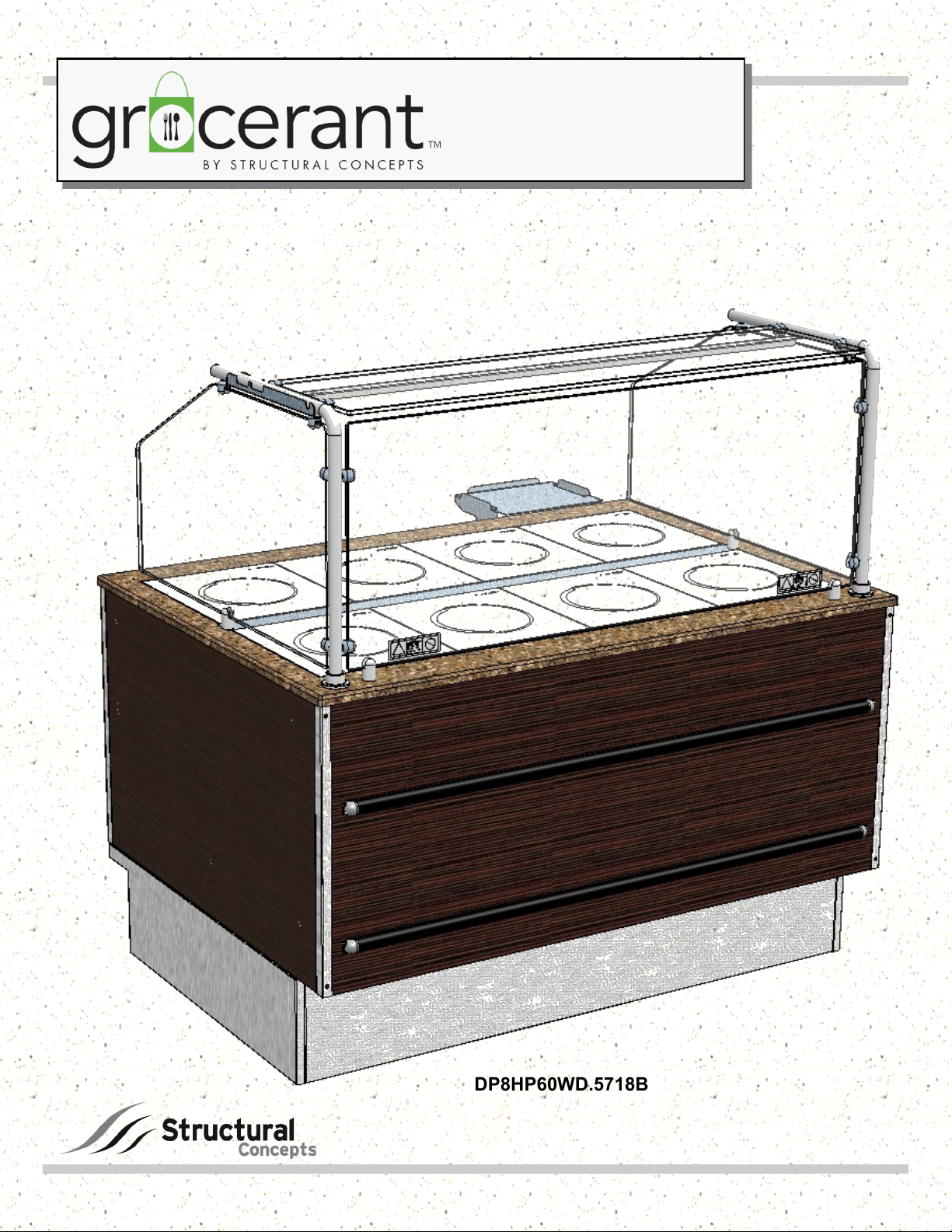

GROCERANT™ HOT SIDES MERCHANDISER MODEL DP8HP60WD.5718B
> REAR STAINLESS STEEL LEDGE BRACKETS AND HOLDER/CONTAINER BRACKETS
> VOLLRATH® MIRAGE® INDUCTION WARMING SYSTEM
> HATCO® DRAWER WARMER WITH DIGITAL TEMPERATURE CONTROLLER.
DP8HP60WD.5718B

2
TABLE OF CONTENTS
OVERVIEW / TEMPERATURE SETTINGS / TYPE / COMPLIANCE / WARNINGS ..….....………….....
POWER CORD AND PLUG MAINTENANCE / PRECAUTIONS / WIRING DIAGRAM ...…………..…..
SKID REMOVAL: REMOVE FRONT & REAR TOE-KICKS / DISCONNECT CASE FROM SKID ……....
SKID REMOVAL, CONT’D: REMOVAL FROM SKID / POSITIONING CASE ALONGSIDE OTHERS
INSTALLATION: FIELD SERVICE ELECTRICAL CONNECTION GUIDE ..……………………..……..….
INSTALLATION, CONT’D: SHIM / ATTACH SPLASH GUARD BRACKET AND REAR TOE-KICK TO
CASE ………....………………………………………………………………………………….…..…...
INSTALLATION, CONT’D: ATTACH LEDGE BRACKETS AND HOLDER/CONTAINER
BRACKETS ………………………………………………………………………………………….…..
LED STYLE LIGHT FIXTURES / FIELD ACCESS BOX / LED DRIVER ………………………….……...
MODEL DP8HP60WD.5718B OVERVIEW / VOLLRATH® WARMING SYSTEM / HATCO® HEATED
DRAWER …………………………………………………………………………………..……….……..
VOLLRATH® INDUCTION WARMING SYSTEM: IMPORTANT SAFETY INSTRUCTIONS ...…….….
VOLLRATH® INDUCTION WARMING SYSTEM: CONTROL FEATURES ...……………………….…..
VOLLRATH® INDUCTION WARMING SYSTEM: OPERATING INSTRUCTIONS ...…………….……..
VOLLRATH® INDUCTION WARMING SYSTEM: POWER SETTINGS / COOKING GUIDE /
TEMPERATURE CONTROL MODE ……………………………………………………………….....
HATCO® HEATED DRAWERS: ON/OFF SWITCH / TEMPERATURE CONTROL DIALS /
ADDITIONAL INFORMOATION / MODEL …………………………………………………..…..…..
HATCO® HEATED DRAWERS: IMPORTANT SAFETY INSTRUCTIONS ..……………………....….…
HATCO® HEATED DRAWERS: MODEL DESCRIPTION ……………………………………….…….…..
HATCO® HEATED DRAWERS: OPERATION ………………………………………………..……….…....
HATCO® HEATED DRAWERS: MAINTENANCE AND CLEANING ………………………………….….
HATCO® HEATED DRAWERS: DIGITAL TEMPERATURE CONTROLLER …...………….……...……
HATCO® HEATED DRAWERS: OPTIONS AND ACCESSORIES ……………………………….….…...
HATCO® HEATED DRAWERS: TROUBLESHOOTING GUIDE ……………….………………………....
NON-HEATED SURFACE CLEANING SCHEDULE (“D” = Daily / “W” = Weekly / “M” = Monthly) ..
CLEANING & MAINTENANCE of NATURAL QUARTZ (AND OTHER STONE) SURFACES ..……....
TROUBLESHOOTING (GENERAL CASE OPERATION) - TO BE PERFORMED BY STORE
PERSONNEL …………………………………………………………………………………………....
TROUBLESHOOTING (GENERAL CASE OPERATION) - TO BE PERFORMED BY TRAINED
SERVICE PROVIDERS ONLY ……………………………………………………………………..….
SERIAL LABEL LOCATION & INFORMATION LISTED / TECHNICAL INFO & SERVICE ………..….
TECHNICAL SERVICE CONTACT INFORMATION & WARRANTY INFORMATION ..……………..….
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21-23
24
25-26
27
28
29
30
31
32

3
OVERVIEW
 Structural Concepts® Grocerant™ Hot Sides Merchandiser
should be installed and operated according to this operating
manual’s instructions to ensure proper performance.
 This unit is designed for the display of perishable,
unpackaged products. Improper use voids warranty.
Vollrath® WARMING SYSTEM / Hatco® HEATED DRAWERS
 See VOLLRATH® INDUCTION WARMING SYSTEM
section and HATCO® HEATED DRAWERS section in this
manual for overview, instructions, cleaning and
troubleshooting information.
TEMPERATURE SETTINGS
 This merchandiser’s Induction Warming System and Heated
Drawers are designed to maintain product at a range of
temperatures.
 This merchandiser is designed to MAINTAIN product
temperature. It is NOT designed to HEAT UP products from
unheated temperatures.
 Product must be heated up PRIOR to placing on unit.
 See VOLLRATH® INDUCTION WARMING SYSTEM
section and HATCO® HEATED DRAWERS section in this
operating manual for recommended temperature settings.
WARNING! Risk of electric shock. Disconnect power before servicing.
CAUTION! More than one source of electrical supply is
employed with units that have separate circuits.
Disconnect ALL ELECTRICAL SOURCES before servicing.
WARNING
Heated surfaces are hot! Turn down and/or turn off and allow to
cool before accessing, cleaning or removing from case.
WARNING
HOT
SURFACE
OVERVIEW / VOLLRATH® WARMING SYSTEM / TEMP. SETTINGS / TYPE / COMPLIANCE /
TYPE
This unit is designed for the display of products in ambient store
conditions where temperatures and humidity are maintained
within a specific range.
 Type 1 Conditions (these units): ambient conditions are to be
at 55% maximum humidity and maximum temperatures of
75 °F (24 °C).
 See SERIAL LABEL LOCATION & INFORMATION LISTED /
TECH INFO & SERVICE section in this manual for
sample serial labels).
COMPLIANCE
 Performance issues when in violation of applicable NEC,
federal, state and local electrical and plumbing codes are not
covered by warranty. See below compliance guideline.
WARNING
 As with any merchandiser that has electrical and heated
components, there is risk of injury or death.
 Pacemakers must be kept at least 2-feet from heating areas
when using Vollrath® Warming System induction range.
 See warnings below.
COMPLIANCE
This equipment MUST be installed in compliance with all applicable
NEC, federal, state and local electrical and plumbing codes.
ATTENTION
CONTRACTORS
WARNING
ELECTRICAL
HAZARD
PACEMAKER WARNING!
Pacemakers must be kept at least 2-feet from heating areas
when using Vollrath® Warming System induction range.
WARNING: This product can expose you to chemicals, including
Urethane (Ethyl Carbamate), which are known to the state of
California to cause cancer and birth defects or other reproductive
harm. For more information go to P65Warnings.ca.gov.

4
POWER CORD AND PLUG MAINTENANCE / GFCI BREAKER USE / PRECAUTIONS / WIRING DIAGRAM
PRECAUTIONS
 Following are important precautions to prevent damage
to unit or merchandise.
 Please read carefully!
WIRING DIAGRAM
 Each case has its own wiring diagram folded and in its
own packet.
 Wiring diagram placement may vary; it may be placed
near ballast box, field wiring box, raceway cover, or
other related location.
CAUTION! ADVERSE CONDITIONS / SPACING ISSUES
 Performance issues caused by adverse conditions are NOT warranted.
 Unit must be kept at least 15-feet from exterior doors, overhead HVAC
vents or any air curtain disruption to maintain proper temperatures.
 Unit must not be exposed to direct sunlight or any heat source.
CAUTION! GFCI BREAKER USE REQUIREMENT
If N.E.C. (National Electric Code) or your local code
requires GFCI (Ground Fault Circuit Interrupter) protection,
you MUST use a GFCI breaker in lieu of a GFCI receptacle.
CAUTION! POWER CORD AND PLUG MAINTENANCE
Risk of electric shock. If cord or plug becomes damaged,
replace only with cord and plug of same type.
POWER CORD AND PLUG MAINTENANCE
 Caution! Risk of electric shock.
 If power cord or plug becomes damaged, replace only
with cord and plug of same type.
GFCI BREAKER USE REQUIREMENT
 If NEC or your local code requires GFCI protection,
you MUST use a GFCI breaker in lieu of a GFCI
receptacle.
 See illustration below.
WIRING DIAGRAM FORMAT & LOCATION
 Each case has its own wiring diagram folded & in its own packet.
 Wiring diagram placement may vary; it may be placed near ballast
box, field wiring box, raceway cover, or other related location.
CAUTION! DO NOT RELY ON THERMOMETERS OR THERMOSTATS
FOR ACTUAL PRODUCT TEMPERATURES.
 Thermometers and thermostats reflect air temperatures ONLY.
 For ACTUAL food temperatures, use a calibrated food thermometer.
CAUTION! TOP GLASS WEIGHT LOAD LIMIT
 To prevent sagging or breakage, do not exceed 5 LBS (2.3 KG)
weight load per top glass section (between posts and/or supports).
 To prevent scratching or marring, do not place ANY items on glass.
5
LBS

5
SKID REMOVAL: REMOVE FRONT & REAR TOE-KICKS / DISCONNECT CASE FROM SKID
1. Remove Front and Rear Toe-Kicks
 Case Front: Case front toe-kicks are attached to
case via magnets.
 Case Rear: Case rear toe-kicks are attached to
case via screws. See illustrations below.
 You must remove front and rear toe-kicks to
access frame support rails (and disconnect case
from skid).
2. Disconnect Case From Skid
 Remove screws that are securing case to skid.
 Screws are drilled through both front and rear
support rails and into skid.
 After screws are removed from both front and rear
support rails and skid, removed case from skid.
 See next page for skid removal instructions.

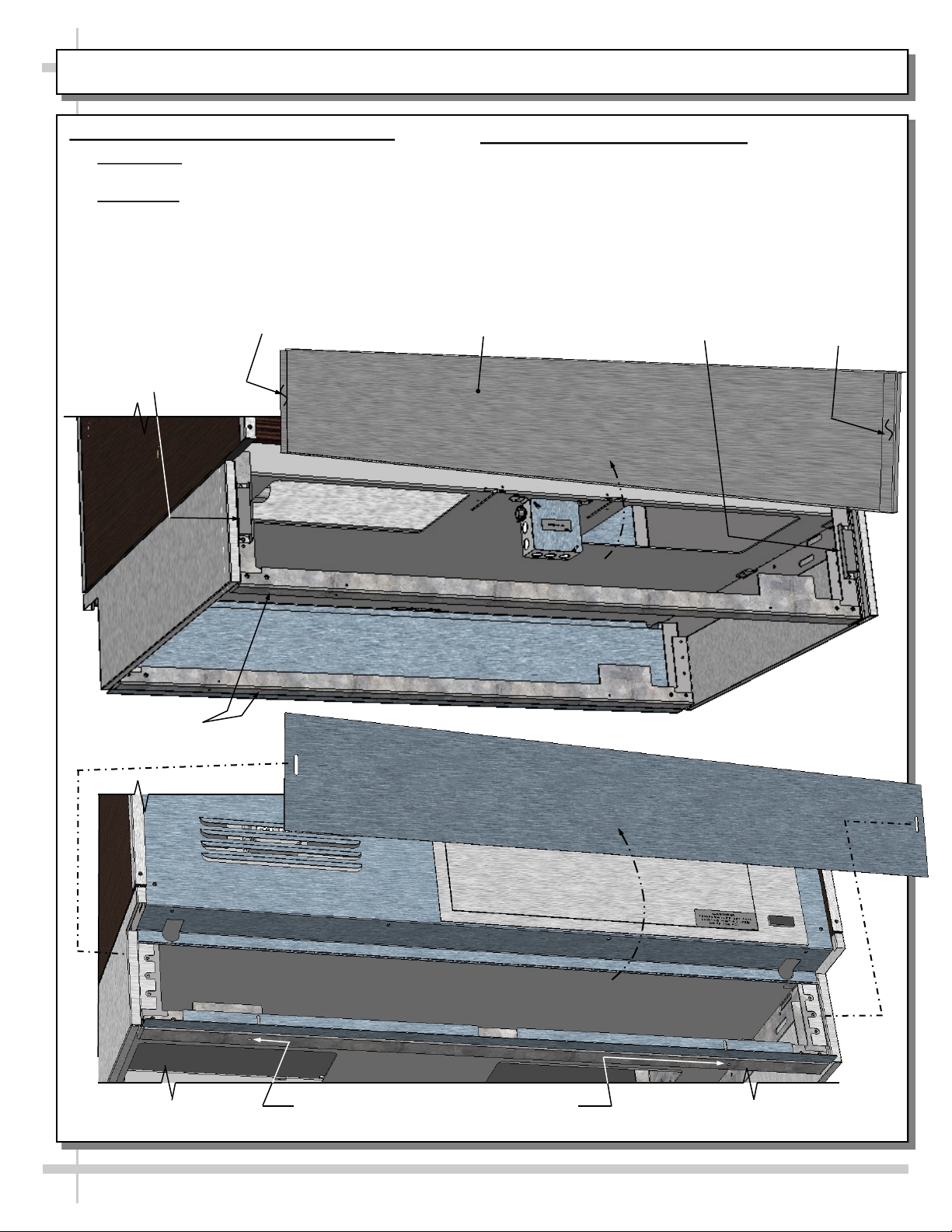

--- Case Rear Toe-Kick ---
Removable Toe-Kick (Shown
Rotated For Illustrative Purposes).
Magnet
For Front
Toe-Kick (Typ.)
Frame Support
Rails
Area To Attach
To Magnet Area To Attach
To Magnet
--- Case Front Toe-Kick ---
Remove Screws Holding Case To Skid
(At Both Front And Rear)
Magnet For
Front
Toe-Kick (Typ.)

6
SKID REMOVAL, CONT’D: REMOVE CASE FROM SKID / POSITIONING CASE ALONGSIDE OTHERS
Slide Skid Out
Note: Illustration shown may
not reflect every feature or
option of your particular case.
3. Remove Case From Skid
 Support case to prevent tipping.
 Caution! Rails can be damaged if case hits floor
with heavy force!
 Slide unit to rear of skid and tip backward off skid.
 Slide skid out from under case.
4. Position & Align Case Alongside Others
 Before shimming frame support rails, make
certain that the case (or cases) are in proper
position and, if required, aligned with adjoining
case.
 This may require the repositioning of the case
you are installing or the already positioned case.

7
INSTALLATION: FIELD SERVICE ELECTRICAL CONNECTION GUIDE

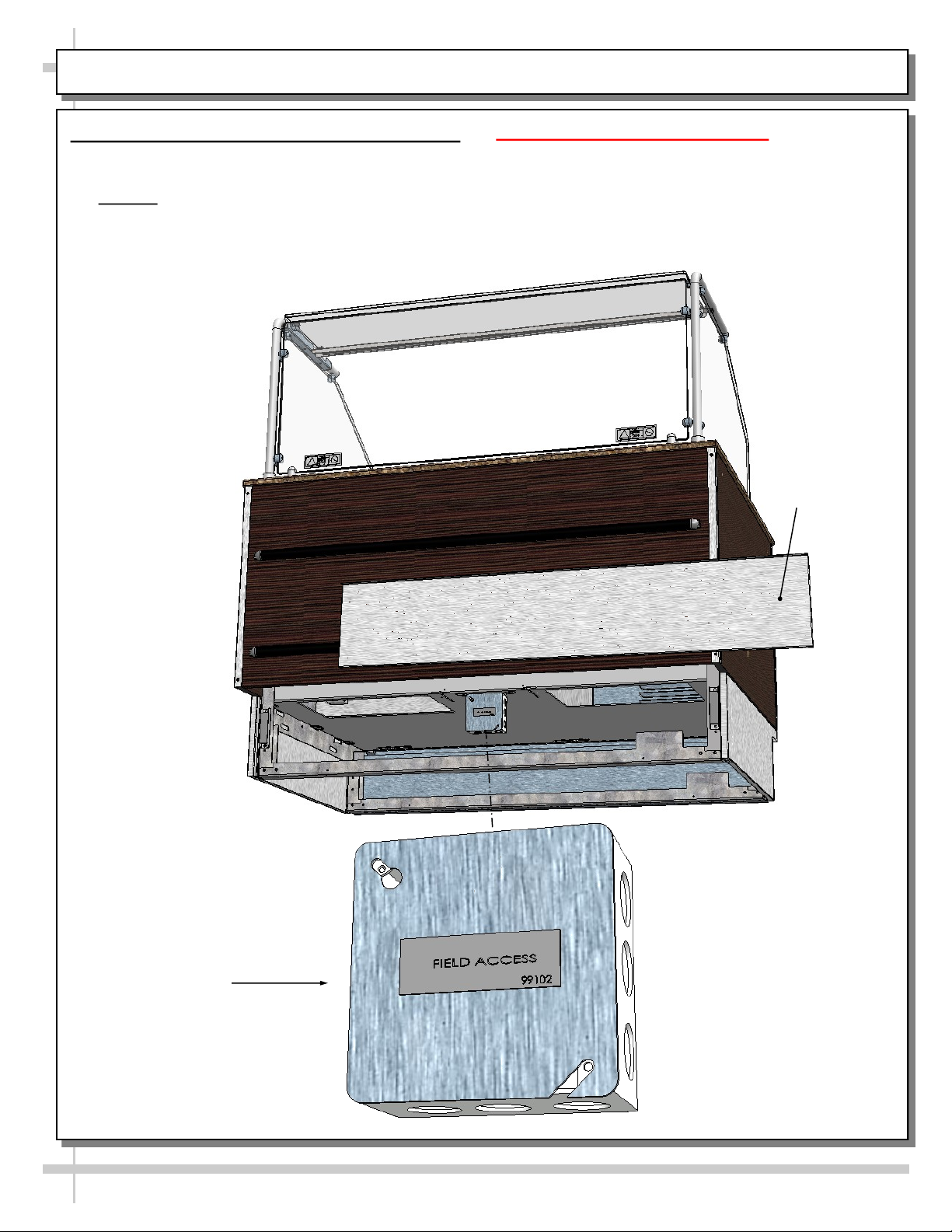

1. Field Access Boxes / Voltage & Amp Req.
 Remove front toe-kick to access field access box.
 See illustration below.
 Caution! Only certified electricians/electrical
contractors are to perform electrical service.
Important! Circuit Allocation:
> Circuit #1 = Heat
> Circuit #2 = Lights
2 x 4 Field
Access Box
Front
Toe-Kick

8
INSTALLATION, CONT’D: SHIM / ATTACH SPLASH GUARD BRACKET AND REAR TOE-KICK TO CASE
 After case has been properly positioned and
frame support rails have been shimmed, place a
bead of silicone sealant to underside of splash
guard bracket (that rests on floor).
 Center back of bracket flush against frame
support rail.
 After splash guard bracket has been secured to
case, apply another bead of silicone sealant
where underside of bracket meets floor.
4. Attach Rear Toe-Kick To Case
 Attach rear toe-kick to case rear via (2) screws.
 See illustrations below.
2. Shim Frame Support Rails As Needed
 Shims are provided with case shipment.
 Check that case is level.
 Place shims, as needed, at underside of frame
support rails until case is level and plumb.
 See illustration below.
3. Attach Splash Guard Bracket To Case and
Seal To Floor
 The separately shipped splash guard bracket is
designed to prevent entry or leakage of liquid or
moisture to underside of case.
Splash Guard
Bracket
Frame
Support Rail
3
4
Rear
Toe-Kick
2

9

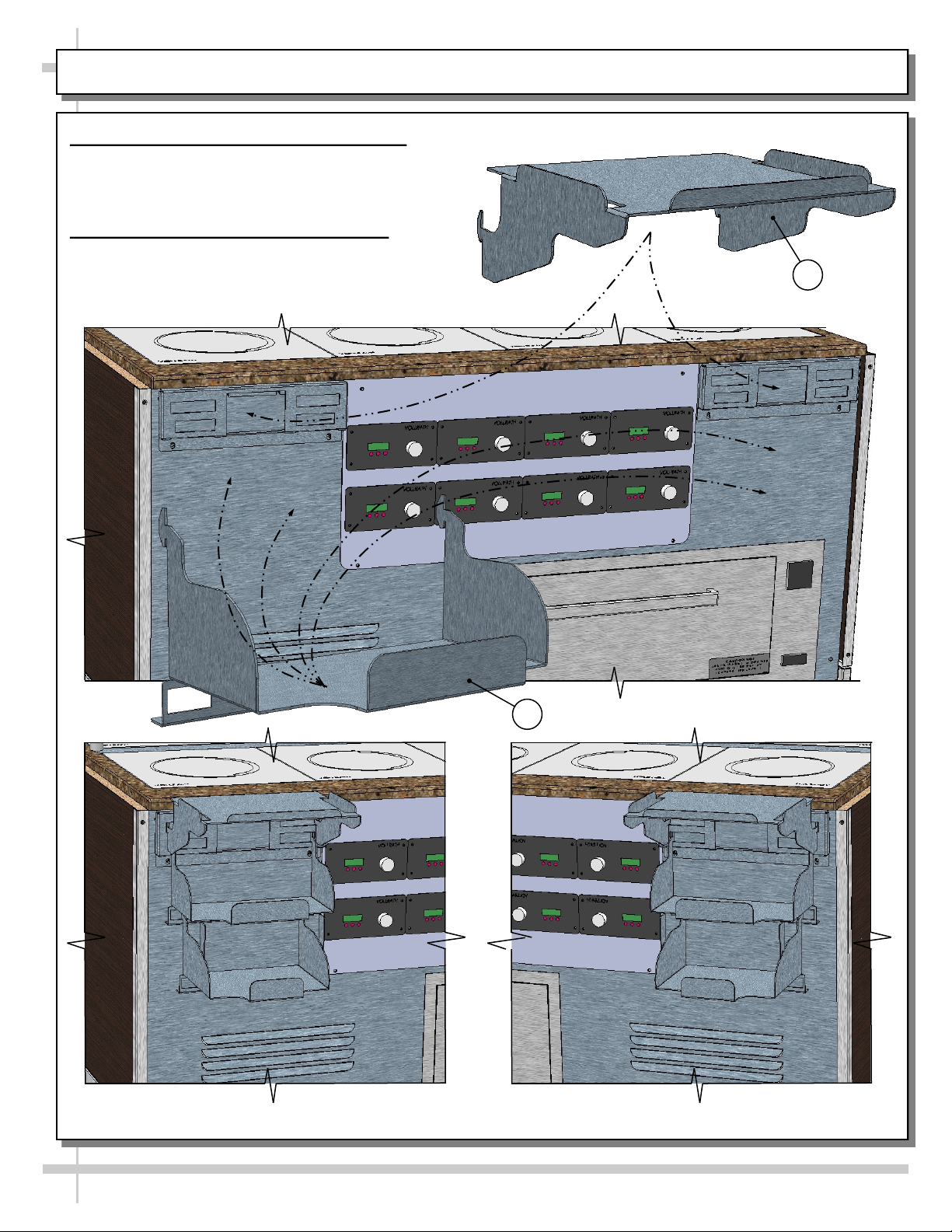

INSTALLATION, CONT’D: ATTACH LEDGE BRACKETS AND HOLDER/CONTAINER BRACKETS
5. Place Ledge Brackets Onto Holders
 Ledge brackets are to attach to holders
(at case rear near counter top).
 Check that brackets are held securely.
6. Attach Holder/Container Brackets
 Holder/container brackets attach to ledge
brackets (top bracketry) and to each other.
 Check that brackets are held securely.

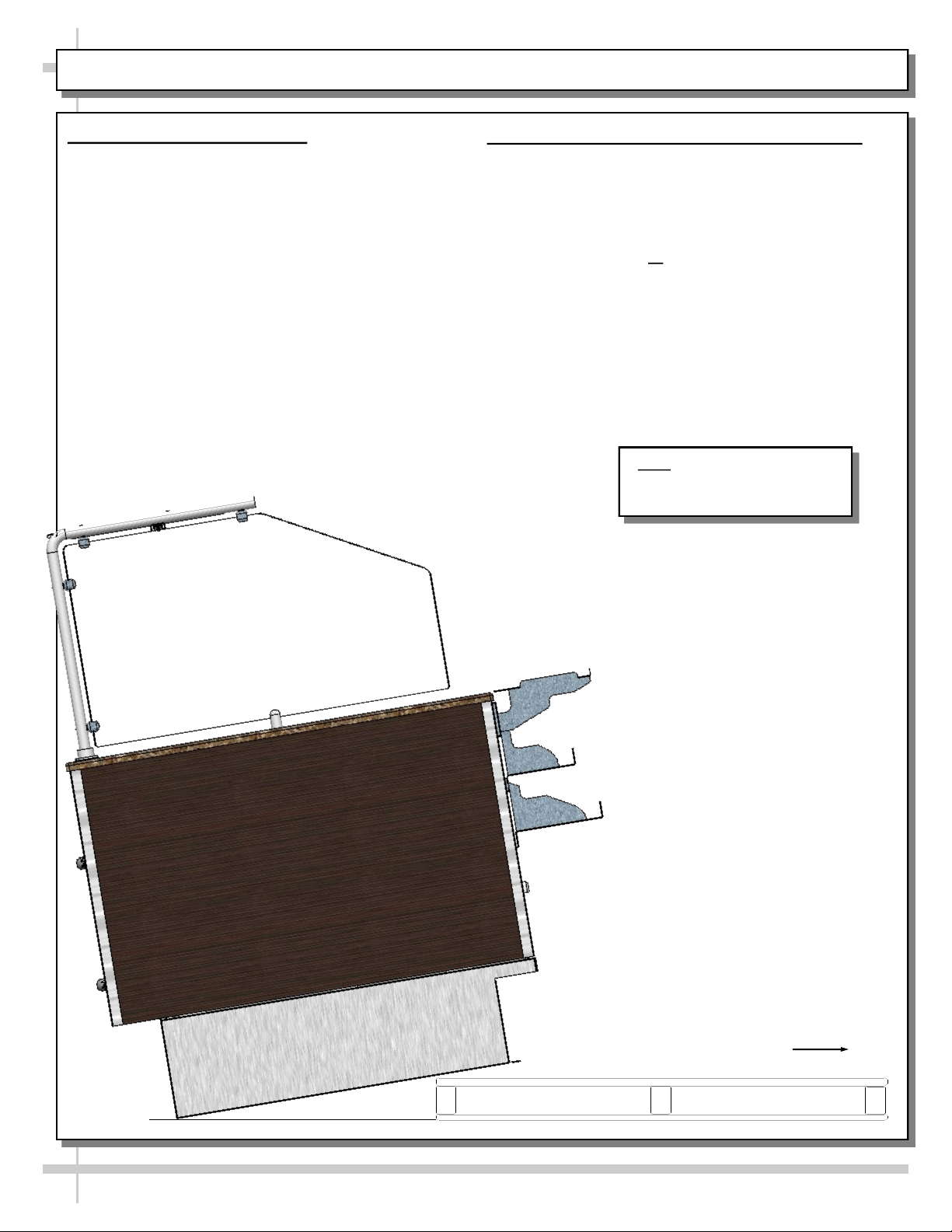

--- Holder/Container Brackets Rear Left ---
5
6
--- Holder/Container Brackets Rear Right ---

10
LED STYLE LIGHT FIXTURES
LED Style Light Fixtures
Removal of lamp:
 Certain cases have LED lights. LED lights rarely require
change-out.
 Should malfunction occur, contact Structural Concepts’
Technical Service Department for replacement parts.
See Technical Service section of manual information.
Replacement of lamp:
 To replace LED Light Fixture, simply disconnect the
existing LED light from its brackets. Replace.
 Plug must be inserted ALL THE WAY into the LED light
orifice (with no gap) to work properly.
 LED light energizes when case is powered up.

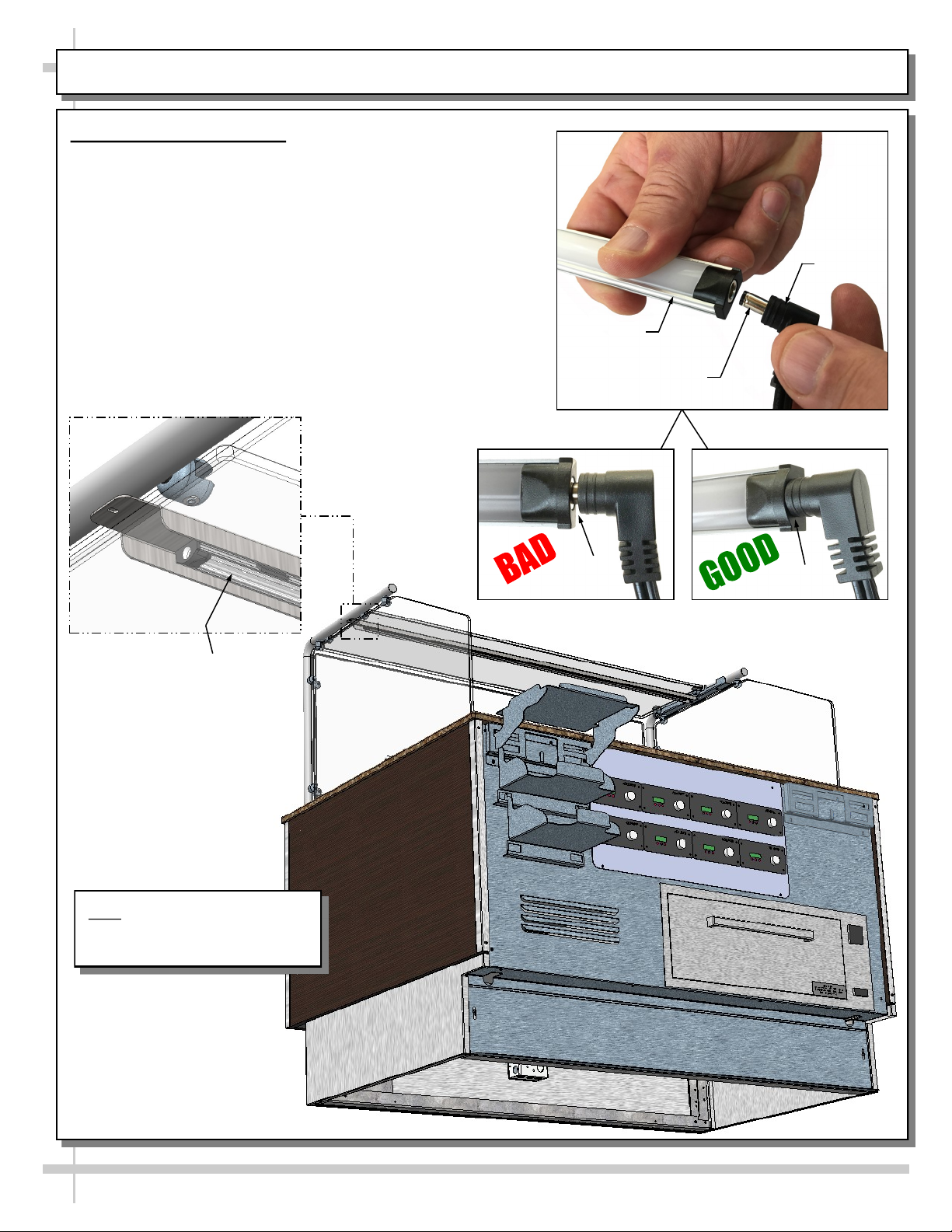

 See illustrations at right.
Note: Illustration may not reflect
every feature or option of your
particular model.
LED Light
Plug
LED’s Barrel
Shaped Insert
LED Light
No Gap
Gap

11
MODEL DP8HP60WD.5718B OVERVIEW / VOLLRATH® WARMING SYSTEM / HATCO® HEATED DRAWER
1
1234
5678
1. Model DP8HP60WD.5718B Overview
 See illustrated breakdown below for components.
2. Vollrath® Induction Warming System
 Heated Surface Main Power Buttons: Each heated
surface has its own power button that controls its
temperature.
 Controls: Each thermostat controls a specific
heated surfaces. See below for view of all 8
controllers and corresponding surfaces they heat.
 Caution! If heated surface temperature is higher
or lower than specified, it can result in product
temperatures outside proper range!
 See VOLLRATH® INDUCTION WARMING
SYSTEM section in this operating manual for
additional information.
3. Hatco® Heated Drawer
 See Hatco Heated Drawer section in this
operating manual for additional information.
Front-Left
Glass
Top Glass LED Light
Front-Left Glass
Sneeze-Guard Post (Typ.)
Vollrath® Htd
Surfaces (Typ.)
Vollrath® Induction
Warming System
Controls (Typ.)
Hatco® Heated
Drawer and
Controls
Removable Holders/
Containers (Typ.)
Rear Toe-Kick
Quartz Work
Surface
234
5678
Ledge
Bracket
(Typ.)

12

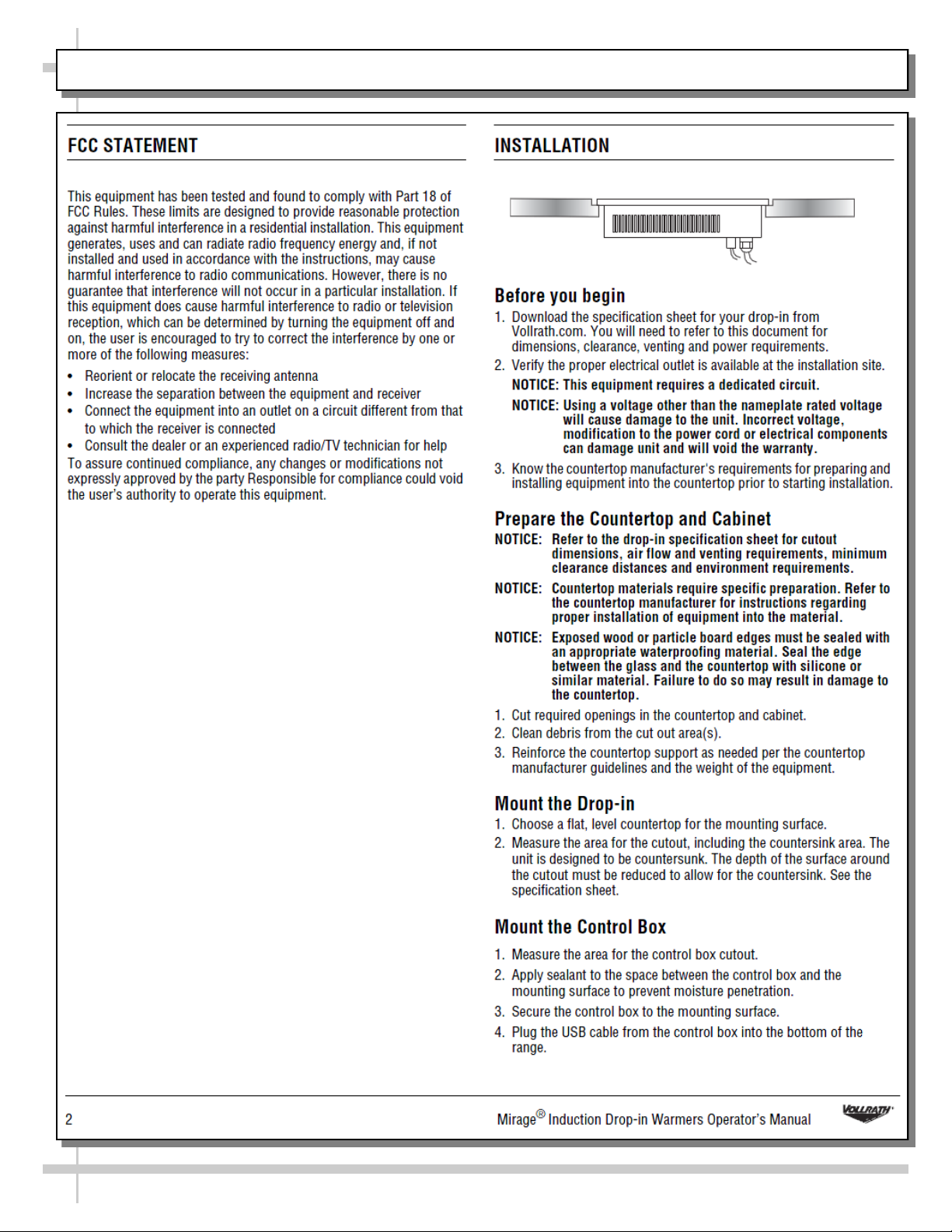

VOLLRATH® INDUCTION WARMING SYSTEM: OPERATOR’S MANUAL INFORMATION - PAGE 1 OF 4
Important Note: The Information Herein Is Derived From The Latest
Vollrath® Operator’s Manual For Mirage Induction Drop-In Warmers as
of its May 6th, 2020 Dated Documentation. Information Regarding
Vollrath® Induction Drop-In Warmers Is Provided Herein As
A Courtesy Of Structural Concepts Corporation For its Customers.
For Vollrath’s® Latest Operating Instructions, See Page 4 Of
This 4-Page Document For The Latest Vollrath® Contact Information.

13
VOLLRATH® INDUCTION WARMING SYSTEM: OPERATOR’S MANUAL INFORMATION - PAGE 2 OF 4

14
VOLLRATH® INDUCTION WARMING SYSTEM: OPERATOR’S MANUAL INFORMATION - PAGE 3 OF 4

15
VOLLRATH® INDUCTION WARMING SYSTEM: OPERATOR’S MANUAL INFORMATION - PAGE 4 OF 4
The Vollrath Company, L.L.C. Headquarters, 1236 North 18th Street, Sheboygan, Wisconsin 53081-3201 USA ||| Main Tel: [phone] or 920-457-
4851 ||| Main Fax: [phone] or 920-459-6573 ||| Canada Customer Service: 800-695-8560 ||| Tech Services: TechServiceRep[email protected]

16
HATCO® HEATED DRAWERS: ON/OFF SWITCH / TEMP. CONTROL DIALS / ADD’L INFO / MODEL
Merchandiser Start-Up and Operation
1. Hatco® Heated Drawer On/Off Switch Control
 Each Heated Drawer has its own On/Off Switch
(see illustration below).
A. Turn ‘ON’ by pressing downward on the “I” area
of the switch.
B. Turn ’OFF’ by pressing downward on the ’O’ area
of the switch.
 Caution! Heated drawers can get very hot!
Use extreme caution.
2. Hatco® Heated Drawer Temperature Control
 For models with multiple heated drawers, each
temperature control dial controls a different
heated drawer.
3. Hatco® Heated Drawers Additional Information
 Pages that follow provide additional information
on Hatco® heated drawers including safety
information, operation, maintenance,
troubleshooting, and accessories.
 Note: Pages that follow contain only select
portions of Hatco®’s complete installation and
operating manual.
Model DP8HP60WD.5718B
With Rear Drawer Warmer
 Consult the full Hatco® Drawer Warmers HDW
and HDW-B Series Installation and Operating
Manual for complete information.
4. Hatco Heated Drawer Models
 SCC Model DP8HP60WD.5718B uses Hatco®
Drawer Warmer Model No. HDW-1B / 120V with
Digital Temperature Controller..
Power
ON/OFF
Switch
Recommended
Settings
Chart
Digital
Temperature
Controller

17
HATCO® HEATED DRAWERS: IMPORTANT SAFETY INFORMATION

18
HATCO® HEATED DRAWERS: MODEL DESCRIPTION / MODEL DESIGNATION
Hatco Heated Drawer Models
>> SCC Model DP8HP60WD.5718B
uses one (1) Hatco® Drawer Warmer
Model No. HDW-1B / 120V.
>> Illustration below may not reflect
every feature or option of your
particular unit.
Hatco® Drawer Warmer Model HDW-1B /
120V Shown Above. Your Model May Differ.
All Models

19
HATCO® HEATED DRAWERS: OPERATION
Power
ON/OFF
Switch
Recommended
Settings
Chart
Digital
Temperature
Controller

20
HATCO® HEATED DRAWERS: MAINTENANCE AND CLEANING
