Stryker Secure II Quick Start Guide
Always refer to the product label and/or operations manual before using any Stryker product.
®

Overview
Headboard
Patient Controls
Siderails
Nurse Control Panel
Footboard
120V AC Outlet
(optional)
Caster
Siderail Release
Handle
Brake Pedal
Siderail Controls
Steer Pedal
A
B
C
D
E
F
G
H
I
J
K
A
D
E
F
G
H
I
B
C
J
K
1
Always refer to the package insert, product labeling and/or operations
maintenance manuals before using any Stryker product.

1
Ease of Use:
Centrally Located
Brakes
To Activate
Press to set the brake.
Press again to release
the brake.
For Your Safety
There are LED lights on the
outside of the head end
siderails and on the foot end
control panel that will blink when
the brakes are not engaged.
1
2
2
Always apply the caster brakes when a patient is getting on or
off the bed. Push on the bed to ensure the brakes are securely
locked. Always engage the brakes unless the bed is being
moved. Injury could result if the bed moves while a patient is
getting on or off the bed.
2
Always refer to the package insert, product labeling and/or operations
maintenance manuals before using any Stryker product.

Mobility:
Steer Pedal
Operation
To Activate
Move the pedal located at the
head end of the bed.
For Your Safety
When the bed is moved, the
steer caster helps guide the bed
along a straight line and helps
the bed pivot around corners.
Do not attempt to move the foot end of the bed laterally when
the steer pedal is activated. When the steer pedal is activated,
the steer caster at the foot end of the bed cannot swivel.
Attempting to move the bed laterally when the steer pedal is
activated may cause injury to the user.
3
Always refer to the package insert, product labeling and/or operations
maintenance manuals before using any Stryker product.

Fall Prevention:

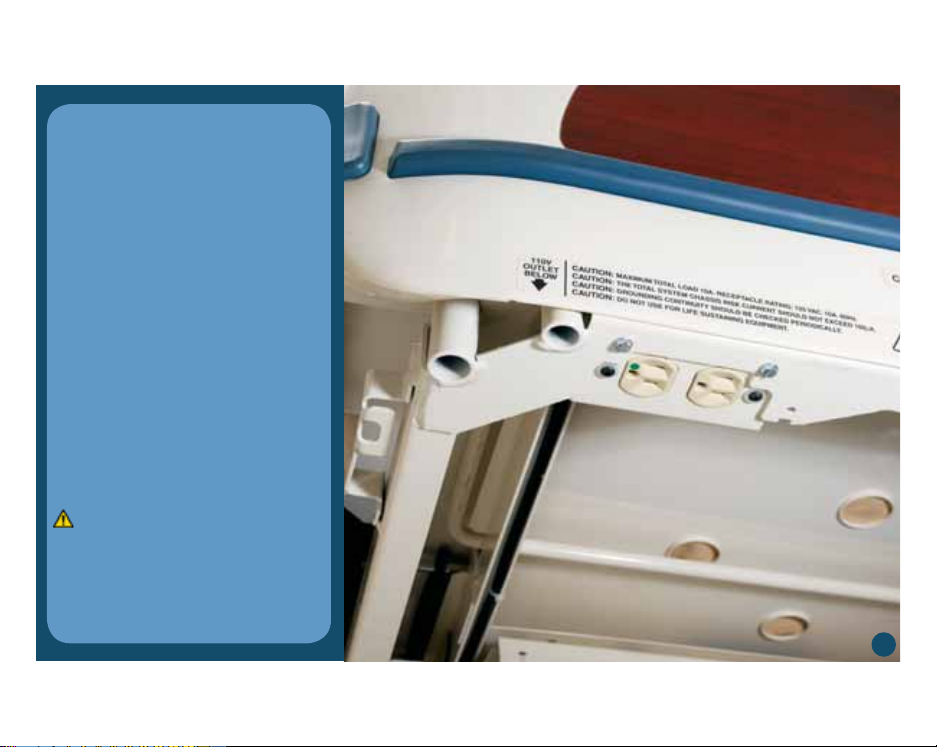

110v Outlet
(optional)
A 110v outlet is located under
the footboard at the foot end of
the bed. The 110v outlet has its
own power cord that must be
plugged in.
For Your Safety
The outlet helps reduce the
number of cords strung across
the room, removing a potential
trip hazard.
Only use equipment with the following electrical specs: 110
VAC; 10A; 60Hz. Maximum total load drawn by equipment
used in this receptacle outlet must not exceed 10A. The total
system chassis risk current should not exceed 300uA.
Grounding continuity should be checked periodically. To avoid
risk of electric shock, unplug ALL power cords before opening
the service compartment, junction box or receptacle. Do not
use the optional 110V outlet for life sustraining equipment.
4
Always refer to the package insert, product labeling and/or operations
maintenance manuals before using any Stryker product.

Fall Prevention:

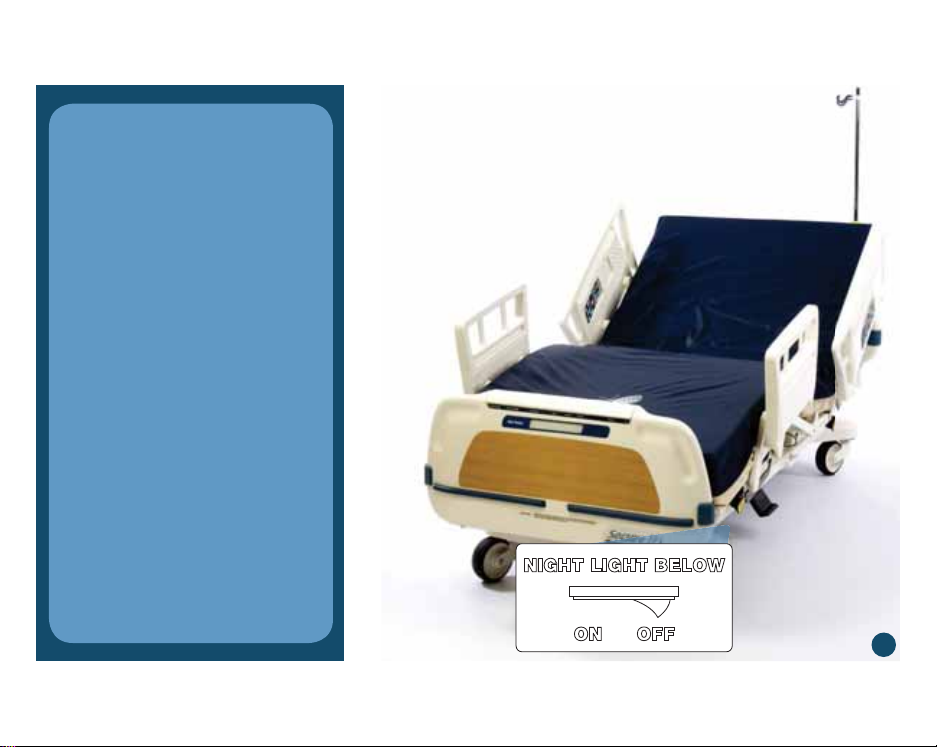

Nightlight
Two night lights illuminate the
floor area around the bed. The
switch is under the litter thigh
section on the patient’s left side
that turns both lights on and off.
For Your Safety
Note: the night lights have a
sensor so the lights will turn off,
even when the switch is on, if
the light in the room is bright
enough so a night light is not
necessary.
5
Always refer to the package insert, product labeling and/or operations
maintenance manuals before using any Stryker product.

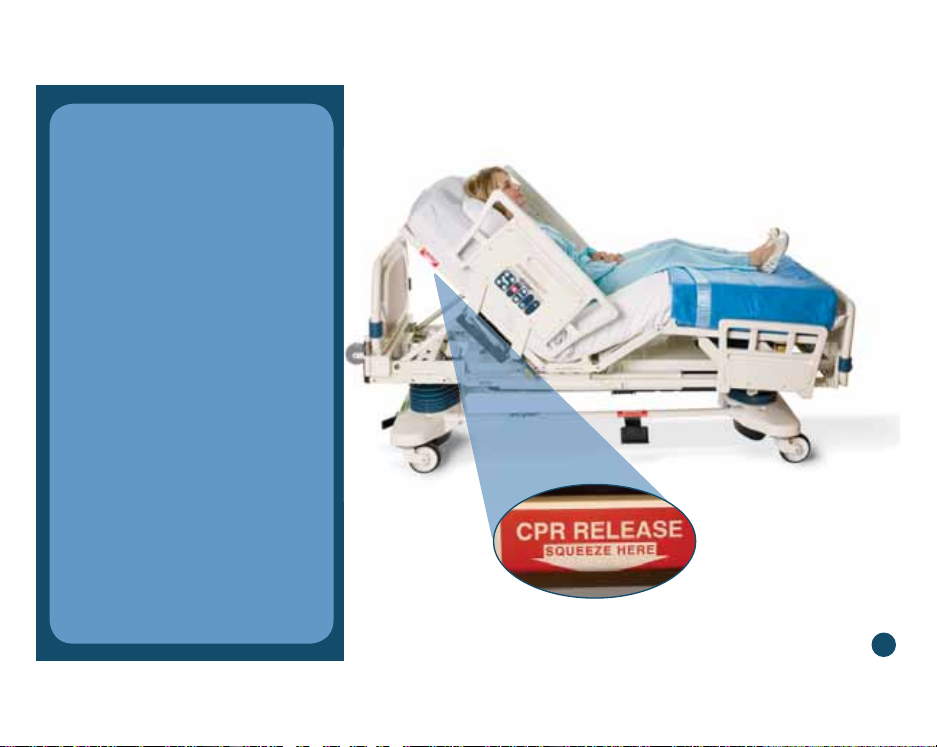

Emergency CPR
Release
When the bed fowler is raised
and CPR is required, squeeze
one of the two red release
handles and the Fowler can be
quickly guided down to a flat
position.
For Your Safety
Note: the handle can be released
at any time to stop the fowler from
lowering.
CPR Board Usage (Optional
Equipment)
If the bed is equipped with the
optional CPR board, it is stored
on the bed’s headboard. To
remove it, pull it away from the
headboard and lift it out of
storage position. If the CPR board
option was not purchased, the
headboard can also be removed
and used as an emergency CPR
board.
6
Always refer to the package insert, product labeling and/or operations
maintenance manuals before using any Stryker product.

Foley Bag Hooks
Foley bag hooks are found at
two locations on both sides of
the frame; under the frame
below the seat section and at
the foot end of the frame. The
optional isolated Foley bag
hooks are located at the foot
end of the bed on top of the lift
header.
Ease of Use
The patient weight reading on
the scale system will not be
affected when the optional
isolated Foley bag hooks are
used.
7
Always refer to the package insert, product labeling and/or operations
maintenance manuals before using any Stryker product.

Ease of Use: Siderail Positions
To facilitate siderails down, press the yellow release button (do not press the yellow release button to
raise).
Grasp the top of the rail, pull outward and swing it up to full height. When the siderail is raised it does
not lock in the intermediate position.
To utilize the intermediate position, push in the yellow release handle and rotate the siderail until it
locks in the intermediate position.
To fully lower the siderails, push the release handle again and rotate the siderail until it is completely
lowered.
Be sure the siderail is locked securely into position. Siderails are not intended to keep patients from exiting the bed. They are designed to keep patients from inadvertently rolling off the bed. Proper restraint
methods shoudl be utilized to ensure the patient remains in the bed. The siderails are not intended to be used as a push device.
Always refer to the package insert, product labeling and/or operations maintenance manuals before using any Stryker product. 8

BackSmart®:
Intermediate
Siderails
BackSmart Seat Assist
s Intermediate position places
patients’ hips in the correct
position on bed
BackSmart Stand Assist
s Integrated lift system
s Gives patients two sturdy
grip points to assits with
eegress
9
Always refer to the package insert, product labeling and/or operations
maintenance manuals before using any Stryker product.

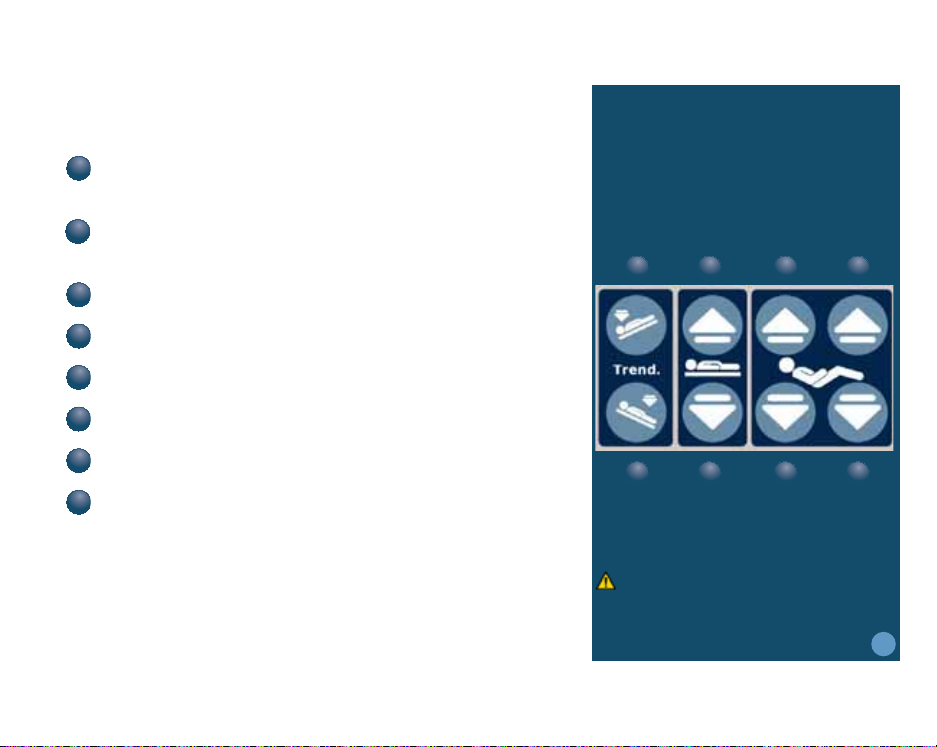

Nurse Controls: Bed Motion
Push to lower head end/raise foot end of bed
(Trendelenburg position).
Push to lower foot end/raise head end of bed
(Reverse Trendelenburg position).
Push to raise bed height.
Push to lower bed height.
Push to raise Fowler.
Push to lower Fowler.
Push to raise Knee Gatch.
Push to lower Knee Gatch.
1
3
4
5
6
7
8
2
1 3
4 6 8
2
57
Individual beds may have different options therefore, foot boards
should not be moved from one bed to another. Mixing foot boards
could result in unpredictable bed operation.
Always refer to the package insert, product labeling and/or operations
maintenance manuals before using any Stryker product.
10

Note: The Fowler will not go below 30°
once the Fowler 30°+ lock is activated.
Nurse Controls: Bed Motion Locks
Bed Motion Lock*
Locks all motion on bed, including siderail controls and
foot end controls.
Fowler 30°+ Lock*
Raises the Fowler to 30° and locks out the Fowler control
at all locations.
Patient Fowler Lock*
Locks out Fowler control at all locations, with the
exception of the footboard operator controls.
Patient Gatch Lock*
Locks out Knee Gatch control at all locations, with the
exception of the footboard controls.
Patient Bed Up/Down Lock*
Locks out Bed Height control at all locations, with the
exception of the footboard operator controls.
* Press and hold the lock button to unlock. Button and LED on dashboard will
illuminate when activated.
1
3
4
5
2
1 3 54
2
Always refer to the package insert, product labeling and/or operations
maintenance manuals before using any Stryker product.
11

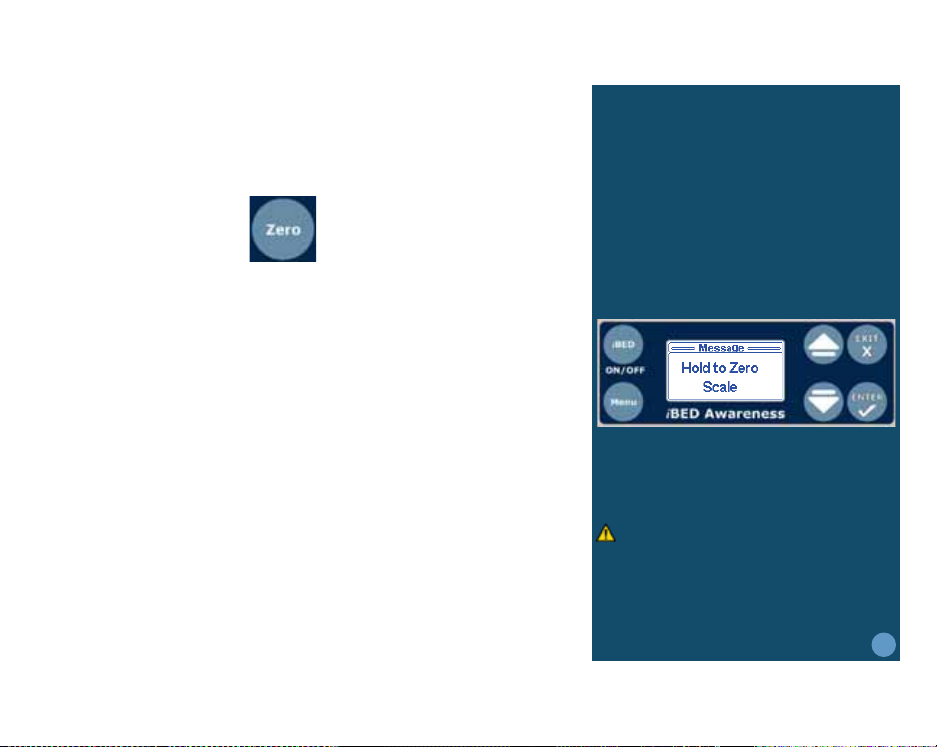

Nurse Controls: Zeroing the Scale
Prior to weighing the patient:
1. Press and hold the button.
2. “Hold to Zero Scale” message will appear briefly on the
display as shown.
3. Immediately following, a “Release Button” message will
flash on the display.
4. Release the Zero button.
5. After the Zero button has been released, “Do Not Touch
Bed” message will flash on the display as shown.
6. When zeroing has been completed, “Zeroing Successful”
message will be shown on the display. The Dashboard
Bed Zero LED will illuminate. The display will show the
status screen with the scale information as shown.
7. The bed is now ready for the patient. Scale function may be affected by siderail/caster interference. With
the litter fully lowered or lowered in Reverse Trendelenburg, the
siderails tucked under the litter in the storage position and the
casters turned, there is the potential for interference between the
siderail and the caster. Raise the siderails when lowering the litter to
the full down position to prevent the interference from causing the
scale system to weigh inaccurately.
Always refer to the package insert, product labeling and/or operations
maintenance manuals before using any Stryker product.
12

Note: Pressing the scale button again
within 60 seconds of the first press will
remove the data from the screen.
Nurse Controls: Weighing a Patient
1. Press and hold the button.
2. “Release Button” message flashes on the display.
3. Release the Scale button.
4. After the Scale button has been released, “Do Not
Touch Bed” message will flash on the display as shown.
5. When weighing has been completed, the patient’s weight
will be displayed on the status screen as shown. The
patient weight displayed is stored in the system for later
use.
Do not zero bed scales or weigh patient with Percussion, Vibration,
Rotation or Turn Assist active. Patient motion and position resulting
from the dynamic therapy mattress may adversely affect scale
system performance.
The power save mode is activated after one hour on battery power
with no motion release switch activation. Functions including Bed
Exit, Scale and Motion will cease to operate when the unit enters the
power save mode. Injury to the patient could occur if proper patient
monitoring protocol is not observed.
To avoid possible injury and to assure proper operation when using a
powered mattress replacent system such as XPRT:
s Confirm proper scale system operation following mattress
installation. For best results, secure the mattress power
cord to prevent damage to the cord and interference with
the bed frame and the scale system.
Always refer to the package insert, product labeling and/or operations
maintenance manuals before using any Stryker product.
13

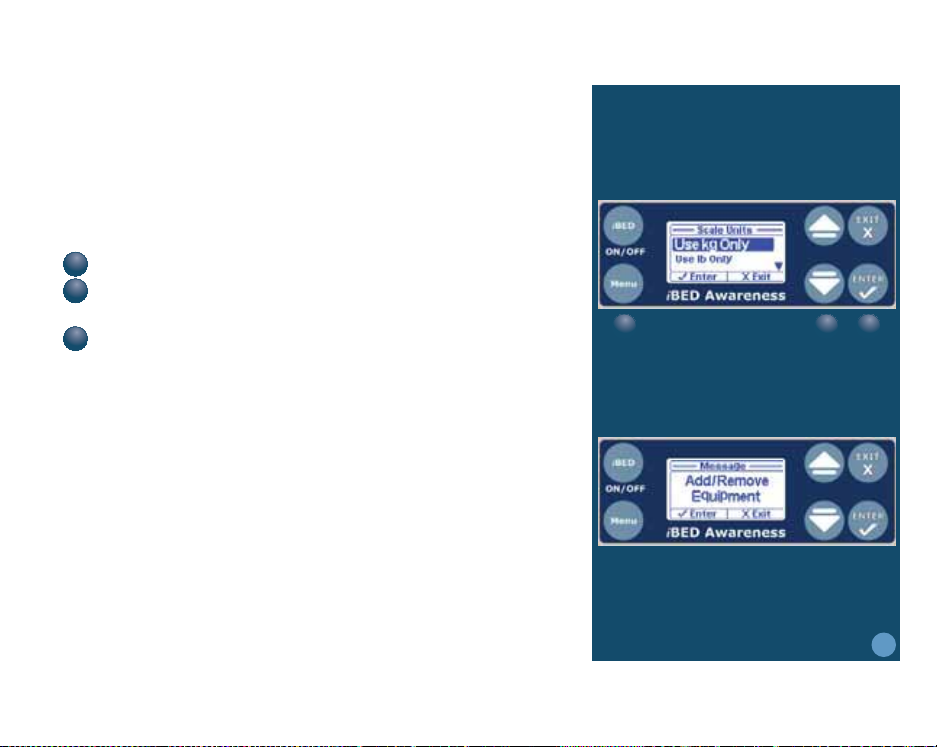

Nurse Controls: Main Menu Features
Change Scale Units (lb or kg)
The Change Scale Units feature allows the operator to select
the unit of value (lb or kg) for the scale information that is pre-
sented on the display.
Press the Menu button.
Scroll down using the arrow buttons to Scale Units and
press the ENTER button.
Select lbs or kg and press the ENTER button.
To Change Equipment
This feature allows the operator to add or remove items from
the bed without affecting the patient weight.
1. Select “Change Equipment” under menu then press and
hold the Enter button.
2. When the display reads, “Release to Start” the system is
ready to change equipment, and the display is as shown.
3. After completing the task, the screen will read,
“Equipment Changed” and the Status Screen will now
read the weight of the patient only.
1
3
2
1 3
2
Always refer to the package insert, product labeling and/or operations
maintenance manuals before using any Stryker product.
14

Fall Prevention:

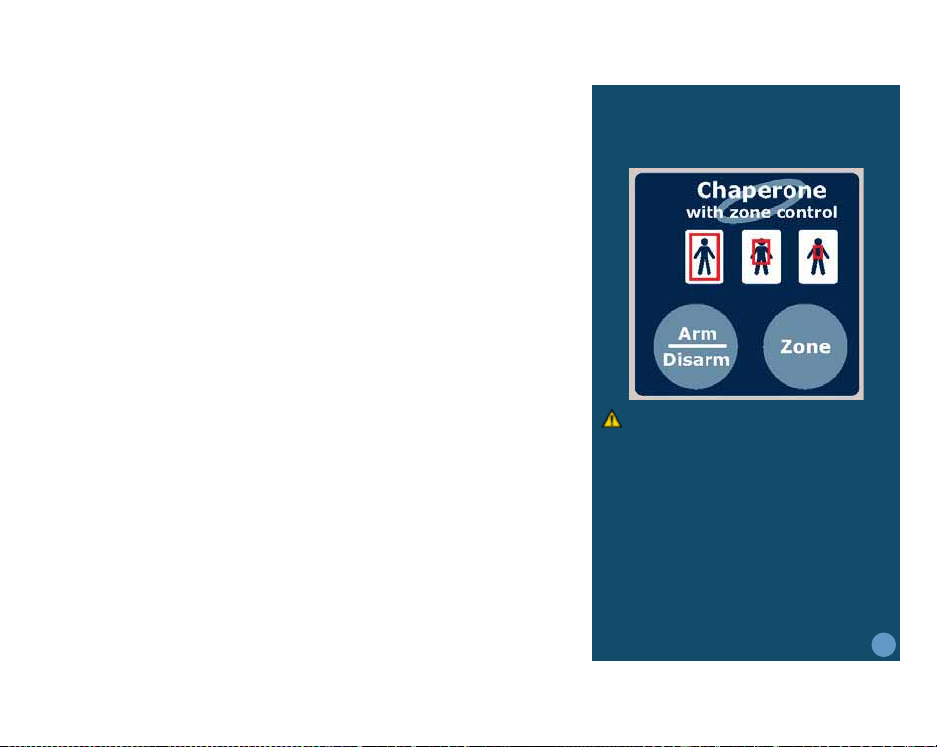

Chaperone®Bed Exit System
A three zone patented center of gravity system that tracts
patient’s body weight and alarms when 50% of the patient’s
body weight exits the perimeter.
To Set Alarm
1. Before putting the patient on the bed, the system must be
zeroed.
2. Push and release the Arm/Disarm button (top light will
come on).
3. It will automatically select the first zone. To change the
zone, push and hold the Zone button until the light
indicating the desired zone comes on.
To Disarm Alarm
1. To deactivate Bed Exit, push the Arm/Disarm button. The
selected zone lights will turn off.
Note: If the bed was not zeroed at patient
admission, prior to arming, the Chaperone
Bed Exit System will not operate properly.
The Bed Exit System is intended only to aid in the detection of a
patient exiting the bed. It is NOT intended to replace patient
monitoring protocol. It signals when a patient is about to exit. Adding
or subtracting objects from the bed after arming the bed exit system
may cause a reduction in the sensitivity of the bed exit system. To
avoid possible injury and to assure proper operation when using a
powered mattress replacement system such as XPRT, do not
initialize (“arm”) bed exit with Percussion, Vibration, Rotation or Turn
Assist active. The patient motion and position resulting from a
dynamic therapy mattress may adversely affect bed exit system
performance.
The power save mode is activated after one hour on battery power
with no motion release switch activation. Functions including Bed
Exit, Scale and Motion will cease to operate when the unit enters the
power save mode. Injury to the patient could occur if proper patient
monitoring protocol is not observed.
Always refer to the package insert, product labeling and/or operations
maintenance manuals before using any Stryker product.
15

Zone 1 (default)
Allows the patient to move
freely on the bed, but alarms
when patient moves 50% of
body weight out of the
designated zone.
Zone 2
Allows limited movement.
Alarms when the patient
approaches the siderail or
foot end of the bed.
Zone 3
Allows very minimal
movement. Alarms when
patient moves out of the tightly
restricted zone.
Fall Prevention: Chaperone Bed Exit Alarm
Always refer to the package insert, product labeling and/or operations maintenance manuals before using any Stryker product. 16

iBed®Awareness Functionality
s Monitors status conditions of the patient and produces an
alert if the state had changed.
s When the system is turned on, it monitors each of the siderail
positions and brake automatically.
s Can also be set to monitor Low Bed Height and Chaperone
Bed Exit System.
s A light bar, located on the footboard, will illuminate and
indicate the state of the iBed Awareness system. Lights
located on each side of the bed, near the footboard will
behave identical to the center light.
Features
s When the iBed Awareness system is on, the light bar turns
GREEN.
s If an alert state is triggered, the light bar will change to
flashing AMBER. This indicates Indicates the bed has left the
original configuration.
s The display screen on the footboard control will display the
details of the alert state.
The iBed Awareness system is intended to serve as a secondary
monitoring system, informing the operator via a visual or audible alert
when a preset condition changes.
The optional iBed Awareness system only indicates the siderail
position, it does NOT indicate if the siderail is locked. It is the
caregiver’s responsibility to ensure that the siderails are locked after
every move and also before leaving a patient in the room.
The optional iBed Awareness system indicator lights are only an aid
to the caregiver but in no way replace the caregiver’s responsibility of
checking on patients. Caregivers should not rely on the lights to
perform their duties.
Before arming the optional iBed Awareness system, the nurse must
physically verify that siderails are locked. 17
Always refer to the package insert, product labeling and/or operations maintenance manuals before using any Stryker product. 17

iBed Awareness Monitoring and Alarms
Low Height
If the low height state changes, the display will appear as shown,
and the Low Height LED on the dashboard will blink.
Brakes
If the brake is disengaged, the display will appear as shown, and
the Brakes LED on the dashboard will blink.
Siderails
If the siderail position state changes, the display will appear as
shown, with the arrow pointing to the siderail position in alarm.
The Siderail LED on the dashboard will blink as well.
Bed Exit
If bed exit is disarmed, the display will appear as shown, and the
Bed Exit LED on the dashboard will blink.
Always refer to the package insert, product labeling and/or operations maintenance manuals before using any Stryker product. 18

iBed Awareness Monitoring and Alarms

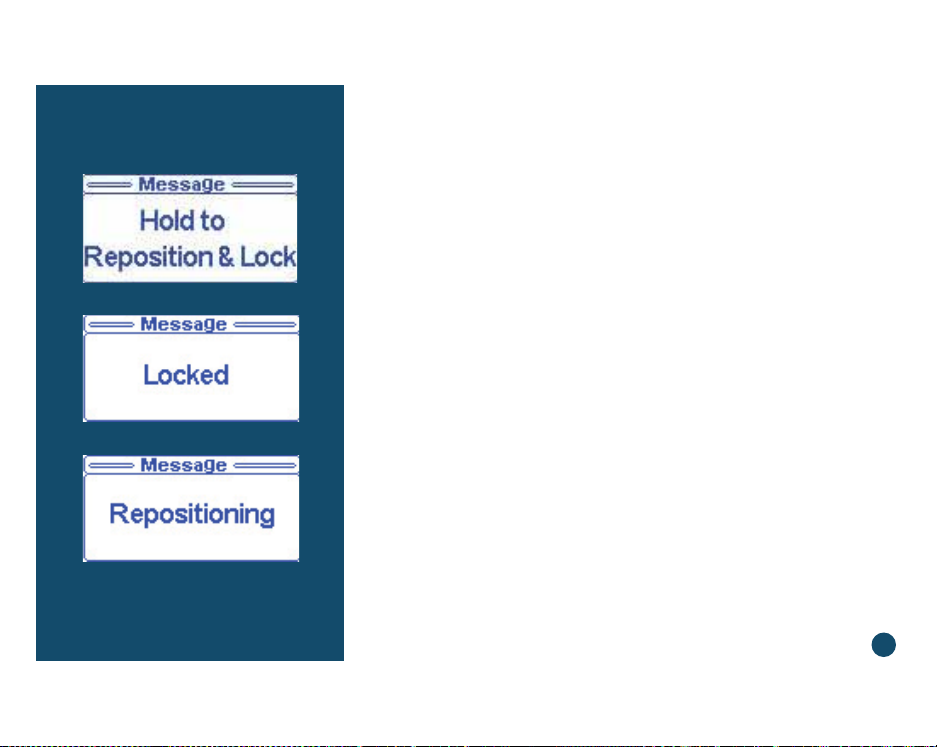

Fowler 30°+ Lock
s The Fowler 30°+ Lock is a dual purpose button. It positions
the bed’s fowler 30° to the horizontal and locks any Fowler
motion below 30°.
s When the Fowler 30°+ button is pressed, the bed will
reposition only if it is currently below 30°.
s Once the bed reaches its final position, display will read as
shown.
Additional Alarm Conditions
s If an audible alarm is desired, the caregiver can set the
Awareness alarm to “On” through the Advanced Options
Menu in the Main Menu.
s If the caregiver would like to set the Awareness alarm to the
Nurse Call Station, the “Status To N/C” must be turned on
through the Advanced Options Menu in the Main Menu.
19
Always refer to the package insert, product labeling and/or operations maintenance manuals before using any Stryker product. 19
