Sub-Zero 315W User manual

USE & CARE GUIDE
Model 315W Wine Storage

Important Note
To ensure the safe and efficient use of Sub-Zero equip-
ment, please take note of the following types of highlighted
information throughout this guide:
IM ORTANT NOTE highlights information that is especially
important.
CAUTION signals a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
Contents
Model 315W Wine Storage ........................ 3
Model 315W Wine Storage Features ................ 4
Model 315W Wine Storage Operation ............... 5
Model 315W Wine Storage Care ................... 7
Troubleshooting Guide ........................... 9
Service Information ............................. 10
Sub-Zero Warranty ............................. 11
Features and specifications are subject to change at any time
without notice. Visit our website, subzero.com for the most
up-to-date information.

Sub-Zero Model 315W Wine Storage 3
subzero.com
Thank You
Thank you for purchasing your new Sub-Zero wine storage
unit. With Sub-Zero, you can rely on a 60-year tradition of
quality and reliability.
Your Sub-Zero wine storage unit is protected by a
warranty that is one of the finest in the industry. Take a
moment to read the warranty statement at the end of this
guide and refer to it should service become necessary.
This use & care guide will answer most of your questions
about the features, operation and maintenance of your
wine storage unit. If you have questions that are not
addressed here, call Sub-Zero customer care at
800-222-7820 or visit our website, subzero.com.
If service should become necessary, you will need the
model and serial numbers of the wine storage unit. Both
numbers are listed on the product rating plate, located on

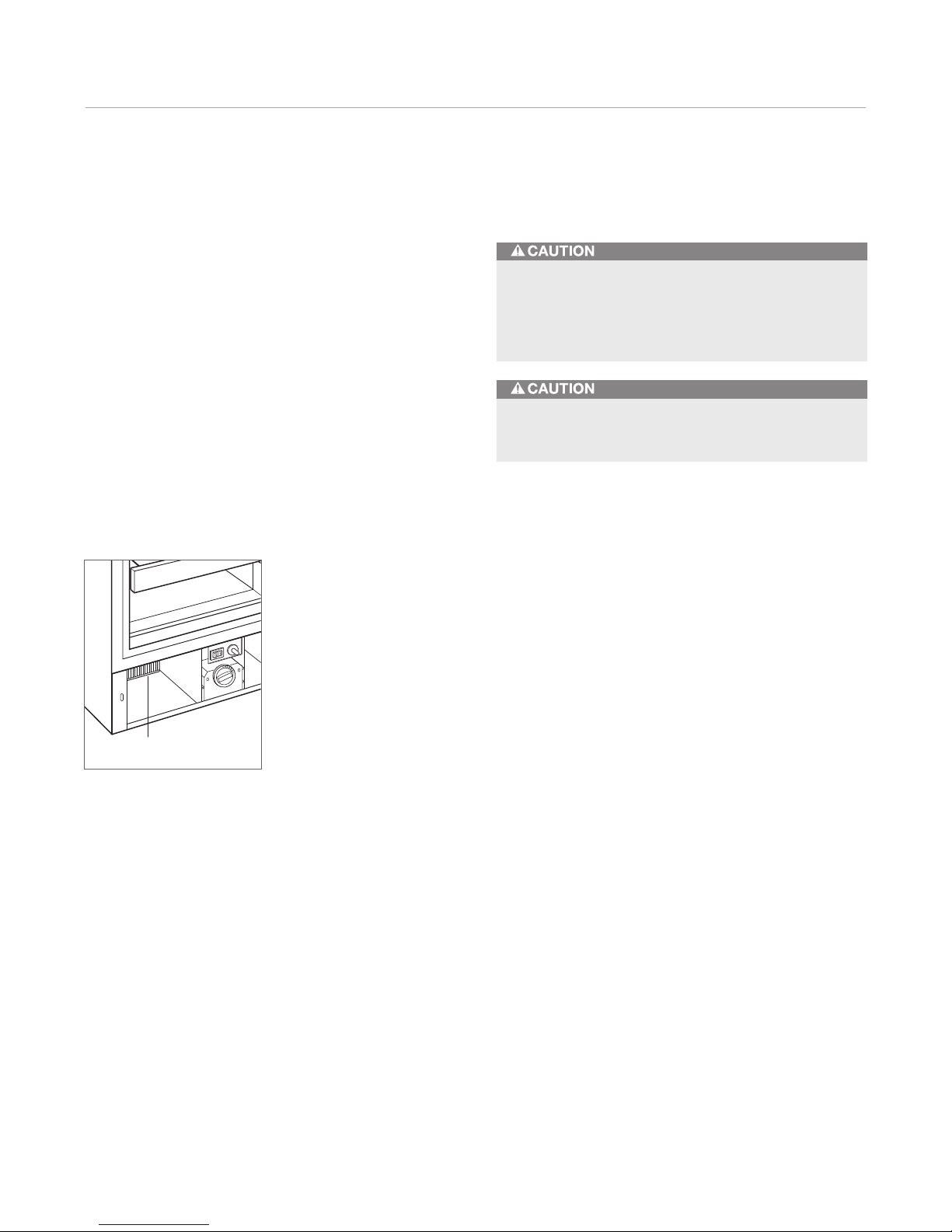

the underside of the top wall. Refer to the illustration.
Location of rating plate.
RATING P ATE

Model 315W Wine Storage Features 4
Model 315W Features
•Overlay and stainless steel design options.
•Maintains ideal storing and serving temperature for all
wines, humidity and UV protection.
•Single temperature zone with range from 45°F (7°C) to
55°F (13°C).
•Full-view, UV-resistant, high altitude glass door.
•Easy-access temperature control.
•Discreet interior lighting.
•Wine shelves accommodate up to 26 (750 ml) bottles.
Model 315W
UNDERCOUNTER WINE STORAGE
•Roller-assembly wine shelves with natural cherrywood
facing have three-quarter extension for easy access.
•U approved for US and Canada.
•Two, five and twelve year residential warranty—
exclusions apply, see warranty at the end of this guide.
Roller-assembly
wine shelves
Discreet interior
lighting
Full-view glass
door
Removable
kickplate
Stationary shelf
UV-resistant
glass
Temperature control
ight switch

Model 315W Wine Storage Operation 5
subzero.com
Model 315W Controls
Your model 315W is extremely simple to use, just turn the
control knob to the ON position. The wine storage unit will
automatically begin to cool and will continue to do so until
the set temperature is reached.
The model 315W operates on this principal; the unit will
run to achieve the set temperature. Run time will vary
based upon the amount of usage, room temperature and
amount of wine added.
TEM ERATURE CONTROL
Rotate the temperature control knob until the desired
temperature is achieved. Turn the knob clockwise to make
the unit colder. Refer to the illustration. Interior cabinet
temperatures may be slightly warmer at the top or front of
unit and cooler at the bottom and back.
IM ORTANT NOTE: The wine storage unit will not cool
down immediately upon initial start-up. Allow approxi-
mately 24 hours for unit to reach desired temperature.
When fully loaded with room temperature wine, the wine
storage unit will operate continuously for as long as 24
hours to reach the desired temperature. After reaching the
set temperature, the unit will begin to cycle on and off.
IM ORTANT NOTE: A fully-loaded wine storage unit will
run less than a unit which is partially full.
LIGHT SWITCH
The interior lighting automatically switches on when the
door is opened. To illuminate the interior when the door is
closed, move the light switch to the ON position. Refer to
the illustration below.

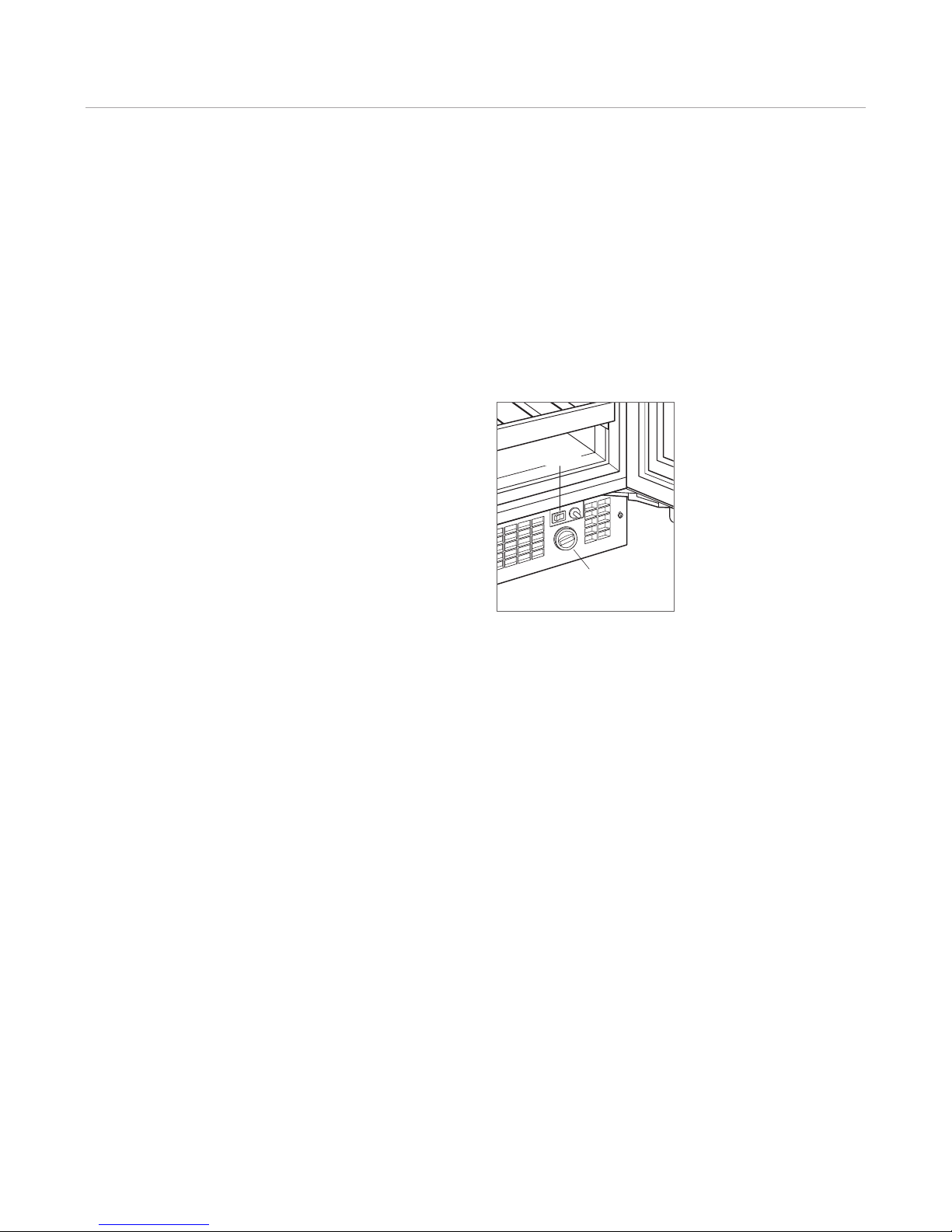

TEMPERATURE
CONTROL
LIGHT SWITCH
OFF
ON
C
O
L
D
E
S
T
Controls.

Wine Storage Shelves
Model 315W has roller-assembly shelves with a full three-
quarter extension for easy access to all stored bottles.
Each wine shelf holds four (750 ml) bottles. An additional
two bottles may be placed on the bottom stationary shelf
for a total capacity of 26 bottles. Refer to the illustration
below.
IM ORTANT NOTE: Never keep anything other than wine
bottles on the wine shelves; smaller beverage bottles are
unstable and may easily fall out and break.
The shelves have a solid natural cherrywood facing that
can be replaced with other wood to match your cabinetry.
Details on how to replace the shelves’ wood facing can be
found in the Sub-Zero design guide. Check our website at
subzero.com.
IM ORTANT NOTE: If you choose to stain or seal the
shelves’ natural cherrywood facing, be aware that some of
these substances are hazardous and will damage wine.
Model 315W Wine Storage Operation 6
WINE STORAGE SHELF REMOVAL
To remove a wine storage shelf, pull the shelf out to its full
extension, gently and evenly lift up on both sides of the
front of the shelf and remove. Reverse the procedure to
reinstall the shelf.
IM ORTANT NOTE: Wine storage shelf removal will be
more difficult if the door cannot open to a minimum of
120°, as in a corner application.
Wine storage shelves.
Be sure to unload all bottles from the wine storage
shelf before removing it.

Interior ighting
LIGHT BULB RE LACEMENT
Interior lighting for model 315W is located in the top of the
cabinet. The light bulb has an extended life and it should
be some time before it needs to be replaced.
Replacement bulbs are available from Sub-Zero factory
certified service. For the name of the factory certified
service nearest you, check the contact & support section
of our website, subzero.com or call Sub-Zero customer
care at 800-222-7820.

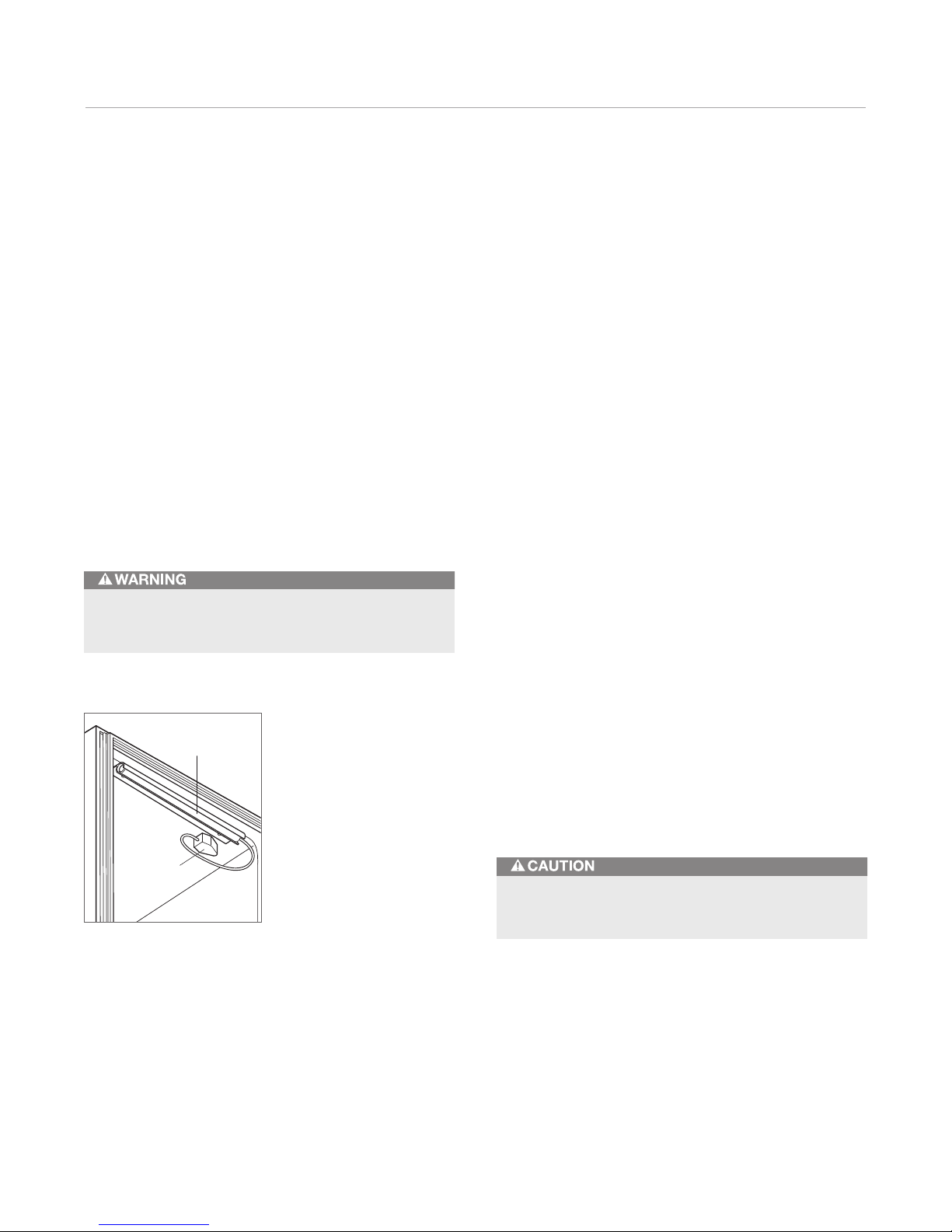

To replace the light bulb, shut off power to the unit.
Remove the top wine storage shelf. Pull the plug from the
socket in the top of the unit as shown in the illustration
below. Remove the bulb from its holder and install the new
bulb.
Model 315W Wine Storage Care 7
subzero.com
Cleaning
STAINLESS STEEL EXTERIOR
To clean the stainless steel exterior of the model 315W/S,
use a soft, nonabrasive stainless steel cleaner like Signa-
ture Polish and apply with a soft lint-free cloth.
Signature polish is available from Signature imited
aboratory, P. O. Box 13436, Dayton, Ohio 45413, or call
877-376-5474.
To bring out the natural luster of the stainless steel, lightly
wipe the surface with a water-dampened microfiber cloth
followed by a dry polishing chamois. All work should
follow the grain direction of the finish. Better results are
obtained by keeping the cloth in continuous contact with
the stainless steel.
INTERIOR SURFACES
To clean interior surfaces and removable parts, wash with
a mild solution of soap and lukewarm water with a little
baking soda. Do not use vinegar. Rinse and dry thor-
oughly. Avoid getting water on lights, controls and the
solid cherrywood facing on the shelves.
Do not use abrasive cleaners or cloths on any interior or
exterior surfaces, including the glass door panel.
GLASS DOOR
The glass door panel can be cleaned using any standard
glass cleaner available on the market today.
PLUG
LIGHT BULB
Light bulb replacement.
Shut off power to the unit before replacing the light
bulb. Wear protective gloves when handling the bulb.
Before cleaning the unit, shut off power to the unit by
turning the control knob to OFF.

Model 315W Wine Storage Care 8
Cleaning
CONDENSER CLEANING
Clean the condenser area every three to six months. The
cleaning schedule will depend on the amount of dust and
lint that accumulates in this area.
To access the condenser area, use a Phillips screwdriver
to remove the kickplate. Refer to the illustration below for
location of the condenser. Using a soft bristle brush,
vacuum to remove dust and lint from the condenser area.
IM ORTANT NOTE: To avoid bending the condenser fins,
be sure to vacuum in the direction of the fins (up and
down).
CONDENSER
Location of condenser.
Failure to clean the condenser could result in tempera-
ture loss or mechanical failure or damage.
Before cleaning the condenser, shut off power to the
unit by turning the control knob to OFF. When you
clean the condenser, wear gloves to avoid injury from
the sharp condenser fins.

Troubleshooting Guide 9
subzero.com
Troubleshooting
If your wine storage unit is not operating properly, use
the following troubleshooting guide before contacting
Sub-Zero factory certified service. This guide will save
you time and trouble and may help you avoid the expense
of a service call.
The wine storage unit is not operating.
•Check that control knob is ON, refer to page 5.
•Check the household fuse or circuit breaker to see if it
has been blown or tripped. A power outage may also
have caused a disruption in service.
Interior temperature has changed.
•Check temperature control setting to see if it has been
changed.
Unit not cooling properly.
•Condenser area needs cleaning, refer to page 8.
•Fan motor not operating properly. Contact Sub-Zero
factory certified service.
•Compressor not operating. Contact Sub-Zero factory
certified service.
Excessive operating time.
•Condenser area needs cleaning, refer to page 8.
•Unit filled with warm wine. Unit must operate for up to
24 hours to cool warm wine.
•Check door gasket for proper seal.
•Thick frost on evaporator. Shut unit off until frost melts.
•Unit in warm room conditions. Sunlight or high room
temperatures will increase operating time.
Thick frost on evaporator.
•Check door gasket for proper seal.
•Door not closing. Check door for obstructions.
•Thermostat not keeping unit off long enough. Contact
Sub-Zero factory certified service.
•Excessive operating time. Check for cause.
Interior lighting does not work properly.
•ight bulb burned out. Replace light bulb, refer to
page 7.
•Check that door closes properly to depress light
switch.
•Cannot switch light on with door closed. Check rocker
switch.
Excessive noise.
•Some fan noise during operation is normal.
Water leaking inside or under unit.
•Drain trough hose plugged or out of position. Contact
Sub-Zero factory certified service.
•Drain pan over filling. Check door or door gasket.

Service Information 10
Service Information
If you do need service, be sure to have the model and
serial number of your unit when you call. The numbers are
listed on the product rating plate. Refer to the illustration
on page 3 for location of the rating plate.
For warranty purposes, you will also need the date of
installation and the name of your authorized Sub-Zero
dealer. Record this information below for future reference.
BEFORE CALLING FOR SERVICE
Before calling Sub-Zero factory certified service, refer to
the troubleshooting guide on the previous page.
RODUCT REGISTRATION
Register your new Sub-Zero today so that we may ensure
your satisfaction. You may register by one of the following
options:
1) Mail in the completed Sub-Zero product registration
card.
2) Register online at subzero.com.
3) Register by phone by calling Sub-Zero customer care
at 800-222-7820.
The model and serial number of your unit are printed on
the enclosed Sub-Zero product registration card. If you
provide us with your e-mail address, we will send you
exciting new product updates and recipes as they become
available, along with information on special events.
Model Number
Serial Number
Installation Date
Sub-Zero Factory Certified Service
Phone
Authorized Sub-Zero Dealer
Phone
The information and images in this guide are the copyright property of Sub-Zero, Inc. Neither this guide nor any information or images contained herein may be
copied or used in whole or in part without the express written permission of Sub-Zero, Inc. ©Sub-Zero, Inc. all rights reserved.
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
Sub-Zero, Sub-Zero & Design, Dual Refrigeration, Constant Care and The iving Kitchen are registered trademarks and service marks of Sub-Zero, Inc.
(collectively, the “Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.

Sub-Zero Products imited Warranty
FOR RESIDENTIA USE ON Y
FULL TWO YEAR WARRANTY*
For two years from the date of original installation, your Sub-Zero product warranty covers all parts and labor
to repair or replace, under normal residential use, any part of the product that proves to be defective in
materials or workmanship. All service provided by Sub-Zero under the above warranty must be performed by
Sub-Zero factory certified service, unless otherwise specified by Sub-Zero, Inc. Service will be provided during
normal business hours.
FULL FIVE YEAR SEALED SYSTEM WARRANTY
For five years from the date of original installation, your Sub-Zero product warranty covers all parts and labor
to repair or replace, under normal residential use, the compressor, condenser, evaporator, drier and all con-
necting tubing that prove to be defective in materials or workmanship. All service provided by Sub-Zero under
the above warranty must be performed by Sub-Zero factory certified service, unless otherwise specified by
Sub-Zero, Inc. Service will be provided during normal business hours.
LIMITED TWELVE YEAR SEALED SYSTEM WARRANTY
For twelve years from the date of original installation, your Sub-Zero product warranty covers all parts to repair
or replace, under normal residential use, the compressor, condenser, evaporator, drier and all connecting tubing
that prove to be defective in materials or workmanship.
TERMS A LICABLE TO EACH WARRANTY
The warranty applies only to products installed for normal residential use. The warranty applies only to products
installed in any one of the fifty states of the United States, the District of Columbia or the ten provinces of
Canada. This warranty does not cover any parts or labor to correct any defect caused by negligence, accident
or improper use, maintenance, installation, service or repair.
THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES THAT SUB-ZERO, INC.
WILL ROVIDE, EITHER UNDER THIS WARRANTY OR UNDER ANY WARRANTY ARISING BY O ERATION OF
LAW. SUB-ZERO, INC. WILL NOT BE RES ONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES
ARISING FROM THE BREACH OF THIS WARRANTY OR ANY OTHER WARRANTY, WHETHER EX RESS,
IM LIED OR STATUTORY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have
other legal rights that vary from state to state.
To receive parts and/or service and the name of Sub-Zero factory certified service nearest you, contact
Sub-Zero, Inc., P.O. Box 44848, Madison, WI 53744; check the contact & support section of our website,
subzero.com or call 800-222-7820.
*Stainless steel doors, panels, handles, product frames and interior surfaces are covered by a limited 60-day
parts and labor warranty for cosmetic defects.
*Replacement water filters and air purification cartridges are not covered by the product warranty.

SUB-ZERO, INC. . O. BOX 44848 MADISON, WI 53744 SUBZERO.COM 800.222.7820
7012206 REV-A 3 / 2011
