Sub-Zero IW-18 User manual

Wine Storage Installation Guide

WINE STORAGE
Contents
3Wine Storage
4Opening Dimensions
5Electrical
6Preparation
6Anti-Tip Bracket
8Placement
8Alignment
10 Custom Panels
12 Panel Installation
14 Completion
Features and specications are subject to change at any
time without notice. Visit subzero.com/specs for the most
up-to-date information.
Important Note
To ensure this product is installed and operated as safely
and efciently as possible, take note of the following types
of highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially
important.
CAUTION indicates a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
IMPORTANT NOTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specied.
IMPORTANT NOTE: Save these instructions for the local
electrical inspector.

subzero.com | 3
Product Information
Important product information including the model and
serial number are listed on the product rating plate. The
rating plate is located on the handle side wall, directly below
the control panel. Refer to the illustration below.
If service is necessary, contact Sub-Zero factory certied
service with the model and serial number. For the name
of the nearest Sub-Zero factory certied service or for
questions regarding the installation, visit the contact & sup-
port section of our website, subzero.com or call Sub-Zero
customer care at 800-222-7820.
WINE STORAGE
Tools and Materials
•Screwdrivers—standard, Phillips and Torx.
•Power drill.
•Drill bits (masonry bits required for concrete installation).
•Standard socket and wrench set.
•2' and 4' levels.
•Material to protect home, ooring and cabinetry during
installation.
Rating plate location.
RATING PLATE

4 | Sub-Zero Customer Care 800.222.7820
SITE PREPARATION
Opening Dimensions
WINE STORAGE OPENING DIMENSIONS
COLUMN W H
IW-18 18" (457) 84" (2134)
IW-24 24" (610) 84" (2134)
IW-30 30" (762) 84" (2134)
TALL W H
IW-30R 30" (762) 84" (2134)
The depth of each wine storage model is 24" (610). Allow for
panel thickness when planning the nished opening depth.
A minimum 31/2"(89) nished return is required on all sides
of the opening. Framed cabinets will require additional
nished ller material behind the face frame for a proper
installation. Refer to the illustration.
DUAL INSTALLATION
When installing two units side by side in a dual installa-
tion, the opening width is the width of the two units added
together. A dual installation kit will be required for this instal-
lation. If a dual installation kit is not specied, a minimum
2" (51) ller strip is required between units.
Dual installation kits are available through an authorized
Sub-Zero dealer. For local dealer information, visit the nd a
showroom section of our website, subzero.com. For ques-
tions regarding the installation, call Sub-Zero customer care
at 800-222-7820.
25" (635)
OPENING
DEPTH
W
OPENING WIDTH
H
OPENING
HEIGHT
NOTE:
31/2"(89) finished returns will be visible and should be finished to match cabinetry.
SIDE
VIEW
TOP VIEW
FRONT VIEW
31/2"(89)
FINISHED
RETURN
FRAMELESS CABINETRY
3/4"
(19)
TYPICAL 31/2"(89)
FINISHED
RETURN
FILLER
FRAMED CABINETRY
W W

subzero.com | 5
SITE PREPARATION

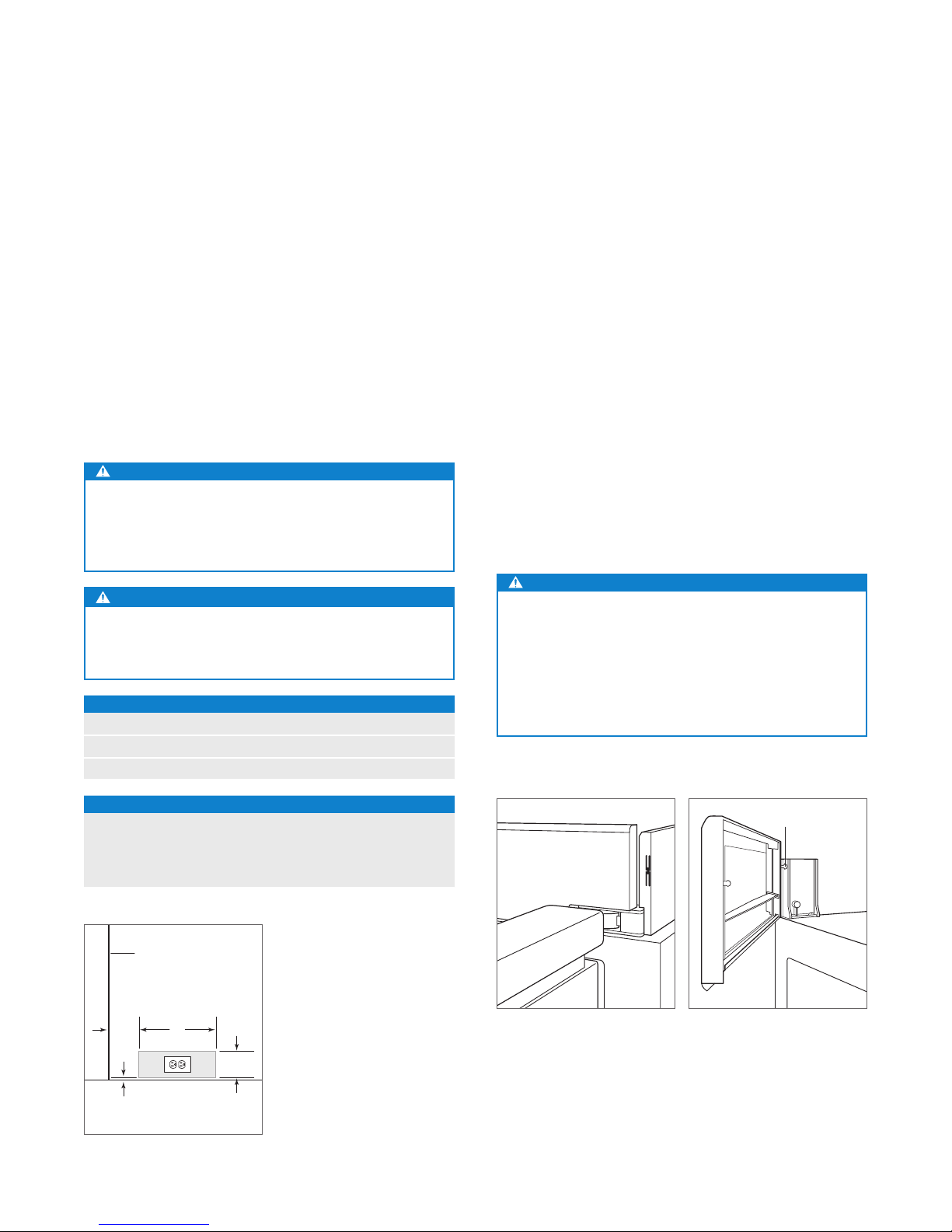

HOME SECURITY CONNECTION
If the unit will be connected to a home security system, low-
voltage leads must be provided to the unit. Two connectors
are located behind the top trim. Provide 10' (3 m) minimum
lead wires for each connector, exiting the back wall near the
electrical receptacle.
Remove the top trim by disengaging the trim from the hinge
side of the unit. Rotate the trim and remove the trim pin from
the handle side vertical support. Refer to the illustrations
below. Use spade terminals or wire nuts to make proper
wiring connections. Refer to the following color codes:
•Normally open contacts—white with red stripe wire.
•Common—gray with white stripe wire.
CAUTION
The alarm circuit in the unit is intended as a low-
voltage, low-current device only. It should not be used
to switch line power. Any unused terminals should be
completely insulated and all wires should be secured
away from conductive or moving components.
Electrical
Installation must comply with all applicable electrical codes.
The electrical supply must be located within the shaded
area shown in the illustration and chart below. A separate
circuit, servicing only this appliance is required. A ground
fault circuit interrupter (GFCI) is not recommended and may
cause interruption of operation.
The electrical outlet must be positioned with the grounding
prong to the right of the thinner blades.
CAUTION
The outlet must be checked by a qualied electrician to
be sure that it is wired with the correct polarity. Verify
that the outlet is properly grounded.
WARNING
Do not use an extension cord, two-prong adapter or
remove the power cord ground prong.
ELECTRICAL REQUIREMENTS
Electrical Supply 115 VAC, 60 Hz
Service 15 amp
Receptacle 3-prong grounding-type
ELECTRICAL SUPPLY LOCATION
WIDTH A
18" Models 6" (152)
24" Models 91/2"(241)
30" Models 121/2"(318)
A
1/4" (6)
1/4" (6)
41/4"
(108)
41/2"
(114)
FLOOR
LEFT SIDE
OF OPENING
Electrical supply location.
PIN
Top trim—hinge side. Top trim—handle side.

6 | Sub-Zero Customer Care 800.222.7820
SITE PREPARATION
Preparation
Uncrate the unit and inspect for damage. Remove the wood
base and discard shipping bolts and brackets. Remove and
recycle packing materials. Do not discard the kickplate, anti-
tip bracket and hardware.
Remove the kickplate by extracting the two mounting
screws. Refer to the illustration below.
SCREW
Kickplate removal.
Anti-Tip Bracket
WARNING
To prevent the unit from tipping forward, the anti-tip
bracket must be installed.
The back of the anti-tip bracket must be installed 24" (610)
from the front of the unit (without panels).
Use all anti-tip bracket hardware as instructed for wood or
concrete oors.
IMPORTANT NOTE: For wood or concrete oor applications,
if the #12 screws do not hit a wall stud or wall plate, use the
#8 screws and #12 washers with the wall anchors.
IMPORTANT NOTE: In some installations the subooring or
nished oor may necessitate angling the screws used to
fasten the anti-tip bracket to the back wall.
ANTI-TIP HARDWARE
1 Anti-tip bracket
6 #12 x 21/2" pan head screws
23/8"–16 x 33/4" wedge anchors
6 #12 at washers

subzero.com | 7
SITE PREPARATION
CONCRETE WEDGE ANCHOR INSTALLATION:
1Drill a 3/8"(10) diameter hole any depth exceeding the
minimum embedment. Clean the hole or drill additional
depth to accommodate drill nes.
2Assemble the washer and nut ush with the end of
anchor to protect threads. Drive the anchor through the
material to be fastened until the washer is ush with the
surface material.
3Expand the anchor by tightening the nut 3–5 turns past
hand-tight position or to 25 foot-pounds of torque.
WARNING
Verify there are no electrical wires or plumbing in the
area which the screws could penetrate.
CAUTION
Always wear safety glasses and use other neces-
sary protective devices or apparel when installing or
working with anchors.
Anchors are not recommended for use in lightweight
masonry material such as block or brick, or for use in
new concrete which has not had sufcient time to cure.
The use of core drills is not recommended to drill holes
for the anchors.
Anti-Tip Bracket
WOOD FLOOR APPLICATION
After properly locating the anti-tip bracket in the opening,
drill pilot holes 3/16"(5) diameter maximum in the wall studs
or wall plate. Use the #12 screws and washers to secure the
brackets. Verify the screws penetrate through the ooring
material and into wall studs or wall plate a minimum of 3/4"
(19). Refer to the illustration and chart below.
CONCRETE FLOOR APPLICATION
After properly locating the anti-tip bracket in the opening,
drill pilot holes 3/16"(5) diameter maximum in the wall studs
or wall plate. Drill 3/8"(10) diameter holes into the concrete
a minimum of 11/2"(38) deep. Use the #12 screws and
washers to secure the brackets to the wall, and use the 3/8"
wedge anchors to secure the brackets to the oor. Verify the
screws penetrate wall studs or wall plate a minimum of 3/4"
(19). Refer to the illustration and chart below.
ANTI-TIP BRACKET PLACEMENT
WIDTH A
18" Models 9" (229)
24" Models 12" (305)
30" Models 15" (381)
A
A
SUBFLOORING
WOOD FLOOR
WALL PLATE
FINISHED
FLOORING
A
A
SUBFLOORING
CONCRETE
FLOOR
WALL PLATE
FINISHED
FLOORING
11/2"(38)
min
Wood oor. Concrete oor.

8 | Sub-Zero Customer Care 800.222.7820
INSTALLATION
Placement
CAUTION
Before moving the unit into position, secure the door/
drawers closed and protect any nished ooring.
Use an appliance dolly to move the unit near the opening.
The front leveling legs are extended below the front rollers to
improve stability during placement. Once the unit is placed
in front of the opening, completely retract the front leveling
legs to allow the unit to be rolled into position. Front and
rear leveling legs can be adjusted from the front once the
unit is positioned.
If the unit has been on its back or side, it must stand upright
for a minimum of 24 hours before connecting power.
Plug the power cord into the grounded outlet and roll the
unit into position. Verify the anti-tip bracket is properly
engaged.
Alignment
LEVELING
Once the unit is in position, height adjustment can be made
from the front. Using a Phillips drive, turn clockwise to raise
the unit or counterclockwise to lower. Use the lowest torque
setting when using a power drill. Do not turn the leveling
legs by hand. Refer to the illustration below.
When the unit is properly leveled, door/drawer adjustments
are less likely to be necessary.
IMPORTANT NOTE: Level the unit to the oor, not sur-
rounding cabinetry. This could affect the operation of the
unit, such as door closing.
WARNING
To reduce the possibility of the unit tipping forward,
the front leveling legs must be in contact with the oor.
REAR
ADJUSTMENT
FRONT
ADJUSTMENT
Leveling.

subzero.com | 9
INSTALLATION
Alignment
DEPTH ADJUSTMENT
Adjust the depth of the unit to t ush with surrounding
cabinetry. Follow these steps for a precision t:
1Place decorative panel on a protected work surface.
Place the panel thickness gauge next to the panel to
determine which notch corresponds with the panel thick-
ness. Refer to the illustration below. Once the proper
notch has been determined, mark that notch with a
marker.
2With the door closed, position the top of the unit using
the panel thickness gauge. Refer to the illustration
below. Insert a #8 x 1/2" stainless steel screw above the
hinge, then insert a #8 x 1/2" pan head screw on the
handle side of the unit. For narrower units, the door may
need to be opened to access the handle side screw
location. Repeat the process to align the bottom.
PANEL THICKNESS
GAUGE
FRONT OF
UNIT
CABINETRY
FACE
FRAME
SCREW
SIDE TRIM
Panel thickness. Unit depth.
ANCHORING
Once the top and bottom are aligned, verify the door/
drawers open properly, then install remaining screws in each
side trim.

10 | Sub-Zero Customer Care 800.222.7820
Custom Panels
Custom door/drawer panels and handle hardware must
be installed. Stainless steel panels are available through an
authorized Sub-Zero dealer. For local dealer information,
visit the nd a showroom section of our website,
subzero.com.
The thickness of the custom panel can vary. A minimum
5/8"(16) thick panel is required, but the thickness can be
increased provided it does not exceed the maximum panel
weight indicated in the chart below. The depth of each
model is 24" (610). Allow for panel thickness when planning
the nished opening depth.
PANEL REQUIREMENTS
PANEL WEIGHT MAX
Door 35 lb (16 kg)
Door (IW-30R) 25 lb (11 kg)
Drawer 15 lb (7 kg)
PANEL THICKNESS MIN
All Panels 5/8"(16)
Reveals between panels can vary, 1/8"(3) reveals are typical.
CAUTION
When installing a panel thicker than 1" (25), the 90° stop
may be required to prevent damage to the unit and
adjacent cabinetry.
CAUTION
As reveals between cabinetry and the unit decrease,
severe nger pinching can occur while door is closing.
Finish all sides of custom panels. They will be visible when
the door is open.
D-style handles are recommended. Stainless steel tubular
and pro handles are available through an authorized
Sub-Zero dealer. For local dealer information, visit the nd
a showroom section of our website, subzero.com. Door
handles must be located near the edge of the panel oppo-
site the hinge and should be centered top to bottom. Drawer
handles must be located near the top edge of each panel.
PANEL INSTALLATION

subzero.com | 11
PANEL INSTALLATION
Custom Panels
DOOR PANEL HEIGHT
The height of the custom door panel can extend beyond the
typical panel height, provided it does not exceed the weight
limit. Refer to the illustration below.
13/4"
(45)
A DECORATIVE VALANCE
CANNOT EXTEND
BEYOND THIS PLANE
DOOR
PANEL
HINGE
24" (610)
TO BACK OF UNIT
84"
(2134)
1/8" (3)
Upper valance—side view.
TOE KICK CLEARANCE
The height of the toe kick area can extend beyond the
typical toe kick height, provided it does not exceed the
dimensions in the illustration below. Toe kick heights from
2" (51) to 37/8"(98) require a reduced toe kick accessory
available through an authorized Sub-Zero dealer. For local
dealer information, visit the nd a showroom section of our
website, subzero.com. For questions regarding the installa-
tion, call Sub-Zero customer care at 800-222-7820.
24" (610)
TO BACK OF UNIT
VENTED
LOUVERS
HINGE
DOOR
PANEL
11/8" (29)
MAX
TOE KICK
ADJUSTMENT
A DECORATIVE TOE KICK
CANNOT EXTEND
BEYOND THIS PLANE
2" (51)*
TO
6" (152)
FROM
FLOOR
*2" (51) to 37/8"(98) requires sales accessory.
Toe kick—side view.

12 | Sub-Zero Customer Care 800.222.7820
PANEL INSTALLATION
Panel Installation
DOOR PANEL
Typical panel dimensions are based on an 84" (2134) nished
height with 1/8"(3) reveals. Template placement must be
adjusted for panels exceeding typical dimensions.
For model IW-30R, the door panel should be installed rst,
followed by the upper then lower drawer panel.
Place the panel face down on a protected work surface.
Position the template ush with the top and sides of the
panel. Verify the correct side of the template is being used,
then mark and drill holes. Refer to the illustration below.
For model IW-30R, align the notch in the template with the
bottom of the door panel, then mark and drill holes. Refer to
the illustration below.
Use the T-20 torx drive provided to partially insert a #8 x 1/2"
screw into the second hole from the top on each side of the
panel. The screws should be approximately 3/16"(4) proud
of the panel and will support the weight of the panel during
installation.
Align the support screws on the back of the panel with the
slotted holes on both door mounting brackets. Opening the
door slightly may help with alignment. Once the panel is
supported by the screws, partially insert a #8 x 1/2" screw
into the second hole from the bottom on each side of the
panel, but do not tighten.
CAUTION
As the reveal between cabinets and the unit decreases,
the potential exists for severe nger pinching if ngers
are placed in the opening when the door is closing.
BACK OF
DOOR PANEL
Door panel mounting.
BOTTOM OF
DOOR PANEL
EDGE OF DOOR PANEL
USE TABS FOR HINGE
SIDE PANEL EDGE ON
DUAL INSTALLATION
TOP OF
DOOR PANEL
84" APPLICATION
83 7/8" ACTUAL
EDGE OF DOOR PANEL
TOP OF DOOR PANEL
BOTTOM OF
DOOR PANEL
EDGE OF DOOR PANEL
USE TABS FOR HINGE
SIDE PANEL EDGE ON
DUAL INSTALLATION
TOP OF
DOOR PANEL
84" APPLICATION
83 7/8" ACTUAL
EDGE OF DOOR PANEL
BOTTOM OF
DOOR PANEL
Door panel template—top. Door panel template—bottom
(IW-30R only).

subzero.com | 13
PANEL INSTALLATION
PANEL ADJUSTMENT
Close the door/drawers, now adjustments can be made to
align panels and reveals.
For side-to-side adjustment, move panels side to side, then
install and tighten all mounting screws.
For up-and-down and in-and-out adjustments, slightly
loosen the bracket screws. Depending on the level of
adjustment required, it may be helpful to loosen all of the
bracket screws which will allow for maximum adjustment.
Once the bracket screws are loosened, rotate the cams
to make adjustments. After adjustments have been made,
tighten all bracket screws. Refer to the illustrations below.
BRACKET
SCREWS
IN-AND-OUT
CAM
BRACKET
SCREWS
UP-AND-DOWN
CAM
In-and-out adjustment. Up-and-down adjustment.
Panel Installation
DRAWER PANELS (IW-30R)
Place the panel face down on a protected work surface.
Position the template ush with the top and sides of the
panel. Verify the correct side of the template is being used,
then mark and drill holes. Refer to the illustration below.
Use the T-20 torx drive provided, to partially insert a #8 x 1/2"
screw into the second hole from the top on each side of the
panel. The screws should be approximately 3/16"(4) proud
of the panel and will support the weight of the panel during
installation.
Align the support screws on the back of the panel with the
slotted holes on both drawer mounting brackets. Refer to
the illustration below. Opening the drawer slightly may help
with alignment. Once the panel is supported by the screws,
partially insert a #8 x 1/2" screw into the second hole from
the bottom on each side of the panel, but do not tighten.
RIGHT EDGE OF DRA
WER PANEL
TOP HOLES
FOR UPPER
AND LOWER
DRAWERS
BOTTOM
HOLES FOR
LOWER
DRAWER
BOTTOM
HOLES FOR
UPPER
DRAWER
7021340
TOP OF
DRAWER PANEL
LEFT EDGE OF DRAWER PANEL
TOP OF DRAWER PANEL BACK OF
DRAWER PANEL
Drawer panel template—top. Drawer panel mounting.

14 | Sub-Zero Customer Care 800.222.7820
KICKPLATE INSTALLATION
Position the kickplate and install using the two mounting
screws. Refer to the illustration below. The kickplate must
be removable for service. The oor cannot interfere with
removal.
A maximum 6" (152) decorative kickplate can be attached
to the factory-installed kickplate. The two rows of vented
louvers can be covered if door panel is a minimum 4" (102)
from nished oor.
To install a decorative kickplate, remove paper backing from
the magnets and attach decorative kickplate to magnets.
Magnets may also be tacked into position to increase adhe-
sion. Magnets will allow decorative kickplate to be removed,
if necessary.
Turn power on by touching ‘power’ on the control panel.
INSTALLATION
SCREWMAGNET
Kickplate installation.
Completion
DOOR TRIM INSTALLATION
After panels have been adjusted, install the decorative side
trim to the door/drawers. To install, start at the top and
align the trim with the front and rear anges on the bracket,
then snap into place by pushing the trim toward the back
of the panel. Once the top is secure, continue the installa-
tion downward until the remaining trim is completely secure.
Refer to the illustrations below.
DOOR TRIM
FRONT
FLANGE
REAR
FLANGE
Door trim. Bracket anges.
SIDE TRIM INSTALLATION
Install the decorative trim strip to the handle side of tall
and column models. The side trim snaps over the bracket
attached to the handle side of the unit. Refer to the illustra-
tion below.
Side trim.

subzero.com | 15
Sub-Zero, Sub-Zero & Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trademarks and service
marks of Sub-Zero, Inc. Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
INSTALLATION
Completion
90° DOOR STOP
A 105° door stop is built into the hinges. To limit the door
to 90°, open the door slightly less than 90°, then use a
standard screwdriver blade to remove the existing clips from
each hinge. Locate the 90° clips from inside the plastic bag
containing product literature, then insert the 90° clips onto
each hinge. Refer to the illustration below.
CLIP
90° door stop.
WARNING
Follow all city and state laws when storing, recycling or
discarding unused refrigerators and freezers.

2 | Atención al cliente de Sub-Zero 800.222.7820
ALMACENAMIENTO DE VINOS
Contenido
3Almacenamiento de vinos
4Dimensiones de abertura
5Instalación eléctrica
6Preparación
6Soporte antivuelco
8Colocación en posición
8Alineación
10 Paneles personalizados
12 Instalación del panel
14 Finalización
Las características y especicaciones están sujetas a
cambios sin previo aviso. Visite subzero.com/specs para
obtener la información más actualizada.
Aviso importante
Para garantizar que este producto se instale y opere de
la forma más segura y eciente posible, tome nota de los
siguientes tipos de información resaltada en esta guía:
AVISO IMPORTANTE señala la información que es especial-
mente importante.
PRECAUCIÓN indica una situación en la que se pueden
sufrir heridas leves o provocar daños al producto si no se
siguen las instrucciones.
ADVERTENCIA indica peligro de que se produzcan heridas
graves o incluso la muerte si no se siguen las precauciones.
AVISO IMPORTANTE: En toda esta guía, las dimensiones
entre paréntesis son milímetros, a menos que se especi-
que lo contrario.
AVISO IMPORTANTE: Guarde estas instrucciones para el
inspector eléctrico local.

subzero.com | 3
Información del producto
La información importante del producto, incluido el modelo
y número de serie de la unidad, se encuentra en la placa de
datos del producto. La placa de datos se encuentra en la
parte de abajo del panel de control, a la izquierda. Consulte
la siguiente ilustración.
Si necesita servicio, póngase en contacto con el centro
de servicio autorizado de Sub-Zero y tenga a la mano el
modelo y número de serie de la unidad. Para obtener los
datos del centro de servicio autorizado de Sub-Zero más
cercano o si tiene preguntas acerca de la instalación, visite
la sección de contacto y soporte técnico en nuestra página
de Internet subzero.com o llame a la línea de atención al
cliente de Sub-Zero al 800-222-7820.
ALMACENAMIENTO DE VINOS
Herramientas y materiales
•Destornilladores: estándar, Phillips y Torx.
•Taladro eléctrico.
•Brocas (se requieren brocas de mampostería para insta-
lación en concreto).
•Juego de llaves estándar y de vaso.
•Niveles 2' y 4'.
•Material para proteger la casa, el piso y los gabinetes
durante la instalación.
Ubicación de la placa de datos.
PLACA DE DATOS

4 | Atención al cliente de Sub-Zero 800.222.7820
PREPARACIÓN DEL SITIO
Dimensiones de abertura
ALMACENAMIENTO DE VINOS DIMENSIONES DE ABERTURA
COLUMNA Ancho A
IW-18 18" (457) 84" (2134)
IW-24 24" (610) 84" (2134)
IW-30 30" (762) 84" (2134)
ALTO Ancho A
IW-30R 30" (762) 84" (2134)
La profundidad de cada modelo de almacén de vinos es
24" (610). Para determinar la profundidad de la abertura ya
con acabados, considere el grosor del panel. Se necesita
un tubo de retorno de 31/2"(89) con acabados en todos los
lados de la abertura. Los gabinetes con marco necesitarán
material de relleno de acabado detrás del marco frontal para
lograr una instalación adecuada. Consulte la ilustración.
INSTALACIÓN DOBLE
Al colocar dos unidades juntas en una instalación doble, el
ancho de la abertura es la suma del ancho de ambas uni-
dades. Para esta instalación se requiere un kit de instalación
doble. Si el uso de un kit de instalación doble no está espe-
cicado, se debe utilizar una tira de relleno de 2" (51) como
mínimo entre las unidades.
Los kits de instalación doble están disponibles a través de
un distribuidor autorizado de Sub-Zero. Para obtener más
información acerca de los distribuidores locales, visite la
sección para encontrar una sala de exhibición de nuestro
sitio web, subzero.com. Para preguntas sobre la instalación,
comuníquese con la línea de atención al cliente de Sub-Zero
al 800-222-7820.
PROFUNDIDAD DE
LA ABERTURA DE
25" (635)
Ancho
ANCHO DE
LA ABERTURA
Altura
ALTURA DE
LA ABERTURA
NOTA: Los tubos de retorno de
31/2"(89) con acabados quedarán a la vista y deben
estar listos para ajustarse a los gabinetes.
VIST
A LATERAL
VISTA SUPERIOR
VISTA FRONTAL
TUBO DE
RETORNO DE
31/2"(89) CON
ACABADOS
GABINETE SIN MARCO
TÍPICO DE
3/4"(19)
TUBO DE
RETORNO DE
31/2"(89) CON
ACABADOS
RELLENO
GABINETE CON MARCO
Ancho Ancho

subzero.com | 5
PREPARACIÓN DEL SITIO
CONEXIÓN A LÍNEAS DE SEGURIDAD DEL HOGAR
Si la unidad se conecta a un sistema de seguridad de la
casa, se deben proporcionar cables de bajo voltaje para
la unidad. Hay dos conectores ubicados detrás del ribete
superior. Proporcione cables de 10' (3 m) como mínimo para
cada conector, que salen de la pared posterior cerca del
tomacorriente eléctrico.
Retire el ribete superior al desengancharlo del lado de la
bisagra de la unidad. Gire el ribete y retire el pasador del
ribete del soporte vertical del lado de la manija. Consulte las
siguientes ilustraciones. Use las terminales tipo espada o
tuercas para cable para efectuar las conexiones de manera
correcta. Aplique los siguientes códigos de colores:
•Contactos normalmente abiertos — cable blanco con
línea roja.
•Común — cable gris con línea blanca.
PRECAUCIÓN
El circuito de la alarma de la unidad debe utilizarse
solamente como un dispositivo de bajo voltaje y baja
corriente. No debe usarse como interruptor de la línea
de energía. Cualquier terminal que no se utilice debe
estar completamente aislada y todos los cables deben
estar alejados de manera segura de componentes
conductores o móviles.
Instalación eléctrica
La instalación debe cumplir con todos los códigos eléc-
tricos vigentes.
El suministro eléctrico debe colocarse dentro del área som-
breada que se muestra en la siguiente ilustración. Es nece-
sario un circuito independiente que dé servicio únicamente
a este aparato. No es recomendable utilizar un circuito de
fallos de conexión a tierra (GFCI, por sus siglas en inglés) ya
que puede interrumpir el funcionamiento de la unidad.
El tomacorriente eléctrico debe colocarse de tal forma que
la clavija con conexión a tierra quede a la derecha de las
aspas más delgadas.
PRECAUCIÓN
Un electricista calicado debe revisar el tomacorriente
para asegurarse de que la conexión se haya realizado
con la polaridad correcta. Verique que el tomaco-
rriente esté debidamente conectado a tierra.
ADVERTENCIA
No utilice un cable de extensión, adaptador de dos cla-
vijas ni retire la clavija con conexión a tierra del cable
de alimentación.
REQUISITOS ELÉCTRICOS
Suministro eléctrico 115 V CA, 60 Hz
Servicio 15 amperes
Receptáculo Conexión a tierra de 3 clavijas
UBICACIÓN DEL SUMINISTRO ELÉCTRICO
ANCHO A
Modelos de 18" 6" (152)
Modelos de 24" 91/2"(241)
Modelos de 30" 121/2"(318)
A
1/4" (6)
1/4" (6)
41/4"
(108)
41/2"
(114)
SUELO
LADO IZQUIERDO
DE LA ABERTURA
Ubicación del suministro eléctrico.
CLAVIJA
Ribete superior: lado de la
bisagra.
Ribete superior: lado de la
manija.

6 | Atención al cliente de Sub-Zero 800.222.7820
PREPARACIÓN DEL SITIO
Preparación
Desembale la unidad e inspeccione si tiene algún daño.
Retire la base de madera y deseche los pernos y soportes
de transporte. Retire y recicle los materiales de embalaje.
No deseche el zócalo, el soporte antivuelco ni las piezas de
montaje.
Para quitar el zócalo extraiga los dos tornillos para montaje.
Consulte la siguiente ilustración.
TORNILLO
Extracción del zócalo.
Soporte antivuelco
ADVERTENCIA
Para evitar que la unidad se vuelque hacia el frente,
debe instalarse el soporte antivuelco.
La parte posterior del soporte antivuelco debe instalarse a
24" (610) del frente de la unidad (sin paneles).
Utilice todas las piezas de montaje de los soportes anti-
vuelco de acuerdo con las instrucciones para suelos de
madera o de concreto.
AVISO IMPORTANTE: Para aplicaciones en suelo de madera
o de concreto, si los tornillos del #12 no alcanzan un trave-
saño o la placa de pared, utilice tornillos del #8 y arandelas
del #12 con los anclajes de pared.
AVISO IMPORTANTE: En algunas instalaciones el contrapiso
o el suelo terminado pueden necesitar inclinar los tornillos
utilizados para sujetar el soporte antivuelco a la pared del
fondo.
PIEZAS DE MONTAJE ANTIVUELCO
1 Soporte antivuelco
6 Tornillos de cabeza plana de #12 x 21/2"
2 Anclas de cuña de 3/8"–16 x 33/4"
6 Arandelas planas #12
