WINE STORAGE
USE AND CARE GUIDE
CLEANING, MAINTENANCE, AND MORE

2 | Sub-Zero Customer Care 800.222.7820
WINE STORAGE
Contents
4Wine Storage Features
5Interactive Control Panel
6Storage
8Operation
10 Care Recommendations
11 Technical Data
13 Troubleshooting
15 Sub-Zero Warranty

subzero.com | 3
Customer Care
The model and serial number are printed on the enclosed
product registration card. Both numbers are also listed on
the product rating plate. Refer to page 4 for rating plate
location. For warranty purposes, you will also need the date
of installation and name of your authorized Sub-Zero dealer.
Record this information below for future reference.
SERVICE INFORMATION
Model Number
Serial Number
Date of Installation
Certied Service Name
Certied Service Number
Authorized Dealer
Dealer Number
If your product ever needs attention, be sure to use a
Sub-Zero Factory Certied Service provider recommended
by our customer care center, or select one from our list of
providers available at subzero.com/locator. All Factory Certi-
ed Service providers are carefully selected and thoroughly
trained by us.
WINE STORAGE
Important Note
To ensure this product is installed and operated as safely
and efciently as possible, take note of the following types
of highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially
important.
CAUTION indicates a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
IMPORTANT NOTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specied.
WARNING
PROPOSITION 65 FOR CALIFORNIA RESIDENTS
Cancer and Reproductive Harm—
www.P65Warnings.ca.gov

4 | Sub-Zero Customer Care 800.222.7820
WINE STORAGE FEATURES
Wine Storage Features

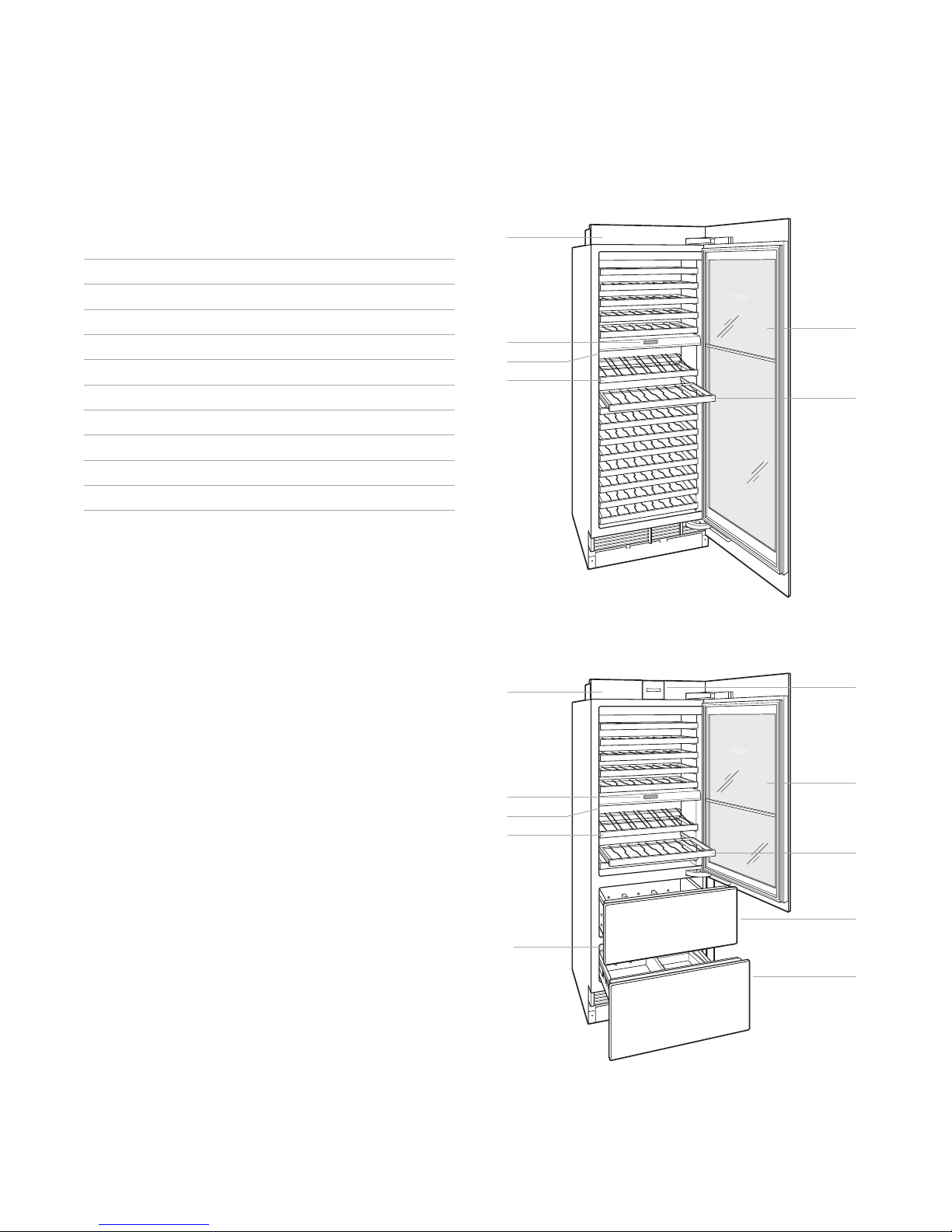

FEATURES
1Product Rating Plate
2Interactive Control Panel
3Wine Storage Racks
4Display Rack
5Full-View Glass Door
6Home Security Connection
7Refrigerator Storage Drawer
8Freezer Storage Drawer*
9Water Filtration System*
10 Automatic Ice Maker*
*Not available on all models.
Column model
3
5
6
4
2
1
Tall model (IW-30CI shown)
7
3
5
6
4
2
1
8
10
9

subzero.com | 5
Interactive Control Panel
For initial start up, touch and hold ‘power’ on the control
panel for 2 seconds.
Temperature can be adjusted in one-degree increments
on the home screen. All wine storage models have sepa-
rate temperature controls for each zone. Temperatures are
preset at 45°F (7°C) for the lower zone and 55°F (13°C) for
the upper zone. Storage drawers are preset at 38°F (3°C) for
refrigerator and 0°F (-18°C) for freezer.
To change the temperature, touch the temperature being
adjusted, then press ‘+’ or ‘-’ until desired temperature is
displayed. Refer to the illustration below.
Once the temperature has been adjusted, additional
features can be activated or deactivated from the options
screen. Touch to view the options screen.
OPTIONS SCREEN
Touch to activate or deactivate door/drawer alarm.
Touch to activate accent lighting.
Touch to activate humidor feature.*
Touch to adjust drawer temperature.*
Touch to activate or deactivate ice maker system and
max ice feature.*
Touch to view settings screen.
*Not available on all models.
SETTINGS SCREEN
Touch to view model information.
Touch to select temperature unit, Fahrenheit or Celsius.
Touch to adjust control panel brightness and contrast.
Touch to adjust door/drawer alarm volume and pitch.
Touch to adjust door/drawer alarm duration.
Touch to activate humidor feature.*
Touch to enter Sabbath mode.
Touch to view troubleshooting and service information.
Touch to set clock.
Touch to select smart home options.
Touch to select language options.
Touch to adjust soft on lighting.
*Not available on all models.
INTERACTIVE CONTROLS
Home screen

6 | Sub-Zero Customer Care 800.222.7820
Wine Storage
WINE RACKS
The full-extension wine racks provide easy access to
750 ml, half-bottles and magnums. When storing magnums,
the rack above must be removed.
To remove a wine rack, pull out to full extension, tilt up,
then lift up and out. Refer to the illustration below. The top
two racks in the upper compartment and top rack (top two
for tall model) in the lower compartment cannot be placed
in any other position. These racks can be identied by the
small square cut-out located in the right rear corner. Refer to
the illustration below.
The natural cherrywood facing on wine racks can be stained
or replaced with wood to compliment cabinetry. For more
information, refer to the Sub-Zero design guide, visit our
website at subzero.com or contact Sub-Zero customer care
at 800-222-7820.
CAUTION
Remove all bottles from the wine rack before removal.
DISPLAY RACK
The adjustable display rack is designed for wine to stay in
contact with the cork at any position. Refer to the illustration
below.
To remove the display rack, pull out to full extension, tilt up,
then lift up and out.
STORAGE
Display rack
CUT-OUT
Wine rack removal Rack position indicator

subzero.com | 7
ICE CONTAINER
To remove the ice container, pull the freezer drawer open
until it stops, then lift the container out. Refer to the illustra-
tion below.
The ice maker must be turned off by touching when
the ice container is removed. The unit is equipped with a
3-minute delay after the ice container has been removed, to
ensure cubes are not ejected before the ice maker can be
deactivated or ice container is reinstalled.
Storage Drawers—Tall Model
DRAWER DIVIDERS
To remove or adjust a short divider, ex the long divider
slightly, then pull upward. Refer to the illustration below.
To remove a long divider, the short dividers must be
removed. Pull the divider up until it stops, rotate counter-
clockwise, then pull upward. To reinstall, align grooves with
drawer tabs, rotate clockwise, then slide down.
DRAWER REMOVAL
To remove, pull open until the drawer stops. Raise the
drawer front and pull out the drawer. To reinstall, raise the
front of the drawer and place onto the slides. Align the back
of the drawer with hooks on the slide, then align the white
pegs at the front of the slide with holes at the front of the
drawer. Refer to the illustration below.

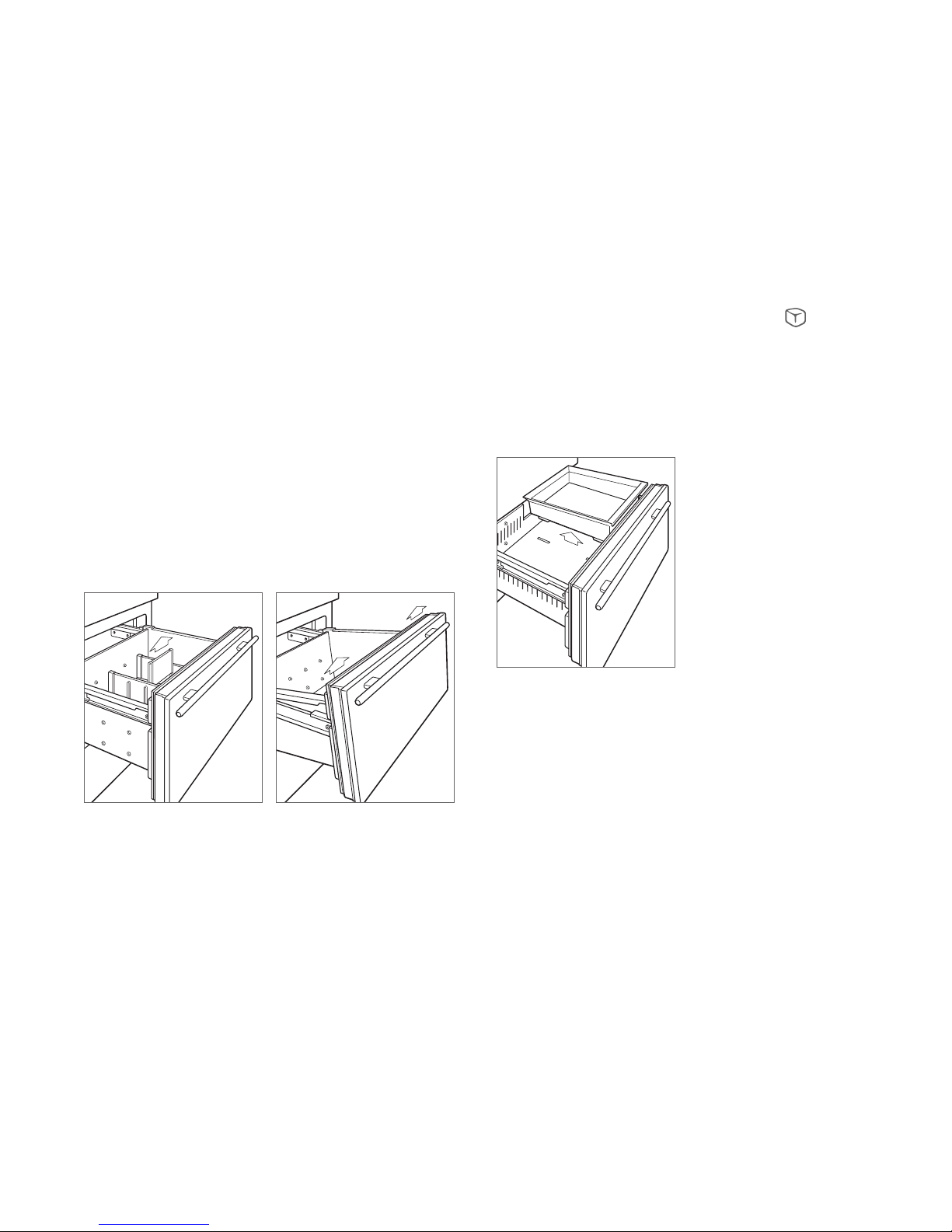

Drawer dividers Drawer removal
STORAGE
Ice container (IW-30CI)

8 | Sub-Zero Customer Care 800.222.7820
WATER FILTER REPLACEMENT
1To access the water lter, pull out on the bottom edge
of the access door and rotate upward. Refer to the illus-
tration below.
2To remove the old lter, rotate counterclockwise one-
quarter turn, then pull out. It is normal for a small amount
of water to drip when the lter is removed. It should be
wiped up with a paper towel or cloth.
3Remove the new lter from packaging and remove
plastic cap.
4Insert the new lter into the manifold and turn clockwise.
5Once the new lter has been installed, follow instructions
on the control panel. The lter life cycle will reset for
approximately one year.
Water Filtration System
For model IW-30CI, the water ltration system supplies
ltered water to the ice maker.
IMPORTANT NOTE: When using the water ltration system
for the rst time and after lter replacement, it is necessary
to clear any air from the system and allow the lter to assist
in cleaning the water lines. Discard the rst two full con-
tainers of ice.
If the water ltration system will not be utilized, it can be
placed in water lter bypass mode by removing the lter.
The lter is rated for 750 gallons (2839 L) or one year,
whichever comes rst. ‘Change Water Filter’ will appear on
the control panel when the cartridge needs to be replaced.
Touch ‘Snooze’ to delay reminder for 24 hours or until lter
can be replaced.
Replacement Sub-Zero water lters can be ordered online
at subzerowolfstore.com. For questions, contact Sub-Zero
customer care at 800-222-7820.
OPERATION
WATER FILTER
ACCESS DOOR
Water lter removal (IW-30CI)

subzero.com | 9
OPERATION
Ice Maker Operation
For model IW-30CI, to initiate ice production, touch
on the options screen. A single highlighted cube indicates
the ice maker is active. Three highlighted cubes indicate the
max ice feature is active. Max ice increases ice production
up to 30% for a 24-hour period. During that period, some
components may run at a higher speed resulting in a unique
audible tone. This is typical and will revert back after 24
hours or when the ice container is full. To deactivate the ice
maker, touch until no cubes are highlighted. After initial
start-up, discard the rst few batches of ice. The ice may
contain impurities from new plumbing connections.
If ice is not used regularly it may fuse together. To avoid,
discard ice and allow ice maker to replenish.
The ice maker must be turned off by touching when
the ice container is removed. The unit is equipped with a
3-minute delay after the ice container has been removed, to
ensure cubes are not ejected before the ice maker can be
deactivated or ice container is reinstalled.
Sabbath
This appliance is certied by Star-K to meet strict religious
regulations in conjunction with specic instructions found
on www.star-k.org.
For Sabbath mode, from the settings screen, touch and
follow instructions on the control panel.

10 | Sub-Zero Customer Care 800.222.7820
Cleaning
INTERIOR CLEANING
To clean interior surfaces and all removable parts, wash with
a mild solution of soap, water and baking soda. Rinse and
dry thoroughly. Avoid getting water on lights, control panel
and the cherrywood facing on wine racks.
Use a standard glass cleaner to clean the UV-resistant glass
door.
CAUTION
Do not use vinegar, rubbing alcohol or other alcohol-
based cleaners on any interior surface.
STAINLESS STEEL EXTERIOR
Use a nonabrasive stainless steel cleaner and apply with a
soft lint-free cloth. To bring out the natural luster, lightly wipe
surface with a water-dampened microber cloth followed by
a dry polishing chamois. Always follow the grain of stainless
steel.
CONDENSER CLEANING
CAUTION
Before cleaning the condenser, turn power off at the
control panel. Wear gloves to avoid injury from sharp
condenser ns.
The condenser is located behind the grille. Remove the
kickplate by extracting the two mounting screws. Refer to
the illustration below. Use a soft bristle brush and vacuum
to remove dust and lint from the condenser. Clean the con-
denser every three to six months.
IMPORTANT NOTE: To avoid damaging condenser ns,
vacuum in the direction of the ns.
CAUTION
Failure to clean the condenser could result in tempera-
ture loss, mechanical failure or damage.
CONDENSER
SCREW
Condenser location
CARE RECOMMENDATIONS
