Subaru EH72D User manual

EH63D/64D/65D
EH72D
2ZZ9020118
海外一般(排対)
EH63-72取説英語EU2133213405.7.25:41PMページA1

NOTICE
FEDERAL EMISSION COMPONENT DEFECT WARRANTY and CALIFORNIA
EMISSION CONTROL WARRANTY are applicable to only those engines/
generators complied with EPA (Environmental Protection Agency) and CARB
(California Air Resources Board) emission regulations in the U.S.A.
AIR INDEX
To show compliance with California emission regulations, a hangtag has been
provided displaying the Air Index level and durability period of this engine.
The Air Index level defines how clean an engine’s exhaust is over a period of
time. A bar graph scaled from “0” (most clean) to “10” (least clean) is used to
show an engine’s Air Index level. A lower Air Index level represents cleaner
exhaust from an engine.
The period of time (in hours) that the Air Index level is measured is known as
the durability period. Depending on the size of the engine, a selection of time
periods can be used to measure the Air Index level (see below).
Descriptive Term Applicable to Emissions Durability Period
Moderate - 50 hours (engine from 0 to 80 cc)
125 hours (engine greater than 80 cc)
Intermediate - 125 hours (engine from 0 to 80 cc)
250 hours (engine greater than 80 cc)
Extended - 300 hours (engine from 0 to 80 cc)
500 hours (engine greater than 80 cc)
Notice : This hangtag must remain on this engine or piece of equipment, and
only be removed by the ultimate purchaser before operation.
The engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects or other reproductive
harm.
WARNING :
NOTICE
To the engines/generators exported to and used in the countries other than the
U.S.A., warranty service shall be performed by the distributor in each country in
accordance with the standard Robin engine/generator warranty policy as applicable.
Ro-AirIndex(US)A505.6.256:00PMページ01

FEDERAL EMISSIONS COMPONENT DEFECT WARRANTY
EMISSIONS COMPONENT DEFECT WARRANTY COVERAGE – This emission warranty is
applicable in all States, except the state of California.
Fuji Heavy Industries Ltd. and Robin America Inc., Wood Dale Illinois, (herein "ROBIN AMERICA")
warrant(s) to the initial retail purchaser and each subsequent owner, that this Nonroad engine (herein
"engine") has been designed, built, and equipped to conform at the time of initial sale to all applicable
regulations of the U.S. Environmental Protection Agency (EPA), and that the engine is free of defects
in materials and workmanship which would cause this engine to fail to conform with EPA regulations
during its warranty period.
For the components listed under PARTS COVERED, the service dealer authorized by ROBIN
AMERICA will, at no cost to you, make the necessary diagnosis, repair, or replacement necessary to
ensure that the engine complies with applicable U.S. EPA regulations.
EMISSION COMPONENT DEFECT WARRANTY PERIOD
The warranty period for this engine begins on the date of sale to the initial purchaser and continues
for a period of two years.
PARTS COVERED
Listed below are the parts covered by the Emission Components Defect Warranty. Some of the parts
listed below may require scheduled maintenance and are warranted up to the first scheduled
replacement point for that part.
(1) Fuel Metering System
(i) Carburetor and internal parts (and/or
pressure regulator or fuel injection
system).
(ii) Air/fuel ratio feedback and control system,
if applicable.
(iii) Cold start enrichment system, if
applicable.
(iv) Regulator assy (gaseous fuel, if
applicable)
(2) Air Induction System
(i) Intake manifold, if applicable
(ii) Air filter.
(3) Ignition System
(i) Spark plugs.
(ii) Magneto or electronic ignition system.
(iii) Spark advance/retard system, if
applicable.
(4) Exhaust manifold, if applicable
(5) Miscellaneous Items Used in Above Systems
(i) Electronic controls, if applicable
(ii) Hoses, belts, connectors, and assemblies.
(iii) Filter lock assy (gaseous fuel, if
applicable)
OBTAINING WARRANTY SERVICE
To obtain warranty service, take your engine to the nearest authorized Robin America service dealer.
Bring your sales receipts indicating date of purchase for this engine. The service dealer authorized by
ROBIN AMERICA will perform the necessary repairs or adjustments within a reasonable amount of
time and furnish you with a copy of the repair order. All parts and accessories replaced under this
warranty become the property of ROBIN AMERICA.
WHAT IS NOT COVERED
*Conditions resulting from tampering, misuse, improper adjustment (unless they were made by the
service dealer authorized by ROBIN AMERICA during a warranty repair), alteration, accident, failure
to use the recommended fuel and oil, or not performing required maintenance services.
Ro-EPA(US)A5WS210405.6.256:01PMページ1

*The replacement parts used for required maintenance services.
*Consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment,
etc.
*Diagnosis and inspection charges that do not result in warranty-eligible service being performed.
*Any non-authorized replacement part, or malfunction of authorized parts due to use of non-
authorized parts.
OWNER’S WARRANTY RESPONSIBILITIES
As the engine owner, you are responsible for the performance of the required maintenance listed in
your owner’s manual. ROBIN AMERICA recommends that you retain all receipts covering
maintenance on your engine, but ROBIN AMERICA cannot deny warranty solely for the lack of
receipts or for your failure to ensure the performance of all scheduled maintenance.
As the engine owner, you should however be aware that ROBIN AMERICA may deny warranty
coverage if your engine or a part has failed due to abuse, neglect, improper maintenance or
unapproved modifications.
You are responsible for presenting your engine to the nearest service dealer authorized by ROBIN
AMERICA when a problem exists.
If you have any questions regarding your warranty rights and responsibilities, you should contact the
Robin America customer service department at 1-630-350-8200 for the information.
THINGS YOU SHOULD KNOW ABOUT THE EMISSION CONTROL SYSTEM WARRANTY
MAINTENANCE AND REPAIRS
You are responsible for the proper maintenance of the engine. You should keep all receipts and
maintenance records covering the performance of regular maintenance in the event questions arise.
These receipts and maintenance records should be transferred to each subsequent owner of the
engine. ROBIN AMERICA reserves the right to deny warranty coverage if the engine has not been
properly maintained. Warranty claims will not be denied, however, solely because of the lack of
required maintenance or failure to keep maintenance records.
MAINTENANCE, REPLACEMENT OR REPAIR OF EMISSION CONTROL DEVICES AND
SYSTEMS MAY BE PERFORMED BY ANY REPAIR ESTABLISHMENT OR INDIVIDUAL;
HOWEVER, WARRANTY REPAIRS MUST BE PERFORMED BY A SERVICE DEALER
AUTHORIZED BY ROBIN AMERICA. THE USE OF PARTS THAT ARE NOT EQUIVALENT IN
PERFORMANCE AND DURABILITY TO AUTHORIZED PARTS MAY IMPAIR THE
EFFECTIVENESS OF THE EMISSION CONTROL SYSTEM AND MAY HAVE A BEARING ON THE
OUTCOME OF A WARRANTY CLAIM.
If other than the parts authorized by ROBIN AMERICA are used for maintenance replacements or for
the repair of components affecting emission control, you should assure yourself that such parts are
warranted by their manufacturer to be equivalent to the parts authorized by ROBIN AMERICA in their
performance and durability.
HOW TO MAKE A CLAIM
All repair qualifying under this limited warranty must be performed by a service dealer authorized by
ROBIN AMERICA. In the event that any emission-related part is found to be defective during the
warranty period, you shall notify Robin America customer service department at 1-630-350-8200 and
you will be advised of the appropriate warranty service dealer or service providers where the warranty
repair can be performed.
WS2104
Ro-EPA(US)A5WS210405.6.256:01PMページ2

CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board and Fuji Heavy Industries Ltd. (herein "FUJI") are pleased to
explain the emission control system warranty on your 2005 and later Small Off-Road engine
(herein "engine"). In California, the engine must be designed, built and equipped to meet the
State's stringent anti-smog standards. FUJI must warrant the emission control system on your
engine for the periods of time described below, provided there has been no abuse, neglect or
improper maintenance of your engine. Your emission control system may include parts such as
the carburetor or fuel-injection system, and the ignition system. Also included may be hoses,
belts, connectors and other emission-related assemblies. Where a warrantable condition exists,
FUJI will repair your engine at no cost to you including diagnosis, parts and labor.
MANUFACTURER'S WARRANTY COVERAGE:
The 2005 and later engines are warranted for two (2) years. If any emission related part on your
engine is defective, the part will be repaired or replaced by FUJI.
OWNER'S WARRANTY RESPONSIBILITIES :
-As the engine owner, you are responsible for the performance of the required
maintenance listed in your Owner's Manual. FUJI recommends that you retain all receipts
covering maintenance on your engine, but FUJI cannot deny warranty solely for the lack of
receipts or for your failure to ensure the performance of all scheduled maintenance.
-As the engine owner, you should ,however, be aware that FUJI may deny you warranty
coverage if your engine or a part has failed due to abuse, neglect, improper maintenance
or unapproved modifications.
-You are responsible for presenting your engine to a service dealer or warranty station
authorized by ROBIN AMERICA Inc. 940 Lively Blvd., Wood Dale, IL 60191 (herein
ROBIN AMERICA) as soon as a problem exists. The warranty repairs should be
completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact
the Robin America Inc. Customer Service Department at 1-630-350-8200
Ro-CARBA5WS210505.6.256:02PMページ1

LIMITED WARRANTY
on Emission Control Systems
- California Only -
FUJI warrants to the owner of the 2005 and later engine that the engine 1) has been designed,
built and equipped so as to conform at the time of manufacture with the applicable regulations of
the California Air Resources Board, and (2) is free from defects in materials and workmanship
that could cause it to fail to conform with those regulations as may be applicable in the terms and
conditions stated below.
A. COMMENCEMENT DATE
The warranty period begins on the date the engine is delivered to a first retail purchaser.
B. LENGTH OF COVERAGE
FUJI warrants to a first retail purchaser and each subsequent purchaser that the engine is free
from defects in materials and workmanship that cause the failure of a warranted emission-related
part for a period of two (2) years after the date of delivery to the first retail purchaser.
C. WHAT IS COVERED:
1. REPAIR OR REPLACEMENT PARTS
Repairs and replacement of any warranted part will be performed at no charge to you by an
authorized service dealer or a warranty station. You may contact the Robin America Inc.
Customer Service Department at 1-630-350-8200 to obtain the name of the nearest
appropriate location where your warranty repairs are performed.
2. WARRANTY PERIOD
This warranty continues for a period of two (2) years and applies only to the repair,
replacement or adjustment of the component parts that are not scheduled for replacement
as required maintenance. Further, component parts which are scheduled only for regular
inspection to the effect of "repair or replace as necessary" are warranted for the warranty
period. Any warranted part which is scheduled for replacement as required maintenance is
warranted for the period of time up to the first scheduled replacement point for that part.
3. DIAGNOSIS
You will not be charged for diagnostic labor that leads to the determination that a warranted
part is defective, if the diagnostic work is performed at an authorized service dealer or
warranty station.
4. DAMAGES
If a warranted part failed causing damage to other engine components, consult an warranty
station.
D. WHAT IS NOT COVERED
1. This limited warranty does not cover any part which malfunctions, fails or is damaged due
to failure to follow the maintenance and operating instructions set forth in the 2005 and later
Owner's Manual including:
(1) improper maintenance of any warranted parts
(2) improper installation, adjustment or repair of the engine or of any warranted part unless
performed by an authorized service dealer
(3) failure to follow recommendations on fuel use contained in the 2005 and later Owner's
Manual
Ro-CARBA5WS210505.6.256:02PMページ2

(4) repairs performed outside of the authorized warranty service dealers
(5) use of parts which are not authorized by FUJI.
2. Add-on or modified parts
This warranty does not cover any part that malfunctions, fails or is damaged due to
alterations by changing, adding to or removing parts from the engine.
3. Expenses incurred by processing warranty claims
FUJI, any authorized service dealer and warranty station shall not be liable for any loss of
use of the engine, for any alternative usage, for any damage to goods, loss of time or
inconvenience.
E. HOW TO FILE A CLAIM
All repairs qualifying under this Limited Warranty must be performed by a dealer who sold you
the engine or warranty station authorized by ROBIN AMERICA. In the event that any emission-
related part is found to be defective during the warranty period, you must notify the Robin
America Inc. Customer Service Department at 1-630-350-8200 and you will be advised of the
appropriate warranty service facilities where the warranty repair is to be performed.
F. WHERE TO OBTAIN WARRANTY SERVICE
It is recommended that warranty service be performed by the authorized dealer who sold you the
engine, although warranty service will be performed by any authorized service dealers or
warranty stations anywhere in the United States. When warranty repair is needed, the engine
must be brought to an authorized service dealer or warranty station’s place of business during
normal business hours. In all cases, a reasonable time, not to exceed 30 days, must be allowed
for the warranty repair to be completed after the engine is received by the authorized service
dealer or warranty station.
G. MAINTENANCE, REPLACEMENT AND REPAIR OF EMISSION-RELATED PARTS
Only warranted engine replacement parts approved by FUJI should be used in the performance
of any warranty maintenance or repairs on emission-related parts. If other than authorized parts
are used for maintenance, replacement or repair of components affecting emission control, you
should assure yourself that such parts are warranted by their manufacturer to be equivalent to
authorized parts in performance and durability. FUJI ,however, assumes no liability under this
warranty with respect to parts other than authorized parts. The use of non-authorized
replacement parts does not invalidate the warranty on other components unless the non-
authorized parts cause damage to warranted parts.
H. PARTS COVERED UNDER THE CALIFORNIA EMISSIONS WARRANTY
(1) Fuel Metering System
(i) Carburetor and internal parts (and/or pressure regulator or fuel injection system).
(ii) Air/fuel ratio feedback and control system, if applicable.
(iii) Cold start enrichment system, if applicable.
(iv) Regulator assy (gaseous fuel, if applicable)
(2) Air Induction System
(i) Intake manifold, if applicable
(ii) Air filter.
(3) Ignition System
(i) Spark plugs.
(ii) Magneto or electronic ignition system.
(iii) Spark advance/retard system, if applicable.
Ro-CARBA5WS210505.6.256:02PMページ3

(4) Exhaust manifold, if applicable
(5) Miscellaneous Items Used in Above Systems
(i) Electronic controls, if applicable
(ii) Hoses, belts, connectors, and assemblies.
(iii) Filter lock assy (gaseous fuel, if applicable)
I. MAINTENANCE STATEMENTS
It is your responsibility to have all scheduled inspection and maintenance services performed at
the times recommended in the 2005 and later Owner's Manual and to retain proof that inspection
and maintenance services are performed at the times when recommended. FUJI will not deny a
warranty claim solely because you have no record of maintenance; however, FUJI may deny a
warranty claim if your failure to perform required maintenance resulted in the failure of warranted
part. The proof which you maintain should be given to each subsequent owner of the engine. You
are responsible for performing the scheduled maintenance described below based on the
procedures specified in the 2005 and later Owner's Manual. The scheduled maintenance below
is based on a normal engine operating schedule.
PROCEDURE INTERVAL
1) Change engine oil : Initial 20 hours and every 100 hours afterward
2) Clean air cleaner (element) : Every 50 hours
3) Replace air cleaner element : Every 200 hours
4) Clean and adjust spark plug and electrodes : Every 200 hours
Note: More frequent maintenance may be necessary under dusty, dirty or severe conditions.
WS2105
Ro-CARBA5WS210505.6.256:02PMページ4

ENGLISH
FOREWORD
Thank you very much for purchasing a ROBIN ENGINE.
Your ROBIN ENGINE can supply the power to operate various
sorts of machines and equipment.
Please take a moment to familiarize yourself with the proper
operation and maintenance procedures in order to maximize
the safe and efficient use of this product.
Due to constant efforts to improve our products, certain proce-
dures and specifications are subjected to change without
notice.
When ordering spare parts, always give us the MODEL,
SPECIFICATION and SERIAL NUMBER of your engine.
Please fill in the following blanks after checking the specifica-
tion number on your engine.
SPEC NO.
Engine serial No.
Engine
Emission
label
SERIAL NO.
E H
For your nearest ROBIN distributor (and/or dealer), you are able to
check at our ROBIN website of the following URL;
http://www.fhi.co.jp/robin/distri/text2/f_dist_e.htm
EH63-72取説英語EU2133213405.7.25:41PMページ0-1

CONTENTS
1. SAFETY PRECAUTIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 1
2. COMPONENTS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 4
3. PRE-OPERATION CHECKS ・・・・・・・・・・・・・・・・・・・・・・・・・・ 5
4. BATTERY INSTALLATION ・・・・・・・・・・・・・・・・・・・・・・・・・・・ 7
5. OPERATING YOUR ENGINE ・・・・・・・・・・・・・・・・・・・・・・・・・ 9
6. EASY TROUBLESHOOTING ・・・・・・・・・・・・・・・・・・・・・・・・・
12
7. SPARK ARRESTER (OPTIONAL) ・・・・・・・・・・・・・・・・・・・・・
14
8. MAINTENANCE SCHEDULE ・・・・・・・・・・・・・・・・・・・・・・・・・
15
9. "HOW-TO" MAINTENANCE ・・・・・・・・・・・・・・・・・・・・・・・・・・
17
10. PREPARATIONS FOR STORAGE ・・・・・・・・・・・・・・・・・・・・
21
11. SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・
22
EH63-72取説英語EU2133213405.7.25:41PMページ0-2

ENGLISH

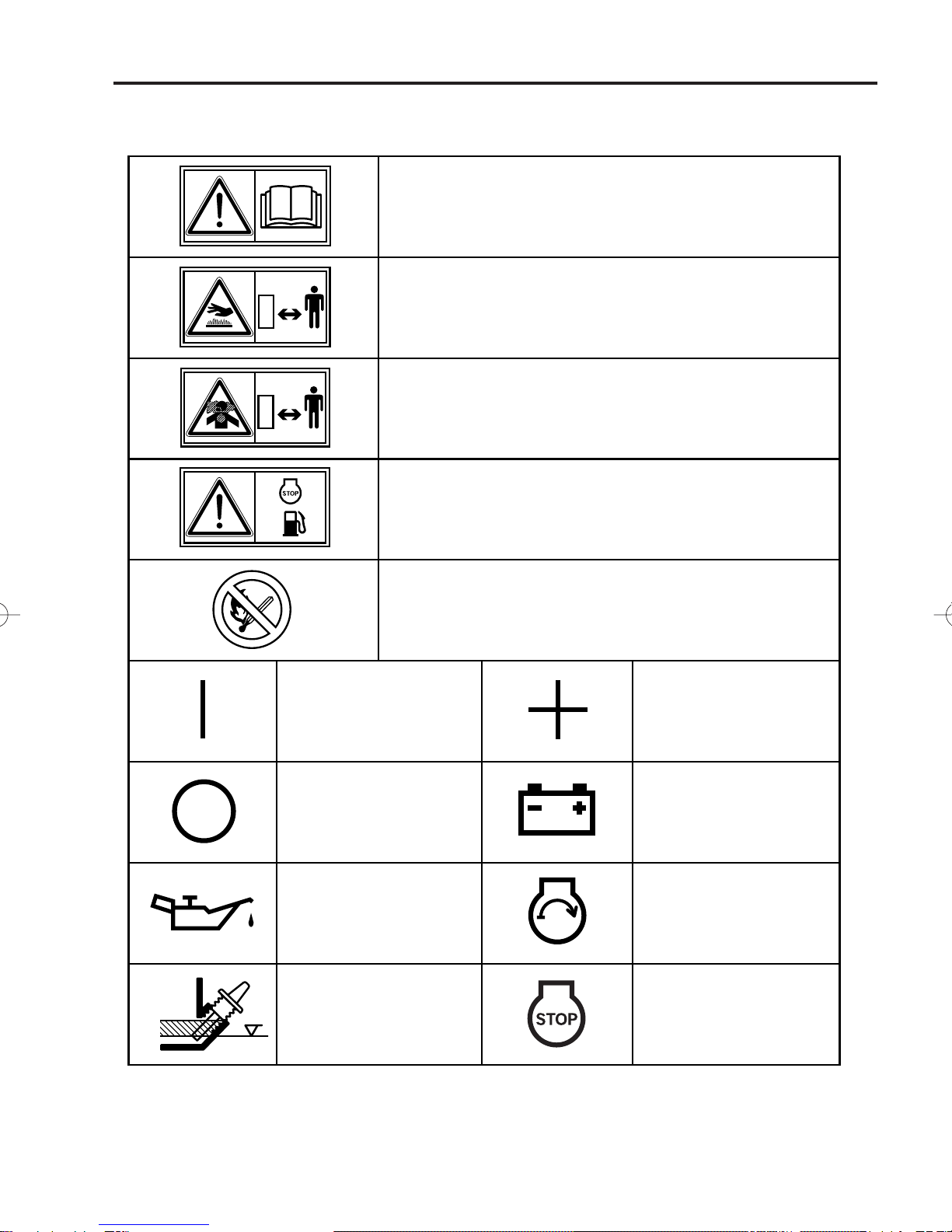

Read the owner's manual.
Stay clear of the hot surface.
Exhaust gas is poisonous.
Do not operate in an unventilated area.
Stop the engine before refueling.
Fire, open flame and smoking prohibited.
On (Run) Plus ;
positive polarity
Off (Stop) Battery
Engine oil Engine start (Elec-
tric start)
Add oil Engine stop
SYMBOLS
EH63-72取説英語EU2133213405.7.25:41PMページ0-3

−1−
EXHAUST PRECAUTIONS
■Never inhale exhaust gas.
It contains carbon monoxide, a color-
less, odorless and extremely danger-
ous gas which can cause uncon-
sciousness or death.

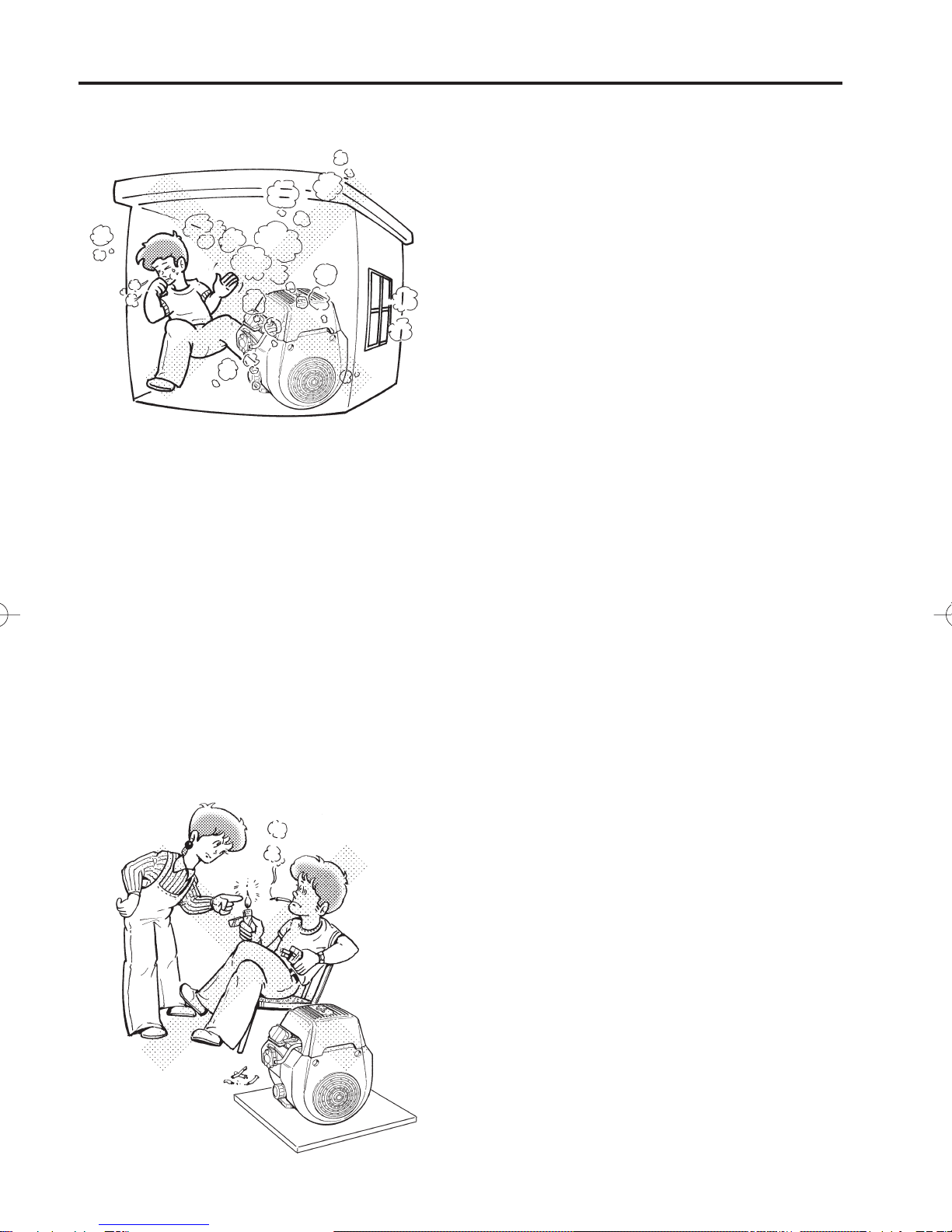

■Never operate the engine indoors or
in a poorly ventilated area, such as
tunnel, cave, etc.
■Exercise extreme care when operat-
ing the engine near people or
animals.
■Keep the exhaust pipe free of foreign
objects.
1. SAFETY PRECAUTIONS
FIRE PREVENTION
■Do not operate while smoking or near
an open flame.
■Do not use around dry brush, twigs,
cloth rags, or other flammable materi-
als.
■Keep the engine at least 3 feet
(1 meter) away from buildings or
other structures.
■Keep the engine away from flamma-
bles and other hazardous materials
(trash, rags, lubricants, explosives).
REFUELING PRECAUTIONS
■Be sure to stop the engine prior to
refueling.
■Do not overfill the fuel tank.
■If fuel is spilt, wipe it away carefully
and wait until the fuel has dried
before starting the engine.
■After refueling, make sure that the
fuel cap is secured to prevent
spillage.
Please make sure you review each precaution carefully.
EH63-72取説英語EU2133213405.7.25:41PMページ1

−2−
ENGLISH
SURROUNDINGS
■Operate the engine on a stable, level
surface free of small rocks, loose
gravel, etc.

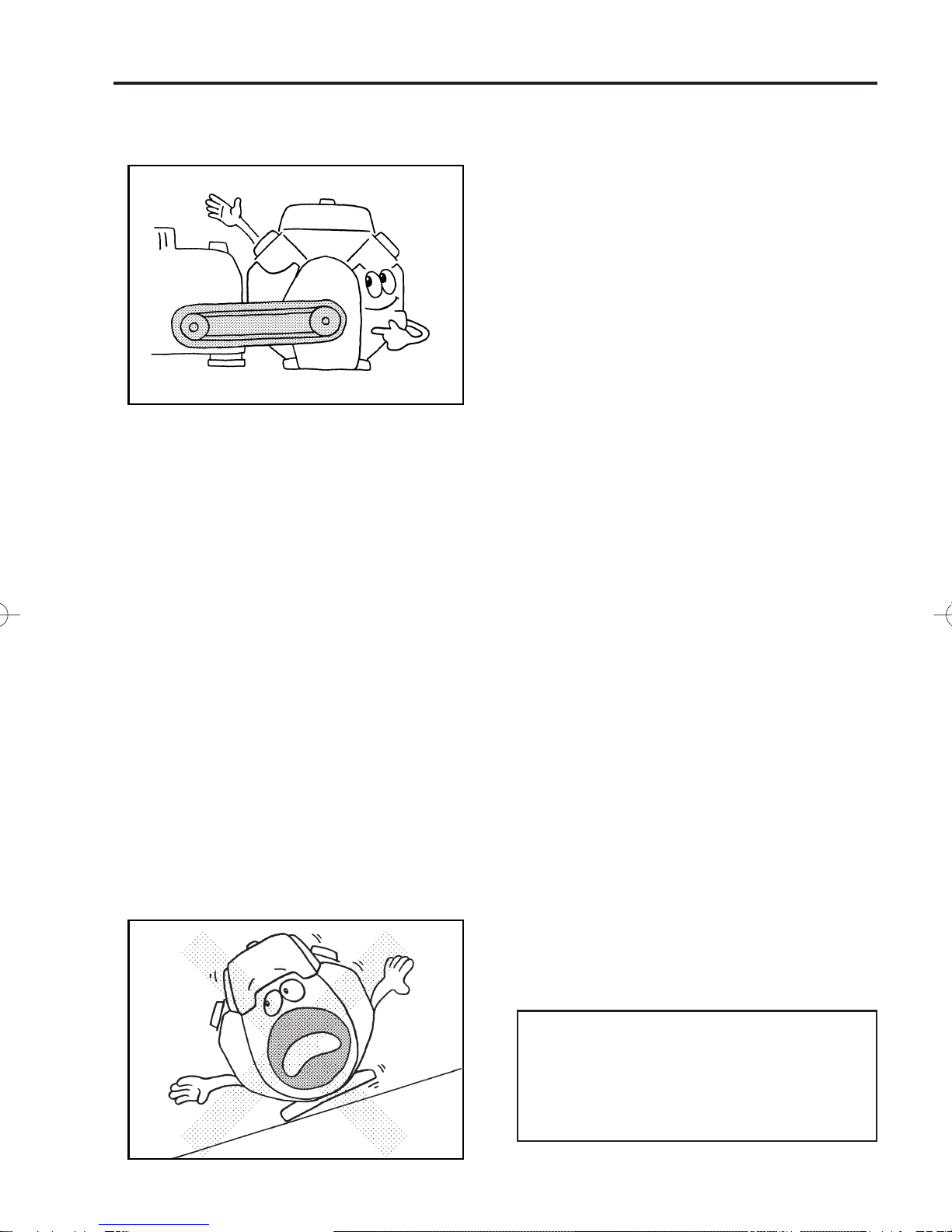

PROTECTIVE COVER
■Place the protective covers over
the rotating parts.
If rotating parts such as the drive
shaft, pulley, belt, etc. are left
exposed, they are potentially
hazardous.
To prevent injury, equip them with
protective covers or shrouds.
■Be careful of hot parts.
The muffler and other engine parts
become very hot while the engine is
running or just after it has stopped.
Operate the engine in a safe area
and keep children away from the
running engine.
■Never make adjustments on the
machinery while it is connected to the
engine, without first removing the
ignition cable from the spark plug.
Turning the crankshaft by hand
during adjusting or cleaning might
start the engine, and the machinery
with it, causing serious injury to the
operator.
■Never run the engine with governor
disconnected, or operate at speeds
in excess of 3600 rpm load.
NOTE
Operating the engine at a steep
incline may cause seizure due to
improper lubrication even with a
maximum oil level.
EH63-72取説英語EU2133213405.7.25:41PMページ2

−3−
PRE-OPERATION CHECKS .
■Carefully check fuel hoses and
connections for looseness and fuel
leakage. Leaking fuel creates a
potentially dangerous situation.
■Check bolts and nuts for looseness.
A loose bolt or nut may cause seri-
ous engine trouble.
■Check the engine oil daily and refill if
necessary.
■Check the fuel level and refill if
necessary.
Do not overfill the tank.
■Wear snug fitting working clothes
when operating the engine.
Loose aprons, towels, belt, etc., may
be caught in the engine or drive train,
causing a dangerous situation.
■Drain the fuel when transporting
the engine.
■Do not move the engine while in
operation when it has been
removed from the equipment.
■Keep the unit dry (do not operate it in
rainy conditions).
EH63-72取説英語EU2133213405.7.25:41PMページ3

−4−
ENGLISH
2. COMPONENTS
REMARKS :
■Fuel tank, valve (sediment bowl type is recommended), fuel hoses, and fuel filter
are required for connecting fuel source to carburetor.

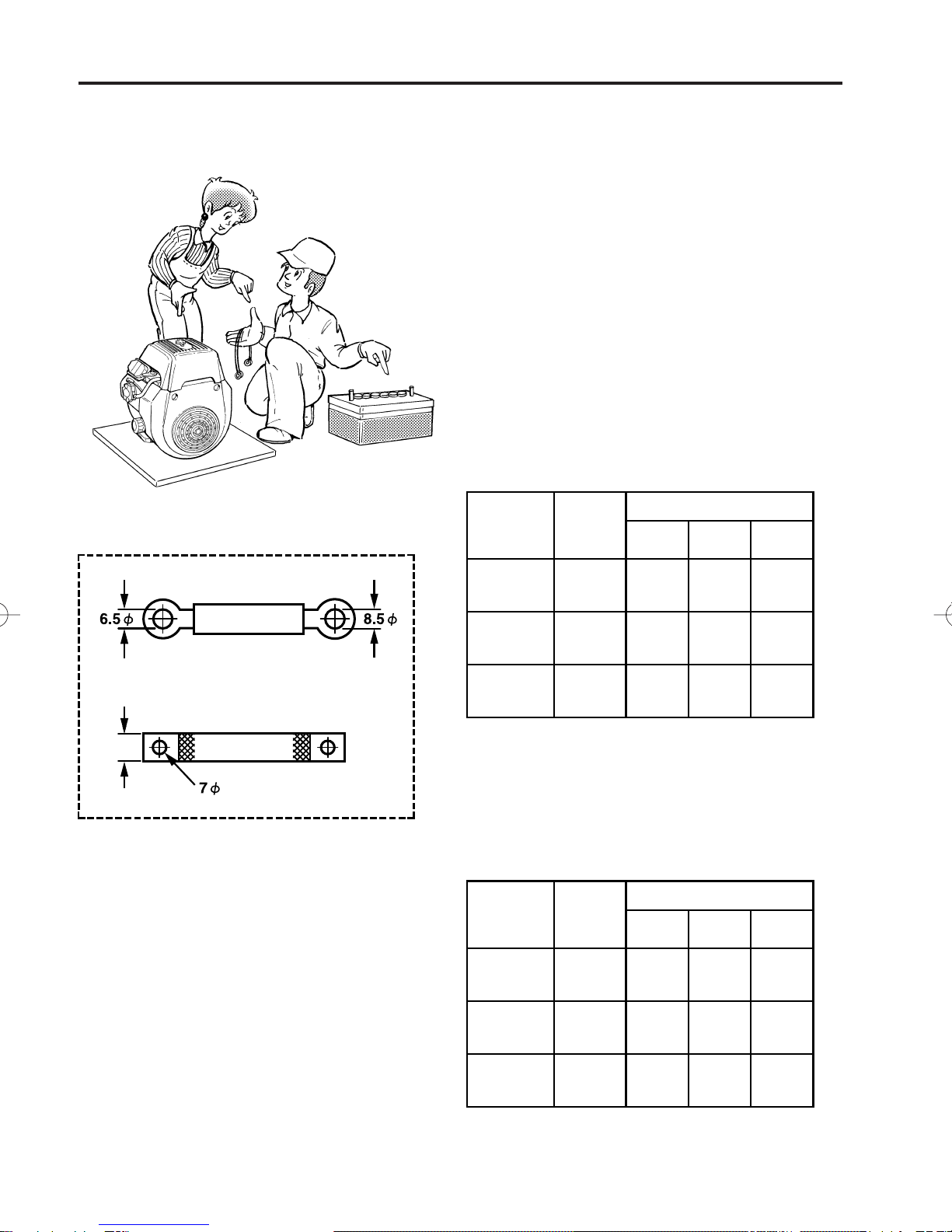

■A battery rated at 12V-30AH (EH63/64/65), 12V-36AH (EH72) or larger with the
specified cable are required for electric starter operation. Make the proper elec-
trical wiring arrangements before normal engine operation.
(See Section 4 Battery Installation for instructions.)
Speed control lever
Fuel filter
Oil filter
Oil cooler
(EH72 only)
Oil drain plug
(On both sides)
Electric starter
Spark plug cap
Choke knob
Air cleaner cover
Oil gauge
Oil filler cap
PTO shaft
Carburetor
Fuel pump
Blower housing
Governor lever
Voltage
regulator
Spark plug cap
Engine
emission label
Hook
Key switch
Control box
EH63-72取説英語EU2133213405.7.25:41PMページ4

−5−
3. PRE-OPERATION CHECKS
5W
10W
20W
#20
#30
#40
10W-30
10W-40
Single
grade
Multi
grade
Ambient
temperature
-20 -10 0 10 20 30 40
-4 14 32 50 68 86 104
Upper level
Lower level
Oil gauge
Oil
gauge
■When filling oil in the engine, keep the
engine level and fill the oil up to the
upper mark of the oil gauge. Measure
the oil level with the oil gauge plugged
in position.
■After an oil change, run the engine,
and recheck the oil level. The oil level
may drop a little as the oil fills the oil
filter. Fill the oil up to the upper mark of
the oil gauge.
■Change oil if it is contaminated.
(See Section 8 Maintenance Schedule.)
■Use 4-stroke automotive detergent oil
of API service class SE or higher grade
(SG, SH or SJ is recommended).
■If multi-grade oil is used, oil consump-
tion tends to increase when the ambi-
ent temperature is high.
CHECK ENGINE OIL (DAILY)
Before checking or refilling engine oil, be
sure the engine is not running and is located
on a stable, level surface.
■If the oil level is below the lower level
line on the oil gauge, refill with the
proper oil (see table) to the upper
level.
OIL CAPACITY : 1.55 liter
Oil
gauge
Upper
level
Lower
level
Oil
gauge
Upper
level
Lower
level
STD-type Option
EH63-72取説英語EU2133213405.7.25:41PMページ5

−6−
ENGLISH

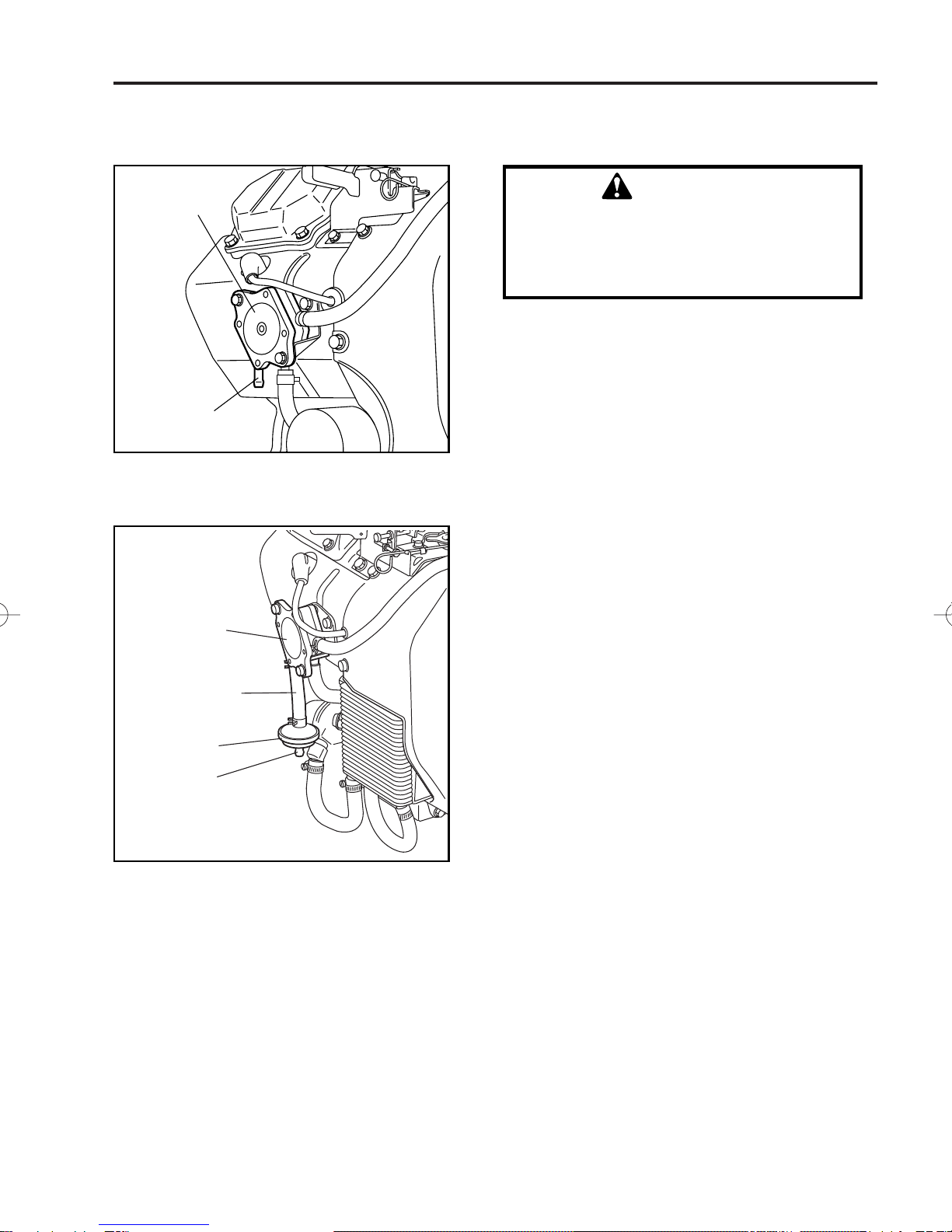

CHECK FUEL
■The fuel tank shall be provided sepa-
rately, because the engine is not
equipped with a fuel tank.
A fuel valve and fuel filter should be
connected between the fuel tank and
fuel pump.
Securely connect with fuel hoses to
the fuel pump to prevent leakage.
■ Fuel tanks may be mounted up to 0.66
meters (2 feet) below the carburetor.
If the fuel tank is mounted above the
carburetor, a fuel shut off valve must
be connected between the fuel tank
and fuel pump. The fuel valve must
be shut off when the engine is not
operating to prevent fuel from flood-
ing the carburetor.
■A serious accident may occur if the
fuel hose comes off. Properly secure
the fuel line connections by
completely inserting the hose onto
the fittings and securing the connec-
tion with a hose clamp.
■ Use automotive unleaded gasoline only.
This engine is certified to operate on
automotive unleaded gasoline.
■Stop the engine and close the fuel
valve before filling the fuel tank.
■Wipe off any spilled fuel before start-
ing the engine.
WARNING
Do not refuel while smoking, near
an open flame or other potential
hazards.
Fuel inlet
Fuel pump
(EH63/64/65)
(EH72)
Rubber pipe
Fuel filter
Fuel pump
Fuel inlet
EH63-72取説英語EU2133213405.7.25:41PMページ6

−7−
4. BATTERY INSTALLATION
PARTS NEEDED
■Use a battery rated 12V-30AH
(EH63/64/65), 12V-36AH (EH72) or
larger.
■Use a proper cable and ground wire
to connect battery and key switch
and electric starter.
BATTERY CABLE
GROUND WIRE, use a flat braided wire
of 0.03 sq. in. or larger sectional area.
(SAE GAUGE 4)
LA406 LA408
CABLE
EARTH (GROUND) WIRE
25mm
KEY SWITCH CABLE
For electric starter operation, proper electric wiring arrangements are needed
before normal engine operation.
CABLE
LENGTH
CABLE
DIA.
WIRE GAUGE
AWG (BS)
BWG
SAE JIS
Less than
1.5 m 7.3 mm 1 6 AV15
1.5 m
to 2.5 m 8.5 mm 0 4 AV20
2.5 m
to 4.0 m 10.8 mm 3/0 2AV30
CABLE
LENGTH
CABLE
DIA.
WIRE GAUGE
AWG (BS) BWG JIS
Less than
1.5 m 1.5 mm 14 16 AV1.25
1.5 m
to 3.0 m 1.9 mm 12 14 AV2
3.0 m
to 5.0 m 2.4 mm 10 13 AV3
EH63-72取説英語EU2133213405.7.25:41PMページ7

−8−
ENGLISH
WIRING
■Connect positive terminal of elec-
tric starter and positive terminal of
the battery with battery cable.
■Ground negative terminal of the
battery to the body of engine or
machine with ground wire.
NOTE
Tighten bolts and nuts on terminals
securely so they will not be loosened
by vibration.
Battery
+ -
Electric starter
terminal
Earth wire
Cable
WIRING DIAGRAM
Optional hardware shown by dotted lines. Select wires of proper gauge and
connect battery as shown by the dotted line in the wiring diagram.
CARBURETOR
OIL
PRESSURE
SWITCH
IGNITION
COIL #1
STOP
DIODE
IGNITION
COIL #2 SPARK
PLUG
SPARK
PLUG
CHARGE
COIL
ELECTRIC
STARTER
REGURATOR
OIL WARNING LAMP
BATTERY
12V
TACHO / HOUR METER
(HIGH TENSION CORD)
RED
RED
RED
BLACK
BLACK
GREEN
GRAY
BLACK
BLACK
WHITE
YELLOW
YELLOW
BLACK / WHITE
SB
M
GL
KEY
SWITCH
GMB L S
OFF
Terminal
Key
Position
RUN
START
EH63-72取説英語EU2133213405.7.25:41PMページ8

−9−
5. OPERATING YOUR ENGINE
STARTING
NOTE
Following operating method is for
the STD type speed control lever.
As to the fixed type speed control
lever (exp. Generator spec.), do
not move it otherwise the genera-
tor component such as voltage
regulator may be damaged.
Pull the choke knob.
■If the engine is cold or the ambient
temperature is low, pull the choke
knob fully.
■If the engine is warm or the ambient
temperature is high, pull the choke
knob half-way, or keep it fully open.
CHOKE KNOB
1
(Provided by the equipment manu-
facturer)
Open the fuel valve.
Set the speed control lever 1/3 of
the way towards the high speed
position.
FUEL VALVE
SPEED CONTROL LEVER
Turn the key switch to the "START"
position.
■Do not operate the electric starter
continuously for more than 5
seconds, even if the engine dose not
start.
■If the engine failed to start, set the
key to the "RUN" position and wait for
about 10 seconds before retrying.
■Never turn the key switch to the
"START" position while engine is
running.
ELECTRIC STARTER
4
2
CLOSE
3
OFF
RUN
START
EH63-72取説英語EU2133213405.7.25:41PMページ9
