SUEX 71082 User manual

Rev.00 –29/12/2020
Pag. 1/16
Code: 71082
VRT NIMH BATTERY PACK
71082
USER INSTRUCTION MANUAL
AND WARNINGS
NEVER leave the battery DISCHARGE below 20% !
STORE the battery FULLY CHARGED !
FULLY CHARGE at least every TWO MONTHS !

Rev.00 –29/12/2020
Pag. 2/16
Code: 71082
1. COPYRIGHT ......................................................................................................................................... 3
2. FOREWORD, RELEVANT TO SAFETY AND WARRANTY ............................................................... 3
3. OFFICIAL LANGUAGES AND TRANSLATIONS................................................................................ 3
4. DOCUMENT STRUCTURE AND SIGNS ADOPTED........................................................................... 3
5. NiMH BATTERY INFORMATION......................................................................................................... 4
6. BATTERY DESCRIPTION.................................................................................................................... 4
7. BATTERY USE ..................................................................................................................................... 5
8. KNOW THE BATTERY CHARGE STATUS......................................................................................... 5
8.1. CHARGE INDICATOR ON BOARD THE SCOOTER.......................................................................5
8.2. BLUETOOTH CHANNEL..................................................................................................................6
9. BATTERY CHARGE............................................................................................................................. 6
9.1. HOW TO CHARGE THE BATTERY .................................................................................................6
USE ONLY THE APPROPRIATE BATTERY CHARGER...........................................................................6
CHARGE PROCEDURE.............................................................................................................................6
ENVIRONMENTAL CONDITIONS IDEAL FOR CHARGING.....................................................................7
9.2. WHEN CHARGE THE BATTERY.....................................................................................................7
9.3. NEW BATTERY, FIRST USE............................................................................................................7
10. IMPORTANT WARNINGS ON THE BATTERY LIFE .......................................................................... 7
11. IDEAL CONDITIONS FOR BATTERY OPERATION AND DISCHARGE ........................................... 8
12. CUT-OFF............................................................................................................................................... 8
12.1. IN THE EVENT OF CUT-OFF INTERVENTION...............................................................................8
13. BASIC RULES FOR SAFETY .............................................................................................................. 9
14. FIRE MANAGEMENT......................................................................................................................... 11
15. HANDLING AND STORAGE OF THE BATTERY ............................................................................. 11
15.1. HANDLING......................................................................................................................................11
15.2. STORAGE.......................................................................................................................................11
16. CUSTOMER SERVICE ....................................................................................................................... 12
17. TECHNICAL BATTERY SPECIFICATIONS ...................................................................................... 13
18. NiMH BATTERY FREQUENTLY ASKED QUESTIONS.................................................................... 13
19. WARRANTY........................................................................................................................................ 14
20. REACH COMPLIANCE STATEMENT ............................................................................................... 14
21. ROHS AND WEEE CONFORMITY .................................................................................................... 14
21.1. RoHS COMPLIANCE STATEMENT...............................................................................................14
21.2. WEEE COMPLIANCE STATEMENT..............................................................................................15
22. DISPOSAL .......................................................................................................................................... 15
23. CE CONFORMITY .............................................................................................................................. 15
24. QUALITY MANAGEMENT SYSTEM ISO 9001 ................................................................................. 15
25. ENVIRONMENTAL CERTIFICATION ISO 14001.............................................................................. 16
26. LOCAL DISTRIBUTOR....................................................................................................................... 16
27. DOCUMENT HISTORY....................................................................................................................... 16

Rev.00 –29/12/2020
Pag. 3/16
Code: 71082
1. COPYRIGHT
Copyright –SUEX s.r.l., 2020
All rights reserved. No part of this publication can be reproduced and distributed by any method, mechanical or
electronic, without the written permission of SUEX s.r.l., via Roma 261/35 31020 Villorba (TV) Italy.
It is mandatory for users to read this manual with high attention BEFORE using the BATTERY PACK and to operate
according to the contents of this document, which includes important advice, warnings and information about the
appropriate practice for using the vehicle, relevant for the warranty too.
The NiMh SUEX BATTERY PACK 71082 (BATTERY) is designed to be used on SUEX Scooter type VR t (for details
please refer to the table of chapter "Battery use"). Any other use has to be considered inappropriate and potentially
DANGEROUS.
2. FOREWORD, RELEVANT TO SAFETY AND WARRANTY
This user manual is intended for users of the batteries of SUEX underwater scooters.
It contains important information, key in assuring healthy and safe usage of the appliance as well as to maintain the
perfect state of functioning along the entire lifetime of the battery.
It is mandatory for users to read this manual with high attention BEFORE using the vehicle and to operate according
to the contents of this document, which includes important advice, warnings and information about the appropriate
practice for using the battery, relevant for the warranty too.
This manual DO NOT substitute a proper diving training.
Wrong or improper use of the battery, aswell as lack of maintenance, can yield to hazardous situations, injuries/death
or loss: SUEX s.r.l shall not be liable for damage to persons and/or objects coming as a consequence of inappropriate
use of the vehicle or poor maintenance.
3. OFFICIAL LANGUAGES AND TRANSLATIONS
The SUEX Manuals are released exclusively in Italian and English. In the event of a dispute, these versions are the
legal reference only.
The local distributor may request authorization from SUEX for the execution of translations in different languages
upon acceptance of the relevant company regulations.
4. DOCUMENT STRUCTURE AND SIGNS ADOPTED
This manual describes and explains the aspects necessary for the correct use, perfect maintenance in operation of
the Battery Pack.
The manual is divided into different sections, each one dedicated to a single topic.
Each section, if necessary, contains respective subsections, dedicate to the description of all the details needed to
the correct understanding of the operations and the actions to be carried out.
When useful, drawings or diagrams are shown for illustrative purposes to allow for the correct identification of parts
and the actions to be performed.
Pay special attention to the hazard signs in this manual. Warning signs that are placed next to a paragraph indicate
respectively:
DANGER!
This signal warns that failure to comply with what is described exposes the user
to risks that could cause damage to health, serious injury or even death.
WARNING!
This signal warns that failure to comply with what is described exposes the user
to risks that do not normally lead to damage or injury.
CAUTION!
This signal warns that failure to comply with what is described exposes the user
to risks that could cause permanent damage to the vehicle.

Rev.00 –29/12/2020
Pag. 4/16
Code: 71082
Copyrights for this manual belong exclusively to SUEX s.r.l. Reproduction of this document, in part or in whole, is
forbidden without SUEX s.r.l. written authorization.
5. NiMH BATTERY INFORMATION
The NiMh battery consists of cells, connected in sequence, mounted on a plastic support and wired with two
connectors: one specific for connection to the battery charger and a cable, ending with a red connector, intended for
connecting the battery to the SUEX Scooter powertrain.
A new battery will only function at full capacity after four or five full charge cycles.
Extreme temperatures can affect the charging capacity of the battery.
Leaving the battery in hot or cold environments, such as in a completely closed car in summer or winter, will reduce
the capacity and life of the battery itself. Always try to keep the batteries between 15 ° C and 25 ° C. Battery
performance is significantly reduced at temperatures below 0 ° C.
Even when not in use, a fully charged battery slowly discharges due to the self-discharge phenomenon; it is
recommended to charge the batteries within 24 hours of the last use and at least once a month and, in any case,
make sure that they never completely discharge.
When the battery performance is below 20% of normal, it needs to be replaced.
Use only batteries approved by SUEX s.r.l., charging them only with the relative approved chargers.
6. BATTERY DESCRIPTION
The NiMh BATTERY cannot be opened, it is sealed by the manufacturer and cannot be dismantled in any part. It is
a unique piece and is a spare part in its entirety.
The NiMH BATTERY is made up of 20 1.2 volt cells, connected in sequence, assembled on a plastic support, a built
in BMS electronic device manages the cells both in balancing and in protection.
Fig.1
Main battery components (Fig.1) are:
•Battery (14),
•Charger connector cap (24),
•Battery’s charge socket (26).

Rev.00 –29/12/2020
Pag. 5/16
Code: 71082
7. BATTERY USE
The 71082 BATTERY designed to be used only in the following products:
CODE
DESCRIPTION
71420
SCOOTER VR T
71084
CONVERSION KIT NIMH FOR VRX
8. KNOW THE BATTERY CHARGE STATUS
8.1. CHARGE INDICATOR ON BOARD THE SCOOTER

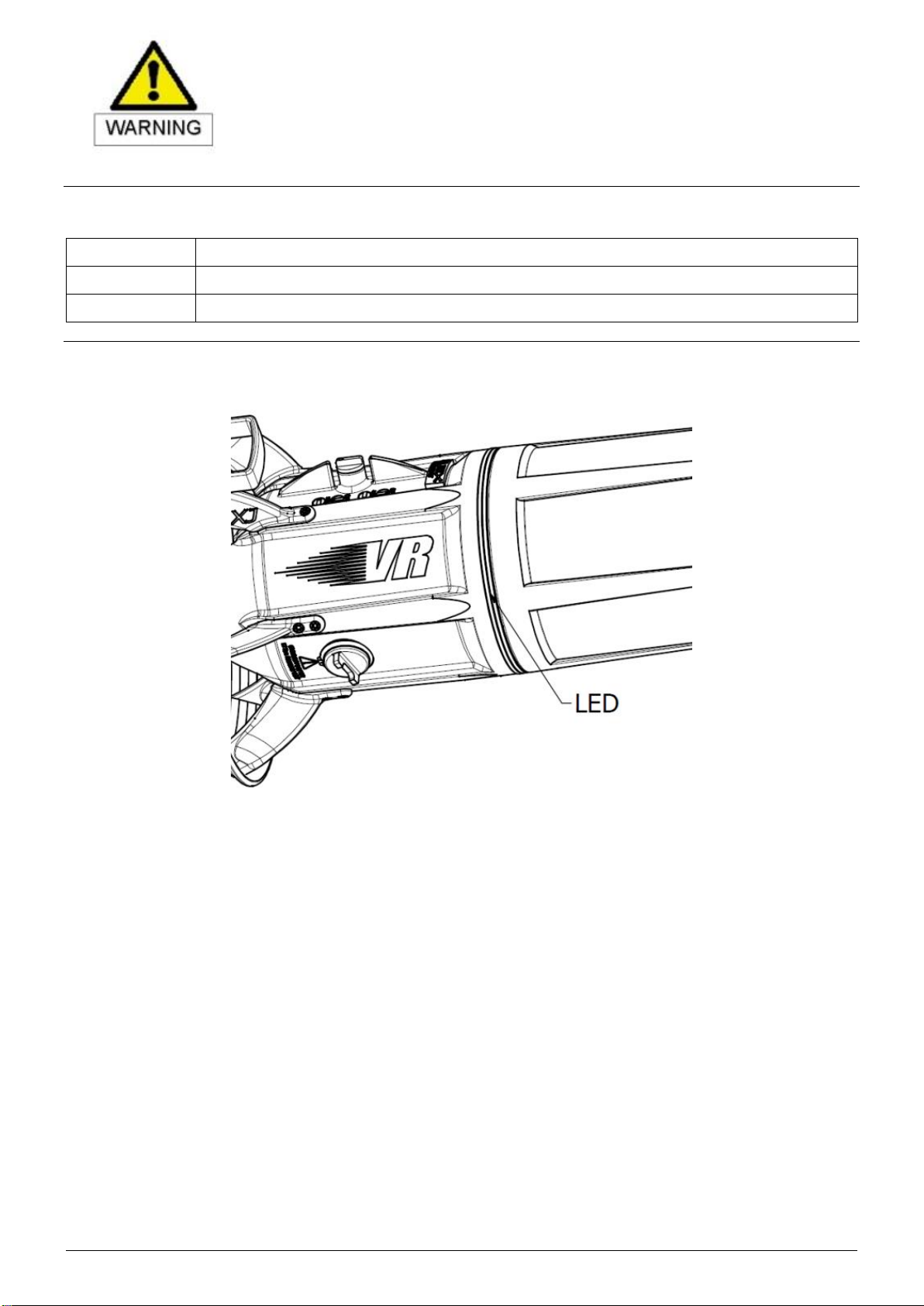

On the right side of the Scooter there are two led: one blue and one red.
The BLUE LED lights on when the Scooter switch ins in ON position –both in LOW and HI speed.
The RED LED lights on when the battery is discharged and the residual autonomy is of few minutes: about 15 minutes
in LOW speed and 10 mins in HI speed with a brand new battery pack.
Note the following:
•The charge indicator on the Scooter (or its display on an external device) provides an approximate indication of
the BATTERY charge status. Depending on the general condition of the BATTERY and its use, the various
elements that indicate the state of charge during use may not accurately reflect the residual state of charge of
the BATTERY.
•The indication of the state of charge is a relative indication, that is referring to the actual condition of the
BATTERY and not to that of a new battery (at maximum efficiency).
•The BATTERY is subject to a natural decrease in its capacity over time due to various factors including the main
ones being age, how to use it and environmental conditions.
•Particularly heavy use or, on the other hand, too mild (with a few complete charge / discharge cycles), particular
environmental factors and battery damage can lead to:
- early decay of its effective capacity
- the reduction of its delivery duration for use
- falsified readings of the state of charge.
The same BATTERY in different environmental situations could therefore show different delivery durations.
It is therefore important to charge the BATTERY 100% before each dive, that is, charge it, until the charger marks
the end of the charge.
The BATTERY is marked with a serial number and with the certification code,
marked on the top cover of the battery (see Fig. under).
In case of need, the number shown must be mentioned for requests for assistance
or for the supply of spare parts.

Rev.00 –29/12/2020
Pag. 6/16
Code: 71082
Do not use the charge indicator as a tool to program the dive or the duration of the dive during its course, but program
the dive with the usual safety parameters.
NOTE: SUEX s.r.l. declines any responsibility for the failure or incorrect evaluation of the residual battery
charge that has led to incorrect assessments regarding the autonomy of the Scooter.
8.2. BLUETOOTH CHANNEL

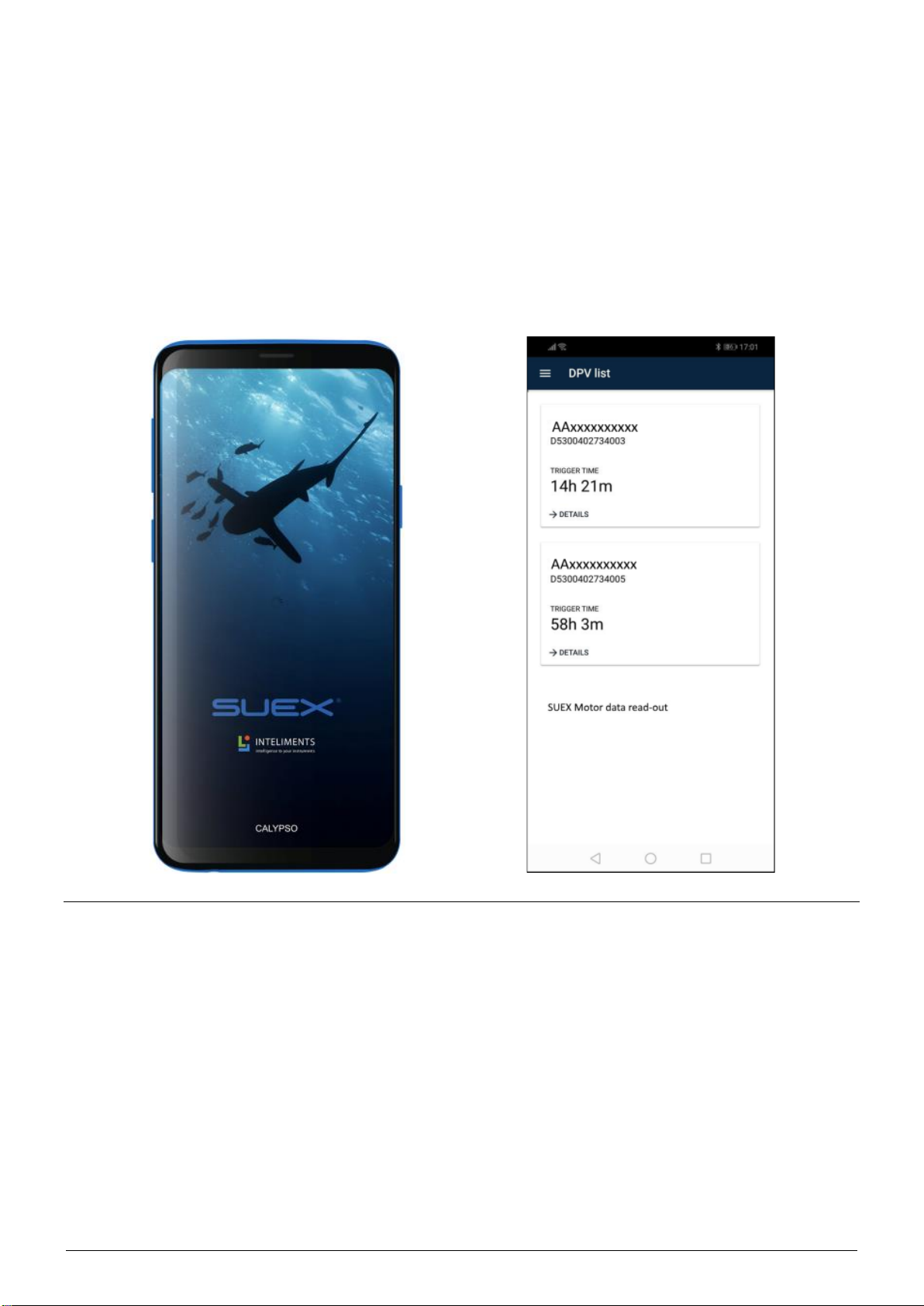

On board the Scooter there are Bluetooth devices through which information about the engine can be obtained.
These features are active only out of the water and require the use of the Calypso application available on Google
Play and the App Store.
To activate the Bluetooth make sure that the battery is connected to the engine and turn on the scooter.
Once the BT devices are active, the application is ready to read the data.
At the first connection, the application will request the pairing of the devices to the smartphone.
The engine will have an identifier of this type: AAxxxxxxxxxx.
For the next steps, follow the application instructions.
The acceleration ramp of the Scooter is also adjustable through the same application.
9. BATTERY CHARGE
9.1. HOW TO CHARGE THE BATTERY
To charge, place the BATTERY in a safe place away from people and flammable objects and proceed as described
below.
USE ONLY THE APPROPRIATE BATTERY CHARGER
The battery should ONLY be recharged using the specific battery charger supplied (code 71083).
When the charger is not in use, disconnect it from the wall outlet and put it in its case.
CHARGE PROCEDURE
Carefully read the battery charger instructions manual.
Charge the battery before each use, allowing it to cool before inserting it into the Scooter; during this phase the
battery could release hydrogen which would inevitably accumulate inside the airtight scooter.
The accumulation of hydrogen (in special conditions) could cause accidents, with injuries to people and things.
Extreme temperatures can affect the battery's charging capacity.

Rev.00 –29/12/2020
Pag. 7/16
Code: 71082
Leaving the battery in hot or cold climates, such as a closed car in mid-summer or mid-winter, reduces battery
capacity and life. Always try to keep the batteries between 15 ° C (59 ° F) and 25 ° C (77 ° F). Battery performance
is significantly reduced in temperatures below 0 ° C (32 ° F).
Charging must take place in an appropriate place: covered and ventilated, away from flammable objects or liquids,
away from crowded rooms:
1. Remove the battery from the Scooter. When the battery is removed, disconnect the red connector;
2. The battery must be connected to the charger by means of the appropriate connector (26).
THE BATTERY SHOULD BE CHARGED ONLY THROUGH THE CONNECTOR (26),
IT IS FORBIDDEN TO USE THE CONNECTION (RED) CONNECTOR TO THE
MOTOR: DANGER OF FIRE, EXPLOSION, SERIOUS DAMAGE OR DEATH.
Unscrew the plug of the charging connector (24) (fig.1);
Connect the charging connector (26) to the charger (see charger instructions);
Connect the power supply socket of the battery charger to the mains;
Do not connect any other device to the battery while charging;
During charging, the battery should be kept outside the Scooter (the battery must, in fact, be inserted and connected
to the motor only immediately before use and removed from the Scooter immediately after use);
If, however, the battery should be recharged from inside the Scooter it must first be disconnected from the motor (by
disconnecting the red connector) and it must be taken into account that the charging phase naturally determines a
certain development of heat: it must be taken care of perform the operation to make sure that the temperature and
ventilation conditions are such as to effectively dispose of the heat produced and avoid the abnormal overheating of
the battery;
Once charging is complete, disconnect (in order) the charger from its main power source and battery;
Once charging is complete, NEVER leave the charger connected to the BATTERY;
After charging, allow the battery to cool down before inserting it into the Scooter.
ENVIRONMENTAL CONDITIONS IDEAL FOR CHARGING
The charging temperature range is 0 ° C + 36 ° C. The ideal battery temperature at the start of the charging phase is
20 ° C.
9.2. WHEN CHARGE THE BATTERY
Fully recharge the BATTERY:
•BEFORE EACH USE taking care to let the BATTERY cool before inserting it into the Scooter;
•At least once every two months;
•When the RED LED lights up (the charge level is less than 20%).
9.3. NEW BATTERY, FIRST USE
A new battery operates at full capacity only after a few complete charging cycles (4-5): this for reasons related to the
activation of internal chemistry.
10. IMPORTANT WARNINGS ON THE BATTERY LIFE
BATTERY life (i.e. the total amount of energy that it can supply to the user device after a full charge) is a feature that
depends on numerous factors including environmental conditions, how it is used, how to charge and discharge.
NEVER stop charging the battery: partial charges damage the battery and reduce
the autonomy of the battery itself!
IMPORTANT NOTE!
Excessive discharge can irreparably damage the battery.

Rev.00 –29/12/2020
Pag. 8/16
Code: 71082
To counteract the natural progressive - normally very slow - decay over time of the battery life, the user must keep
in mind that:
•Extreme temperatures can affect battery capacity and charging efficiency.
•Batteries must be stored at a temperature between 15 ° C and 36 ° C (the ideal temperature is around 20 ° C):
conditions other than those described above can affect the effectiveness of the recharge as well as the number
of possible recharges.
•Leaving (and storing) the BATTERY in a hot (> 36 ° C) or cold (<15 ° C) environment reduces the battery capacity
and its life span.
•If during the use of the Scooter you notice a significant drop in distributed power, immediately stop use and turn
it off using the switch.
The state of efficiency of the BATTERY, as regards the duration of delivery, must be periodically checked: batteries
that show a 20% reduction compared to the condition at the beginning of their life must be replaced and disposed of
in the manner provided (see Cap. "Disposal").
An indication of the current state of efficiency of the battery is the "burn-test" test (see User manual Burn - test).
Refer to the scooter user manual.
11. IDEAL CONDITIONS FOR BATTERY OPERATION AND DISCHARGE
It is recommended to use the BATTERY at a temperature between 15 ° C and 36 ° C.
To avoid rapid deterioration, the BATTERY must NEVER be completely discharged under any circumstances: the
cut-off device is present in to the BATTERY (see chapter "In the event of cut-off intervention").
12. CUT-OFF
NiMh BATTERY PACK integrates the following electronic devices / systems with the function of managing the safety
of the cells that make up the BATTERY.
Particular attention must be paid to the presence of the cut-off system as its intervention determines the supply of
energy to the Scooter and this occurs suddenly.
The non-operating condition imposed by the cut-off system is temporary and normal operation is restored after having
recharged the BATTERY using the special charger. The cut-of intervention is to be considered the electronic
BATTERY protection system against accidental total discharge, it is located inside the BATTERY and is connected
in series between the BATTERY and the Scooter motor.
The function is to prevent the excessive discharge of the cells with the possible danger of reversing the polarity of
one or more cells, with consequent possible destruction of the BATTERY pack with the potential to create even very
serious damage to things and / or people.
During the discharge of the batteries, the voltage drops until it reaches a limit value at which point the cut-off prevents,
by interrupting the power supply, the BATTERY can be discharged further.
When the cut-off intervenes, the battery no longer supplies voltage to the connector.
To restore the situation of use of the battery, it is necessary to recharge it only by means of the special battery charger
(see user manual of the battery charger) and restore the circuit.
The cut off intervention is to be considered exceptional and this event should not occur during normal use of the
battery, as the correct use of the vehicle does not require excessive discharge of the same.
•Emergency thermostat: intervenes during the charging phase in the event of a BATTERY charger failure which
could lead to battery overcharging. It prevents the BATTERY from overheating by cutting off the charging current.
•Cut - off: intervenes in case of attempt to overdischarge. It eliminates the electrical absorption by interrupting the
supply of current to the user device, it is restored by recharging the BATTERY.
•Overcharge protection: during the charging phase it prevents the circumstance that the charger does not
automatically interrupt the charging period.
•Short circuit protection: each cell inside the battery pack is individually protected electronically against accidental
short circuits, in any case DO NOT SHORT CIRCUIT THE BATTERY BECAUSE IT COULD DAMAGE THIS
SYSTEM IRREPARABLY and the BATTERY should be replaced.
12.1. IN THE EVENT OF CUT-OFF INTERVENTION
In case of intervention of the cut-off system, proceed as follows:
•Follow the procedure for opening the scooter;
•Disconnect the battery motor power connector;
IMPORTANT NOTE!
After using the Scooter, always cut off the power supply to the motor by using the
Scooter main switch: the electronic control of the Scooter motor board, even with
the engine not running, has a very low energy consumption which, in the long
term, can lead to complete discharge of the BATTERY, with possible irreversible
damage of the BATTERY PACK.

Rev.00 –29/12/2020
Pag. 9/16
Code: 71082
•Remove the battery from the Scooter;
•Leave the battery to rest for at least 2 hours: this is the minimum time necessary, in this case, to allow the battery
to cool down and return to the waiting state for charging;
•Connect the battery charging connector to the battery charger;
•Proceed with charging, following the instructions in the battery charger user manual.
IMPORTANT NOTE!
Remember that when the cut off device intervenes, the Scooter inevitably stops
working.
This event must in no way be a source of danger for the diver, who will have
planned the diving activity taking into account that the use of the Scooter cannot
be considered as a system to safeguard one's life or to get out of situations. of
difficulty.
SUEX s.r.l. declines all responsibility following the intervention of the cut off system, in any situation, in
dangerous situations or in dives where the diver has (at his complete risk) entrusted his return to the surface
to the Suex Scooter.
Please note that the Scooter must be considered as an aid to diving and not as a means of rescue.
13. BASIC RULES FOR SAFETY
The BATTERY is the most delicate part of the underwater vehicle, it must be handled and stored scrupulously
following the instructions in this manual.
Handle batteries with care to avoid shocks or mechanical damage or leakage of liquid materials that can seriously
damage your health.
Pay attention to the following safety measures to properly treat and use lithium batteries.
DO NOT use the battery for any other purpose than those indicated in this manual
DO NOT modify or tamper the BATTERY in ANY way.
DO NOT short circuit the BATTERY.
DO NOT attempt to open or disassemble the BATTERY.
The use of the BATTERY without observing all the recommendations contained in
this manual can lead to a significant and early decrease in the performance and
BATTERY operating life.

Rev.00 –29/12/2020
Pag. 10/16
Code: 71082
DO NOT disassemble the connector or revert the connector polarity.
DO NOT attempt to charge the battery using the red connector located on the
bottom of the battery (for LI ION and NiMh battery).
DO NOT expose the battery to excessive mechanical stress, strong vibration or
shock.
DO NOT expose the battery to excessive moisture or water or condensation. Do
not wet the electrical contacts.
DO NOT expose the battery to excessive temperatures.
DO NOT throw the battery into the file: it can explode.
DO NOT place the battery near an open flame or in rooms with high temperatures
(> 70 ° C): doing so could cause the battery to overheat and cause a fire hazard.
Disconnect the battery immediately if during the use it should give off a strange
smell, if it should become particularly hot or otherwise appear abnormal.
NEVER leave the battery connected to the vehicle if not in use.
NEVER use batteries that are damaged by bruising, leaking or rusty.

Rev.00 –29/12/2020
Pag. 11/16
Code: 71082
DO NOT use batteries with damaged cables: danger of EXPLOSION!
NEVER use recycled or repaired batteries unless they have been approved and
validated by SUEX.
DO NOT use batteries that are not approved by Suex.
DO NOT use chargers other than those provided by Suex.
If any of these cases occur would please, contact the SUEX assistance service before using the battery.
14. FIRE MANAGEMENT
Batteries must be stored and recharged in rooms free of flammable substances and away from places where people
live.
In the event of a fire, it is important to implement all the necessary procedures for isolating and extinguishing the fire
or managing the event. The personnel in charge must know all the actions to be performed in total safety and all
means of individual protection must be available in accordance with current regulations.
Make sure that there is sufficient ventilation, so that dangerous vapours can be released. Leave the room immediately
in case of strong smoke development.
Contact a physician if respiratory tract irritation occurs.
Wait for the BATTERY to cool completely.
15. HANDLING AND STORAGE OF THE BATTERY
15.1. HANDLING
The battery must always be kept:
•previously charged and subsequently disconnected from any external electrical load;
•outside the Scooter;
•out of the reach of children;
•in a dry place (humidity 65% +/- 5%);
•at temperatures between 15 ° and 36 ° C;
•adopting means to prevent the accumulation of dust and dirt.
15.2. STORAGE
During the storage period, and in any case when not used for diving, the storage of the buttery must take place in
the following conditions:
•previously charged and subsequently disconnected from any external electrical load;
Any other way to handle the battery is to be considered wrong and potentially
dangerous.

Rev.00 –29/12/2020
Pag. 12/16
Code: 71082
•outside the Scooter;
•out of the reach of children;
•in a dry place (humidity 65% +/- 5%);
•at temperatures between 15 ° and 36 ° C;
•adopting means to prevent the accumulation of dust and dirt.
Provvision must be taken ALONG THE ENTIRE LIFE OF THE BATTERY (warehouse storage, transfer etc. included)
to ALWAYS ensure that:
•The batteries are stored fully charged mostly when they are not expected to be used for a long time.
•The batteries are fully charged at least once a month.
•The batteries are fully charged in any case when the RED LED lights up (the battery charge is less than 20%).
Suex cannot be held responsible for any loss or damage to the battery resulting from failure to follow the instructions
contained in this manual.
16. CUSTOMER SERVICE
Contact details of the customer service of SUEX s.r.l.
SUEX s.r.l. - Submarine Exploration
Via Roma, 261/35
31020 VILLORBA –TV –ITALY
Phone: [phone]
[email protected]
www.suex.it
Since the electronic circuits on board the battery has their own internal energy
consumption - negligible but NOT NULL - every care must be taken by the user to
prevent that during prolonged periods of inactivity the batteries may suffer
damage, even irreversible, to due to excessive cell discharge.
In a preventive perspective, in order to avoid that the aforementioned practice is
not followed - with possible IRREVERSIBLE damage to the battery - during ANY
logistic phase after the supply of the goods, SUEX s.r.l. hereby would like to
emphasize the INFORMATION for the customer's organization, in particular for
those responsible for warehouse management regarding the NEED TO PERIODIC
CHARGE of the batteries.
The above applies to the BATTERY PACKS supplied as accessories or spare parts
and those inside the Scooters.

Rev.00 –29/12/2020
Pag. 13/16
Code: 71082
17. TECHNICAL BATTERY SPECIFICATIONS
DESCRIPTION
UNIT OF MEASURE
DATA
Codice Batteria
cod.
71082
Tipologia
NIMH
Full trigger
min.
60
Cruise 45 mt/min
min.
100
Voltaggio nominale
Volt
24
Capacità nominale
Wh
324
Tempo massimo per la ricarica
h
4,5
Alimentazione caricabatteria
Hz
110/220 - 50/60
18. NiMH BATTERY FREQUENTLY ASKED QUESTIONS
QUESIONS
ANSWERS
I often use the DPV, twice a week or every day, but I
never fully deplete the battery since I make short dives.
Should I remove the battery after every use and charge
it?
The battery should be disconnected and removed after
every use, if possible, charge when the charge level is
almost depleted, otherwise, charge after every use.The
battery should be kept separate from the DPV and
inserted and connected to the motor only immediately
prior to use. It should be disconnected and removed
immediately after use.
Can I leave the battery connected to the battery charger
for a long period of time?
It is always best to disconnect them as soon as charging
is finished.
I dropped the battery. The external envelope is dented.
Can I still use it?
NiMh cells are extremely delicate. NEVER use a battery
that has fallen on the ground since some connections
could be damaged. Send the battery to customer
service who will check for damage and repair the battery
if necessary.
Is battery heating normal when charging?
Yes. Given that a battery should always be charged at
room temperature between 15°C and 26°C, the
battery's temperature may rise during charge.
Is battery heating normal when outputting?
Yes. As with charging, battery output slightly raises
battery temperature, therefore, the same conditions
apply as above.
How long does a NiMh battery last if not used?
This depends on many factors: use, temperature,
maintenance, etc. Usually a battery charged at least
once every two months and never fully depleted can last
several years but capacity will reduce over time.
When the battery is dead, what should I do with it?
The battery should be disposed of in a specific depleted
battery recycling center. There are specific collection
centers in every city.
I left the battery on the boat and sea elements rusted
the silver-plated connector contacts. What should I do?
All electrical contacts inside the DPV battery case
should be without damage or corrosion to avoid the
potential for short circuit or failure.The connector should
be replaced (see SUEX customer service).
I pulled the battery wires by mistake and damaged the
insulation. Do I have to replace them or can I insulate
them with tape?
A wiring short circuit could result in battery damage,
vehicle damage or injury so repair as soon as possible
(see SUEX customer service).
When I have to charge the battery, can I leave the red
connector attached to the DPV engine?
No! The battery must be detached from the motor and
charged in all cases.
I noticed the battery leaks liquid, can I still use the
battery?
No! Do not use the battery. It is hazardous to people and
property!
I noticed some bumps on the battery, can I still use it?
No! Do not use the battery. It is hazardous to people and
property!

Rev.00 –29/12/2020
Pag. 14/16
Code: 71082
19. WARRANTY
The BATTERIES supplied with Suex Scooters are tested in the factory before delivery to the customer.
The original Suex batteries are guaranteed for a period of two years (1 year if for professional use) against
manufacturing defects, starting from the purchase confirmed by the sales documentation. The following
circumstances constitute exclusion from the guarantee:
•Defects due to damage, incorrect use, accidents, tampering, negligence or neglect maintenence, alterations or
repairs carried out by unauthorized persons such as to impair correct functionality or prevent adequate
verification and testing by the SUEX assistance service during the request for warranty intervention.
•Defects or damages resulting from using the product in conditions other than those described in this manual.
•Defects or damages deriving from incorrect or missed checks, operations, maintenance, installations,
adaptations, unauthorized applications, or from any other alteration or modification of any kind.
•Breakage or damage to cables or connections if not directly due to defects in materials or workmanship.
•Transport damage, falls or accidents.
•Defects or damage due to humidity, liquids, or foreign bodies placed inside the battery pack or which have
oxidized any part of the BATTERY.
•Decrease in BATTERY capacity and performance caused by the use of the same.
Use only original Suex components.
The use of non-original or non-Suex approved components voids Suex's warranty.
DISCLAIMER: SUEX DISCLAIMS ALL LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES TO
PERSONS AND / OR THINGS following use or abuse of the product with parts that are not original or not approved
by Suex.
SUEX assumes no responsibility for any loss or damage suffered as a result of improper use or because of products
with parts that are not original or not approved by Suex.
20. REACH COMPLIANCE STATEMENT
Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Regulation (EC No. 1907/2006)
The European Union’s REACH Directive (EC 1907/2006) is designed to regulate the Registration, Evaluation,
Authorisation and Restriction of Chemical Substances. REACH legislation was finalised in December 2006 and has
been in effect since June 2007.
SUEX s.r.l. hereby confirms that all products manufactured address the European Union Regulation (EC) 1907/2006
with the company’s role being that of an ‘article producer’ and its manufactured products being considered as ‘articles’
defined under REACH regulation Article 3.
SUEX has contacted its supplies and confirms that to the best of its knowledge and belief all necessary registration
of any in-scope substances on the REACH SVHC Candidate List 1 have been undertaken by them.
Registration is required for companies that either produce or import into the EU any substance in volumes that exceed
one tonne per substance per year. SUEX does exceed these amounts and is not required to register.
SVHC materials Lead (CAS No 7439-92-1) is used in the manufacture of ballast elements in concentration levels
greater than the specified limit of 0.1% (weight by weight). Ballast elements using these substances are encased
and are considered out of the scope of the restriction due to non-mouthability/non reachability under normal or
reasonably foreseeable condition of use as defined by the REACH regulation and existing guidance.
Articles that contain these substances in greater than 0.1% concentrations are RoHS compliant using exemptions
from RoHS regulations under Annex IV, items 13 of the directive, which specifies:
Lead in counterweights
SUEX should be contacted if further SVHC information for purchased products is required.
21. ROHS AND WEEE CONFORMITY
21.1. RoHS COMPLIANCE STATEMENT
Restriction of Hazardous Substances (RoHS) Directive
The Directive 2011/65/EU on the Restriction of the use of certain Hazardous Substances (RoHS 2, with RoHS 3
amendment 2015/863 ), replacing Directive 2002/95/EC (RoHS 1), targets Electrical and Electronic Equipment (EEE)
in order to avoid adverse impacts on human health and the environment.
SUEX s.r.l. hereby certifies that all products manufactured are compliant with the requirements of the RoHS directive
“2011/65/EC”, and subsequent amendment “2015/863”, being free of the following materials:
•Lead (Pb)
•Mercury (Hg)
•Cadmium (Cd)
•Hexavalent chromium (Cr6+)
•Polybrominated biphenyls (PBB)
•Polybrominated diphenyl ether (PBDE)
•Bis(2-ethylhexyl) phthalate (DEHP)

Rev.00 –29/12/2020
Pag. 15/16
Code: 71082
•Butyl benzyl phthalate (BBP)
•Dibutyl phthalate (DBP)
•Diisobutyl phthalate (DIBP)
21.2. WEEE COMPLIANCE STATEMENT
The European Union’s Waste Electrical and Electronic Equipment (WEEE) Directive was implemented in member
states during 2006.
SUEX s.r.l. hereby certifies that as a producer of qualifying electrical and electronic equipment since 2006, all
qualifying products are subject to the WEEE Directive, with such products being marked with the WEEE symbol
(“crossed out wheelie bin”) in accordance with European standard EN 50419.
The specialist nature of the company’s products classifies them as “non-household goods”, and as such SUEX s.r.l.
will fund and arrange the recycling of products returned to us, ensuring that the waste resulting from these products
will be properly recycled.
Customers are offered the opportunity to return products at the end of their functional lives with delivery costs being
at the expense of the sender. Products returned to SUEX s.r.l. shall be in accordance with the normal product returns
policy, with pre-authorisation required in the form of an RMA number without which the product will not be accepted.
22. DISPOSAL
Dispose of used batteries according to national regulations.
Do not dispose of used batteries in with domestic waste.
23. CE CONFORMITY
SUEX s.r.l.
Via Roma, 261/35
31020 Villorba (TV) Italy
Phone: [phone]
www.suex.it
DECLARATION
OF CONFORMITY
SUEX s.r.l.
Declares, under its sole responsibility as Manufacturer, that the product:
71082 NiMh battery kit
Complies with regulations:
Low voltage directive 2014/35/CE
Electromagnetic Compatibility EMC 2014/30/CE
and declares that the following rules are applied:
UNI EN ISO 12100:2010
IEC 61000-4-6:2018
CEI EN 61000-6-4:2007
IEC 61000-6-1:2016
CEI EN 61000-6-1:2007
IEC 60034-1:2017
CEI EN 60034-1:2015
CEI EN 60335-1/EC:2010
24. QUALITY MANAGEMENT SYSTEM ISO 9001
SUEX s.r.l. is an ISO 9001:2015 certified company.

Rev.00 –29/12/2020
Pag. 16/16
Code: 71082
Certified and audited by SGS ITALIA (SGQ N° 0015 A), certificate number IT19/1218.
25. ENVIRONMENTAL CERTIFICATION ISO 14001
SUEX s.r.l. is an ISO 14001:2015 certified company.
Certified and audited by SGS ITALIA (SGA N° 0007 D), certificate number IT20/0702.
26. LOCAL DISTRIBUTOR
For additional information please contact the manufacturer or local distributor.
Space reserved for the local distributor to include contact detail.
27. DOCUMENT HISTORY
REVISION
DATE
CODE
Rev.00
29/12/2020
71082

Rev.00 –29/12/2020
Pag. 1/16
Cod: 71082
PACCO BATTERIA NIMH VRT
71082
MANUALE ISTRUZIONI E
AVVERTENZE PER L’USO
Non lasciare MAI la SCARICA della batteria inferiore al 20%!
CONSERVARE la batteria COMPLETAMENTE CARICATA!
CARICARE COMPLETAMENTE almeno ogni DUE MESI!

Rev.00 –29/12/2020
Pag. 2/16
Cod: 71082
1. DIRITTI DI COPYRIGHT....................................................................................................................... 3
2. PREMESSA RILEVANTE AI FINI DELLA SICUREZZA E DELLA GARANZIA................................. 3
3. LINGUE UFFICIALI E TRADUZIONI.................................................................................................... 3
4. ORGANIZZAZIONE DEL MANUALE, SIMBOLOGIA E ASPETTI GENERALI DI SICUREZZA....... 3
5. INFORMAZIONI GENERALI SULLE BATTERIA NiMH...................................................................... 4
6. DESCRIZIONE DELLA BATTERIA...................................................................................................... 4
7. USO DELLA BATTERIA....................................................................................................................... 5
8. CONOSCERE LO STATO DI CARICA DELLA BATTERIA................................................................ 5
9. DISPLAY INDICATORE DI CARICA A BORDO DELLO SCOOTER...............................................5
10. CANALE BLUETOOTH.....................................................................................................................6
11. CARICA DELLA BATTERIA ................................................................................................................ 6
12. COME CARICARE LA BATTERIA....................................................................................................6
UTILIZZARE SOLO IL CARICA BATTERIE APPROPRIATO ....................................................................6
PROCEDURA DI CARICA ..........................................................................................................................6
CONDIZIONI AMBIENTALI IDEALI PER LA CARICA................................................................................7
12. QUANDO CARICARE LA BATTERIA...............................................................................................7
13. BATTERIE NUOVE, PRIMI CICLI DI UTILIZZO...............................................................................7
14. AVVERTENZE IMPORTANTI SULLA DURATA DELLA BATTERIA................................................. 8
15. CONDIZIONI IDEALI PER IL FUNZIONAMENTO E LA SCARICA DELLA BATTERIA.................... 8
16. CUT-OFF............................................................................................................................................... 8
17. IN CASO DI INTERVENTO DEL CUT- OFF.....................................................................................9
18. REGOLE FONDAMENTALI PER LA SICUREZZA ............................................................................. 9
19. GESTIONE INCENDIO ....................................................................................................................... 11
20. CONSERVAZIONE E STOCCAGGIO DELLA BATTERIA................................................................ 11
21. CONSERVAZIONE .........................................................................................................................11
22. STOCCAGGIO................................................................................................................................12
21. ASSISTENZA TECNICA..................................................................................................................... 12
22. CARATTERISTICHE TECNICHE DELLA BATTERIA....................................................................... 12
23. DOMANDE FREQUENTI SULLE BATTERIE NiMH.......................................................................... 13
24. GARANZIA.......................................................................................................................................... 13
25. DICHIARAZIONE DI CONFORMITÀ REACH.................................................................................... 14
26. CONFORMITA' ROHS E WEEE......................................................................................................... 14
27. DICHIARAZIONE DI CONFORMITÀ RoHS....................................................................................14
28. DICHIARAZIONE DI CONFORMITÀ WEEE...................................................................................15
29. SMALTIMENTO.................................................................................................................................. 15
30. DICHIARAZIONE DI CONFORMITA' CE........................................................................................... 15
31. SISTEMA DI GESTIONE QUALITA' ISO 9001.................................................................................. 16
32. CERTIFICAZIONE AMBIENTALE ISO 14001 ................................................................................... 16
33. DISTRIBUTORE LOCALE.................................................................................................................. 16
34. REVISIONE DOCUMENTO ................................................................................................................ 16

Rev.00 –29/12/2020
Pag. 3/16
Cod: 71082
1. DIRITTI DI COPYRIGHT
Copyright –SUEX s.r.l., 2020
Tutti i diritti sono riservati. Nessuna parte di questa pubblicazione può essere riprodotta e diffusa, con qualsiasi
metodo, meccanico o elettronico, senza il permesso scritto di SUEX s.r.l., via Roma 261/35 31020 Villorba (TV)
Italy.
L’utilizzatore è tenuto a leggere attentamente questo manuale PRIMA di utilizzare il PACCO BATTERIA NiMh
71082 e di operare in conformità a quanto indicato in questo documento che contiene importanti precauzioni, avvisi
e informazioni sul corretto uso della batteria, per la sicurezza degli utilizzatori e la salvaguardia dell'ambiente ed
inoltre rilevanti anche ai fini della garanzia sul prodotto.
Il PACCO BATTERIA NiMh Suex 71082 (nel seguito: BATTERIA) è progettato per essere usato esclusivamente
sullo Scooter SUEX di tipo VR t (si vedano dettagli nella tabella riportata nel capitolo "Uso della Batteria").
Qualsiasi altro utilizzo è da ritenersi inappropriato e potenzialmente PERICOLOSO.
2. PREMESSA RILEVANTE AI FINI DELLA SICUREZZA E DELLA GARANZIA
Il presente manuale di uso è destinato agli utilizzatori delle batterie degli Scooter subacquei SUEX.
Esso contiene importanti informazioni necessarie a garantire la sicurezza d’uso e a preservare il perfetto stato di
funzionamento dell’apparecchiatura a cui si riferisce, durante l’intero ciclo di vita.
L’utilizzatore è tenuto a leggere attentamente questo manuale PRIMA di utilizzare l’apparecchio e ad operare in
conformità a quanto indicato in questo documento che contiene importanti precauzioni, avvisi e informazioni sul
corretto uso della batteria, rilevanti anche ai fini della garanzia sul prodotto.
Questo manuale non sostituisce un adeguato corso di immersione.
L'uso scorretto della batteria o la mancanza di manutenzione può portare a operazioni non sicure e può causare
lesioni/morte o perdite: SUEX s.r.l. declina ogni responsabilità per lesioni/morte e/o perdite conseguenti all'uso
improprio della batteria o alla mancanza di manutenzione.
3. LINGUE UFFICIALI E TRADUZIONI
I Manuali SUEX sono rilasciati esclusivamente in lingua italiana e inglese. In caso di contestazione fanno
riferimento legale esclusivamente queste versioni.
Il distributore locale può richiedere autorizzazione a SUEX per l’esecuzione di traduzioni in lingue diverse previa
accettazione del disciplinare aziendale in materia.
4. ORGANIZZAZIONE DEL MANUALE, SIMBOLOGIA E ASPETTI GENERALI DI SICUREZZA
Il presente manuale descrive e cura gli aspetti necessari al corretto uso, perfetta tenuta in funzionamento della
batteria.
Il manuale è strutturato in diverse sezioni, ciascuna dedicata ad un singolo assieme.
Ogni sezione contiene, se necessario, sotto sezioni dedicate a tutti i dettagli necessari alla corretta interpretazione
delle azioni da svolgere.
Quando utile sono riportati disegni o schemi a scopo illustrativo, per permettere la corretta identificazione delle
parti e delle azioni da eseguire.
Prestare particolare attenzione ai segnali di pericolo riportati in questo manuale. I segnali di pericolo che sono posti
accanto ad un paragrafo indicano rispettivamente:
PERICOLO!
Questo segnale avverte che l'inosservanza di quanto descritto espone l'utente a
rischi che potrebbero arrecare danni alla salute, lesioni gravi o anche la morte.
AVVERTENZA!
Questo segnale avverte che l'inosservanza di quanto descritto espone l'utente a
rischi che non comportano di norma danni o lesioni.
CAUTELA!
Questo segnale avverte che l'inosservanza di quanto descritto espone l'utente a
rischi che potrebbero arrecare danni permanenti al mezzo.

Rev.00 –29/12/2020
Pag. 4/16
Cod: 71082
La presente pubblicazione è di esclusiva proprietà di SUEX s.r.l. che ne vieta la riproduzione anche parziale senza
precisa autorizzazione scritta.
5. INFORMAZIONI GENERALI SULLE BATTERIA NiMH
La batteria al NiMh è costituita da celle, collegate in sequenza, montate su un supporto in plastica e cablate con
due connettori: uno specifico per il collegamento al carica-batterie ed un cavo, terminante con un connettore rosso,
destinato al collegamento della batteria al gruppo propulsore dello Scooter SUEX.
Una batteria nuova funzionerà a piena capacità solo dopo quattro o cinque cicli di carica completi.
Temperature estreme possono incidere sulla capacità di carica della batteria.
Lasciare la batteria in ambienti caldi o freddi, come ad esempio in un’auto completamente chiusa in piena estate o
inverno, ridurrà la capacità e la durata della batteria stessa. Cercare sempre di tenere le batterie ad una
temperatura compresa tra 15° C e 25° C. Il rendimento delle batterie è notevolmente ridotto a temperature inferiori
a 0° C.
Anche quando non viene utilizzata, una batteria completamente carica si scarica lentamente a causa del fenomeno
di autoscarica; si consiglia di caricare le batterie entro 24 ore dall'ultimo utilizzo e almeno una volta al mese e, in
ogni caso, accertarsi che non si scarichi mai completamente.
Quando le prestazioni della batteria sono inferiori al 20% del normale, è necessario sostituirla.
Utilizzare solo batterie approvate da SUEX s.r.l., caricandole esclusivamente con i relativi caricabatterie approvati.
6. DESCRIZIONE DELLA BATTERIA
La BATTERIA NiMh non è apribile: è sigillata dal produttore e non può essere smontata in alcuna sua parte. Essa
è un pezzo unico ed è un ricambio per intero.
La BATTERIA NiMH è realizzata tramite il collegamento di 20 celle da 1.2 volt montate su un supporto di plastica,
un dispositivo elettronico BMS provvede alla gestione delle celle sia in bilanciamento che in protezione.
Fig.1
I principali componenti della batteria sono (fig.1):
•Batteria (14),
•Connettore del caricabatterie (24),
•Presa di carica della batteria (26).
La BATTERIA è contrassegnata da un numero di serie e dal codice di
certificazione, marcati sul coperchio superiore della batteria. Qui di seguito in
figura un esempio di identificazione.
In caso di necessità, per richiesta di intervento di assistenza o per la fornitura di
ricambi, deve essere citato il numero riportato.
