Summers RP6700 User manual

®
Operator’s
Manual
RP6700
(MODEL 700)
Rotary Rockpicker, Hyd. Direct Drive
SUMMERS MANUFACTURING CO., INC.
WEB SITE: www.summersmfg.com
DEVILS LAKE, NORTH DAKOTA 58301 ................................................... [phone]
8Z1102 © Summers Mfg. Co., Inc. 2017 Printed in USA
IMPORTANT
THE OPERATOR IS RESPONSIBLE FOR AD-
JUSTING THE MACHINE SINCE MACHINE DOES
NOT COME “FIELD READY” FROM FACTORY.
ROCK PICKER MODEL 700
ROCK PICKER MODEL 700
CAUTION
READ & UNDERSTAND OPERATOR’S MANUAL
BEFORE USING MACHINE.
See www.summersmfg.com for the latest version of all Summers Operator’s Manuals

Warranty
Summers warrants only products of its manufacture against operational failure caused by defective materials or workmanship which
occur during normal use within 36 months from the date of purchase by the end user from Summers’ dealer.
Summers’ obligation is to replace free of charge any part of any product that Summers inspection shows to be defective excluding
transportation charges to Devils Lake, ND and return and also excluding all transportation costs from Summers’ dealer to the dealer’s
customer and all other costs such as removal and installation expense.
Summers shall not be liable for loss of time, manufacturing costs, labor, material, loss of prots, consequential damages, direct or
indirect, because of defective products whether due to rights arising under the contract of sale or independently thereof, and whether or not
such claim is based on contract, tort or warranty.
Written permission for any warranty claim return must be rst obtained from authorized Summers’ personnel. All returns must be
accompanied with a complete written explanation of claimed defects and the circumstances of operational failure.
Written warranty for all component parts used in the manufacture of Summers products is available upon request. Warranty of such
component parts will be determined by said component manufacturer upon their inspection of the claimed defective part.
This express warranty is the sole warranty of Summers. There are no warranties, which extend beyond the warranty herein expressly
set forth. The sales for products of Summers under any other warranty or guarantee express or implied is not authorized. This warranty
voids all previous issues.
SUMMERS MANUFACTURING CO. INC.
DEVILS LAKE, NORTH DAKOTA 58301
01/16
Published Date: 11/29/17

GENERAL INFORMATION
This book is composed of three basic sections: Safety, Operation and Parts.
The Operation Section provides information for proper operation and maintenance of your Summers
Rockpicker. The Parts Section provides a complete parts breakdown for the Model 700 Rockpicker.
Reference to “Right” and “Left” in this book is determined when the machine is viewed from the rear.
Parts are referenced in each drawing with the Summers Manufacturing Part Number. Use this Part Number
when ordering replacement parts from your Summers dealer.
It is the policy of this company to improve its products whenever possible and practical to do so. We reserve
the right to make changes or improvements in the design or construction of parts at any time without incurring
the obligation to install such changes on products previously delivered.
Summers Manufacturing Company, Inc. strongly recommends that each Rockpicker Operator READ
and UNDERSTAND the Operator’s Manual before using the machine. In addition, this Operator’s
Manual should be REVIEWED at least ANNUALLY thereafter.
Scan code to the right for the latest version of all Summers Operator’s Manuals.
CONTENTS
Section 1: SAFETY
Safety-Alert Symbol and General Safety Practices........................................... 1-1
Safety Decals ......................................................................................1-2 – 1-3
Maintenance Safety .................................................................................... 1-4
Section 2: OPERATION and MAINTENANCE
Initial Set-Up .............................................................................................. 2-1
Hydraulic Requirements ................................................................................. 2-1
Electric Solenoid Lift Option .......................................................................... 2-2
Field Operation .............................................................................................. 2-3
Maintenance and Service................................................................................ 2-3
Troubleshooting ............................................................................................. 2-4
Section 3: PARTS

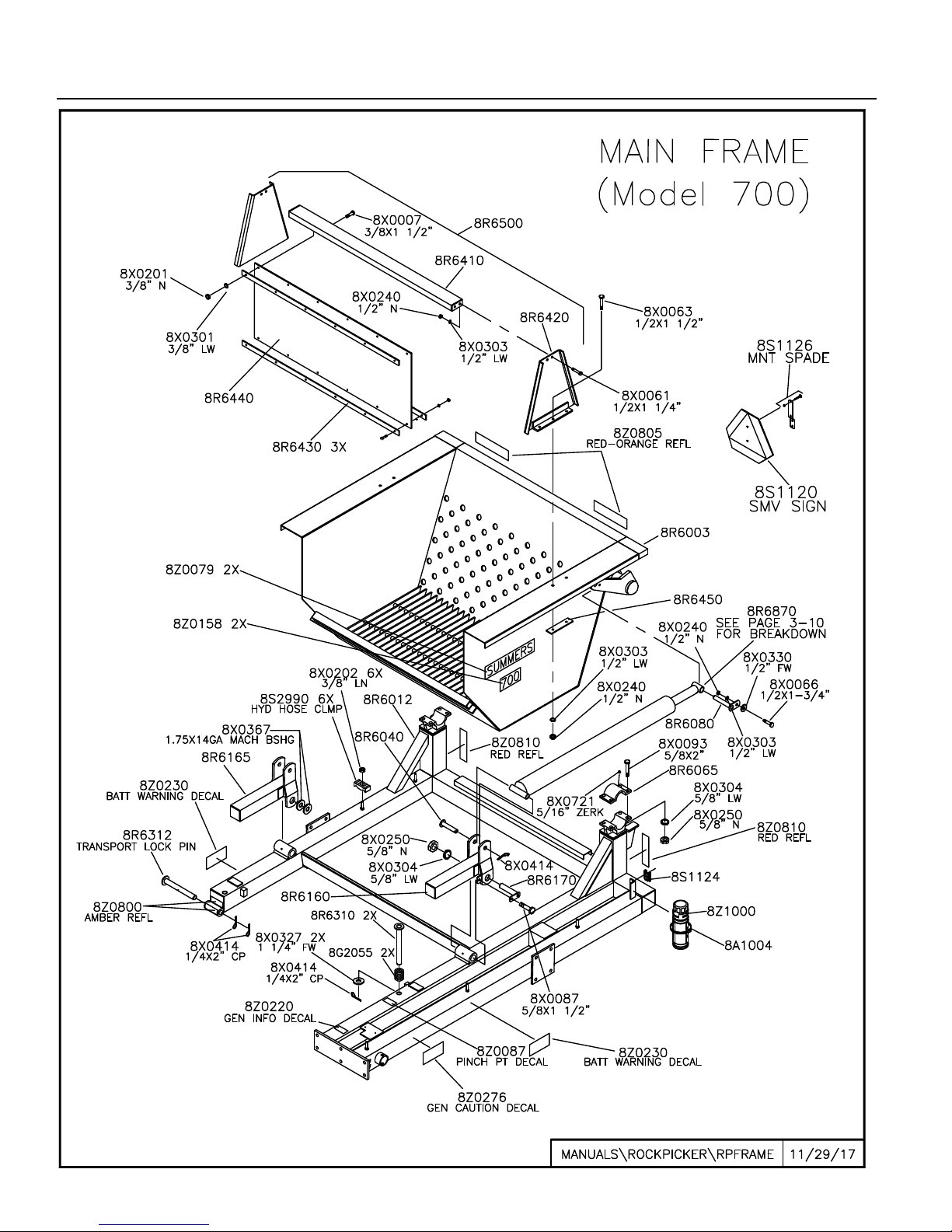

Main Frame, Model 700 .................................................................................. 3-2
Rake and Reel Assembly, Model 700 ............................................................... 3-3

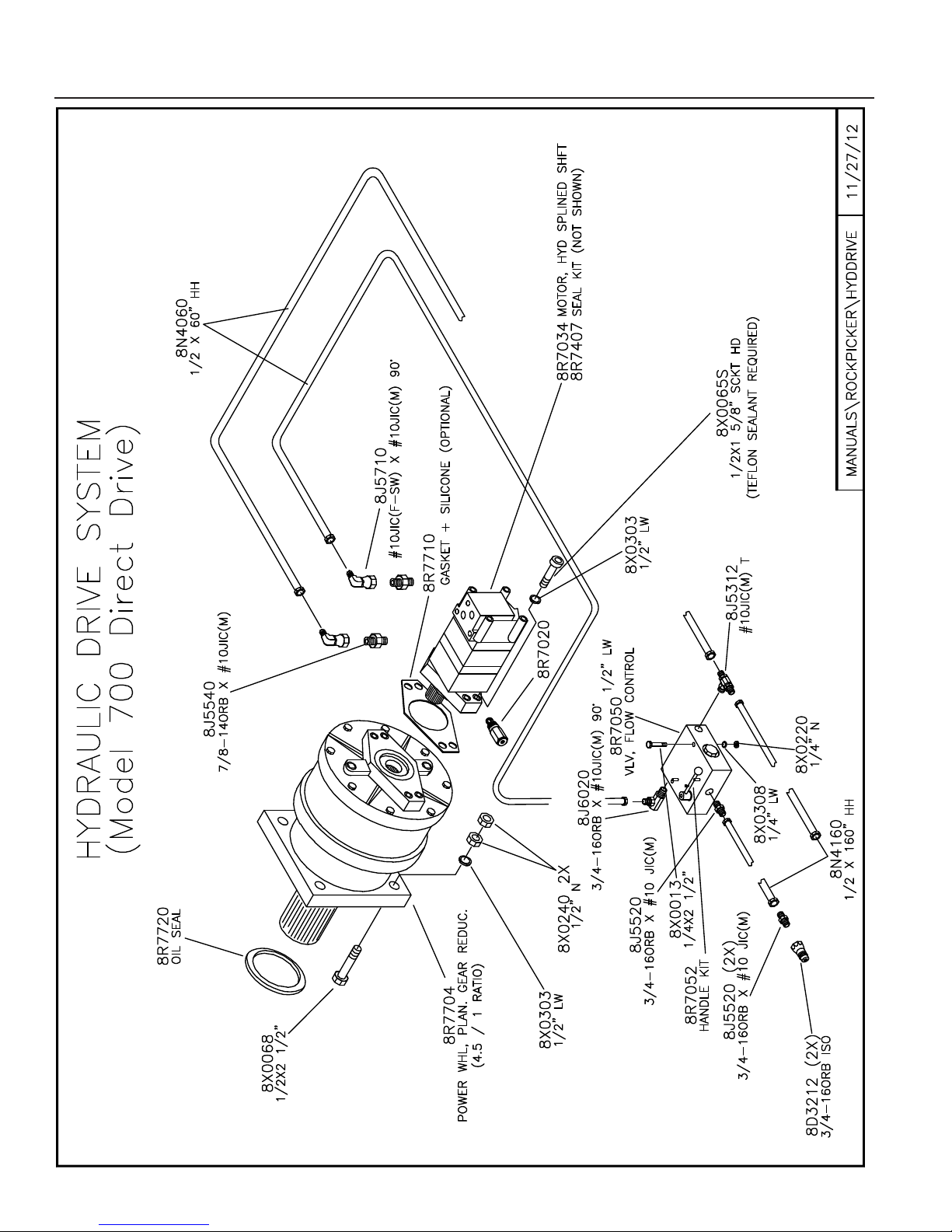

Drive System, Model 700................................................................................ 3-4
Hydraulic Dump System, Model 700 ............................................................... 3-5
Electric Solenoid Lift Option .......................................................................... 3-6

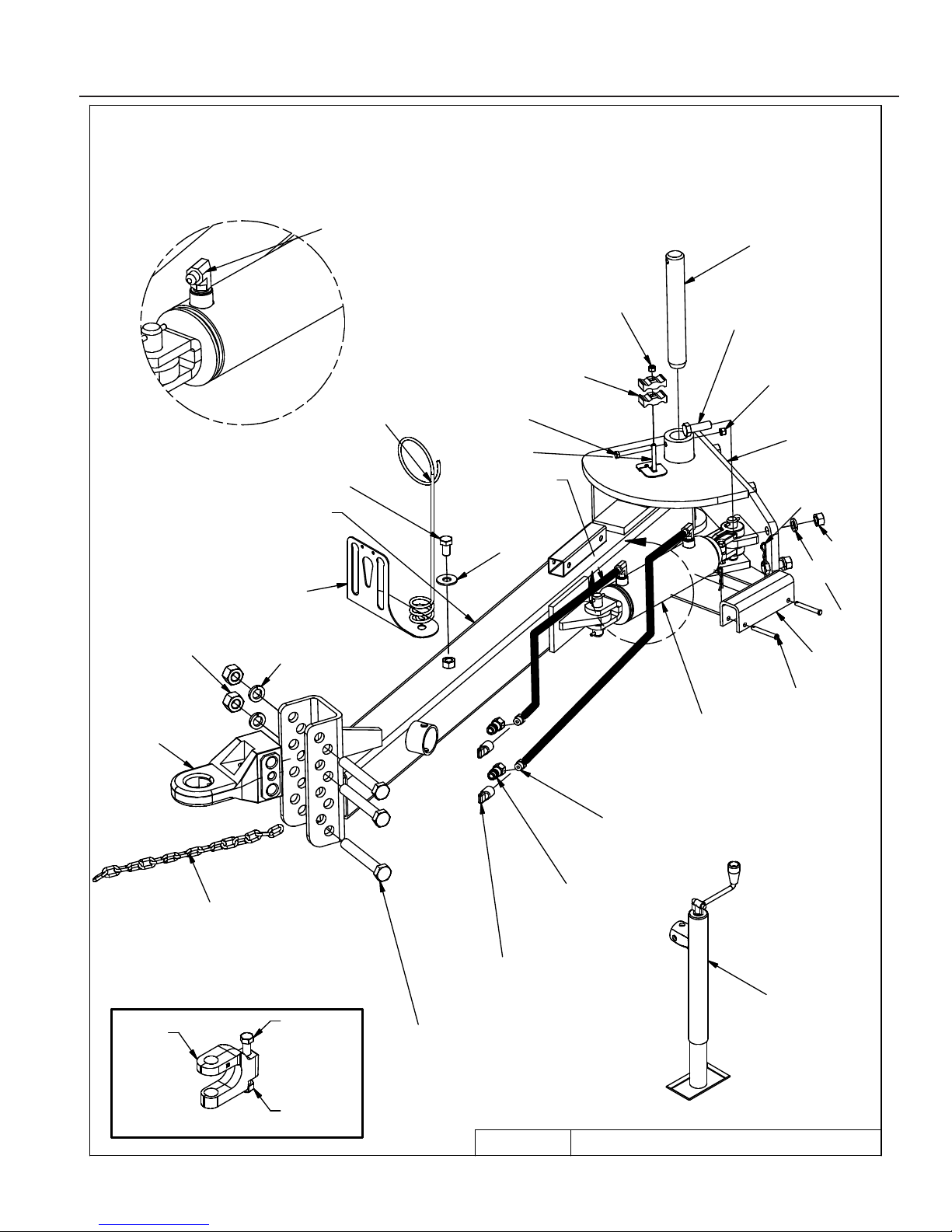

Hydraulic Swing Hitch.................................................................................... 3-7

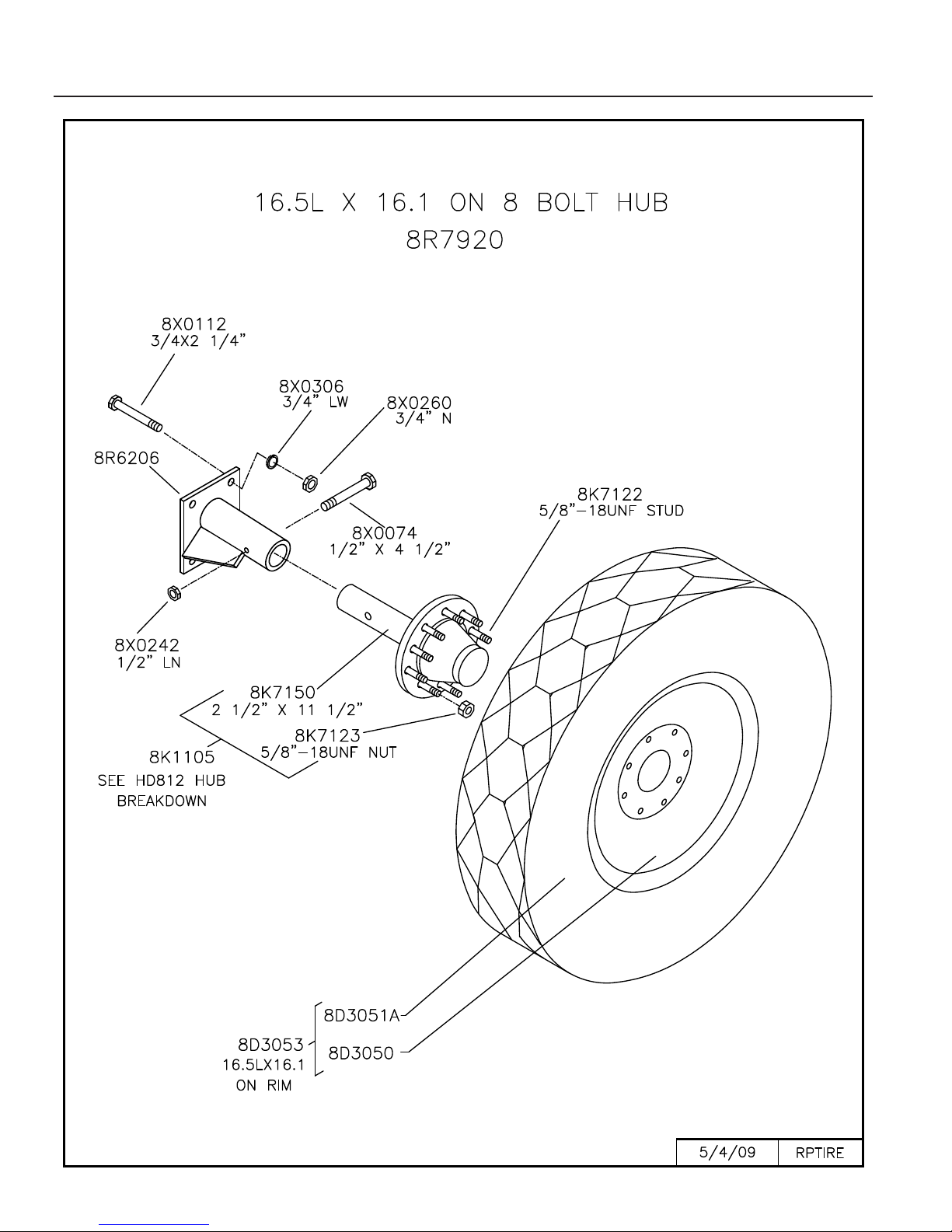

16.5L X 16.1 Tire ........................................................................................... 3-8
Hub and Axle Components.............................................................................. 3-9
Hydraulic Cylinder Breakdown...................................................................... 3-10
OWNER REGISTER
Name____________________________________ Size _________________________________________
Address _________________________________ Serial Number _______________________________
City _____________________________________
State/Prov. ______________________________ Date Purchased______________________________
Mail Code________________________________ Dealer_______________________________________
i

ii
NOTES

SECTION 1 - SAFETY
SAFETY-ALERT SYMBOL
This symbol is used to denote possible danger and
care should be taken to prevent bodily injury.
This symbol means:
ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!
Denition of each Signal Word used in conjunction with the Safety-Alert symbol.
indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury. This signal word is to limited to the most extreme situations.
indicates a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury. It may also be used to alert against unsafe practices.
GENERAL SAFETY PRACTICES
1. READ AND UNDERSTAND Operator’s Manual before using machine. Review at least annually thereafter.
2. VERIFY all safety devices and shields are in place before using machine.
3. KEEP hands, feet, hair and clothing away from moving parts.
4. STOP engine, place all controls in neutral, set parking brake, remove ignition key and wait for all moving
parts to stop before servicing, adjusting, maintaining or unplugging.

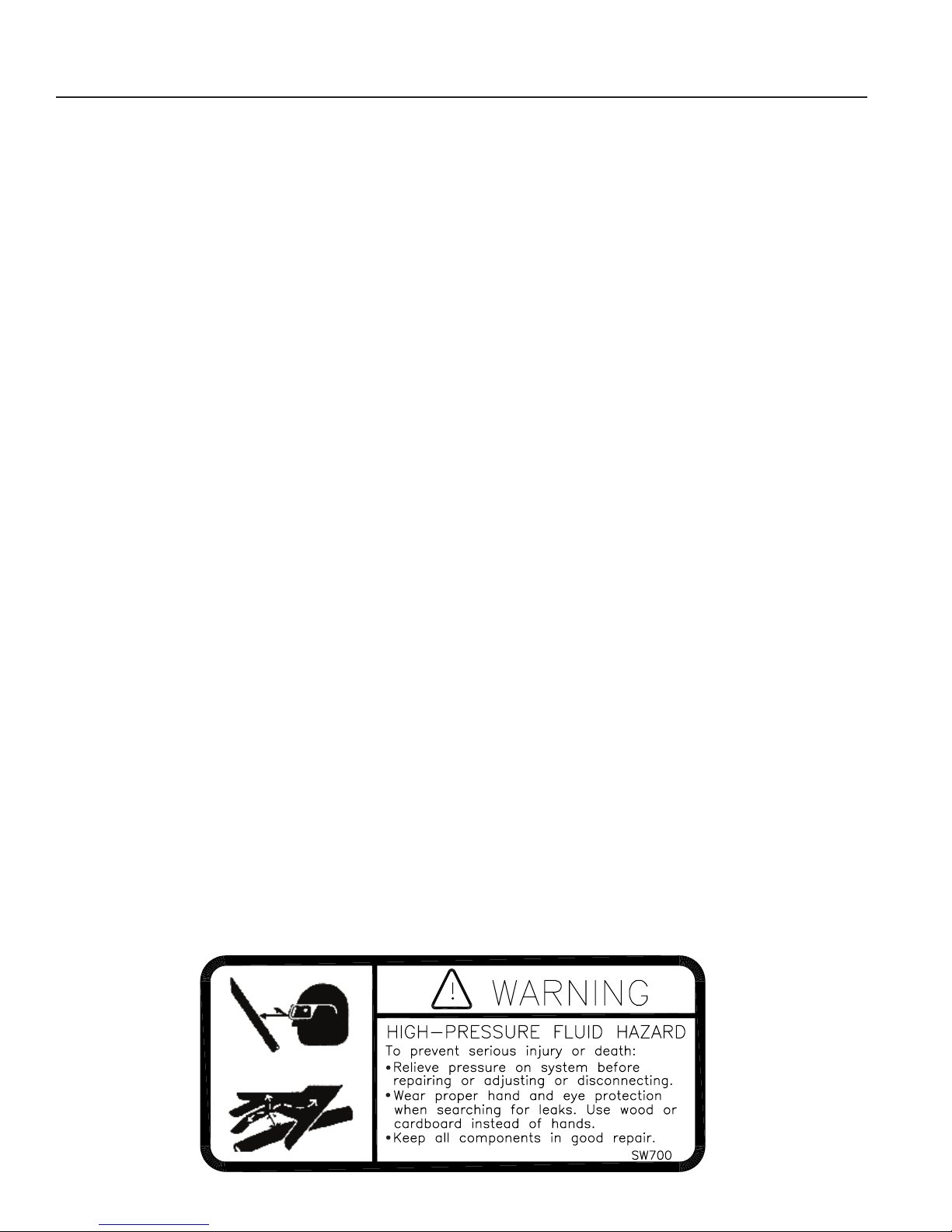

5. BE CAREFUL when working around high pressure hydraulic system.
6. DO NOT ALLOW RIDERS.
7. ALWAYS, make sure that pressure is relieved from hydraulic circuits before servicing or disconnecting from
tractor.
SAFETY DURING TRANSPORT
1. ONLY TOW at a safe speed. Use caution when making corners and meeting trafc.
2. USE transport lock and safety chain between tractor drawbar and rockpicker hitch when transporting on
public roads.
3. If rockpicker is towed on public roadways, hydraulically swing hitch so rockpicker trails directly behind tow-
ing vehicle. Install Transport Lock (8R7890) to prevent cylinder from retracting. The optional solid hitch can
be reversed so rockpicker trails directly behind towing vehicle.
4. COMPLY with local lighting, marking and oversize regulations when transporting on highways.
DANGER
WARNING
CAUTION
1-1
