Sunbeam FA7450 User manual

Please read these instructions carefully
and retain for future reference.
Sunbeam Tower Fan
with Remote Control
Instruction Booklet
FA7450 99cm Tower Fan

Contents
Important instructions – retain for
future use.
Sunbeams Safety Precautions 1
Safety Precautions For Your Tower Fan 2
Locating Your Tower Fan 3
Features of Your Tower Fan 4
Assembling Your Tower Fan 5
Remote Control 6
Using Your Tower Fan 7
Troubleshooting Guide 11
Care And Cleaning 11

Sunbeam is very safety conscious when
designing and manufacturing consumer products,
but it is essential that the product user also
exercise care when using an electrical appliance.
Listed below are important precautions for the
safe use of an electrical appliance.
• Readcarefullyandsavealltheinstructions
providedwithanappliance.
• Alwaysturnthepoweroffatthepoweroutlet
beforeyouinsertorremoveaplug.Remove
bygraspingtheplug-donotpullonthecord.
• Turnthepoweroffandremovetheplug
whentheapplianceisnotinuseandbefore
cleaning.
• Donotuseyourappliancewithanextension
cordunlessthiscordhasbeenchecked
andtestedbyaqualifiedtechnicianor
serviceperson.
• Alwaysuseyourappliancefromapower
outletofthevoltage(A.C.only)marked
ontheappliance.
• Thisapplianceisnotintendedforuseby
persons(includingchildren)withreduced
physical,sensoryormentalcapabilities,or
lackofexperienceandknowledge,unlessthey
havebeengivensupervisionorinstruction
concerninguseoftheappliancebyaperson
responsiblefortheirsafety.
• Childrenshouldbesupervisedtoensurethat
theydonotplaywiththeappliance.
• Thetemperatureofaccessiblesurfacesmaybe
highwhentheapplianceisoperating.
• Neverleaveanapplianceunattendedwhile
inuse.
• Donotuseanapplianceforanypurpose
otherthanitsintendeduse.
• Donotplaceanapplianceonornearahotgas
flame,electricelementoronaheatedoven.
• Donotplaceontopofanyotherappliance.
• Donotletthepowercordofanappliancehang
overtheedgeofatableorbenchtoportouch
anyhotsurface.
• Donotoperateanyelectricalappliancewith
adamagedcordoraftertheappliancehas
beendamagedinanymanner.Ifdamageis
suspected,returntheappliancetothenearest
SunbeamAppointedServiceCentre
forexamination,repairoradjustment.
• Foradditionalprotection,Sunbeam
recommendtheuseofaresidualcurrent
device(RCD)withatrippingcurrentnot
exceeding30mAintheelectricalcircuit
supplyingpowertoyourappliances.
• Donotimmersetheapplianceinwater
oranyotherliquidunlessrecommended.
•Appliancesarenotintendedtobeoperated
bymeansofanexternaltimerorseparate
remotecontrolsystem.
•Thisapplianceisintendedtobeusedin
householdandsimilarapplicationssuch
as:staffkitchenareasinshops,officesand
otherworkingenvironments;farmhouses;by
clientsinhotels,motelsandotherresidential
typeenvironments;bedandbreakfasttype
environments.
Sunbeam’s Safety Precautions
1
Ifyouhaveanyconcernsregardingtheperformanceanduseofyourappliance,
pleasevisitwww.sunbeam.com.auorcontacttheSunbeamConsumerServiceLine.
Ensuretheabovesafetyprecautionsareunderstood.

•Donotuseoutdoors.
• Donotrunthecordofthefanunder
carpeting.Donotcoverthecordwiththrow
rugs,runnersorotherfloorcoverings.
Arrangethecordawayfromtrafficareasso
thatitwillnotbetrippedover.
• Donotusethisfanintheimmediate
surroundsofabath,shower,laundryarea
orswimmingpool.
• Besurethefanisplacedonadry,even
surface.Donotuseonsoftsurfaces,such
asbeds,whereopeningmaybecome
blocked.
• Keepyourfanawayfromheatsources,
corrosivegasesandavoiddirectsunlight.
• Thisfanisonlytobeusedwiththebase
fittedandingoodcondition.
• Disconnectthepowerplugbefore
dismantling,assemblingorbeforecleaning.
• Alwaysunplugthefanwhennotinusefor
anylonglengthoftime.
• Thefanmustnotbeusediftheguardsare
damagedinanyway.
• Donotinsertorallowforeignobjectsto
enteranyventilationorexhaustopenings
asthismaycauseelectricshockorfire,or
damagetothefan.
• Neverinsertfingers,pencilsoranyother
objectsthroughtheguardswheneverthe
powerplugisconnected,especiallywhile
running.
• Avoidtouchingmobilepartsofthefan.
• Donotattempttomoveyourfanwhilstitis
operating.Ifyourfanneedstobemoved,
pleaseensurethatitisturnedoffandyou
usethecarryhandleontopofthetower.
• Whenscrappingthefanattheendofits
usefullife,followlocalregulations.
Safety Precautions For
Your Tower Fan
2

1.Alwayslocateyourfanonalevelsurface.
2.Yourtowerfanshouldbelocatedinadry,
cool,wellventilatedlocation.Keepyour
fanawayfromheatsources,corrosivegases
andavoiddirectsunlight.
3.Donotattempttomoveyourtowerfan
whilstitisoperating.Ifyourfanneedsto
bemoved,pleaseensurethatitisturned
offandyouusethecarryhandleontopof
thefan.
Locating Your Tower Fan
3

Features Of Your Sunbeam
Tower Fan
Carry handle
Convenientcarryhandleallowsyoutoeasily
carryyourfanfromroomtoroom.
Control Panel
Simplypresstheon/offbuttontoturnthe
uniton.Usetheotherbuttonstoselectwind
mode,timer,speedandoscillationfunctions.
Indication Panel
Theindicationpanelallowsyoutoquickly
seewhichfunctionshavebeenselectedon
yourtowerfan.
4

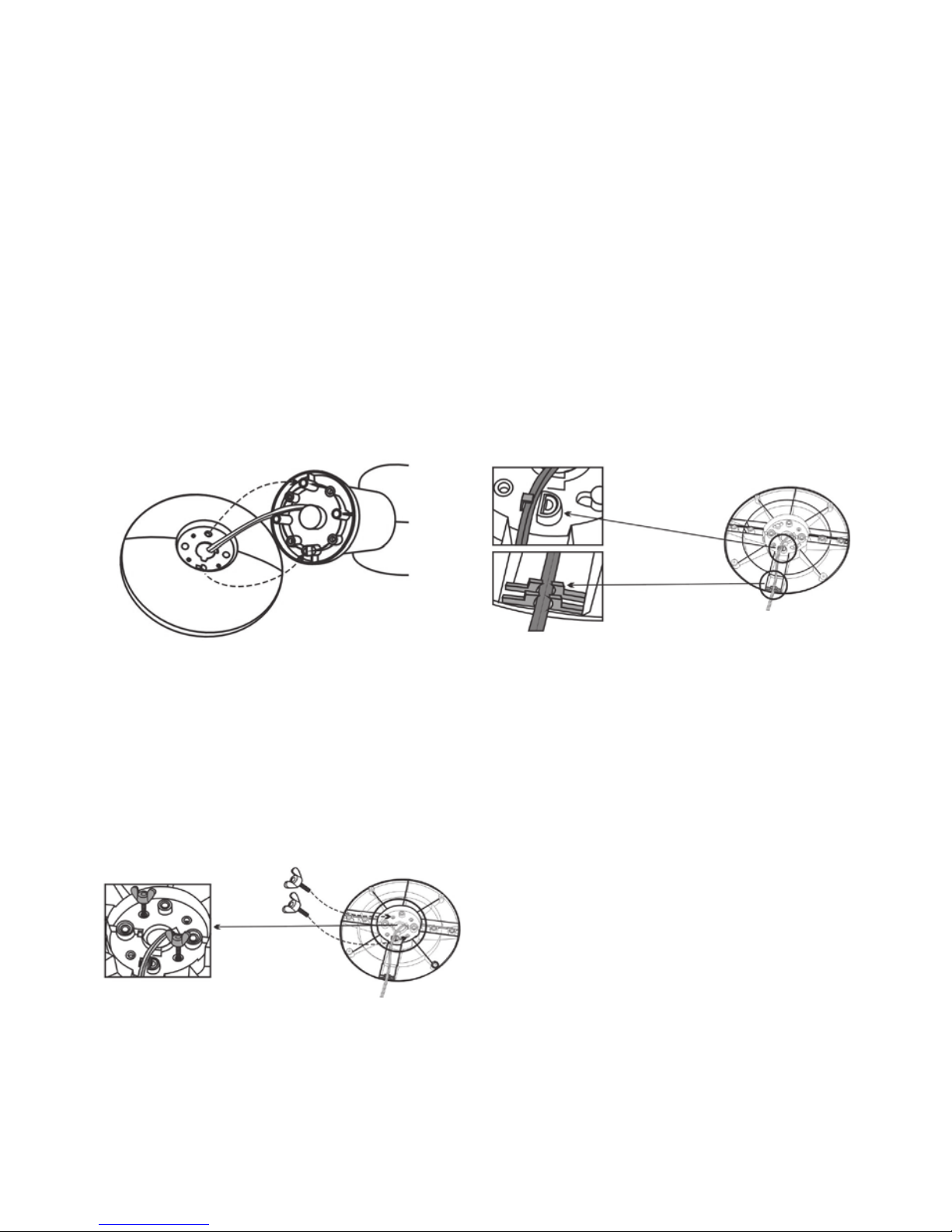

1.Locatethetwohalvesofthebase.
2.Removethetwobutterflyscrewsfrom
underneaththetowersectionofthefan
andsetaside.
3.Feedthepowercordbetweenthetwo
halvesofthebase.SeeFigure1.
4.Clipthetwohalvesofthebasetogether,
ensuringthecordremainswithinthe
channelformedwhenthetwohalvescome
together.
5.Placethetwobutterflyscrewsbackinto
theholestheywereremovedfromand
firmlyfasten.SeeFigure2.
6.Feedthepowercordthroughthetwo
guidesonthebottomofthebase;thecord
willthencomeoutthroughtheouterrim.
7.Insertthe4siliconfeetprovidedintothe
holesunderthebase.
8.Standthefanupright,itisnowreadyfor
use.SeeFigure3.
Assembling Your Tower Fan
5
Figure1
Figure2
Figure3

Remote Control
6
Remote control
Operateswithin8metresofthe
TowerFan.
Fan speed button
Choosefrom3speedsettings,
lowmediumorhigh.
Wind Mode
Youhaveachoiceof2Natureor
Sleepairflowtypes.
Whenusedinnaturemode,the
fanspeedisrandomlyadjusted,
givingthefeelingofanatural
breeze.
WhensettoSleepModethe
fanspeeddecreasesafter30
minutesfromhightomedium,
thenmediumtolow.Whenused
withthetimer,willultimately
switchtheunitoff.
Oscillation
Yourtowerfanoscillates70°,
distributingcoolairthroughout
theroom.
Preset/Timer
Thepresettimerallowsyouto
setyourtowerfantoturnon/off
after1,2,4or8hours.
Using the remote control
1. Point the remote towards the control panel
on the front of the tower to operate.
Inserting or changing the batteries
1. Slide the rear cover off the remote control
unit.
2. Insert the 2 AAA batteries provided with your
tower fan.
3. Replace the rear cover.

7
Switching the fan on
1. Place the fan on a level surface.
2. Insert the plug into a 230/240V power outlet
and turn the power on.
3. Press the power button on/off.
4. Press the fan speed button to select
low, medium or high depending on your
preference.
Switching the fan off
• To switch the fan off, simply press the power
button on/off .
• If you will not be using the fan for a length of
time, it is advisable to turn the power off at
the wall socket and unplug the power cord.
Selecting a fan speed setting
Your Sunbeam tower fan has 3 speed settings
as follows:
• low speed “ ” light illuminates
• medium speed “ ” light illuminates
• high speed “ ” light illuminates
To select a fan speed, simply press the fan
speed button on the tower or the remote. Each
press of the button will increase the fan speed
and then return back to the lowest speed
again.
Using Your Tower Fan

8
Using Your Tower Fan (continued)
Using the oscillation function
The 70 degree oscillation function can be used
on any setting.
1. Turn the unit on and select any fan speed.
2. Press the ‘OSC’ button on the tower or the
remote. The fan will begin to oscillate from
side to side.
To stop the fan from oscillating, simply press
the ‘OSC’ button once again.
Using the preset timer
To set the Timer to turn off
1. Press the on/off button.
2. Press the Preset/Timer button, which
automatically starts at 1hour (1H).
To change the time, press the Preset/Timer
button until the desired time is 1, 2, 4 or 8H.
3. To Turn off the timer, continue pressing the
Preset/Timer button until there is no light
illuminated.
Note: Alternatively, you can press the on/off
switch to turn off the fan and turn back on
again. This also disengages the timer function.

9
Using Your Tower Fan (continued)
To set the Timer to turn on
1. With the fan off, but on at the power outlet
(Standby mode) continuously press the
Preset/Timer button first to select the desired
time.
2. You can also select the wind speed, wind
mode and oscillation options once the preset
time has been selected.

10
Using Your Tower Fan (continued)
WIND MODES
Nature mode
Nature mode provides an extra level of comfort
by simulating the natural rise and fall of the
wind over time. You can use this mode on any
fan speed setting.
To use Nature mode:
1. Choose a fan speed.
2. Press the button on either the tower or the
remote until the light illuminates.
The fan will now vary its speed every few
seconds between the chosen fan speed, each
lower fan speed, and off. For example, if you
set the fan speed to 2 (medium), the actual
fan speed will alternate between 2, 1 and off.
To cancel Nature mode, press the Wind mode
button on either the tower or the remote until
the light is no longer illuminated.
Sleep mode
Sleep mode is identical to Nature mode with
the added advantage that the highest fan
speed gradually decreases over time. This
allows you to turn the fan on a high speed
setting last thing at night, knowing that by the
time you are asleep, the fan has switched itself
down to a slower speed.
To use Sleep mode:
1. Choose a fan speed.
2. Press the Wind mode button on either the
tower or the remote until Sleep mode is
illuminated.
The fan will now operate in the same manner
as with Nature mode, except that after 30
minutes, the maximum speed will decrease.
Eventually in this mode, the fan switches down
to 1 (low) speed, which alternates between 1
and off.
To cancel Sleep mode, Press the Wind mode
button on either the tower or the remote until
the light is no longer illuminated.

11
If your tower fan fails to operate check the
following:
• Make sure the electrical outlet or circuit
breaker is working.
• Check for obstructions around the air intake
grill.
If your remote control fails to operate check
the following:
• Ensure that you point the remote towards
the front of the fan.
• Check that the batteries are not worn.
Replace if necessary.
Troubleshooting Guide
Care and Cleaning
Ensure that your fan is switched off and
disconnected from the power outlet before
cleaning.
• Carefully wipe your fan using a clean cloth.
Do not use abrasive cleaners or brushes to
clean the appliance as these may scratch
the surface.
• Take care that excessive dust does not build
up in the air-intake and air-outlet grill, and
clean it occasionally using a dry brush or
vacuum cleaner.
• Store the fan in a cool dry place when not in
use, in its original carton if possible.

Notes

Shouldyouexperienceanydifficultieswith
yourappliance,pleasephoneourcustomer
servicelineforadviceon1300881861in
Australia,or0800786232inNewZealand.
Alternatively,youcansendawrittenclaim
toSunbeamattheaddresslistedbelow.
Onreceiptofyourclaim,Sunbeamwill
seektoresolveyourdifficultiesor,ifthe
applianceisdefective,adviseyouonhow
toobtainareplacementorrefund.
YourSunbeam2YearReplacement
Guaranteenaturallydoesnotcovermisuse
ornegligenthandlingandnormalwearand
tear.
Similarlyyour2YearReplacementGuarantee
doesnotcoverfreightoranyothercosts
incurredinmakingaclaim.Pleaseretain
yourreceiptasproofofpurchase.
Thebenefitsgiventoyoubythisguarantee
areinadditiontoyourotherrightsand
remediesunderanylawswhichrelatetothe
appliance.
Ourgoodscomewithguaranteesthatcannot
beexcludedundertheAustralianConsumer
LawandundertheNewZealandConsumer
GuaranteesAct.
InAustraliayouareentitledtoa
replacementorrefundforamajorfailureand
forcompensationforanyotherreasonably
foreseeablelossordamage.Youarealso
entitledtohavethegoodsrepairedor
replacedifthegoodsfailtobeofacceptable
qualityandthefailuredoesnotamountto
amajorfailure.
Shouldyourappliancerequirerepairor
serviceaftertheguaranteeperiod,contact
yournearestSunbeamservicecentre.
ForacompletelistofSunbeam’sauthorised
servicecentresvisitourwebsiteorcall:
Australia
www.sunbeam.com.au
1300881861
Units5&6,13LordStreet
BotanyNSW2019Australia

New Zealand
www.sunbeam.co.nz
0800786232
26VesteyDrive,MtWellington
Auckland,NewZealand
In the unlikely event that this appliance develops any malfunction
within 2 years of purchase (3 months commercial use) due to
faulty materials or manufacture, we will replace it for you
free of charge.
2 Year Replacement Guarantee

is a registered trademark.
Need help with your appliance?
Contactourcustomerserviceteamorvisit
ourwebsiteforinformationandtipson
gettingthemostfromyourappliance.
In Australia
Visit www.sunbeam.com.au
Or call 1300 881 861
In New Zealand
Visit www.sunbeam.co.nz
Or call 0800 786 232
Made in China.
Due to minor changes in design or otherwise,
the product may differ from the one shown in this leaflet.
© Copyright. Sunbeam Corporation Limited 2008.
ABN 45 000 006 771
Units 5 & 6, 13 Lord Street
Botany NSW 2019 Australia
Unit 3, Building D
26 Vestey Drive
Mt Wellington Auckland
New Zealand
Sunbeam Corporation is a division of GUD Holdings Ltd. 6/11
