Sundance Spas 850 Series User manual

Owner’s Manual

Table of Contents
Important Hot Tub Owner Information .....................................................1
Important Safety Instructions.........................................................................2
Locating Your Sundance Hot Tub .................................................................8
General Electrical Safety Instructions........................................................9
Electrical Installation Instructions (240V)..............................................11
Power Supply Options and Requirements.............................................12
Start Up Instructions..........................................................................................13
Operating Instructions.......................................................................................15
View.......................................................................................................................15
Light.......................................................................................................................15
Air Injection........................................................................................................15
Jets.........................................................................................................................17
Selecting the Desired Massage Action..................................................18
Adjusting the Intelli-Jets................................................................................18
Air Controls.........................................................................................................18
Fragrance Dispenser.......................................................................................18
Automatic Filtration Cycles ............................................................................19
Filtration Cycles.................................................................................................19
Preset Filter Cycles...........................................................................................19
Clean Up Cycles...............................................................................................19
Programming Instructions...............................................................................20
Adjusting the Time of Day...........................................................................20
Changing the Filter Cycles...........................................................................20
Programmable Operation Time for Circulation Pump ....................21
Locking the Filter Cycles...............................................................................21
Choosing the “Standard” or “Economy” Mode...................................22
Panel Lock...........................................................................................................22
Temperature Setting Lock............................................................................22
Hot Tub Maintenance ........................................................................................23
Cleaning the Filter...........................................................................................23
Draining and Refilling.....................................................................................24
Cleaning the Interior of the Hot tub........................................................25
Pillow Care..........................................................................................................25
Intelli-Jet Cleaning Procedure......................................................................26
Maintaining the Wood Cabinet..................................................................27
Maintaining the Cover....................................................................................27
Winterizing..........................................................................................................27
Restarting your Hot Tub in Cold Weather............................................28

Water Quality Maintenance...........................................................................28
pH Control...........................................................................................................29
Sanitizing.............................................................................................................29
Other Additives.................................................................................................29
Optional SunZone™ Water Maintenance System..............................29
Troubleshooting.....................................................................................................30
Display Messages............................................................................................30
Troubleshooting Procedures ..........................................................................32
Electrical Wiring Diagram ...............................................................................34
Typical Spa Wiring Diagrams A-B ..............................................................35

Important Hot Tub Owner Information
Your Sundance hot tub is constructed to the highest stan-
dards and is capable of providing many years of trouble-free
use. However, because heat retentive materials are utilized
to insulate the hot tub for efficient operation, an uncovered
hot tub surface directly exposed to sunlight and high tem-
peratures for an extended period is subject to permanent
damage. Damage caused by exposing the hot tub to this
abuse is not covered by warranty. We recommend that you
always keep the hot tub full of water when it is exposed to
direct sunlight and that you keep the Sundance insulating
cover in place at all times when the hot tub is not in use.
Read and carefully follow the requirements for your hot tub’s
support base (found in the section titled, “Locating Your
Sundance Hot Tub”).
Sundance Spas constantly strives to offer the finest hot
tubs available, therefore modifications and enhancements
may be made which affect the specifications , illustrations
and/or instructions contained herein.
FCC Notice
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These lim-
its are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accor-
dance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures: l) Rearrange
or relocate the receiving antenna. 2) Increase the separation between the
equipment and receiver. 3) Connect the equipment into an outlet on a cir-
cuit different from the circuit connected. 4) Consult the dealer or an expe-
rienced radio/TV technician for help. (Changes or modifications not
expressly approved by the party responsible for FCC compliance could
void the user’s authority to operate this equipment.)
Page 1

IMPORTANT SAFETY INSTRUCTIONS:
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
When installing and using this electrical equipment, basic safety precautions
should always be followed, including:
1) WARNING: To reduce the risk of injury, do not permit children to use this
product unless they are closely supervised at all times.
2) WARNING: A grounding wire connector is provided on this unit to con-
nect a minimum No. 8AWG (8.4mm2) solid copper conductor between
this unit and any metal equipment, metal enclosures of electrical equip-
ment, metal water pipe, or conduit within 5 feet (1.5m) of the unit.
3) DANGER: Risk of Accidental Drowning. Extreme caution must be exer-
cised to prevent unauthorized access by children. To avoid accidents,
ensure that children cannot use this hot tub unless they are supervised
at all times.
4) DANGER: Risk of Injury. The suction fittings in this hot tub are sized to
match the specific water flow created by the pump. Should the need
arise to replace the suction fittings or the pump, be sure that the flow
rates are compatible. Never operate the hot tub if the suction fittings are
broken or missing. Never replace a suction fitting with one rated less than
the flow rate marked on the original suction fitting.
5) DANGER: Risk of Electric Shock. Install at least 5 feet (1.5m), from all
metal surfaces. As an alternative, a hot tub may be installed within 5 feet
of metal surfaces if each metal surface is permanently connected by a
minimum No. 8 AWG (8.4 mm2) solid copper conductor attached to the
wire connector on the grounding lug, inside the equipment compartment
on the equipment box.
6) DANGER: Risk of Electric Shock. Do not permit any electrical appliance,
such as a light, telephone, radio, television, etc. within 5 feet of a hot tub.
7) ELECTRICAL SUPPLY: The electrical supply for this product must
include a suitably rated switch or circuit breaker to open all ungrounded
supply conductors to comply with section 422-20 of the National
Electrical Code, ANSI/NFPA 70. The disconnect must be readily accessi-
ble and visible to the hot tub occupant but installed at least 5 feet (1.5m),
from the hot tub water.
Page 2

8) WARNING: To Reduce the Risk of Injury:
a) The water in a hot tub should never exceed 104˚F (40˚C). Water tem-
peratures between 100˚F (38˚C) and 104˚F (40˚C) are considered
safe for a healthy adult. Lower water temperatures are recommended
for young children and when hot tub use exceeds 10 minutes.
b) Since excessive water temperatures have a high potential for causing
fetal damage during the early months of pregnancy, pregnant or possi-
bly pregnant women should limit hot tub water temperatures to100˚F
(38˚C). If pregnant, please consult your physician before using a hot
tub.
c) Before entering the hot tub, the user should measure the water tem-
perature with an accurate thermometer since the tolerance of water
temperature-regulating devices may vary as much as +/- 5˚F (2˚C).
d) The use of alcohol, drugs, or medication before or during hot tub use
may lead to unconsciousness with the possibility of drowning.
e) Persons suffering from obesity or a medical history of heart disease, low
or high blood pressure, circulatory system problems, or diabetes should
consult a physician before using a hot tub.
f) Persons using medication should consult a physician before using a hot
tub since some medication may induce drowsiness, while other med-
ication may affect heart rate, blood pressure, and circulation.
IMPORTANT SAFETY INSTRUCTIONS
(CSA SAFETY INFORMATION)
When using this electrical equipment, basic safety precautions should
always be followed, including the following:
a) READ AND FOLLOW ALL INSTRUCTIONS.
b) A green colored terminal or a terminal marked G, Gr, Ground, Grounding
or the symbol*is located inside the supply terminal box or com-
partment. To reduce the risk of electric shock, this terminal must be con-
nected to the grounding means provided in the electric supply service
panel with a continuous copper wire equivalent in size to the circuit
conductors that supply this equipment.
*IEC Publication 417, Symbol 5019.
Page 3

c) At least two lugs marked “Bonding Lugs” are provided on the external
surface or on the inside of the supply terminal box/compartment. To
reduce the risk of electric shock, connect the local common bonding
grid in the area of the hot tub to these terminals with an insulated or
bare copper conductor not smaller than No. 6 AWG.
d) All field-installed metal components such as rails, ladders, drains or
other similar hardware within 10 feet (3m) of the hot tub shall be
bonded to the equipment grounding buss with copper conductors not
smaller than No. 6 AWG.
e) SAVE THESE INSTRUCTIONS.
WARNING: Children should not use hot tubs without adult supervision.
AVERTISSEMENT: NE PAS LAISSER LES ENFANTS UTILISER LA CUVE DE
RELAXATION SANS SURVEILLANCE.
WARNING: Do not use hot tubs unless all suction guards are installed to
prevent body and hair entrapment.
AVERTISSEMENT: NE PAS UTILISER LA CUVE DE RELAXATION SI LES
GRILLES DE PRISE D’ASPIRATION NE SONT PAS TOUTES EN PLACE,.POUR
EVITER QUE LES CHEVEUX OU UNE PARTIE DU CORPS SOIENT ASPIRES
WARNING:People with infectious diseases should not use a hot tub.
AVERTISSEMENT: LES PERSONNES ATTEINTES DE MALADIES INFEC-
TIEUSES NE DEVRAIENT PAS UTILISER LA CUVE DE RELAXATION .
WARNING: To avoid injury, exercise care when entering or exiting the hot
tub.
AVERTISSEMENT: POUR EVITER DES BLESSURES, SOYEZ PRUDENT EN
ENTRANT ET SORTANT DE LA CUVE DE RELAXATION.
WARNING: Do not use drugs or alcohol before or during the use of a hot
tub to avoid unconsciousness and possible drowning.
Page 4

AVERTISSEMENT: POUR EVITER L’EVANOUISSEMENT ET LA NOYADE
EVENTUELLE, NE PRENDRE NI DROGUE NI ALCOOL AVANT D’UTILISER LA
CUVE DE RELAXATION NI QUAND ON S’Y TROUVE.
WARNING: Pregnant or possibly pregnant women should consult a physi-
cian before using a hot tub.
AVERTISSEMENT: LES FEMMES ENCEINTES, QUE LEUR GROSSESSE
SOIT CONFIRMEE OU NON, DEVRAIENT CONSULTER UN MEDECIN AVANT
D’UTILISER LA CUVE DE RELAXATION .
WARNING: Water temperature in excess of 38˚C (104˚F) may be injurious
to your health.
AVERTISSEMENT: IL PEUT ETRE DANGEREUX POUR LA SANTE DE SE
PLONGER DANS DE L’EAU A PLUS DE 38˚C.
WARNING: Before entering the hot tub, measure the water temperature
with an accurate thermometer.
AVERTISSEMENT: AVANT D’UTILISER UNE CUVE DE RELAXATION
MESURER LA TEMPERATURE DE L’EAU A L’AIDE D’UN THERMOMETRE
PRECIS.
WARNING: Do not use a hot tub immediately following strenuous exercise.
AVERTISSEMENT: NE PAS UTILISER LA CUVE DE RELAXATION IMMEDI-
ATEMENT APRES UN EXERCICE FATIGANT.
WARNING: Prolonged immersion in a hot tub may be injurious to your
health.
AVERTISSEMENT: RESTER TROP LONGTEMPS DANS LA CUVE DE RELAX-
ATION PEUT ETRE DANGEREUX POUR LA SANTE.
WARNING: Do not permit electric appliances (such as light, telephone,
radio, television, etc.) within 5 feet (1.5m) of this hot tub.
AVERTISSEMENT: NE PAS PLACER D’APPAREIL ELECTRIQUE (LUMINAIR,
TELEPHONE, RADIO, TELEVISEUR, ETC.) A MOINS DE 1.5M DE LA CUVE
DE RELAXATION .
Page 5

CAUTION: Maintain water chemistry in accordance with manufacturer’s
instructions.
AT TENTION: LA TENEUR DE L’EAU EN MATIERES DISSOUTES DOIT ETRE
CONFORME AUX DIRECTIVES DU FABRICANT.
WARNING: The use of alcohol or drugs can greatly increase the risk of fatal
hyperthermia in hot tubs.
AVERTISSEMENT: LA CONSOMMATION D’ALCOOL OU DE DROGUE AUG-
MENTE CONSIDERABLEMENT LES RISQUES D’HYPERTHERMIE MORTELLE
DANS UNE CUVE DE RELAXATION .
SAVE THESE INSTRUCTIONS
HYPERTHERMIA
Prolonged immersion in hot water may induce hyperthermia. A description of
the causes, symptoms, and effects of hyperthermia are as follows:
Hyperthermia occurs when the internal temperature of the body reaches a
level several degrees above the normal body temperature of 98.6˚F, or 37˚C.
The symptoms of hyperthermia include drowsiness, lethargy, and an increase
in the internal temperature of the body. The effects of hyperthermia include:
a) Unawareness of impending hazard:
b) Failure to perceive heat;
c) Failure to recognize the need to exit hot tub;
d) Physical inability to exit hot tub;
e) Fetal damage in pregnant women; and
f) Unconsciousness and danger of drowning.
Page 6

Cautions
1. Persons suffering from heart disease, diabetes, high or low blood pres-
sure, and any condition requiring medical treatment, pregnant women,
the elderly, or infants should consult with a physician before using a hot
tub.
2. The Consumer Products Safety Commission has stated that the water
temperature in a hot tub should not exceed 104˚F (40˚C). Immersion in
water in excess of 104˚F (40˚C) can be hazardous to your health.
3. Observe a reasonable time limit when using the hot tub. Long exposures
at higher temperatures can cause high body temperature. Symptoms may
include dizziness, nausea, fainting, drowsiness, and reduced awareness.
These effects could possibly result in drowning.
4. Do not use the hot tub under the influence of alcohol, narcotics, or other
drugs. Use of the hot tub under these conditions may lead to serious con-
sequences.
5. Always test the hot tub water temperature before entering the hot tub.
Enter and exit the hot tub slowly. Wet surfaces can be very slippery.
6. Never bring any electrical appliances into or near the hot tub. Never ope-
rate any electrical appliances from inside the hot tub or when you are
wet.
7. Proper chemical maintenance of hot tub water is necessary to maintain
safe water and prevent possible damage to hot tub components.
8. Use the straps and clip tie downs to secure the cover when not in use.
This will help to discourage unsupervised children from entering the hot
tub and keep the hot tub cover secure in high-wind conditions. There is
no representation that the cover, clip tie-downs, or actual locks will pre-
vent access to the hot tub.
Page 7

Locating Your Sundance Hot tub
IMPORTANT: Because of the combined weight of the hot tub, water and
users, it is extremely important that the base upon which the hot tub rests be
smooth, flat, level and capable of uniformly supporting this weight, without
shifting or settling, for the entire time the hot tub is in place. If the hot tub is
placed on a surface which does not meet these requirements, damage to the
skirt and/or the hot tub shell may result. Damage caused by improper sup-
port is not covered under warranty. It is the responsibility of the hot tub owner
to assure the integrity of the support over time.
We recommend a poured, reinforced concrete slab (minimum of 4 inches
thick). Wood decking is also acceptable provided it is constructed so that it
meets the requirements outlined above.
The hot tub must be installed in such a manner as to provide drainage away
from the hot tub. Placing the hot tub in a depression without provisions for
proper drainage could allow rain, overflow and other casual water to flood the
equipment and create a wet condition in which it would sit.
For hot tubs which will be recessed into a floor or deck, install so as to per-
mit access to the equipment, either from above or below, for servicing. Make
certain that there are no obstructions which would prevent removal of the
cabinet side panels, especially on the side with the equipment bay doors.
In selecting the ideal outdoor location for your hot tub, we suggest that you
take into consideration 1) the proximity to change area and shelter (especial-
ly in colder weather); 2) the pathway to and from your hot tub (this should be
free of debris so that dirt and leaves are not easily tracked into the hot tub);
3) the closeness to trees and shrubbery (remember that leaves and birds
could create extra work in keeping the hot tub clean); 4) a sheltered environ-
ment (less wind and weather exposure can result in lowered operation and
maintenance costs); and 5) the overall enhancement of your environment. It
is preferable not to place the hot tub under an unguttered roof overhang since
run-off water will shorten the life expectancy of the hot tub cover.
For indoor installations, be certain to make provisions for proper ventilation.
When the hot tub is in use, considerable amounts of moisture will escape.
This can damage certain surfaces over time.
If you have any questions regarding the placement or installation of your hot
tub consult your authorized Sundance Dealer.
Page 8

General Electrical Safety Instructions
Your new Sundance hot tub is equipped with the "state-of-the-art" SentryTM
equipment system. It contains the most advanced safety and self-protective
equipment in the industry. Nonetheless, this hot tub must be installed prop-
erly to insure dependable usage. Please contact your dealer or local building
department should you have any questions regarding your installation.
Proper grounding is extremely important. Sundance hot tubs are equipped
with a current collector system. A pressure wire connector is provided on the
surface of the control box, located inside the equipment door (See Ill. 2, item
2) to permit connection of a bonding wire between this point and any ground
metal equipment, metal water pipe or conduit within 5 feet (1.5m) of the hot
tub, or copper clad grounding rod buried within 5 feet (1.5m) of the hot tub.
Bonding wire must be at least No. 8 AWG (8.4 mm2) solid copper wire. This
is a most important safety assurance feature.
Before installing this hot tub, check with the local building department to
insure installation conforms to local building codes.
Page 9

Page 10
Ill. No. 1.2
Terminal Block
240V Wire Connection
Ill. No. 1
Equipment Area
1. Terminal Block
2. Bonding Lug
RED
BLACK
GREEN
2
3
6
2
4
77
9
58
1
TB 3
1.

Electrical Installation Instructions
For Connection to 240V Service
IMPORTANT NOTICE: The electrical wiring of this hot tub must meet the
requirements of the National Electrical Code (NEC) and any applicable state
or local codes. The electrical circuit must be installed by a qualified electri-
cian and approved by a local building/electrical inspection authority.
1. This hot tub must be permanently connected (hard-wired) to the power
supply. No plug-in connections or extension cords are to be used in
conjunction with the operation of this hot tub. Supplying power to
the hot tub which is not in accordance with these instructions will void
both the independent testing agency listing and the manufacturer’s war-
ranty.
2. The power supplied to this hot tub must be a dedicated circuit with no
other appliances or lights sharing the power provided by the circuit.
3. To determine the current, voltage and wire size required, refer to the
power supply table on page 12.
– Wire size must be appropriate per NEC and/or local codes.
– We recommend type THHN wire.
– All wiring must be copper to ensure proper connections. Do not use
aluminum wire.
– When using wire larger than #6, add a junction box near the hot tub
and reduce to short lengths of #6 wire to connect to the hot tub.
4. The electrical supply for this product must include a suitably rated switch
or circuit breaker to open all ungrounded supply conductors to comply
with Section 422-20 of the National Electrical Code, ANSI/NFPA 70. The
disconnecting means must be readily accessible to the hot tub’s occupant
but installed at least 5 feet (1.5m) from hot tub water.
5. The electrical circuit supplied for the hot tub must include a suitable
ground fault circuit interruptor (GFCI) as required by NEC Article 680-42.
6. To gain access to the hot tub’s power terminal block, remove the four
screws securing the center cabinet panel on the side of the hot tub under
the controls. Then open the door to the control box. (Ill. No. 1, item 1).
7. Select the power supply inlet you want to use (Ill. No. 1, item 2) and
remove the short cabinet panel from the front of the hot tub to allow you
to feed the cable through to the control box. Install the cable with con-
nector through the large opening provided in the bottom of the control
box.
8. Connect wires, color to color, on terminal blocks TB1 and TB3 (Ill. 1.2).
TIGHTEN SECURELY! All wires must be hooked up or damage could
result.
9. Close the control box door and reinstall the cabinet side panels.
Page 11

Table No. 1
POWER SUPPLY OPTIONS AND REQUIREMENTS
Sundance hot tubs are designed to provide optimum performance and flexi-
bility of use when connected to the maximum electrical service as listed
below. However, they are shipped configured for the most commonly pre-
ferred electrical connection -- 50A, 240V*
If you prefer, your Sundance dealer can perform a minor circuit board modifi-
cation to allow the hot tub to accept different electrical service. The opera-
tional considerations of these modifications are listed in the footnotes below.
CAMEO, OPTIMA, MARIN and ALTAMAR MODELS
240V/30A** 240V/50A*240V/60A***
Voltage 240 volts 240 volts 240 volts
Current Draw 24 amps 40 amps 48 amps
Number of Wires Three Three Three
Circuit Breaker 30A dual pole 50A dual pole 60A dual pole
CAPRI
240V/30A** 240V/50A*240V/60A***
Voltage 240 volts 240 volts N/A
Current Draw 24 amps 40 amps
Number of Wires Three Three
Circuit Breaker 30A dual pole 50A dual pole
*In 50A configuration, the heater will not operate while both pumps are
operating at high speed. Note: pump 2 runs only in high speed.
** In 30A configuration, the heater will not operate while either pump is
running in high speed or if the air blower is running. Note: pump 2 runs
only in high speed.
*** In 60A configuration, the heater will operate at the same time as the
high speed of both pumps and the air blower. Note: Not applicable for
1-pump Capri models.
Page 12

Start Up Instructions
CAMEO, OPTIMA, ALTAMAR, MARIN and CAPRI
FOR BEST RESULTS, READ EACH STEP IN ITS ENTIRETY BEFORE
PROCEEDING WITH THAT STEP.
1. PREPARE THE HOT TUB FOR FILLING
• Clear all debris from the hot tub. (Although the hot tub shell has been
polished at the factory, you may want to treat it with a specially formu-
lated hot tub cleaner and wax available from your dealer prior to filling
the first time.)
• Remove the filter lid (Ill. 3, item 3), then remove the filter cartridge by
loosening the retainer nut on the pipe at one end of the filter and slid-
ing the filter toward the nut until the other end is free. Lift the filter out
as you pull it away from the filter pipe.
2. FILL THE HOT TUB
• Place the end of your garden hose into the pipe exposed when you
removed the filter cartridge.
NOTE: Never fill with water from a water softener. If your water is extreme-
ly “hard”, it is preferable to fill half-way with hard water and the rest of the
way with softened water. Or, you may fill entirely with hard water if you
use a special water additive available from your Sundance dealer.
• Fill the hot tub until the water level is midway in the skimmer opening
and above all jets. Do not over fill.
Important: Always fill your hot tub through the filter pipe after draining.
Failure to do so may cause air to be trapped in the pump, preventing the
pump from circulating water.
• Remove the hose and replace the filter cartridge by sliding it back onto the pipe
then securing one of the protruding tabs on the other end under the retainer
bracket. Tighten the retainer nut only until it is snug, do not over tighten.
3. TURN ON THE POWER
Turn on the power to the hot tub at the home’s circuit breaker. The heater
and the pump’s low speed automatically activate and the LED display on
the control panel flashes the water temperature and “COOL” (Pg. 30).
4. ACTIVATE JETS
Depress the JETS sensor pad on the control panel twice to activate the
pump’s high speed and initiate maximum water flow to certain jets.
Page 13

5 ADD START-UP CHEMICALS
Add the hot tub water chemicals as recommended by your Sundance
Dealer. (See the section titled WATER QUALITY MAINTENANCE (page 28) for
general guidance.)
6. SET HOT TUB TO HEAT
To warm the hot tub water up to a comfortable temperature, follow these
steps:
•The LCD display on the control panel displays the actual temperature of
the hot tub water. Press either the COOLER (Down) or WARMER (Up)
sensor pad to display the “set” temperature for 5 seconds. If you want
the water to heat to a different temperature, simply press COOLER or
WARMER within 5 seconds. The set temperature advances or decreas-
es by one degree each time one of these sensor pads is pressed.
• The heater will turn off when the temperature corresponding to the ther-
mostat setting is achieved.
NOTE:
• The maximum temperature for which the hot tub can be set is 104˚F (40˚C) and
the minimum is 80˚ F. (27˚C)
• Setting the thermostat at maximum will not accelerate the heating process.
This will only result in a higher ultimate temperature.
• If hot tub is hooked up to 30 amps - turn off high speed pump and blower
to operate heater.
7. PLACE COVER ON HOT TUB
• Keeping the insulating cover in place anytime the hot tub is not in use
will reduce the time required for heating, thereby minimizing operating
costs.
• The time required for initial heat-up will vary depending on the starting
water temperature and the capacity of your hot tub. Smaller hot tubs
heat at a rate of approximately 8 to 10 degrees per hour; larger hot tubs
heat at about 4 to 6 degrees per hour.
DANGER. RISK OF INJURY. Always check water temperature carefully
before entering hot tub.
Page 14

Operating Instructions
Your Sundance hot tub has a touch-sensitive control panel, Massage Selector
valves and air control knobs located on the top rim of the hot tub (See Ill. 3,
items 1, 2, 4, 7). These controls let you operate many of the special functions
of your Sundance hot tub. By familiarizing yourself with the following infor-
mation, you will be able to gain the full benefit afforded by the various func-
tions of your hot tub.
VIEW
Pressing the sensor pad labeled VIEW inverts the main four-digit display on
the Command Center’s LCD screen to allow easy reading from either inside
or outside the hot tub.
LIGHT
The LIGHT sensor pad activates both the underwater light and the light sym-
bol on the LCD screen when touched. To reduce the brightness of the light,
touch the sensor pad again. A third touch will result in an even lower level of
illumination. A fourth touch turns the light off. If left on, the light will auto-
matically turn off after one hour.
There are two colored lenses included with your hot tub which may be placed
over the light lens inside the hot tub. To remove a lens, pull straight out. To
install a lens, align tabs and push straight in. Your hot tub comes with clear
lens installed.
AIR INJECTION
When the AIR sensor pad is pressed, the air blower forces air through the
injectors located in the seats and footwell. The bubbles symbol above the sen-
sor pad appears whenever the air blower is on. An electronic timer automat-
ically turns the air blower off 20 minutes after it was turned on.
The air blower automatically activates for 1 minute at the start of Clean Up
cycle. This clears the lines of the air injector system to help ensure that all
water is exposed to sanitizer.
Page 15

Page 16

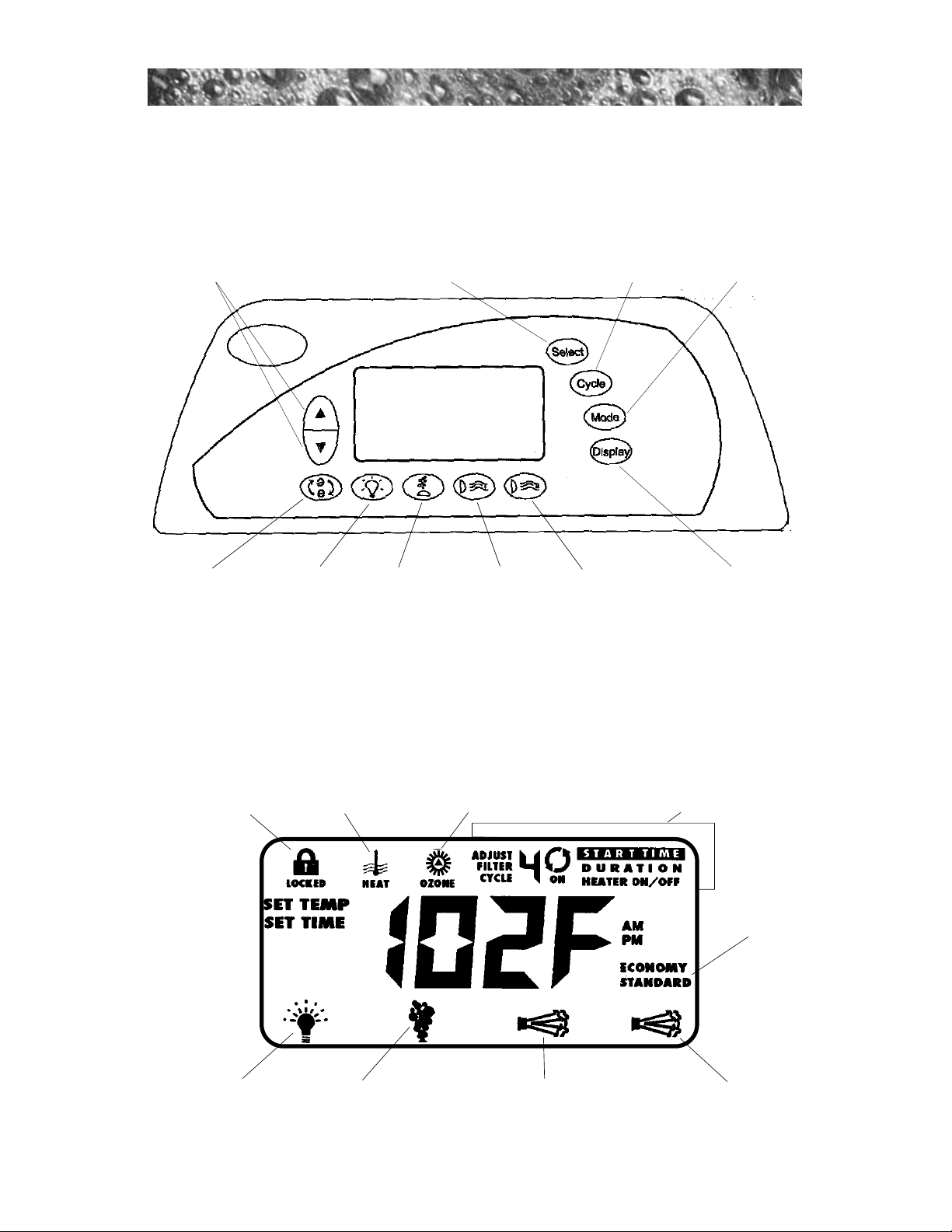

Indicates panel, set
temperature or filter
cycle programming locked.
Indicates heater on.
(page 14).
Indicates ozone generator
on (page 28).
Indicates filter cycle in progress
(page 19) or displays cycle
programming features (page 20).
Indicates high-speed pump 2 is on
(Cameo, Optima and Altamar only).
Indicates 2-speed pump 1
is on (changes according
to speed selected, flashes
during auto operation).
Indicates air injector system is on.Indicates hot tub light
is on (changes accord-
ing to
brightness selected).
These characters
identify what is
being shown on
the main 4-digit
display
Ill. No. 2.2
LCD SCREEN
Ill. No. 2.1
COMMAND CENTER
Indicates operating
mode selected (page
22).
{
(LCD Screen not shown)
These display temperature
setting and increase or decrease
temperature setting and other
programmable features.
Inverts the
main 4-digit
display.
Controls the hot tub
light (bright, dim,
dimmer, off).
Controls the air
blower.
Controls 2-speed
pump 1 (Lo, Hi,
Off).
Controls high-speed
pump 2 (N/A Marin
and Capri).
Switches between
standard and economy
modes. (page 22).
Accesses filter cycle program mode and
advances display to next cycle.
Scrolls menu through filter
cycle programming features.
Displays time of day and
initiates time setting and
locking functions.

JETS
The sensor pad labeled JETS controls the 2-speed pump 1. Pressing this sen-
sor cycles pump 1 from off, to low speed, to high speed, and back to off.
JETS 2 — On models with two jet pumps, JETS 2 controls the high-speed
pump 2.
Auto Turn Off — Anytime a pump has been manually turned on, it will
automatically turn off after approximately 20 minutes. If at this time you
desire more jet operation you may simply turn the pump(s) back on.
Page 17
5
11
3
10
12
12
13
4
9
7
6
8
2
1. Control Panel
2. Air Controls
3. Filter
4. Massage Selector Valve #1
5. Whirlpool Jets
(N/A Capri)
6. Therapy Jets (Intelli-Jets)
7. Massage Selector Valve #2 (N/A Capri)
(Location of features varies by model)
Ill. No. 3 Top View Hot tub
8. Auxiliary Control Panel
(Cameo, Optima and Altamar Only)
9. Therapy Seat
10. Air Injectors
11. Hot tub Light
12. Fragrance Dispenser
13. Vertical Jets
14. Footwell suction fittings and filters
14
