owner’s manual
Cameo™ | Maxxus™ | Optima™
6530-395U Rev. B

Attention New Hot Tub Owner!
Congratulations on the purchase of your new Sundance®hot tub! The following
is a list of automated functions performed by your hot tub. These functions are
listed below in an attempt to suppress any operational concerns you may have
during the rst 24-hours of ownership! Also listed below are important maintenance
recommendations you should observe on a regular basis to protect your new
investment.
Automated Spa Operations
Your new hot tub is equipped with an automated “blow-out” cycle that clears all
plumbing lines daily to promote maximum water sanitation. Each day at 12:00 PM
(noon), pump 2, pump 3 (Maxxus Models Only) and the blower will automatically
turn on for a period of one minute, then go off. Then pump 1 will turn on and run
for one minute to complete the blow-out cycle. Be aware, the factory programmed
blow-out cycle cannot be canceled or altered!
Maintain Healthy Spa Water
Always maintain your hot tub’s water chemistry within the following parameters as
dened by the Association of Pool And Spa Professionals:
pH 7.4-7.6
Free chlorine 3.0-4.0 ppm
Free Bromine 2.0-4.0 ppm
Total Alkalinity 100-120 ppm
Calcium Hardness 150-250 ppm
Always maintain your spa lter as outlined below to ensure healthy spa water. Refer
to pages 47-48 for additional information.
Required Filter Maintenance
Your new hot tub is equipped with an advanced MicroClean Ultra™ water ltration
system that provides unsurpassed water quality! To ensure maximum water quality
at all times, you should replace the lter cartridge every six months, or earlier as
necessary. The lter cartridge is designed to be thrown away! Attempts to reuse the
lter cartridge may result in the re-release of unwanted particles back into the hot
tub. See pages 42-43 for detailed lter cartridge replacement instructions.
Required Water Replacement
You should replace the hot tub’s water every 3 to 6 months. The frequency depends
on a number of variables including frequency of use, number of users, and attention
paid to water quality maintenance. You will know it is time for a change when you
cannot control sudsing and/or you can no longer get the normal feel or sparkle to
the water, even though the key water balance measurements are all within the
proper parameters. See pages 47-48 for additional information.
© 2009 by Sundance Spas, Inc. All Rights Reserved

880 SERIES
Table of Contents
1.0 Important Hot Tub Owner Information............................1
2.0 Important Safety Instructions..........................................2
3.0 Locating Your Sundance Hot Tub ...................................8
3.1 Outdoor Location ......................................................................... 8
3.2 Indoor Location ............................................................................ 9
4.0 General Electrical Safety Instructions..........................10
5.0 Electrical Installation Instructions (240V Service).......10
6.0 Maxxus Power Requirements........................................14
7.0 Cameo/Optima Power Requirements............................15
8.0 Hot Tub Fill Up Procedure..............................................16
9.0 Hot Tub Features (All Models) .......................................21
9.1 Main Control Panel Functions.................................................... 21
9.2 LCD Screen Functions............................................................... 22
10.0 Operating Instructions ...................................................26
10.1 View Button................................................................................ 26
10.2 Air Injection ................................................................................ 26
10.3 Activate Jets Pump 1 ................................................................. 26
10.4 Activate Jets Pump 2/Pump 3.................................................... 26
10.5 Light Button................................................................................ 27
10.6 Selecting The Desired Massage Action ..................................... 28
10.7 Adjusting Fluidix Reex, ST And Intelli-Jets............................... 28
10.8 Air Controls ................................................................................ 29
10.9 Waterfall Control ........................................................................ 29
10.10 Fragrance Dispenser ................................................................. 29
10.11 Optional Intelli-Sound™ Audio System...................................... 30
10.12 Maxxus Massage/Waterfall Selector Diagram ........................... 31
10.13 Maxxus Air Controls Diagram .................................................... 32
10.14 Optima Massage/Waterfall Selector Diagram............................ 33
10.15 Optima Air Controls Diagram ..................................................... 34
10.16 Cameo Massage/Waterfall Selector Diagram............................ 35
10.17 Cameo Air Controls Diagram ..................................................... 36
11.0 Heating Modes ................................................................37
11.1 Standard Mode (Factory Default)............................................... 37

880 SERIES
11.2 Economy Mode.......................................................................... 37
11.3 Selecting Standard or Economy Mode ...................................... 37
11.4 Clean-Up “Blow-Out” Cycle........................................................ 37
12.0 Programming Instructions.............................................38
12.1 Programming Filter/Circulation Pump (Standard Mode)............ 38
12.2 Programmable Heat Cycles (Economy Mode Only) .................. 38
12.3 Adjusting Time of Day................................................................ 40
12.4 Main Control Panel Lock............................................................ 40
12.5 Temperature Setting Lock .......................................................... 41
12.6 Programming the Change Filter Reminder ................................ 41
13.0 Hot Tub Maintenance......................................................42
13.1 Cleaning/Replacing the Filter Cartridge..................................... 42
13.2 Draining And Relling................................................................. 44
13.3 Cleaning The Hot Tub Interior.................................................... 45
13.4 Pillow Care................................................................................. 45
13.5 Maintaining the Hot Tub Cabinet................................................ 46
13.6 Maintaining The Cover............................................................... 46
13.7 Winterizing ................................................................................. 46
13.8 Restarting Your Hot Tub in Cold Weather .................................. 47
14.0 Water Quality Maintenance............................................47
14.1 pH Control.................................................................................. 48
14.2 Sanitizing ................................................................................... 48
14.3 Other Additives........................................................................... 48
14.4 Ozone Water Maintenance System ........................................... 48
14.5 Handrail Maintenance................................................................ 49
15.0 Troubleshooting - Display Messages ...........................49
16.0 Troubleshooting - Procedures.......................................51
17.0 North American 60 Hz Maxxus
Electrical Wiring Diagram .............................................54
18.0 North American 60 Hz Cameo/Optima
Electrical Wiring Diagram ..............................................55
19.0 Circuit Board Pin Assignments.....................................56
20.0 Typical Hot Tub Wiring Diagrams A-B
(North American 60 Hz Models Only)............................57

880 SERIES
22.0 Optional Intelli-Sound™ Stereo Receiver Features.....59
22.1 Intelli-Sound Stereo Receiver General Controls........................ 59
22.2 Intelli-Sound Stereo Receiver Operation ................................... 60
22.3 Intelli-Sound Radio Operation.................................................... 62
22.4 Intelli-Sound CD Player Operation............................................. 63
22.5 Intelli-Sound USB & Nand Operation......................................... 65
22.6 Intelli-Sound iPod Operation...................................................... 67
22.7 Docking your iPod Music Player ................................................ 68
22.8 Generic MP3 Player Operation.................................................. 69
22.9 Intelli-Sound Stereo Troubleshooting......................................... 70
22.10 Intelli-Sound Stereo Specications ............................................ 70
22.11 Standard Wireless Remote Control Functions........................... 71
22.12 Wireless Remote Battery Replacement Procedure ................... 73

Page 1
880 SERIES
1.0 Important Hot Tub Owner Information
Your Sundance®hot tub is constructed to the highest standards and
is capable of providing many years of trouble-free use. However,
because heat retentive materials are utilized to insulate the hot tub for
efcient operation, an uncovered hot tub surface and wall ttings directly
exposed to sunlight and high temperatures for an extended period are
subject to permanent damage or discoloration. Damage caused by
exposing the hot tub to this abuse is not covered under warranty. We
recommend that you always keep the hot tub full of water when it is
exposed to direct sunlight and that you keep the Sundance insulating
cover in place at all times when the hot tub is not in use. Read and
carefully follow the requirements for your hot tub’s support base found in
the Section 3.0 titled, “Locating Your Sundance Hot Tub” (page 8) or as
prescribed by your authorized Sundance Spas dealer.
Sundance hot tubs constantly strives to offer the nest hot tubs
available, therefore, modications and enhancements may be made
which affect the specications, illustrations and/or instructions
contained herein.
FCC Notice
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
1. Rearrange or relocate the receiving antenna;
2. Increase the separation between the equipment and receiver;
3. Connect the equipment into an outlet on a circuit different from the
circuit connected;
4. Consult the dealer or an experienced radio/TV technician for help.
(Changes or modications not expressly approved by the party
responsible for FCC compliance could void the user’s authority to
operate this equipment).

Page 2
880 SERIES
2.0 Important Safety Instructions
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
When installing and using this electrical equipment, basic safety
precautions should always be followed, including:
1. WARNING: To reduce the risk of injury, do not permit children to use
this product unless they are closely supervised at all times.
2. WARNING: A grounding wire connector is provided on this unit to
connect a minimum No. 8 AWG (8.4 mm²) solid copper conductor
between this unit and any metal equipment, metal enclosures of
electrical equipment, metal water pipe, or conduit within 5 feet
(1.5m) of the unit.
3. DANGER: Risk of Accidental Drowning. Extreme caution must be
exercised to prevent unauthorized access by children. To avoid
accidents, ensure that children cannot use this hot tub unless they
are supervised at all times.
4. WARNING: Risk of Injury. The suction ttings in this spa are sized to
match the specic water ow created by the pump. If it is necessary
to replace the suction ttings or the pump, be sure that the ow rates
are compatible. Because of the risk of injury,
Never operate or use the spa if the lter, lter lid, or skimmer
assembly are broken or any part of the skimmer assembly is
missing. Please contact your dealer or nearest service center for
service.
Never replace a suction tting with one rated less than the ow
rate marked on the original suction tting.
5. DANGER: Risk of Injury. The suction ttings in this hot tub are
sized to match the specic water ow created by the pump. Should
the need arise to replace the suction ttings or the pump, be sure
that the ow rates are compatible. Never operate the hot tub if the
suction ttings are broken or missing. Never replace a suction tting
with one rated less than the ow rate marked on the original suction
tting.
6. DANGER: Risk of Electric Shock. Install at least 5 feet (1.5m), from
all metal surfaces. As an alternative, a hot tub may be installed
within 5 feet of metal surfaces if each metal surface is permanently
connected (bonded) by a minimum No. 8 AWG (8.4 mm²) solid
copper conductor attached to the wire connector on the grounding
lug, inside the equipment compartment on the equipment box.
7. DANGER: Risk of Electric Shock. Do not permit any electrical
appliance, such as a lights, telephones, radios, televisions, etc.
within 5 feet (1.5m) of a hot tub unless such appliances are built-in
by the manufacturer.
•
•

Page 3
880 SERIES
8. Electrical Supply: The electrical supply for this product must
include a suitably rated switch or circuit breaker to open all
ungrounded supply conductors to comply with Section 422-20 of the
National Electrical Code, ANSI/NFPA 70. The disconnect must be
readily accessible and visible to the hot tub occupant but installed at
least 5 feet (1.5m), from the hot tub water.
9. WARNING: To Reduce the Risk of Injury:
10. The water in the hot tub should never exceed 104°F (40°C).
Water temperatures between 100°F (38°C) and 104°F (40°C) are
considered safe for a healthy adult. Lower water temperatures are
recommended for young children and when hot tub use may exceed
10 minutes.
11. Since excessive water temperatures have a high potential for
causing fetal damage during the early months of pregnancy,
pregnant or possibly pregnant women should limit hot tub water
temperatures to 100°F (38°C). If pregnant, please consult your
physician before using a hot tub.
12. Before entering the hot tub, the user should measure the water
temperature with an accurate thermometer since the tolerance of
water temperature-regulating devices may vary as much as +/- 5°F
(2°C).
13. The use of alcohol, drugs, or medication before or during hot tub use
may lead to unconsciousness with the possibility of drowning.
14. Persons suffering from obesity or a medical history of heart disease,
low or high blood pressure, circulatory system problems, diabetes,
infectious diseases or immune deciency syndromes should consult
a physician before using a hot tub. If you experience breathing
difculties in association with using or operating your hot tub,
discontinue use and consult your physician.
15. Persons using medication should consult a physician before using a
hot tub since some medication may induce drowsiness, while other
medication may affect heart rate, blood pressure, and circulation.
16. Always shower before and after using your hot tub. To reduce the
possibility of contracting a waterborne illness, always maintain
water chemistry within the parameters listed on the inside cover of
this manual. If you or other bathers experience such a condition,
discontinue use and seek medical attention.

Page 4
880 SERIES
Important CSA Safety Instructions (Canada only)
When using this electrical equipment, basic safety precautions should
always be followed, including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. A green colored terminal or a terminal marked G, Gr, Ground,
Grounding or the symbol* is located inside the supply terminal
box or compartment. To reduce the risk of electric shock, this
terminal must be connected to the grounding means provided
in the electric supply service panel with a continuous copper
wire equivalent in size to the circuit conductors that supply this
equipment. *IEC Publication 417, Symbol 5019.
3. At least two lugs marked “Bonding Lugs” are provided on the
external surface or on the inside of the supply terminal box/
compartment. To reduce the risk of electric shock, connect the local
common bonding grid in the area of the hot tub to these terminals
with an insulated or bare copper conductor not smaller than No.
6 AWG (10 mm²).
4. All eld-installed metal components such as rails, ladders, drains
or other similar hardware within 10 feet (3m) of the hot tub shall be
bonded to the equipment grounding buss with copper conductors not
smaller than No. 6 AWG (10 mm²).
5. SAVE THESE INSTRUCTIONS.
• WARNING: Children should not use hot tubs without adult
supervision.
• WARNING: Do not use hot tubs unless all suction guards are
installed to prevent body and hair entrapment.
• WARNING: People with infectious diseases should not use a
hot tub.
• WARNING: To avoid injury, exercise care when entering or
exiting the hot tub.
• WARNING: Do not use drugs or alcohol before or during the use
of a hot tub to avoid unconsciousness and possible drowning.
• WARNING: Pregnant or possibly pregnant women should
consult a physician before using a hot tub.

Page 5
880 SERIES
• WARNING: Water temperature in excess of 40°C (104°F) may
be injurious to your health.
• WARNING: Before entering the hot tub, measure the water
temperature with an accurate thermometer.
• WARNING: Do not use a hot tub immediately following
strenuous exercise.
• WARNING: Prolonged immersion in a hot tub may be injurious
to your health.
• WARNING: Do not permit electric appliances (such as lights,
telephones, radios, televisions, etc.) within 5 feet (1.5m) of this
hot tub unless such appliances are built-in by the manufacturer.
• CAUTION: Maintain water chemistry in accordance with
manufacturer’s instructions.
• WARNING: The use of alcohol or drugs can greatly increase the
risk of fatal hyperthermia in hot tubs.
SAVE THESE INSTRUCTIONS
HYPERTHERMIA
Prolonged immersion in hot water may induce hyperthermia. A
description of the causes, symptoms, and effects of hyperthermia are as
follows:
Hyperthermia occurs when the internal temperature of the body reaches
a level several degrees above the normal body temperature of 98.6°F
(37°C). The symptoms of hyperthermia include drowsiness, lethargy,
and an increase in the internal temperature of the body. The effects of
hyperthermia include:
• Unawareness of impending hazard;
• Failure to perceive heat;
• Failure to recognize the need to exit hot tub;
• Physical inability to exit hot tub;
• Fetal damage in pregnant women; and
• Unconsciousness and danger of drowning.
A warning sign is provided in your warranty packet. Please install it
at a location near your hot tub, where it is visible to the user of the
hot tub. For additional or replacement signs please contact your
local Sundance Hot tubs dealer and reference item number #6530-
082.

Page 6
880 SERIES
CAUTIONS:
1. Persons suffering from heart disease, diabetes, high or low blood
pressure, and any condition requiring medical treatment, pregnant
women, the elderly, or infants should consult with a physician before
using a hot tub.
2. The Consumer Products Safety Commission has stated that the
water temperature in a hot tub should not exceed 104°F (40°C).
Immersion in water in excess of 104°F (40°C) can be hazardous to
your health.
3. Observe a reasonable time limit when using the hot tub. Long
exposures at higher temperatures can cause high body temperature.
Symptoms may include dizziness, nausea, fainting, drowsiness, and
reduced awareness. These effects could possibly result in drowning.
4. Do not use the hot tub under the inuence of alcohol, narcotics, or
other drugs. Use of the hot tub under these conditions may lead to
serious consequences.
5. Always test the hot tub water temperature before entering the hot
tub. Enter and exit the hot tub slowly. Wet surfaces can be very
slippery.
6. Never bring any electrical appliances into or near the hot tub. Never
operate any electrical appliances from inside the hot tub or when
you are wet unless such appliances are built-in by the manufacturer.
7. Proper chemical maintenance of hot tub water is necessary to
maintain safe water and prevent possible damage to hot tub
components.
8. Use the straps and clip tie downs to secure the cover when not
in use. This will help to discourage unsupervised children from
entering the hot tub and keep the hot tub cover secure in high-wind
conditions. There is no representation that the cover, clip tie-downs,
or actual locks will prevent access to the hot tub.

Page 7
880 SERIES
Hot Tub Safety Literature
To ensure you have a safe and enjoyable hot tub experience, learn all
you can about hot tub safety and emergency procedures. Especially
useful are the brochures listed below.
• Children Aren’t Waterproof
• Pool and Spa Emergency Procedures For Infants and Children
• Layers of Protection
• The Sensible Way to Enjoy Your Spa or Hot Tub
The Association of Pool and Spa Professionals publishes these
brochures. You can acquire a brochure in one of the ways in the list
below.
• Ask your hot tub dealer (they may have copies)
• Go to http://www.apsp.org
• Conduct your own search on the internet
• Write to the following address:
The Association of Pool and Spa Professionals
2111 Eisenhower Avenue
Alexandria VA 22314
703.838.0083
This spa is not intended nor designed to be used in a commercial or
public application. The spa buyer shall determine whether there are any
code restrictions on the use or installation of this spa since local code
requirements vary from one locality to another.

Page 8
880 SERIES
3.0 Locating Your Sundance Hot Tub
IMPORTANT: Because of the combined weight of the spa, water
and users, it is extremely important that the base upon which the
spa rests be smooth, at, level and capable of uniformly supporting
this weight, without shifting or settling, for the entire time the spa is
in place. If the spa is placed on a surface which does not meet these
requirements, damage to the skirt and/or the spa shell may result.
Damage caused by improper support is not covered under warranty.
It is the responsibility of the spa owner to assure the integrity of the
support over time. We recommend a poured, reinforced concrete
slab with a minimum thickness of 4 inches (10 cm). Wood decking
is also acceptable provided it is constructed so that it meets the
requirements outlined above.
The spa must be installed in such a manner as to provide drainage away
from it. Placing the spa in a depression without provisions for proper
drainage could allow rain, overow and other casual water to ood the
equipment and create a wet condition in which it would sit in. For spas
which will be recessed into a oor or deck, install so as to permit access
to the equipment, either from above or below, for servicing. Make certain
that there are no obstructions which would prevent removal of all side
cabinet panels and access to components, especially on the side with
the equipment bay doors.
3.1 Outdoor Location
In selecting the ideal outdoor location for your hot tub, we suggest that
you take into consideration the following:
• The proximity to changing area and shelter (especially in regions
subject to cold weather).
• The pathway to and from your hot tub (this should be free of
debris so that dirt and leaves are not easily tracked into the hot
tub).
• The closeness to trees and shrubbery (remember that leaves
and birds could create extra work in keeping the hot tub clean).
• A sheltered environment (less wind and weather exposure can
result in lowered operation and maintenance costs).
• The overall enhancement of your environment. It is preferable
not to place the hot tub under an unguttered roof overhang since
run-off water will shorten the life expectancy of the hot tub cover.

Page 9
880 SERIES
3.2 Indoor Location
For indoor installations many factors need to be considered before
installing a spa indoors:
• PROPER FOUNDATION: Consult a Structural Engineer when
considering a foundation that will adequately support the spa the
entire time it is in place. Proper support is critical especially if the
spa is to rest on a second story or higher. For spas that are to rest
on balconies, roofs or other platforms not specically tied into the
main structural support, you should consult a professional Structural
Engineer with experience in this type of application.
• PROPER DRAINAGE: It is extremely important to have in place
measures to sufciently handle excessive water spillage. Be sure the
ooring in which the spa rests on has adequate drainage and can
handle draining of the entire contents of the spa. Be sure to make
provisions for ceilings or any other structures that may be below the
spas installation. Areas around your spa can become wet or moist so
all ooring and subsequent furniture, walls and adjacent structures
should be able to withstand or resist water and moisture.
• PROPER VENTILATION: Proper ventilation should be discussed
with an Engineer or authority competent enough to understand the
necessary provisions needed to vent moist or heated air and air
associated with chemical odors outdoors. When the spa is in use
considerable amounts of moisture will escape potentially causing
mold and mildew, over time this can damage certain surfaces and or
surroundings.
• SUFFICIENT ACCESS: In the unlikely event that you should ever
need to access or gain entry to any portion of the spa for servicing,
it is highly recommended that you plan your indoor installation to
provide full access to the entire spa.
• WARRANTY: Damage caused by not following these guidelines
or any improper installation not in accordance with local codes or
authorities is not covered under the spas warranty. Please consult
your local state or city building ordinances.
WARNING: In addition to maintenance of lters and
water chemistry, proper ventilation is recommended to
reduce the risk of exposure to viruses and bacteria that
could be present in the air or water. Consult a licensed
architect or building contractor to determine your specic
needs if installing your hot tub indoors.

Page 10
880 SERIES
4.0 General Electrical Safety Instructions
Your new Sundance® hot tub is equipped with the “state-of-the-art”
Sentry™equipment system. It contains the most advanced safety and
self-protective equipment in the industry. Nonetheless, this hot tub must
be installed properly to ensure dependable usage. Please contact your
local Sundance Spas dealer or local building department should you
have any questions regarding your installation.
Proper grounding is extremely important. Sundance hot tubs are
equipped with a current collector system. A pressure wire connector is
provided on the surface of the control box, located inside the equipment
door (Figure C, page 13) to permit connection of a bonding wire between
this point and any ground metal equipment, metal water pipe or conduit
within 5 feet (1.5m) of the hot tub, or copper clad grounding rod buried
within 5 feet (1.5m) of the hot tub. Bonding wire must be at least No.
8 AWG (8.4 mm²) solid copper wire. This is a most important safety
assurance feature.
Before installing your hot tub, check with your local building department
to ensure installation conforms to local building codes.
5.0 Electrical Installation Instructions (240V Service)
IMPORTANT NOTICE: The electrical wiring of this hot tub must meet
the requirements of the National Electrical Code (NEC) and any
applicable state or local codes. The electrical circuit must be installed
by a qualied electrician and approved by a local building/electrical
inspection authority.
1. This hot tub must be permanently connected (hard-wired) to the
power supply. No plug-in connections or extension cords are
to be used in conjunction with the operation of this hot tub.
Supplying power to the hot tub which is not in accordance with these
instructions will void both the independent testing agency listing and
the manufacturer’s warranty.
2. The power supplied to this hot tub must be a dedicated circuit with
no other appliances or lights sharing the power provided by the
circuit.
3. To determine the current, voltage and wire size required, refer to
Section 6.0-7.0 (pages 14-15) for your specic hot tub model.

Page 11
880 SERIES
• Wire size must be appropriate per NEC and/or local codes.
• We recommend type THHN wire.
• All wiring must be copper to ensure proper connections. Do not
use aluminum wire.
• When using wire larger than #6 (10 mm²), add a junction box
near the hot tub and reduce to short lengths of #8 (8.4 mm²)
wire to connect to the hot tub.
4. The electrical supply for this product must include a suitably rated
switch or circuit breaker to open all ungrounded supply conductors
to comply with Section 422-20 of the National Electrical Code, ANSI/
NFPA 70. The disconnecting means must be readily accessible to
the hot tub’s occupant but installed at least 5 feet (1.5m) from hot
tub water.
5. The electrical circuit supplied for the hot tub must include a suitable
ground fault circuit interrupter (GFCI) as required by NEC Article
680-42.
6. To gain access to the hot tub’s power terminal block, remove the
four screws securing the center cabinet panel on the side of the
hot tub under the controls. Then remove the four control box door
screws and door (Figure C, page 13).
7. Select the power supply entrance you want to use (Figures A-B,
page 12) and remove the short cabinet panel from the front of the
hot tub, then feed cable through the large opening provided on the
bottom of the control box.
8. Connect wires, color to color, on terminal blocks TB1 and TB3
(Figure D, page 13). TIGHTEN SECURELY! All wires must be
hooked up securely or damage could result.
9. Install control box door and reinstall the cabinet side panels.

Page 12
880 SERIES

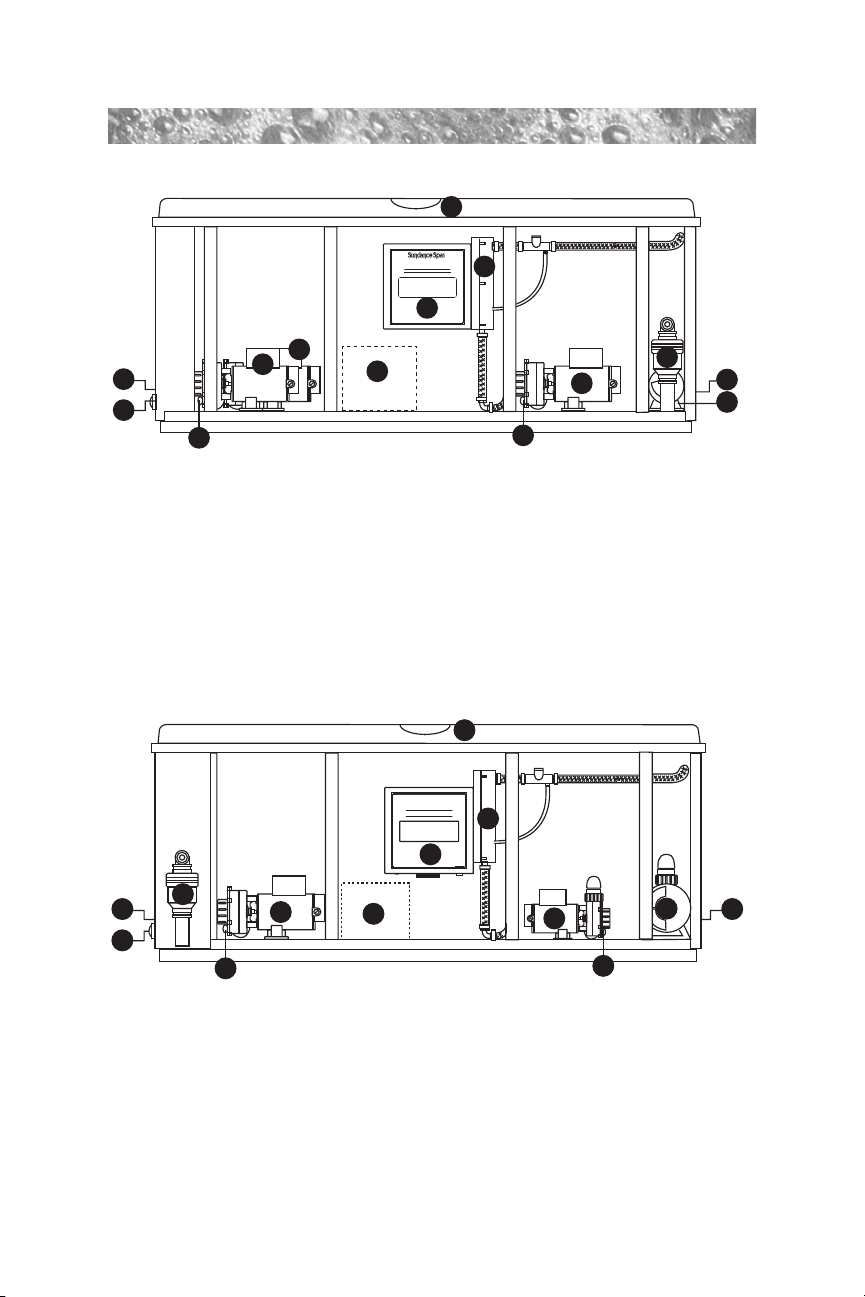

Figure A (Maxxus Equipment Area)
SENTRY
SPA CONTROLLER
5
3
4
1
11
9
9
10
22
8
7
6
12
Figure B (Equipment Area for All Models Except Maxxus)
SPA CONTROLLER
8
1
7
7
10 9
4
6
2 2
5
3
11
1. Sentry Control Box
2. Power Supply Entrance(s)
3. Jets Pump #1
4. Jets Pump #2
5. Jets Pump #3
6. Blower
7. Heater
8. Hot Tub Drain (Removable
External Drain Cap)
9. Pump Drain Plug(s)
10. Filter/Circulation Pump
11. Optional Subwoofer Behind
Bulkhead (Models with Audio
Option Only.)
12. Control Panel
7. Pump Drain Plug(s)
8. Jets Pump #2
9. Filter/Circulation Pump
10. Optional Subwoofer Behind
Bulkhead (Models with Audio
Option Only.)
11. Control Panel
1. Sentry Control Box
2. Power Supply Entrance(s)
3. Jets Pump #1
4. Heater
5. Hot Tub Drain (Removable
External Drain Cap)
6. Air Blower
Note: Pump locations vary by model
Note: Pump locations vary by model

Page 13
880 SERIES

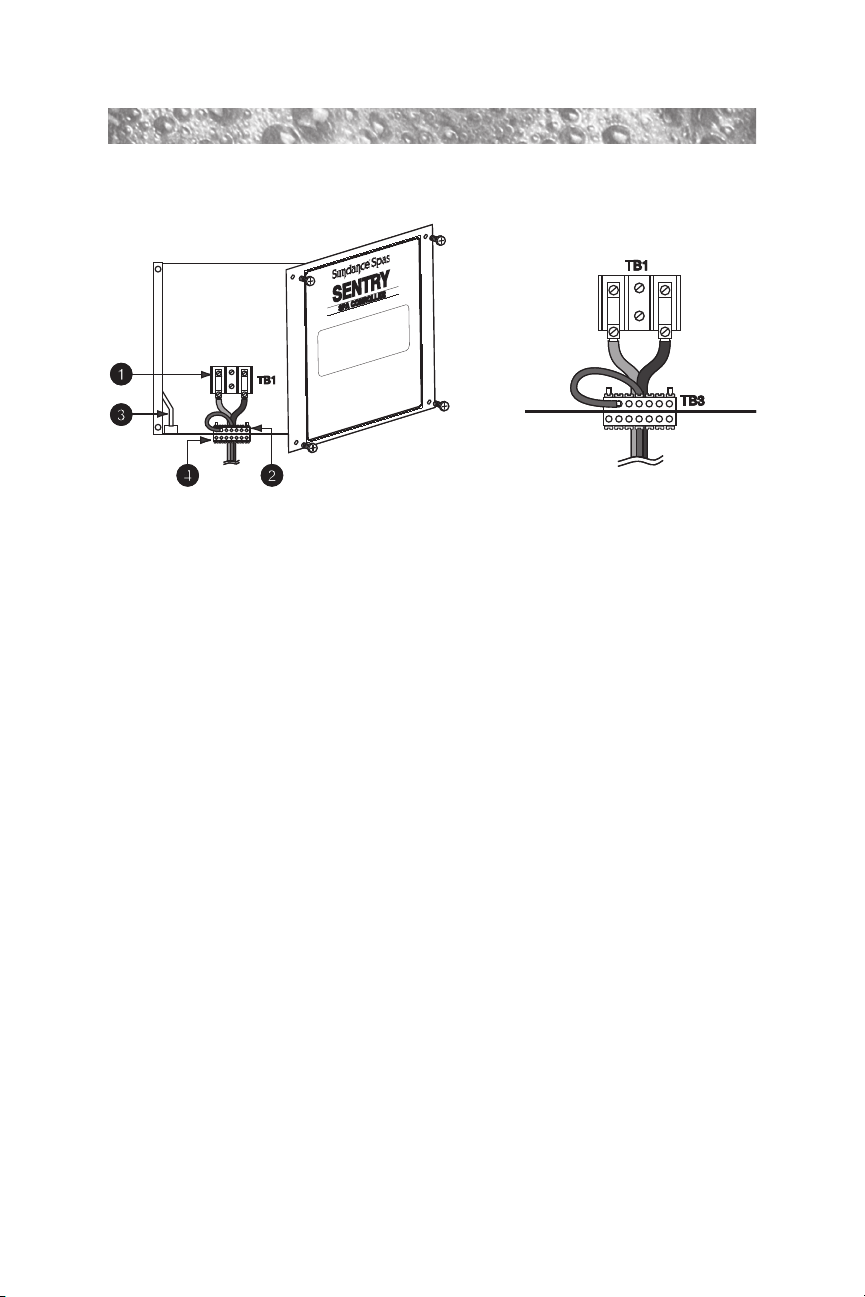

Figure C
Sentry Control Box
Figure D
Terminal Block 240V
Wire Connection
1. Terminal Block
2. Bonding Lug
3. Receptacle for Optional
Ozone Purication System
4. Grounding Terminal
Red (L2)
Green
Black (L1)

Page 14
880 SERIES
6.0 Maxxus Power Requirements
Sundance®hot tubs are designed to provide optimum performance and
exibility of use when connected to their maximum electrical service.
However, they are shipped factory congured for their most common
preferred electrical connection as follows:
• North American 60 Hz Model: 240 VAC/60A
If you prefer, a qualified technician can perform a minor circuit board
modication that allows the hot tub to operate on a different electrical
service (see table below).
North American 60 Hz Maxxus
240V/50A* 240V/60A**
Voltage 240 VAC 240 VAC
Max. Current Draw 38A 48A
Number of Wires 3 3
Circuit Breaker (2-Pole) 50A* 60A**
* In this conguration, the heater will not operate while any two jets
pumps are running.
** In this conguration the heater will operate while any two jets pumps
and the blower are running but will not operate when all three jets
pumps are running.
North American 60 Hz Maxxus
240V/50A* 240V/60A**
Voltage 240 VAC 240 VAC
Max. Current Draw 38A 48A
Number of Wires 3 3
Circuit Breaker (2-Pole) 50A* 60A**
* In this conguration, the heater will not operate while any two jets
pumps are running.
** In this conguration the heater will operate while any two jets pumps
and the blower are running but will not operate when all three jets
pumps are running.
