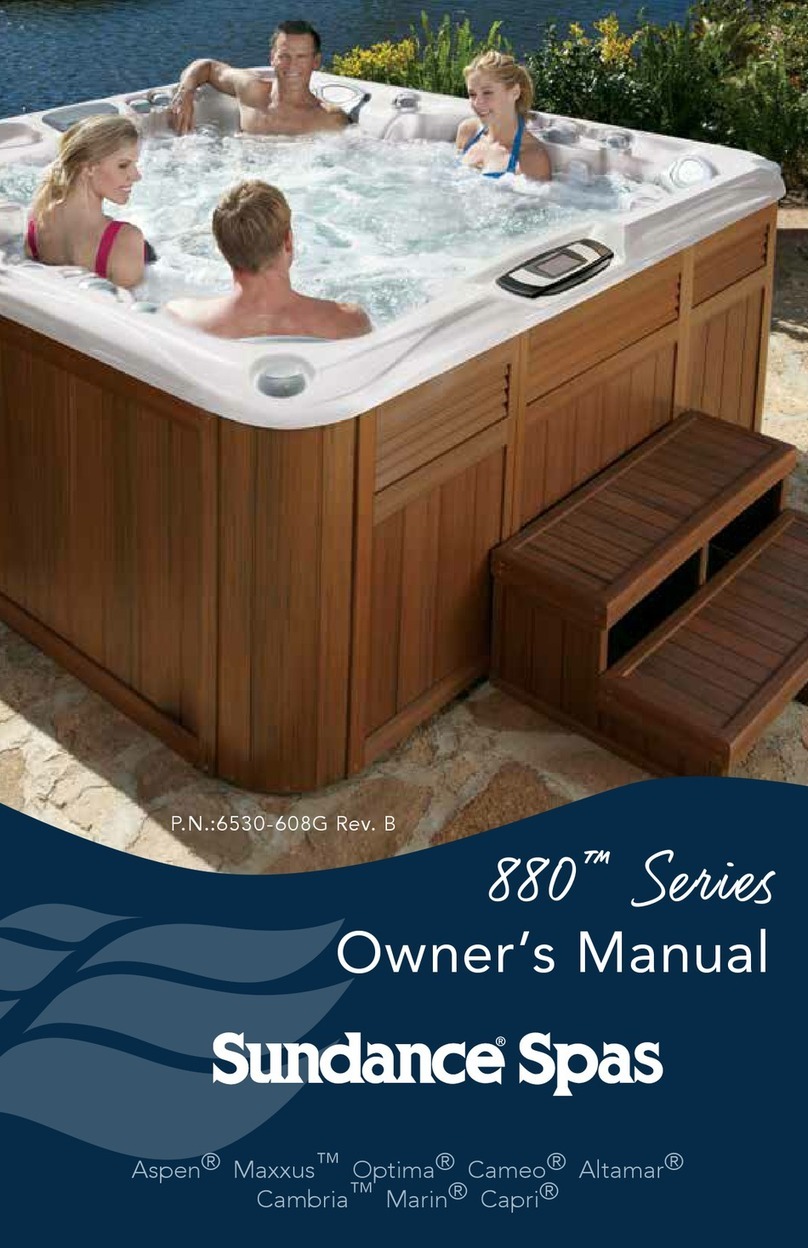

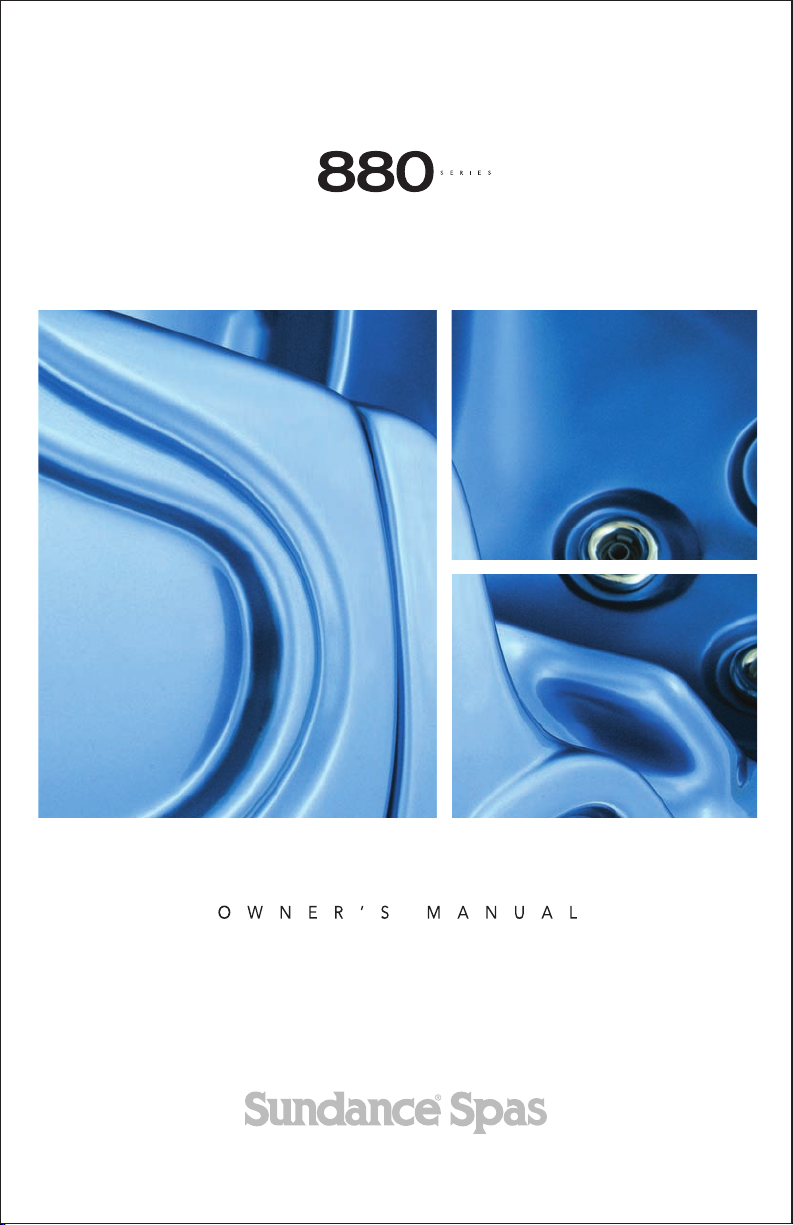

Sundance Spas maxxus 880 Series User manual

maxxus · optima · majesta · cameo

Attention New Hot Tub Owner!
Congratulations on the purchase of your new Sundance Hot Tub! The
following is a list of automated functions performed by your hot tub.
These functions are listed below in an attempt to suppress any opera-
tional concerns you may have during the rst 24-hours of ownership!
Also listed below are important maintenance recommendations you
should observe on a regular basis to protect your new investment.
Automated Operations
Your new hot tub is equipped with an automated “blow-out” cycle that
clears all plumbing lines daily to promote maximum water sanitation.
Each day at 12:00 PM (noon), pump 2, pump 3 (Maxxus Models Only)
and the blower will automatically turn on for a period of one minute, then
go off. Then pump 1 will turn on and run for one minute to complete the
blow-out cycle. Be aware, the factory programmed blow-out cycle can-
not be canceled or altered!
Filter Maintenance
Your new hot tub is equipped with an advanced MicroClean IITM water
ltration system that provides unsurpassed water quality! To ensure
maximum water quality at all times, you should replace the lter car-
tridge every six months, or as necessary. The lter cartridge is de-
signed to be thrown away! Attempts to reuse the lter cartridge may
result in the re-release unwanted particles back into the hot tub. See
page 40-41 for detailed lter cartridge replacement instructions.
Water Maintenance
You will want to replace the hot tub’s water every 3 to 6 months. The
frequency depends on a number of variables including the frequency of
use, number of users, attention paid to water quality maintenance, etc.
You will know it is time for a change when you cannot control sudsing
and/or you can no longer get the normal feel or sparkle to the water,
even though the key water balance measurements are all within the
proper parameters. See page 45 for additional information.

Table of Contents
1.0 Important Hot Tub Owner Information .............................1
2.0 Important Safety Instructions............................................2
3.0 Locating Your Sundance Hot Tub .....................................8
4.0 General Electrical Safety Instructions..............................9
5.0 Electrical Installation Instructions (240V Service) ........ 11
6.0 Maxxus Power Requirements .........................................13
7.0 Cameo, Optima, Majesta Power Requirements.............14
8.0 Start-Up Instructions........................................................15
9.0 Operating Instructions ....................................................22
9.1 View Button ........................................................................22
9.2 Light Button (Main Control Panel) ......................................22
9.3 AquaTerrace Light Contol...................................................22
9.4 Air Injection.........................................................................23
9.5 Activate Jets Pump 1..........................................................23
9.6 Activate Jets Pump 2/Pump 3 ............................................23
9.7 Selecting The Desired Massage Action..............................24
9.8 Adjusting Fluidix Intelli-Jets ................................................24
9.9 Air Controls.........................................................................25
9.10 Waterfall Control.................................................................25
9.11 Maxxus Massage/Waterfall Selector Diagram....................26
9.12 Maxxus Air Controls Diagram.............................................27
9.13 Optima Massage/Waterfall Selector Diagram ....................28
9.14 Optima Air Controls Diagram..............................................29
9.15 Cameo Massage/Waterfall Selector Diagram ....................30
9.16 Cameo Air Controls Diagram..............................................31
9.17 Majesta Massage/Waterfall Selector Diagram ...................32
9.18 Majesta Air Controls Diagram.............................................33
9.18 Optional SunSoundTM Audio System..................................34
10.0 Automatic Filtration Cycles.............................................34
10.1 Standard Filter/Heating Mode ............................................34
10.2 Economy Filter/Heating Mode ............................................34
10.3 Selecting Standard or Economy Filter Mode......................35
10.4 Preset Filter/Heating Cycles.............................................35
10.5 Clean-Up “Blow-Out” Cycle ................................................35
11.0 Programming Instructions...............................................36
11.1 Adjusting Time of Day ........................................................36

11.2 Programming Filter/Heating Cycles....................................36
11.3 Programming Circulation Pump Run Time.........................37
11.4 Locking Filter/Heating Cycles.............................................38
11.5 Main Control Panel Lock ....................................................38
11.6 Temperature Setting Lock...................................................38
11.7 Programming The Change Filter Reminder .......................39
12.0 Hot Tub Maintenance .......................................................40
12.1 Replacing the Filter Cartridge.............................................40
12.2 Draining and Refilling .........................................................42
12.3 Cleaning the Hot Tub Interior .............................................43
12.4 Pillow Care .........................................................................43
12.5 Maintaining the Synthetic Cabinet......................................44
12.6 Maintaining the Cover ........................................................44
12.7 Winterizing..........................................................................44
12.8 Restarting your Hot Tub in Cold Weather ..........................45
13.0 Water Quality Maintenance..............................................45
13.1 pH Control ..........................................................................46
13.2 Sanitizing ............................................................................46
13.3 Other Additives ...................................................................46
13.4 Optional Ozone Water Maintenance System .....................47
13.5 Handrail Maintenance.........................................................47
14.0 Troubleshooting - Display Messages .............................48
15.0 Troubleshooting - Procedures ........................................50
16.0 Optional SunSound Stereo Receiver Features .............52
17.0 US/Canada 60Hz Maxxus Electrical Wiring Diagram ....59
18.0 US/Canada 60Hz Optima/Cameo/Majesta Electrical
Wiring Diagram .................................................................60
19.0 Export 50Hz Maxxus Electrical Wiring Diagram............61
20.0 Typical Spa Wiring Diagrams (US/Canada 60Hz
Models) ..............................................................................62

1.0 Important Hot Tub Owner Information
Your Sundance hot tub is constructed to the highest standards and
is capable of providing many years of trouble-free use. However,
because heat retentive materials are utilized to insulate the hot
tub for efficient operation, an uncovered hot tub surface directly
exposed to sunlight and high temperatures for an extended period
is subject to permanent damage. Damage caused by exposing the
hot tub to this abuse is not covered by warranty. We recommend
that you always keep the hot tub full of water when it is exposed to
direct sunlight and that you keep the Sundance insulating cover in
place at all times when the hot tub is not in use. Read and carefully
follow the requirements for your hot tub’s support base found in the
section 3.0 titled, “Locating Your Sundance Hot tub” (page 8).
Sundance Spas constantly strives to offer the finest hot tubs avail-
able, therefore, modifications and enhancements may be made
which affect the specifications, illustrations and/or instructions
contained herein.
FCC Notice
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures: l) Rearrange
or relocate the receiving antenna; 2) Increase the separation between
the equipment and receiver; 3) Connect the equipment into an outlet on
a circuit different from the circuit connected; 4) Consult the dealer or an
experienced radio/TV technician for help. (Changes or modifications not
expressly approved by the party responsible for FCC compliance could
void the user’s authority to operate this equipment.)
Page 1

2.0 IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
When installing and using this electrical equipment, basic safety precau-
tions should always be followed, including:
1) WARNING: To reduce the risk of injury, do not permit children to use
this product unless they are closely supervised at all times.
2) WARNING: A grounding wire connector is provided on this unit to
connect a minimum No. 8 AWG (8.4mm2) solid copper conductor
between this unit and any metal equipment, metal enclosures of
electrical equipment, metal water pipe, or conduit within 5 feet (1.5m)
of the unit.
3) DANGER: Risk of Accidental Drowning. Extreme caution must be
exercised to prevent unauthorized access by children. To avoid acci-
dents, ensure that children cannot use this hot tub unless they are
supervised at all times.
4) DANGER: Risk of Injury. The suction fittings in this hot tub are sized
to match the specific water flow created by the pump. Should the
need arise to replace the suction fittings or the pump, be sure that
the flow rates are compatible. Never operate the hot tub if the suction
fittings are broken or missing. Never replace a suction fitting with one
rated less than the flow rate marked on the original suction fitting.
5) DANGER: Risk of Electric Shock. Install at least 5 feet (1.5m), from
all metal surfaces. As an alternative, a hot tub may be installed within
5 feet of metal surfaces if each metal surface is permanently con-
nected (bonded) by a minimum No. 8 AWG (8.4 mm2) solid copper
conductor attached to the wire connector on the grounding lug, inside
the equipment compartment on the equipment box.
6) DANGER: Risk of Electric Shock. Do not permit any electrical appli-
ance, such as a light, telephone, radio, television, etc. within 5 feet of
a hot tub unless such appliances are built-in by the manufacturer.
7) ELECTRICAL SUPPLY: The electrical supply for this product must
include a suitably rated switch or circuit breaker to open all unground-
ed supply conductors to comply with section 422-20 of the National
Electrical Code, ANSI/NFPA 70. The disconnect must be readily
accessible and visible to the hot tub occupant but installed at least 5
feet (1.5m), from the hot tub water.
Page 2

8) WARNING: To Reduce the Risk of Injury:
a) The water in a hot tub should never exceed 104 °F (40 °C). Water
temperatures between 100 °F (38 °C) and 104 °F (40 °C) are con-
sidered safe for a healthy adult. Lower water temperatures are rec-
ommended for young children and when hot tub use exceeds 10
minutes.
b) Since excessive water temperatures have a high potential for causing
fetal damage during the early months of pregnancy, pregnant or pos-
sibly pregnant women should limit hot tub water temperatures to 100
°F (38 °C). If pregnant, please consult your physician before using a
hot tub.
c) Before entering the hot tub, the user should measure the water
temperature with an accurate thermometer since the tolerance of
water temperature-regulating devices may vary as much as +/- 5 °F
(2 °C).
d) The use of alcohol, drugs, or medication before or during hot tub use
may lead to unconsciousness with the possibility of drowning.
e) Persons suffering from obesity or a medical history of heart disease,
low or high blood pressure, circulatory system problems, or diabetes
should consult a physician before using a hot tub.
f) Persons using medication should consult a physician before using
a hot tub since some medication may induce drowsiness, while
other medication may affect heart rate, blood pressure, and filter/
circulation.
IMPORTANT CSA SAFETY INSTRUCTIONS (CANADA ONLY)
When using this electrical equipment, basic safety precautions should
always be followed, including the following:
a) READ AND FOLLOW ALL INSTRUCTIONS.
b) A green colored terminal or a terminal marked G, Gr, Ground,
Grounding or the symbol*is located inside the supply terminal
box or compartment. To reduce the risk of electric shock, this termi-
nal must be connected to the grounding means provided in the elec-
tric supply service panel with a continuous copper wire equivalent in
size to the circuit conductors that supply this equipment.
*IEC Publication 417, Symbol 5019.
Page 3

c) At least two lugs marked “Bonding Lugs” are provided on the external
surface or on the inside of the supply terminal box/compartment. To
reduce the risk of electric shock, connect the local common bonding
grid in the area of the hot tub to these terminals with an insulated or
bare copper conductor not smaller than No. 6 AWG.
d) All field-installed metal components such as rails, ladders, drains
or other similar hardware within 10 feet (3m) of the hot tub shall be
bonded to the equipment grounding buss with copper conductors not
smaller than No. 6 AWG.
e) SAVE THESE INSTRUCTIONS.
WARNING: Children should not use hot tubs without adult supervision.
AVERTISSEMENT: NE PAS LAISSER LES ENFANTS UTILISER LA
CUVE DE RELAXATION SANS SURVEILLANCE.
WARNING: Do not use hot tubs unless all suction guards are installed
to prevent body and hair entrapment.
AVERTISSEMENT: NE PAS UTILISER LA CUVE DE RELAXATION
SI LES GRILLES DE PRISE D’ASPIRATION NE SONT PAS TOUTES
EN PLACE,.POUR EVITER QUE LES CHEVEUX OU UNE PARTIE DU
CORPS SOIENT ASPIRES.
WARNING: People with infectious diseases should not use a hot tub.
AVERTISSEMENT: LES PERSONNES ATTEINTES DE MALADIES
INFECTIEUSES NE DEVRAIENT PAS UTILISER LA CUVE DE
RELAXATION.
WARNING: To avoid injury, exercise care when entering or exiting the
hot tub.
AVERTISSEMENT: POUR EVITER DES BLESSURES, SOYEZ
PRUDENT EN ENTRANT ET SORTANT DE LA CUVE DE
RELAXATION.
WARNING: Do not use drugs or alcohol before or during the use of a
hot tub to avoid unconsciousness and possible drowning.
Page 4

AVERTISSEMENT: POUR EVITER L’EVANOUISSEMENT ET LA
NOYADE EVENTUELLE, NE PRENDRE NI DROGUE NI ALCOOL
AVANT D’UTILISER LA CUVE DE RELAXATION NI QUAND ON S’Y
TROUVE.
WARNING: Pregnant or possibly pregnant women should consult a
Physician before using a hot tub.
AVERTISSEMENT: LES FEMMES ENCEINTES, QUE LEUR
GROSSESSE SOIT CONFIRMEE OU NON, DEVRAIENT CONSULTER
UN MEDECIN AVANT D’UTILISER LA CUVE DE RELAXATION.
WARNING: Water temperature in excess of 40 °C (104 °F) may be injuri-
ous to your health.
AVERTISSEMENT: IL PEUT ETRE DANGEREUX POUR LA SANTE
DE SE PLONGER DANS DE L’EAU A PLUS DE 40 °C.
WARNING: Before entering the hot tub, measure the water temperature
with an accurate thermometer.
AVERTISSEMENT: AVANT D’UTILISER UNE CUVE DE RELAXATION
MESURER LA TEMPERATURE DE L’EAU A L’AIDE D’UN
THERMOMETRE PRECIS.
WARNING: Do not use a hot tub immediately following strenuous
exercise.
AVERTISSEMENT: NE PAS UTILISER LA CUVE DE RELAXATION
IMMEDIATEMENT APRES UN EXERCICE FATIGANT.
WARNING: Prolonged immersion in a hot tub may be injurious to your
health.
AVERTISSEMENT: RESTER TROP LONGTEMPS DANS LA CUVE DE
RELAXATION PEUT ETRE DANGEREUX POUR LA SANTE.
WARNING: Do not permit electric appliances (such as lights, telephone,
radio, television, etc.) within 5 feet (1.5m) of this hot tub unless such
appliances are built-in by the manufacturer.
AVERTISSEMENT: NE PAS PLACER D’APPAREIL ELECTRIQUE
(LUMINAIR, TELEPHONE, RADIO, TELEVISEUR, ETC.) A MOINS
DE 1.5M DE LA CUVE DE RELAXATION, SAUF SI INSTALLÉ À LA
MANIFACTURE.
Page 5

CAUTION: Maintain water chemistry in accordance with manufacturer’s
instructions.
ATTENTION: LA TENEUR DE L’EAU EN MATIERES DISSOUTES
DOIT ETRE CONFORME AUX DIRECTIVES DU FABRICANT.
WARNING: The use of alcohol or drugs can greatly increase the risk of
fatal hyperthermia in hot tubs.
AVERTISSEMENT: LA CONSOMMATION D’ALCOOL OU DE
DROGUE AUGMENTE CONSIDERABLEMENT LES RISQUES
D’HYPERTHERMIE MORTELLE DANS UNE CUVE DE RELAXATION.
SAVE THESE INSTRUCTIONS
HYPERTHERMIA
Prolonged immersion in hot water may induce hyperthermia. A description
of the causes, symptoms, and effects of hyperthermia are as follows:
Hyperthermia occurs when the internal temperature of the body reaches
a level several degrees above the normal body temperature of 98.6°F
(37°C). The symptoms of hyperthermia include drowsiness, lethargy,
and an increase in the internal temperature of the body. The effects of
hyperthermia include:
a) Unawareness of impending hazard;
b) Failure to perceive heat;
c) Failure to recognize the need to exit hot tub;
d) Physical inability to exit hot tub;
e) Fetal damage in pregnant women; and
f) Unconsciousness and danger of drowning.
A warning sign is provided in your warranty packet. Please install
it at a location near your spa, where it is visible to the user of the
hot tub. For additional or replacement signs please contact your
local Sundance Spas dealer and reference item number #6530-
082.
Page 6

1. Persons suffering from heart disease, diabetes, high or low blood
pressure, and any condition requiring medical treatment, pregnant
women, the elderly, or infants should consult with a physician before
using a hot tub.
2. The Consumer Products Safety Commission has stated that the
water temperature in a hot tub should not exceed 104°F (40°C).
Immersion in water in excess of 104°F (40°C) can be hazardous to
your health.
3. Observe a reasonable time limit when using the hot tub. Long expo-
sures at higher temperatures can cause high body temperature.
Symptoms may include dizziness, nausea, fainting, drowsiness, and
reduced awareness. These effects could possibly result in drown-
ing.
4. Do not use the hot tub under the influence of alcohol, narcotics, or
other drugs. Use of the hot tub under these conditions may lead to
serious consequences.
5. Always test the hot tub water temperature before entering the hot tub.
Enter and exit the hot tub slowly. Wet surfaces can be very slippery.
6. Never bring any electrical appliances into or near the hot tub. Never
operate any electrical appliances from inside the hot tub or when you
are wet unless such appliances are built-in by the manufacturer.
7. Proper chemical maintenance of hot tub water is necessary to
maintain safe water and prevent possible damage to hot tub
components.
8. Use the straps and clip tie downs to secure the cover when not in
use. This will help to discourage unsupervised children from entering
the hot tub and keep the hot tub cover secure in high-wind conditions.
There is no representation that the cover, clip tie-downs, or actual
locks will prevent access to the hot tub.
Page 7

3.0 Locating Your Sundance Hot Tub
IMPORTANT: Because of the combined weight of the hot tub, water and
users, it is extremely important that the base upon which the hot tub rests
be smooth, flat, level and capable of uniformly supporting this weight,
without shifting or settling, for the entire time the hot tub is in place. If the
hot tub is placed on a surface which does not meet these requirements,
damage to the skirt and/or the hot tub shell may result. Damage caused
by improper support is not covered under warranty. It is the responsibility
of the hot tub owner to assure the integrity of the support at all times.
We recommend a poured, reinforced concrete slab with a minimum thick-
ness of 4 inches (10 cm). Wood decking is also acceptable provided it is
constructed so that it meets the requirements outlined above.
The hot tub must be installed in such a manner as to provide drainage
away from the hot tub. Placing the hot tub in a depression without pro-
visions for proper drainage could allow rain, overflow and other casual
water to flood the equipment and create a wet condition in which it would
sit.
For hot tubs which will be recessed into a floor or deck, install so as to
permit access to the equipment, either from above or below, for servicing.
Make certain that there are no obstructions which would prevent removal
of the cabinet side panels, especially on the side with the equipment bay
doors.
In selecting the ideal outdoor location for your hot tub, we suggest that
you take into consideration 1) the proximity to changing area and shelter
(especially in colder weather); 2) the pathway to and from your hot tub
(this should be free of debris so that dirt and leaves are not easily tracked
into the hot tub); 3) the closeness to trees and shrubbery (remember that
leaves and birds could create extra work in keeping the hot tub clean); 4)
a sheltered environment (less wind and weather exposure can result in
lowered operation and maintenance costs); and 5) the overall enhance-
ment of your environment. It is preferable not to place the hot tub under
an unguttered roof overhang since run-off water will shorten the life
expectancy of the hot tub cover.
For indoor installations, be certain to make provisions for proper ventila-
tion. When the hot tub is in use, considerable amounts of moisture will
escape. This can damage certain surfaces over time.
Page 8

If you have any questions regarding the placement or installation of your
hot tub, consult your Sundance Dealer.
4.0 General Electrical Safety Instructions
Your new Sundance hot tub is equipped with the “state-of-the-art”
SentryTM equipment system. It contains the most advanced safety
and self-protective equipment in the industry. Nonetheless, this hot tub
must be installed properly to insure dependable usage. Please contact
your dealer or local building department should you have any questions
regarding your installation.
Proper grounding is extremely important. Sundance hot tubs are
equipped with a current collector system. A pressure wire connector is
provided on the surface of the control box, located inside the equipment
door (Figure-C, Page 11) to permit connection of a bonding wire between
this point and any ground metal equipment, metal water pipe or conduit
within 5 feet (1.5m) of the hot tub, or copper clad grounding rod buried
within 5 feet (1.5m) of the hot tub. Bonding wire must be at least No. 8
AWG (8.4 mm2) solid copper wire. This is a most important safety assur-
ance feature.
Before installing this hot tub, check with the local building department to
insure installation conforms to local building codes.
Page 9

Page 10
Figure-A
(Maxxus Equipment Area)
1. Sentry Control Box
2. Power Supply Entrance(s)
3. Jets Pump #1
4. Jets Pump #2
5. Jets Pump #3
6. Blower
7. Heater
8. Hot Tub Drain (Removable
External Drain Cap)
9. Pump Drain Plug(s)
10. Filter/Circulation Pump
11. Optional Subwoofer Behind
Bulkhead (Models with Audio
Option Only.)
5
34
SENTRY
SPA CONROLLER
1
11
9
9
10
22
8
7
6
1. Sentry Control Box
2. Power Supply Entrance(s)
3. Jets Pump #1
4. Heater
5. Hot Tub Drain (Removable
External Drain Cap)
6. Air Blower
7. Pump Drain Plug(s)
8. Jets Pump #2
9. Filter/Circulation Pump
10. Optional Subwoofer Behind
Bulkhead (Models with Audio
Option Only.)
Note: Pump Locations Vary by Model
SPA CONROLLER
8
1
7
7
10 9
4
6
2 2
5
3
Figure-B
(Equipment Area - All Models Except Maxxus)

5.0 Electrical Installation Instructions (240V Service)
IMPORTANT NOTICE: The electrical wiring of this hot tub must meet the
requirements of the National Electrical Code (NEC) and any applicable
state or local codes. The electrical circuit must be installed by a quali-
fied electrician and approved by a local building/electrical inspection
authority.
1. This hot tub must be permanently connected (hard-wired) to the
power supply. No plug-in connections or extension cords are
to be used in conjunction with the operation of this hot tub.
Supplying power to the hot tub which is not in accordance with these
instructions will void both the independent testing agency listing and
the manufacturer’s warranty.
2. The power supplied to this hot tub must be a dedicated circuit with no
other appliances or lights sharing the power provided by the circuit.
Page 11
TB1
Red (L2)
Green
Black (L1)
TB1
TB3
1. Terminal Block
2. Bonding Lug
3. Receptacle for Optional Ozone Purification System
4. Grounding Terminal
SENTRY
SPA CONROLLER
1
3
4 2
Figure-C

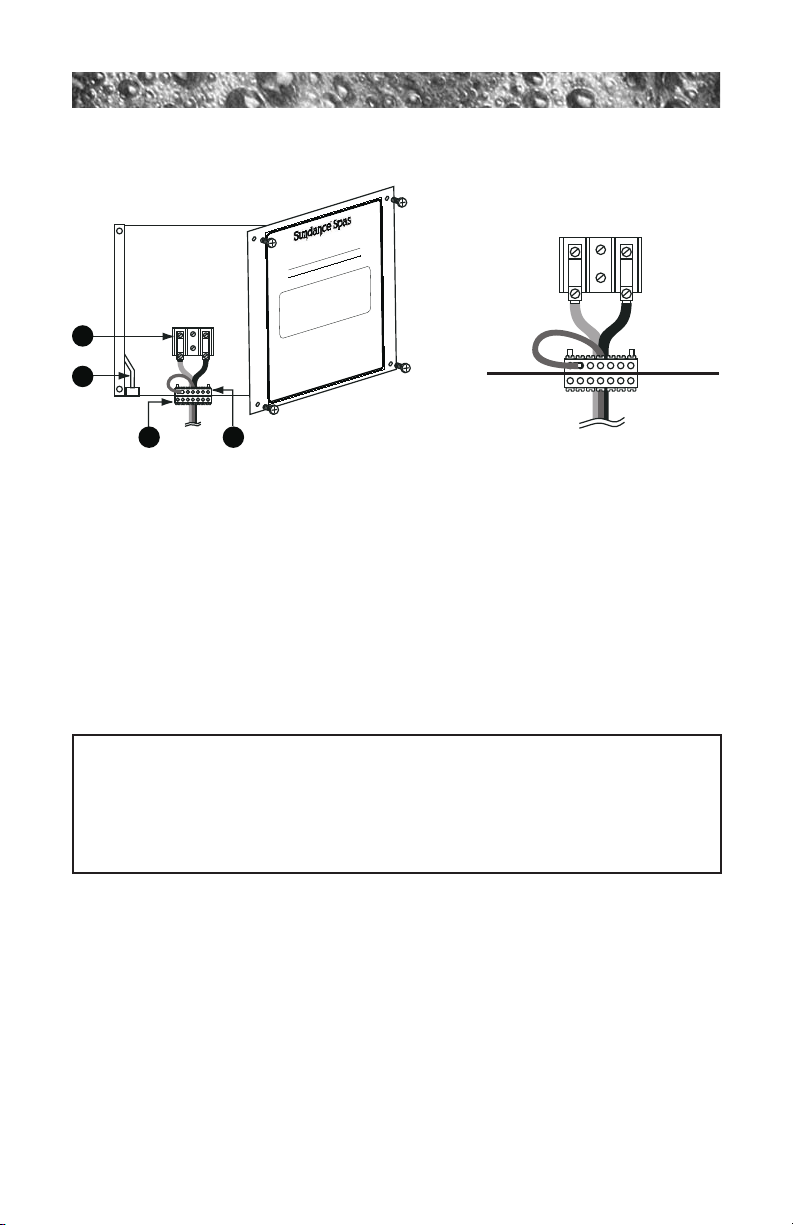

Sentry Control Box
Figure-D
Terminal Block
240V Wire Connection

3. To determine the current, voltage and wire size required, refer to
section 6.0-7.0 “Power Requirements” (page 13-14) for your specific
spa model.
• Wire size must be appropriate per NEC and/or local codes.
• We recommend type THHN wire.
• All wiring must be copper to ensure proper connections. Do not
use aluminum wire.
• When using wire larger than #6, add a junction box near the hot tub
and reduce to short lengths of #6 wire to connect to the hot tub.
4. The electrical supply for this product must include a suitably rated
switch or circuit breaker to open all ungrounded supply conduc-
tors to comply with Section 422-20 of the National Electrical Code,
ANSI/NFPA 70. The disconnecting means must be readily acces-
sible to the hot tub’s occupant but installed at least 5 feet (1.5m)
from hot tub water.
5. The electrical circuit supplied for the hot tub must include a suitable
ground fault circuit interrupter (GFCI) as required by NEC Article
680-42.
6. To gain access to the hot tub’s power terminal block, remove the
four screws securing the center cabinet panel on the side of the
hot tub under the controls. Then remove the four control box door
screws and door (Figure C, page 11).
7. Select the power supply entrance you want to use (Figures A-B,
page 10) and remove the short cabinet panel from the front of the
hot tub to allow you to feed the cable through to the control box.
Install the cable with connector through the large opening provided
in the bottom of the control box.
8. Connect wires, color to color, on terminal blocks TB1 and TB3
(Figure-D, page 11). TIGHTEN SECURELY! All wires must be
hooked up securely or damage could result.
9. Install control box door and reinstall the cabinet side panels.
Page 12

6.0 Maxxus Power Requirements
Sundance hot tubs are designed to provide optimum performance and
flexibility of use when connected to their maximum electrical service.
However, they are shipped factory configured for their most common
preferred electrical connection as follows:
• US/Canada 60Hz Model: 240VAC/60A
• Export 50Hz Model: 230VAC/45A
If you prefer, your Sundance dealer perform a minor circuit board
modification that allows the hot tub to operate on a different electrical
service (see Table below).
Electrical Service Options for Maxxus Models
US/Canada 60Hz Model
Voltage 240VAC 240VAC
Max. Current Draw 38A 48A
Number of Wires 3 3
Circuit Breaker (2-Pole) 50A** 60A***
** In this configuration, the heater will not operate while any two
jets pumps are running.
*** In this configuration the heater will operate while any two jets
pumps and the blower are running but will not operate when
all three jets pumps are running.
Export 50Hz Model
Voltage 230VAC 230VAC
Max. Current Draw 34A 42A
Number of Wires 3 3
Circuit Breaker (2-Pole) 45A** 50A***
** In this configuration, the heater will not operate while any two
jets pumps are running.
*** In this configuration the heater will operate while any two jets
pumps and the blower are running but will not operate when
all three jets pumps are running.
Page 13

7.0 Cameo, Optima, Majesta Power Requirements
Sundance hot tubs are designed to provide optimum performance and
flexibility of use when connected to their maximum electrical service.
However, they are shipped factory configured for their most common
preferred electrical connection as follows:
• All US/Canada 60Hz Models: 240VAC/50A**
If you prefer, your Sundance dealer perform a minor circuit board
modification that allows the hot tub to operate on a different electrical
service (see Table below).
Electrical Service Options for All US/Canada 60Hz Models
60Hz Cameo, Optima, and Majesta Models
Voltage 240VAC 240VAC 240VAC
Max. Current Draw 26A 40A 48A
Number of Wires 3 3 3
Circuit Breaker (2-Pole) 35A*50A** 60A***
*In this configuration, the heater will not operate while either jets
pump is running or when the blower is running.
** In this configuration, the heater will not operate while both jets
pumps are running.
*** In this configuration the heater will operate while both jets
pumps and the blower are running
Page 14

Page 15
8.0 Start-Up Instructions
FOR BEST RESULTS, READ EACH STEP IN ITS ENTIRETY BEFORE
PROCEEDING WITH THAT STEP.
A. Prepare The Hot Tub For Filling
• Clear all debris from the hot tub. (Although the hot tub shell has
been polished at the factory, you may want to treat it with a
specially formulated hot tub cleaner. Consult your dealer for addi-
tional information prior to filling spa.
• Remove filter lid (Figure G-J, page 18-21), then remove filter car-
tridge from filter bucket as illustrated in section 12.1 (pg. 40-41).
B. Fill Hot Tub
• Place the end of your garden hose into the empty filter bucket.
NOTE: Never fill with water from a water softener. If your water is
extremely “hard”, it is preferable to fill half-way with hard water and
the rest of the way with softened water. Or, you may fill entirely
with hard water if you use a special water additive available from
your Sundance dealer.
• Fill hot tub until water level is above all jets and just touching the
bottom of the pillows. Do not overfill.
Important: Always fill your hot tub through the filter bucket after
draining. Failure to do so may cause air to be trapped in either pump,
preventing the pump from circulating water.
• Remove the hose and replace the filter cartridge as illustrated in sec-
tion 12.1 (page 40-41).
C. Turn On Power
Turn on power to hot tub at the home’s circuit breaker. The heater and
filter/circulation pump will automatically activate. If the control panel
LCD flashes water temperature and “COOL” or “ICE.” If this occurs,
refer to page 48-49 for additional information.
D. Activate Jets Pump 1
Depress the JETS 1 button on the control panel once to
activate jets pump #1.

E. Add Start-Up Chemicals
Add the hot tub water chemicals as recommended by your Sundance
Dealer. See section titled “WATER QUALITY MAINTENANCE”
(page 44) for general guidance.
F. Set Hot Tub To Heat
To warm hot tub water to a comfortable temperature, follow these
steps:
• The LCD display on the control panel displays the actual
temperature of the hot tub water. Press either the COOLER
(Down) or WARMER (Up) button once to display the “set”
temperature for 5 seconds. If you want the water to heat to a
different temperature, simply press COOLER or WARMER
within 5 seconds. The set temperature advances or decreases by
one degree each time one of these buttons is pressed.
• The heater will turn off when the temperature corresponding to
the thermostat setting is achieved.
Important Heater Details:
• The maximum temperature for which the hot tub can be set is 104°F
(40°C) and the minimum is 80°F (27°C).
• For Cameo, Optima, or Majesta hot tubs powered with a 35 amp
service, turn off jets pump #1 and jets pump #2 to operate heater.
• Setting the thermostat at maximum will not accelerate the heating
process. This will only result in a higher ultimate temperature.
• The heater operates until the water reaches the programmed “set
temperature”, then turns off. The heater will reactivate after the water
cools to approximately 1.5° below the “set temperature.”
G. Place Cover On Hot Tub
• Keeping the insulating cover in place anytime the hot tub is not in use
will reduce the time required for heating, thereby minimizing operating
costs.
• The time required for initial heat-up will vary depending on the starting
water temperature.
DANGER: RISK OF INJURY. ALWAYS CHECK WATER TEMPERA-
TURE CAREFULLY BEFORE ENTERING HOT TUB. DO NOT
EXERCISE IN WATER ABOVE 90 DEGREES F (32 °C).
Page 16
