Constance™ | Victoria™
S E R I E S

Attention New Spa Owner!
Congratulations on the purchase of your new Sundance®spa! The following
is a list of automated functions and maintenance recommendations for
your new spa. Automated functions have been listed below in an attempt
to suppress any operational concerns you may have during startup and the
rst 24-hours of ownership! Maintenance recommendations are listed in an
attempt to stress their importance in protecting your new spa.
Automated Operations
Approximately two minutes after power is applied to the spa, the rst ltration/
heating cycle turns on pump 1 (Section 9.0, page 28). An automatic ve minute
“blow-out” function also activates pump 2 for a period of ve minutes to ush
all lines. Then, after ve minutes, pump 2 turns off and pump 1 continues to
operate for the duration of the cycle.
Note: This function only occurs during the rst ltration/heating cycle each day.
Maintain Healthy Spa Water
Always maintain your hot tub’s water chemistry within the following
parameters as dened by the Association of Pool and Spa Professionals/USA:
pH 7.4-7.6
Free chlorine 3.0-4.0 ppm
Free bromine 2.0-4.0 ppm
Total Alkalinity 100-120 ppm
Calcium Hardness 150-250 ppm
!TO DECREASE RISK OF INFECTION OR DISEASE! Always
maintain your spa lter as outlined below to ensure healthy spa water.
Refer to pages 35-36 for additional information.
Required Filter Maintenance
Your new hot tub is equipped with an advanced 2-stage MicroClean™water
ltration system that provides unsurpassed water quality! To ensure maximum
water quality at all times, you should clean and reuse the larger pleated lter
cartridge every month and replace (throw away) the smaller MicroClean lter
cartridge every 3 months, or earlier as necessary. The smaller MicroClean
lter cartridge is designed to be thrown away! Attempts to reuse this lter
cartridge may result in the re-release of unwanted particles back into the spa.
See pages 35-36 for detailed lter cartridge replacement instructions.
Required Water Maintenance
!TO DECREASE RISK OF INFECTION OR DISEASE! You should
replace the spa’s water every 3 months. The frequency depends on a number
of variables including frequency of use, number of users, and attention paid to
water quality maintenance. You will know it is time for a change when you
cannot control sudsing and/or you can no longer get the normal feel or
sparkle to the water, even though the key water balance measurements are
all within the proper parameters. See pages 42-43 for additional information.

ELITE SERIES
Table of Contents
1.0 Important Spa Owner Information............................................ 1
2.0 FCC Notice.................................................................................. 1
3.0 Important Safety Instructions for all Spa Owners .................. 2
3.1 Entrapment Risk .......................................................................... 6
3.2 Hyperthermia ............................................................................... 7
3.3 Important Additional CSA Safety Instructions (Canada Only)...... 8
3.4 General Electrical Safety Instructions.......................................... 8
4.0 Choosing A Location ................................................................. 9
4.1 Outdoor Location ......................................................................... 9
4.2 Indoor Location .......................................................................... 10
5.0 Power Requirements ............................................................... 11
5.1 North American 60 Hz Power Options ....................................... 12
5.2 Export 50 Hz Power Options...................................................... 12
6.0 Electrical Wiring Instructions ................................................. 13
7.0 Spa Fill Up Procedure.............................................................. 15
8.0 Control Functions.................................................................... 21
8.1 Control Panel ............................................................................. 21
8.2 Victoria Spa Features ................................................................ 22
8.3 Victoria Air Controls Diagram..................................................... 23
8.4 Victoria Massage/Waterfall Selector Diagram............................ 24
8.5 Constance Spa Features ........................................................... 25
8.6 Constance Air Controls Diagram................................................ 26
8.7 Constance Massage/Waterfall Selector Diagram ...................... 27
9.0 Operating Instructions ............................................................ 28
9.1 Setting Water Temperature ....................................................... 28
9.2 Activate Jets Pumps .................................................................. 29
9.3 Selecting Desired Massage Action ............................................ 29
9.4 Air Controls ................................................................................ 29
9.5 Multi-Colored LED Light Operation............................................ 29
9.6 Exterior Lights............................................................................ 30
9.7 Adjusting Fluidix Nex, Intelli-Jets, Reex and ST Jets............... 31
9.8 Waterfall Operation .................................................................... 31
9.9 Optional Audio System............................................................... 31
10.0 Automatic Filtration Cycles .................................................... 32
10.1 Standard Filtration/Heating Modes (F0-F3) ............................... 32
10.2 Economy Filtration/Heating Modes (F4-F6)............................... 32
10.3 Lock Modes (L1-L2)................................................................... 32
10.4 Selecting The Filtration/Heating Mode....................................... 33
©Sundance Spas, Inc. All Rights Reserved

ELITE SERIES
11.0 Spa Maintenance...................................................................... 35
11.1 Cleaning The Filter..................................................................... 35
11.2 Draining And Relling................................................................. 37
11.3 Pillow Care................................................................................. 38
11.4 Cleaning The Spa Interior.......................................................... 39
11.5 Maintaining the Cover................................................................ 39
11.6 Maintaining The Synthetic Cabinet ............................................ 40
11.7 Winterizing ................................................................................. 40
11.8 Restarting Your Spa in Cold Weather ........................................ 41
11.9 Top Rail Care And Maintenance ................................................ 41
12.0 Water Quality Maintenance ..................................................... 42
12.1 pH Control.................................................................................. 42
12.2 Sanitizing ................................................................................... 43
12.3 CD Ozone Water Maintenance System ..................................... 43
13.0 Error Conditions/Error Messages .......................................... 44
13.1 Summer Logic............................................................................ 44
13.2 Overheat Condition.................................................................... 44
13.3 Panel displays SN1.................................................................... 44
13.4 Panel displays SN2.................................................................... 45
13.5 Panel displays FL1 or FL2 ......................................................... 45
13.6 Panel displays COL ................................................................... 45
13.7 Panel displays ICE..................................................................... 45
13.8 Panel displays - - - .................................................................... 46
14.0 Troubleshooting Procedures .................................................. 46
14.1 None of the Components Operate (e.g. Pump, Light) ............... 46
14.2 Pump Does Not Operate but Light Does ................................... 46
14.3 Poor Jet Action........................................................................... 47
14.4 Water is Too Hot......................................................................... 47
14.5 No Heat...................................................................................... 47
15.0 North American Circuit Diagram ............................................ 48
16.0 Export Circuit Diagram............................................................ 49
17.0 Optional Stereo Receiver Functions...................................... 50
17.1 Stereo Receiver Control Functions............................................ 50
17.2 Stereo Audio Receiver Specications ........................................ 58
17.3 CD/MP3/WMA folder/le hierarchy ............................................ 59
17.4 Stereo Audio Receiver Troubleshooting..................................... 61
17.5 Standard Wireless Remote Control Functions........................... 62
17.6 iPod®/MP3 Player Connection .................................................. 64
17.7 Wireless Remote Battery Replacement Procedure ................... 65

Page 1
ELITE SERIES
1.0 Important Spa Owner Information
Your new Sundance®Spa is constructed to the highest standards
and is capable of providing many years of trouble-free use. However,
because heat retentive materials are utilized to insulate the spa for
efficient operation, an uncovered acrylic spa surface and wall fittings
directly exposed to sunlight and high temperatures for an extended
period are subject to permanent damage or discoloration. Damage
caused by exposing the spa to this abuse is not covered under warranty.
We recommend that you always keep the spa full of water when it is
exposed to direct sunlight and that you keep the insulating cover in
place at all times when the spa is not in use. Read and carefully follow
the requirements for your spa’s support base found in Section 4.0 titled,
“Choosing a Location” (Page 9).
We constantly strive to offer the finest spas available, therefore
modifications and enhancements may be made which affect the
specifications, illustrations and/or instructions contained herein.
2.0 FCC Notice
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
1. Rearrange or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from the
circuit connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party
responsible for FCC compliance could void the user’s authority to
operate this equipment.

Page 2
ELITE SERIES
3.0 Important Safety Instructions for all Spa Owners
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY!
This spa was manufactured to meet the standards and specications
outlined in the “Virginia Graeme Baker Pool and Spa Safety Act” (VGB
Safety Act). When installing and using this spa, basic safety precautions
should always be followed, including:
1. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Extreme caution must be exercised to prevent unauthorized access by •
children.
To avoid accidents, ensure that children do not use this spa unless•
supervised at all times. Adult supervision is a critical safety factor in
preventing children from drowning.
Use the straps and clip tie downs to secure the spa cover when not in •
use. This will help discourage unsupervised children from entering the
spa. Keep the spa cover secure in high-wind conditions.
There is no representation that the cover, clip tie-downs, or actual locks •
will prevent access to the spa.
2. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Keep hair, loose articles of clothing or hanging jewelry away from suction•
ttings, rotating jets or other moving components to avoid entrapment
that could lead to drowning or severe injury.
Never use the spa unless all suction guards, lter, lter lid, or skimmer •
assembly are installed to prevent body and/or hair entrapment.
Never operate or use the spa if the lter, lter lid, or skimmer assembly •
are broken or any part of the skimmer assembly is missing. Please
contact your dealer or nearest service center for service.
The suction ttings and suction covers in this spa are sized to match the •
specic water ow created by the pump(s). If it is necessary to replace
the suction ttings, suction covers or pump(s), be sure that the ow rates
are compatible and are in compliance with the VGB Safety Act.
Never replace a suction tting or suction cover with one rated less than •
the ow rate marked on the original suction tting. Using improper suction
ttings or suction covers can create a body or hair suction entrapment
hazard that may lead to drowning or severe injury.
3. !DANGER: RISK OF SEVERE INJURY FROM ELECTRIC
SHOCK OR DEATH FROM ELECTROCUTION!
Install the spa at least 5 feet (1.5m), from all metal surfaces. As an•
alternative, a spa may be installed within 5 feet of metal surfaces if each
metal surface is permanently connected (bonded) by a minimum No. 8
AWG (8.4 mm²) solid copper conductor attached to the wire connector on
the grounding lug, inside the equipment compartment on the equipment
box.

Page 3
ELITE SERIES
A grounding wire connector is provided on this unit to connect a•
minimum No. 8 AWG (8.4 mm²) solid copper conductor between this
unit and any metal equipment, metal enclosures of electrical equipment,
metal water pipe, or conduit within 5 feet (1.5m) of the unit.
Never permit any electrical appliance, such as a light, telephone, radio,•
television, etc. within 5 feet (1.5m) of a spa unless such appliances are
built-in by the manufacturer.
Never bring any electrical appliances into or near the spa.•
Never operate any electrical appliances from inside the spa or when you•
are wet.
The electrical supply for this product must include a suitably rated switch•
or circuit breaker to open all ungrounded supply conductors to comply
with section 422-20 of the National Electrical Code/USA, ANSI/NFPA 70.
The disconnecting means must be readily accessible and visible to the
spa occupant but installed at least 5 feet (1.5m), from the spa.
The electrical circuit supplied for the hot tub must include a suitable•
ground fault circuit interrupter (GFCI) as required by NEC Article 680-42.
4. !WARNING: RISK OF SEVERE INJURY OR DEATH!
Extreme caution must be exercised to prevent diving or jumping into•
the spa or slipping and falling, which could result in unconsciousness,
drowning, or serious injury. Remember that wet surfaces can be very
slippery.
Never stand, walk or sit on the top railing of the spa.•
5. !WARNING: RISK OF HYPERTHERMIA (OVER-HEATING)
CAUSING SEVERE INJURY, BURNS, WELTS OR DEATH!
Water temperature in excess of 104°F (40°F) may be injurious to your •
health.
Refer to section 3.2 Hyperthermia for specic causes and symptoms of •
this condition.
The water in the spa should never exceed 104°F (40°C). Water •
temperatures between 100°F (38°C) and 104°F (40°C) are considered
safe for a healthy adult.
Lower water temperatures are recommended for young children •
(children are especially sensitive to hot water) and when spa use may
exceed 10 minutes.
The Consumer Products Safety Commission/USA has stated that the •
water temperature in a spa should not exceed 104°F (40°C).
Always test the spa water temperature before entering the spa. The user•
should measure the water temperature with an accurate thermometer
since the tolerance of water temperature-regulating devices may vary as
much as +/- 5°F (2°C).

Page 4
ELITE SERIES
6. !WARNING: RISK OF SEVERE INJURY OR DEATH!
Since excessive water temperatures have a high potential for causing•
fetal damage during the early months of pregnancy, if pregnant or
possibly pregnant, consult your physician before using a spa.
Pregnant or possibly pregnant women should limit spa water •
temperatures to 100°F (38°C).
Persons suffering from obesity or a medical history of heart disease, low •
or high blood pressure, circulatory system problems, diabetes, infectious
diseases or immune deciency syndromes should consult a physician
before using a spa.
If you experience breathing difculties in association with using or •
operating your spa, discontinue use and consult your physician.
Persons using medication should consult a physician before using a spa •
since some medication may induce drowsiness, while other medication
may affect heart rate, blood pressure, and circulation.
Persons suffering from any condition requiring medical treatment, the •
elderly, or infants should consult with a physician before using a spa.
The use of alcohol, drugs, or medication before or during spa use may•
lead to unconsciousness with the possibility of drowning.
7. !WARNING: RISK OF SEVERE INJURY OR DEATH!
Prolonged immersion in a spa may be injurious to your health.•
Observe a reasonable time limit when using the spa. Exposures at•
higher temperatures can cause high body temperature (over-heating).
Symptoms may include dizziness, nausea, fainting, drowsiness, and
reduced awareness. These effects could possibly result in drowning or
serious injury.
Never use a spa immediately following strenuous exercise. Enter and•
exit the spa slowly. Wet surfaces can be slippery.
8. !WARNING: TO DECREASE RISK OF INFECTION OR
DISEASE!
To reduce the risk of • contracting a waterborne illness (e.g. an infection,
bacteria or virus) and/or respiratory ailments , maintain water chemis-
try within the parameters listed on the inside cover of this manual and
consult with a licensed engineer regarding proper ventilation if installed
indoors or in an enclosed area.
People with infectious diseases should not use a spa to avoid water •
contamination, which could result in spreading infections to others.
Always shower before and after using your spa. Maintain water •
chemistry in accordance with manufacturer’s instructions. Failure to
do so may result in contracting a waterborne illness (e.g. an infection,
bacteria or virus).

Page 5
ELITE SERIES
9. !WARNING: In addition to maintenance of lters and water
chemistry, proper ventilation is recommended to reduce the risk of
contracting a waterborne illness (e.g. an infection, bacteria or virus)
and/or respiratory ailments that could be present in the air or water.
Consult a licensed architect or building contractor to determine your
specic needs if installing your hot tub indoors.
10. CAUTION: TO DECREASE RISK OF PRODUCT DAMAGE.
Maintain water chemistry in accordance with manufacturer’s instructions.•
Proper chemical maintenance of spa water is necessary to maintain safe •
water and prevent possible damage to spa components.
11. NOTE:
This spa is not intended nor designed to be used in a commercial or•
public application. The spa buyer shall determine whether there are any
code restrictions on the use or installation of this spa since local code
requirements vary from one locality to another.
Hot Tub Safety Literature
To ensure you have a safe and enjoyable hot tub experience,
learn all you can about hot tub safety and emergency procedures.
Especially useful are the brochures listed below:
Children Aren’t Waterproof•
• Pool and Spa Emergency Procedures For Infants and Children
• Layers of Protection
• The Sensible Way to Enjoy Your Spa or Hot Tub
The Association of Pool and Spa Professionals publishes these
brochures. To acquire a brochure:
• Ask your hot tub dealer (they may have copies)
• Go to http://www.apsp.org
• Conduct your own search on the internet
• Write to the following address:
The Association of Pool and Spa Professionals
2111 Eisenhower Avenue
Alexandria VA 22314
703.838.0083

Page 6
ELITE SERIES
3.1 Entrapment Risk
The Consumer Products Safety Commission/USA has reported that
users of pools and spas have become entrapped (stuck) to drain and/or
suction ttings causing death, drowning, or serious injury (see diagram
below). This spa was manufactured to meet the standards and specica-
tions outlined in the “Virginia Graeme Baker Pool and Spa Safety Act”
(VGB Safety Act). Entrapment risk can be minimized if proper precau-
tions are taken.
DANGER: RISK OF PERSONAL INJURY OR DEATH!
Never operate the spa if a suction tting, suction cover, lter,
lter lid or skimmer assembly are broken, damaged or missing.
!
1. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Hair entrapment: May occur if hair is entangled, knotted or snagged
in a drain suction or skimmer assembly. This has been reported in
persons who when submerge themselves underwater, allowing hair
to come close and/or within the reach of the suction ttings, suction
covers or skimmer assembly.
Keep hair away from suction ttings, suction covers, lter, lter lid or •
skimmer assembly.
Children are at risk for hair entrapment if swimming under water.•
Never allow children to play or get near the suction ttings, suction •
covers, lter, lter lid or skimmer assembly.
2. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Limb entrapment: May occur when a limb becomes entrapped,
inserted or sucked into a suction or outlet opening.
Always keep suction ttings, suction covers, lter, lter lid or skimmer •
assembly in place when operating to avoid limb entrapment.
Never allow children to play or get near the suction ttings, suction •
covers, lter, lter lid or skimmer assembly.
Suction Fittings,
Suction Covers
(locations vary
by models)
Filter, Filter
Lid, Skimmer
Assembly
(location and
style vary by
models)

Page 7
ELITE SERIES
3. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Body entrapment: May occur when part of the torso becomes
entrapped, inserted or sucked into a suction or outlet opening.
Never allow children to play or get near the suction ttings, suction •
covers, lter, lter lid or skimmer assembly.
4. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Evisceration (disembowelment) entrapment: May occur when the
buttocks becomes entrapped, inserted or sucked into a suction or
outlet opening.
Never sit on suction ttings, suction covers, lter, lter lid or skimmer •
assembly.
Never allow children to play or get near the suction ttings, suction •
covers, lter, lter lid or skimmer assembly.
5. !DANGER: RISK OF SEVERE INJURY OR DROWNING!
Mechanical entrapment: May occur when jewelry, swimsuit, or
hair accessories become entangled, knotted or snagged in a drain
suction or skimmer assembly.
Never allow your jewelry, swimsuit, or hair accessories to come•
close to the suction ttings, suction covers or skimmer assembly.
Never allow children to play or get near the suction ttings, suction •
covers, lter, lter lid or skimmer assembly.
3.2 Hyperthermia
Prolonged immersion in hot water may induce hyperthermia (over-
heating). The use of alcohol or drugs can greatly increase the risk of
fatal hyperthermia in spas. A description of the causes, symptoms, and
effects of hyperthermia are as follows:
Hyperthermia occurs when the internal temperature of the body reaches
a level several degrees above the normal body temperature of 98.6°F
(37°C). The symptoms of hyperthermia include drowsiness, lethargy
(fatigue), and an increase in the internal temperature of the body (feeling
of being too hot). The effects of hyperthermia include:
• Unawareness of impending hazard;
• Failure to perceive heat;
• Failure to recognize the need to exit spa;
• Physical inability to exit spa;
• Fetal damage in pregnant women; and
Unconsciousness and DANGER of drowning.•
A Warning Sign is provided in your warranty packet. Please install at
a location near your spa, where it is visible to users of the spa. For
additional or replacement Warning Signs please contact your local
Sundance spas dealer and reference item number #6530-082.

Page 8
ELITE SERIES
3.3 Important Additional CSA Safety Instructions (Canada Only)
When using this electrical equipment, basic safety precautions should
always be followed, including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. A green colored terminal or a terminal marked G, Gr, Ground,
Grounding or the symbol*is located inside the supply terminal box
or compartment. To reduce the risk of electric shock, this terminal must
be connected to the grounding means provided in the electric supply
service panel with a continuous copper wire equivalent in size to the
circuit conductors that supply this equipment (*IEC Publication 417,
Symbol 5019).
3. At least two lugs marked “Bonding Lugs” are provided on the external
surface or on the inside of the supply terminal box/compartment. To
reduce the risk of electric shock, connect the local common bonding
grid in the area of the spa to these terminals with an insulated or bare
copper conductor not smaller than No. 6 AWG (10 mm²).
4. All eld-installed metal components such as rails, ladders, drains
or other similar hardware within 10 feet (3m) of the spa shall be
bonded to the equipment grounding buss with copper conductors not
smaller than No. 6 AWG (10 mm²).
5. SAVE THESE INSTRUCTIONS.
3.4 General Electrical Safety Instructions
Your new Sundance® Spa is equipped with a "state-of-the-art"
equipment system. It contains the most advanced safety and self-
protective equipment in the industry. Nonetheless, this spa must be
installed properly to ensure dependable usage. Please contact your
local Sundance dealer or local building department should you have any
questions regarding your installation.
Proper grounding is extremely important. Sundance spas are equipped
with a current collector system. A pressure wire connector is provided
on the surface of the control box, located outside the equipment door
(Figure B, page 14) to permit connection of a bonding wire between
this point and any ground metal equipment, metal water pipe or conduit
within 5 feet (1.5m) of the spa, or copper clad grounding rod buried
within 5 feet (1.5m) of the spa. Bonding wire must be at least No. 8 AWG
(8.4 mm²) solid copper wire. This is a most important safety assurance
feature.
Before installing your spa, check with your local building department to
ensure installation conforms to local building codes.

Page 9
ELITE SERIES
4.0 Choosing A Location
IMPORTANT: Because of the combined weight of the spa, water
and users, it is extremely important that the base upon which the
spa rests be smooth, at, level and capable of uniformly supporting
this weight, without shifting or settling, for the entire time the spa is
in place. If the spa is placed on a surface which does not meet these
requirements, damage to the skirt and/or the spa shell may result.
Damage caused by improper support is not covered under warranty.
It is the responsibility of the spa owner to assure the integrity of the
support over time. We recommend a poured, reinforced concrete
slab with a minimum thickness of 4 inches (10 cm). Wood decking
is also acceptable provided it is constructed so that it meets the
requirements outlined above.
WARNING: For spas that are to rest on balconies,
roofs or other platforms not specically tied into main
structural support, consult a professional Structural
Engineer with experience in this type of application.
!
The spa must be installed in such a manner as to provide drainage away
from it. Placing the spa in a depression without provisions for proper
drainage could allow rain, overow and other casual water to ood the
equipment and create a wet condition in which it would sit in. For spas
which will be recessed into a oor or deck, install so as to permit access
to the equipment, either from above or below, for servicing. Make certain
that there are no obstructions which would prevent removal of all side
cabinet panels and access to the jets components, especially on the
side with the equipment bay doors.
CAUTION: If the spa is indoors or located in an enclosed area,
proper ventilation should be discussed with an Engineer or authority
competent enough to understand the necessary provisions needed
to vent moist or heated air and air associated with chemical odors
outdoors. When the spa is in use considerable amounts of
moisture will escape potentially causing mold and mildew. This
can cause health risk. Over time, this can damage certain surfaces,
surroundings, and equipment.
4.1 Outdoor Location
In selecting the ideal outdoor location for your spa, we suggest that you
take into consideration the following:
The proximity to changing area and shelter (especially in regions•
subject to cold weather).
!

Page 10
ELITE SERIES
The pathway to and from your spa (this should be free of debris so•
that dirt and leaves are not easily tracked into the spa).
The closeness to trees and shrubbery (remember that leaves and•
birds could create extra work in keeping the spa clean).
A sheltered environment (less wind and weather exposure can result•
in lowered operation and maintenance costs).
The overall enhancement of your environment. It is preferable not to•
place the spa under an unguttered roof overhang since run-off water
will shorten the life expectancy of the spa cover.
For spas that are to rest on balconies, roofs or other platforms not •
specically tied into main structural support, consult a professional
Structural Engineer with experience in this type of application.
4.2 Indoor Location
For indoor installations many factors need to be considered before
installing a spa indoors:
WARNING: In addition to maintenance of lters and water
chemistry, proper ventilation is recommended to reduce the
risk of contracting a waterborne illness (e.g. an infection,
bacteria or virus) and/or respiratory ailments that could be
present in the air or water. Consult a licensed architect or
building contractor to determine your specic needs if
installing your hot tub indoors.
!
PROPER FOUNDATION:• Consult a Structural Engineer when
considering a foundation that will adequately support the spa
the entire time it is in place. Proper support is critical especially if
the spa is to rest on a second story or higher. For spas that are to
rest on balconies, roofs or other platforms not specifically tied into the
main structural support, you should consult a professional Structural
Engineer with experience in this type of application.
PROPER DRAINAGE:• It is extremely important to have in place
measures to sufficiently handle excessive water spillage. Be
sure the flooring in which the spa rests on has adequate drainage
and can handle draining of the entire contents of the spa. Be sure
to make provisions for ceilings or any other structures that may be
below the spas installation. Areas around your spa can become wet
or moist so all flooring and subsequent furniture, walls and adjacent
structures should be able to withstand or resist water and moisture.

Page 11
ELITE SERIES
PROPER VENTILATION:• Proper ventilation should be discussed
with an Engineer or authority competent enough to understand
the necessary provisions needed to vent moist or heated air and
air associated with chemical odors outdoors. When the spa is in
use considerable amounts of moisture will escape potentially causing
mold and mildew, over time this can damage certain surfaces and or
surroundings.
SUFFICIENT ACCESS:• In the unlikely event that you should ever
need to access or gain entry to any portion of the spa for servicing,
it is highly recommended that you plan your indoor installation to
provide full access to the entire spa.
WARRANTY:• Damage caused by not following these guidelines
or any improper installation not in accordance with local codes or
authorities is not covered under the spas warranty. Please consult
your local state or city building ordinances.
5.0 Power Requirements
Sundance®spas are designed to provide optimum
performance and exibility of use when connected to the
maximum electrical service listed on page 12. If you prefer,
your qualified technician can perform a minor circuit board
modication to allow your spa to accept an electrical service other than
the factory setting.
Note: Refer to pages 48-49 for circuit board conguration details or
contact your authorized Sundance dealer.

Page 12
ELITE SERIES
5.1 North American 60 Hz Power Options
North American 2-Pump Models (60 Hz)
240V/40A* 240V/50A** 240V/60A***
Voltage: 240 VAC 240 VAC 240 VAC
# of Wires: 3 3 3
Frequency: 60 Hz 60 Hz 60 Hz
Current Draw: 26A 36A 45A
Circuit Breaker: 40A*, 2-Pole 50A**, 2-Pole 60A***, 2-Pole
* In 40A conguration, the heater will not operate while either jets pump is
running in high speed. Note: pump 2 runs only in high speed.
** In 50A conguration, the heater will not operate while both jets pumps
are running in high speed. Note: pump 2 runs only in high speed. This
is the factory setting.
*** In 60A conguration, the heater will operate while both jets pumps are
running in high speed. Note: pump 2 runs only in high speed.
5.2 Export 50 Hz Power Options
Export 2-Pump Models (50 Hz)
230V/20A* 230V/30A** 230V/40A***
Voltage: 230 VAC 230 VAC 230 VAC
# of Wires: 3 3 3
Frequency: 50 Hz 50 Hz 50 Hz
Current Draw: 15A 23A 29A
Circuit Breaker: 20A* 30A** 40A***
* In 20A conguration, the heater will not operate while either jets pump is
running in high speed. This is the factory setting. Note: pump 2 runs
only in high speed.
** In 30A conguration, the heater will not operate while both jets pumps
are running in high speed. Note: pump 2 runs only in high speed.
*** In 40A conguration, the heater will operate while both jets pump are
running in high speed. Note: pump 2 runs only in high speed.

Page 13
ELITE SERIES
6.0 Electrical Wiring Instructions
IMPORTANT NOTICE: The electrical wiring of this spa
must meet the requirements of the National Electrical
Code (NEC) and any applicable state or local codes.
The electrical circuit must be installed by a qualied
electrician and approved by a local building/electrical inspection
authority.
1. Dedicated 240V Power Models: These spas must be permanently
connected (hard-wired) to the power supply. No plug-in connections
or extension cords are to be used in conjunction with the
operation of these spas. Supplying power to these spas which is not in
accordance with these instructions will void both the independent testing
agency listing and the manufacturer’s warranty.
2. The power supplied to this spa must be a dedicated circuit with no other
appliances or lights sharing the power provided by the circuit.
3. To determine the current, voltage and wire size required, refer to Section
5.0 “Power Requirements” (page 12).
Wire size must be appropriate per NEC and/or local codes.•
We recommend type THHN wire.•
All wiring must be copper to ensure proper connections.• Do not use
aluminum wire.
When using wire larger than #6 (10 mm²), add a junction box near the •
spa and reduce to short lengths of #8 (8.4 mm²) wire to connect to the
spa.
4. The electrical supply for this product must include a suitably rated switch
or circuit breaker to open all ungrounded supply conductors to comply
with Section 422-20 of the National Electrical Code, ANSI/NFPA 70. The
disconnecting means must be readily accessible and visible to the hot
tub’s occupant but installed at least 5 feet (1.5m) from the hot tub.
5. The electrical circuit supplied for the spa must include a suitable ground
fault circuit interrupter (GFCI) as required by NEC Article 680-42.
6. To gain access to the spa’s power terminal block, remove the screws
securing the cabinet panel on the side of the spa under the controls.
Then remove the four control box door screws and door (Figures A-B).
7. Select the power supply inlet you want to use (Figure A, page 14). Feed
power cable to control box, then install it through the large opening
provided in the bottom side of the box.
8. Connect wires, color to color, on terminal blocks TB1 and TB3 (Figures
C-D, page 15). TIGHTEN SECURELY! All wires must be hooked up
securely or damage could result.
9. Install control box door and screws and reinstall the cabinet panels.

Page 14
ELITE SERIES
Figure A
Equipment Area
4
37
1
2
2
8
10
6
6
5
Flow
9
11
Circulation pump
behind load box
1. Control Box
2. Power Supply Entrace(s)
3. 2-Speed Pump #1
4. Heater
5. Spa Drain Valve
6. Pump Drain Plugs
7. 1-Speed Pump #2
8. Ozone injector
9. Optional CD Ozonator Injector
Connection (Purchased separately
on North American models; standard
equipment on export models)
10. Control Panel
11. Circulation Pump
1. Terminal Block
2. Bonding Lug
3. Grounding Terminal
TB1
3
2
1
Figure B
Control Box

Page 15
ELITE SERIES
7.0 Spa Fill Up Procedure
For best results, read each step in its entirety before proceeding with that
step.
1. Prepare The Spa For Filling
Clear all debris from the spa. (Although the spa shell has been•
polished at the factory, you may want to treat it with a specially
formulated spa cleaner.) Consult your dealer for additional
information prior to lling spa.
Remove lter lid (page • 22 and 25), then remove lter cartridge
from lter bucket as illustrated in Section 11.1 (pages 35-36).
2. Fill Spa
Place the en• d of your garden hose into the empty lter bucket.
CAUTION: TO DECREASE BUILD UP ON COMPONENTS AND
MINIMIZE ACRYLIC DAMAGE.
Never ll with water from a water softener. If your water is extremely
“hard”, it is preferable to ll half-way with hard water and the rest of
the way with softened water. Water that is too soft can be corrosive
to metal components.
!
• WARNING: TO DECREASE RISK OF INFECTION OR
DISEASE.
Fill hot tub with clean tap water from garden hose, to reduce risk of
contracting a waterborne illness (e.g. an infection, bacteria or virus)
and/or respiratory ailments . Fill until water covers all jets but does not
touch the bottom of the lowest headrest. (DO NOT OVERFILL!)

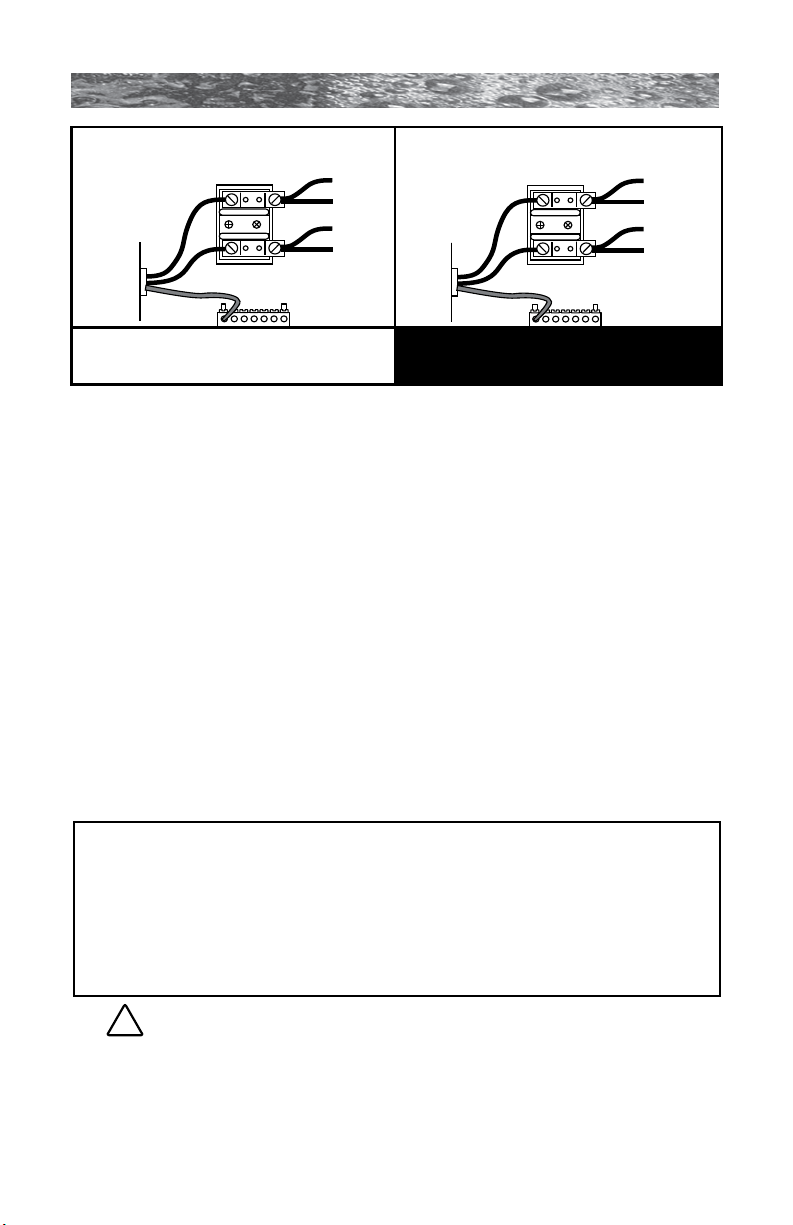

BLUE
BLUE
BROWN
BROWN
1
2
North American Models:
240 VAC, 3-Wire Connection (60 Hz)
Figure-D
TB1
All Export Models:
230 VAC, 3-Wire Connection (50 Hz)
to Circuit
Board
BLK
RED
Power In
RED
RED
BLK
BLK
1
2
Figure-C
TB1
to Circuit
Board
Power In
Green
TB3
Green
TB3

Page 16
ELITE SERIES
IMPORTANT: Always ll your spa through the lter bucket after
draining. Failure to do so may cause air to be trapped in either
pump, preventing the pump from circulating water. Remove the hose
and replace the lter cartridge as illustrated in Section 11.1 (pages
35-36).
3. Turn On Power
Turn on power to spa at the home’s circuit breaker to start boot up
sequence (Section 9.0, page 28). The heater and lter/circulation
pump will automatically activate after several seconds. If the control
panel LED ashes water temperature and “COOL” or “ICE” this is
normal. Refer to page 45 for additional information.
4. Activate Jets Pumps
Turn on all jet(s) pumps to ensure proper mixing when
adding start-up chemical in step 5.
5. Add Start-Up Chemicals
Add the spa water chemicals as recommended by your Sundance
dealer. See Section titled “Water Quality Maintenance” (page 42) for
general guidance.
WARNING: RISK OF POISONING OR DEATH.
Never leave chemicals opened and accessible to anyone.
Use chemicals according to the vendors instructions.
Always store chemicals in a safe and/or locked location.
Keep away from and out of reach of children.
!
6. Establish A Stable Sanitizer Reading
Establish a stable sanitizer reading between 3.0-4.0 ppm chlorine
or 2.0-4.0 ppm bromine. To ensure healthy water conditions, always
maintain a constant sanitizer reading within the levels recommended
by the Association of Pool and Spa Professionals/USA printed on the
inside cover of this manual. If sanitizer levels cannot be stabilized,
perform the decontamination procedure steps 9-15 on the following
page.
Note: The “decontamination procedure” steps 9-15 should also be used
after the spa has been “Winterized” (Section 11.7, page 40) or has been
sitting without power for an extended period.
2
1
