Sundance Spas 850 Series Operating instructions

ADDENDUM - All Export 880/850 Hot Tub Models
880/850 Export 50Hz Owner’s Manual Update, #6530-317 Rev-A
The following changes apply to the owners manual identified above:
• Fluidix Intelli-Jet Operation Details (page 1)
• New Change Filter Reminder Feature (page 2)
• Revised Hot Tub Gravity Drain Operation Procedure (page 2)
• Revised 2005+ Cameo Hot Tub “Top View” Figure-F (page 3)
• Revised Light Button Operation Instructions (page 4)
• New AquaTerrace Light Controller Operation for 2005 Cameo &
Optima (page 4)
• New AquaTerrace Waterfall Control Valve Operation for 2005+
Cameo & Optima (page 5)
• Revised Filter Cartridge Replacement Instructions for 2005+
Cameo & Optima (page 6)
Fluidix Intelli-Jet Operation Details
The Fluidix Intelli-Jets in your new spa offer the advantage of no
moving parts and zero maintenance. They can also be adjusted for
a high and low impact massage, providing the ultimate massage!
Each jet has it’s own water volume and directional or oscillating flow
adjustment. The jet’s outer dial controls water volume (flow rate)
and it’s center “mode disk” selects either an oscillating or directional
flow massage.
Fluidix Intelli-Jet Adjustment
1. Turn outer dial (A) clockwise to increase water
volume. Turn outer dial counterclockwise to
decrease water volume or to shut jet off.
2. Rotate center “mode disk” (B) clockwise to
select a non-oscillating water stream or turn
counterclockwise to select an oscillating stream
at any angle.
3. For a high impact massage, turn corresponding
air control knob clockwise. For low impact
massage, turn corresponding air control knob
counterclockwise.
Note: Always keep at least 6 adjustable jets open at
all times on each jet system.
AB
Air
Control Knob
New Fluidix
Intelli-Jet
Page 1

Programming The Change Filter Reminder Display
Your new spa may be equipped with a programmable
“Change Filter” reminder that appears on the control
panel display after a specified number of days. It is
designed to remind you to clean and/or replace your filter
cartridge(s) on a regular basis but does not affect spa operation in
any way. This reminder must be reset at each filter cleaning inter-
val. It offers a selectable range from 10-120 days or can be dis-
abled. We recommend an initial setting of 30 days, after which you
can easily determine whether you need to shorten or lengthen its
interval by visually inspecting your filter cartridge. Refer to section
11.1 in the supplied owner’s manual for filter cleaning
recommendations.
Programming Instructions
(1) Press the CYCLE sensor three times. The main display reads
“FIL” indicating the “Change Filter” display program has been
accessed.
(2) Press SELECT sensor once to display currently programmed
duration or days elapsed since last filter cleaning interval.
(3) Press UP or DOWN sensor to change duration as follows:
0 - 10 - 20 - 30 - 40 - 50 - 60 - 70 - 80 - 90 - 100 - 110 - 120 -
OFF
(4) Press DISPLAY sensor once to save changes and return to the
standard water temperature display. Note: If no sensor is
pressed within 30 seconds, the screen will automatically return
to the standard water temperature display.
Hot Tub Gravity Drain Draining Procedure
1. Turn off power to hot tub at breaker.
2. Locate the 3” gray drain valve cap on the left or right side of the
hot tub. Unscrew drain valve cap to expose the underlying male
garden hose fitting. Attach hose to fitting and route opposite end
away from hot tub.
3. Pull outward on garden hose at drain connection (approx. 3/8”)
to open valve and release water. Water drains at approximately
3 gallons per minute.
4. Close drain valve by pushing inward on garden hose at drain
connection until you feel it bottom out, then remove garden hose,
install gray drain cap, and refill spa. Refer to “Start-Up
Instructions” (page 9).
CHANGE
FILTER
Page 2

1. Control Panel
2. Handrails (2 ea.)
3. Light
4. Pillows (3 ea.)
5. Euro Jets (6 ea.)
6. Fluidix Intelli-Jets (8 ea.)
7. Air Controls (5 ea.)
8. Whirlpool Jets (5 ea.)
9. Gravity Drain
10. Massage Selectors (2 ea.)
11. Air Injectors (14 ea.)
12. Footwell Suction Covers (3) And Filters
(Filters “Socks” on Each Suction Cover
Protect Both Diverter Valves From
Debris Entrapment/Damage. Filters

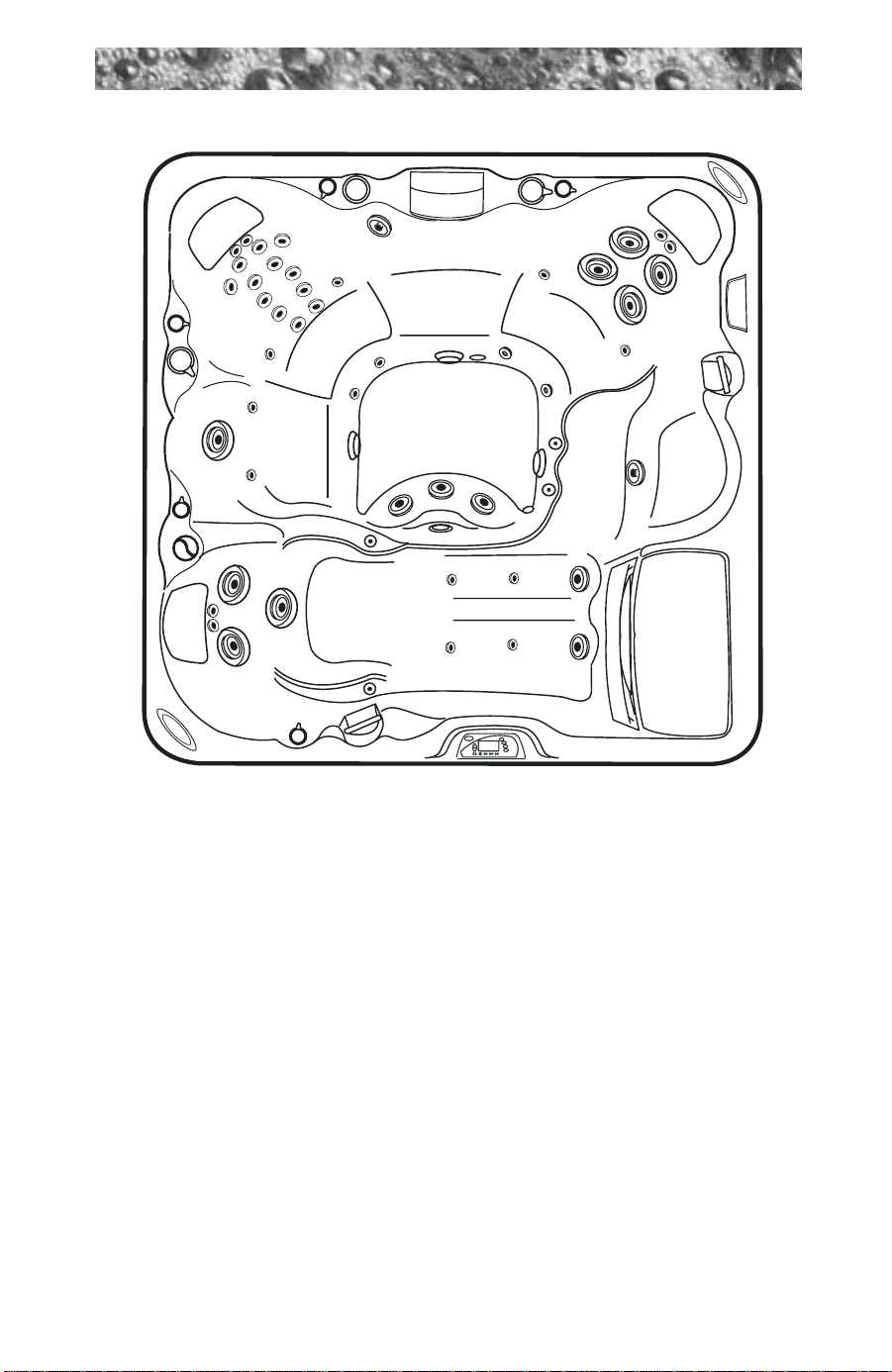

Figure-F, Hot Tub Top View
Require Periodic Cleaning).
13.Accu-Pressure Jets (2 ea.)
14.Weir Gate/Skimmer
15. Filter Lid
16.AquaTerrace Waterfall Control Valve
17.AquaTerrace Waterfall Filtration Return
18. Fluidix ST Jets (12 ea.)
19.AquaTerrace Waterfall
20.AquaTerrace Waterfall Light Control
21. Optional Audio System Speakers (2 ea.)
22. Optional Audio System Receiver
23. Sunscents Dispenser
24. Vortex Jets (2 ea.)
25. Pulsator Jets (2 ea.)
716
19
10 7
44
4
7
10
21
7
14 15
7
122
23
6
8
11
5
5
18
11
11
12
12 17
12
11
5
5
24
6
11
11
20
2
2
88
11
11
13
9
13
3
11
11
11
11
25
25
6
6
5
6
6
11
18 8
1818
18
1818
11
e
e
Select
Cycle
Mode
Display
21
(Location of features varies by model)
Note: 2005+ Cameo Model with Optional Audio System Illustrated. 2005+ Cameo/
Optima models include the new AquaTerrace waterfall control valve #16, waterfall #19,
and light controller #20 as shown. These items are excluded from all other models listed
in this manual. These models utilize item #20 as a remote jets controller.
Page 3

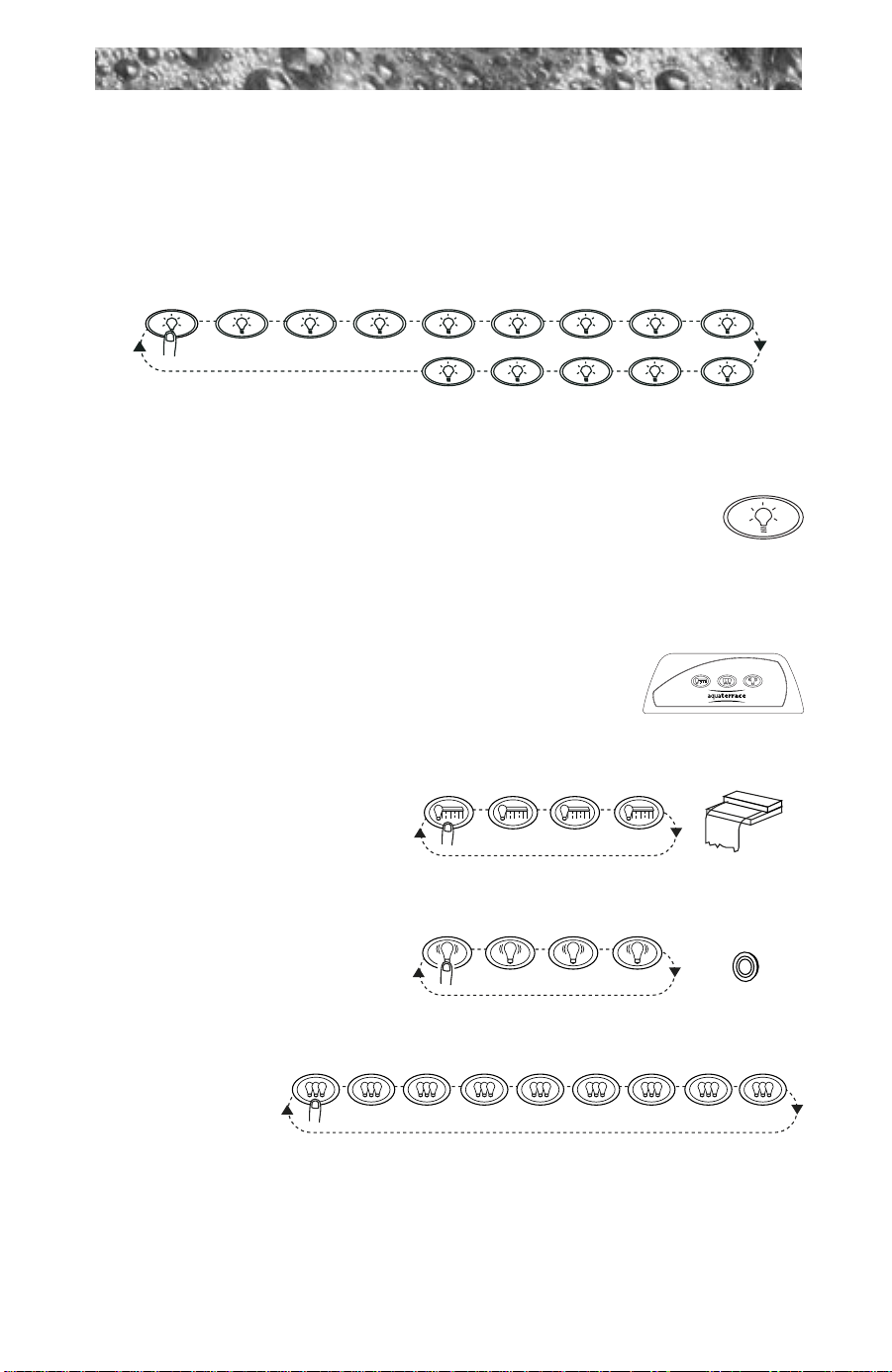

850 Light Operation (2005+ Marin, Altamar, Capri)
The spa light offers 6 constant color variations and a unique random
mode for enhanced spa enjoyment. Press the LIGHT sensor pad once
to turn the spa light on in “Random” mode, then repeatedly press the
sensor pad to turn the light off or to select one of 6 constant colors
illustrated below.
880 Light Operation (2005+ Optima & Cameo)
The LIGHT button activates the footwell lights when pressed.
Note: footwell light color or random mode is selected on the
AquaTerrace control panel. See section 9.3 below for details.
880 AquaTerrace Light Controller (2005+ Optima &
Cameo)
The AquaTerrace light control panel offers a variety of
light settings described below. Note: lights automatically
turn off after 1 hour use.
The left button
activates, dims,
and turns off the
waterfall light(s)
as shown below.
The right button
activates, dims,
and turns off the
footwell light as
shown right.
The center
button selects
random mode,
freeze mode, or
one of 7 constant
colors on the
footwell and
waterfall lights. In random mode, press a second time to freeze random
color or continue pressing for one of 7 constant colors. If you go past your
favorite color, simply continue pressing to restart the color selection
sequence. Note: your color selection is stored in memory and will automat-
ically recall when is the light is cycled on and off.
Right Button Controls The Footwell Light
MED LOW OFFHigh
x1 x2 x3 x4
Footwell
Left Button Controls The Waterfall Light(s)
MED LOW OFFHigh
x1 x2 x3 x4
Waterfall(s)
Center Button Selects Waterfall And Footwell Light Color Mode
Freeze
Color Red Purple Blue Teal Amber
Random
Color
x1 x2 x3 x4 x5 x6 x8
White
x9
Green
x7
Spa Light Sequence
OFF RED OFF
OFF
GREEN
TEAL
OFF BLUE
OFF VIOLET
OFF ORANGE
OFF
RANDOM
Page 4

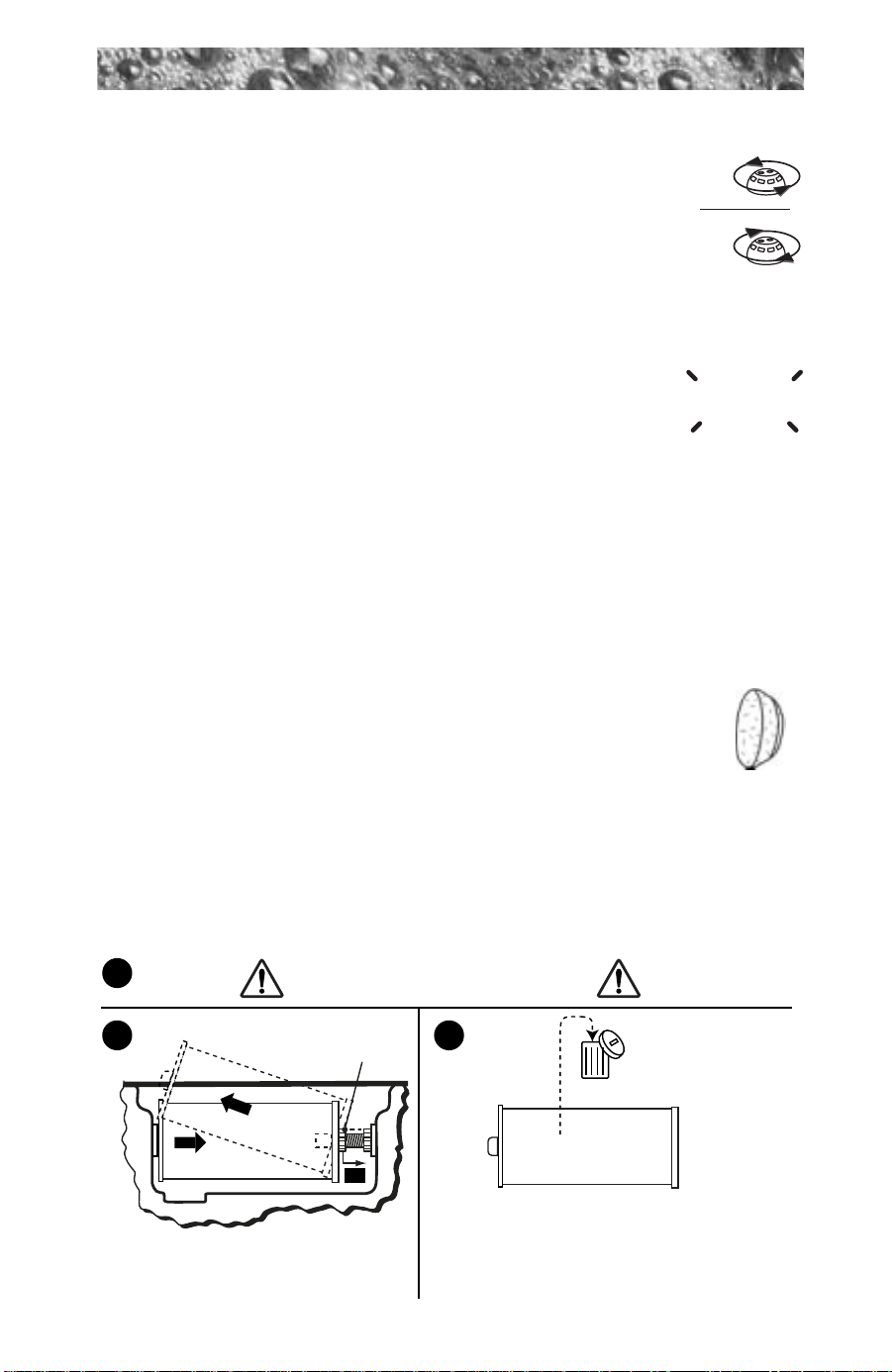

880 Waterfall Control Valve (2005+ Optima & Cameo)
Turn valve counterclockwise to increase waterfall output.
Turn clockwise to decrease or turn off waterfall output.
Note: it takes 4 full revolutions to change the waterfall
from a full off to a full on flow rate.
880 Filter Cartridge Replacement (2005+ Optima &
Cameo)
Aprogrammable “Change Filter” reminder flashes on the
control panel display after a specified number days to remind
you to inspect and/or replace the MicroClean II filter cartridge.
This reminder must be reset at each filter inspection/replace-
ment interval. Refer to page 2 of this addendum sheet for
additional information and programming details.
Your Sundance hot tub is equipped a high-efficiency MicroClean II filter car-
tridge under the filter lid. Debris is filtered by the circulation pump drawing
water through this cartridge 24-hours a day, 7 days a week (unless pro-
grammed otherwise.) To ensure optimum performance, replace this car-
tridge every 6 months or as needed. This filter cannot be cleaned and
reused and MUST be thrown out after use.
All spas also include filters on their footwell suction covers that
prevent debris from entering either jets pump system and related
massage selector valve when running. The suction filters must
remain in place to protect these components from debris entrap-
ment/damage and should be cleaned every 2 months, or when weak jets
pump performance is observed.
ALWAYS TURN POWER TO THE HOT TUB OFF BEFORE REPLACING
THE MICROCLEAN II FILTER CARTRIDGE! To accomplish this, refer to
the following filter replacement procedure:
B
A
C
Replace (throw-away) the MicroClean filter cartridge
every 6 months, or as needed! DO NOT reuse this
cartridge for any reason!
Loosen filter nut (A) to provide clearance,
then remove used MicroClean II filter
cartridge (steps B-C).
TURN POWERTO HOTTUB OFF!
Filter
Nut Replace MicroClean II
cartridge every 6
months, DO NOT
Reuse for any reason!
B
C
A
CHANGE
FILTER
Full
On
Full
OFF
4
x
4x
Page 5

Replacement MicroClean II filter cartridges may be purchased from your
Sundance dealer. An optional pleated filter cartridge is also available from
your Sundance dealer. This filter can be cleaned and reused for up to two
years but does not maintain the same water quality and clarity as the stan-
dard MicroClean II cartridge.
NOTE: nylon suction filters are installed on all footwell pump
intakes. These filters must be cleaned periodically to ensure
optimum jet performance. They are important since they protect
your new spa’s massage selectors and equipment from debris
entrapment damage while either jets pump is running.

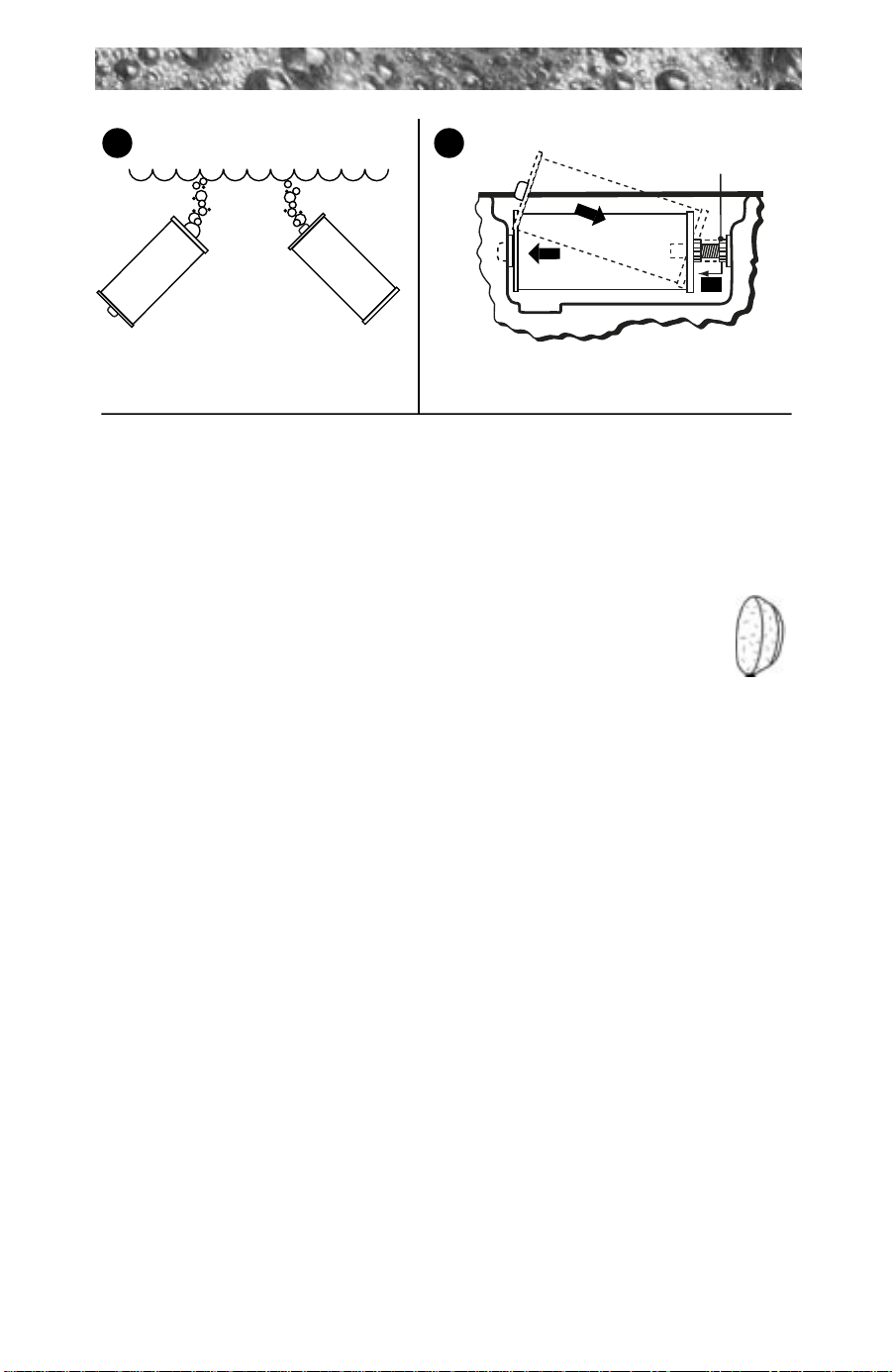

D
Submerge new filter cartridge in spa and tilt
each end upward to remove most of the
air bubbles trapped inside the filter.
E
1. Install new filter cartridge, then tighten filter nut until
it just touches filter face. DO NOT OVERTIGHTEN!
2. Turn power to hot tub back on.
Filter
Nut
Trapped
Air
Bubbles A
B
A
C

850 Export Series
Séries Exportation 850
850er Serie Export
Installation & Owner’s Manual
Instructions en Français
Installations- und Bedienungsanleitung

Table of Contents
1.0 Important Hot Tub Owner Information ..................................1
2.0 Important Safety Instructions...................................................2
3.0 Locating Your Sundance Hot Tub.............................................5
3.1 Outdoor Locations..........................................................................................5
3.2 Indoor Locations..............................................................................................5
4.0 General Electrical Safety Instructions.....................................6
5.0 Electrical Installation Instructions (240V Service) ..............7
6.0 Power Requirements....................................................................8
7.0Start-Up Instructions ...................................................................9
8.0 Operating Instructions...............................................................12
8.1 View....................................................................................................................12
8.2 Light....................................................................................................................12
8.3 Air Injection.....................................................................................................12
8.4 Jets 1.................................................................................................................12
8.5 Jets 2.................................................................................................................13
8.6 Selecting The Desired Massage Action..............................................15
8.7 Adjusting Fluidix Intelli-Jets ......................................................................15
8.8 Air Controls .....................................................................................................16
8.9 Fragrance Dispenser....................................................................................16
8.10 Optional SunSoundTM Audio System ...................................................16
9.0 Automatic Filtration...................................................................23
9.1 Preset Skimming/Heating Cycle............................................................23
9.2 Standard Skimming/Heating Mode .....................................................24
9.3 Economy Skimming/Heating Mode.....................................................24
9.4 Selecting Standard or Economy Skimming/Heating Mode.......24
9.5 Cleanup Cycle ................................................................................................24
10.0 Programming Instructions........................................................25
10.1 Adjusting Time of Day................................................................................25
10.2 Changing The Skimming/Heating Cycle............................................25
10.3 Programming The Change Filter Reminder ......................................26
10.4 Programming The Optional Ozonator Cycle.....................................26
10.5 Locking The Skimming/Heating Cycle ...............................................27
10.6 Panel Lock .......................................................................................................27
10.7 Temperature Setting Lock .........................................................................27
ENGLISH

11.0 Hot Tub Maintenance................................................................28
11.1 Cleaning The Filter.......................................................................................28
11.2 Draining and Refilling .................................................................................29
11.3 Cleaning The Hot Tub Interior.................................................................30
11.4 Pillow Care.......................................................................................................31
11.5 Maintaining The Wood Cabinet..............................................................31
11.6 Maintaining The Optional Synthetic Cabinet ....................................31
11.7 Maintaining The Cover...............................................................................32
11.8 Winterizing.......................................................................................................32
11.9 Restarting your Hot Tub in Cold Weather ........................................33
11.10 Handrail Maintenance...............................................................................33
12.0 Water Quality Maintenance ....................................................34
12.1 pH Control .......................................................................................................34
12.2 Sanitizing..........................................................................................................34
12.3 Other Additives..............................................................................................35
12.4 Optional SunZone™ Water Maintenance System..........................35
13.0 Troubleshooting - Display Messages.....................................35
14.0 Troubleshooting - Procedures..................................................37
15.0 Jumper Configurations/Max Current Chart........................39
16.0 Electrical Wiring Diagram, Export 50Hz ..............................40
Procédure de dépannage standard (Français)..............................41
Deutscher Abschnitt (Deutsch)........................................................87
ENGLISH

1.0 Important Hot Tub Owner Information
Your Sundance hot tub is constructed to the highest standards and is capa-
ble of providing many years of trouble-free use. However, because heat
retentive materials are utilized to insulate the hot tub for efficient operation,
an uncovered hot tub surface directly exposed to sunlight and high tempera-
tures for an extended period is subject to permanent damage. Damage
caused by exposing the hot tub to this abuse is not covered by warranty.
We recommend that you always keep the hot tub full of water when it is
exposed to direct sunlight and that you keep the Sundance insulating cover
in place at all times when the hot tub is not in use. Read and carefully fol-
low the requirements for your hot tub’s support base found in section 3.0
titled, “Locating Your Sundance Hot Tub” (page 5.)
Sundance Spas constantly strives to offer the finest hot tubs available, there-
fore modifications and enhancements may be made which affect the speci-
fications, illustrations and/or instructions contained herein.
FCC Notice
This equipment has been tested and found to comply with the limits for a
Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particu-
lar installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures: l) Rearrange or relocate the receiving
antenna; 2) Increase the separation between the equipment and receiver; 3)
Connect the equipment into an outlet on a circuit different from the circuit
connected; 4) Consult the dealer or an experienced radio/TV technician for
help. (Changes or modifications not expressly approved by the party
responsible for FCC compliance could void the user’s authority to operate
this equipment.)
Page 1
ENGLISH

2.0 Important Safety Instructions
When using this electrical equipment, basic safety precautions should
always be followed, including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS BEFORE OPERATING THE
HOT TUB!
2. DANGER - RISK OF ELECTRICAL SHOCK: Install at least 1.5m, from
all metal surfaces. A hot tub may be installed within 1.5m of metal sur-
faces, if in accordance with the country electrical code.
3. DANGER - RISK OF ELECTRICAL SHOCK: Do not permit any electri-
cal appliance, such as a light, telephone, radio, television, etc. within
1.5m of a hot tub unless such appliances are built-in by the manufac-
turer.
4. CAUTION - The hot tub must be installed in such a manner as to pro-
vide drainage of the electrical equipment compartment.
5. CAUTION - This hot tub must be hard-wired to your household electri-
cal service box only. Do not use an extension cord or any other discon-
nectable power cord. The use of an extension cord or a disconnectable
power cord is highly dangerous and will void all manufacturer war-
ranties!
6. A terminal marked G, Gr, Ground, Grounding or with the
symbol is located inside the supply terminal box or compartment
(Figure-B, Page 7). To reduce the risk of electric shock, connect this ter-
minal or connector to the grounding terminal of your electrical service
or supply panel with a continuous green insulated copper wire equiva-
lent in size to the circuit conductors supplying this equipment, but no
smaller than 10mm2. In addition, a second wire connector is provided
for bonding to local ground points. To reduce the risk of electrical
shock, this connector should be bonded with a 10mm2copper wire to
any metal ladders, water pipes, or other metal objects within 1.5m of
the hot tub.
7. The electrical supply for this product must include a suitably rated
switch or circuit breaker to open all ungrounded supply conductors to
comply with country electrical code.
Page 2
ENGLISH

8. Overflowing or Overfilling: Overfilling can cause the hot tub to siphon
out water through the air venturis. Overfilling problems are not covered
by the warranty.
9. Before entering a hot tub, the user should measure the water tempera-
ture with an accurate thermometer since the tolerance of the water
temperature-regulating device may vary as much as ±3°C.
10.Always enter and exit the hot tub slowly and cautiously. Wet surfaces
will be slippery.
11. Do not use the hot tub while alone.
12 . WARNING - RISK OF CHILD DROWNING: Extreme caution must be
exercised to prevent unauthorized access by children. To avoid acci-
dents, ensure that children cannot use the hot tub unless they are
supervised by an adult at all times.
13. DANGER - To reduce the risk of injury, do not remove any drain suction
gate or cover.
14 .Never use the weir gate for sitting or for resting your feet. It is
designed to float freely.
15 . The water in the hot tub should never exceed 40°C. Water tempera-
tures between 38°C and 40°C are considered safe for a healthy adult.
Lower water temperatures are recommended for extended use (exceed-
ing 10 - 15 minutes) and for young children.
16. Since excessive water temperatures have potential for causing fetal
damage during the early months of pregnancy, pregnant or possibly
pregnant women should limit hot tub or spa water temperatures to a
maximum of 38°C.
17. The use of alcohol, drugs, or medication before or during hot tub use
may lead to unconsciousness with the possibility of drowning.
18.Persons suffering from obesity or with with a medical history of heart
disease, low or high blood pressure, circulatory system problems, or dia-
betes should consult a physician before using a hot tub.
Page 3
ENGLISH

19 .Persons using medication should consult a physician before using a hot
tub since some medications may induce drowsiness while other med-
ications may affect heart rate, blood pressure, and circulation.
20. Long exposures in the hot tub may result in nausea, dizziness or faint-
ing. Observe a reasonable time limit, leave the hot tub, then shower,
cool down, and if you wish, return for another brief stay.
21. Excessive temperatures may cause hyperthermia. The symptoms and
first aid information are as follows:
A. Heat Stroke: The most susceptible people are the very young and
elderly, alcoholics and most people under the
influence of drugs, medication and alcohol.
B. Symptoms: Hyperthermia causes loss of salt, sweating, dizziness,
headache, dryness of mouth and nausea, faintness
and/or unconsciousness, convulsions, flushed
appearance of skin, and rapid pulse and/or weak,
shallow breathing.
C. Treatment: Place the victim on his back, head slightly elevated.
Apply wet cloths or ice packs to the head, wrap the
body in a sheet, pouring on a small amount of water.
Follow with a cool shower or bath. Get medical
attention as soon as possible.
22. It is recommended that the following emergency telephone numbers be
listed at the nearest telephone: physician, hospital, ambulance, and
police.
23. SAVE THESE INSTRUCTIONS!
Page 4
ENGLISH

3.0 Locating Your Sundance Hot Tub
IMPORTANT: Because of the combined weight of the hot tub, water and
users, it is extremely important that the base upon which the hot tub rests be
smooth, flat, level and capable of uniformly supporting this weight, without
shifting or settling, for the entire time the hot tub is in place. If the hot tub is
placed on a surface which does not meet these requirements, damage to the
skirt and/or the hot tub shell may result. Damage caused by improper sup-
port is not covered under the factory warranty. It is the responsibility of the
hot tub owner to assure the integrity of the support at all times.
We recommend a poured, reinforced concrete slab with a minimum thickness
of 10cm. Wood decking is also acceptable provided it is constructed so that
it meets the requirements outlined above.
The hot tub must be installed in such a manner as to provide drainage away
from it. Placing the hot tub in a depression without provisions for proper
drainage could allow rain, overflow and other casual water to flood the equip-
ment and create a wet condition in which it would sit. For hot tubs which will
be recessed into a floor or deck, install so as to permit access to the equip-
ment, either from above or below, for servicing. Make certain that there are
no obstructions which would prevent removal of the cabinet side panels, espe-
cially on the side with the equipment bay doors.
3.1 Outdoor Locations
In selecting the ideal outdoor location for your hot tub, we suggest that you
take into consideration 1) the proximity to changing area and shelter (espe-
cially in colder weather); 2) the pathway to and from your hot tub (this should
be free of debris so that dirt and leaves are not easily tracked into the hot tub);
3) the closeness to trees and shrubbery (remember that leaves and birds
could create extra work in keeping the hot tub clean); 4) a sheltered environ-
ment (less wind and weather exposure can result in lowered operation and
maintenance costs); and 5) the overall enhancement of your environment. It
is preferable not to place the hot tub under an unguttered roof overhang since
run-off water will shorten the life expectancy of the hot tub cover.
3.2 Indoor Locations
For indoor installations, be certain to make provisions for proper ventilation.
When the hot tub is in use, considerable amounts of moisture will escape.
This can damage certain surfaces over time.
Page 5
ENGLISH

If you have any questions regarding the placement or installation of your hot
tub, consult your authorized Sundance Dealer.
4.0 General Electrical Safety Instructions
Your new Sundance hot tub is equipped with the "state-of-the-art" SentryTM
equipment system. It contains the most advanced safety and self-protective
equipment in the industry. Nonetheless, this hot tub must be installed prop-
erly to insure dependable usage. Please contact your local government
authority should you have any questions regarding your installation. In the
event they are unable to answer your questions, direct your inquiries to
Sundance Spas. Please refer to the rear cover of this manual for our
address and telephone number.
Proper grounding is extremely important. Sundance hot tubs are equipped
with a current collector system. A pressure wire connector located on the sur-
face of the control box, located inside the equipment door (Figure B, page 7)
to permit connection of a bonding wire between this point and any ground
metal equipment, metal water pipe or conduit within 1.5m of the hot tub, or
copper clad grounding rod buried within 1.5m of the hot tub. Bonding wire
must be at least 10mm2solid copper wire. This is a most important safety
assurance feature.
Page 6
Figure-A, Equipment Area
Note: Pump Locations Vary by Model
SPA CONROLLER
2
59
3
8
2
1
7
7
10
4
6
1. Sentry Control Box
2. Power Supply Cabinet Inlet(s)
3. Pump #1
4. Heater
5. Hot Tub Drain
6. Air Blower
7. Pump Drain Plug(s)
8. Pump #2 (N/A Capri)
9. Circulation Pump
10. Optional Audio System Subwoofer -
Behind Bulkhead (Models with
Audio Option Only)
ENGLISH

Before installing this hot tub, check with the local government/electrical
authority to insure installation conforms to local country/area states codes.
5.0 Electrical Installation Instructions (240V Service)
IMPORTANT NOTICE: The electrical wiring of this hot tub must be installed
by a qualified electrician to comply with all regulations and standards spec-
ified by the electrical authority in your state or country.
1. This hot tub must be permanently connected (hard-wired) to the power
supply. No plug-in connections or extension cords are to be used in
conjunction with the operation of this hot tub. Supplying power to
the hot tub which is not in accordance with these instructions will void
both the independent testing agency listing and the manufacturer’s
warranty.
2. The power supplied to this hot tub must be a dedicated circuit with no
other appliances or lights sharing the power provided by the circuit.
3. To gain access to the hot tub’s power terminal block, remove the screws
securing the center wood cabinet panel on the side of the hot tub
under the controls. Then remove the four metal control box door screws
and door (Figure B).
TB1
Neutral (N)
Ground
Line (L)
TB1
TB3
1. Terminal Block
2. Bonding Lug
3. Grounding Terminal
SENTRY
SPA CONROLLER
1
3 2
Figure-B, Sentry Control Box Figure-C,
Terminal Block TB1
230V Wire Connection
Page 7
ENGLISH

4. Select the power supply cabinet inlet you want to use (Figure-A, Page 6),
Install the power cable through the large opening provided in the bottom
of the metal control box.
5. Hot tubs with one main terminal block (Figure-B, Page 7) must be
supplied with 20 Amps. Note: the 850 series hot tub can be adapted to
use higher amperage circuits when available. Contact your Sundance
dealer for details.
6. The electrical supply for this product must include a suitably rated
isolating switch and circuit breaker to comply with local electrical
regulations. This RCD/GFCI circuit breaker must be installed at the power
supply in the house electrical box.
7. Connect wires to power terminal blocks TB1 and TB3 as illustrated
(Figure C, Page 7). TIGHTEN SECURELY! All wires must be hooked up
securely or damage could result.
8. Install metal control box door and screws. Then reinstall the center wood
cabinet panel and screws.
6.0 Power Requirements
Sundance hot tubs are designed to provide optimum performance and
flexibility of use when connected to the maximum electrical service as listed
below. If you prefer, your Sundance dealer can perform a minor circuit board
modification to allow an alternate electrical service. The operational consider-
ations of these modifications are listed in the footnotes.
CAMEO, OPTIMA, MARIN and ALTAMAR Models
Voltage 230 VAC 230 VAC
Frequency 50Hz 50Hz
M ax. Current Draw 16.6 Amps*31.6 Amps**
Wattage: 3.8kW 7.3kW
Number of Wires Three Three
*Standard 16.6 Amp (3.8kW) configuration: the heater will not operate
while both jets pumps are running.
** Alternate 31.6 Amp (7.3kW) configuration: the heater will operate
while both jet pumps are running.
Page 8
ENGLISH

CAPRI Models
Voltage 230 VAC 230 VAC
Frequency 50Hz 50Hz
Max. Current Draw 12.1 Amps*23.6 Amps**
Wattage: 2.8kW 5.4kW
Number of Wires Three Three
*Standard 12.1 Amp (2.8kW) configuration: the heater will not operate
while the jets pumps is running.
** Alternate 23.6 Amp (5.4kW) configuration: the heater will operate
while the jets pumps is running.
Listed above are the most common power configurations by model.
Current/wattage requirements for each model change depending on
device* availability. Basically, the more functions (electrical devices) in a
spa, the greater its current/wattage demand. Refer to the jumper
configuration/max current chart (page 39) for a complete listing of power
requirements for each device within your spa.
*Device = Heater, Pump(s), Blower
7.0 Start-Up Instructions
FOR BEST RESULTS, READ EACH STEP IN ITS ENTIRETY BEFORE
PROCEEDING WITH THAT STEP.
A. Prepare Hot Tub for Filling
• Clear all debris from the hot tub. (Although the hot tub shell has been
polished at the factory, you may want to treat it with a specially
formulated hot tub cleaner and wax available from your dealer prior to
filling the first time.)
• Remove the filter lid (Figure-F, Page 14), then remove filter cartridge as
illustrated in section 11.1, page 28-29.
B. Fill Hot Tub
• Place the end of your garden hose into the empty filter bucket.
NOTE: Never fill with water from a water softener. If your water is extreme-
ly “hard”, it is preferable to fill half-way with hard water and the rest of the
way with softened water. Or, you may fill entirely with hard water if you use
a special water additive available from your Sundance dealer.
Page 9
ENGLISH

• Fill the hot tub until the water level is midway in the filter bucket skim-
mer opening and above all jets. Do not overfill.
Important: Always fill your hot tub through the filter bucket after draining.
Failure to do so may cause air to be trapped in either pump, preventing
the pump from circulating water.
• Remove hose and replace filter cartridge as illustrated in section 11.1,
page 28-29 (Figure-G).
C. Turn On Power
Turn on power to hot tub at the home’s circuit breaker. The heater and
circulation pump will automatically activate. If the control panel LCD
flashes water temperature and “COOL” or “ICE”, pump 1 will also activate.
If this occurs, refer to page 35-36 for additional information.
D. Activate Jets and Blower
Depress the JETS 1 and BLOWER sensor pads on the
control panel once to activate pump #1 and blower,
initiating water flow.
E. Add Start-Up Chemicals
Add the hot tub water chemicals as recommended by your Sundance
Dealer. (See section titled WATER QUALITY MAINTENANCE (page 34) for
general guidance.) Note: make sure equipment is running before adding
chemicals of any type (see step D).
F. Set Hot Tub to Heat
The hot tub can heat in either STANDARD or ECONOMY mode. The
tub’s built-in temperature sensor will activate the heater automatically when
necessary to maintain the water temperature within a range of ±1°C of the
set temperature. The time required for initial heat-up will vary depending
on the temperature of the water used to fill the hot tub, the size of your
hot tub, and the ambient temperature. The water temperature will rise
approximately 2 to 3 °C per hour in larger tubs, and approximately 4 to 5
°C per hour in smaller tubs.
G. Choosing “Standard” or “Economy” Mode
Press the MODE button to select either “Standard” or “Economy”
operating modes. The control panel’s right-side LCD display indicator
changes to indicate which mode is selected. By selecting the
appropriate operating mode, you can ensure that the spa will be ready
to use when you want it with the lowest possible energy consumption.
Page 10
ENGLISH

When power is turned on, the spa defaults to STANDARD mode. In
STANDARD mode, the skimming/heating cycle will activate pump
1 as programmed to provide skimming action and additional filtration.
In ECONOMY mode, the skimming/heating cycle will not come on.
This is the main difference between the two operating modes.
WARNING - RISK OR INJURY
Always check the water temperature carefully before entering the
hot tub.
H. Setting Desired Temperature
To warm hot tub water to a comfortable temperature, follow these steps:
•The LCD display on the control panel displays the actual temperature of
the hot tub water. Press either the COOLER (Down) or
WARMER (Up) sensor pad once to display the “set tempera-
ture” for 5 seconds. If you want the water to heat to a different
temperature, simply press COOLER (Down) or WARMER (Up)
within 5 seconds. The set temperature advances or decreases
by one degree each time one of these sensor pads is pressed.
• The heater will turn off when the temperature corresponding to the
thermostat setting is achieved.
Important Heater Details:
•The maximum temperature for which the hot tub can be set is 40 °C and the
minimum is 26 °C.
•Setting the thermostat at maximum will not accelerate the heating process.
This will only result in a higher ultimate temperature.
•The heater operates until the water reaches the programmed “set
temperature” , then turns off. The heater will reactivate after the water cools
to approximately 1 °C below the “set temperature.”
I. Place Cover On Hot Tub
• Keeping the insulating cover in place anytime the hot tub is not in use will
reduce the time required for heating, thereby minimizing operating costs.
• The time required for initial heat-up will vary depending on the starting
water temperature and the capacity of your hot tub. Larger hot tubs heat
at about 2 to 3 °C per hour; smaller hot tubs heat at a rate of approxi-
mately 4 to 5 °C per hour.
Page 11
ENGLISH
