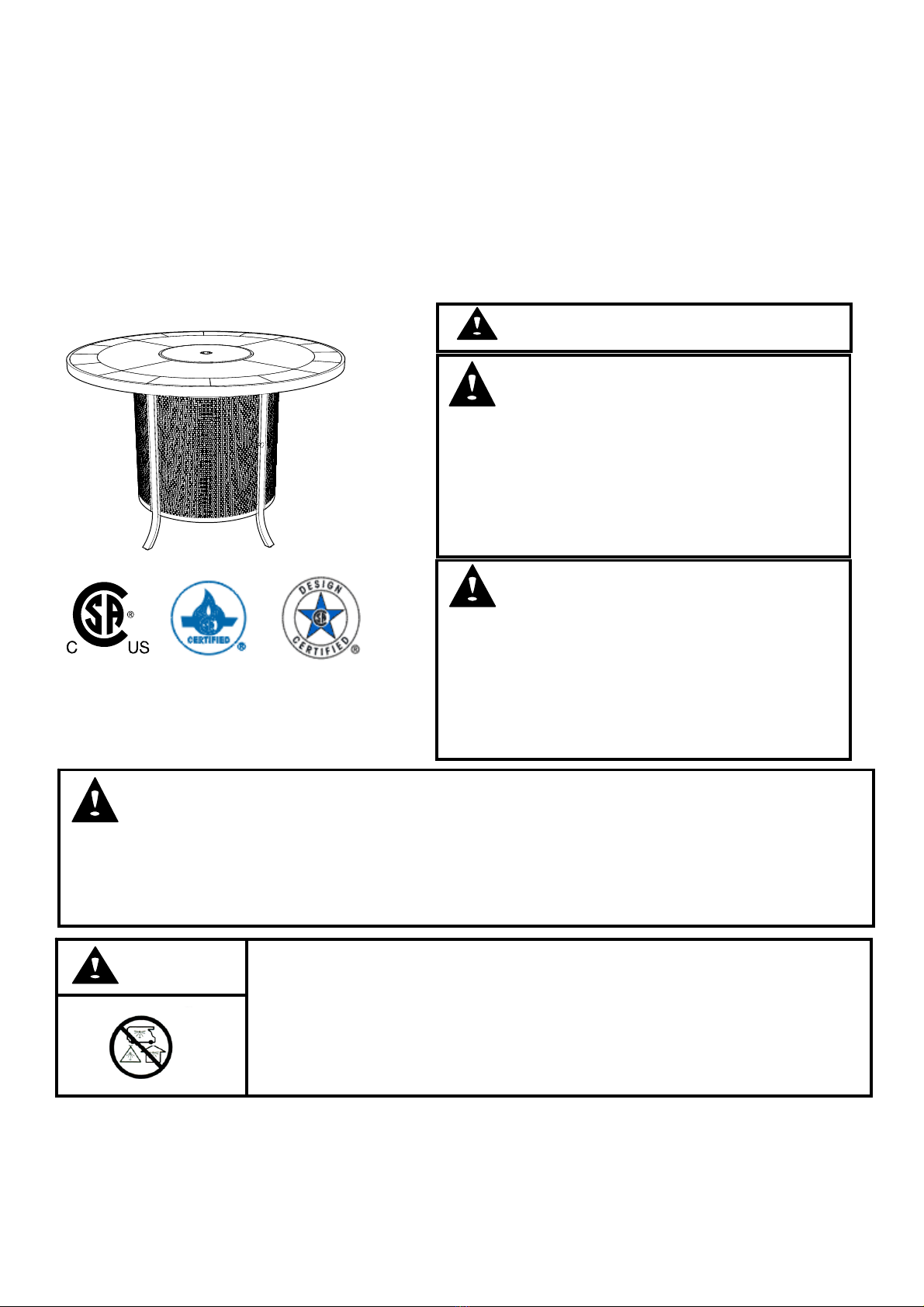

Sunjoy Grandview L-DN2429SST-B-T User manual

1 of 18
Grandview Fire Pit High Dining Table
Assembly Instruction
Item# L-DN2429SST-B-T
SKU# 810405352
This a
pp
liance com
p
lies with “ANSI Z21.97-2014
/
CSA 2.41-2014
,
Outdoor Decorative Gas A
pp
liances.
Propane cylinder required (not included)
1 AA 1.5V battery required (not included)
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
For Outdoor Use only. Not for Commercial Use.
WARNING: For Outdoor Use Only.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
WARNING:
Improper installation, adjustment, alteration,
service, or maintenance can cause injury or
property damage. Read the installation,
operating, and maintenance instructions
thoroughlybefore installing or servicing this
e
q
ui
p
ment.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any other
appliance.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.

2 of 18
TABLE OF CONTENTS
General information …………….…….………………….………………..………….…… 2
Specification……….……………………………………….……………….……….……… 3
Important safety information and precaution……………….….….….….…….…… 3-4
Expanded view……………………………………………………….……….……..……… 5
Parts list……………………….………………………….………………………………6-7
Installation………………………….………………………..………………….………8-13
Location……………………………………………………………………….…….…….. 14
Set up……………………………………………………………….…………….……...… 14
Gas connection ………………………………….……………….…………………… 14
Operation……………………………………………………………….……….…….. 15
Leak check………………………………………………………….……………...…… 15
Ignite lighting………………………………………………………….………………. 15
Storage and Maintenance………………………………………….……...............…..…16
Trouble shooting ………………………………………………...….………………..… 17
Limited warranty……………………………………………………………….….…… 17
GENERAL INFORMATION
IMPORTANT
Please take time to read these instructions thoroughly and follow each step carefully for
safe and easy operation. Keep this manual to consumer for installer and consumer future
reference/use.
We would like to hear from you with any comments or suggestions. In the continental
U.S., you can call Sunjoy Toll Free number: 1-866-578-6569 at any time.
You can also send us an email to [email protected]

3 of 18
SPECIFICATION
IMPROTANT SAFETY INFORMATION AND PRECAUTION
 When the appliance is for connection to a fixed piping system, the installation must conform with
local codes, or in the absences of local codes with the National Fuel Gas Code, ANSI Z223.1/NFPA54;
International Fuel Gas Code, Natural Gas and Propane Installation Code, CSA B149.1; or Propane
Storage and Handling Code, B149.2, as applicable.
 The LP gas supply cylinder to be used must be:
1- Constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.)
Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for
transportation of Dangerous Goods and Commission, CAN/CSA-B339 as applicable;
2- Provided with a listed overfilling prevention device;
3- Provided with a cylinder connection device compatible with the connection for the appliance.
 Always place the appliance on a firm and level surface.
 Solid fuels shall not be burned in this gas appliance. When using decorative Lava Rocks, use only
Lava Rocks (INCLUDED).
 The appliance shall be used only outdoors in a well-ventilated space and shall not be used in a
building, garage or any other enclosed area.
 When in use, keep the appliance area clear and at least 40 in / 101.6 cm side clearance from
combustible materials, gasoline and other flammable liquid and vapors. Do not use the appliance
under overhead combustible surfaces. Certain items or materials, when stored under the appliance or
nearby, will be subjected to radiant heat and could be damaged.
 Open the door and inspect the hose assembly and burner prior to each use. If there is evidence of
excessive abrasion or wear or if the hose or burner is damaged, it must be replaced by appropriate
part from the manufacturer.
 Inspect the gas connections of the appliance prior to each use. Do not to operate the unit if there is a
Product name Grandview Fire Pit High Dining Table
Model NO. L-DN2429SST-B-T
Rated Heat Output 35,000BTU/HR
Fuel Propane-LP
Gas Supply 20 lb. LP-Gas cylinder
Manifold Pressure 11 Inches W.C.
Orifice Size (diameter) 1.9mm
Gas Supply Pressure Max.250 PSI

4 of 18
gas leak. Have the appliance inspected annually by a qualified service person.
 The pressure regulator and hose assembly provided with the appliance must be used. The
replacement part must be the same as the part specified by manufacturer.
 The assembly of LP-gas and leak checking please refer to the “Gas connection” on page 14 and
“leak Test” on page 15.
 Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or prevent clothing ignition.
 Young children and pets should be carefully supervised when they are in the area of the
appliance.
 Any guard or other protective device removed for servicing the appliance must be replaced
prior to operation.
 Clothing or other flammable materials should not be hung from the appliance or placed on or
near the appliance.
 Do not use the appliance if any part has been under water. Immediately call a qualified technician to
inspect the appliance and to replace any part of the control system and any gas control which has been
under water.

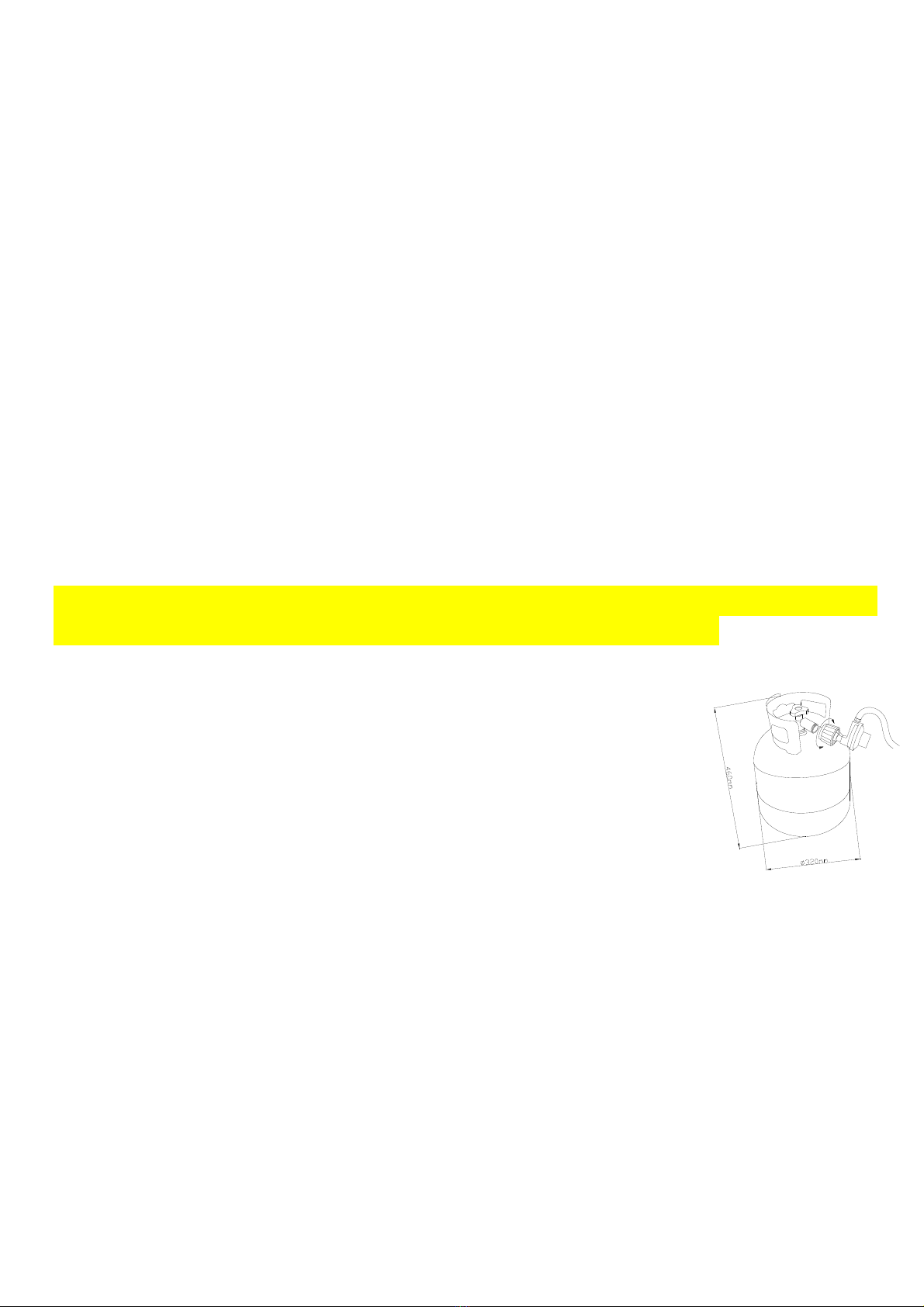

 LP-gas supply cylinder to be used must be constructed and marked in accordance with the
specifications for LP-gas cylinders of the U.S. Department of Transportation (DOT).
 The cylinder supplies system must be arranged for vapor withdrawal and the cylinder must include a
collar to protect the cylinder valve.
 Use only 20 lb / 9 kg LP-Gas cylinders.
 Do not burn wood or any other materials in this appliance.
 The appliance must be isolated from the gas supply piping system by closing
its individual manual shutoff valve during any pressure testing of the gas supply
piping system at test pressure equal to or less than 1/2psi (3.5kPa).
 That other cylinder may be acceptable for use with the appliance provided
they are compatible with the appliance retention means and accompanied by illustration(s) depicting
the cylinder mounted to the appliance utilizing the cylinder retention means and the point of contact
between the cylinder and the retention means.
 Properly place the hose out of pathways where people may trip over it or in areas where there may
be subject to accidental damage.
 The burner must be replaced prior to the appliance being put into operation if it is evident that the
burner is damaged. The replacement burner must be the same as the part specified by manufacturer.
 The cleaning of the appliance including the burner, please refer to “Storage and Maintenance” on
page 16.

5 of 18

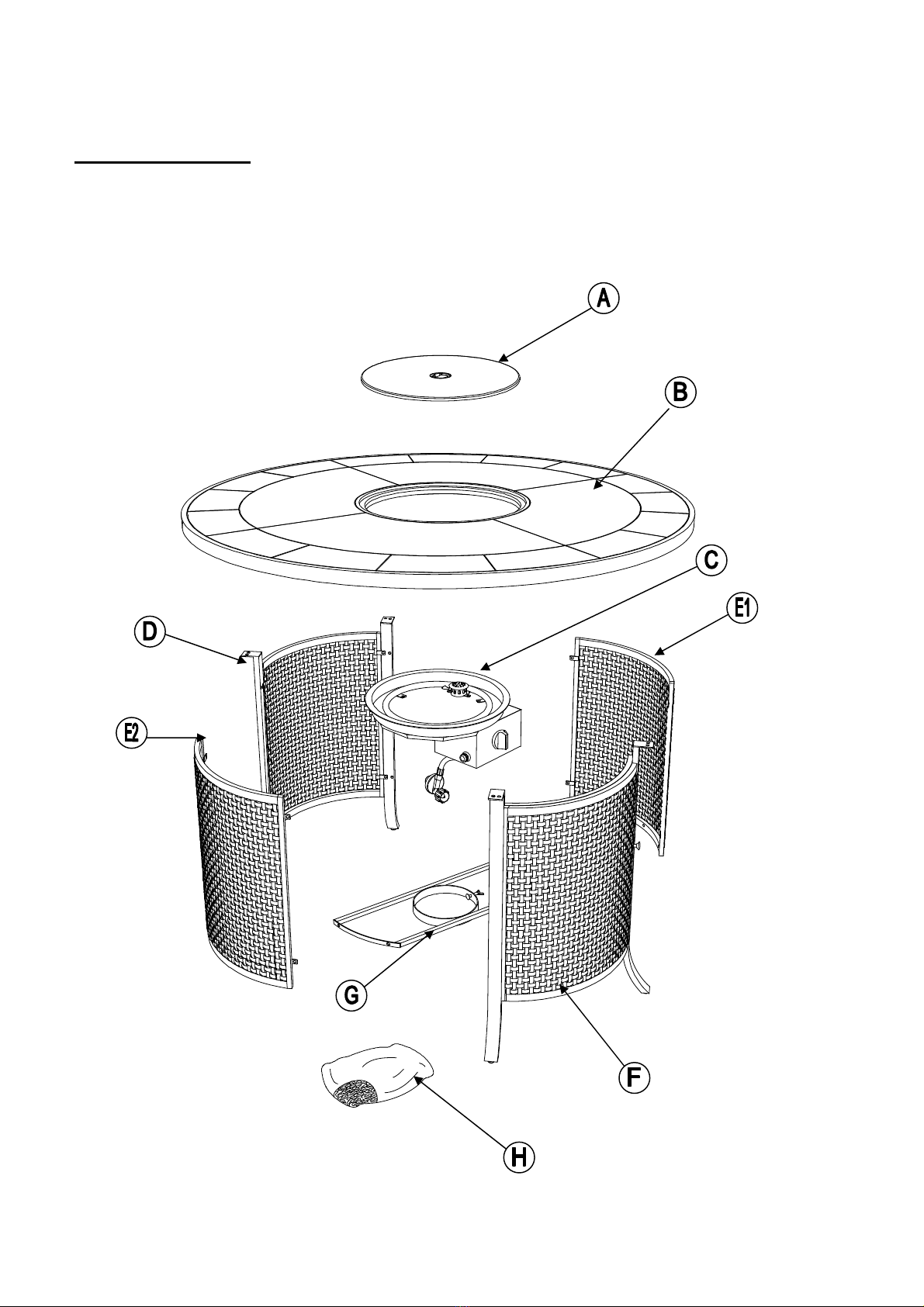

EXPANDED VIEW

6 of 18

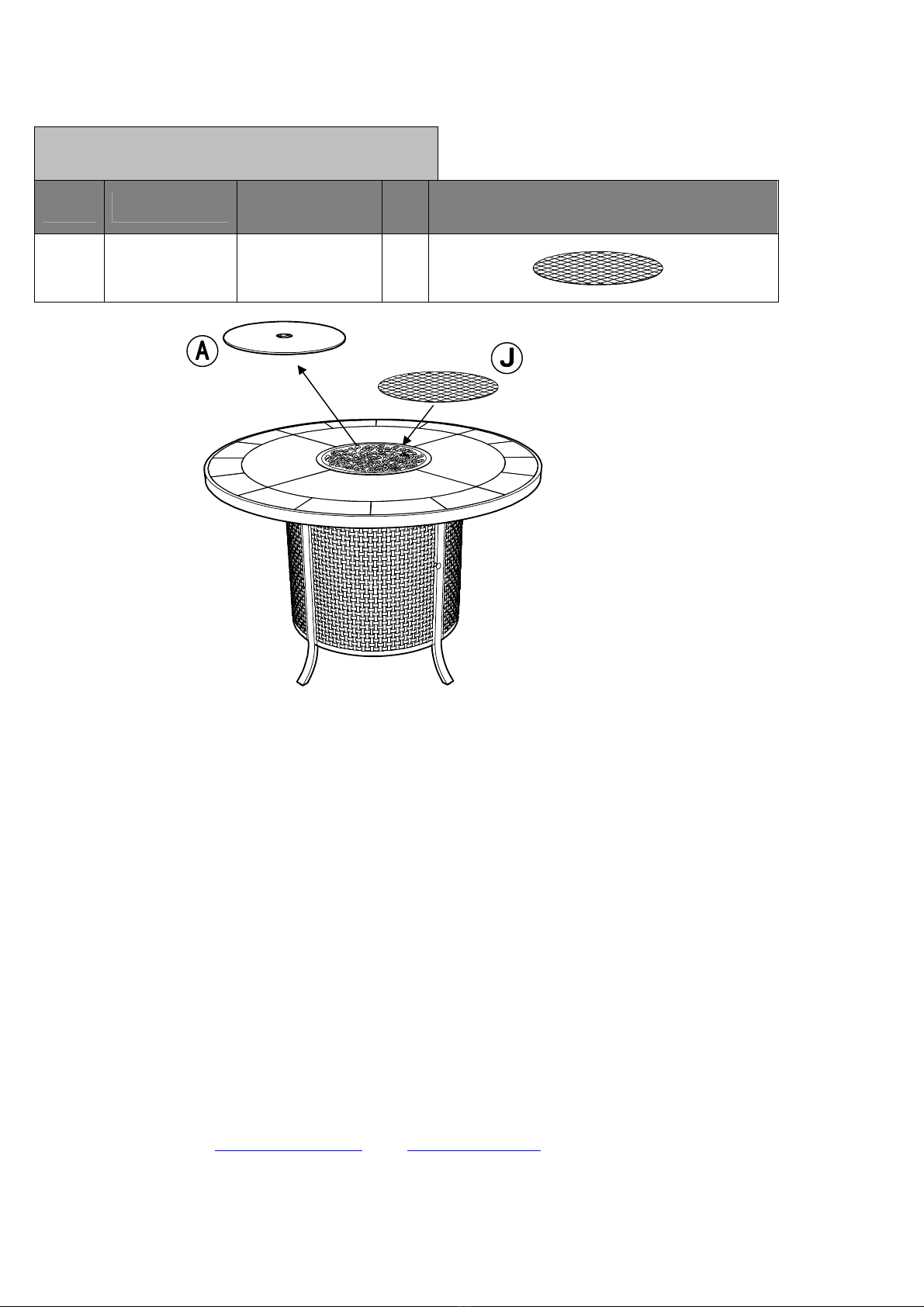

Parts List
Label Part Number Description Qty Part Image
A P20712A01175 Lid 1
B P31333A01175 Table top 1
C P22003A01178 Fire bowl 1
D P21229A01175 Rear door 1
E1 P21144A01175 Side panel 1 1
E2 P21145A01175 Side panel 2 1
F P20923A01175 Door 1
G P20809A01175 Cylinder rack 1
H P99903D01002 Lava rock 3KG

7 of 18

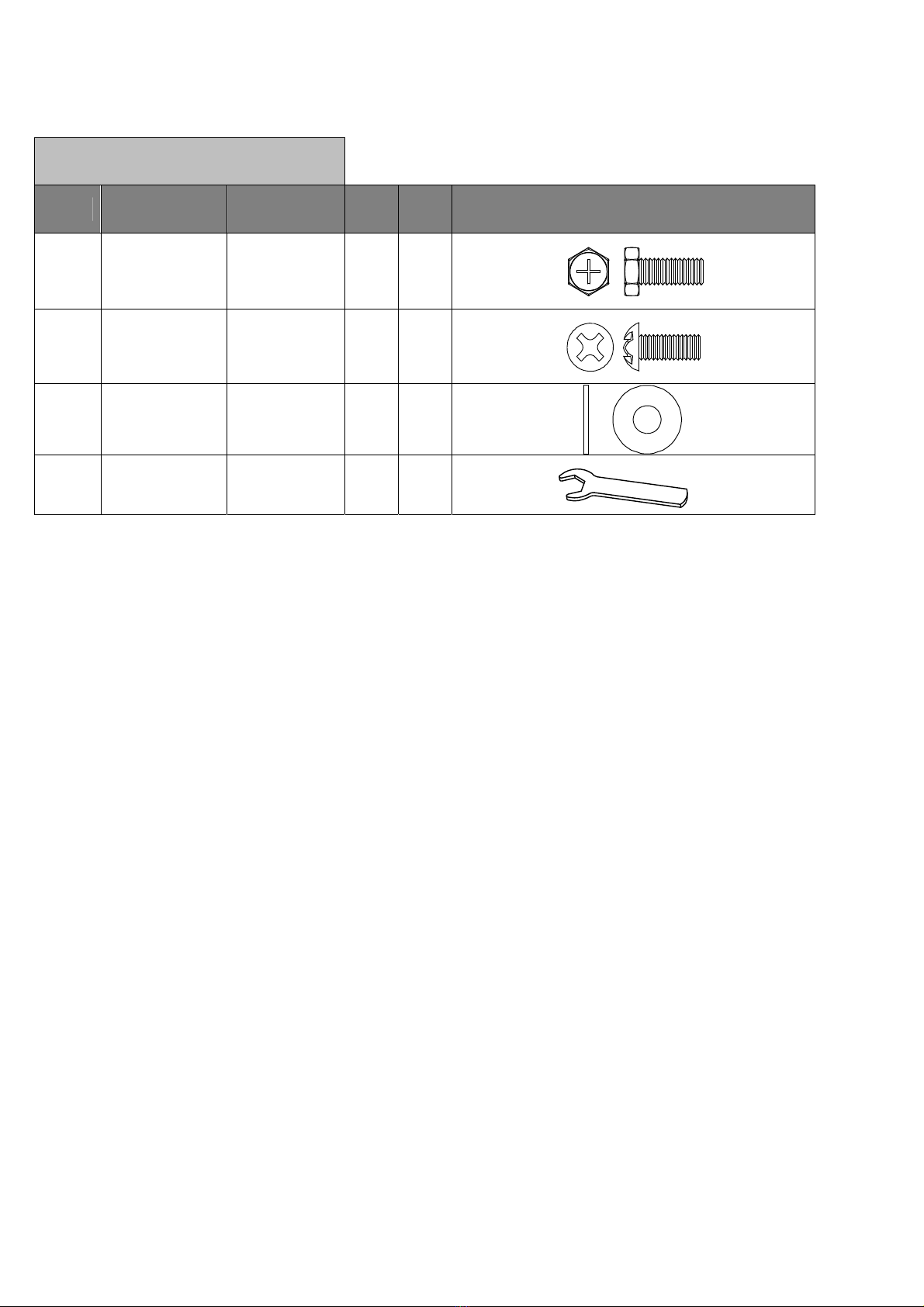

Hardware Pack
Label Part Number Description Qty Add Part Image
AA H02015C11 Bolt M6*15 20 2
BB H09015C11 Bolt M6*15 2 1
CC H19001C11 Flat washer
M6 22 3
DD H00001C12 Wrench M6 1 0

If you want to replace the parts listed, please contact Customer Service Center: 1(866) 578-6569.

A
ctual Size
A
ctual Size
A
ctual Size

8 of 18

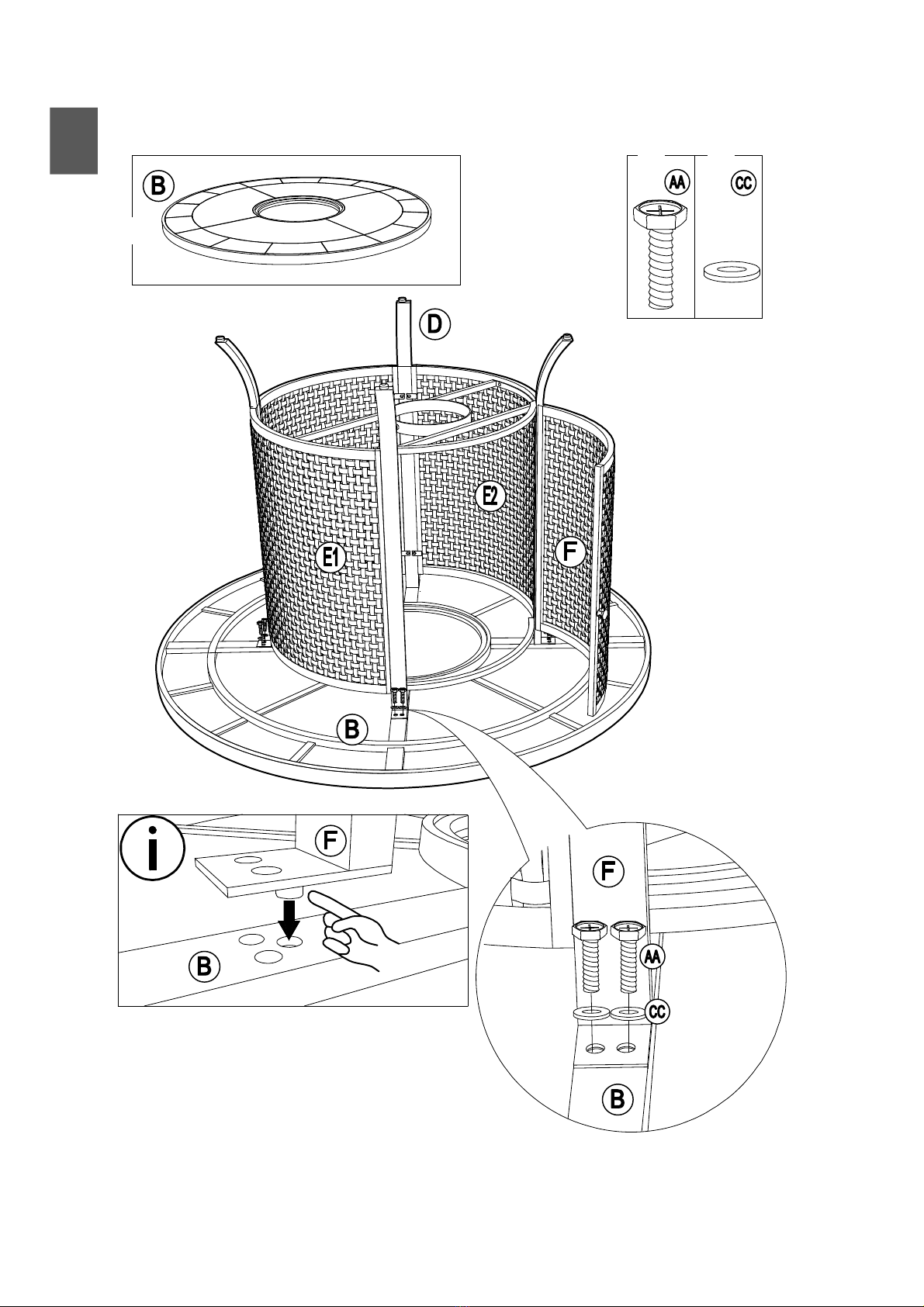

INSTALLATION

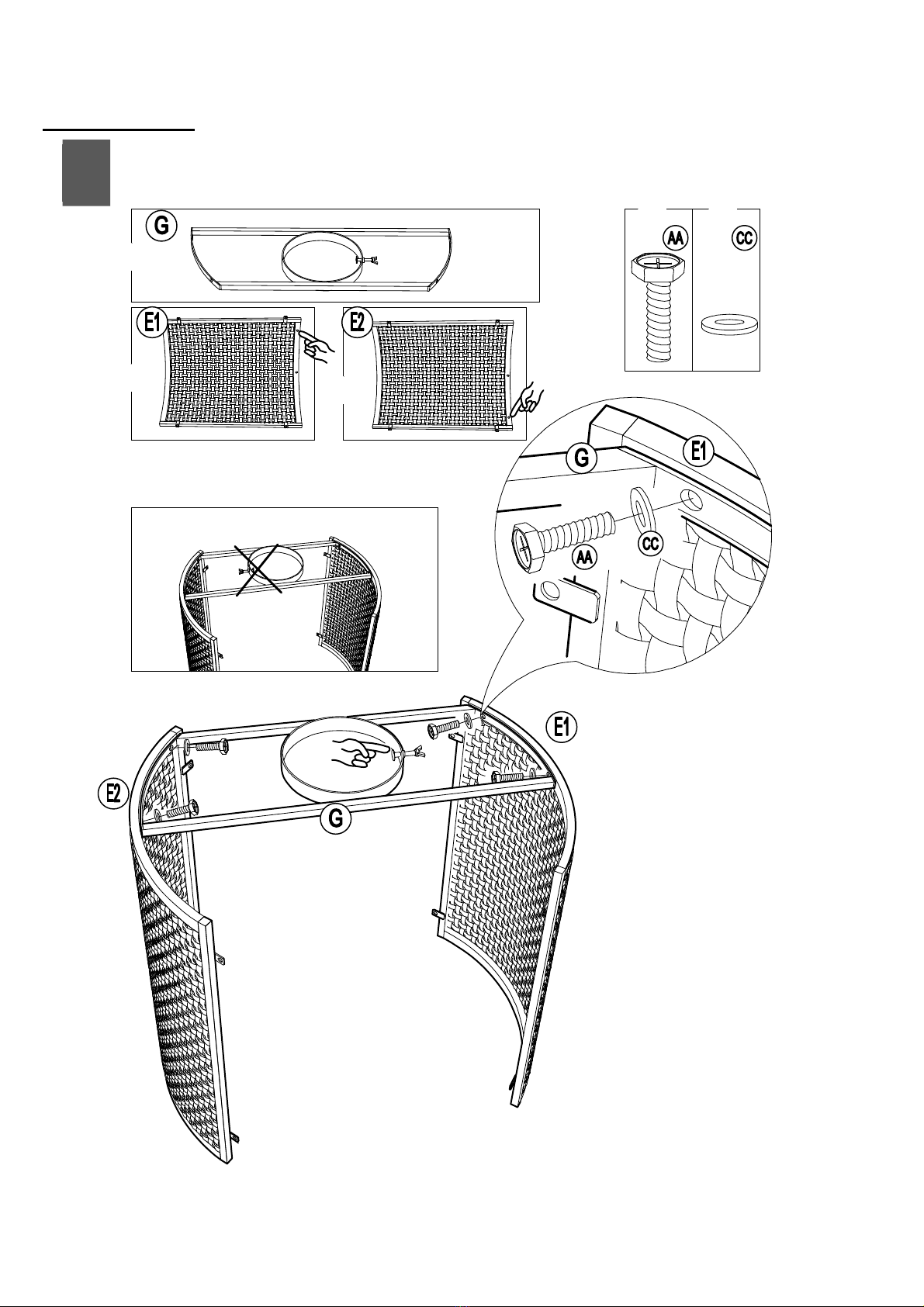

1
1x
1x
4x 4x
1x

9 of 18
2
4x 4x
1x

10 of 18
3
4x 4x
1x

11 of 18
4
8x 8x
1x

12 of 18
5
2x 2x
1x

13 of 18

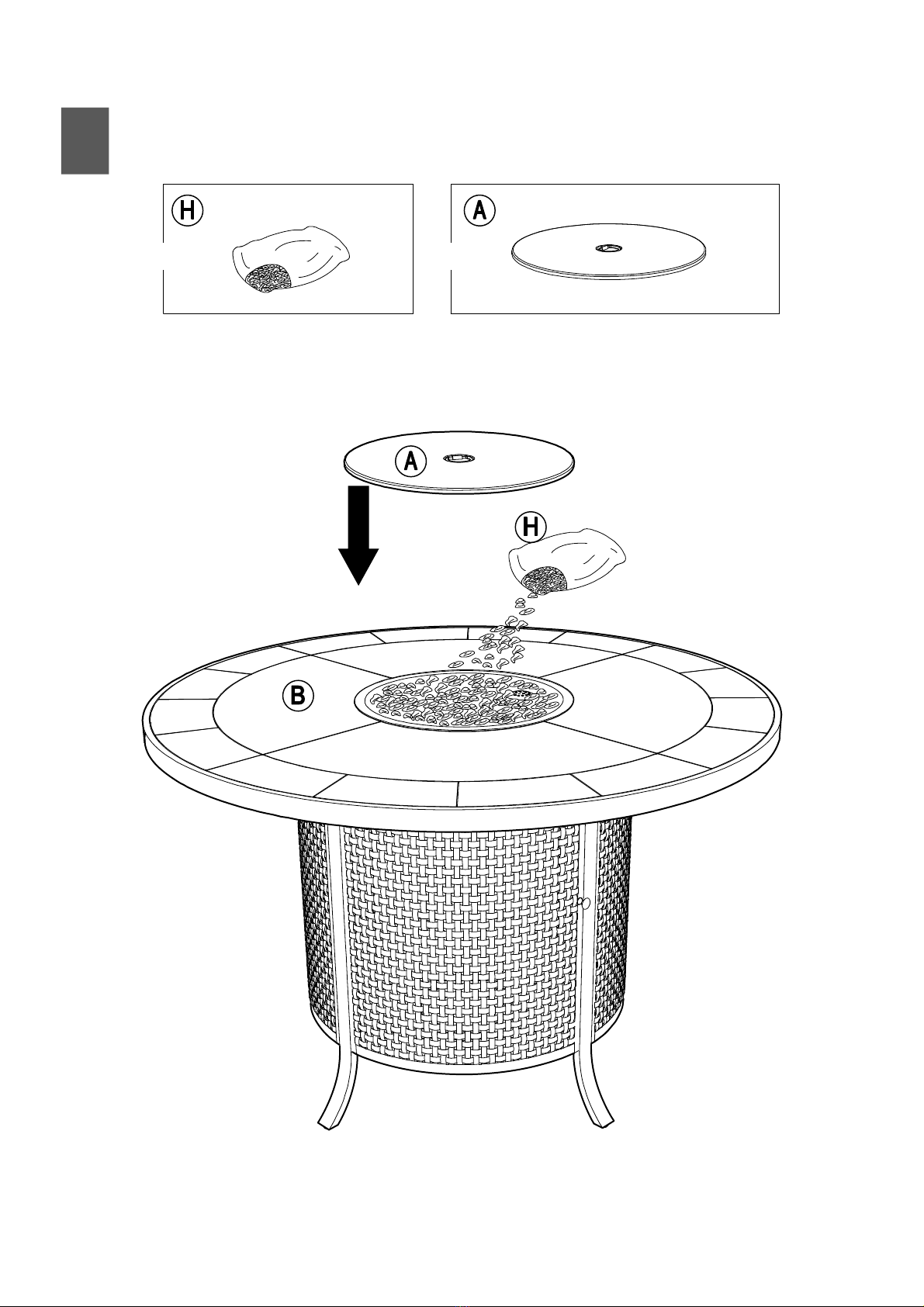

6
1x 1x

14 of 18
LOCATION
Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or
construction.
SET-UP
Your Gas appliance comes assembled, ready for a Gas connection.
1- Remove the appliance from container box and place it on any level, outdoor, non-combustible
surface.
NOTE: Do not place this appliance on grass or dirt area. This may prevent proper safety venting.
2- Open the gas door and put the cylinder inside.

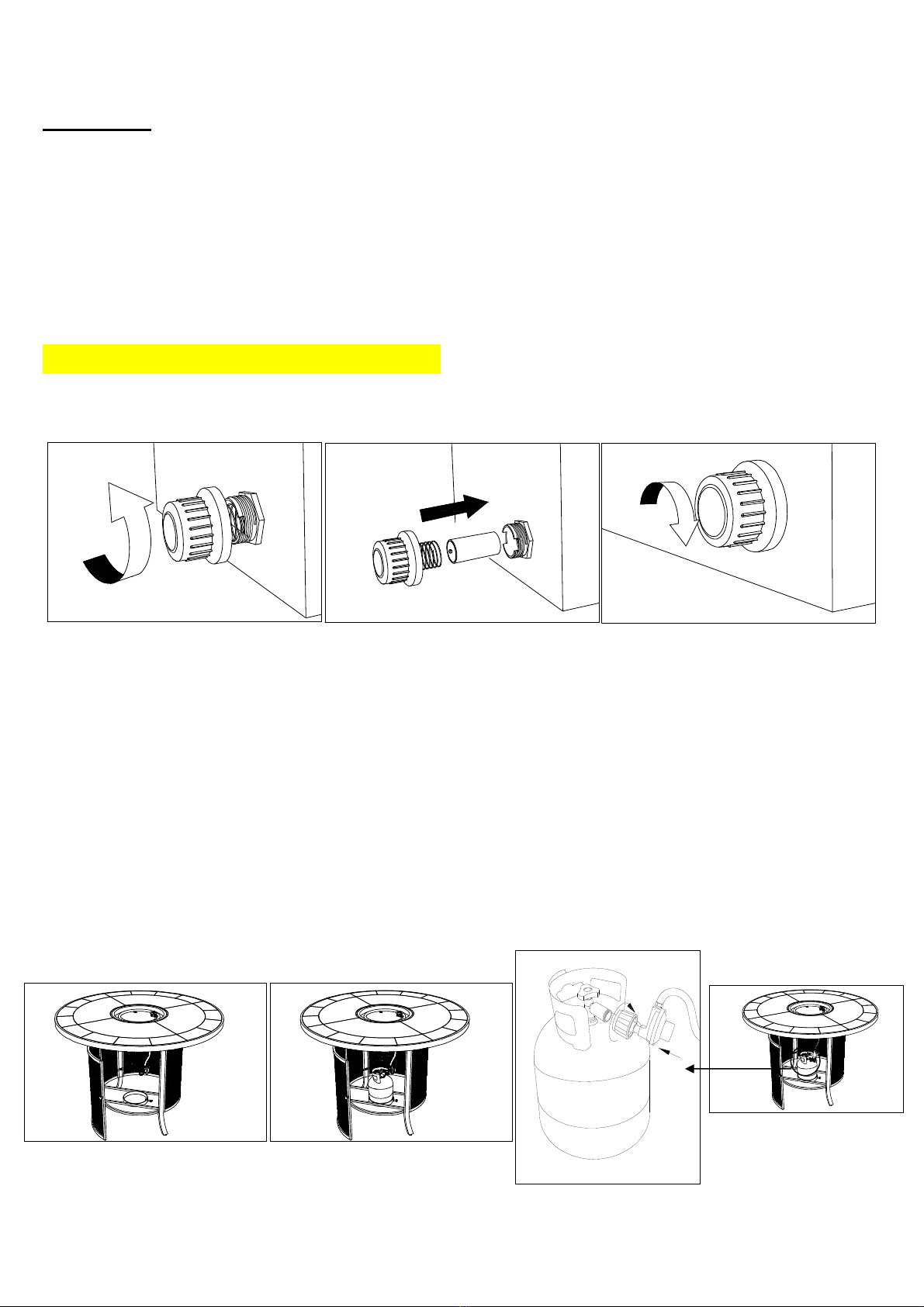

3- Unscrew the battery box as shown in Fig 1.Insert the negative electrode side of the battery into the
bottom of battery box as shown in Fig 2. Then screw the battery box as shown in Fig 3.
Fig 1 Fig 2 Fig 3
Note: If the battery of the pulse electronic igniter runs out of power, please replace the new battery as
above.
Gas Connection
1- Open the door and control valve outside. See Fig 4.
2- Put the cylinder into the cylinder rack. See Fig 5.
3- Connect the regulator and the cylinder as per Fig.6. Make sure there is no leakage or damage
(please refer to “Leak Test” on page 15 and the damage checking on page 4).
4- Turn the butterfly nut on the cylinder frame, so that the nut is held against the bottom of the cylinder,
to make sure the cylinder can be fixed. See Fig 7.
Fig. 4
Fig. 5
Fig.6
Fig. 6

15 of 18
Disconnect the regulator and the cylinder as per Fig.8
OPERATION:
LEAK TEST
!!!WARNING!!!

Do not use an open flame to check for leaks.

Do not smoke during testing.

Do not test indoors.
 A leak check must be performed whenever the gas cylinder is replaced.
1. Make sure the control knob is in the “OFF” position.
2. Make sure the gas cylinder is correctly and securely connected to the pressure regulator, without over
tightening.
3. Turn on the gas cylinder valve. Apply 50% soap and 50% water solution to the gas hose and
connections between the control knob and gas cylinder.
4. If something is leaking, you will see bubbles form. In case of leaks, turn off the gas supply, undo the
leaking connection, re-connect it and try again. If the leak persists, consult Customer Service Center for
assistance (
1(866) 578-6569 ).
5. If the connection does not leak, continue to the next step.
LIGHTING THE BURNERS
1. Make sure control valve is OFF.
2. Turn on gas tank valve.
3. Press in and turn control valve knob counterclockwise to LOW to light.
See the figure to the right.
4. If burner is lit, continue pressing in the control valve knob for a minute to
heat the thermocouple.
5. When control valve knob is released, the burner should be lit. If not, turn
control valve knob clockwise to OFF. Wait for 5 minutes then start with
step 3 above.
6. Press in and turn control valve knob to desired heat output, LOW ~
HIGH.
Fig 8
OFF
HIGH
MAX
BAS
ARRET
LOW
Fig.7
Fig.7

16 of 18
NOTE: While in use, the burner flame should be mainly blue in appearance with a small amount of yellow.
The flame can be identified by the following figure.
Warning: Lighting the Fire Pit improperly could lead to an unsafe condition.
7. Press in and turn the control valve knob clockwise to OFF to shut down fireplace. Close the gas
cylinder valve when the fireplace is not in use.
(
CAUTION: Do not kink flexible gas hose. If it is kinked, a gas leak could occur.)
STORAGE AND MAINTENANCE:
To obtain the best performance from your fireplace, you must perform the following storage and
maintenance activities on a regular basis:
 Allow at least 35 minutes for the fireplace to cool down after use, before disconnecting and removing
the gas cylinder.
 Store the gas cylinder in a dry, well-ventilated and sheltered area protected from inclement weather
and dust, out of the reach of children, and not in a building, garage or any other closed area.
 The fireplace may be stored indoors only if the cylinder is disconnected and removed.
 Keep the fireplace area clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
 Installation and repair should be done by a qualified service person. The fireplace should be
inspected before use and at least annually by a qualified service person. More frequent cleaning
may be required as necessary. It is imperative that the control compartment, burner, and
circulating air passageways of the fireplace be kept clean.

If you disassemble the burner when cleaning the fireplace, please
reassemble it according to the picture on the right to make sure the burner
induction tunnel is on and exactly cover the orifice base. It is imperative that
the control compartment, burner, and circulating air passageways of the
fireplace be kept clean. It is recommended not to disassemble the burner.
 Permanent installation and repair should be done by a qualified service
person. The fireplace should be inspected annually by a qualified service
person.

17 of 18
TROUBLE SHOOTING:
PROBLEM OBSERVED POSSIBLE CAUSE CORRECTIVE MEASURES
Gas odor Gas leak See “If you smell gas:” on front
cover of manual
Check all gas connections
Delayed ignition Low gas pressure
Clogged or dirty burner
ports Blocked orifice
Spent battery
Check gas supply pressure
Clean burner ports-see manual
section
Check orifice opening
Change new battery
Incorrect burner flame Incorrect gas supply or
pressure Blocked orifice
Clogged or dirty burner
ports
Check gas supply pressure
Check and clean orifice opening
Clean burner ports
If you want to replace the parts listed, please contact SUNJOY Customer Service Center (1(866)
578-6569).
LIMITED WARRANTY:
Subject to the conditions set out below, this product is warranted to the original purchaser to be free from
defects in workmanship and materials for one (1) year from the date of purchase.
 Satisfactory proof of the purchase date must be furnished at the time of notification of the defect for
any claim under the warranty to be enforceable.
 This warranty covers all parts found defective in workmanship and/or materials during the warranty
period and can be repaired or replaced at the discretion of the manufacturer at no cost to the original
purchaser.
 This warranty will be void if the product has not been assembled, installed or operated according to
the instructions, or subjected to abuse, improperly treated, neglected, rusted by exposure to the
elements, misused and/or if any repairs, maintenance, or service has been done by an unauthorized
person.
 Returns must be properly packaged and returned to the dealer from whom the product was acquired.
 The manufacturer, distributor and retailer will not be liable for any incidental or consequential loss or
damage arising from the installation or operation of the product and/or the failure of any part for any
reason.
 There are no other express or implied warranties, except for those stipulated herein. This warranty
gives specific rights and the original purchaser may have additional rights and remedies in law.
 This warranty does not cover commercial use.
Please do not return this product to the store. For technical assistance on assembly or
replacement parts call Sunjoy Group at 1(866) 578-6569 at any time or email
[email protected] or visit www.sunjoyonline.com to place your order or fax your parts
replacement order form together with your purchase receipt to 1 [phone] for assistance.
Made in China

18 of 18

Parts List
Label Part Number Description Qty Part Image
J
P20019A01178 Mesh screen 1
Note: Remove the lid and put the protective mesh screen over your burner and lava rock when in use!
CAUTION: Please be advised that this fire pit table uses natural lava rock that may crackle or pop when it is used. The lava rock has been pre-heat
treated, however the lava rock may pop or burst causing small pieces of hot lava rock to fly out of the fire pit area unless covered with the wire
mesh screen. You have been provided a wire mesh screen which should be placed over the burner and lava rock area at all times to prevent lava
rock from flying out of the contained area. When in use, please make sure that the wire mesh screen is maintained in place covering the lava rock
and burner area at all times.
As a precaution, please follow these instructions when in use of the fire pit table:
1. Follow the product's instruction manual.
2. Set up the fire pit table in a safe distance away from any combustible materials.
3. Use the protective wire mesh screen over your lava rock and burner area when in use!
4. Lava Rock is a natural stone subject to moisture, therefore while burning your LP you may hear crackling due to moisture in the lava rock. Do
not be alarmed this is a natural occurrence!
5. It is strongly recommended that you cover the fire pit table when not in use with the metal cover plate. If left uncovered, moisture may be
present and can cause the lava rock to pop again but will subside after it burns for 30 minutes. (Use the protective wire mesh screen over your
lava rock and burner)
Itisrarethatanycracklingwillhappenonthefirstuse,thisissimplyaprecaution.Fortechnicalassistanceorquestions,callSunjoyGroupat1(866)
578‐6569anytimeoremailto[email protected]orvisitwww.sunjoyonline.comformoreinformationorassistance.
