Sunny Health & Fitness PHANTOM HYDRO WATER User manual

PHANTOM HYDRO WATER
ROWING MACHINE
SF-RW5910
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).

1

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using
the equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintain and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at risk
or prevent you from using the equipment properly. Your physician’s advice is essential if
you are taking medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness or feelings of
nausea. If you do experience any of these conditions, you should consult your physician
before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult
use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet (60CM) of free space
all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly examined for damage
and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from
the equipment during exercise, discontinue use of the equipment immediately and do not
use until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment
9. The maximum weight capacity of this unit is 300 pounds (135 KG).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/ or damage to the product or property, proper lifting and moving
is required.
12.Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related
problems.
13.This equipment is designed for indoor and home use only. It is not intended for
commercial use.

2

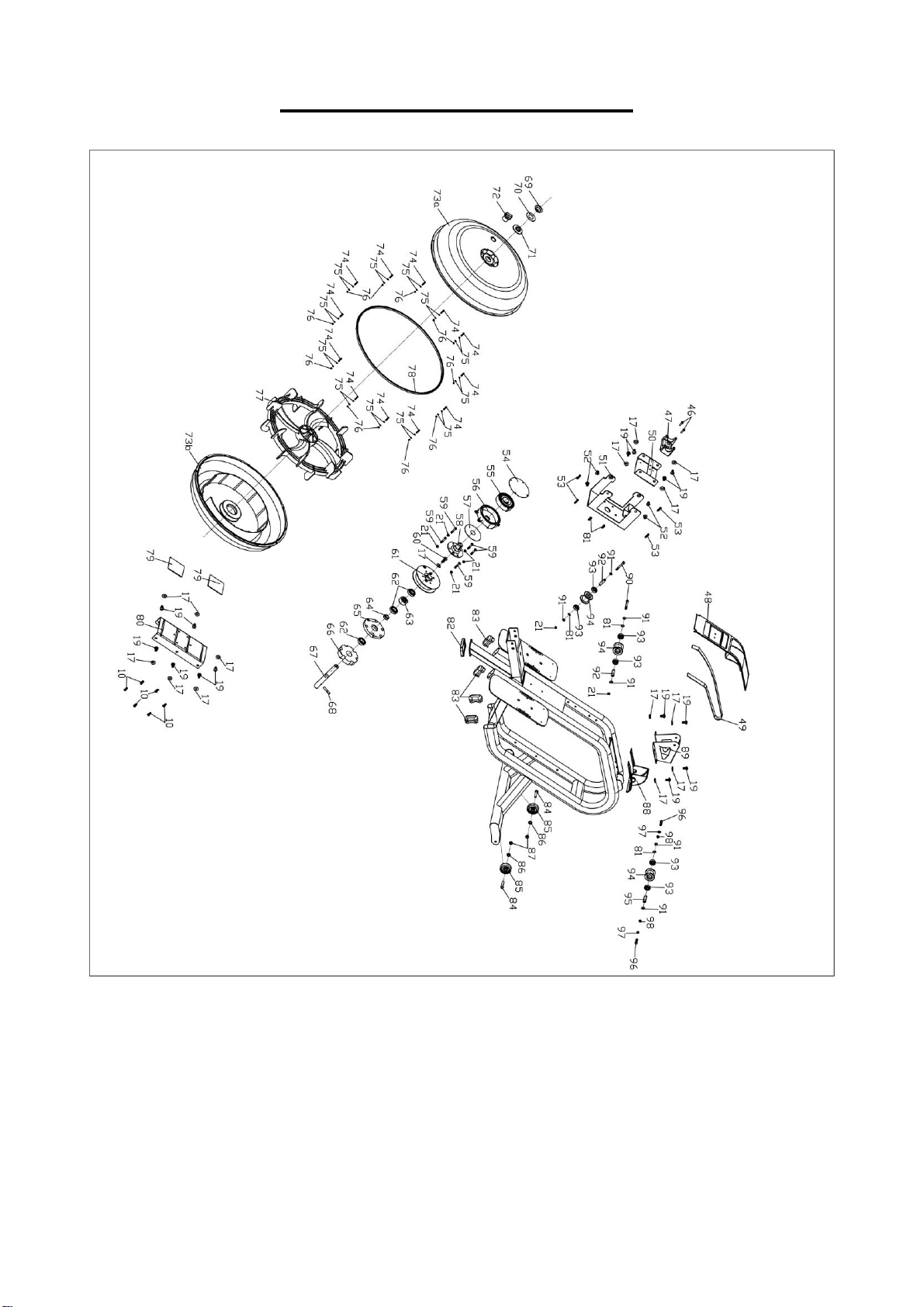

EXPLODED DIAGRAM 1

3
EXPLODED DIAGRAM 2

4
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
47
Handlebar Holder
1
2
Meter Support Tube
1
48
Protective Cover
1
3
Slide Rail
1
49
Mesh Belt
1
4
Rear Support Tube
1
50
Board
1
5
Bolt
Ф10xL94.5
1
51
Fixed Plate
1
6
Pull Bar
1
52
Screw
M8x15
4
7
Meter Plate
1
53
Screw
ST4.2x16
4
8
U Shape Baffle
2
54
PC Board 3
1
9
Supporting Board
2
55
Volute Spring
1
10
Bolt
M6xL15
7
56
Volute Wheel
1
11
Funnel
1
57
PC Board 2
1
12
Limit Cushion
2
58
Volute Spring Axle
1
13
Screw
M6x10
4
59
Screw
M6x35
5
14
Spacer
3
60
Screw
M8x25
1
15
Hex Bolt
M8x125
3
61
Belt Wheel
1
16
Square Cap
1
62
Bearing
3
17
Flat Washer
D8xD20x1.5
35
63
Bearing
1
18
Adjustable Chain Bolt
2
64
Spacer
1
19
Screw
M8×15
24
65
Fixed Plate
1
20
Adjustable Chain U
Mat
2
66
Raw Cotton
1
21
Nylon Nut
M6
9
67
Rotating Axle
1
22
Screw
M5x7
4
68
Stainless Steel Pin
1
23
Roller Spacer
6
69
Small Seal Ring
Small size
1
24
Bearing
6
70
PC Board 1
1
25
Roller
3
71
Seal Ring
Medium size
1
26
Nylon Nut
M8
6
72
Plug
1
27
Pedal
2
73a/b
Tank Cover
1 pr.
28
Plastic Bushing
2
74
Screw
M3x20
12
29
Extension Wire
2
75
Flat Washer
d3.5xФ7x0.5
24
30
Seat
1
76
Nylon Nut
M3
12
31
Oval Cap
2
77
Impeller
1
32
Hex Nut
M10
4
78
Seal Ring
Large size
1
33
Adjustable Foot Pad
4
79
Silicone Cushion
2
34
Spring Knob
1
80
Supporting Board
1
35
Screw
M4x5
8
81
Wave Washer
4
36
Knob
1
82
Rubber Foot Pad
1
37
Flat Washer
d12xФ24x2.0
1
83
Oblate Plug
4
38
Screw
M8x70
1
84
Bolt
M8x38
2
39
Meter
1
85
Roller
2
40
Sensor Wire
2
86
Flat Washer
d8xФ16x1.5
2
41
Screw
M5X10
6
87
Nylon Nut
M8
2
42
Pumping Siphon
1
88
Protective Cover
1
43
Screw
M5x10
2
89
Fixed Plate
1
44
Bottle Holder
1
90
Hex Bolt
M6x55
2
45
Tablet Holder
1
91
Axle Washer
6
46
Screw
M5x15
2
92
Belt Wheel Axle
2

5

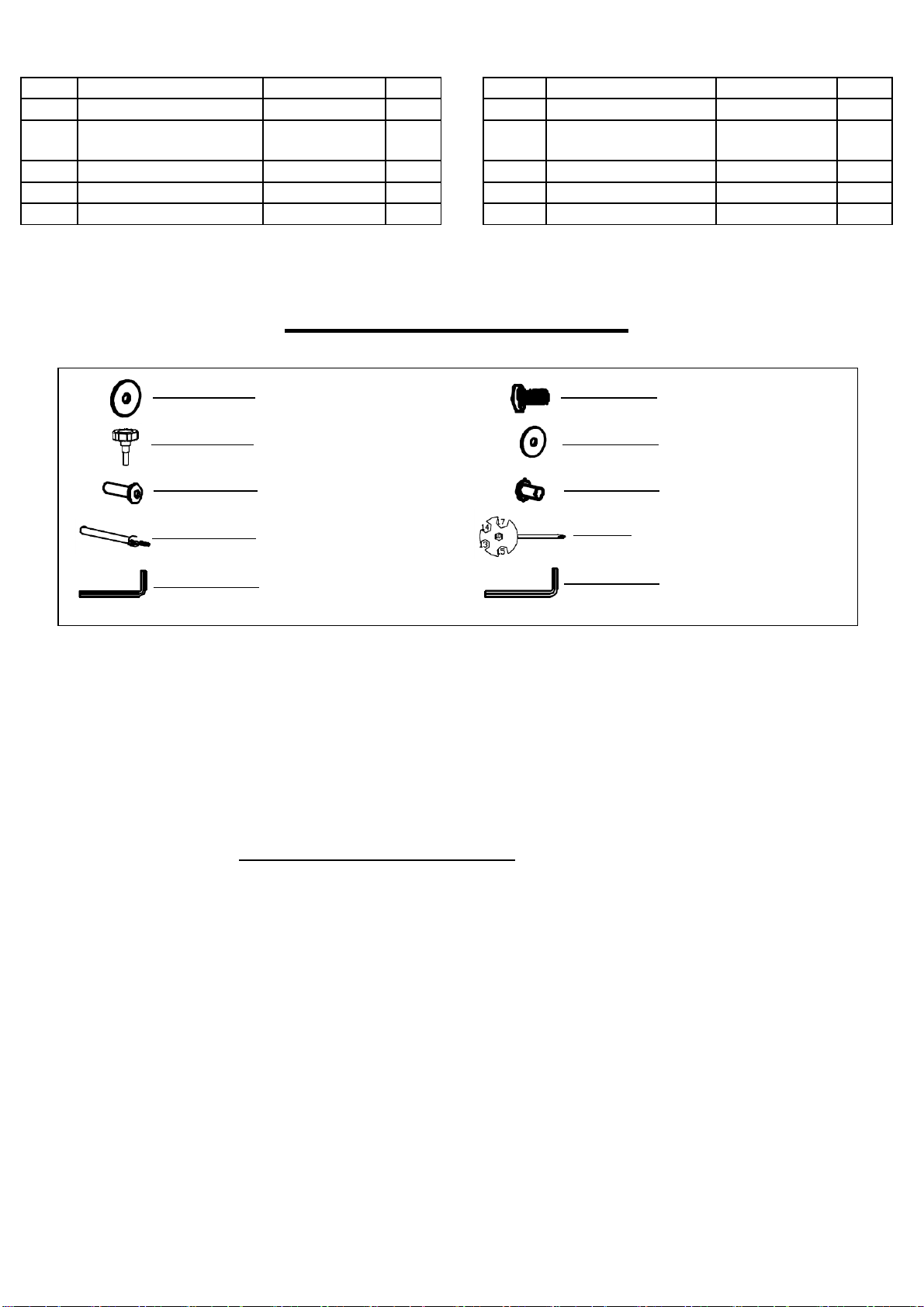

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s)
needed:
✓The model number (found on cover of manual)
✓The product name (found on cover of manual)
✓The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near
the front of the manual)
Please contact us at [email protected] or 1- 877 –90SUNNY(877-907-8669).
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
93
Bearing
6
98
Flat Washer
D6
2
94
Belt Roller
3
99
Spanner
S=10,13,14,
15,17
1
95
Belt Wheel Axle
1
100
Allen Wrench
S=5
1
96
Hex Bolt
M6x15
2
101
Allen Wrench
S=6
1
97
Spring Washer
D6
2
#36 1PC
#19 M8×15 8PCS
#37 d12xФ24x2.0 1PC
#100 S=5 1PC
#101 S=6 1PC
#99 S=10,13,14,15,17 1PC
#17 D8xD20x1.5 8PCS
#5 Ф10xL94.5 1PC
#10 M6xL15 1PC
#34 1PC

6
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 1：
Remove the pre-assembled Limit
Cushion (No. 12) and 2 Screws (No.
13) from the Slide Rail (No. 3) using
Spanner (No. 99).
Slide the Seat (No. 30) to the Slide Rail
(No. 3), make sure Seat (No. 30)
through the position of Limit Cushion
(No. 12). Then attach the Limit
Cushion (No. 12) to the Slide Rail (No.
3) with 2 Screws (No. 13) that were just
removed by using Spanner (No. 99).
Attach the Rear Support Tube (No. 4)
to the Slide Rail (No. 3) with 4 Screws
(No. 19) and 4 Flat Washers (No. 17)
using Allen Wrench (No. 100).

7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 2：
2-1: Attach the Slide Rail (No. 3) to
the Main Frame (No. 1) with the 2
Bolts (No. 5 & 10) by using Allen
Wrench (No. 101 & 100). Then tighten
with Knob (No. 36) and Flat Washer
(No. 37), and finally insert Spring
Knob (No. 34).
2-2: Connect the 2 Sensor Wires (No.
40) with 2 Extension Wire (No. 29).
2-3: After connecting the 2 Sensor
Wires (No. 40) with 2 Extension Wire
(No. 29). The wires will be exposed.
(Fig A)
2-4: Move all wires to the side of the
plate A. (Fig B)
2-5: Attach the Protective Cover (No.
88) and Fixed Plate (No. 89) to the
Main Frame (No. 1) with 4 Screws
(No. 19) and 4 Flat Washers (No. 17)
using Allen Wrench (No. 100).
Note: Do not cut any wires when
attaching the Protective Cover (No.
88) and Fixed Plate (No. 89) to the
Main Frame (No. 1).
Fig B
Fig A

8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY
(877-907-8669).
STEP 3:
3-1: Remove the pre-assembled 2
Screws (No. 43) from the Main Frame
(No. 1) using Spanner (No. 99). Attach
the Bottle Holder (No. 44) to the Main
Frame (No. 1) with 2 Screws (No. 43)
that were just removed by using
Spanner (No. 99).
3-2: Remove the pre-assembled 6
Screws (No. 41) from the back Meter
(No. 39) using Spanner (No. 99).
3-3: Insert the Tablet Holder (No. 45) to
the Meter (No. 39) with 2 Screws (No.
41) that were just removed by using
Spanner (No. 99).
3-4: Connect 2 Extension Wires (No.
29) with wires of Meter (No. 39). Then
attach the Meter (No. 39) to the Meter
Plate (No. 7) with 4 Screws (No. 41)
that were just removed by using
Spanner (No. 99).
3-5: After attaching the Meter (No. 39)
to the Meter Support Tube (No. 2). The
2 Extension Wires (No. 29) and wires
of Meter (No. 39) will be exposed. (Fig
A)
3-6: Push all wires into the upper Meter
Support Tube (No. 2). The wires will be
exposed out of hole A from the bottom
Meter Support Tube (No. 2). Push all
wires up into the Meter Support Tube
(No. 2). (Fig B)
Note: Put all wires to the meter tube
before attaching the Meter (No. 39) to
Main Frame (No. 1).
The assembly is complete!
Fig A
Fig B

9

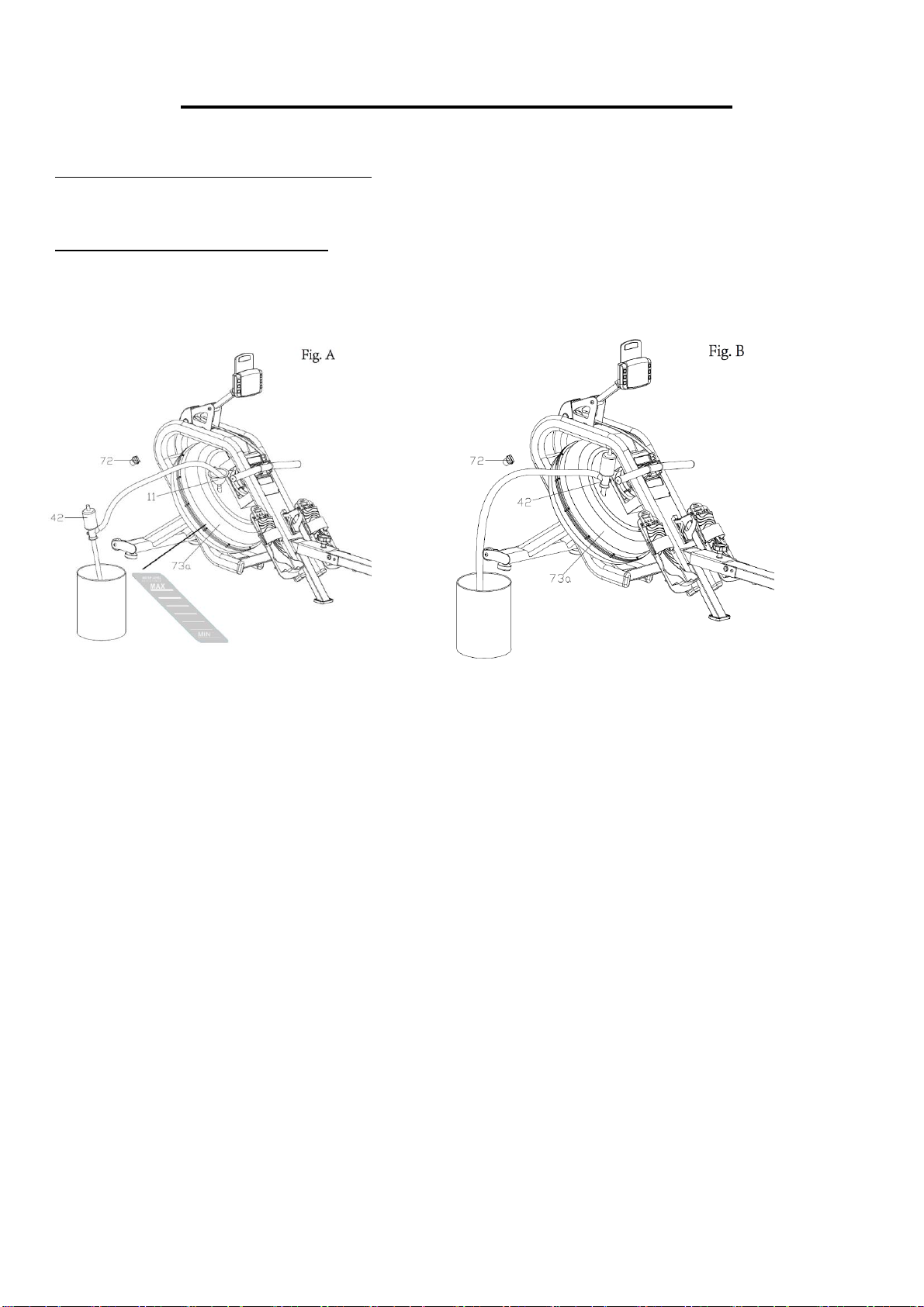

HOW TO FILL AND EMPTY THE TANK
1. Remove the Plug (No. 72) from the Upper Tank Cover (No. 73a).
2. Tofill the tank with water, refer to Fig. A. Insert the Funnel (No. 11) into the tank, then use a cup or a
bucket and Pumping Siphon (No. 42) to fill the tank. Use the water level gauge on the side of the
tank to measure desired water level in the tank.
3. To empty the tank, refer to Fig. B. Place a bucket next to the rower and use the Pumping Siphon
(No. 42) to pump out the water from the tank into the bucket.
4. Insert the Plug (No. 72) back into the Upper Tank Cover (No. 73a). Wipe off excess water around
the area.
NOTE:
•Fill the tank only with tap water. Add 1 water purification tablet (1 packet is included). Never use
pool chlorine or chlorine bleach. This will damage the tank and void the warranty.
•Add a water purification tablet every 6 months or as needed. If water remains cloudy, replace the
water in the tank.
•Do not consume the tank water. Dispose the water after pumping it out from the tank.
WATER LEVEL
•The water level gauge is on the side of the tank. There is a max level. Never fill over this limit. Filling
the tank over this limit will void the warranty.
•The resistance depends on the water level in the tank. The min level is the lowest resistance. The
max level is the highest resistance.

10
BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION:
1. Take out 2 AA batteries from meter box.
2. Press the buckle of battery cover on the back of the Meter (No. 39), then remove battery
cover.
3. Install 2 AAbatteries into the battery case on the back of the Meter (No. 39). Pay attention
to the battery + and –poles before installing.
4. Press the buckle of battery cover, then put the battery cover back to the back of the Meter
(No. 39).
5. The installation is complete!
BATTERY REPLACEMENT:
1. Press the buckle of battery cover on the back of the Meter (No. 39), then remove battery
cover.
2. Remove the 2 old AA batteries in the battery case and install 2 new AA batteries into the
battery case on the back of the Meter (No. 39). Pay attention to the battery + and –poles
before installing.
3. Press the buckle of battery cover, then put the battery cover back to the back of the Meter
(No. 39).
4. The replacement is complete!
NOTE: Always change both batteries at the same time. Do not mix battery types and do not
mix old and new batteries. Dispose batteries according to your state and regional guidelines.
Battery Cover
Battery

11
ADJUSTMENTS GUIDE
ADJUSTING THE BALANCE
Adjust the Hex Nuts (No. 32)on the Adjustable Foot
Pads (No. 33) of the rower using Spanner (No. 99) if the
rower is unbalanced during use.
CAUTION!
Moving parts, such as the Seat (No. 30), can crush and
cut. Keep hands clear of the Slide Rail (No. 3) during
use!
STORAGE
MOVING THE ROWER
To move the rower, lift up the Rear Support Tube (No. 4) until the
Rollers (No. 85) touch the ground. With the Rollers (No. 85) on the
ground, you can transport the rower to the desired location with ease.
PEDAL ADJUSTMENT
The pedal strap is adjustable and can be personalized to fit the user’s foot size.
When not in use, you can save space by storing the rower
vertically. Unscrew the Knob (No. 36) and Flat Washer (No.
37), and remove the Spring Knob (No. 34). (Fig B) Lower the
Seat (No. 30) all the way down. Then fold the Slide Rail (No. 3) up.
CAUTION: The Seat (No. 30)will slide down when folding the Slide
Rail (No. 3).
Insert Knob (No. 36) and Flat Washer (No. 37) into the holes
in the back of the Slide Rail (No. 3) and tighten. Then insert
Spring Knob(No. 34). (Fig A)
If not using the rower for more than a month, empty the tank
before storing.
Fig A
Fig B
CAUTION!
Move with caution
when you raise the
rower up, as your head
may touch the Rear
Support Tube (No. 4).
CAUTION!
Move the Seat (No. 30)to the
front of Slide Rail (No. 3) first
or it will glide down when
raising the rower up!
Fig A

12
EXERCISE METER
Our computerized exercise meter on the Sunny Water Rowing Machine allows the user to tailor a
personalized workout by monitoring their progress. During a workout, the exercise meter will
alternately and repeatedly display the Time, Time/500M, SPM, Distance, Strokes, Total Strokes,
Calories Burned, and Pulse.
BUTTONS
UP▲/DOWN ▼
Press these two buttons to scroll through the available selection.
To adjust the function values upward and downward.
ENTER:
To confirm your selection.
During training, press this button to scan each display function.
START /STOP:
To start and stop your selected workout program.
RESET:
To return the meter back to the main menu.
Press and hold for 3 seconds to reset values.
RECOVERY:
To activate the RECOVERY PROGRAM that will automatically evaluate your fitness immediately
after workout.

13
FUNCTIONS
TIME: Set target time (1 min ~ 99 min) by pressing UP and DOWN buttons, in 1 minute
increments.
TIME/500M: Your average 500M time is automatically displayed.
SPM: Strokes per minute.
DISTANCE: Preset target distance (100 ~ 99900 meters) by pressing UP and DOWN buttons, in
100 meters increments.
STROKES: Set target stroke (10 ~ 9990 strokes) by pressing UP and DOWN buttons, in 10
strokes increments.
TOTAL STROKES: Accumulates total strokes from 0 to 9999.
CALORIES: Set target calories (10 ~ 9990 Cal) by pressing UP or DOWN buttons, in 10 Cal
increments.
HRC/PULSE: Displays heart rate.
In Manual Mode, set target pulse by pressing UP and DOWN buttons (30 ~ 240), in 1 BPM
increments. HRC will display at the top of the meter. The meter will display your heart rate during
training. When it reaches the target value, PULSE will flash, and the meter will beep until it is
changed to another mode or you remove the chest strap. Pulse measurement function only
works with 5.3 KHz chest strap heart rate monitors.
CALENDAR: The meter will display year, month, and day when meter is in sleep mode.
TEMPERATURE: The meter will display current room temperature when the meter is in sleep
mode.
CLOCK: The meter will display current time when the meter is in sleep mode.
Note: Chest Strap Heart Rate Monitor is not included.
OPERATION

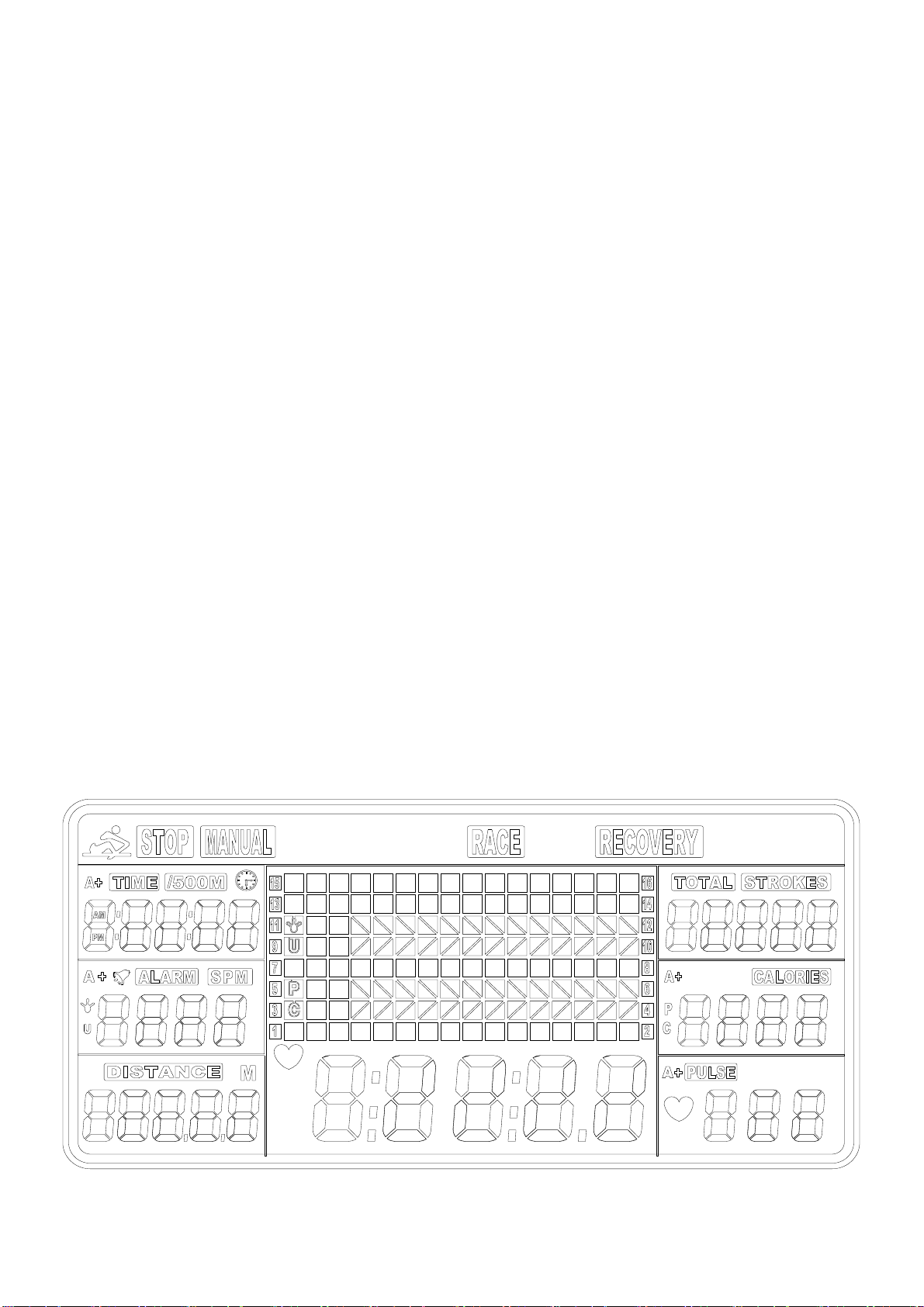

1. Install 2 PCS AA batteries (included) and meter will beep for 2 seconds (Fig.1).

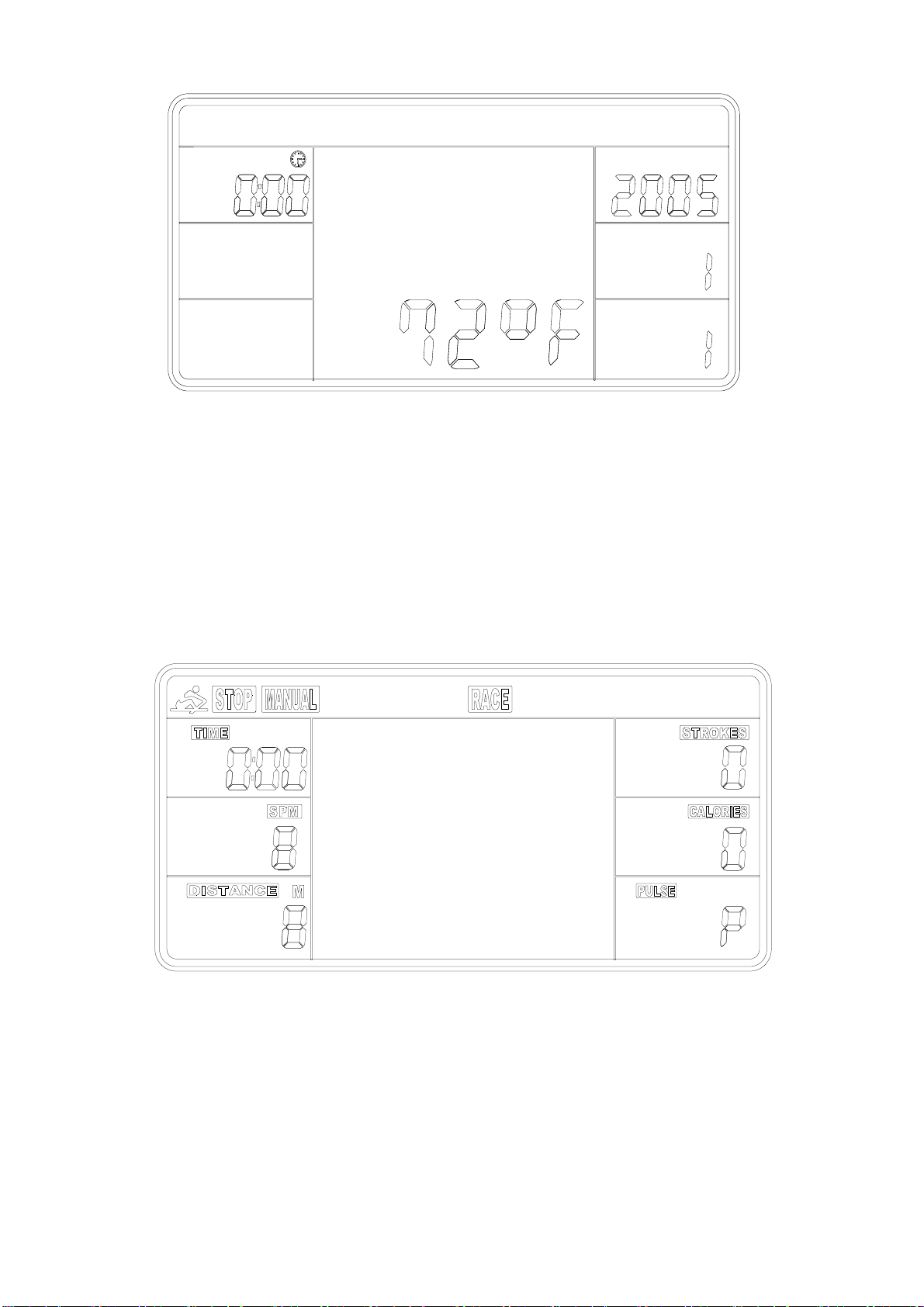

Then, the meter enters into the CLOCK & CALENDAR MODE (Fig.2).
Fig 1

14
2. The CLOCK will flash. Press UP button to set the hour. Press ENTER to confirm.
Press UP to set the minutes. Press ENTER to confirm. Continue press UP button to set the
YEAR (in the STROKES window); MONTH (in the CALORIES window); DAY (in the PULSE
window). Press ENTER to confirm when it is set.
After you confirm it, theALARM will beep. Press ENTER toskip setting up the alarm. To set up
the alarm, press UP button to turn on ALARM. An arrow will appear next to ALARM. Press
ENTER. CLOCK window will flash. Press UP or DOWN buttons to set the alarm time. Press
ENTER to confirm. Meter will go into the SPORT screen (Fig.3).
Fig 3
3. When you enter the SPORT screen, MANUAL and RACE will flash. Press UP or DOWN to
select MANUAL or RACE. Press ENTER to confirm your selection.
(1) MANUAL (Fig.4): There are 2 options in MANUAL mode.
a. The meter can be set to countdown. When you select MANUAL, the value of TIME will start
to flash. Press UP to set the value of TIME to countdown. Press ENTER to confirm it. Press
ENTER to skip setting up the time COUNTDOWN and go to the next function. You can set
Fig 2

15
the values for DISTANCE, STROKES, CALORIES, or PULSE. (Note: You can only set the
value for one function to countdown. For example, if you have set the target value for TIME,
then DISTANCE can’t be set.)
Press START button to start and the STOP icon will disappear. When the countdown
reaches zero or you press STOP button, the meter will stop and display the average value.
b. The meter counts the value of your workout. Press START to start.
(2) RACE (Fig.5):
Select RACE mode and L9 will flash. The TIME/500M will display 4:00. Then, press UP or
DOWN to select L1 ~ L15. Press ENTER to confirm. Then, you can set the distance of the race
(500 ~ 10000M) while the value of DISTANCE is blinking. Press ENTER, and the picture of the
race will display on the screen.
The TIME/500M of the programs are as follows:
L1
L2
L3
L4
L5
L6
L7
L8
L9
L10
L11
L12
L13
L14
L15
8:00
7:30
7:00
6:30
6:00
5:30
5:00
4:30
4:00
3:30
3:00
2:30
2:00
1:30
1:00
Fig.4
Fig.5

16

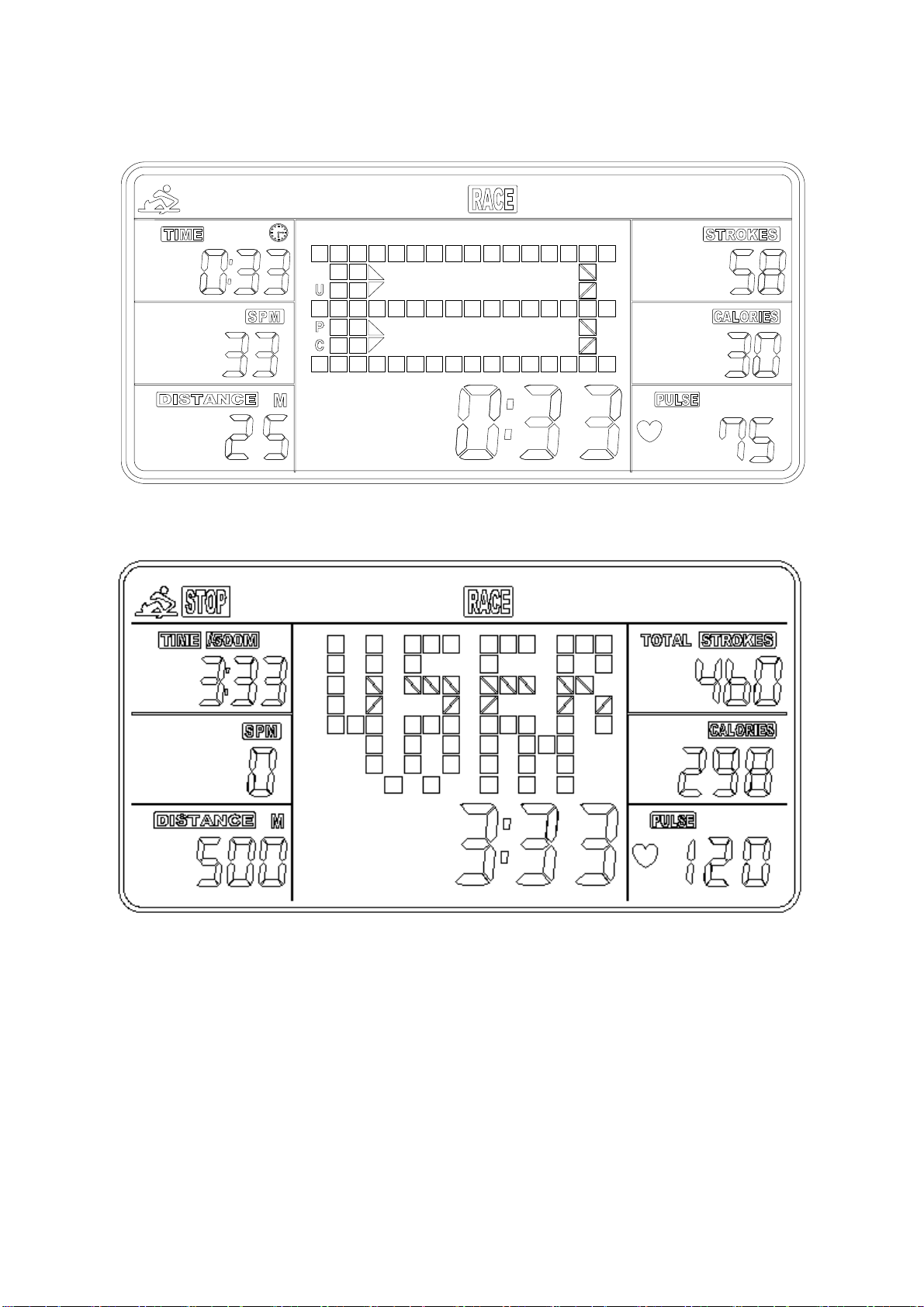

a. Press START button to start and STOP icon will disappear. USER and PC will display in the
matrix (Fig.6). The meter will stop when either the user or meter has reached the race
distance that was set. Then, the matrix displays “PC WIN” or “USER WIN” (Fig.7).
Fig 7
b. When the race is over, you can press START to start a race once again. Press RESET to
leave the RACE screen.
(3) RECOVERY:
This meter works with a 5.3 KHz chest strap heart rate monitor (not included). After exercising
for a period of time, keep wearing the chest strap monitor and press RECOVERY button. All
function displays will stop except “TIME” starts counting down from 00:60 to 00:00.
Screen will display your heart rate recovery status with the F1, F2….to F6. F1 is outstanding. F6
is poor. User may keep exercising to improve the heart rate recovery status. (Press the
RECOVERY button again to return the main display.)
Fig 6

17
ALARM
Alarm only works while the meter is in sleep mode. Alarm will not sound during exercise. Press
and hold RESET to go to clock screen to set up ALARM.
SLEEP MODE
The meter will go into sleep mode after about 4 minutes of inactivity.
BATTERY
This meter uses 2 AA batteries, which are included. Changing the batteries will reset all values.
If there is a problem with the display, try to change the batteries first. When changing the
batteries, change both. Do not mix battery types. Do not mix old and new batteries. Dispose of
old batteries according to your regional guidelines.
Version 1.2

1
