Sunny SF-RW5515 User manual

MAGNETIC ROWING MACHINE
SF-RW5515
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us,PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [e-mail] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness or nauseous feeling. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 250 pounds (113KG).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/ or damage to the product or property, proper lifting and moving are
required.
12.Your product is intended for use in cool and dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only; it is not intended for commercial use.
WARNING: This product can expose you to one or more chemicals known to
the State of California to cause cancer and birth defects or reproductive harm.
For more information go to www.P65Warnings.ca.gov.

2
#81
S5
S6
S17
S19
S13
S15
S14
EXPLODED DIAGRAM
HARDWARE PACKAGE
9
8
7
8
9
4R
82
2
1
4L
6
18
19
20
22
21
24
23 25
28 83
23
43
87
18 17
27
90
6
44
29
33
23 88
23 43
29 39
84
47
36 37
50
49
87
64
48
48
46
59
60
56
58
61
45
63
64
65
66
65
64
63
62
67
61
42
43
74
5
41
89
75
77
86
85 55
77
76
8973
41
89 43
51
63
64
65 66
72
52
2
6
70
69
6
70
11
12
11
10
17
1741
18
40
18
41 17
42
43
48
48
49
50
57 12
16 14
13
79
80
81
78
42 43
74
65
64
63
55
2
11
15
29
45 42
89
52
34
71
68
S17
S13
S15
S14
S19
S6
S5
#2 d8*Φ16*1.5 6PCS
#82 M8*55*20*S6 2PCS
#46 d12*Φ24*2 1PC
#47 M12 1PC
#48 M12*Φ12.5*160
*S19 4PCS
#52 d8 4PCS
#58 Φ10*95*M6*25 1PC
#59
M6*16*S5 1PC
#60 Φ8*100*105 1PC
#63 M6*16*Φ20 1PC
#65 Φ33*Φ8*13 1PC
#66 Φ12*80*M6 1PC
#72 M8*20*S6 4PCS
#78
#79
#80
#64 d6*Φ12*1 1PC

3
PARTS LIST
No.
Description
Specification
QTY
No.
Description
Specification
QTY
1
Front Stabilizer
1
25
Fixing Axle for
Mesh Belt
Φ5*32
1
2
Washer
d8*Φ16*1.5
6
26
Refer to #83
3
Refer to #82
27
Belt Wheel
Φ104
1
4L/R
End Cap
2
28
Bolt
M6*55*S10
3
5
Nut
M8*H7.5*S13
3
29
Cir Clip
d10
3
6
Screw
ST4.2*25*Φ1
0.5
4
30
Refer to #90
7
Handlebar
1
31
Refer to #87
8
Foam Grip
Φ26*3*215
2
32
Refer to #88
9
End Cap
Φ28*15
2
33
Mesh Belt
Pulley
Φ45*35
1
10
Left Belt Cover
1
34
Screw
M8*16*S6
4
11
Screw
ST4.2*19*Φ8
11
35
Refer to #89
12
Screw
ST4.2*16*Φ8
7
36
Handlebar
Seat
1
13
Computer
1
37
Screw
M5*10*Φ10
2
14
Tension Control
1
38
Refer to #84
15
Washer
D5
1
39
Belt
6PJ250
1
16
Screw
M5
1
40
Inertial Wheel
Φ176
1
17
Nut
M10*1*H8*S1
5
4
41
Adjusting
Screw
M6*40*Φ10*2.5
4
18
Nut
M10*1*H5*S1
7
4
42
Adjusting U
Seat
30*10*1.5
4
19
Cover for Mesh
Belt Wheel
Φ149*14
1
43
Nut
M6*H6*S10
8
20
Outer PC
Board
1
44
Main Frame
1
21
Volute Spring
1
45
Trunk Wire 1
1
22
Axle for Mesh
Belt Wheel
1
46
Washer
d12*Φ24*2
1
23
Bearing
6000-ZZ
4
47
Knob
M12
1
24
PC Board
1
48
Bolt
M12*Φ12.5*160
*23*S19
4

4
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of
the manual)
Please contact us at [e-mail] or 1- 877 - 90SUNNY (877-907-8669).
49
Pedal L/R 2
70
End Cap 2
50
Pedal Strap 2
71
Seat
DDPU986
1
51
Magnet
Φ15*7
1
72
Screw
M8*20*S6
4
52
Spring Washer
d8
8
73
Bolt
M8*125*15*S14
3
53
Refer to #85
74
U Shape
Bracket
2
54
Refer to #86
75
Left Seat
Supporting
1
55
Bearing
608Z
6
76
Right Seat
Supporting
1
56
Rubber Pad 1
77
Spacer
d8*Φ15*4
6
57
Right Belt
Cover
1
78
Spanner
S17-19
1
58
Bolt
Φ10*95*M6*2
5
1
79
Allen Wrench
S5
1
59
Screw
M6*16*S5
1
80
Allen Wrench
S6
1
60
Pull Pin
Φ8*100*105
1
81
Spanner
S13-14-15
1
61
Sensor Wire 1
82
Screw
M8*55*20*S6
2
62
Sliding Rail 1
83
Mesh Belt
Wheel
Φ145
1
63
Screw
M6*16*Φ12
4
84
Mesh Belt
t1.5*22*2270
1
64
Washer
d6*Φ12*1
5
85
Wheel
Φ40*92
3
65
Limit Mat
Φ33*Φ8*13
4
86
Casing Pipe
for Idler Wheel
Φ12.7*Φ9.9*78
3
66
Limit Axle
Φ12*80*M6
2
87
Wave Washer
Φ13.5*Φ10.2*0.
4
1
67
Grommet
Φ16*15*Φ5
1
88
Spacer
Φ10*Φ6.1*40
1
68
End Cap
J80*40*18
1
89
Washer
d8*Φ20*1.5
10
69
Rear Support 1
90
Bolt
M6*55*S10
1

5
ASSEMBLY INSTRUCTIONS
82
2
1
44
STEP 1:
Attach Front Stabilizer (No. 1) to Main
Frame (No. 44) using 2 Screws (No. 82)
and 2 Washers (No. 2). Tighten and secure
with Allen Wrench (No. 80).
44
49
48
48
48
48
49
A
B
A
B
STEP 2:
Affix the 2 Bolts (No. 48) into the bottom
hole in position B of Main Frame (No. 44)
with Spanner (No. 78).
Insert the 2 Bolts (No. 48) into the upper
hole in position A of the Main Frame (No.
44) through the Pedals (No. 49) and tighten
with Spanner (No. 78).
NOTE:The Pedals (No. 49) should rest on
the Bolts (No. 48) that are in position B.
62
66
65
64 63
71
STEP 3:
Insert the Seat (No. 71)onto Sliding Rail
(No. 62).
Insert the Limit Axle (No. 66) into the hole
on the back of the Sliding Rail (No. 62).
Attach the Limit Mat (No. 65) onto the
Limit Axle (No. 66) using 1 Screw (No. 63)
and 1 Washer (No. 64) then tighten with
Spanner (No. 81).
#2 d8*Φ16*1.5 2PCS
#82 M8*55*20*S6 2PCS
S6
#80
#48 M12*Φ12.5*160*S19 4PCS
S17
S19
#78
#63 M6*16*Φ12 1PC
#64 d6*Φ12*1 1PC
#65 Φ33*Φ8*13 1PC
#66 Φ12*80*M6 1PC
#81
S13
S15
S14

6
2
52
72
69
62
58
60
45
61
62
59
46
47
44
STEP 4:
Attach Sliding Rail (No. 62) onto Rear
Support (No. 69) using 4 Screws (No. 72),
4 Spring Washers (No. 52), and 4
Washers (No. 2). Tighten and secure with
Allen Wrench (No. 80).
STEP 5:
Connect Trunk Wire 1 (No. 45) with
Sensor Wire (No. 61).
Attach the Sliding Rail (No. 62) to Main
Frame (No. 44) using 1 Bolt (No. 58) and 1
Screw (No. 59). Tighten and secure with
Allen Wrench (No. 79) and Allen Wrench
(No. 80).
Next, attach the top of the Sliding Rail (No.
62) to the Main Frame (No. 44) using 1
Knob (No. 47) and 1Washer (No. 46) then
insert Pull Pin (No. 60).
The assembly is complete!
#72 M8*20*S6 4PCS
#52 d8 4PCS
#2 d8*Φ16*1.5 4PCS
S6
#80
#58 Φ10*95*M6*25 1PC
#59 M6*16*S5 1PC
#60 Φ8*100*105 1PC
#46 d12*Φ24*2 1PC
#47 M12 1PC
S5
S6
#80
#79

7
ADJUSTMENTS & USAGE GUIDE
PEDAL STRAP ADJUSTMENT
The pedal strap is adjustable and can be personalized
to fit the user’s foot size.
MOVING THE MACHINE
To move the machine, lift up the rear stabilizer until the
transportation wheels on the front stabilizer touch the
ground. With the wheels on the ground, you can
transport the bike to the desired location with ease.
ADJUSTING THE BALANCE AND
RESISTANCE
Adjust the End Caps (No. 70) on the rear stabilizer of
the machine if the machine is unbalanced during use
Rotate the Tension Control Knob (No. 14) clockwise
to increase the level of resistance. Rotate the tension
control counter-clockwise to decrease the level of
resistance.
Tension levels are set at Level 1 being the lowest and
Level 8 being the highest.
CAUTION!
Moving parts, such as the seat, can cut and crush. Keep hands clear of the sliding rail during use!

8
STORAGE GUIDE
47
46
60
71
62
62
71
46 47
60
69 69
When not in use, you can
save space by folding the
Sliding Rail (No. 62).
1. Disassemble Knob (No.
47) and Washer (No. 46)
and pull out the Pull Pin
(No. 60). Fold the sliding
rail to vertical angle (Figure
A).
SAFETY NOTE:the saddle
will glide down when
folding the sliding rail.
2. Reinsert Pull Pin (No.
60) into the hole on the
main frame, then tighten
Knob (No. 47) and
Washer (No.46) to Sliding
Rail (No.62). (Figure B)
Figure A
Figure B
CAUTION!
Use caution when you
vertically fold the
Sliding Rail (No. 62)
as your head may
touch the Rear
Support (No. 69).
CAUTION!
The seat will glide
down when
folding the Sliding
Rail (No. 62)!

9

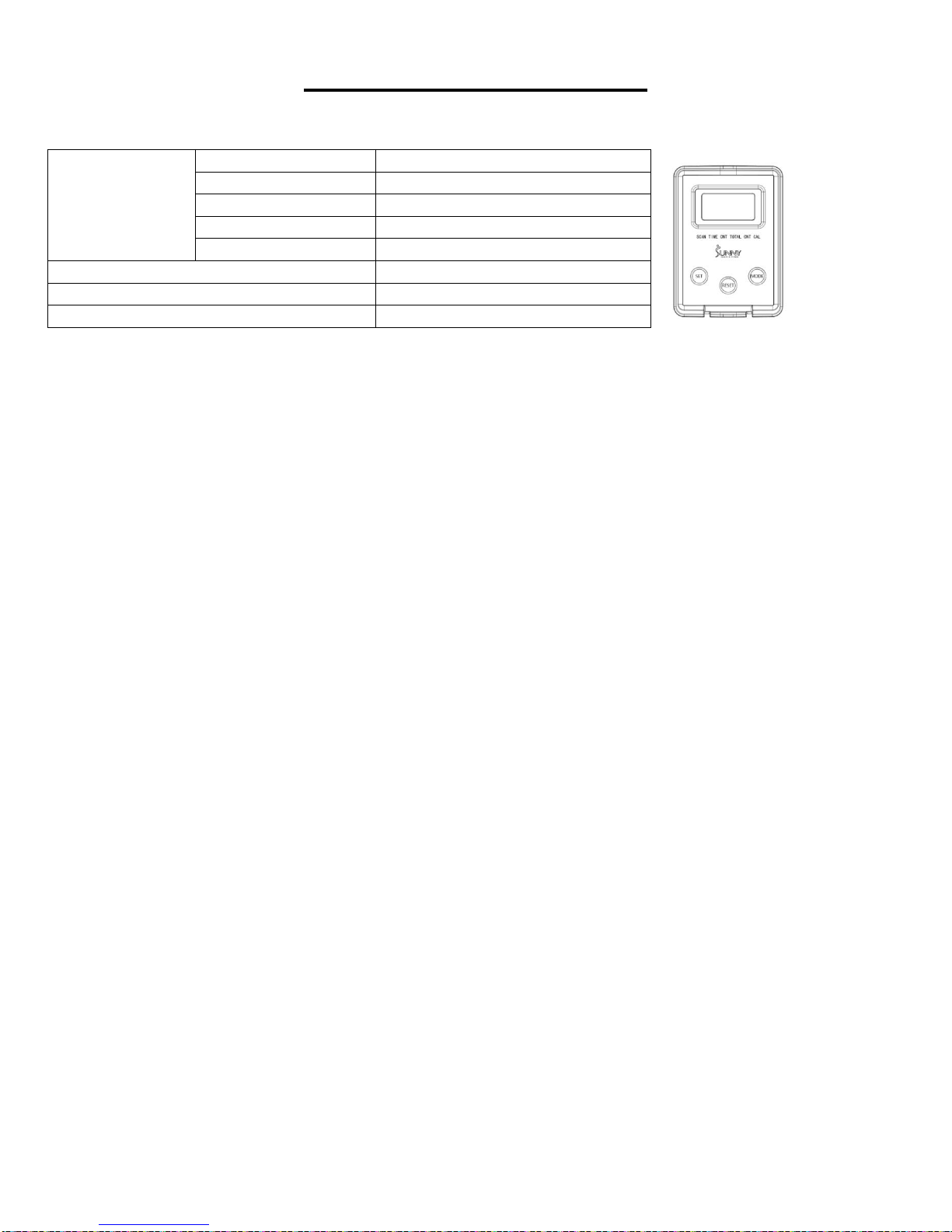

EXERCISE COMPUTER
SPECIFICATIONS
FUNCTION KEYS:
MODE: To select your specification mode and/or turn on display console.
SET: To set a value of Time or Calories (when not in Scan mode).
RESET: Press to reset Time or Calories.
OPERATION PRECEDURES:
AUTO ON/OFF & AUTO START/STOP:
The power will turn off automatically once there’s no signal for 4 minutes. The meter will reactivate
once the machine is put into motion or when a meter key ispressed.
FUNCTIONS
SCAN: Press MODE button until SCAN appears. The display will rotate through the four functions
in the following order: TIME, COUNT, CALORIES, and TOTAL COUNT. Each display will be held
for 4 seconds.
TIME: Counts the total time elapsed during your current workout.
COUNT: Counts the number ofrowing strokes from your current workout.
CAL: Counts the total calories burned from current workout.
TOTAL COUNT: Counts the total amount of strokes from the first use.
BATTERY: This monitor usestwo AA batteries. Ifthe display appears incorrectly or becomes
difficult to read, please install new batteries. Always change both batteries at the same time. Do
not mix battery types and do not mix old and new batteries. Dispose batteries according to your
state and regional guidelines.
Version 3.5
FUNCTIONS
SCAN
Every 6 seconds
TIME
0:00~99:59 (Minute: Second)
COUNT
0~9999 Count
CALORIES
0.0~999.9~9999 Kcal
TOTAL COUNT
0~9999 Count
BATTERY TYPE
(2) Two AAA or UM-4
OPERATING TEMPERATURE
0°C ~ 40°C
STORAGE TEMPERATURE
-10°C ~ 60°C
