Sunrise Medical Quickie GP Range Installation and operation manual

User
Instruction
Manual &
Warranty
Quickie GP/GPV
SUPPLIER:
THIS MANUAL MUST BE GIVEN TO THE
RIDER OF THIS WHEELCHAIR.
RIDER:
BEFORE USING THIS WHEELCHAIR
READ THIS ENTIRE MANUAL AND
SAVE FOR FUTURE REFERENCE.

2
930301 Rev. C
I. INTRODUCTION
SUNRISE LISTENS
Thank you for choosing a Quickie wheelchair.We want to hear your questions
or comments about this manual, the safety and reliability of your chair, and the
service you receive from your Sunrise supplier. Please feel free to write or call
us at the address and telephone number below:
SUNRISE HOME HEALTHCARE GROUP
MOBILITY PRODUCTS DIVISION
Customer Service Department
7477 East Dry Creek Parkway
Longmont, Colorado 80503
[phone] or [phone]
Be sure to return your warranty card, and let us know if you change your
address.This will allow us to keep you up to date with information about safety,
new products and options to increase your use and enjoyment of this wheel-
chair. If you lose your warranty card, call or write and we will gladly send you a
new one.
FOR ANSWERS TO YOUR QUESTIONS
Your authorized supplier knows your wheelchair best, and can answer most of
your questions about chair safety, use and maintenance. For future reference, fill in
the following:
Supplier:______________________________________________________________________________
Address: ______________________________________________________________________________
______________________________________________________________________________________
Telephone: ____________________________________________________________________________
Serial #:______________________________________ Date/Purchased: ________________________

3930301 Rev. C

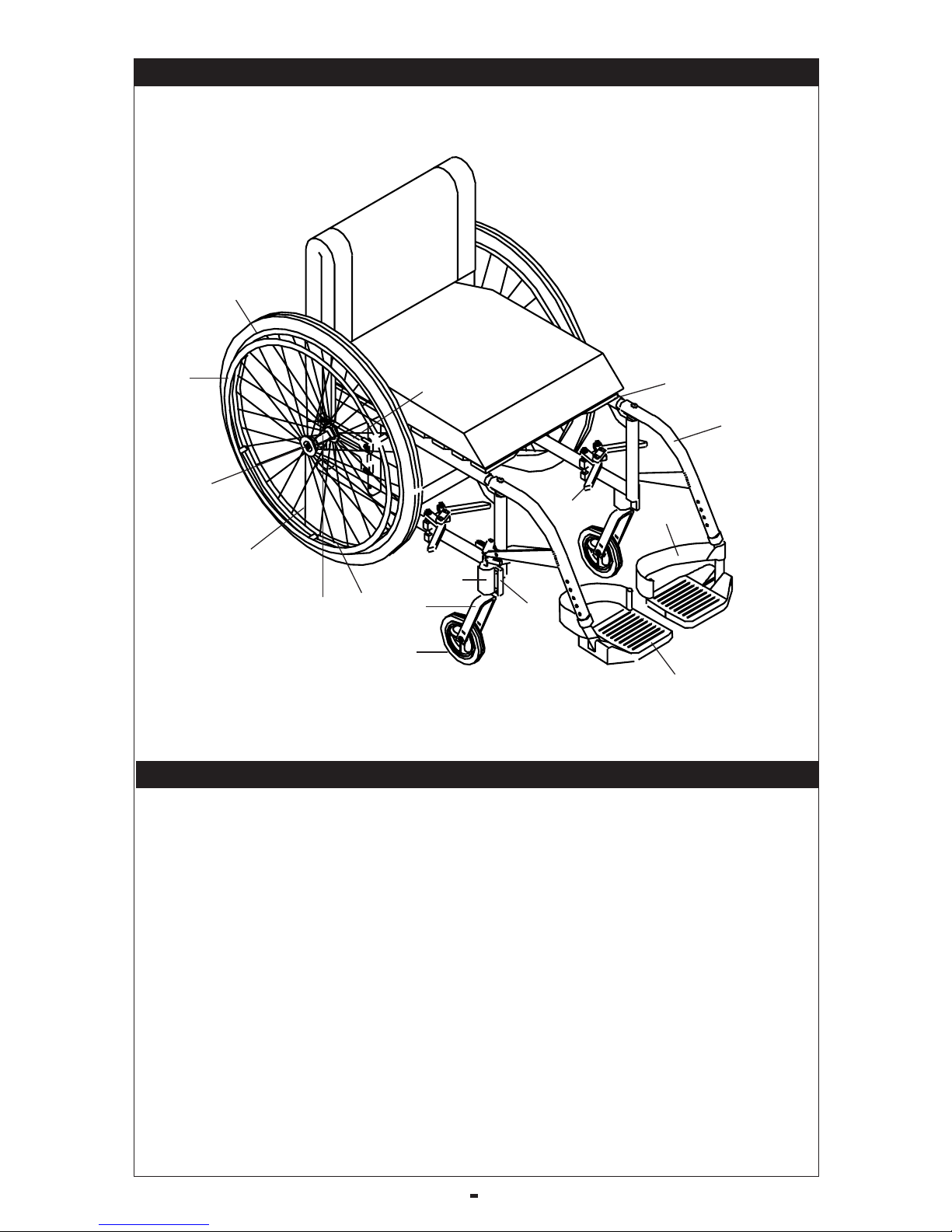

II. YOUR CHAIR AND ITS PARTS
1. Backrest
2. 24" Pneumatic Tires
3. Seat Cushion
4. Seat Sling
5. Low-Mount Wheel Lock
6. Leg Strap
7. Caster Plate
8. Footrest
9. Footrest Impact Guard
10. 21" Aluminum Handrim
11. Spokes
12. Rear Wheel Hub
13. Quick-Release Axle
14. Aluminum Wheel Rim
15. Axle Plate
16. Caster Housing
17. Caster Fork
18. Caster Wheel
1
QUICKIE GP
3
2
13
10
11
12 14
15
16
17
18
7
89
6
5
4

4
930301 Rev. C
II. YOUR CHAIR AND ITS PARTS
1. Backrest
2. Pneumatic Tires
3. Seat Cushion
4. Seat Sling
5. Wheel Lock
6. Leg Strap
7. Caster Plate
8. Footrest
9. Footrest Impact Guard
10. Aluminum Handrim
11. Spokes
12. Rear Wheel Hub
13. Quick-Release Axle
14. Aluminum Wheel Rim
15. Axle Plate
16. Caster Housing
17. Caster Fork
18. Caster Wheel
QUICKIE GPV/QUICKIE GPV COMPETITION
2
1
3
13
10
11
12
14
15
16
17
18
7
8
9
65
4

5930301 Rev. C
II. YOUR CHAIR AND ITS PARTS
1. Backrest
2. Pneumatic Tires
3. Seat Cushion
4. Seat Sling
5. Wheel Lock
6. Heel Loop
7. Caster Plate
8. Swing Away Footrest
9. Footplate
10. Aluminum Handrim
11. Spokes
12. Rear Wheel Hub
13. Quick-Release Axle
14. Aluminum Wheel Rim
15. Axle Plate
16. Caster Housing
17. Caster Fork
18. Caster Wheel
QUICKIE GP SWINGAWAY
1
2
3
13
10
11
12 14
15
16
17
18
7
9
6
5
4
8

6
930301 Rev. C
II. YOUR CHAIR AND ITS PARTS
Colors
Blue, black, red, midnight purple,
teal, pearl pink, lavender, forest green,
burgundy, antique bronze, yellow, blue
green, candy teal, candy razzberry,
candy purple
Custom splatter: black, teal chase,
purple chase
Chair Parts
Standard - Black
Frame Dimensions
Frame width: Standard -12"-20"
Frame height: Standard - 10"
front, 9" rear
Option - 9 1/4" front, 8 1/4" rear, 11"
front, 10" rear
Sling depth: Standard -15"
Option - 14", 16", 17", 18"
Cushion: 2" , 3" , 4"
Backrest
Non-folding - fixed: 8"-16"
Folding - adjustable: Standard - 11"-14"
Option - 12"-16", 16"-20", 14"-18", push
handles, adjustable upholstery
Footrests
Standard - rigid, composite
Option - platform, platform flip-up,
foam, 90 degree footboard, extended,
extension tubes.
Casters
Standard - 5" polyurethane
Option - 3" micros, 6" pneumatic or
polyurethane, 3/4" longer fork stem
bolt, 1 1/2" longer fork stem bolt,
multi-positioning caster plate, caster pin
locks, quick-release caster stems
Armrests
Option-padded swing-away,
height-adjustable
Stroller handles
Option - regular, tall
Axles Plate
Standard - Adjustable axle plate
Option - Double slot index, amputee
Axles
Standard - Stainless steel
Option - Titanium, quad-release axle nuts
Anti-Tips
Option - Rear anti-tip tubes
Rear Wheels
Tire types
Standard Rear wheels
Standard - Spoke, Option - Mag
Tire Size
Standard - 24", Option - 22", 26"
Tire types
Standard - pneumatic
Option - Pneumatic w/airless insert,
full-profile polyurethane, low-profile
polyurethane, Kevlar, high-pressure
clinchers, latex tubular, turbo tread,
tennis, basketball, heat-treated tennis,
heat-treated basketball
Handrims
Standard - Aluminum
Option - Plastic-coated, long tabs
Projections
Option - Vertical, oblique - 6, 8, 10, 12
Wheel Locks
Standard - Low mount
Option - High-push, high-pull, high scissor,
swing-away, 6" or 9" extension handles
All features may not be available with
some chair setups or in conjunction
with another chair feature. Please
consult your authorized supplier for
more information.
QUICKIE GP, QUICKIE GPV, QUICKIE GPV COMPETITION,
QUICKIE GP SWING-AWAY

7930301 Rev. C
II. YOUR CHAIR AND ITS PARTS
1. Backrest
2. Tires
3. Seat Cushion
4. Seat Sling
5. Wheel Lock
6. Leg Strap
7. Caster Plate
8. Footrest
9. Footrest Impact Guard
10. Handrim
11. Spokes
12. Rear Wheel Hub
13. Quick Release Axle
14. Aluminum Wheel Rim
15. Axle Plate
16. Caster Housing
17. Caster Fork
18. Caster Wheel
QUICKIE TI TITANIUM
2
1
3
13
10
11
12
14
15
16
17
18
7
8
9
65
4

8
930301 Rev. C
II. YOUR CHAIR AND ITS PARTS
Colors
Natural titanium finish
Chair Parts
Black
Frame Dimensions
Frame width: Standard - 14"-18" (seat
width 1/2" narrower)
Sling depth with Standard frame
lengths:
14" (21 1/4"), 15" (21 1/4"), 16" (21 1/4")
Cushion: 2"
Backrest
Non-folding - fixed: 9"- 16"
Folding - adjustable: 11"-14", 12"-16",
14"-18", 16"-20"
Backrest Options - Push handles
Footrests
Rigid: Regular, long
Casters
Standard - 5", low-profile polyurethane
with aluminum caster rims
Option - 3" micros, 6" pneumatic, 6"
polyurethane, composite caster rims,
3/4" longer fork stem bolt
Armrests
Option - Padded swing-away, height-
adjustable
Axle Plates
Standard - GP
Option - Double slot
Axles
Standard - Stainless steel
Option - Titanium
Standard Rear Wheels
Standard - Spoke
Option Mag
Quickie Performance Wheels
Option - Tennis, basketball, heat treated
tennis, heat treated basketball
Tire Size
Standard - 24"
Option - 22" , 26"
Tire Types
Standard - Pneumatic
Option - Full profile polyurethane (22"-
24" only), airless insert (22"-24" only),
low-profile polyurethane (24" only),
Kevlar (24" only), high pressure clinch-
ers
(24", 26" only), latex tubular (24", 26"
only), turbo smooth (26" only), turbo
tread (24", 26" only)
Handrims
Standard - Aluminum
Option - Plastic-coated, long tabs
Projections
Option - Vertical, oblique, 6, 8, 10, 12
Wheel Locks
Standard - Low mount
All features may not be available with
some chair setups or in conjunction
with another chair feature. Please
consult your authorized supplier for
more information.
QUICKIE TI TITANIUM

9930301 Rev. C
III. TABLE OF CONTENTS
1. INTRODUCTION .............................................................................. 2
a. Sunrise Listens ...................................................................................... 2
II. YOUR CHAIR AND ITS PARTS ................................................3 - 8
I11. TABLE OF CONTENTS .............................................................. 9 - 10
IV. NOTICE - READ BEFORE USE .................................................. 11
a. Choose the Right Chair & Safety Options .................................. 11
b. Review This Manual Often ................................................................ 11
c. Warnings .............................................................................................. 11
V. GENERAL WARNINGS.................................................................... 12
a. Weight Limit ........................................................................................ 12
b. Weight Training .................................................................................... 12
c. Getting to Know Your Chair ............................................................ 12
d. To Reduce The Risk of an Accident ................................................ 12
e. Safety Check-List ................................................................................ 13
f. Changes & Adjustments .................................................................... 13
g. Environmental Conditions ................................................................ 13
h. Terrain .................................................................................................... 14
i. Street Use ............................................................................................ 14
j. Motor Vehicle Safety .......................................................................... 14
k. When You Need Help ........................................................................ 15
VI. WARNINGS: FALLS & TIP-OVERS .......................................... 16
a. Center of Balance .............................................................................. 16
b. Dressing or Changing Clothes ........................................................ 16
c. Wheelies .............................................................................................. 17
d. Obstacles .............................................................................................. 17
e. Reaching or Leaning .......................................................................... 18
f. Moving Backward ................................................................................ 18
g. Ramps, Slopes & Side Hills ................................................................ 19
h. Transfers ................................................................................................ 20
i. Curbs & Steps ...................................................................................... 20
j. Stairs ...................................................................................................... 21
k. Escalators .............................................................................................. 21
VII. WARNINGS: FOR SAFE USE ...................................................... 22
a. Learning To Do A “Wheelie” ............................................................ 22
b. Descending A Curb or Single Step ................................................ 22
c. Climbing A Curb or Single Step ...................................................... 23
d. Climbing Stairs .................................................................................... 23
e. Descending Stairs ................................................................................ 23
f. Maintenance ........................................................................................ 24
VIII. WARNINGS: COMPONENTS & OPTIONS ........................ 25
a. Anti-Tip Tubes (Optional) ................................................................ 25
b. Armrests .............................................................................................. 25
c. Cushions & Sling Seats........................................................................ 25
d. Fasteners .............................................................................................. 26
e. Footrests .............................................................................................. 26
f. Pneumatic Tires .................................................................................. 26
g. Positioning Belts (Optional) ............................................................ 27

10
930301 Rev. C
III. TABLE OF CONTENTS
h. Power Drive ........................................................................................ 27
i. Push Handles (Optional) .................................................................... 27
j. Quickie Release Axles ........................................................................ 28
k. Rear Wheels ........................................................................................ 28
l. Rear Wheel Locks ................................................................................ 28
m. Modified Seat Systems........................................................................ 29
n. Upholstery Fabric ................................................................................ 29
IX. CHAIR BASICS .................................................................................... 30
a.To Mount and Remove Rear Wheels (Optional) .......................... 30
X. SET-UP AND ADJUSTMENTS .................................................... 31
a. Axles Quick Release .......................................................................... 31
b. Swing-Away Adjustable Armrest ...................................................... 31
c. Height-Adjustable Armrest (Optional)............................................ 32
d. Backrest.................................................................................................. 33
e. Seat Sling ................................................................................................ 33
f. Cushion (Optional).............................................................................. 33
g. Rear Axles ........................................................................................ 34
h. Wheel Locks ........................................................................................ 35
i. Footrest .................................................................................................. 36
j. Swing-Away Hangers and Footrests (60º,70º,70ºV, or 90º) ........ 37
k. Articulating Legrest or Elevating Legrest (Optional) .................. 37
l. Caster Forks.......................................................................................... 38
m.Caster Plates ........................................................................................ 38
n. Caster Mounting .................................................................................. 38
o. Anti-Tip Tubes (Optional) .................................................................. 39
p. Check Out ............................................................................................ 40
XI. TROUBLESHOOTING .................................................................... 41
X1I. MAINTENANCE ................................................................................ 42
a. Introduction .......................................................................................... 42
b. Maintenance Chart ............................................................................ 42
c. Maintenance Tips .................................................................................. 43
d. Cleaning.................................................................................................. 43
e. Storage Tips .......................................................................................... 43
XII. SUNRISE LIMITED WARRANTY .............................................. 44
a. For Lifetime .......................................................................................... 44
b. For 2 Years ............................................................................................ 44
c. Limitations ............................................................................................ 44
d. What We Will Do ................................................................................ 44
e. What You Must Do ............................................................................ 44
f. Notice to Consumers ........................................................................ 44
