Surefire AVIATOR-RD User manual

THE SUREFIRE NO-HASSLE GUARANTEE
We’ll do what it takes to keep your SureFire gear running smoothly. SureFire
warrants that if you — our customer — purchase one of our products, and we
determine that it is defective in material and/or workmanship during your lifetime, we
will repair or replace it — no hassle!
Our warranty does not cover consumables or normal wear-and-tear — things like
batteries draining, headbands and headpads wearing out, ink cartridges running
out, and switches wearing out — or damage resulting from abuse, alterations,
unauthorized repairs, or use contrary to SureFire’s user manuals.
Should you need a replacement product, SureFire reserves the right to replace an
obsolete product with a current production, like model. In the event that any issue with
a SureFire product is not covered under this warranty SureFire can arrange to have
the product repaired for a reasonable fee.
STANDARD DISCLAIMER
Except as specified above or prohibited by applicable law: all express or implied
conditions and warranties, including, without limitation, any implied warranty or
condition of merchantability or fitness for a particular purpose, or accuracy of any
informational content, are hereby excluded and disclaimed by SureFire; and in no
event will SureFire be liable for any special, direct, indirect, consequential, incidental
or punitive damages howsoever arising and regardless of the theory of liability, even if
advised of the possibility of such damages. Products, prices, availability, specifications,
and offers are subject to change or cancellation at any time without notice.
WARRANTY CLAIMS
For claims, contact Customer Service at 714-545-9444 to obtain a Return
Merchandise Authorization number (RMA#). Then package the unit carefully
and send to (no CODs):
SureFire, LLC.
Repairs Department, RMA#____
17680 Newhope Street, Suite B
Fountain Valley, CA 92708
SureFire will pay any reasonable shipping costs to return the unit to you.
18300 MT. BALDY CIRCLE
FOUNTAIN VALLEY, CA 92708-6122
SUREFIRE.COM
Patents: RE40125, 8,182,109
Revision E 1-2021
71-01-1010

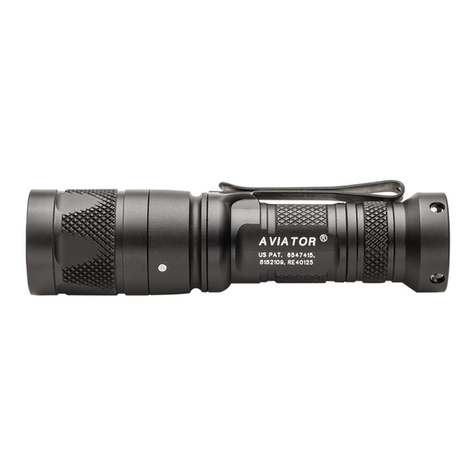

AVIATOR-RD AVIATOR-YG
DUAL-OUTPUT / MULTI-SPECTRUM
LED FLASHLIGHT
AVIATOR-RD
AVIATOR-YG
BODY
LED
ASSEMBLY
TAILCAP
USER MANUAL
available at BrightGuy.com

AVIATOR SPECIFICATIONS
LOCKOUT TAILCAP
The Aviator features a lockout tailcap, which prevents accidental
activation during storage or transport. The tailcap may need to be
enabled prior to light operation.
To enable, rotate tailcap clockwise until light activates when tailcap
pushbutton is pressed, providing momentary-on light output.
To lock out tailcap, rotate counterclockwise until light will not
activate when pushbutton is depressed.
LIGHT OPERATION
NOTE: Unit is shipped in the “OFF” position to prevent activation
of the light.
1. To select white (WH) light LED, rotate knurled portion of the bezel
clockwise (with bezel pointed away from you) until indicator dot
aligns with WH and the head clicks in to position (Fig. 1).
2. To select colored LED, rotate knurled portion of the bezel counter
clockwise (with bezel pointed away from you) until indicator dot
aligns with the color engraving and the head clicks in to position (Fig. 2).
Light Activation
Press or click pushbutton tailcap switch once for low output. Return
to off and press or click on again, within two seconds, for high output.
BATTERY REPLACEMENT
Most SureFire illumination tools ship preloaded with batteries. To load
or replace batteries:
1. Unscrew head and remove.
2. Remove old batteries and dispose of properly.
3. Insert new battery with positive (+) terminals oriented forward.
4. Replace head and screw on until hand tight.
MAINTENANCE
Use a clean, dry cloth to wipe off body and window. Periodically clean
and lubricate threads. Apply a thin coat of non-migrating, silicon-based
lubricant to O-rings (do not use petroleum-based lubricants which
can harm O-rings). For additional tips on maintaining your SureFire
illumination tool, visit www.surefire.com/faqs-maintenance.
ACCESSORIES
SureFire makes a full line of accessories for most of its illumination tools.
For a complete listing, visit www.surefire.com/parts-accessories
ENABLE
DISABLE
FIGURE 2
FIGURE 1
LED COLOR OUTPUT (lumens) RUNTIME (hours)
WHITE High: 250 Low: 5 High: 1.5 Low: 20.5
RED (635 nm) High: 39 (240 mW) Low: 1 (1.3 mW) High: 3 Low: 57
YELLOW-
GREEN (568 nm) High: 39 (85 mW) Low: 3 (7 mW) High: 12 Low: 58
PEAK BEAM INTENSITY 9,300 candela (white LED only)
DISTANCE 190 meters (white LED only)
CONSTRUCTION Aluminum
FINISH Hard Anodized (MIL-A-8625 Type III, Class 2)
WEIGHT (w/batteries) 3.1 oz (88 g)
LENGTH 4.18 in (10.6 cm)
BEZEL DIAMETER 1.06 in (2.7 cm)
BATTERIES One 123A lithium (incl.)
SWITCHING Click tailcap
All performance claims tested to ANSI/NEMA FL1-2019 Standard.
