GENUINE SUZUKI ACCESSORIES
99021-28K50
INSTALLATION INSTRUCTIONS
Description: HEATER SET, GRIP Part Number: 57100-2884
Applications: DL650AL7/XAL7 Installation Time: 2.0 Hours
Ref. Description QTY
1Grip Heater (L) 1
2Grip Heater (R) 1
3Grip Heater Lead Wire 1
4Grip Heater Controller 1
5Controller Bracket 1
6Clamp 10
7Installation Instructions 1
Contents

GENUINE SUZUKI ACCESSORIES
2/17
Ref. Description
(1) +Driver
(2) -Driver
(3) Open end wrench (10 mm)
(4) T wrench (10 mm, 12 mm)
(5) Cutting pliers
(6) Hexagon socket
(3 mm, 4 mm, 5 mm)
(7) Extension
(8) Torque wrench
Ref. Description
(1) SUZUKI Super Grease “A”
or equivalent
[Recommended 99000-25011]
(2) Grip cement
(3) Degreasing Agent
[Available at stores]
Tools
Required
(1) (2) (3)
(4) (5) (6)
(7) (8)
Items Pro-
vided by
the Cus-
tomer
(1) (2) (3)

GENUINE SUZUKI ACCESSORIES
3/17
8WARNING / 8CAUTION / NOTICE /NOTE
Please read this manual and follow its instructions carefully. To empha-
size special information, the symbol 8and the words WARNING, CAU-
TION, NOTICE and NOTE have special meanings. Pay particular
attention to messages highlighted by these signal words:
NOTE: Indicates special information to make maintenance easier or
instructions clearer.
1. Check that the kit includes all the parts listed in the first page.
2. Check each part in the kit for scratches or any form of damage.
3. Park the vehicle on a level ground.
4. Remove the ignition key from the switch and store it in a safe place.
5. Disconnect the negative (–) cable from the battery.
6. Protect any items removed or to be installed from scratches by plac-
ing them on a soft cloth first before putting them on the ground.
7. Use care not to cause any damage to the body of the vehicle during
installation of the accessory.
Important
8WARNING
Indicates a potential hazard that could result in death or serious
injury.
8CAUTION
Indicates a potential hazard that could result in minor or moder-
ate injury.
NOTICE
Indicates a potential hazard that could result in vehicle or equip-
ment damage.
Precautions
for
Installation

GENUINE SUZUKI ACCESSORIES
4/17
Removal of Vehicle Parts
1. Remove the air cleaner box.
(Refer to the DL650 service
manual)
Installation of Grip Heater (R)
1. Remove the knuckle cover.
(if equipped)
(Refer to the DL650 service
manual)
2. Loosen the screw of balancer
with a +driver several turns
and pull the balancer assembly
out of the handlebars.
NOTE: Loosen the screw only
enough to remove the bal-
ancer. Otherwise, the bal-
ancer may disassemble
and some components
may remain in the handle-
bar.
3. Slide the boot, loosen the lock-
nut of the throttle cable, and
tighten fully the adjuster. Then,
loosen the throttle cable.
Installation
Air cleaner box
Air cleaner box
Knuckle cover
Knuckle cover
Handlebar balancer Screw
Handlebar balancer Screw
Boot
Boot
Lock-nut
Lock-nut
Adjuster
Adjuster

GENUINE SUZUKI ACCESSORIES
5/17
4. Remove screws from the switch
box. First disconnect throttle
cable No.2, then No.1 with care,
and pull out the right side grip.
NOTE: Removed right side grip
will not be reused.
5. Apply thinly grease to the han-
dlebar.
6. Apply grease to the end of the
throttle cables and cable pulley.
X99000-25011:
SUZUKI SUPER GREASE
“A” or equivalent
7. Insert the Grip Heater (R) 2
into the handlebar. Then, install
the throttle cable No.1 first, then
No.2.
8. Set the stopper peg of the
switch box to the hole in the
handlebar and tighten screws.
NOTE: After tightening screws of
the switch box, check to
make sure that the switch
box does not rattle.
8WARNING
Do not try to wrench off the
throttle cable No.1 and No.2
forcibly by using pliers or other
tools. The throttle cable may
be bent, causing improper
return of the throttle.
Switch box Throttle cable No.1
Throttle cable No.2
Right side grip
FWD
FWD
Switch box
Throttle cable No.1
Throttle cable No.2
Hole
Hole
Stopper
peg
Grip Heater (R)

GENUINE SUZUKI ACCESSORIES
6/17
9. Reinstall the existing knuckle
cover (if equipped) and handle-
bar balancer that was removed
step 1 and 2.
10.Adjust the cable play:
1) Loosen the lock-nut.
2) Turn the adjuster so that the
throttle grip has 2.0 – 4.0
mm (0.079 – 0.157 in) play.
3) Tighten the lock-nut.
4) Reinstall the boot.
11.Pass the grip heater lead wire
between the switch box and the
front brake master cylinder
holder. Align the white tape part
of the grip heater lead wire with
the contact surface of the front
brake master cylinder holder,
and fix it by using a Clamp 6.
NOTE: Cut off the excess clamp.
8WARNING
Check for smooth opening
and closing operations of the
throttle. See if there is any
catch in the throttle operation.
Boot
Boot
Lock-nut
Lock-nut
Adjuster
Adjuster
8CAUTION
Fix the grip heater lead wire
securely by using a clamp so
that no tension should be felt
in the throttle grip lead wire
when operating the throttle.
Grip heater
lead wire
Grip heater
lead wire
Clamp
Clamp

GENUINE SUZUKI ACCESSORIES
7/17
Installation of Grip Heater (L)
1. Remove the knuckle cover.
(if equipped)
(Refer to the DL650 service
manual)
2. Loosen the screw of balancer
with a +driver several turns
and pull the balancer assembly
out of the handlebars.
NOTE: Loosen the screw only
enough to remove the bal-
ancer. Otherwise, the bal-
ancer may disassemble
and some components
may remain in the handle-
bar.
3. Open the gap between the grip
and the handlebar with a -
driver, then inject degreasing
agent to pull out the grip.
NOTE: Removed left side grip will
not be reused.
Knuckle cover
Knuckle cover
Handlebar balancer
Screw
Handlebar balancer
Screw
NOTICE
Use the -driver with care so
as not to scratch the surface
of the handlebar.

GENUINE SUZUKI ACCESSORIES
8/17
4. Wipe off the rest of adhesive
adhered to the handlebar by
using a degreasing agent and a
waste cloth.
5. Apply cement evenly and rather
abundantly to the inside of the
Grip Heater (L) 1.
Handlebar
Degreasing
agent
Clean cloth
Grip cement
Grip Heater (L)

GENUINE SUZUKI ACCESSORIES
9/17

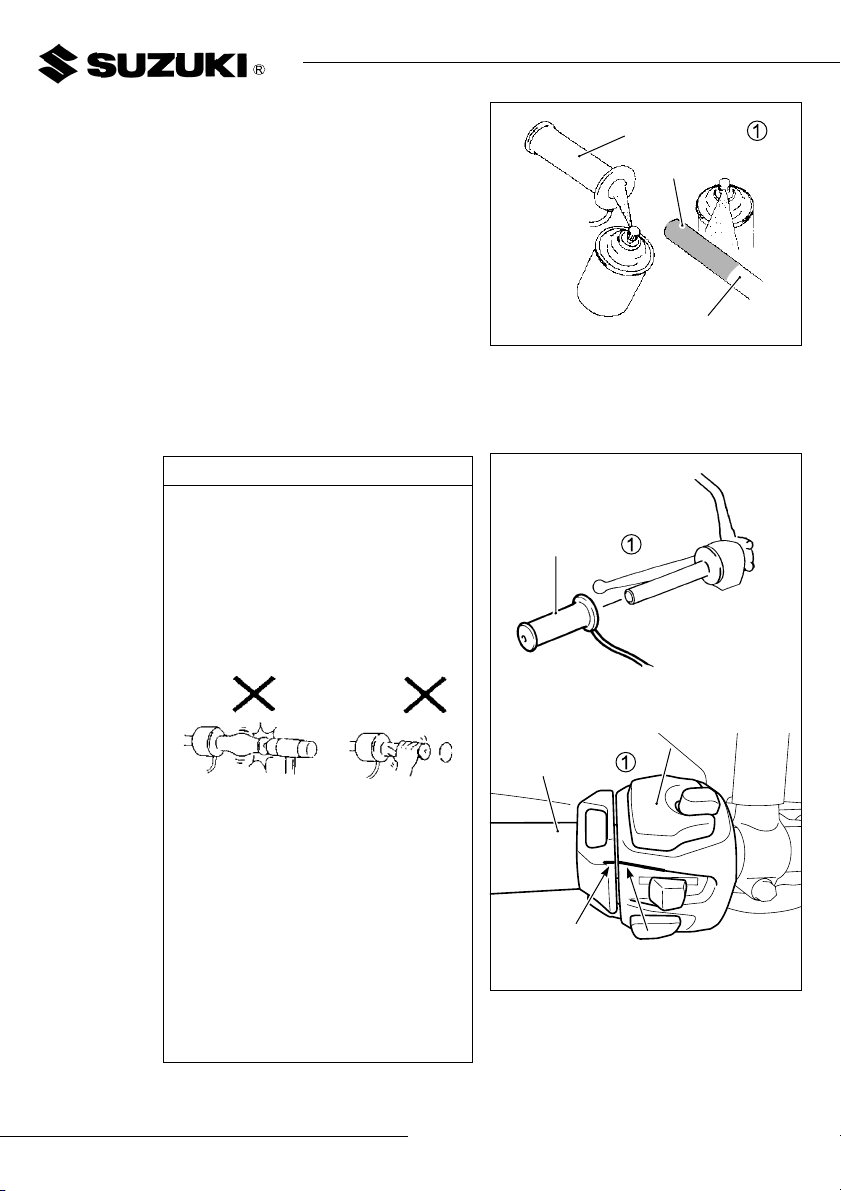

6. Apply cement to the handle-
bars. Before cement is dried,
spray the degreasing detergent
to the inside of the Grip Heater
(L) 1and to the handlebars,
then, insert the grip. Slide Grip
Heater (L) 1onto handlebar
with the lead wire pointing
down.
NOTE: Align the line of Grip
Heater (L) 1and left
switch line as shown in the
illustration.
Handlebar
Grip Heater (L)
Grip cement
NOTICE
• When the grip is inserted,
do not stop in midway but
insert it at a stroke.
• When inserting it, do not hit
the grip end with a hammer
or twist it forcibly, the grip
heater may be cut off.
• When the grip cannot be
inserted in midway, pull out
the grip by pouring the
degreasing agent into a gap
between the grip heater and
the handlebar. At this time,
do not twist forcibly the
heater wire with a screw-
driver or such similar tool,
the heater wire inside the
grip heater may be cut off.
Grip Heater (L)
Line
Line
Line
Line
Grip Heater (L)
Grip Heater (L)
Left switch
Left switch

GENUINE SUZUKI ACCESSORIES
10/17
7. Reinstall the existing knuckle
cover (if equipped) and handle-
bar balancer that was removed
step 1 and 2.
Installation of Grip Heater Control-
ler
1. Install the Controller Bracket 5
to the Grip Heater Controller 4.
2. Fix the Grip Heater Controller
4assembly to the battery
box.
3. Connect the Grip Heater Lead
Wire 3coupler to the Grip
Heater Controller 4.
8WARNING
Use an appropriate grip
cement, and dry well the
applied part, then check if it is
securely adhered.
If it has not completely dried or
if a different cement is used,
there is a risk that the grip may
slip off while riding.
Grip Heater Controller
Controller Bracket
Grip Heater Controller
Controller Bracket
Grip Heater Controller
Grip Heater Controller
Grip Heater Lead Wire
Grip Heater Lead Wire

GENUINE SUZUKI ACCESSORIES
11/17
Connection of Grip Heater Lead Wire
1. Pass the Grip Hater Lead Wire 3along the wiring harness and fix
them using the Clamps 6as shown in the illustration.
2. Connect the Grip Hater Lead Wire 3to the vehicle harness coupler.
NOTE:
• Be sure there should be no excessive tension nor remarkable slack in
the grip heater lead wire.
• Cut off the excess clamps.
1. Pass the grip heater lead wire under the TO sensor.
2. Clamp the grip heater lead wire and wiring harness.
3. Grip heater lead wire 4. TO sensor
1
1
4
4
3
3
3
3
3
3
2
2
2
2
2
2

GENUINE SUZUKI ACCESSORIES
12/17
1. Clamp the grip heater lead wire, wiring harness and water hose by using the vehicle clamp.
2. Clamp the grip heater lead wire and right handlebar switch lead wire.
3. Grip heater lead wire 4. Vehicle harness coupler
1
1
3
3
3
3
1
1
4
4
2
2
3
3

GENUINE SUZUKI ACCESSORIES
13/17
3. Pass the left and right grip heater lead wires fix them using the
Clamps 6as shown in the illustration.
NOTE:
• Be sure there should be no excessive tension nor remarkable slack in
the left and right grip heater lead wire.
• Cut off the excess clamps.
1. Cut off the vehicle clamp.
Clamp the right grip heater lead wire and right handlebar switch lead wire at the front brake
hose union.
2. Pass the right grip heater lead wire and right handlebar switch lead wire through the guide.
3. Cut off the vehicle clamp.
Clamp the left grip heater lead wire, clutch cable and left handlebar switch lead wire.
Face the locked part of clamp downward.
4. Cut off the vehicle clamp.
Clamp the left grip heater lead wire, clutch cable and left handlebar switch lead wire.
5. Clamp the right grip heater lead wire, right handlebar switch lead wire, ignition switch lead
wire and immobilizer antenna lead wire not to give them looseness when turning the
handlebars to the left.
6. Cut off the vehicle clamp.
Clamp the left grip heater lead wire, clutch cable and left handlebar switch lead wire.
Face the locked part of clamp leftward.
7. Right grip heater lead wire 8. Left grip heater lead wire
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
7
7
8
8

GENUINE SUZUKI ACCESSORIES
14/17
4. Connect the left and right grip heater couplers to the grip heater lead
wire couplers.
5. Install the vehicle parts in the reverse order of removal.
Grip Heater (L)
Grip Heater (R)
Yellow Black
/Blue
YellowBlack
Blue
White
Green
Green Blue
Black
White
Grip Heater Lead Wire
To vehicle coupler
To Grip Heater Controller
Coupler
Black/Blue

GENUINE SUZUKI ACCESSORIES
15/17
Function Checking and Inspection
1. Check if the lead wire is not under an undue force when the throttle
grip is fully open, or when the handlebar is turned fully to the right
and to the right.
2. Check if the left side grip heater is securely adhered.
After Engine Is Started
1. Check if the engine idle speed is not changed when the handlebar is
fully turned to the right and the left.
2. Check if the lighting devices as the headlamp operate correctly.
3. Check if the heater gets warm by changing the position of the switch.
Handling Method
• Grip heater warms right and left
grips when the grip heater
switch is turned on with the
engine running. The grip heater
switch will be turned off when
the ignition switch is turned off.
Switch
Switch

GENUINE SUZUKI ACCESSORIES
16/17
The grip heater temperature can be adjusted in three steps by pushing
the switch. Pushing the switch changes temperature as follows:
NOTE:
• The grip heater has a built-in automatic switch to avoid unnecessary
battery power consumption. The automatic switch turns off grip
heater when the engine speed becomes lower at engine idling speed.
When the engine speed increases, the automatic switch turns on grip
heater.
• Pushing the switch will not turn on the grip heater when the engine
speed is low. Increase the engine speed and push the switch again to
turn on the grip heater.
8CAUTION
Improperly using the grip heater can be hazardous. Rider can suffer
burns even if the heating temperature is fairly low when the rider is
wearing no gloves and leaves the heater on for long periods. Dam-
aged grip can suffer burns or get an electrical shock.
• Be sure to wear gloves to avoid burns.
• Replace the damaged grips to avoid burns or electrical shock.
OFF LEVEL3
MAX
LEVEL2 LEVEL1
MIN
3 times blink
7 times repeat
Lighting
2 times blink
7 times repeat
Lighting
1 time blink
7 times repeat
Lighting

GENUINE SUZUKI ACCESSORIES
17/17
When the grip heater does not operate normally, check the following
items, and consult your SUZUKI Dealer from whom you bought the prod-
uct.
• Grip heater does not operate. Or it can not be adjusted.
1. Has the engine started?
2. Is the grip heater switch set on the position between
LEVEL1 LEVEL3?
• Grip heater temperature is too low or too high.
1. Have you adjusted the grip heater switch to be set between LEVEL1
LEVEL3?
2. When the temperature is too high, set the switch on LEVEL1 or OFF,
or wear a thick pair of gloves.
• Whole surface of the grip heater is not warmed.
1. This is no failure.
In order that the fingertips may be warmed, the heat distribution is
made to concentrate mostly to the position where the fingertips come
to contact.
• Grip heater switch indicator blinking every 2 seconds.
1. Too low battery voltage.
Recharge the battery fully.

1/17
GENUINE SUZUKI ACCESSORIES
99021-28K50
INSTRUCTIONS D’INSTALLATION
Description :
JEU DE POIGNÉES
CHAUFFANTES N° de pièce : 57100-2884
Modèles : DL650AL7/XAL7 Durée d’installation : 2,0 heure
Réf. Description Qté
1Poignée chauffante (G) 1
2Poignée chauffante (D) 1
3Câble des poignées chauffantes 1
4Contrôleur des poignées chauffantes 1
5Support du contrôleur 1
6Attache 10
7Instructions d’installation 1
Contenu

GENUINE SUZUKI ACCESSORIES
2/17
Réf. Description
(1) +Tournevis
(2) -Tournevis
(3) Clé ouverte (10 mm)
(4) Clé en T (10 mm, 12 mm)
(5) Pinces coupantes
(6) Douille à six pans
(3 mm, 4 mm, 5 mm)
(7) Extension
(8) Clé dynamométrique
Réf. Description
(1) SUZUKI Super Grease “A”
ou équivalent
[Graisse recommandée 99000-
25011]
(2) Colle pour poignée
(3) Dégraissant
[Disponible dans le
commerce]
Outils
nécessaires
(1) (2) (3)
(4) (5) (6)
(7) (8)
Pièces
fournies
par le
client
(1) (2) (3)
