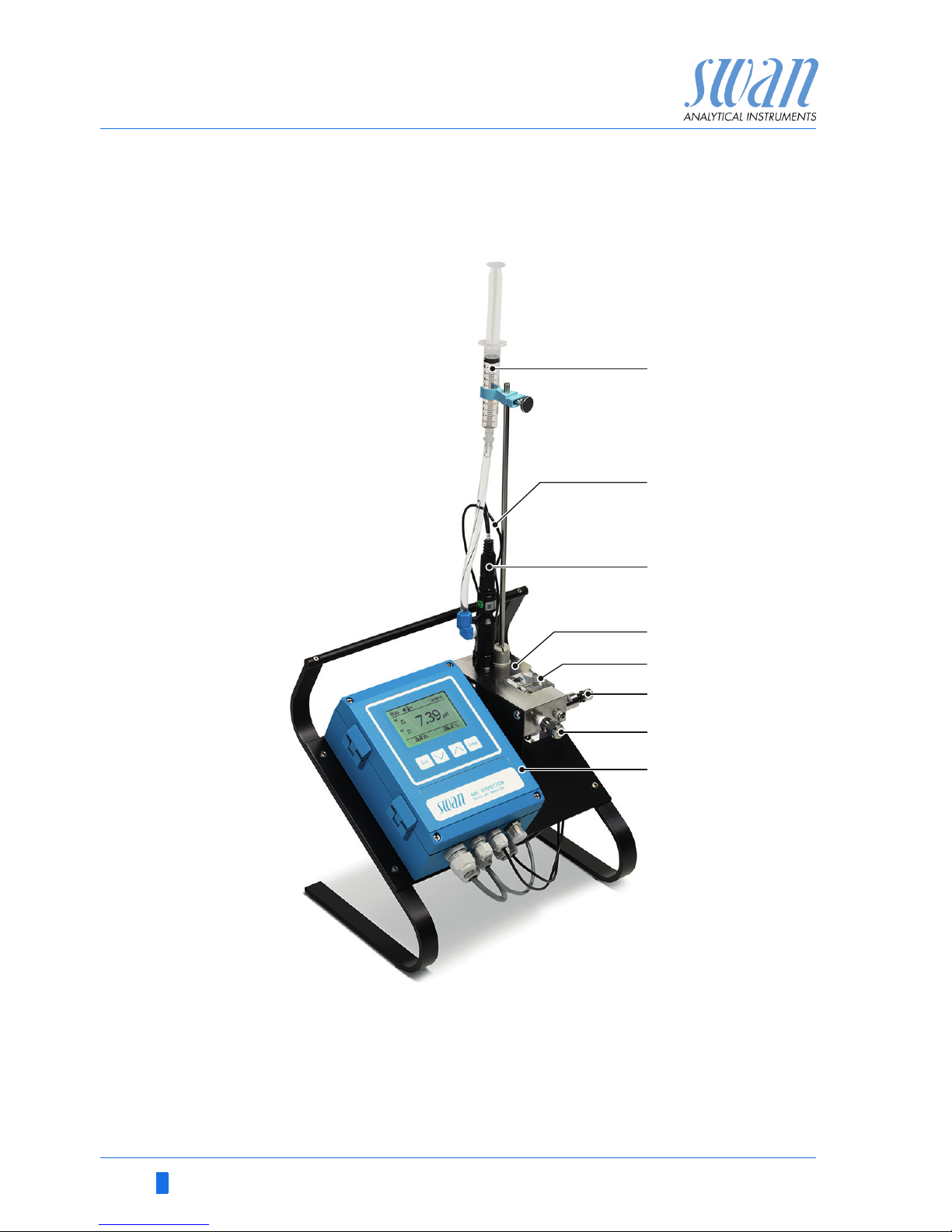

Swann AMI INSPECTOR pH User manual

AMI INSPECTOR pH
Version 6.00 and higher
A-96.250.761 / 161017
Operator’s Manual

© 2016, SWAN ANALYTISCHE INSTRUMENTE AG, Switzerland, all rights reserved
subject to change without notice.
Customer Support
SWAN and its representatives maintain a fully trained staff of technical specialists
around the world. For any technical question, contact your nearest
SWAN representative, or the manufacturer:
SWAN ANALYTISCHE INSTRUMENTE AG
Studbachstrasse 13
8340 Hinwil
Switzerland
Internet: www.swan.ch
E-mail: [email protected]
Document Status
Title: AMI INSPECTOR pH Operator’s Manual
ID: A-96.250.761
Revision Issue
00 June 2012 First Edition
01 Sept. 2013 Main board V2.4
02 Jan. 2016 AMI Inspector Version 2-A (with AMIAKKU main-
board) and Firmware version 6.00

AMI INSPECTOR pH
A-96.250.761 / 161017 1
Table of Contents
1. Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1. Warning Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2. General Safety Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1. Description of the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2. Instrument Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.3. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1. Installation Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2. Connecting Sample Inlet and Outlet. . . . . . . . . . . . . . . . . . . . . . . 13
3.2.1 Swagelok Fitting Stainless Steel at Sample Inlet . . . . . . . . . . . 13
3.2.2 Connect the Sample Outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.3. Install Swansensor pH SI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4. Temperature Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.5. Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.5.1 Connection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.5.2 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.6. Relay Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.6.1 Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.6.2 Alarm Relay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.6.3 Relay 1 and 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.7. Signal Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4. Instrument Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.1. Establish Sample Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.2. Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5. Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.1. Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.2. Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.3. Software Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.4. Changing Parameters and values . . . . . . . . . . . . . . . . . . . . . . . . 28
6. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.1. Maintenance Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.2. Stop of Operation for Maintenance. . . . . . . . . . . . . . . . . . . . . . . . 29
6.3. Maintenance of Electrode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

2A-96.250.761 / 161017
AMI INSPECTOR pH
6.3.1 Clean pHSI Electrode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.4. Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.5. Quality Assurance of the Instrument. . . . . . . . . . . . . . . . . . . . . . . 33
6.5.1 Activate SWAN Quality assurance procedure. . . . . . . . . . . . . . 34
6.5.2 Pre-test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6.5.3 Connect instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6.5.4 Carry out comparison measurement . . . . . . . . . . . . . . . . . . . . . 37
6.5.5 Completion of the measurement . . . . . . . . . . . . . . . . . . . . . . . . 38
6.6. Replacing Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
6.7. Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.8. Longer Stop of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
7. Error List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8. Program Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
8.1. Messages (Main Menu 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
8.2. Diagnostics (Main Menu 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
8.3. Maintenance (Main Menu 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
8.4. Operation (Main Menu 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
8.5. Installation (Main Menu 5). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
9. Program List and Explanations. . . . . . . . . . . . . . . . . . . . . . . . . 50
1 Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
2 Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
3 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
4 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
5 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10. Material Safety Data sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
10.1. Reagents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
11. Default Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
12. Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
13. Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

AMI INSPECTOR pH
Safety Instructions
A-96.250.761 / 161017 3
AMI INSPECTOR pH - Operator’s
Manual
This document describes the main steps for instrument setup, oper-
ation and maintenance.
1. Safety Instructions
General The instructions included in this section explain the potential risks
associated with instrument operation and provide important safety
practices designed to minimize these risks.
If you carefully follow the information contained in this section, you
can protect yourself from hazards and create a safer work environ-
ment.
More safety instructions are given throughout this manual, at the
respective locations where observation is most important. Strictly
follow all safety instructions in this publication.
Target
audience
Operator: Qualified person who uses the equipment for its intended
purpose.
Instrument operation requires thorough knowledge of applications,
instrument functions and software program as well as all applicable
safety rules and regulations.
OM Location Keep the AMI Operator’s Manual in proximity of the instrument.
Qualification,
Training
To be qualified for instrument installation and operation, you must:
read and understand the instructions in this manual as well as
the Material Safety Data Sheets.
know the relevant safety rules and regulations.

4A-96.250.761 / 161017
AMI INSPECTOR pH
Safety Instructions
1.1. Warning Notices
The symbols used for safety-related notices have the following sig-
nificance:
DANGER
Your life or physical wellbeing are in serious danger if such
warnings are ignored.
Follow the prevention instructions carefully.
WARNING
Severe injuries or damage to the equipment can occur if such
warnings are ignored.
Follow the prevention instructions carefully.
CAUTION
Damage to the equipment, minor injury, malfunctions or incor-
rect process can be the consequence if such warnings are ig-
nored.
Follow the prevention instructions carefully.
Mandatory
Signs
The importance of the mandatory signs in this manual.
Safety goggles
Safety gloves

AMI INSPECTOR pH
Safety Instructions
A-96.250.761 / 161017 5
Warning Signs The importance of the warning signs in this manual.
Electrical shock hazard
Corrosive
Harmful to health
Flammable
Warning general
Attention general

6A-96.250.761 / 161017
AMI INSPECTOR pH
Safety Instructions
1.2. General Safety Regulations
Legal
Requirements
The user is responsible for proper system operation.
All precautions must be followed to ensure safe operation
of the instrument.
Spare Parts
and
Disposables
Use only official SWAN spare parts and disposables. If other parts
are used during the normal warranty period, the manufacturer’s
warranty is voided.
Modifications Modifications and instrument upgrades shall only be carried out by
an authorized Service Technician. SWAN will not accept responsi-
bility for any claim resulting from unauthorized modification or alter-
ation.
WARNING
Risk of Electrical Shock
If proper operation is no longer possible, the instrument must be
disconnected from all power lines, and measures must be taken
to prevent inadvertent operation.
To prevent from electrical shock, always make sure that the
ground wire is connected.
Service shall be performed by authorized personnel only.
Whenever electronic service is required, disconnect instru-
ment power and power of devices connected to.
–relay 1,
–relay 2,
– alarm relay
WARNING
For safe instrument installation and operation you must read
and understand the instructions in this manual.
WARNING
Only SWAN trained and authorized personnel shall perform the
tasks described in this document.

AMI INSPECTOR pH
Product Description
A-96.250.761 / 161017 7
2. Product Description
This chapter contains technical data, requirements and perfor-
mance data.
2.1. Description of the System
The portable AMI INSPECTOR instrument is a complete monitoring
system mounted on a small panel with supporting stand and a re-
chargeable battery for stand-alone operation (>24h), designed as
an inspection equipment for quality assurance of online process
monitors.
pH Measuring
Principle
(simplified)
The pH measurement is based on a voltage measurement. A volt-
age can only be measured between two different potentials, there-
fore, the pH measuring chain contains a measuring electrode and a
reference electrode. The reference electrode maintains a constant
potential whereas the potential of the measuring electrode changes
with the pH value. The voltage which results from this potential dif-
ference is measured and displayed on the transmitter as pH value.
The measuring chain is designed so that the voltage is zero at
pH 7.
pH Electrode The Swansensor pH SI is a combined electrode with liquid electro-
lyte (KCl) for the measurement of pH.
Features General Features of AMI INSPECTORs are:
Battery life after full charge:
– >24h at full load (use of 3 relays, USB, signal output, logger)
– >36h at minimum load (use of logger only)
Charging time: approx. 6 hours
Controlled shut-down if battery is empty.
Display of remaining battery life in hours.
For longer battery life the back light of the LC Display is dis-
abled.
Continuous operation using power adapter. The battery
should be discharged at least once a month (normal usage
until the monitor automatically shuts down).
Battery The Li-Ion battery is located in the housing of the AMI transmitter.
See chapter Power Supply, S. 19 regarding power supply and
charging of the battery.

8A-96.250.761 / 161017
AMI INSPECTOR pH
Product Description
Safety
Features
No data loss after power failure, all data is saved in non-volatile
memory. Over voltage protection of in- and outputs.
Galvanic separation of measuring inputs and signal outputs.
Temperature
compensation
The pH value depends on the sample temperature. To compensate
temperature fluctuations a temperature sensor is installed in the
flow cell
Alarm Relay One potential free contact.
Alternatively:
Open during normal operation, closed on error and loss of
power.
Closed during normal operation, open on error and loss of
power.
Summary alarm indication for programmable alarm values and in-
strument faults.
Input One input for potential-free contact to freeze the measuring value
or to interrupt control in automated installations (hold function or re-
mote-off).
USB interface Built-in USB interface for logger download. Use the USB stick sup-
plied by Swan only (other USB sticks can dramatically reduce bat-
tery life).
Relays Two potential-free contacts programmable as limit switches for
measuring values, controllers or timer for system cleaning with au-
tomatic hold function.
Rated load: 100 mA/50 VAC
Signal Output One programmable signal output for measured values (freely scal-
able, linear, bilinear or logarithmic) or as continuous control output
(control parameters programmable).
Current loop: 0/4–20 mA
Maximum burden: 510 
Flow Cell Flow cell QV-Flow IS1000 made of stainless steel SS316L with
built-in temperature sensor (Pt1000), flow adjustment valve, digital
sample flow meter, quick release vessel for easy sensor access
and calibration.

AMI INSPECTOR pH
Product Description
A-96.250.761 / 161017 9
Fluidics The flow cell (QV-Flow) consists of the flow cell block [E] and the
vessel [G].
The pH sensor [A] and the temperature sensor [B] are screwed into
the flow cell block [E].
The sample enters at the sample inlet [C]. It flows through the flow
regulating valve [D], where the flow rate can be adjusted. Then the
sample flows via the flow sensor [F] and the flow cell block [E] into
the vessel [G], were the pH of the sample is measured. The pH val-
ue depends on the sample temperature. The measuring value of
the temperature sensor [B] is used to recalculate the pH measuring
value to a predefined average sample temperature.
The sample leaves the vessel via flow cell block through the sam-
ple outlet [H] and flows into the drain [I].
A
B
C
D
E
pH Sensor
Temperature sensor
Sample inlet
Flow regulating valve
Flow cell block
F
G
H
I
Flow sensor
Vessel
Sample outlet
Drain
A
B
CD E
FG
H
I

10 A-96.250.761 / 161017
AMI INSPECTOR pH
Product Description
2.2. Instrument Overview
A
B
C
D
KCl reservoir
Temperature sensor (cable)
pH sensor
Flow cell
E
F
G
H
Flow sensor
Flow regulating valve
Sample inlet
AMI Transmitter
A
B
C
D
E
F
G
H

AMI INSPECTOR pH
Product Description
A-96.250.761 / 161017 11
2.3. Technical Data
Power Supply Battery
Use original, supplied power adapter only.
Voltage:
Power consumption:
Charging Time:
Battery type:
85–265 VAC, 50/60 Hz
max. 20 VA
~ 6h
Li-Ion
During charging protect from heat impact and keep splash-proof
(not IP66).
Measuring
Range
pH:
Resolution:
1 to 12 pH
0.01 pH
Temperature
Input
for Pt1000 type sensor
Measuring range:
Resolution:
- 30 to +130 °C
0.1 °C
Sample
conditions
Flow Rate:
Temperature:
Inlet pressure:
5–10 l/h
up to 50 °C
0.2–2 bar
Temperature
monitoring
Alarm if the transmitter temperature is higher than + 65 °C or lower
than 0 °C.

12 A-96.250.761 / 161017
AMI INSPECTOR pH
Installation
3. Installation
3.1. Installation Checklist
Check Instrument’s specification must conform to your AC power
ratings. See External power adapter, p. 20.
Check if the battery is fully charged.
Installation Connect sample inlet and outlet to the flow cell.
pH electrode Install the sensor (see Install Swansensor pH SI, p. 14).
Connect sensor cables.
Store the protective caps for later use.
Power-up Turn on the sample flow and wait until the flow cell is
completely filled.
Switch on power.
Instrument
set-up
Adjust sample flow.
Program all parameters for sensor.
Program all parameters for instrument operation (limits,
alarms).
Run-in period Let the instrument run continuously for 1 h.

AMI INSPECTOR pH
Installation
A-96.250.761 / 161017 13
3.2. Connecting Sample Inlet and Outlet
3.2.1 Swagelok Fitting Stainless Steel at Sample Inlet
Preparation Cut the tube to length and deburr it. The tube must be straight and
free from blemishes for approximately 1,5 x tube diameter from the
end.
Lubrication with lubricating oil, MoS2, Teflon etc. is recommended
for the assembly and reassembly of bigger sized unions (thread,
compression cone).
Installation 1 Insert the compression ferrule [C] and the compression
cone [D] into the union nut [B].
2Screw on the union nut onto the body, do not tighten it.
3Push the stainless steel pipe through the union nut as far as it
reaches the stop of the body.
4Tighten down the union nut 1¾ rotation using an open ended
spanner. Hold Body from turning with a second wrench.
3.2.2 Connect the Sample Outlet
Connect the 1/2” tube to the waste funnel of the AMI INSPECTOR
pH.
A
B
C
Tube
Union nut
Compression ferrule
D
E
F
Compression cone
Body
Tightened connection
ABCDE
F

14 A-96.250.761 / 161017
AMI INSPECTOR pH
Installation
3.3. Install Swansensor pH SI
The pH electrode SI is packed separately and protected with a cap
filled with KCl. After the AMI INSPECTOR pH has been installed
and connected to the sample line, install the pH electrode SI as fol-
lows:
CAUTION
Fragile parts.
The pH electrode is fragile.
Handle with care.
Do not spill KCL when removing the protection cap.
Prepare the
KCl Reservoir
The KCl supply to the reference electrode is ensured by a syringe
[A] with a volume of 10ml. The syringe is connected to the refer-
ence electrode with a Luer-Lock connector [D].
To ensure a continuous flow of KCl to the reference electrode, pull
the plunger of the syringe over the punched hole [B].
1Remove the Luer-Lock seal cone [C] from the tip of the syringe
[A].
2Insert the Luer-Lock connector [D] into the tip of the syringe.
A
B
C
D
Syringe
Punched hole
Luer-Lock seal cone
Luer-Lock connector
A
B
CD

AMI INSPECTOR pH
Installation
A-96.250.761 / 161017 15
Install the
Electrode
1Carefully remove the protective cap [G] from the electrode tip.
 Turn it clockwise only.
2Rinse the electrode tip with clean water.
3Insert the electrode through the flow cell block [F] into the cali-
bration vessel [H].
4Tighten it hand-tight.
5Remove the connector cap [B].
6Screw the connector [D] marked with pH onto the sensor.
7Keep the protective caps on a secure place for later use.
A
B
C
D
Syringe (KCl reservoir)
Connector cap
KCl supply tube
Connector
E
F
G
H
Electrode
Flow cell block QV-Flow
Protective cap
Calibration vessel
B
A
E
F
H
G
D
C

16 A-96.250.761 / 161017
AMI INSPECTOR pH
Installation
1Fill the KCl supply tube [D] of the electrode completely with
electrolyte.
 Ensure that no air bubbles remain in the tube.
2Fill the syringe completely with electrolyte by pulling the plunger
just below the punch hole [B].
3Connect the syringe to the KCl supply tube (Luer-Lock) and clip
it to the holder [C].
4Pull the plunger slightly over the air hole.
3.4. Temperature Sensor
The temperature sensor is permanently glued to the flow cell block.
Screw the connector marked with T onto the temperature sensor.
A
B
Plunger
Punch hole
C
D
Holder
KCl supply tube
A
B
C
D

AMI INSPECTOR pH
Installation
A-96.250.761 / 161017 17
3.5. Electrical Connections
WARNING
Always turn off DC power before manipulating electric parts.
Make sure the power specification of the wall mount adapter
corresponds to the power on site.
Cable
thicknesses
In order to comply with IP66, use the following cable thicknesses
NOTICE: Protect unused cable glands
Wire For Relays: Use max. 1.5 mm2 / AWG 14 stranded wire with
end sleeves.
For Signal Outputs and Input: Use 0.25 mm2 / AWG 23
stranded wire with end sleeves.
WARNING
External Voltage.
External supplied devices connected to relay 1 or 2 or to the
alarm relay can cause electrical shocks
Make sure that the devices connected to the following con-
tacts are disconnected from the power before resuming in-
stallation.
– relay 1
– relay 2
– alarm relay
A
B
PG 9 cable gland: cable Øouter 4–8 mm
PG 7 cable gland: cable Øouter 3–6.5 mm
ON
OFF
AB

18 A-96.250.761 / 161017
AMI INSPECTOR pH
Installation
3.5.1 Connection Diagram
CAUTION
Use only the terminals shown in this diagram, and only for the
mentioned purpose. Use of any other terminals will cause short
circuits with possible corresponding consequences to material
and personnel.
