INSTALLATION INSTRUCTIONS
Avancer Smart Toilet
@SwissMadison
#WellMadeForever
TOUCHLESS
technology
®
well made for e v e r

If you have any questions or concerns please contact us:
1-434-623-4766
[email protected]
PRIOR TO INSTALLATION:
· Inspect toilet to ensure no damages have occurred while in shipping.
· Observe all plumbing and building codes in accordance with your state and local requirements.
· All dimensions are nominal! Be sure to measure your toilet prior to installation.
· The step-by-step guidelines in the installation instructions are a general reference. Should there be
any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss
Madison products by hiring a licensed professional.
· Read installation and maintenance instructions thoroughly before installing. Be sure to use proper
tools and always wear proper personal safety accessories for your protection.
· Two people are recommended to handle and install this product as it is fragile.
INCLUDED PARTS:
SUGGESTED TOOLS & MATERIALS:
Safety
Glasses Wrench
Tape
Measure Level
—1 —
SMART TOILET INSTALLATION INSTRUCTIONS
Tankless
Toilet
Angle Valve Sealing
Flange
Flange
Floor Anchor
Kit
Remote
Braided
Hose
Sealant Bucket Drill

—2 —
SMART TOILET INSTALLATION INSTRUCTIONS
· Automatic Flushing: Toilet will automatically flush as
you walk away from the bowl. When the user sits less than
60 seconds it will activate a half flush. When the user sits for
more than 60 seconds, it will activate a full flush.
· Side Manual Flush: Press the knob on the side of the toilet
to manually activate a full flush.
· Foot-Sensor Flushing: Tap the foot sensor area to activate
a half flush.
· Soft-Close Seat.
· Heated Seat: Adjust 6 level seat temperature with the
remote. The seat temperature will automatically lower to
level 1 after 10 minutes.
· Bidet Wash: Rear and front massage wash with 6 level
water temperature adjustment and 3 level water pressure
adjustment.
· Self-Cleaning: Self-cleaning, anti-bacterial spray nozzle,
anti-bacterial seat.
· Night Light: Smart white night light, normally off.
· User Settings: Adjustable male and female automatic wash
settings to personalize your experience.
PRODUCT FEATURES: SPECIFICATION PARAMETERS:
· Requires power to operate
· Requires one 9V battery for back up flushing
· Rated Voltage: 110V-120V
· Rated Power: 1200-1400W
· IP Rating: IPX4
· Flush Volume: Full flush 1.6 GPF / Half flush 1.1 GPF
· Flush Type: Vortex™
· Rough-in: 12”
· Waste Outlet: S-trap 12”
· Outer Outlet Diameter: 3.5”
· Water Pressure Range: 0.09MPa ( dynamic water
pressure, flow rate 4 gal/min or more) - 0.8MPa (static
water pressure)
· Bidet Heating Power: 1400W
· Drying Heating Power: 250W
· Warm Air Volume: Over 7 ft³ / min
Knob
Remote
sensing window
Heated
drying fan
Rear
cleaning
Spray
nozzle
Front
cleaning
27 ³⁄16”
18 ³⁄4”
15 9⁄16”
16 ³⁄4”
Off-seat flush
sensor
REMOVABLE
STICKER
Foot flush
sensor
REMOVABLE
STICKER

TOILET INSTALLATION:
—3 —
SMART TOILET INSTALLATION INSTRUCTIONS

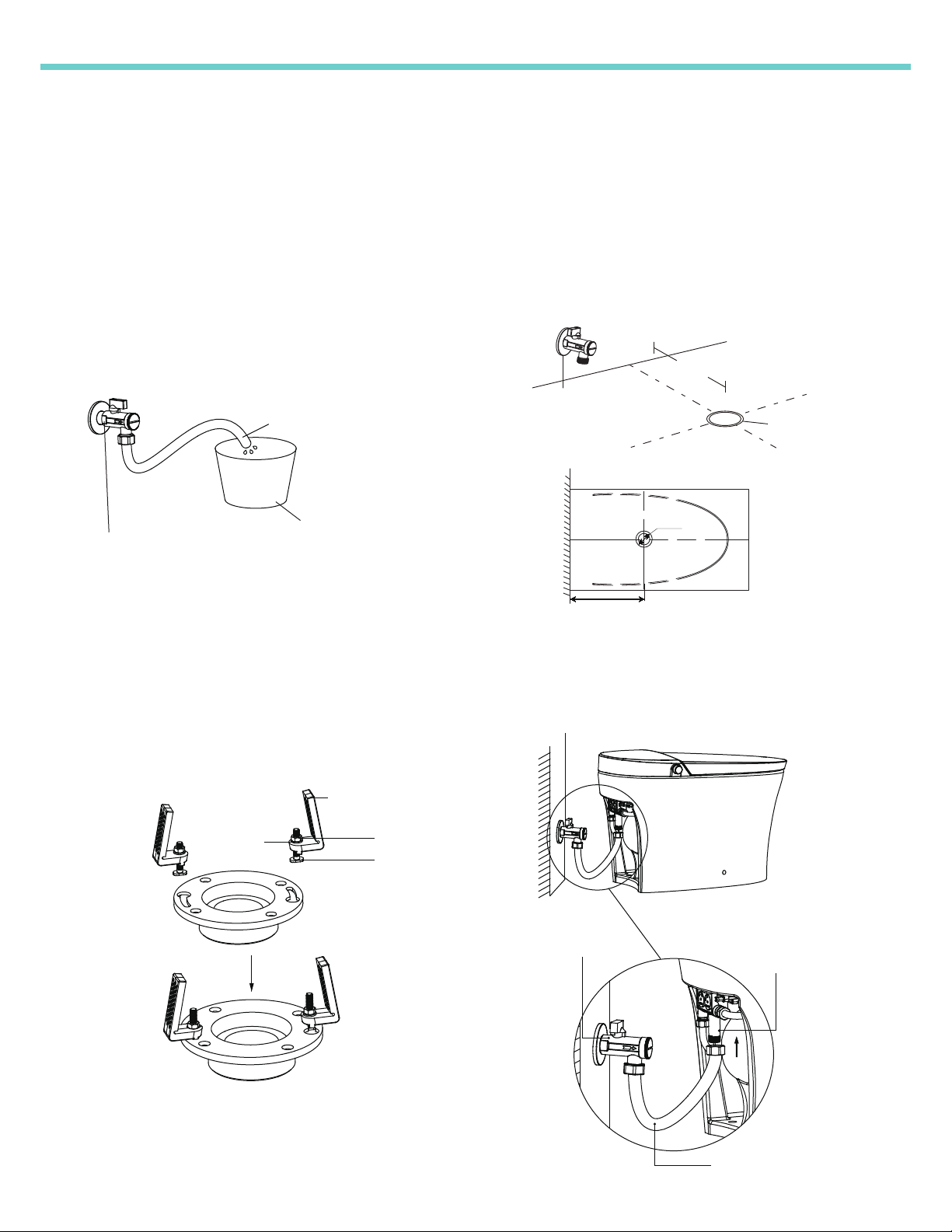

2. Rough-In & Install Angle Valve
· Measure the wall from behind the toilet to the
middle of the floor drain. Your rough-in measurement
should be 12”.
· Install angle valve at proper position on the wall
according to toilet inlet placement.
· Align cardboard with the centerline of the drain outlet,
then draw a contour line according to the cardboard.
1. Check Pressure
· The minimum dynamic working water pressure
is 0.09MPa or more (4 gal/min or more), failure
to meet this pressure will not achieve the best
flushing effect.
If you do not have a water pressure testing
device, open the angle valve and connect water
inlet for 10s, once the water volume is above
0.66 gal, the minimum water pressure of the
product is ensured.
Angle valve
(included)
Hose (included)
Bucket
Nut
Bolt
3. Install Mounting Bracket
· Assemble the mounting bracket with bolts
and then install them to the pre-installed flange
plate on the ground and lock tight with nuts.
Mounting bracket
Washer
4. Connect to Water Supply
· Connect the water inlet and angle valve of the
toilet with the matching hose and tighten it.
Floor drain
Mating
angle valve
Rough-in
Cardboard
cutout
12”
2 ³⁄4”
Angle valve Inlet connector
Flexible hose

—4 —
SMART TOILET INSTALLATION INSTRUCTIONS
8. Connect Power
· Insert power line leakage protection plus into the
power socket. Press the reset switch and look for
the indicator lights to indicate the power is on.
Once connected to power, the toilet will beep and
the knob will light up and start self testing. After
self testing is complete, the knob will light up and
proceed to normal function.
NOTE: Press electric leakage test button prior to
usage, the reset switch pops up indicating
that the leakage protection function is normal.
Press the TEST button (then RESET button)
every month to assure proper operation.
6. Install Toilet
· Install toilet by putting sealing flange into drain
outlet. This sould be done by two people, the
toilet is heavy.
5. Turn on Angle Valve
· Check thread connection and check for leaks.
Unscrew angle valve counterclockwise to open
all the way.
NOTE: When opening for the first time, the
angle valve handle has a larger torque.
7. Secure Toilet
· Put the screw through the anchor and
then install it through the holes on both sides of
the toilet to the mounting bracket and tighten.
· Cover installation bolts with bolt covers.
· Apply a thin bead of sealant around toilet base.
Anchor
Screw
Bolt cover
Toilet drain outlet
Sealing flange
Electric leakage
test button
Reset switch
Indicator light

—5 —
SMART TOILET MAINTENANCE & USAGE
MAINTENANCE
1. Daily Usage Caution
· Turn off power supply before cleaning.
· Use only a soft, damp cloth to clean the toilet. Avoid using harsh chemicals.

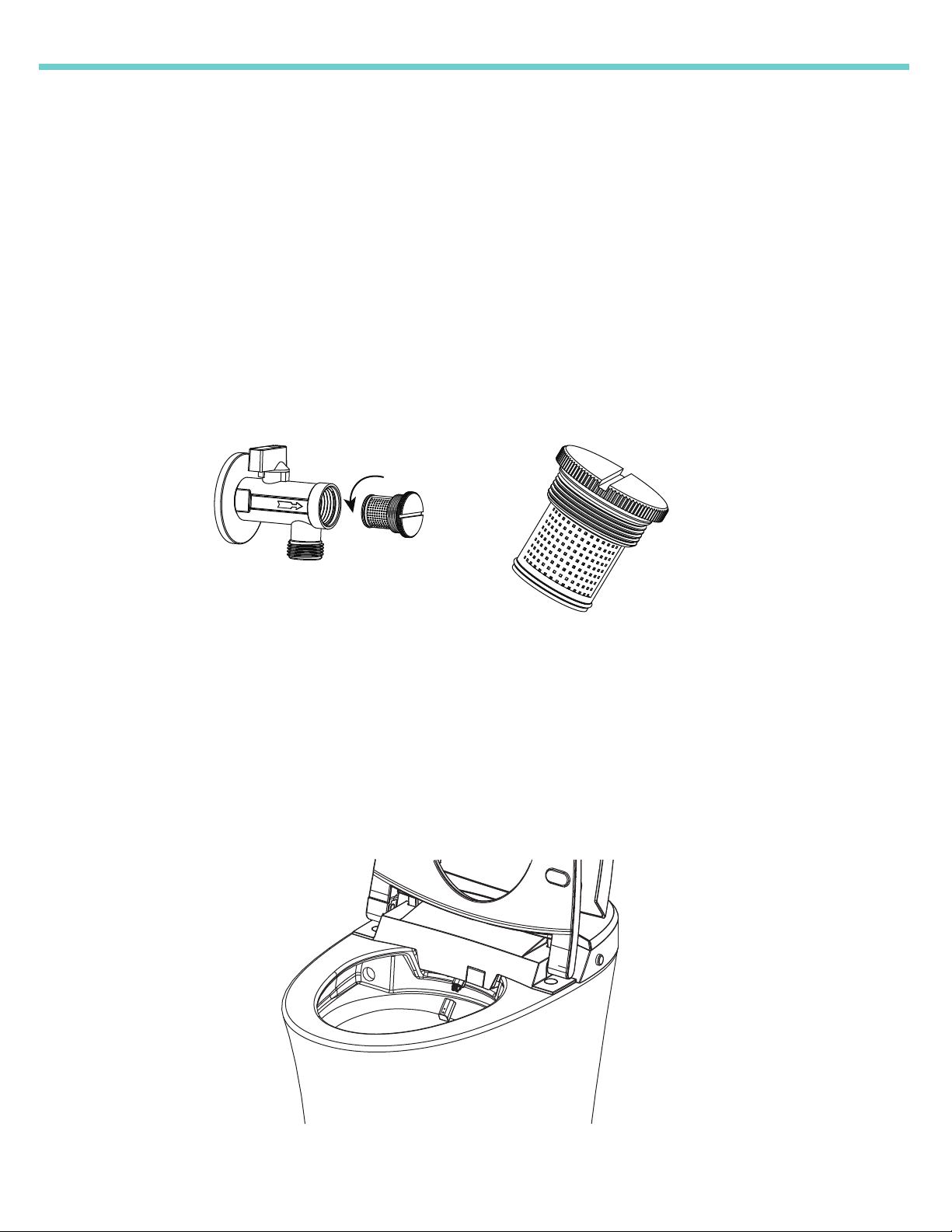

2. Cleaning Filter
· The filter should be cleaned if the water pressure is normal, but the toilet is not flushing normally.
· Disconnect the power supply and turn off water supply at the angle valve.
· Unscrew angle valve nut and remove.
· Remove filter net and use a brush to clean.
· Re-install filter and angle valve nut, turn on the angle valve and connect power.
3. Spray Nozzle Maintenance & Care
· Nozzle will self clean when the user gets off the seat. Rotate the knob clockwise to manually clean
the nozzle, the knob will automatically extend and flush nozzle with water.
· To dissemble the nozzle, wait until it moves forward, then disassemble and clean. Do not pull or
push the wand to avoid damage. Use a soft cloth or brush to clean. When cleaning is finished, put
the nozzle back into the toilet and press the “stop” button to automatically retract the nozzle.

—6 —
SMART TOILET MAINTENANCE & USAGE
USAGE
1. Manual Flushing
· Press the knob to manually activate a full flush.

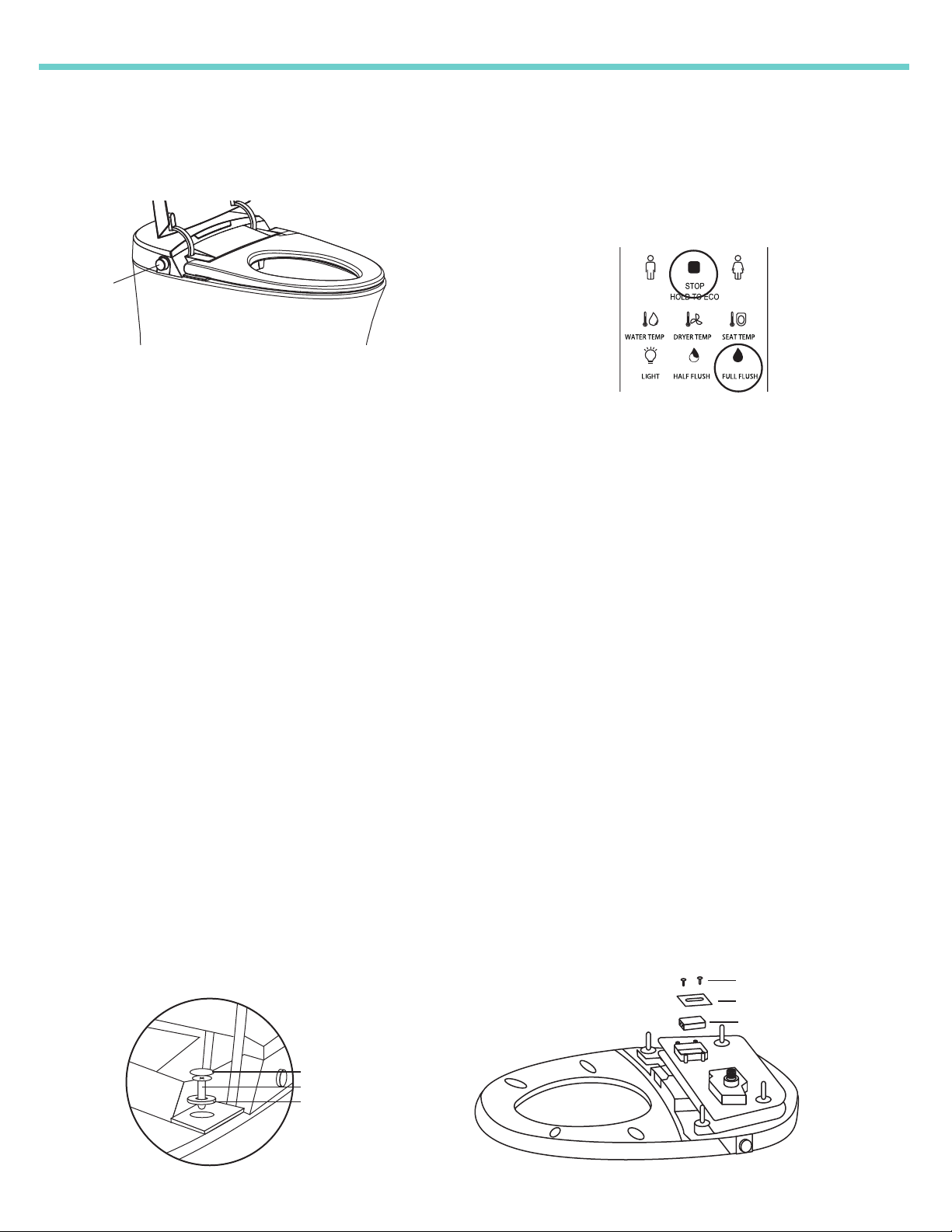

2. Activating Foot Sensor Flushing
· To turn on foot-sensor flushing, press the “STOP” and
the “FULL FLUSHING” button on the remote
simultaneously. Repeat to turn off.
· This function will not work while the user is sitting.
3. Knob Functions
· Rotate clockwise to start rear cleaning, rotate counterclockwise to start front cleaning. Rear and front
cleaning will automatically enter drying mode after completion.
· If user is not seated and the knob is rotated clockwise, manual nozzle cleaning will begin.
· After starting the rear and front cleaning, turn the knob clockwise to move the spray rod forward, and
counterclockwise to move the spray rod backwards. Hold down the knob to switch to the water
pressure adjustment mode. Turning the knob clockwise in this mode will increase the water pressure,
and counterclockwise will decrease the water pressure. Hold the knob again to switch back to spray
rod position adjustment mode.
· After starting the drying function, turning the knob clockwise will increase the wind temperature, and
counterclockwise will decrease the wind temperature.
· Press the knob at any time to stop the current function. Pressing the knob after functions stop will
flush the toilet.
· Hold down the knob after use to turn off the toilet and put it in standby mode, the light will turn off. In
power saving mode, the light will breathe.
· If the toilet is in standby mode, press the knob to enter normal working mode.
4. Battery Installation & Replacement
· Pull out the power plug and turn of water supply.
· Fully open the seat and cover, take out the left and right decorative covers, unscrew the screws
counterclockwise, and take out the gasket.
· Pull up the cover slightly with both hands so the back end of the cover is separated from the ceramic
positioning column, you may hear a “clicking” sound.
· Pull out the plug-in connecting line, loosen the water inlet pipe and remove the whole seat and cover.
· Place the seat flat with bottom facing up, be careful not to scratch the top of the seat.
· Remove the battery box cover from the bottom of the seat to install or replace the 9V battery.
· Place the battery cover over the new battery then turn on water supply and power.
NOTE: Optional for back up flushing use only, battery not included. screw
battery cover
battery (not included)
screw
decorative cover
washer
Knob

—7 —
SMART TOILET TROUBLESHOOTING
TROUBLESHOOTING
1. How to flush without water supply:
· Put around 2.1 gal of water into a bucket and pour into bowl to flush.
2. What to do when not in use for a long period of time (over three days):
· Unplug and remove the battery box and all batteries.
· Drain out water by flushing the toilet after turning off the angle valve to prevent water from entering.
· Drain out water inside pipe by unscrewing the hose from the angle valve, draining, then re-installing.
· It is suggested to put antifreeze inside the bowl to prevent any remaining water from freezing.
· When ready to use again, reconnect water and power supply.
PROBLEM CAUSE SOLUTION
Not Flushing
Water supply hose is buckling and causing a
block. Solve the buckling.
Fill valve is off.
Water supply is cut off. Connect water supply and wait for the water.
Poor Flushing
Water supply hose is buckling and causing a
block. Solve the buckling.
Fill valve is not fully turned on.
Low Water Temperature Water temperature is set to normal. Reset the water temperature.
Low Seat
Temperature
Seat temperature is set to normal. Reset the seat temperature.
In standby mode. Switch to normal function mode and wait 3
minutes before use.
Low Wind
Temperature Wind temperature is set to normal. Reset the wind temperature.
No Wind In standby or power saving mode. Shift to function mode.
Spray Wand Not Retracting
Power is off. Push back the wand lightly and wait for power.
Clogged by impurities. Clear away the impurities.
Spray Wand Not Extending
Power is off. Push back the wand lightly and wait for power.
Not sitting in the sensing area. Sit in the sensing area.
Remote Not Working Reverse the polarity of the battery. Reload the battery.
CAUTION
If the problems cannot be solved as per above methods, please disconnect power and contact
Swiss Madison for maintenance.
If the leakage circuit breaker trips off often, the product has an electric leakage. Shut off the power
and contact Swiss Madison for maintenance.

—8 —
SMART TOILET TROUBLESHOOTING
WARNINGS
DANGER - To reduce the risk of electrocution:
· Do not use while bathing.
· Do not place in or drop into water or other liquid.
· Do not reach for a product that has fallen into water. Unplug immediately.
· Do not wash the main unit or electrical plug with water or detergent.
· Do not handle the electrical plug with wet hands.
· Do not put a hand or other staff over the outlet of air dryer or block the outlet of air dryer.
· Never disassemble,repair or modify this product.
· During installation, disassembly, repaire and maintenance of the product,the power plug must be switched off
and water supply be shut off.
WARNING - To reduce the risk of burns, electrocution, fire, or injury to persons.
· Close supervision is necessary when this product is used by, on, or near children.
· Use this product only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
· Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped
or damaged, or dropped into water. Return the product to a service center for examination and repair.
· Keep the cord away from heated surfaces.
· Never use while sleeping or drowsy.
· Never drop or insert any object into any opening or hose.
· Do not use outdoors, operate around aerosol (spray) products or where oxygen is being administered.
· Connect this product to a properly grounded outlet only. See Grounding Instructions.
· Do not throw cigarettes and other burning stuff into toilet, otherwise it might cause fire.
· This product is electric appliance, so it must be placed far away from water. Please don’t drenchwith liquid.
· Do not lay on side or upside the product during the electrical circuit.
· It is prohibited to use other electric appliances in the same socket.
· It is forbidden to use the power extension or unstable loose outlet.
· The old aging water supply hose can not be used, otherwise it might cause leakage, fire or electrical shock.
Installation of the bidet seat should include specified components and new water supply hose.
· Do not place or store product where it can fall or be pulled into a tub or sink.

—9 —
SMART TOILET SAFETY
IMPORTANT SAFETY INSTRUCTIONS
1. Do not install or use the product in wet places as steam room etc.
2. It is recommended to use water-proof electrical outlet which should be lnstalled in the place
where is not easily got wet.
3. This product should be used with 110V-120V,50/60Hz electrical current only,load current
is at least 15A. Power plug must be equipped with ground fault circuit interrupter or ground
fault electrical leakage protector or similar high sensitive, rapid type leakage switch
(Rated sensitive current under 6mA).
4. When it thunders,it is strongly recommended to pull out the power plug.
5. Do not stand on ceramic toilet.
6. Ceramic toilet must install floor fixing bolt.
7. Do not stand on product unit,seat and cover.
8. Do not lean against the seat cover when using the product,to avoid damage.
9. This product is equipped with soft-closing seal cover.Heavy pressing or pushing may damage
the soft-closing damper.
10. Do not use lacquer thinner,petrol,liquid medicine,detergent,insecticide,toilet cleanser and
scrubbing brush to clean the product.
11.Exposure to direct sunlight is prohibited.
12.Only use tap water or potable water;otherwise it may cause chafing.
13.Do not connect water supply to heater outlet.Make sure inlet water temperature at
14.When the room temperature is under zero degree,please dry up the water tank, to avoid freezing.
15.Raise rest room temperature to prevent the toilet from damage due to freezing.
16.When move the product from cold or wet environment into normal room temperature,wait for
2 hours until the condensation water is fully volatilized.Doing so can prevent the product from
electrical short-circuit.
17.When not using the product over three(3) days,drain the water out of the container and pull
the electrical plug from the wall outlet.
18.Stop using the product and shut off the power when product malfunctions,please contact the
service people for professional service.
CAUTION - Failure to follow the instruction may cause injury or property damage.
GROUNDING INSTRUCTIONS
This product should be grounded. In the event of an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape wire for the electric current. This product is
equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged
into an outlet that is properly installed and grounded.
DANGER - Improper use of the grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to
either flat blade terminal. The wire with insulation having an outer surface that is green with or
without yellow stripes is the grounding wire.
This product is factory equipped with a specific electric cord and plug to permit connection to a
proper electric circuit. Make sure that the product is connected to an outlet having the same
configuration as the plug. No adapter should be used with this product. Do not modify the plug
provided — if it will not fit the outlet, have the proper outlet installed by a qualified electrician. If
the product must be reconnected for use on a different type of electric circuit, the reconnection
should be made by qualified service personnel.
.
37.4~95 F
。

1-434-MADISON
(623-4766)
www.swissmadison.com
ONE YEAR LIMITED WARRANTY
Swiss Madison® products are made with quality materials and excellent craftsmanship to provide our
customers with beautiful, durable, long-lasting products. Should there be any defects in materials or
craftsmanship under regular use that are discovered within the first year of installation, Swiss Madison®
will provide replacement parts at no charge, or at its discretion, replace any product or part of the product
that is deemed defective, under normal installation, use, service or maintenance. This warranty applies
only to the original purchaser. Proof of purchase will be required in the instance of a claim.
Swiss Madison®recommends all installations of Swiss Madison® products to be conducted by a
licensed, professional plumber or contractor. Swiss Madison®will not be held responsible for any
damage or product failure due to improper installation, misuse, or failure to utilize a licensed professional
for installation. Swiss Madison® is not responsible for any installation or removal costs.
This One Year Limited Warranty Will Be Voided If:
• The installation recommendations were not followed by the installer
• The product has been moved from its initial place of installation
• The product has in any way been modified from its packaged state
• The product has been subjected to improper maintenance, abuse, misuse, excessive use of
chemicals, accidents, or other damages, etc.
Swiss Madison®makes no implication that its products comply with any local building or plumbing
codes. It is the consumer’s responsibility and obligation to determine local code compliance prior to and
during installation. This warranty extends only to the original purchaser and first consumer.
Swiss Madison®is not responsible for any special, incidental or consequential damages associated with
the installation, replacement, return or use of the original purchaser’s product. This includes, but is not
limited to: freight costs, labor, travel time, lost profit, home damages and other contingent liabilities and
costs (including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations,
audits, analyses, attorneys and any other professional/hired services).
The Swiss Madison®warranty is a comprehensive and explicit limit of liability. All items not disclosed
within the warranty are not addressable within the responsibility of Swiss Madison®. Certain states have
variances regarding implied warranties; in those situations, we remain fully compliant.
If you have any questions or concerns, please contact us directly at
1-434-MADISON (623-4766)
WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may
cause hazard to children and adults. Swiss Madison®is not responsible in any way for personal
damages.
®
well made for e v e r

®
www.swissmadison.com | 1-434-623-4766 | [email protected]
INSTALLATION INSTRUCTIONS
Avancer Remote
@SwissMadison
#WellMadeForever
®
well made for e v e r

—1 —
If you have any questions or concerns please contact us:
1-434-623-4766
[email protected]
PRIOR TO INSTALLATION:
· Inspect to ensure no damages have occurred while in shipping.
· Observe all plumbing and building codes in accordance with your state and local requirements.
· All dimensions are nominal! Be sure to measure prior to installation.
· The step-by-step guidelines in the installation instructions are a general reference. Should there be
any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss
Madison products by hiring a licensed professional.
· Read installation and maintenance instructions thoroughly before installing. Be sure to use proper
tools and always wear proper personal safety accessories for your protection.
INCLUDED PARTS:SUGGESTED TOOLS & MATERIALS:
Level Screwdriver Drill
AVANCER REMOTE INSTALLATION INSTRUCTIONS
Smart Seat
Bidet Remote Wall Mount
Hardware

AVANCER REMOTE CONTENTS
—2 —
Installation Preparation
1. Remote control installation 03
Usage Instruction
1. Remote control illustration 05
2. Rear/Front cleaning operation 06
3. Dry operation 05
4. Water volume adjustment 07
5. Full flush/ Half flush 07
6. Spray nozzle position adjustment 07
7. Energy saver 08
8. Auto function 08
9. Temperature adjustment 09
10. Night light 09
11. User code 10

AVANCER REMOTE REMOTE INSTALLATION
—3 —

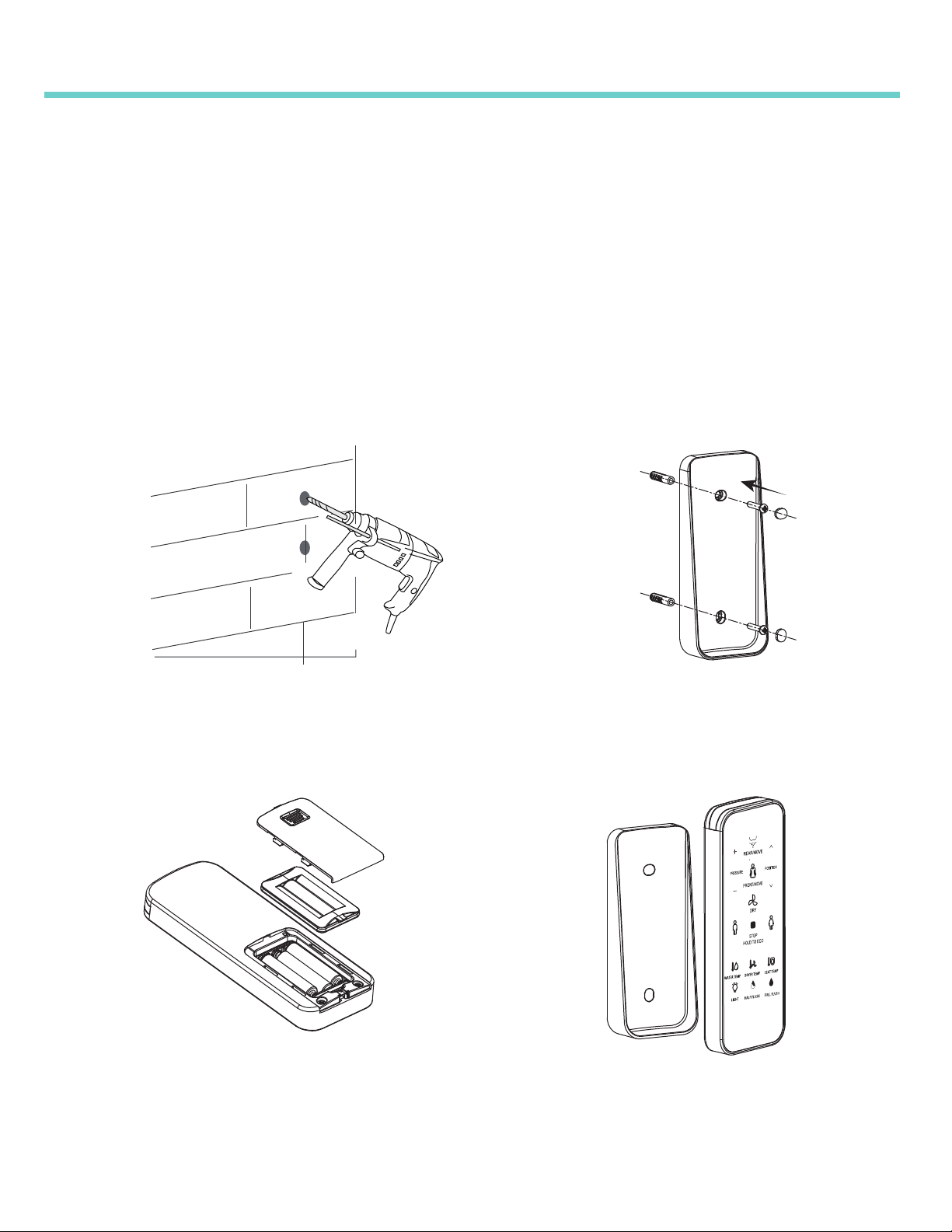

1a. Mark & Pre-Drill Holes
· Place the remote wall mount on the wall and
mark the location of the two mounting holes.
Drill 6 mm diameter holes on the marks with a
depth of 35 mm. Make sure the placement is
reachable from the toilet seat.
1c. Install Batteries
· Put batteries into the remote control and put on
battery cover.
NOTE: Batteries not included
1d. Hang Remote
· Put remote into the wall mount.
1b. Install Wall Mount
· Put the anchor into the wall holes and ensure
the wall mount is tight against the wall.
· Align the wall mount hole with the anchor and
tighten the screw, and then cover with the
silicone gasket.
NOTE: Please do not install and use the product in moist places such as a steam room,
or in a place where it can easily get wet.

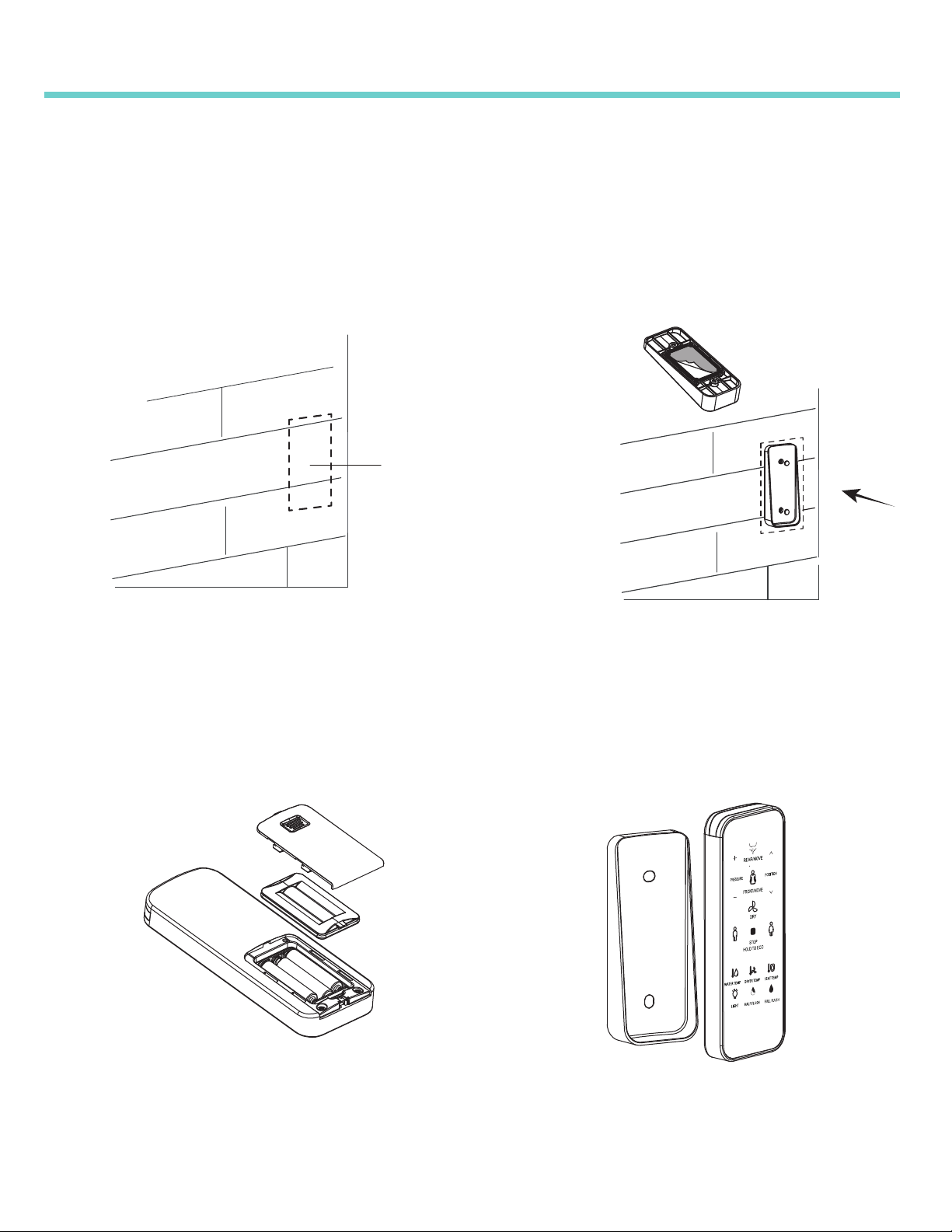

1. Install Sensor Mount
· The installation method depends on the wall it is being installed on. Determine appropriate installation
method and follow the instructions below.
Method A: Screw fixing - suitable for installation on rough walls.
Method B: Adhesive fixing - suitable for installation on tiles and other smooth walls.
Method A: Screw Fixing

AVANCER REMOTE REMOTE INSTALLATION
—4 —
NOTE: Please do not install and use the product in moist places such as a steam room,
or in a place where it can easily get wet.
1a. Prep Wall
· Clean and dry the desired installation area on
the wall. Make sure the placement is reachable
from the toilet seat.
1b. Install Wall Mount
· Remove the adhesive tape on the back of the
wall mount and place it firmly against the wall,
then cover with the holes with the silicone
gaskets.
1c. Install Batteries
· Put batteries into the remote control and put on
battery cover.
NOTE: Batteries not included
1d. Hang Remote
· Put remote into the wall mount.
Installation
area
Method B: Adhesive Fixing

AVANCER REMOTE USAGE INSTRUCTIONS
—5 —

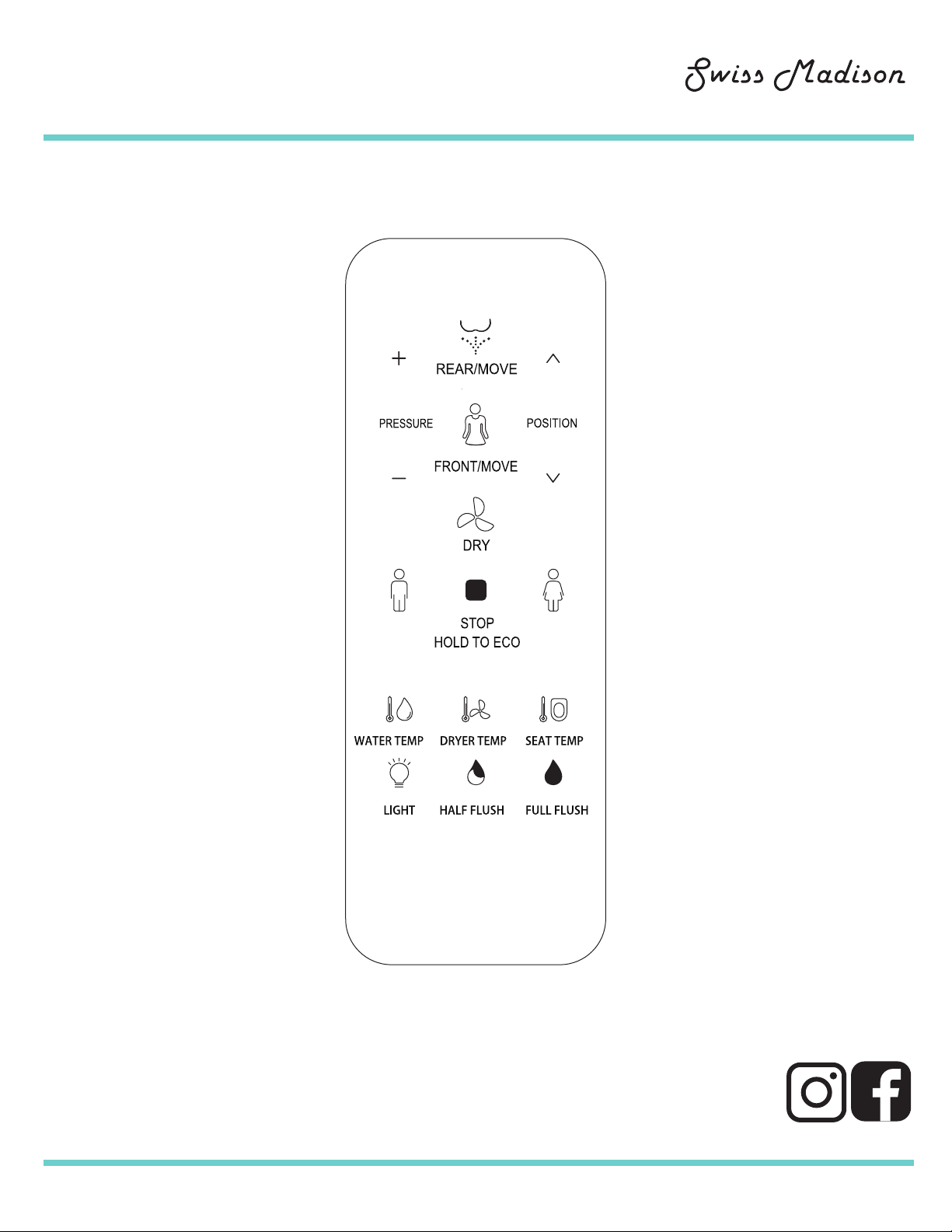

Rear cleaning/massage
Water increasing
Front cleaning/massage
Water reducing
Drying
Auto rear cleaning
Indicator light(only
visible when the
light is on)
Dryer temperature
Water temperature
Night light
Nozzle moving forward
Nozzle moving backward
Auto front cleaning
Stop/
Energy saver
Seat temperature
Half flush
Full flush

AVANCER REMOTE USAGE INSTRUCTIONS
—6 —
Press “REAR/MOVE” button, the indicator light will be on to show the current water
temperature level and it will begin rear cleaning. Press the “REAR/MOVE” button again
to shift to massage cleaning (the nozzle will move forward and backward). The
cleaning will last for one cycle and will stop automatically. To stop before the cycle is
complete press the “STOP” button.
Rear/Front Cleaning
Press “FRONT/MOVE” button, the indicator light will be on to show the current water
temperature level and it will begin front cleaning. Press the “FRONT/MOVE” button
again to shift to massage cleaning (the nozzle will move forward and backward). The
cleaning will last for one cycle and will stop automatically. To stop before the cycle is
complete press the “STOP” button.
Drying Operation
Press the “DRY” button, the indicator light will be on to show the current wind
temperature level and it will being drying. The drying will stop after a complete cycle
or if the user leaves the seat.
REAR/MOVE
PRESSURE POSITION
FRONT/MOVE
STOP
HOLD TO ECO
DRY
Rear
Front
Dry

AVANCER REMOTE USAGE INSTRUCTIONS
—7 —
Press “+” or “-” button during rear or front cleaning, the indicator light will be on showing
the current water volume adjustment level. The water adjustment has 3 levels.
Water Volume Adjustment
Press “V” or “Λ” button during rear or front cleaning, the indicator light will be on showing
the current nozzle position. The nozzle position adjustment has 5 levels.
Spray Nozzle Position Adjustment
Press the “FULL FLUSH” button to activate a full flush.
Press the “HALF FLUSH” button to activate a half flush.
Hold the “FULL FLUSH” button to turn on/off the auto flush function. Toilet will
automatically flush as you walk away from the bowl. When the user sits less than 60
seconds it will activate a half flush. When the user sits for more than 60 seconds, it will
activate a full flush.
Half Flush / Full Flush
喷嘴
喷嘴
PRESSURE POSITION
REAR/MOVE
FRONT/MOVE
DRY
Nozzle
HALF FLUSH FULL FLUSH

AVANCER REMOTE USAGE INSTRUCTIONS
—8 —
Hold the “STOP” button for more than 3 seconds to enter energy saving mode. The
indicator light will be off and the energy saving light will be on. Hold the “STOP” button for
another 3 seconds to exit energy saving mode. The indicator light will be on and the
energy saving light will be off.
During energy saving mode, the seat temperature will be at level 1.
Energy Saver
The automatic function default settings are on the middle level for water volume, nozzle
position, water temperature, air temperature and seat temperature.
Quickly pressing the “ ” or the “ ” button will activate automatic male rear wash and female
bidet wash.
You can custom set the water volume, nozzle position, water temperature and air temperature.
After the setting is complete, hold the automatic user setting button for 3 seconds to save the
settings. Your settings will be saved for the next time you press the programmed button. You
are able to set the automatic function to enable cleaning and drying.
The automatic function mode will be off if you press another button during operation.
Auto Function
NOTE: If user sits on the seat, the energy saver mode is paused and enters into the
function mode, the seat starts to heat immediately. The energy saver mode restores
after user leaves.

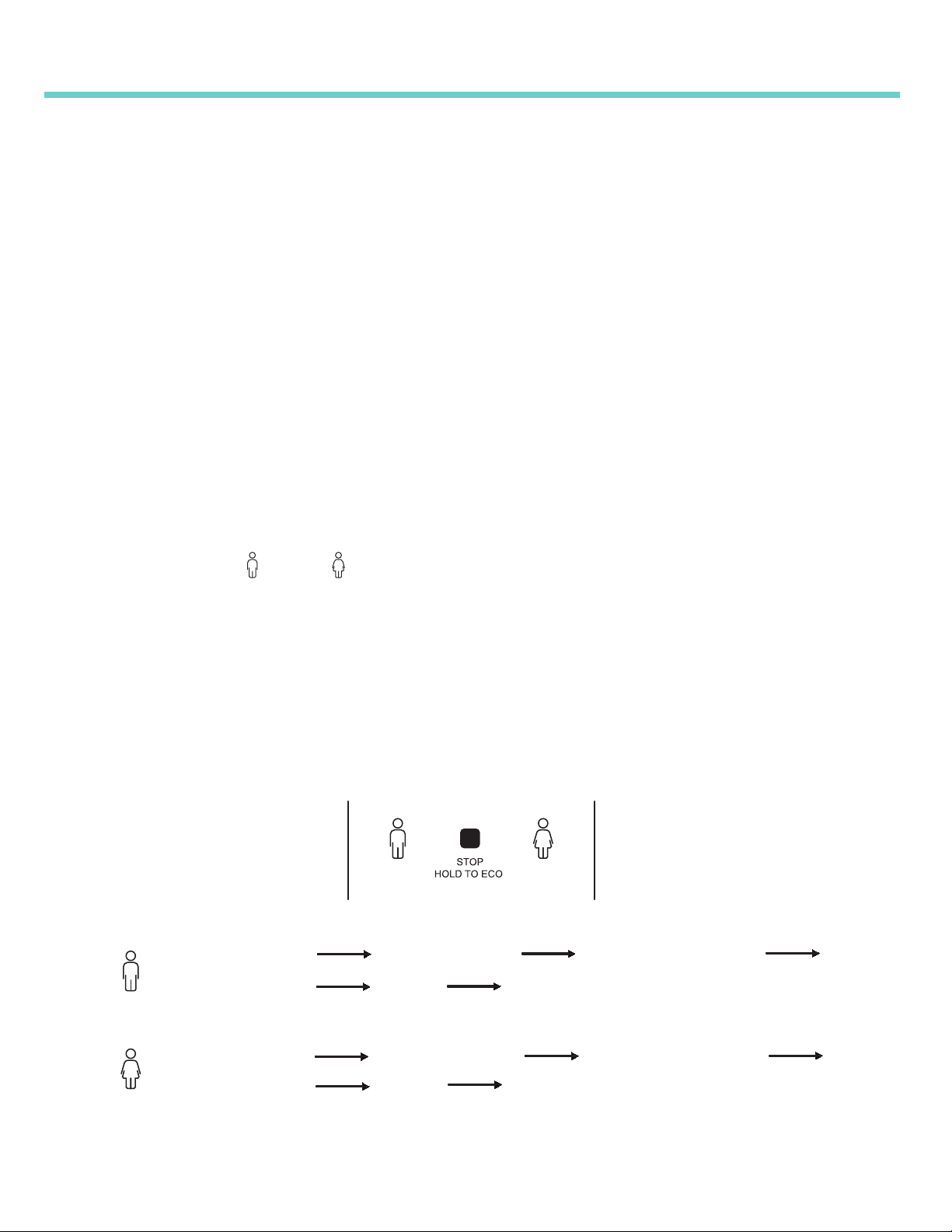

Massage cleaning 30s
Massage cleaning 30s
Automatic stop
Auto rear cleaning Rear cleaning 20s
Dry 180sRear cleaning 40s
Auto front cleaning Front cleaning 20s
Front cleaning 40s Dry 180s Automatic stop
