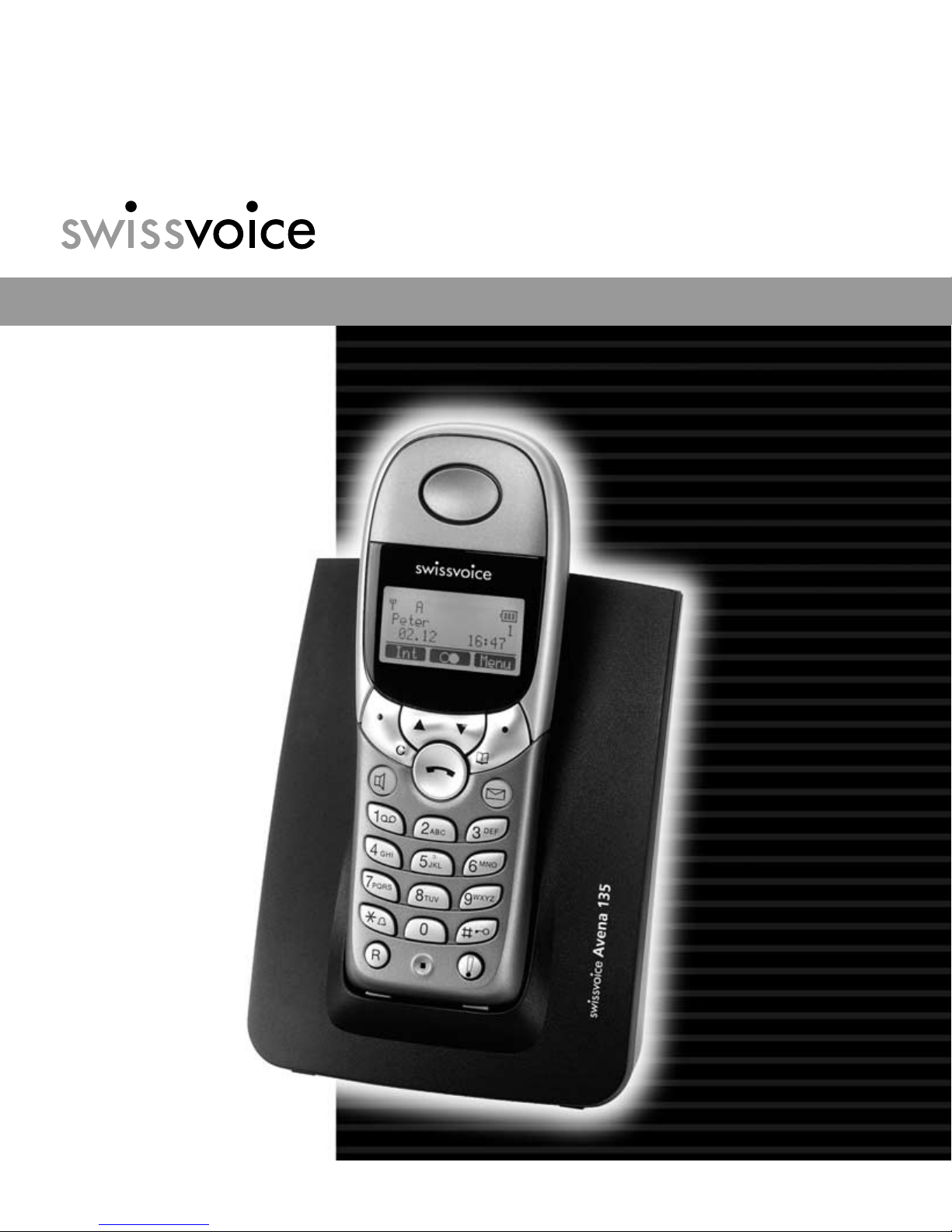

Swissvoice Avena 135 User manual

Avena 135/135 Duo
User Manual
Attention: User Manual
contains safety precautions!
Please read before putting
into operation, and store
in a safe place.
Cordless analogue telephone DECT

Safety precautions
This DECT cordless telephone is intended for transmitting speech over the analogue tele-
phone network. Any other type of use is not permitted and is considered in violation of
the provisions. This User Manual with its safety precautions is part of the product package
and must be handed over to the new owner when sold.
Caution!
Use only approved rechargeable batteries: Nickel-metal-hydride (NiMH AAA) preferably
with more than 650 mAh. Using other types of rechargeable batteries or non-rechargea-
ble batteries/primary cells can be dangerous and may cause malfunction of or damage to
the device. The manufacturer accepts no liability in this event.

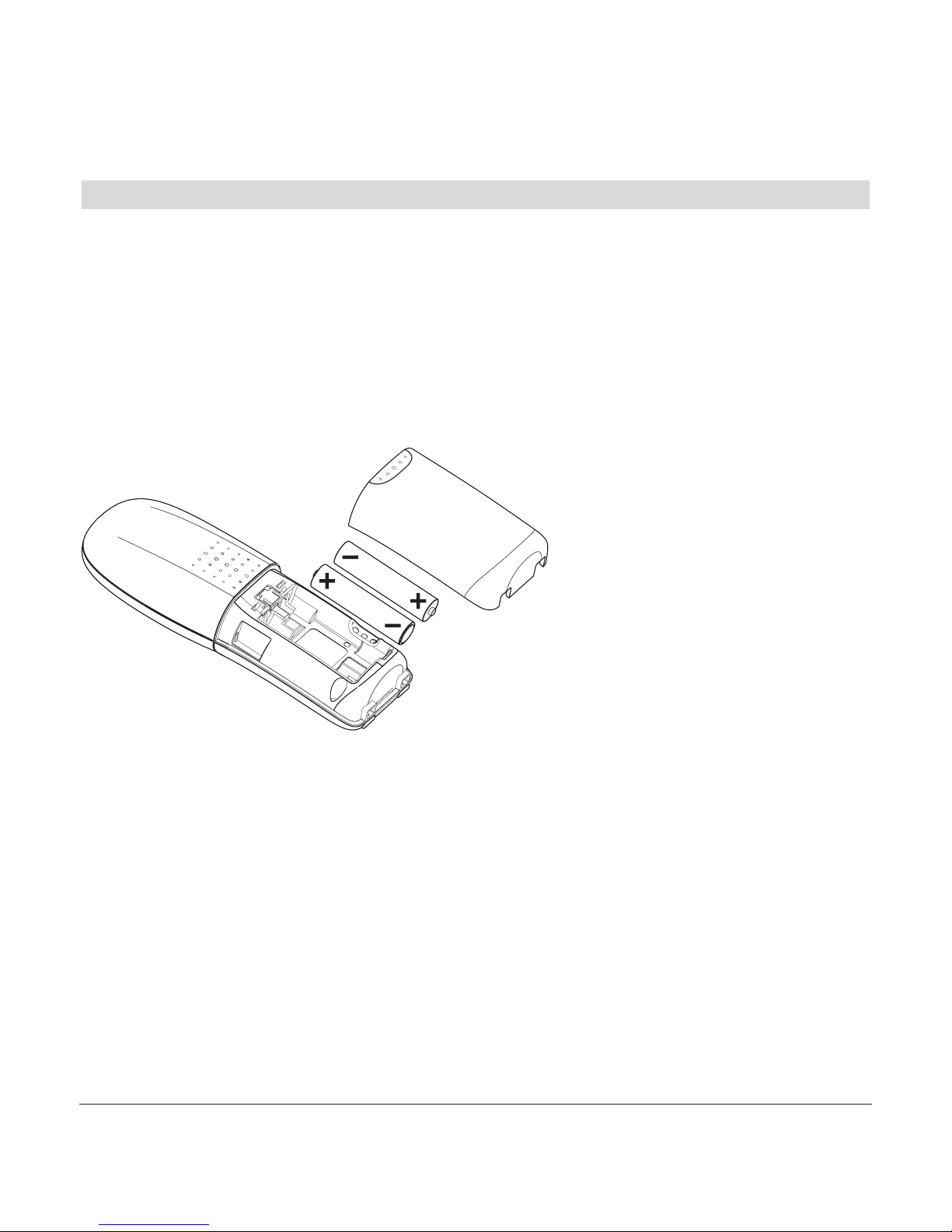

Note the correct positioning of the batteries as indicated in the battery compartment of
the handset.
➭Do not immerse the rechargeable batteries in water or throw into fire.
➭Rechargeable batteries can get warm while recharging; this is normal and not dangerous.
➭Do not use any other type of charging unit, otherwise the rechargeable batteries may
be damaged.
➭Persons wearing hearing aids should note that radio signals may be picked up by the
hearing aid and may cause unpleasant buzzing noises.
➭Do not use your DECT cordless telephone in environments with risk of explosion
(e.g. paintworks, petrol stations, etc.)
➭Do not place the base station/charging bay in bathrooms or showers.
➭The functioning of medical equipment may be affected by the radio signals.
➭Your DECT cordless telephone will not function during a power outage or when the
rechargeable batteries are empty!
➭The handset must not be charged without batteries or without the battery cover present.
➭Do not touch exposed contact points!
➭Only use the supplied power pack SNG 05-ea for the base station.
Disposal
Dispose of the rechargeable batteries, base station, handset, charging bay and power pack
in an ecological manner.

1
20401541en_ba_a0
Contents
Safety precautions
Contents ………………………………………………………………………………………1
Installation ……………………………………………………………………………………5
Package contents …………………………………………………………………………5
Additional items for “Duo” ………………………………………………………………5
Finding the best location …………………………………………………………………5
Positioning the base station/charging bay ………………………………………………6
Wall mounting ……………………………………………………………………………7
Connecting the telephone ………………………………………………………………8
Connecting the charging bay ……………………………………………………………9
Inserting the batteries in the handset …………………………………………………10
Charging the batteries……………………………………………………………………11
Display and keypad…………………………………………………………………………13
Display and symbols………………………………………………………………………13
Handset front view ………………………………………………………………………14
Handset keypad …………………………………………………………………………15
Base station front view …………………………………………………………………17
Relocating the handset (paging) ………………………………………………………17
Making the first call ………………………………………………………………………18
Switching the handset on/off ……………………………………………………………18
Handset status at delivery ………………………………………………………………18
Switching the key lock on/off……………………………………………………………19
Your Avena 135/135 Duo is designed to be connected to an analogue
telephone network.
This telephone is available either with one handset (Avena 135) or as a set
with two handsets and a charging bay (Avena 135 Duo).

Set the time and date ……………………………………………………………………19
Make a telephone call ……………………………………………………………………20
Answering a telephone call ……………………………………………………………21
Ending a telephone call …………………………………………………………………21
Missed calls ………………………………………………………………………………22
Handsfree calling …………………………………………………………………………22
Changing the voice volume during a call ………………………………………………23
Muting the handset………………………………………………………………………23
Message Lists ………………………………………………………………………………24
Comfort dialling ……………………………………………………………………………25
Dialling using the phonebook …………………………………………………………25
Managing the phonebook ………………………………………………………………25
Dialling using the VIP phonebook ………………………………………………………28
Managing the VIP phonebook …………………………………………………………29
Quick Dial (Network Mailbox)……………………………………………………………30
Redialling from the redial list ……………………………………………………………31
Managing the redial list …………………………………………………………………32
Dialling from the call register ……………………………………………………………34
Managing the call register ………………………………………………………………35
Making internal calls ……………………………………………………………………38
Callback if busy …………………………………………………………………………39
Call anonymously…………………………………………………………………………40
Direct Call …………………………………………………………………………………41
Multiple conversations ……………………………………………………………………42
Call Waiting ………………………………………………………………………………42
Enable/disable call waiting ………………………………………………………………43
Accept a waiting call ……………………………………………………………………44
Reject a waiting call………………………………………………………………………45
Making an internal inquiry call …………………………………………………………46
Making an external inquiry call …………………………………………………………47
2
20401541en_ba_a0
Contents

3
20401541en_ba_a0
Contents
Transferring a call…………………………………………………………………………48
Alternating between calls (brokering) …………………………………………………48
Three-party conference calls ……………………………………………………………49
Call Forwarding ……………………………………………………………………………50
Enable/disable Call Forwarding …………………………………………………………50
Program service codes for Call Forwarding ……………………………………………52
SMS Messages ………………………………………………………………………………53
SMS Gateways ……………………………………………………………………………54
Editing SMS gateway numbers …………………………………………………………55
Writing SMS messages …………………………………………………………………56
Text editor …………………………………………………………………………………58
Receiving SMS messages…………………………………………………………………59
List of incoming SMS messages …………………………………………………………59
List of outgoing SMS messages …………………………………………………………62
Special SMS features ……………………………………………………………………64
Prevent unauthorised use …………………………………………………………………65
Authorised calls …………………………………………………………………………65
Tapping your conversation ………………………………………………………………65
PIN code protection ………………………………………………………………………65
Key Lock …………………………………………………………………………………65
Handset settings ……………………………………………………………………………66
Setting the ring volume (HS) ……………………………………………………………66
Setting the ring melody …………………………………………………………………67
Enabling/disabling warning tones ………………………………………………………68
Editing the handset name ………………………………………………………………69
Select the display language ……………………………………………………………69
Select the display contrast ………………………………………………………………70
Set/modify the emergency numbers ……………………………………………………70
Resetting the handset ……………………………………………………………………71

4
20401541en_ba_a0
Contents
Base Station settings ………………………………………………………………………73
Setting the ring volume (BS) ……………………………………………………………73
Setting the ring melody …………………………………………………………………74
Changing PIN code ………………………………………………………………………75
Time and date ……………………………………………………………………………76
Selecting the Flash time …………………………………………………………………77
Resetting the base station ………………………………………………………………78
Supplementary network services ………………………………………………………80
Subscribe to network services …………………………………………………………80
CLIP Service ………………………………………………………………………………80
Function codes for network services ……………………………………………………80
Using network services through the menu ……………………………………………81
Editing/programming network service codes …………………………………………82
Network Mailbox / Voicebox ……………………………………………………………83
Connecting to a PBX ………………………………………………………………………84
Specifying the network access digit ……………………………………………………84
Multiple handsets …………………………………………………………………………85
Log on the handset ………………………………………………………………………85
Log on to multiple base stations ………………………………………………………86
Log off the handset ………………………………………………………………………86
Switch to another base station …………………………………………………………87
Appendix ……………………………………………………………………………………88
Table of available characters ……………………………………………………………88
Technical data ……………………………………………………………………………89
Approval …………………………………………………………………………………90
CE-Certification …………………………………………………………………………90
Warranty Conditions ……………………………………………………………………90
Declaration of Conformity ………………………………………………………………91
Warranty Certificate ………………………………………………………………………93

5
20401541en_ba_a0
Package contents
The package for the Avena 135 contains the following items:
➭Avena 135 Base Station (BS)
➭Avena 135 Handset (HS)
➭2 rechargeable batteries (NiMH AAA)
➭Telephone line connection cable
➭Power supply type SNG 05-ea
➭User Manual
Note The latest version of the User Manual can be retrieved from the Swissvoice
internet site at: www.swissvoice.net).
Additional items for “Duo”
In case you have purchased the Avena 135 Duo (2 handsets) you will find the following
additional items in the package:
➭Second Avena 135 Handset (HS)
➭2 additional rechargeable batteries (NiMH AAA)
➭Charging bay (for the second handset) with power supply type SNG 06-ea
Finding the best location
In order to obtain the best performance of your Avena 135/135 Duo cordless telephone,
place the telephone in the centre of your apartment/living quarters. Avoid positioning the
telephone in niches, recesses and behind steel doors.
The maximum range in open field between base station and handset is approx. 300 meters.
The actual range can be smaller depending on the surrounding conditions as well as
spatial and building construction factors. Within buildings a range of up to 50 m can be
reached.
Installation

6
20401541en_ba_a0
Depending on the structural surroundings, radio dead spots may occur even within this
indoor range caused by the digital transmission in the frequency range. Reduced trans-
mission quality results in short interruptions of the transmission. To improve the transmis-
sion quality, move the telephone slightly away from the radio dead spot.
A connection between base station and handset will be broken when the radio range is
exceeded for more than 10 seconds.
In order to avoid signal interference with other electronic devices, a distance of al least
1 meter between the telephone and other equipment is recommended.
Positioning the base station/charging bay
Position the base station (as well as any additional charging bays) in a clean, dry and well
ventilated location. Choose a spot that is stable, level and not subject to vibration.
In order to avoid a mutual interference, do not place the base station/charging bay in
the immediate vicinity of other electronic equipment such as hi-fi systems, office equip-
ment, or microwave ovens. Avoid locations near a heat source, e.g. heating radiators or
near obstacles such as metal doors, thick walls, niches and cupboards.
The base station/charging bay is not equipped with a mains switch. For this reason the
power outlet to which the telephone is connected must be easily accessible.
Note •The base station/charging bay must not be exposed to direct sunlight.
•The base station/charging bay must be protected from moisture. Do not
place the telephone in rooms exposed to condensation, corrosive steam or
excessive amounts of dust. Condensation often occurs in basements, gara-
ges, winter gardens or sheds.
•The ambient temperature must be between 5 °C and +40 °C.
Installation

7
20401541en_ba_a0
Wall mounting
Your Avena 135/135 Duo cordless telephone is suitable for
wall mounting. Two screws and wall plugs are provided for this
purpose.
Place the plugs vertically at a distance of 90 mm from each other
and insert the screws. Leave approx. 3 mm space between the
screw head and the wall.
Hang the base station on the screws and connect the power
supply and telephone cables.
Note •230 V mains outlet and telephone wall connector should be within the
range of the supplied cables.
•The base station must not be mounted in door or windows frames:
risk of damage!
•Caution: take care not to damage hidden cables in the wall!
Installation
3
90 mm

8
20401541en_ba_a0
Connecting the telephone
Before you can start using your cordless telephone you must connect the power supply
and telephone connection cables.
Safety note
For the Avena 135/135 Duo base station use
only the provided power supply type SNG 05-ea!
➀Telephone connection cable
Connect the telephone connection cable to the
socket on the base station marked with a telephone
symbol and fit the cable into the corresponding
groove.
Connect the other end of the telephone connection
cable to the telephone wall plug. Note that for
older types of wall connectors you may need an
appropriate adapter plug.
➁ Power supply cable
The power supply cable is first plugged into the
socket marked with the power supply symbol on
the bottom of the base station. Fit the cable in the
appropriate groove. Then connect the power supply
to the 230 V outlet socket.
Note Your telephone will not function if the power supply is not plugged in or
during loss of power.
Connection
socket for the
power supply
cable ➁Connection
socket for the
telephone
connection
cable ➀
Installation
