SWIT S-2051 User manual

Chip-Array LED Camera Light S-2051
Ver:V1.0.0V00
Tel:[phone]
Fax:[phone]
http://www.swit.cc
E-mail: [email protected]
Congratulations on your purchase of this product. Please read this user manual carefully.
Features

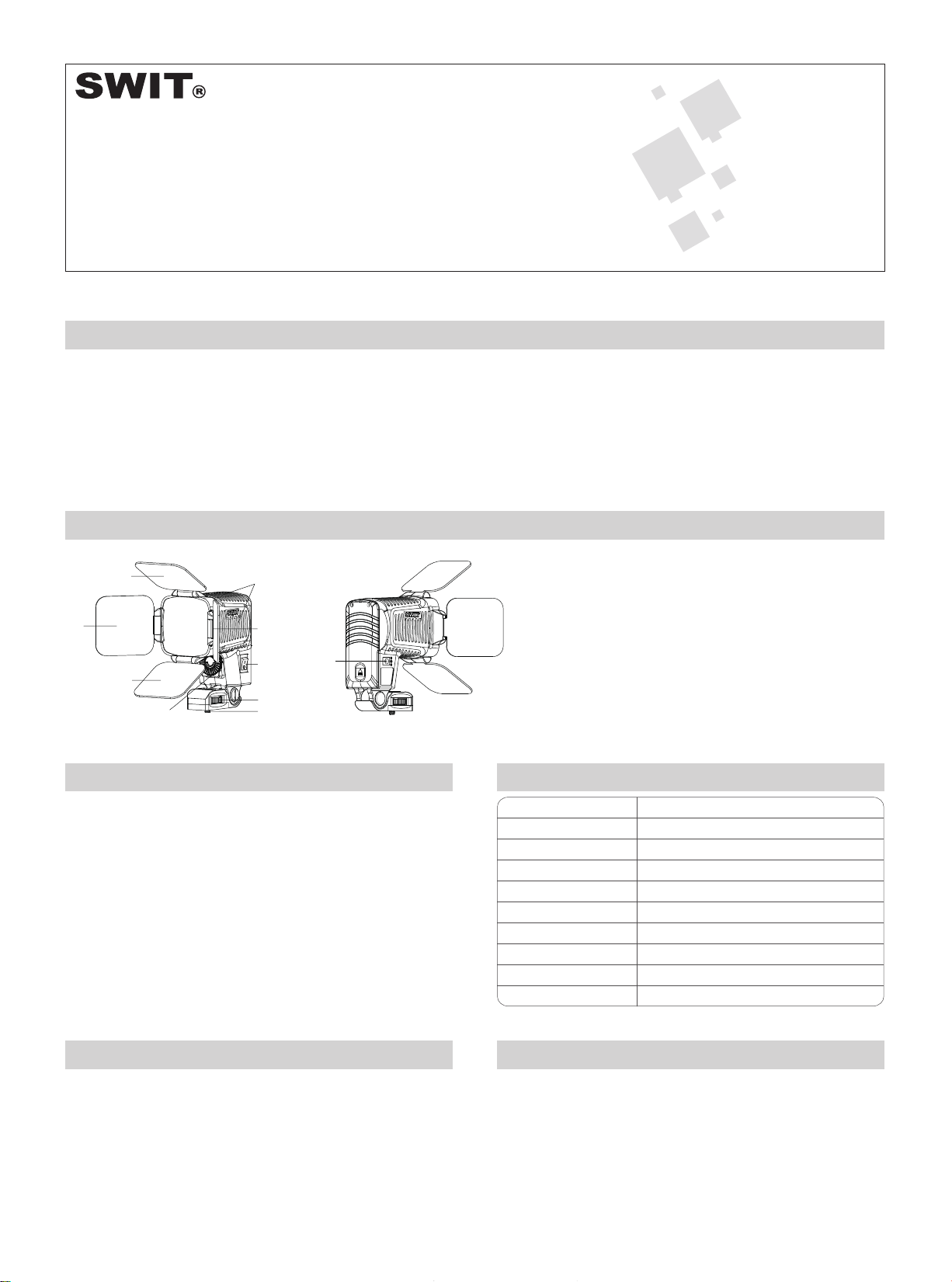

Product view
Caution Specification
PackageClean
USER MANUAL
SWIT Electronics Co.,LTD.
New generation chip-array LED technology, outputs bright but soft & non-glaring light;
60° wide beam angle, equally spread light, no visible lighting edge and single shadow;
40W power consumption, 3000 lux @ 1 meter, equivalent to a 200W halogen bulb, and 10%-100% dimmerable;
5000K color temperature and can be switched to 5600K or 3200K by lters;
11V-17V wide voltage input, support D-tap power；
High intensity and toughness glass ber housing, cool-touch, and both screw and cold shoe install.
◆
◆
◆
◆
◆
◆
Fig 1 Fig 2
1. 5600K lter 6. Switch on/o
2. Barn door 7. Knob
3. 3200K lter 8. 1/4” screw bolt
4. Barn door 9. Dimmer
5. Cooling vent 10. DC-IN socket
1. Never attempt to open the device. Refer all servicing to
qualied personnel.
2. Never insert anything into the cooling vent to avoid damage
or short circuit.
3. Keep the light away from rain or moisture.
4. Please do not stare at the turned on LED light.
5. Keep the lters clean.
6. When powering through DC-IN socket by D-tap cable, please
make sure the power supply's voltage and power meet the
light input requirements.
7. Working temperature: -10°C~40°C
8. Keep the cooling vent clear to avoid damage.
Use a soft, dry cloth to clean the LED light. If you clean the light
with soft cloth slightly moistened with neutral detergent, please
dry the surface of the light with a soft, dry cloth. Do not use a
damp cloth or alcohol, gasoline and other solvents of any kind.
Model
Input
Power consumption
Beam angle
Working temp.
Storage temp.
Illuminance
Color temperature
Mass
Dimension
S-2051
DC 11V~17V
Approx. 40W
Approx. 60°
-10°C~+40°C
-20°C~+55°C
Approx. 3000 lux @ 1 meter
5000K itself, with 5600K&3200K lters
Approx.400g
Approx.103×157×84mm
LED light 1PC
Cold shoe base 1PC
D-tap power cable (S-7104) 1PC
User manual 1PC
Warranty Card 1PC
Portable bag 1PC
1
2
3
98
7
10
6
4
5

Usage
1. Power the light
● By DC input cable
(1) Pls Make sure the light is switched o (turn the switch to“〇”). Plug the pole end of S-7104 into the DC-IN socket. Plug the D-tap end of
S-7104 to the camera auxiliary power tap or the battery’s D-tap output socket, which the voltage and power meet the requirements of
S-2060 LED light.
(2) For third-party DC cables, please make sure the DC connector is 5.5/2.1mm pole and input voltage should be 11-17V; and inner: positive,
Outer: negative. (Fig 3)
2. Fix the LED light to the camera
●By 1/4”screw mount (Fig 4)
With the supplied screw mounting base, the S-2051 can be directly installed on 1/4” thread handle.
●By Cold shoe (Fig 6-Fig 8)
(1) Unscrew the 4 screws and take down the 1/4” bolt base from the light.
(2) Install the supplied cold shoe base onto the light.
(3) Anticlockwise revolve the fasten knob, and loose the cold shoe slice, then install onto the camera cold shoe slot, and fasten the knob to
nish.
3. Adjust the S-2051 angle: Hold the light, and adjust the light upward or downward.(Fig 5)
4. Open barn doors and filters: Open the barn doors and lters to about 45°. (Fig 1)
5. Switch on: Turn the switch to “ I ”.
6. Adjust the Illuminance: Adjust the Illuminance from 10% to 100% by the dimmer.
7. Adjust color temperature: Output 5600K light by using 5600K lter (see Fig 1.1); Output 3200K light by using 3200K lter (see Fig 1.3)
Fig 3
Fig 6 Fig 7 Fig 8
Fig 4 Fig 5
pole plug
Hold the light
Adjust upword
or downword
