Synco WMic-T1 User manual

WMic-T1
User Manual • Uživatelský manuál • Užívateľský manuál •
Használati utasítás • Benutzerhandbuch

2
Content • Obsah • Tartalom • Inhalt
English
3 –15
Čeština
16 –28
Slovenčina
29 –41
Magyar
42 –54
Deutsch
55 –67
Importer • Dovozce • Dovozca • Importőr • Importeur
Alza.cz a.s.
Jankovcova 1522/53
Prague 7
www.alza.cz

3
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully before first use
and keep this user manual for future reference. Pay particular attention to the safety instructions. If
you have any questions or comments about the device, please contact the customer line.
✉www.alza.co.uk/kontakt
✆+44 (0)203 514 4411

4

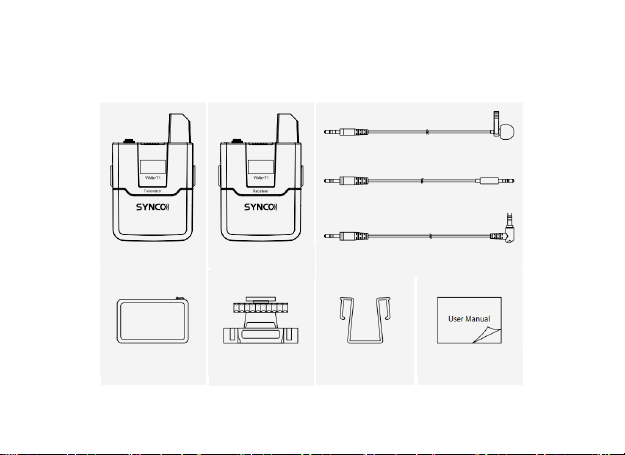

Package List
Transmitter ×1
Receiver ×1
Storage Bag ×1
Cold Shoe
Adapter ×1
Belt Clip ×2
User Manual ×1
Lavalier Mic ×1
3.5mm TRRS Output Cable ×1
3.5mm TRS Output Cable ×1

5
Feature Introduction
•UHF wireless transmission, high-fidelity sound;
•Real-time noise reduction, ensuring a higher signal-to-noise ratio;
•Compatible with smartphones, digital SLR cameras, camcorders, recorders, personal
computers;
•Audio processing chip, minimizing noise in wireless transmission system;
•16 switchable channels for recording without environmental interference;
•Adjustable volume;
•Different status lights for real-time checking;
•Both the receiver and transmitter are powered by two AA batteries;

6
Caring for Your SYNCO WMic-T1 Microphone
•Please keep the product in a dry, clean, dust-free environment.
•Keep corrosive chemicals, liquids and heat source away from the product to prevent
mechanics damage.
•Use only a soft and dry cloth for cleaning the product.
•Malfunction may be caused by dropping, impact of external force.
•Do not attempt to disassemble the product. Doing so voids warranty.
•Please have the product checked or repaired by authorized technicians if any
malfunctions happened.
•Failure to follow all the instructions may result in mechanics damage.
•Warranty does not apply to human errors.

7

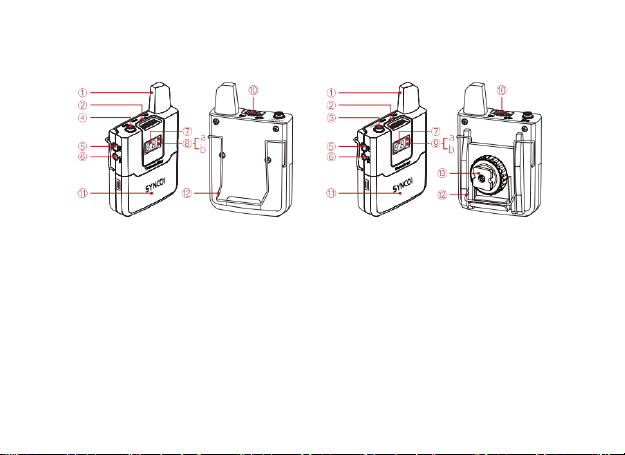

Components Introduction
Transmitter
Receiver
1Antenna
7Screen Display
1Antenna
7Screen Display
2Battery Indicator
8Transmitting
Status Light
2Battery Indicator
9Receiving Status Light
43.5mm Mic Input
Port
10 Power Button
33.5mm Audio
Output Port
10 Power Button
5Channel Button
11 Battery Cover
5Channel Button
11 Battery Cover
6Volume Button
12 Belt Clip
6Volume Button
12 Belt Clip
13 Cold Shoe Adapter

8

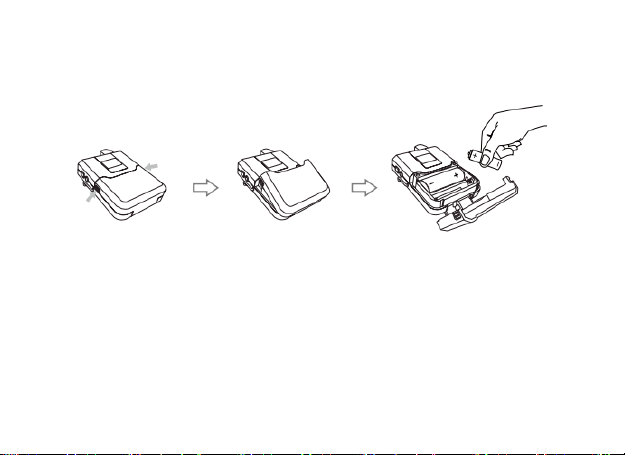

How to Install the Batteries?
1. Battery Requirement: 2pcs × AA batteries
2. Press the two clips to open the receiver/transmitter battery cover
3. Insert two batteries according to the positive and negative electrode
4. Close the battery cover

9
Indicator Light
Receiver
Green Light Flickers (b)
Sound Input
Red Light Keeps on (a)
Channel Matches
Red Light Flickers (a)
Audio Distortion
Transmitter
Green Light Flickers (b)
Sound Input
Battery Indicator
Red Light Flickers
Low Battery Power

10
Operation and Usage
Receiver
1. Attach the cold shoe adapter to the receiver, and mount it on the camera/photographic
equipment.
2. Plug one end of the 3.5mm audio cable into the receiver's "LINE OUT" socket and the other end
into the camera's "MIC" interface.
3. Push the power button to turn on the device
Transmitter
1. Insert the lavalier mic into MIC socket of the transmitter.
2. Push the power button to turn on the device.
3. Clip the receiver on your belt or put it in the pocket.
* Long press “Channel” button to change channel number.
* Press “Volume” button to adjust the sound volume.

11
Specifications –Transmitter
Channel
16
Antenna
¼ Wavelength Wire
Antenna
Frequency Range
572MHz –586MHz
Maximum Input
Level
250 mV
Oscillation Mode
PLL Frequency
Synthesis
Input Impedance
2.2KΩ
Working Distance
≥50 m
Input Gain
Adjustment
1-5 levels adjustable
Transmit Power
13.5dBm
Audio Output
3.5mm
Carrier Frequency
Error
0.005%
Battery
AA 1.5V × 2,120 mA
SNR
>70dB
Dimensions
96 × 60 × 18.8 mm
Harmonic
Radiation
-32dBm
Net Weight
55g (without battery)
Modulation Mode
FSK
Working Temp.
0 °C ~ +50 °C
Maximum
Frequency
Deviation
± 65 KHz
Storage Temp.
-20 °C ~ 60 °C
Dynamic Range
92 dB

12
Specifications –Receiver
Channel
16
Noise Control
Built-in Setting
Parameters
Frequency Range
572MHz –586MHz
RF Sensitivity
When inputting
10dBu, S/N ≥ 45dB
Oscillation Mode
PLL Frequency
Synthesis
Frequency Setting
Manual IR Sync
Receiving Mode
Superheterodyne
Audio Output
3.5mm
Working Distance
≥50 m
Output Impedance
400Ω
SNR
>70dB
Battery
AA 1.5V × 2
Dynamic Range
92 dB
Dimensions
96 × 60 × 18.8 mm
Received Power
13.5dBm
Net Weight
55g (without battery)
Image Rejection
45dBm
Working Temp.
0 °C ~ +50 °C
Antenna
¼ Wavelength Wire
Antenna
Storage Temp.
-20 °C ~ 60 °C

13
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you need repair or
other services during the warranty period, contact the product seller directly, you must provide the
original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for which the
claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended or failing
to follow the instructions for maintenance, operation and service of the product.
•Damage to the product by a natural disaster, the intervention of an unauthorized person or
mechanically through the fault of the buyer (e.g. during transport, cleaning by inappropriate
means, etc.).
•Natural wear and aging of consumables or components during use (such as batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage, electrostatic
discharge voltage (including lightning), faulty supply or input voltage and inappropriate polarity
of this voltage, chemical processes such as used power supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or adaptation to
change or extend the functions of the product compared to the purchased design or use of
non-original components.

14
EU Declaration of Conformity
Identification data of the manufacturer's / importer's authorized representative:
Importer: Alza.cz a.s.
Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7
IČO: 27082440
Subject of the declaration:
Title: Wireless Microphone
Model / Type: SYNCO WMic-T1
The above product has been tested in accordance with the standard (s) used to demonstrate
compliance with the essential requirements laid down in the Directive (s):
Directive No. (EU) 2014/53/EU
Directive No. 2011/65/EU as amended 2015/863/EU
Prague, 23.7.2020

15
WEEE
This product must not be disposed of as normal household waste in accordance with the EU Directive
on Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU). Instead it shall be returned to the
place of purchase or handed over to a public collection point for the recyclable waste. By ensuring this
product is disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste handling of
this product. Contact your local authority or the nearest collection point for further details. Improper
disposal of this type of waste may result in fines in accordance with national regulations.

16
Vážený zákazníku,
děkujeme Vám za zakoupení našeho produktu. Prosíme, pečlivě si přečtěte následující instrukce před
prvním použitím a uživatelskou příručku si uschovejte pro pozdější užití. Zejména dbejte na
bezpečnostní pokyny. Pokud máte jakékoliv dotazy či připomínky ohledně přístroje, prosíme, obraťte
se na zákaznickou linku.
✉www.alza.cz/kontakt
✆+420 255 340 111

17
Obsah balení
Vysílač ×1
Přijímač ×1
Úložná taška ×1
„Cold Shoe“
adaptér ×1
Spona na pásek
×2
Uživatelský
manuál ×1
Lavalierový mikrofon ×1
3.5mm TRRS výstupní kabel ×1
3.5mm TRS výstupní kabel ×1

18
Seznámení s funkcemi
•UHF bezdrátový přenos, vysoce věrný zvuk;
•Redukce šumu v reálném čase zajišťující vyšší poměr signálu k šumu;
•Kompatibilní se smartphony, digitálními zrcadlovkami, videokamerami, rekordéry,
osobními počítači;
•Čip pro zpracování zvuku, minimalizace šumu v bezdrátovém přenosovém systému;
•16 přepínatelných kanálů pro nahrávání bez rušení prostředí;
•Nastavitelná hlasitost;
•Různá stavová světla pro kontrolu v reálném čase;
•Přijímač i vysílač jsou napájeny dvěma bateriemi AA;

19
Péče o váš SYNCO WMic-T1 mikrofon
•Výrobek uchovávejte v suchém, čistém a bezprašném prostředí.
•Udržujte korozivní chemikálie, kapaliny a zdroje tepla v dostatečné vzdálenosti od
produktu, aby nedošlo k poškození mechaniky.
•K čištění výrobku používejte pouze měkký a suchý hadřík.
•Porucha může být způsobena pádem nebo nárazem vnější síly.
•Nepokoušejte se výrobek rozebírat. V opačném případě zaniká záruka.
•Pokud dojde k poruše, nechte výrobek zkontrolovat nebo opravit autorizovaným
technikem.
•Nedodržení všech pokynů může mít za následek poškození mechaniky.
•Záruka se nevztahuje na lidské chyby.

20

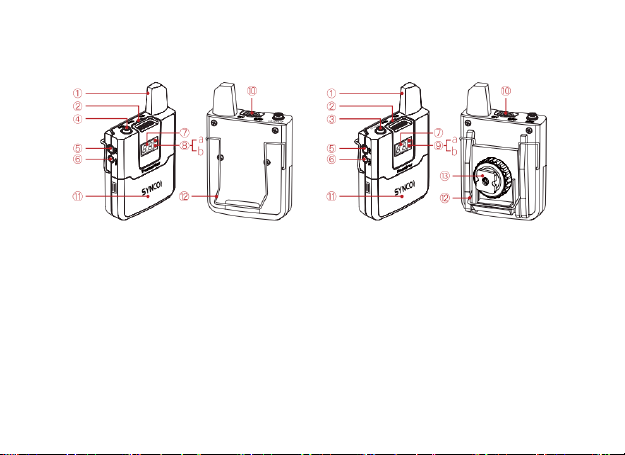

Seznámení s komponenty
1Anténa
7Obrazovka
displeje
1Anténa
7Obrazovka displeje
2Ukazatel baterie
8Kontrolka stavu
vysílání
2Ukazatel baterie
9Kontrolka stavu
přijímání
43.5mm vstupní
port pro mikrofon
10 Zapínací
tlačítko
33.5mm výstupní
port pro audio
10 Zapínací tlačítko
5Tlačítko kanálu
11 Kryt baterie
5Tlačítko kanálu
11 Kryt baterie
6Tlačítko hlasitosti
12 Spona na
pásek
6Tlačítko hlasitosti
12 Spona na pásek
13 “Cold Shoe” adaptér
