Synco WMic-TS Mini User manual

Thank you for choosing SYNCO product.
Please read this manual carefully before use and follow all instructions mentioned
herein.
Microphone WMic-TS Mini User Manual
Caring For Your SYNCO Product
Please keep the product in a dry, clean, dust-free environment.
Keep corrosive chemicals, liquids and heat source away from the product to
prevent mechanics damage.
Use only a soft and dry cloth for cleaning the product.
Malfunction may be caused by dropping, impact of external force.
Do not attempt to disassemble the product. Doing so voids warranty.
Please have the product checked or repaired by authorized technicians if any
malfunctions happened.
Failure to follow all the instructions may result in mechanics damage.
Warranty does not apply to human errors.
Please unfold the TX & RX antennas when using for optimal performance.
Transmitter
Transmitter (TX)
Receiver (RX)
Receiver
Screen Display
Product Instruction
Operation Instructions
Transmitter (TX)
Receiver (RX)

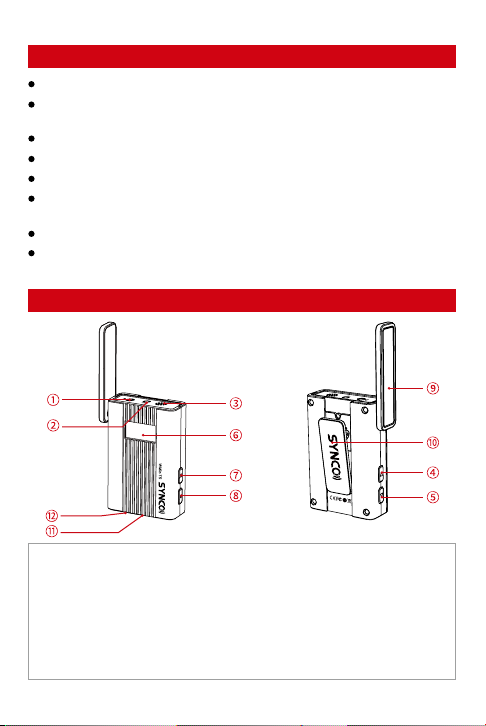

① 3.5mm Mic Input
② IR Indicator
③ Built-in Mic
④ Function Selection Button △
⑤ Function Selection Button ▽
⑥ OLED Screen
① 3.5mm Audio Output Socket
② IR Indicator
③ 3.5mm Audio Monitoring Jack
④ Function Selection Button △
⑤ Function Selection Button ▽
⑥ OLED Screen
⑦ Menu
⑧ Power Button
⑨ Antenna
⑩ Belt Clip
⑪ Type-C Port
⑫ Reset (Help with Eject Pin)
⑦ Menu
⑧ Power Button
⑨ Antenna
⑩ Belt Clip
⑪ Type-C Port
⑫ Reset (Help with Eject Pin)
Signal Strength High
Muting
Normal Recording
Muting（Locking）
Muting（Unlocking）
Power Indicator
Audio Dynamic Display Bar Frequency
Signal Strength Low
Channel
Signal Strength Power Indicator

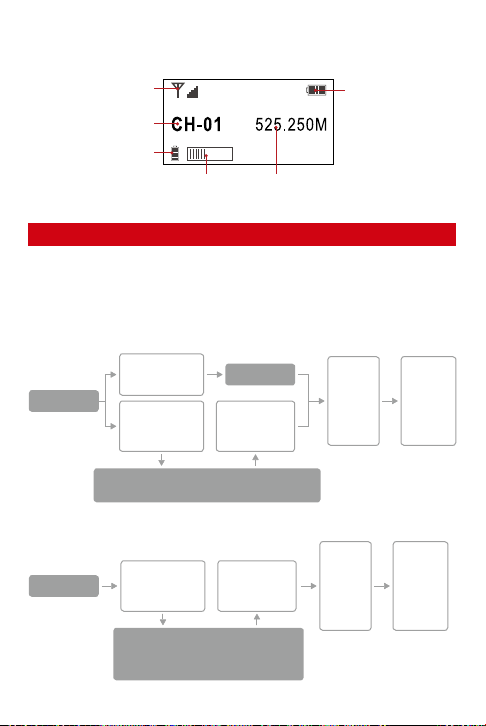

Home page
Home page
Channel
Input/ Low Cut Filter/ RF Power/ Mute/
Backlight/ Language/ Reset Setting
Volume/ Auto scan/ Sync/
Backlight/ Language/ Reset
Setting
long press the
Menu Button to
select
Press Function
Selection Button
△ or ▽ to
switch among
Press Function
Selection Button
△ or ▽ to
switch among
long press the
Menu Button to
select
long press the
Menu Button to
select
Switch
by the
Function
Selection
Button
△ or ▽
Switch
by the
Function
Selection
Button
△ or ▽
Con󽗉rm
by short
pressing
the Menu
Button
Con󽗉rm
by short
pressing
the Menu
Button
Receiving Audio Status Indicator
Channel
Transmitter Power
Frequency
1. Fix the RX on your device via belt clip or cold shoe adapter
2. Connect the RX with your device via the 3.5mm TRS Camera Cable or 3.5mm
TRRS Phone Cable
3. Press the Power Button for 2 seconds to initiate the system

Thank you for choosing SYNCO product.
Please read this manual carefully before use and follow all instructions mentioned
herein.
Microphone WMic-TS Mini User Manual
Caring For Your SYNCO Product
Please keep the product in a dry, clean, dust-free environment.
Keep corrosive chemicals, liquids and heat source away from the product to
prevent mechanics damage.
Use only a soft and dry cloth for cleaning the product.
Malfunction may be caused by dropping, impact of external force.
Do not attempt to disassemble the product. Doing so voids warranty.
Please have the product checked or repaired by authorized technicians if any
malfunctions happened.
Failure to follow all the instructions may result in mechanics damage.
Warranty does not apply to human errors.
Please unfold the TX & RX antennas when using for optimal performance.
Transmitter
Transmitter (TX)
Receiver (RX)
Receiver
Screen Display
Product Instruction
Operation Instructions
Transmitter (TX)
Receiver (RX)
① 3.5mm Mic Input
② IR Indicator
③ Built-in Mic
④ Function Selection Button △
⑤ Function Selection Button ▽
⑥ OLED Screen
① 3.5mm Audio Output Socket
② IR Indicator
③ 3.5mm Audio Monitoring Jack
④ Function Selection Button △
⑤ Function Selection Button ▽
⑥ OLED Screen
⑦ Menu
⑧ Power Button
⑨ Antenna
⑩ Belt Clip
⑪ Type-C Port
⑫ Reset (Help with Eject Pin)
⑦ Menu
⑧ Power Button
⑨ Antenna
⑩ Belt Clip
⑪ Type-C Port
⑫ Reset (Help with Eject Pin)
Signal Strength High
Muting
Normal Recording
Muting（Locking）
Muting（Unlocking）
Power Indicator
Audio Dynamic Display Bar Frequency
Signal Strength Low
Channel
Signal Strength Power Indicator
Home page
Home page
Channel
Input/ Low Cut Filter/ RF Power/ Mute/
Backlight/ Language/ Reset Setting
Volume/ Auto scan/ Sync/
Backlight/ Language/ Reset
Setting
long press the
Menu Button to
select
Press Function
Selection Button
△ or ▽ to
switch among
Press Function
Selection Button
△ or ▽ to
switch among
long press the
Menu Button to
select
long press the
Menu Button to
select
Switch
by the
Function
Selection
Button
△ or ▽
Switch
by the
Function
Selection
Button
△ or ▽
Con󽗉rm
by short
pressing
the Menu
Button
Con󽗉rm
by short
pressing
the Menu
Button
Receiving Audio Status Indicator
Channel
Transmitter Power
Frequency
1. Fix the RX on your device via belt clip or cold shoe adapter
2. Connect the RX with your device via the 3.5mm TRS Camera Cable or 3.5mm
TRRS Phone Cable
3. Press the Power Button for 2 seconds to initiate the system

Thank you for choosing SYNCO product.
Please read this manual carefully before use and follow all instructions mentioned
herein.
Microphone WMic-TS Mini User Manual
Caring For Your SYNCO Product
Please keep the product in a dry, clean, dust-free environment.
Keep corrosive chemicals, liquids and heat source away from the product to
prevent mechanics damage.
Use only a soft and dry cloth for cleaning the product.
Malfunction may be caused by dropping, impact of external force.
Do not attempt to disassemble the product. Doing so voids warranty.
Please have the product checked or repaired by authorized technicians if any
malfunctions happened.
Failure to follow all the instructions may result in mechanics damage.
Warranty does not apply to human errors.
Please unfold the TX & RX antennas when using for optimal performance.
Transmitter
Transmitter (TX)
Receiver (RX)
Receiver
Screen Display
Product Instruction
Operation Instructions
Transmitter (TX)
Receiver (RX)
① 3.5mm Mic Input
② IR Indicator
③ Built-in Mic
④ Function Selection Button △
⑤ Function Selection Button ▽
⑥ OLED Screen
① 3.5mm Audio Output Socket
② IR Indicator
③ 3.5mm Audio Monitoring Jack
④ Function Selection Button △
⑤ Function Selection Button ▽
⑥ OLED Screen
⑦ Menu
⑧ Power Button
⑨ Antenna
⑩ Belt Clip
⑪ Type-C Port
⑫ Reset (Help with Eject Pin)
⑦ Menu
⑧ Power Button
⑨ Antenna
⑩ Belt Clip
⑪ Type-C Port
⑫ Reset (Help with Eject Pin)
Signal Strength High
Muting
Normal Recording
Muting（Locking）
Muting（Unlocking）
Power Indicator
Audio Dynamic Display Bar Frequency
Signal Strength Low
Channel
Signal Strength Power Indicator
Home page
Home page
Channel
Input/ Low Cut Filter/ RF Power/ Mute/
Backlight/ Language/ Reset Setting
Volume/ Auto scan/ Sync/
Backlight/ Language/ Reset
Setting
long press the
Menu Button to
select
Press Function
Selection Button
△ or ▽ to
switch among
Press Function
Selection Button
△ or ▽ to
switch among
long press the
Menu Button to
select
long press the
Menu Button to
select
Switch
by the
Function
Selection
Button
△ or ▽
Switch
by the
Function
Selection
Button
△ or ▽
Con󽗉rm
by short
pressing
the Menu
Button
Con󽗉rm
by short
pressing
the Menu
Button
Receiving Audio Status Indicator
Channel
Transmitter Power
Frequency
1. Fix the RX on your device via belt clip or cold shoe adapter
2. Connect the RX with your device via the 3.5mm TRS Camera Cable or 3.5mm
TRRS Phone Cable
3. Press the Power Button for 2 seconds to initiate the system

Thank you for choosing SYNCO product.
Please read this manual carefully before use and follow all instructions mentioned
herein.
Microphone WMic-TS Mini User Manual
Caring For Your SYNCO Product
Please keep the product in a dry, clean, dust-free environment.
Keep corrosive chemicals, liquids and heat source away from the product to
prevent mechanics damage.
Use only a soft and dry cloth for cleaning the product.
Malfunction may be caused by dropping, impact of external force.
Do not attempt to disassemble the product. Doing so voids warranty.
Please have the product checked or repaired by authorized technicians if any
malfunctions happened.
Failure to follow all the instructions may result in mechanics damage.
Warranty does not apply to human errors.
Please unfold the TX & RX antennas when using for optimal performance.
Transmitter
Transmitter (TX)
Receiver (RX)
Receiver
Screen Display
Product Instruction
Operation Instructions
Transmitter (TX)
Receiver (RX)
① 3.5mm Mic Input
② IR Indicator
③ Built-in Mic
④ Function Selection Button △
⑤ Function Selection Button ▽
⑥ OLED Screen
① 3.5mm Audio Output Socket
② IR Indicator
③ 3.5mm Audio Monitoring Jack
④ Function Selection Button △
⑤ Function Selection Button ▽
⑥ OLED Screen
⑦ Menu
⑧ Power Button
⑨ Antenna
⑩ Belt Clip
⑪ Type-C Port
⑫ Reset (Help with Eject Pin)
⑦ Menu
⑧ Power Button
⑨ Antenna
⑩ Belt Clip
⑪ Type-C Port
⑫ Reset (Help with Eject Pin)
Signal Strength High
Muting
Normal Recording
Muting（Locking）
Muting（Unlocking）
Power Indicator
Audio Dynamic Display Bar Frequency
Signal Strength Low
Channel
Signal Strength Power Indicator
Home page
Home page
Channel
Input/ Low Cut Filter/ RF Power/ Mute/
Backlight/ Language/ Reset Setting
Volume/ Auto scan/ Sync/
Backlight/ Language/ Reset
Setting
long press the
Menu Button to
select
Press Function
Selection Button
△ or ▽ to
switch among
Press Function
Selection Button
△ or ▽ to
switch among
long press the
Menu Button to
select
long press the
Menu Button to
select
Switch
by the
Function
Selection
Button
△ or ▽
Switch
by the
Function
Selection
Button
△ or ▽
Con󽗉rm
by short
pressing
the Menu
Button
Con󽗉rm
by short
pressing
the Menu
Button
Receiving Audio Status Indicator
Channel
Transmitter Power
Frequency
1. Fix the RX on your device via belt clip or cold shoe adapter
2. Connect the RX with your device via the 3.5mm TRS Camera Cable or 3.5mm
TRRS Phone Cable
3. Press the Power Button for 2 seconds to initiate the system

Block 15th, No.200 Fangcun Avenue East, Liwan District, Guangzhou, China, 510000
[e-mail]
www.syncoaudio.com
https://www.facebook.com/syncomicrophones
Guangzhou Zhiying Technology Co., Ltd
WARRANTY CERTIFICATE
USER
INFORMATION
SALES
INFORMATION
REPAIR
RECORD
RESULT
Please register your warranty. Meanwhile, you are welcomed to contact us
via Email：[e-mail]
Customer Name:
Phone Number:
Email:
Address:
Sales Date:
Model:
Product Code:
Dealer:
Service Date:
Technician:
Issue:
Solved Unsolved Returned(Replaced)
Warranty Exclusions and Limitations
Faults resulted from inappropriate use of a product without following its
operation speci󽗉cation
Arti󽗉cial damage, e.g. crash, squeeze, scratch, or soaking
Modi󽗉cations to a product by its user or a third party without prior written
consent of SYNCO, e.g. replacement of element or circuit, label alteration
The code on product is inconsistent with that of warranty certi󽗉cate, or the
code on the product or warranty certi󽗉cate is altered or torn o󽗈
All consumable accessory attached to a product, like cable, wind mu󽗈,
battery
Faults as a result of force majeure, such as 󽗉re, 󽗊ood, lightning, etc.
Warranty Claim Procedure
If failure or any problem occurs to your product after purchase, please contact
a local agent for assistance, or you can always contact SYNCO’s customer
service through email at
[e-mail].
Please retain your sales receipt and warranty certi󽗉cate as proof of purchase.
If any of these documents is missing, only sales return or chargeable service
will be provided.
If the SYNCO product is out of the warranty coverage, the service and the
parts cost will be charged.
Warranty Period
Thank you for purchasing SYNCO products.
1. Customers are entitled to free replacement or repair service in case of quality
defect(s) found in the product under normal use within 30 days upon receipt of
the product.
2. Original SYNCO products are entitled to 12-month limited warranty service.
The warranty period begins on the date of purchase of brand new, unused
products by the 󽗉rst end-user.
Within the warranty period, if product defect or failure is attributable to material
Warranty
Wireless Frequency
Working Distance
Latency
Form Factor
Sound Field
Polar Pattern
Frequency Range
Sensitivity
525~539.750MHz
150m (LOS area), 80m (NLOS area)
＜20ms
1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Mono
Omni-directional
20Hz-20KHz
-38dB
◆ Receiver (RX)
◆ External Lavalier Microphone
Speci󽗉cations
Channels
Wireless Frequency
Working Distance
Latency
RF Output Power
Stray Radiation
Input
Low-cut Filter
Battery
Working Time
Charging Time
Antenna
Dimensions
Weight
Operating Temperature
Storage Temperature
60
525~539.750MHz
150m (LOS area), 80m (NLOS area)
＜20ms
15dBm
<-60dBc
Built-in Mic/External Mic
100Hz
1300mAh Rechargeable Li-ion Battery
8.5H
3H
PCB Antenna
75.5×64×21.5mm
62g
-20℃~70℃
-20℃~70℃
◆ Transmitter (TX)
Receiving Sensitivity
Stray Radiation
SNR
Audio Output Jack
Audio Output
Volume (Gain)
Battery
Working Time
Charging Time
Antenna
Dimensions
Weight
Operating Temperature
Storage Temperature
-95dBm
<-60dBc
88dB
1 x 1/8” / 3.5 mm TRS Line Out
1 x 1/8” / 3.5 mm TRS Headphone Output
Mono
15 Levels Adjustable Volume
1300mAh Rechargeable Li-ion Battery
8.5H
3H
PCB Antenna
75.5×64×21.5mm
72g
-20℃~70℃
-20℃~70℃
4. IR Synchronize the wireless system
Receiver (RX)
2)Press Function Selection Button
to Sync setting and long press Menu
Button to enter
3)Switch to “Yes” by Function
Selection Button and short press
Menu Button to perform
1)Direct the IR Indicator of the RX at that of the TX with a distance of 15-30cm
Transmitter (TX)
/
/
defection or technological problem, the defective product or defective part will
be repaired or replaced without charge (service and materials fee).

Block 15th, No.200 Fangcun Avenue East, Liwan District, Guangzhou, China, 510000
[e-mail]
www.syncoaudio.com
https://www.facebook.com/syncomicrophones
Guangzhou Zhiying Technology Co., Ltd
WARRANTY CERTIFICATE
USER
INFORMATION
SALES
INFORMATION
REPAIR
RECORD
RESULT
Please register your warranty. Meanwhile, you are welcomed to contact us
via Email：[e-mail]
Customer Name:
Phone Number:
Email:
Address:
Sales Date:
Model:
Product Code:
Dealer:
Service Date:
Technician:
Issue:
Solved Unsolved Returned(Replaced)
Warranty Exclusions and Limitations
Faults resulted from inappropriate use of a product without following its
operation speci󽗉cation
Arti󽗉cial damage, e.g. crash, squeeze, scratch, or soaking
Modi󽗉cations to a product by its user or a third party without prior written
consent of SYNCO, e.g. replacement of element or circuit, label alteration
The code on product is inconsistent with that of warranty certi󽗉cate, or the
code on the product or warranty certi󽗉cate is altered or torn o󽗈
All consumable accessory attached to a product, like cable, wind mu󽗈,
battery
Faults as a result of force majeure, such as 󽗉re, 󽗊ood, lightning, etc.
Warranty Claim Procedure
If failure or any problem occurs to your product after purchase, please contact
a local agent for assistance, or you can always contact SYNCO’s customer
service through email at
[e-mail].
Please retain your sales receipt and warranty certi󽗉cate as proof of purchase.
If any of these documents is missing, only sales return or chargeable service
will be provided.
If the SYNCO product is out of the warranty coverage, the service and the
parts cost will be charged.
Warranty Period
Thank you for purchasing SYNCO products.
1. Customers are entitled to free replacement or repair service in case of quality
defect(s) found in the product under normal use within 30 days upon receipt of
the product.
2. Original SYNCO products are entitled to 12-month limited warranty service.
The warranty period begins on the date of purchase of brand new, unused
products by the 󽗉rst end-user.
Within the warranty period, if product defect or failure is attributable to material
Warranty
Wireless Frequency
Working Distance
Latency
Form Factor
Sound Field
Polar Pattern
Frequency Range
Sensitivity
525~539.750MHz
150m (LOS area), 80m (NLOS area)
＜20ms
1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Mono
Omni-directional
20Hz-20KHz
-38dB
◆ Receiver (RX)
◆ External Lavalier Microphone
Speci󽗉cations
Channels
Wireless Frequency
Working Distance
Latency
RF Output Power
Stray Radiation
Input
Low-cut Filter
Battery
Working Time
Charging Time
Antenna
Dimensions
Weight
Operating Temperature
Storage Temperature
60
525~539.750MHz
150m (LOS area), 80m (NLOS area)
＜20ms
15dBm
<-60dBc
Built-in Mic/External Mic
100Hz
1300mAh Rechargeable Li-ion Battery
8.5H
3H
PCB Antenna
75.5×64×21.5mm
62g
-20℃~70℃
-20℃~70℃
◆ Transmitter (TX)
Receiving Sensitivity
Stray Radiation
SNR
Audio Output Jack
Audio Output
Volume (Gain)
Battery
Working Time
Charging Time
Antenna
Dimensions
Weight
Operating Temperature
Storage Temperature
-95dBm
<-60dBc
88dB
1 x 1/8” / 3.5 mm TRS Line Out
1 x 1/8” / 3.5 mm TRS Headphone Output
Mono
15 Levels Adjustable Volume
1300mAh Rechargeable Li-ion Battery
8.5H
3H
PCB Antenna
75.5×64×21.5mm
72g
-20℃~70℃
-20℃~70℃
4. IR Synchronize the wireless system
Receiver (RX)
2)Press Function Selection Button
to Sync setting and long press Menu
Button to enter
3)Switch to “Yes” by Function
Selection Button and short press
Menu Button to perform
1)Direct the IR Indicator of the RX at that of the TX with a distance of 15-30cm
Transmitter (TX)
/
/
defection or technological problem, the defective product or defective part will
be repaired or replaced without charge (service and materials fee).

Block 15th, No.200 Fangcun Avenue East, Liwan District, Guangzhou, China, 510000
[e-mail]
www.syncoaudio.com
https://www.facebook.com/syncomicrophones
Guangzhou Zhiying Technology Co., Ltd
WARRANTY CERTIFICATE
USER
INFORMATION
SALES
INFORMATION
REPAIR
RECORD
RESULT
Please register your warranty. Meanwhile, you are welcomed to contact us
via Email：[e-mail]
Customer Name:
Phone Number:
Email:
Address:
Sales Date:
Model:
Product Code:
Dealer:
Service Date:
Technician:
Issue:
Solved Unsolved Returned(Replaced)
Warranty Exclusions and Limitations
Faults resulted from inappropriate use of a product without following its
operation speci󽗉cation
Arti󽗉cial damage, e.g. crash, squeeze, scratch, or soaking
Modi󽗉cations to a product by its user or a third party without prior written
consent of SYNCO, e.g. replacement of element or circuit, label alteration
The code on product is inconsistent with that of warranty certi󽗉cate, or the
code on the product or warranty certi󽗉cate is altered or torn o󽗈
All consumable accessory attached to a product, like cable, wind mu󽗈,
battery
Faults as a result of force majeure, such as 󽗉re, 󽗊ood, lightning, etc.
Warranty Claim Procedure
If failure or any problem occurs to your product after purchase, please contact
a local agent for assistance, or you can always contact SYNCO’s customer
service through email at
[e-mail].
Please retain your sales receipt and warranty certi󽗉cate as proof of purchase.
If any of these documents is missing, only sales return or chargeable service
will be provided.
If the SYNCO product is out of the warranty coverage, the service and the
parts cost will be charged.
Warranty Period
Thank you for purchasing SYNCO products.
1. Customers are entitled to free replacement or repair service in case of quality
defect(s) found in the product under normal use within 30 days upon receipt of
the product.
2. Original SYNCO products are entitled to 12-month limited warranty service.
The warranty period begins on the date of purchase of brand new, unused
products by the 󽗉rst end-user.
Within the warranty period, if product defect or failure is attributable to material
Warranty
Wireless Frequency
Working Distance
Latency
Form Factor
Sound Field
Polar Pattern
Frequency Range
Sensitivity
525~539.750MHz
150m (LOS area), 80m (NLOS area)
＜20ms
1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
Mono
Omni-directional
20Hz-20KHz
-38dB
◆ Receiver (RX)
◆ External Lavalier Microphone
Speci󽗉cations
Channels
Wireless Frequency
Working Distance
Latency
RF Output Power
Stray Radiation
Input
Low-cut Filter
Battery
Working Time
Charging Time
Antenna
Dimensions
Weight
Operating Temperature
Storage Temperature
60
525~539.750MHz
150m (LOS area), 80m (NLOS area)
＜20ms
15dBm
<-60dBc
Built-in Mic/External Mic
100Hz
1300mAh Rechargeable Li-ion Battery
8.5H
3H
PCB Antenna
75.5×64×21.5mm
62g
-20℃~70℃
-20℃~70℃
◆ Transmitter (TX)
Receiving Sensitivity
Stray Radiation
SNR
Audio Output Jack
Audio Output
Volume (Gain)
Battery
Working Time
Charging Time
Antenna
Dimensions
Weight
Operating Temperature
Storage Temperature
-95dBm
<-60dBc
88dB
1 x 1/8” / 3.5 mm TRS Line Out
1 x 1/8” / 3.5 mm TRS Headphone Output
Mono
15 Levels Adjustable Volume
1300mAh Rechargeable Li-ion Battery
8.5H
3H
PCB Antenna
75.5×64×21.5mm
72g
-20℃~70℃
-20℃~70℃
4. IR Synchronize the wireless system
Receiver (RX)
2)Press Function Selection Button
to Sync setting and long press Menu
Button to enter
3)Switch to “Yes” by Function
Selection Button and short press
Menu Button to perform
1)Direct the IR Indicator of the RX at that of the TX with a distance of 15-30cm
Transmitter (TX)
/
/
defection or technological problem, the defective product or defective part will
be repaired or replaced without charge (service and materials fee).
